Pall WS10 Series User manual

WS10
WS10 Series Water Sensor
service instructions
IMSIWS10
EN WS10 Operating Instructions
ENGLISH

WS10 WS10 Series
WATER SENSOR service instructions
2
GENERAL 3
- Warnings, cautions and notes 3
- Safety instructions 3
- Environmental aspects 3
1. PRODUCT DESCRIPTION 4
1.1 General 4
1.2 Dimensions in mm (inch) 4
2. SPECIFICATION 4
3. INSTALLATION 5
3.1 Installation location 5
3.2 Installing the probe directly
into the process 5
4. ELECTRICAL CONNECTIONS 5
5. MAINTENANCE 5
5.1 Sensor cleaning 5
5.2 Self-diagnostic and
error messages 5
6. ORDERING INFORMATION 5
7. DECLARATION OF CONFORMITY 6
8. TRADEMARKS AND INTELLECTUAL
PROPERTY 7
9. WARRANTY, LIMITATION OF LIABILITY 7
Contents

WARNINGS: THESE ARE INSTRUCTIONS THAT
DRAW ATTENTION TO THE RISK OF INJURY
OR DEATH.
CAUTIONS: THESE ARE INSTRUCTIONS THAT
DRAW ATTENTION TO THE RISK OF DAMAGE
TO THE PRODUCT, THE PROCESS, THE
EQUIPMENT OR THE SURROUNDINGS.
IMPORTANT: THESE ARE INSTRUCTIONS THAT
DRAW ATTENTION TO INFORMATION THAT
WILL AID INSTALLATION, OPERATION OR
MAINTENANCE.
WS10 WS10 Series
WATER SENSOR service instructions
3
Features
The Pall WS10 Series water sensor is an in-line, monitoring
solution for measuring dissolved water content in hydraulic,
lubricating and insulating fluids. Specifically designed for use
in harsh and often remote industrial environments, readings
are transmitted continuously to the user’s control system as
a key component in the predictive maintenance of plant
and machinery.
•A sensing probe directly immersed in the fluid to monitor
dissolved Water content and temperature
•Water content output in % saturation
•High pressure option up to 100 bar (1450 psi)
•Two analogue outputs, 4–20 mA, for connections to existing
SCADA and DCS systems
GENERAL
The manual is a part of the scope of supply and serves
to ensure proper handling and optimum function of the
instrument. For this reason, the manual must be read
before start-up.
In addition, the manual is for all personnel who require
knowledge concerning transport, setup, operation,
maintenance and repair. The manual must not be used for
the purpose of competition without a written consent from
Pall and must also not be forwarded to third parties.
Copies for personal use are permitted.
All information, technical data and illustrations contained in
these instructions are based on information available at the
time of publication.
WARNINGS, CAUTIONS AND NOTES
Care must be taken in referring to this manual to ensure
adherence with all warnings, cautions and important notes.
These carry information related to the safety of personnel and
the integrity and satisfactory operation of plant.
ENGLISH
Safety instructions
General Safety Instructions
•Excessive mechanical loads and incorrect usage
should always be avoided.
•Do not remove the filter cap as the sensor element
could be damaged.
•Installation, electrical connection, maintenance and
commissioning should be performed by qualified
personnel only.
Environmental aspects
At the end of its life, the monitor should be dismantled
and disposed of in accordance with all applicable local
waste disposal laws and bylaws. Where facilities exist,
component parts of the unit may be recycled. Details of
the materials of construction are given on the product
installation drawing and, if required, more detailed
information regarding specific items may be obtained
from Pall or an approved agent.
In Europe under the Waste Electrical and Electronic
Equipment (WEEE) Directive and implementing
regulations, when customers buy new electrical and
electronic equipment from Pall they are entitled to:
Send old equipment for recycling on a one-for-one,
like-for-like basis (this varies depending on the country).
The customer is also entitled to send the new equipment
back for recycling when this ultimately becomes waste.
Instructions to both customers and recyclers/treatment
facilities wishing to obtain disassembly information are
provided by following the link below.
www.pall.com/weee
If component parts of the equipment were previously
contaminated with the service fluid, an appropriate
Manufacturer’s Safety Data Sheet (MSDS) for the
fluid should be obtained and read to ensure that
contaminated component parts are disposed of safely.

WS10 WS10 Series
WATER SENSOR service instructions
4
2. SPECIFICATION
Measuring Values
Humidity Sensor
Measuring range: 0...100 % Rh
Accuracy incl. hysteresis ±2.0 % Rh (0...90 % Rh)
and nonlinearity in air: ±3.0 % Rh (90...100 % Rh)
Traceable to internal
standards, administrated by
NIST, PTB, BEV...
Temperature dependence % Rh: ±(0.022 + 0.02 x % Rh) x ΔT [°C]
ΔT = T - 20 °C
T: ±(0.0003 °C/°C)
Temperature Sensor
Working range sensing probe: -25...125 °C (-13...257 °F)
Outputs
Two analogue outputs for 4-20 mA Load <500 Ohm
% Saturation and Temperature: Out 1 = 0 to 100 %
Out 2 = -25 °C to 125 °C
(-13 °F to 257 °F)
General
Supply voltage: 21...28V DC
Current consumption at 24V DC:Typically 80mA
Pressure range: 0...20 bar (0...290 psi)
or 0...100 bar (0...1450 psi)
Housing / Protection class: Al Si 9 Cu 3 / IP65
Electrical connection: M12 connector
Fluid temperature range: -40...125 °C (-40...257 °F)
Electronics temperature range: -40...80 °C (-40...176 °F)
Storage temperature range: -40...60 °C (-40...140 °F)
Electromagnetic compatibility: according to EN61326-1,
EN61326-2, EN61326-3.
FCC Part 15 Class B.
Industrial Environment
ICES-003 Class B.
1. PRODUCT DESCRIPTION
1.1 General
The Pall WS10 Water sensor was designed for the
measurement of water content in oil. WS10 is
used for online monitoring of moisture in
lubrication or insulation oil, which is very
important for the long-term performance and
preventive maintenance of plant and machinery.
Humidity measurement in oil is similar to the
humidity measurement in the air; the actual water
content in oil can be indicated by the relative
value % RH.
% RH (actual water content expressed as a
fraction of the water content in saturated oil) and
called percent relative humidity (% RH). % RH = 0
corresponds to completely water-free oil, while %
RH = 100 indicates saturated oil. Saturation is the
point where oil holds as much water as possible
in solution, any further addition of water will result
in the presence of droplets of free water. % RH
measurement with the WS10 transmitter is based
on the outstanding long term stability and
resistance to pollution of the capacitive sensor
elements.
The WS10 transmitter has two analogue outputs,
4–20mA, for connection to customers existing
SCADA and DCS systems. The analogue outputs
represent humidity in % RH, and temperature. If
oil is cloudy due to free water contamination at
the measurement temperature, the WS10 Water
Sensor will output a signal that represents 100 %
saturation, until steps are taken to bring the water
content below the saturation point.

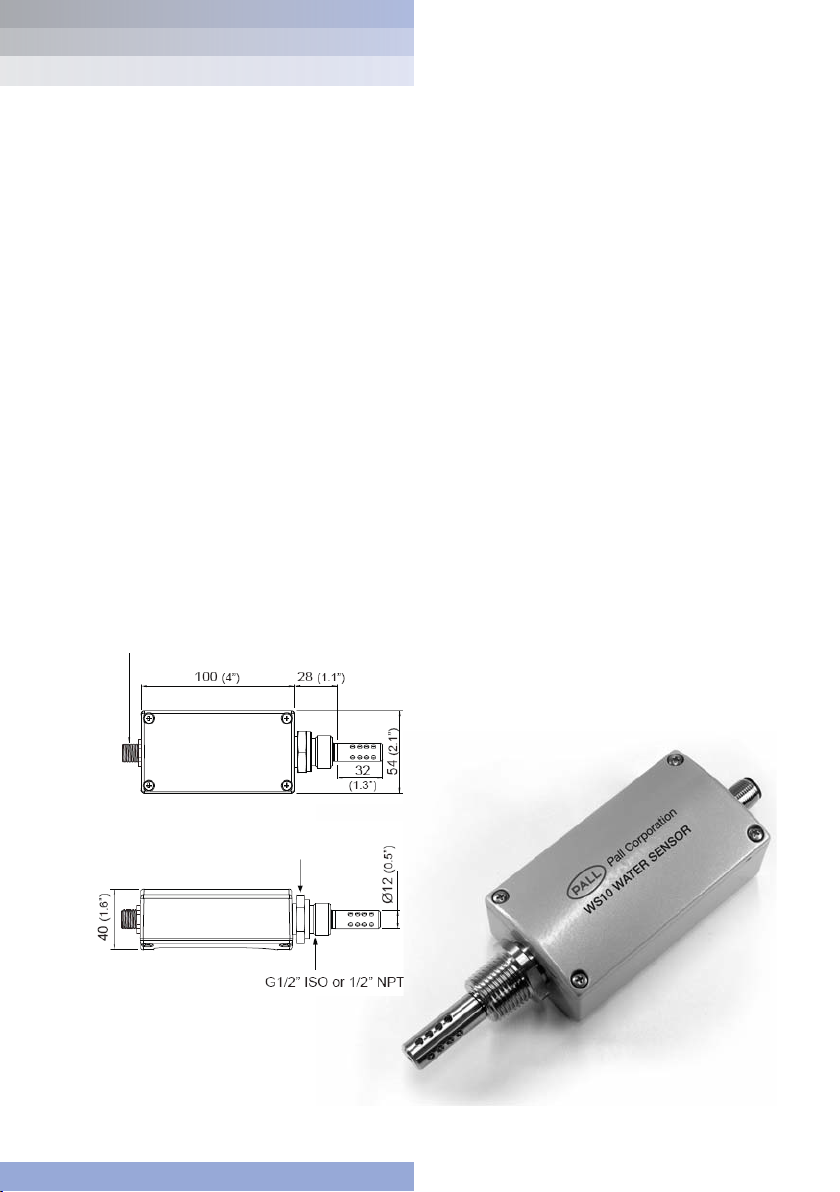

1.2 Dimensions in mm (inch)
M12 connector
spanner width:
27 or 24

WS10 WS10 Series
WATER SENSOR service instructions
ENGLISH
5
5. MAINTENANCE
5.1 Sensor cleaning
Cleaning of the measuring head is recommended
before use with another fluid and prior to
calibration. Do not touch or rub the sensing
element during the cleaning process!
Cleaning of sensor from oil residue:
1) Immerse only the measuring head in
N-HEPTAN and swirl for approx. 30 seconds.
Do not use solvents such as acetone.
2) Remove excess liquid and allow to air dry for
approx. 2 minutes.
5.2 Self-diagnostic and error messages
LED D1 (blue):
- constantly lit => sensor element damaged
- flashing => sensor element bedewed (Wet with
free water)
6. ORDERING INFORMATION
3. INSTALLATION
3.1 Installation location
The Water Sensor enclosure is designed in
modular form for safe and convenient installation.
The M12 connector allows for electrical wiring of
the Water Sensor for power and sensor output.
Each section of the enclosure fits securely to
achieve at least IP65 moisture protection rating.
Select a location that offers optimum measuring
conditions, the oil must be representative of the
system as a whole and must be able to circulate
freely around the sensing element. Mount the
transmitter directly into the circulating system,
in a pipe that is always full of oil. Reservoir
mounting is not ideal unless the reservoir
residence time is short.

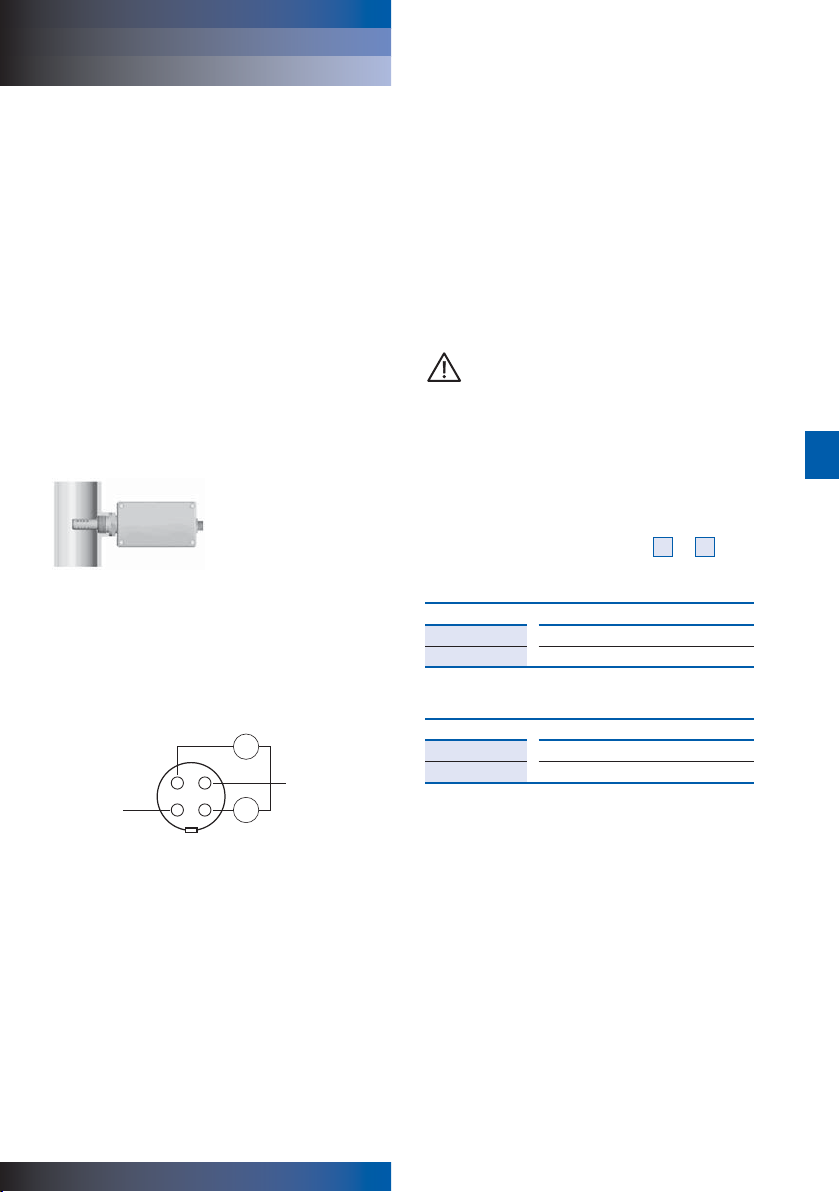

3.2 Installing the probe directly into the process
When installing a probe directly into the process,
there should be a stop valve on both sides of the
point of installation.
This makes it easy to remove the transmitter for
maintenance and calibration.
Step 1: Install the probe with the
stop valves closed.
It is not permitted to use a sealing
ring with a NPT 1/2" thread.
Appropriate PTFE sealing tape or
sealant should be used instead.
Step 2: Insert the probe into the
process and screw it as tight as
possible by hand.
Step 3: If there is a sealing ring,
check it for correct centering and
tighten the screw connection with
a torque of 30 Nm.
4. ELECTRICAL CONNECTIONS
Male connector
1 V+
2 output 1
3 GND
4 output 2
4GND
V
+
3
12 mA
mA
Warning:
It is strongly advised NOT to try cleaning the sensor
by mechanical means, such as rubbing the sensor
with any type of wiper!
Water Sensor P/N: WS10 S
Table 1 Table 2
Table 1: Relay Options
Code Probe Options
B08 ½ NPT connector
C08 ½ BSPP connector
Table 2: Probe Options
Code Pressure Options
None 20 bar (290 psi) Standard
H100 bar (1450 psi) High Pressure

WS10 WS10 Series
WATER SENSOR service instructions
6
7. DECLARATION OF CONFORMITY
PALL EUROPE
AdIvision of Pall Corporation
DECLARATION OF CONFORMITY
PRODUCT DESCRIPTION: FIXED INSTALLATION WATER SENSOR
PRODUCT PART NUMBER: WS10C08, WS10B08, WS10C08H, WS10B08H
SERIAL NUMBER: SEE NAMEPLATE
On behalf of the Pall Europe division of Pall Corporation, we hereby declare that the above product complieswith the
following transposed harmonised standards:
BSEN ISO 14121-1:2007 Safety of Machinery – Risk Assessment
EN61326-1: 2006 Electrical equipment for measurement, control and laboratory use – EMC requirements
General requirements.
EN61326-2-3: 2006 Electrical equipment for measurement, control and laboratory use. EMC requirements.
Test configuration, operational conditionsand performance criteria for transducerswith
integrated or remote signal conditioning
ICES-003 ClassB ThisInterference-Causing Equipment Standard setsout the technical requirements
relative to the radiated and conducted radio noise emissionsfrom digital apparatus.
FCC Part 15 ClassB Coversthe regulationsunder which an intentional, unintentional, or incidental radiator can
be operated without an individual license.
BSEN60529 : 1992 Degreesof Protection Provided by Enclosures
Thiscompliance issufficient to meet the requirementsof the EC Machinery Directive 98/79/EC, and the Low Voltage
Directive 2006/95/EC. Thisproduct must be regularly serviced by Pall and /or their approved agent for the declaration
to remain effective after shipment.
J.Collard, Engineering ‘Projects’ Manager
For and on behalf of:
Pall Machinery and Equipment

WS10 WS10 Series
WATER SENSOR service instructions
7
ENGLISH
8. TRADEMARKS AND INTELLECTUAL
PROPERTY
The design of this equipment, software and supporting
documentation is the intellectual property of Pall Europe Ltd
and is subject to copyright.
NOTE: Pall and are trademarks of Pall Corporation.
® indicates a trademark registered in the USA.
Filtration. Separation. Solution.SM is a service mark of Pall
Corporation.
9. WARRANTY, LIMITATION OF LIABILITY
There is no warranty of merchantability or fitness for any
particular purpose with respect to any of the products,
nor is there any other warranty express or implied, except as
provided for herein.
For a period of twelve months from the date of delivery from
the Seller or three thousand hours of use, whichever occurs
first (the “Warranty Period”), the Seller warrants that products
manufactured by the Seller when properly installed and
maintained, and operated at ratings, specifications and
design conditions, will be free from defects in material
and workmanship.
The Seller’s liability under any warranty is limited solely (at the
Seller’s discretion) to replacing (FOB original ship point),
repairing or issuing credit for products which become defective
during the Warranty Period. The Purchaser shall notify the
Seller promptly in writing of any claims and provide the Seller
with an opportunity to inspect and test the product claimed
to be defective.
Buyer shall provide the Seller with a copy of the original invoice
for the product, and prepay all freight charges to return any
products to the Seller's factory, or other facility designated by
the Seller. All claims must be accompanied by full particulars,
including system operating conditions, if applicable.
The Seller shall not be liable for any product altered outside
of the Seller's factory except by the Seller or the Seller's
authorized distributor, and then, as to the latter, only for
products which have been assembled by the distributor in
accordance with the Seller's written instructions. Nor shall
the Seller be liable for a product subjected to misuse, abuse,
improper installation, application, operation, maintenance
or repair, alteration, accident or negligence in use, storage
transportation or handling.
In no event will the Seller be liable for any damages, incidental,
consequential or otherwise, whether arising out of or in
connection with the manufacture, packaging, delivery, storage,
use, misuse, or non use of any of its products or any other
cause whatsoever.
LIABILITY
Pall does not accept warranty and liability claims either upon
this publication or in case of improper treatment of the
described products.
The document may contain technical inaccuracies and
typographical errors.
The content will be revised on a regular basis. These changes
will be implemented in later versions. The described products
can be improved and changed at any time without prior notice.
Because of developments in technology this data or
procedures may be subject to change. Consequently we
advise users to review their continuing validity annually.
Part numbers appearing in this manual are protected by
the Copyright of Pall Europe Limited.
USA
FCC notice:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the installation manual, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
CANADIAN
ICES-003 notification:
This Device B digital apparatus complies with Canadian
ICES-003.
CAUTION:
Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate this device.

© Copyright 2010, Pall Corporation. Pall and are trademarks of Pall Corporation.
® indicates a trademark registered in the USA. Filtration. Separation. Solution.SM is a service mark
of Pall Corporation.
April 2010. Printed in England. IMSIWS10
Visit us on the Web at www.pall.com
Pall Corporation has offices and plants throughout the world. For Pall representatives in
your area, please go to www.pall.com/contact
Because of technological developments related to the products, systems, and/or
services described herein, the data and procedures are subject to change without
notice. Please consult your Pall representative or visit www.pall.com to verify that this
information remains valid.
Pall Industrial Manufacturing
25 Harbor Park Drive
Port Washington, NY 11050
[phone] telephone
[phone] toll free US
Portsmouth - UK
[phone] telephone
[phone] fax
WS10 WS10 Series
WATER SENSOR service instructions
