panana MWJG-2 User manual

3-Drawer Mobile Wooden Filing Cabinet
MWJG-2 Assembly Manual
MWJG-2 Assembly Manual
01/24
H
Climbing Prohibit
Maintenance skills
Maintenance skills
120

MWJG-2 Assembly Manual
02/24

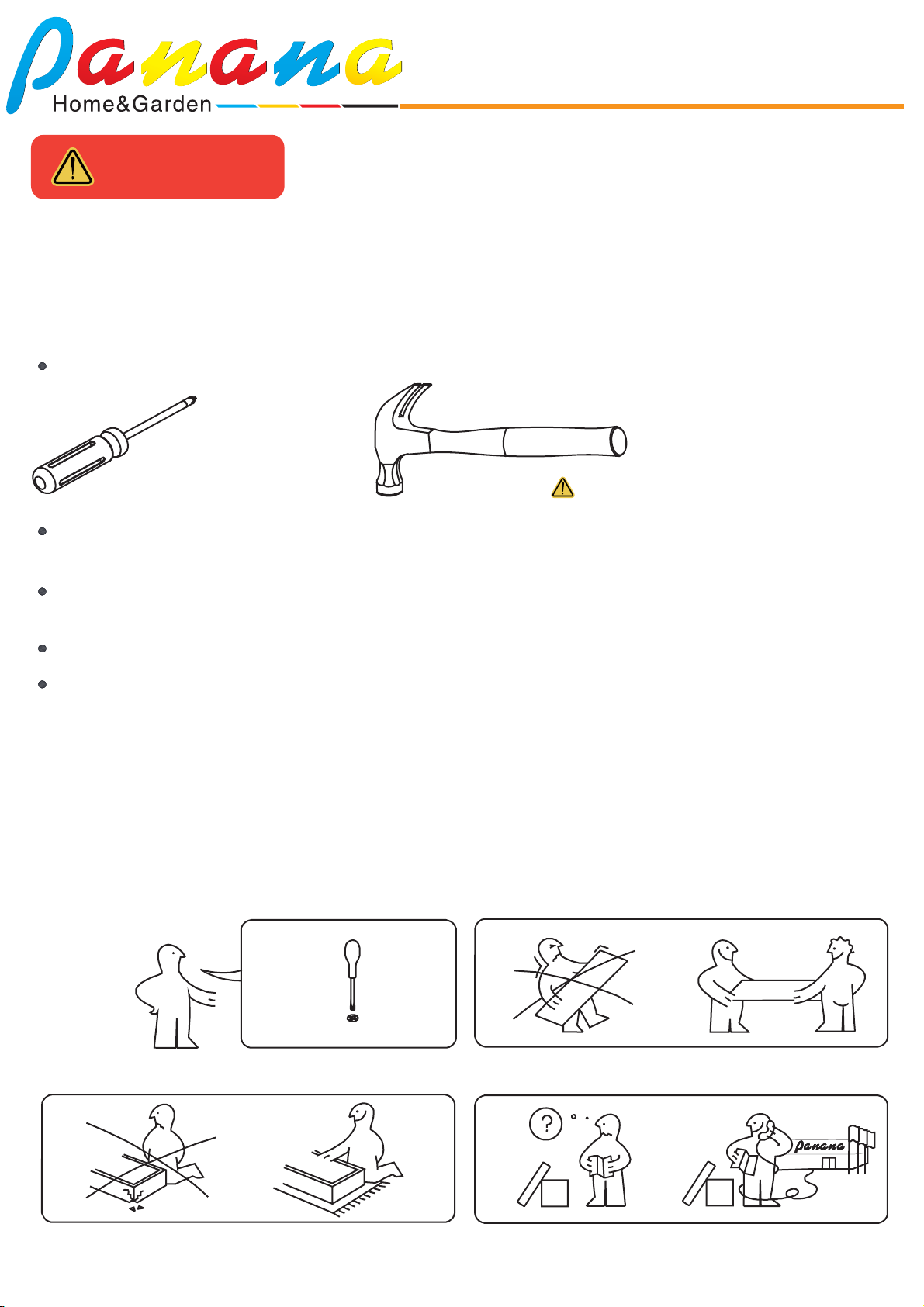

Keep all parts out of the children’s reach.
NOTE
crosshead screwdriver
Place all the panels on a clean and smooth surface, such as a rug orcarpet,
to prevent them from being scratched.
Make sure that all parts in your product package, including panels and
accessories, match up with those listed in the Panels & Accessories list.
Don’t tighten screws or bolts until all the pieces are fitted.
It is recommended to have 2 persons to complete the assembly.
CONTACT US
You need to have a crosshead screwdriver and hammer beforehand.
Both not included in package.
hammer
IMPORTANT: Tipping can injure young children.
NOTE
①Safe carriage,multi-people are needed.
②Handle with care,protective layer is required. ③In case of any doubts,contact Panana.
Home&Garden
WARNING
Ifyou haveanyiss
uer
egardingtheproduct, pleasec
ontactus;
The paperversionis notcle
ar,please contactcustomerservicetoo
btaint
he
electronic version.

MWJG-2 Assembly Manual
03/24
⑧
⑨
⑩
⑪
⑫
⑬
⑩
⑪
⑫
⑬
⑫
①
②
③
⑤
④
⑥
⑦
⑦
⑭
⑮
⑯
⑰
⑱
Exploded View
Note:
The accessories list is classified by the smallest packaging unit, and the kit accessories
represent the matching accessories and are packed in a separate package.
In order to facilitate installation, the panel has pre-drilled positioning holes for the
accessories. When installing, only need to match the mounting holes of the accessories
with the pre-drilled holes on the panel and lock them with the matching screws. For
details, see the relevant installation instructions.
Carpet
It is recommended to install
on soft pads such as carpets

MWJG-2 Assembly Manual
04/24
Item
no. Reference Image Qty.
Please check the Panel list before installation.
Panel List
X1
①
X1
②
X1
③
X1
④
X1
⑤
X1
⑥
X1
⑦
X1
⑧
X1
⑨
Item
no. Reference Image Qty.
X2
⑩
X2
⑪
X2
⑫
X2
⑬
X1
⑭
X1
⑮
X1
⑯
X1
⑰
X1
⑱

Backplane-nail
MWJG-2 Assembly Manual
05/24
C
Mini Cam Lock Nuts
24X
12X
12X
12X
51X
12X
20X
2X
1X
9
Bottom-Mount Drawer Slide Kit
Detachable
14''
G(A)L
G(B)L
G(A)R
G(B)R
Symmetrical parts
14''
F(A)L
F(A)R
F(B)L F(B)R
3-Section Ball Bearing Slide Rail Kit
Detachable The same left and right
L
M
N
O
P
Q
J
K
2X
2X
1X
3X
24X
1X
2X
4X
Cabinet Lock Kit
L1
L2
L1
L1
L1
L3
L4
Handle Kit
M1
M2
Shelf Support Nails
File Lever
Cam Lock Nuts Cover
Anti-tipping caster

MWJG-2 Assembly Manual
06/24
How to u
How to us
e
e
SCAN QR CODE TO WATCH THE VIDEO
HOW TO USE A
HOW TO USE A,B,
C,D
C,D
B for cabinet body,
C(mini) for drawer
×
ERROR
ERROR
4DSFXBDDFTTPSJFTWFSUJDBMMZJOUPUIF
QSFESJMMFEIPMFJOUIFQBOFMCZIBOEBT
TIPXOJOUIFHVSF
$SPTTIFBE4DSFXESJWFS
A
AA
A
A
CORRECT
CORRECT
ABCD
C
Bor
&/463&5)&3&*4/0("1
#&58&&/5)&1"/&-4
×
RIGHT TURN
UNTIL TIGHT
5IFSFMBUJPOTIJQPGEVSJOHJOTUBMMBUJPO
4UFQ 4UFQ 4UFQ
D
A
D
AB C D
D
C
Bor
B for cabinet body,
C(mini) for drawer
1.
2.
3.
RIGHT TURN
UNTIL TIGHT
IMPORTANT PRECAUTIONS
IMPORTANT PRECAUTIONS
Pre-drilled Pre-drilled

MWJG-2 Assembly Manual
07/24
Pre-drilled
Pull out this part
until it stops. At this
time, can see all
the mounting holes.
Pre-drilled
G(A) 2XF(A) 1X E 18X
1
G(A)L G(A)R
G(A)L G(A)R
F(A)R
F(A)R
F(A)L
G(A)L
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
②X1
③X1
When installing, please make sure that the
screws are flat and not skewed;otherwise,
the drawer will not be perfectly assembled.
13&44
16--
-FWFS
F
F(A) F(B)
Before installing F, disassemble F into F(A) and F(B)
Mounted on drawer side panelsMounted on panels ③, ④
FRONT
Small Slider
E
E
TOP
FRONT
Pre-drilled

MWJG-2 Assembly Manual
08/24
G(A)
G(A)
Pre-drilled holes match F(A), G(A) mounting holes
1st
4th
8th13th
1st
4th
8th13th
1st
2th
8th13th
After the previous step is completed, please check whether
the accessories are in the position as shown in the figure, if
not, please adjust them in time to prevent installation failure!
E E E
E E E
E E E
Small Slider
Pull out this part until it stops.
At this time, can see all the
mounting holes.
F(A)
IMPORTANT PRECAUTIONS
IMPORTANT PRECAUTIONS
TOP
FRONT

MWJG-2 Assembly Manual
09/24
D 12X
2
D
D
D
D
D
D
D
D
D
D
D
D
②x1
③x1
④x1
D
BOTTOM
BOTTOM
BACK
BACK

MWJG-2 Assembly Manual
10/24
A 12X
3
①x1
⑤x1
Notch
A
A
A
A
A
A
A
A
A
A
A
A
LEFT
FRONT
×
×
ERROR
ERROR
A
A
CORRECT
CORRECT
A
Pre-drilled
FRONT
LEFT

MWJG-2 Assembly Manual
11/24
②x1
③x1
①x1
④x1
B
B
B
B
B
B
B 6X
4
RIGHT TURN
UNTIL TIGHT
Crosshead
Screwdriver
ENSURE THERE IS NO GAP
BETWEEN THE PANELS
LEFT
TOP
FRONT
Drawer Slide Side
Holes on
the inside
Shelf Holes Side

MWJG-2 Assembly Manual
12/24
B
B
B
B
B 6X
5
B
②x1
⑤x1
④x1
③x1
①x1
LEFT
BOTTOM
FRONT
B

MWJG-2 Assembly Manual
13/24
After the cabinet is installed, check whether the cabinet is
in the state shown in the figure below; if there is any
deviation, you can gently push the top panel to fine-tune;
the state shown in the figure is good, and the back panel
is fixed to make the whole cabinet stable.
90°
90°
Notch
F(A)L F(A)R
G(A)L G(A)R
G(A)L G(A)R
90°
90°
90°
90°
90°
90°
Ho
w
w t
o
o fine-tunin
g
g th
e
e cabinet.
IMPORTANT PRECAUTIONS
IMPORTANT PRECAUTIONS

MWJG-2 Assembly Manual
14/24
I 20X
6
⑦x1
⑦⑦
The panel ⑦ plays a great role in the stability of the whole cabinet.
If panel ⑦ is not in the state indicated by "Picture 1" after ordering,
please remove the back panel and adjust it before ordering panel ⑦,
otherwise it will affect the alignment of the panel and the
smoothness of the drawer opening.
IX20

MWJG-2 Assembly Manual
15/24
7
Ex4
Ex4
Ex4
Ex4
K
K
K
J
J
Ex4
E 16X J 2X K 2X
"OPEN" "LOCK"
How to use "J"

HH
CC
MWJG-2 Assembly Manual
16/24
8
E 4X A 4X C 4X H 4XG 1X
A
C
A
A
A
C
⑪x1
⑩x1
⑨x1
⑬x1
⑫x1
⑨x1
Step 1
Step 2
HH
E
EE
E
E
 
(B)
G(B)R
G(B)L
G(B)L
STEP 1
Drawer installation
STEP 2
Drawer installation
STEP 3
Drawer installation
STEP 4
Drawer installation
⑩x1
⑪x1
⑨x1
×
×
ERROR
ERROR
A
A
CORRECT
CORRECT
A
Pre-drilled

HH
CC
H 4X
MWJG-2 Assembly Manual
17/24
9
E 4X A 4X C 4X G 1X
A
C
A
A
HH
A
C
⑪x1
⑩x1
⑧x1
⑬x1
⑫x1
⑧x1
Step 1
Step 2
HH
E
EE
E
E
 
(B)
G(B)R
G(B)L
G(B)L
⑩x1
⑪x1
⑧x1
STEP 1
Drawer installation
STEP 2
Drawer installation
STEP 3
Drawer installation
STEP 4
Drawer installation
×
×
ERROR
ERROR
A
A
CORRECT
CORRECT
A
Pre-drilled

H 4X Q 1X
AA
AA
⑱x1
⑰x1
Step 1
HH
HH
MWJG-2 Assembly Manual
18/24
10
E 9X A 4X C 4X F 1X
(B)
Ex3
Q
⑭x1
CC
⑭x1
E
E
E
E
F(B)R
F(B)L
F(B)R
⑮x1
⑯x1
CC
⑭x1
⑯x1
⑮x1
Step 2
a
b
c
F(B)
a
a
b
c
STEP 1
Drawer installation
STEP 2
Drawer installation
STEP 3
Drawer installation
STEP 4
Drawer installation
×
×
ERROR
ERROR
A
A
CORRECT
CORRECT
A
Pre-drilled

11
M 3X L 1X O 2X
MWJG-2 Assembly Manual
19/24
⑭x1
L1
L2
L1
L1
L1
L3
L4
M1
M2
M1
M1
M2
M1
M1
M1
M1
M2
M2
L3
L2
L1
O
O
Step 1
Step 2
Step 2
⑧x1
⑨x1
Top
Accessories Installation
Drawer
Drawer
Middle
Accessories Installation
Drawer
Drawer
Bottom
Accessories Installation
Drawer
Drawer

MWJG-2 Assembly Manual
20/24
12
N 4X
N
Step 1
Step 2
⑥x1
35mm
48mm
FRONT
