Panasonic CS-HZ25TKE-5 User manual

Dansk Suomi Norsk Svenska English
Model No.
Indoor Unit Outdoor Unit
CS-HZ25TKE
CS-HZ35TKE
CS-HZ25TKE-5
CU-HZ25TKE
CU-HZ35TKE
CU-HZ25TKE-5
Operating Instructions
Air Conditioner
Operating Instructions
Air Conditioner
2-15
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
The included Installation Instructions should be kept and
read by the installer before installation.
Remote control is packaged in the indoor unit and
removed by the installer before installation.
Bruksanvisning
Luftkonditionering
16-29
Innan du använder enheten, läs noga igenom denna
bruksanvisning och spara den för framtida bruk.
De medföljande installationsanvisningarna ska sparas och
läsas av installatören före installationen.
Fjärrkontrollen fi nns i inomhusenheten och tas bort av
installatören före installationen.
Bruksanvisninger
Klimaanlegg
30-43
Les bruksanvisningen nøye før du bruker denne
enheten, og oppbevar den for fremtidig bruk.
Installatøren bør oppbevare og lese de medfølgende
installasjonsinstruksene før installasjon. Fjernkontrollen
skal pakkes inn i innendørsenheten og fjernes av
installatøren før installasjon.
Käyttöohjeet
Ilmastointilaite
44-57
Lue nämä käyttöohjeet huolellisesti ennen yksikön
käyttämistä ja säilytä ne tulevaisuutta varten.
Sisällytetyt asennusohjeet tulee pitää ja lukea asentajan
toimesta ennen asennusta.
Kaukosäädin on pakattu sisätilayksikköön ja poistetaan
asentajan toimesta ennen asennusta.
Betjeningsvejledning
Klimaanlæg
58-71
Læs brugsanvisningen grundigt igennem før du
benytter anlægget og gem den til fremtidig brug.
De inkluderede installationsinstruktioner skal opbevares og
læses af montøren før installationen.
Fjernbetjeningen er pakket i den indendørs enhed og
fjernet af montøren inden installationen.
ACXF55-11490
00_ACXF55-11490_YC0617-0.indb 100_ACXF55-11490_YC0617-0.indb 1 5/31/2017 8:50:20 AM5/31/2017 8:50:20 AM

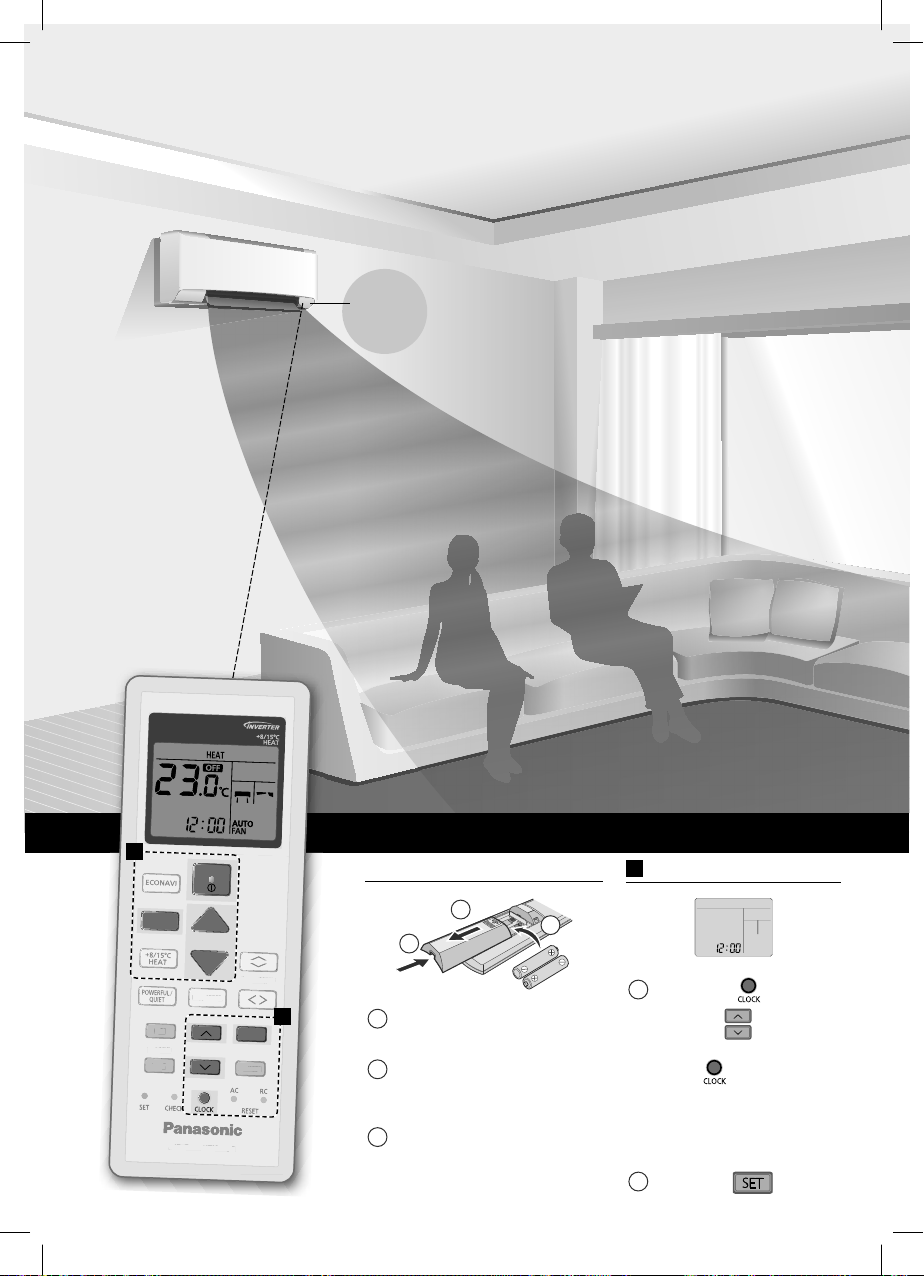

2

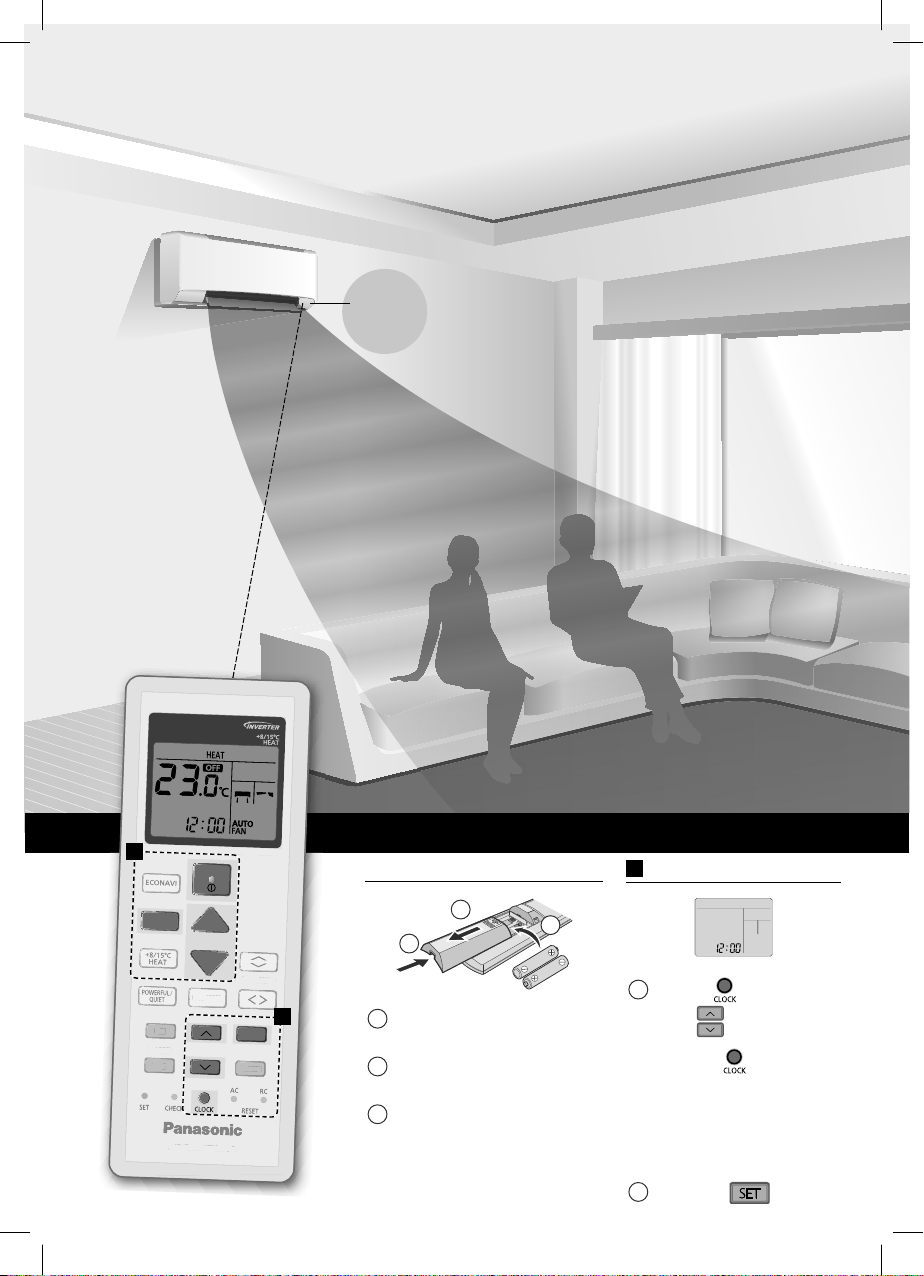

Provides maximum comfort and clean air
with optimal energy saving methods.
Sunlight sensor and
remote control receiver
Quick Guide
Inserting the batteries
12
3
1 Pull out the back cover
of remote control.
2
Insert AAA or R03
batteries.
3 Close the cover.
A Clock setting
1 Press and
set the
time .
• Press and hold
for approximately
5 seconds to show
time in 12-hour
(am/pm) or 24 hour
indication.
2 Confi rm .
Use remote
control within 8 m
from the remote
control receiver of
the indoor unit.
AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
AIR SWING
TEMP
OFF/ON
AIR CONDITIONER
ON
OFF
TIMER
CANCEL
FAN SPEED
AIR SWING
A
B
00_ACXF55-11490_YC0617-0.indb 200_ACXF55-11490_YC0617-0.indb 2 5/31/2017 8:50:20 AM5/31/2017 8:50:20 AM

3
English
Econavi
The intelligent sunlight sensor
monitors sunlight intensity.
See “To learn more...” for details.
Table of contents
Safety precautions.................. 4-7
How to use........................ 8-9
To learn more... .................10-11
Cleaning instructions................
12
Troubleshooting...................
13-15
Information............................... 72
B Basic operation
1 Press
MODE
to select
the desired mode.
AUTO
HEAT COOL
FAN DRY
2 Press to start/
stop the operation.
POWER
• Please note that
the indication
is on display to
start the unit.
3 Select the desired
temperature.
Up
Down
Selection range:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
• Press and hold for
approximately 10 seconds
to switch the temperature
indication in °C or °F.
Thank you for purchasing Panasonic
Air Conditioner.
WARNING
This symbol shows that this
equipment uses a fl ammable
refrigerant. If the refrigerant
is leaked, together with an
external ignition source,
there is a possibility of
ignition.
CAUTION
This symbol shows that
the Operation Instructions
should be read carefully.
CAUTION
This symbol shows that there
is information included in the
Operation Instructions and/or
Installation Instructions.
The illustrations in this manual are for
explanation purposes only and may diff er
from the actual unit. They are subject
to change without notice for future
improvement.
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2
00_ACXF55-11490_YC0617-0.indb 300_ACXF55-11490_YC0617-0.indb 3 5/31/2017 8:50:21 AM5/31/2017 8:50:21 AM

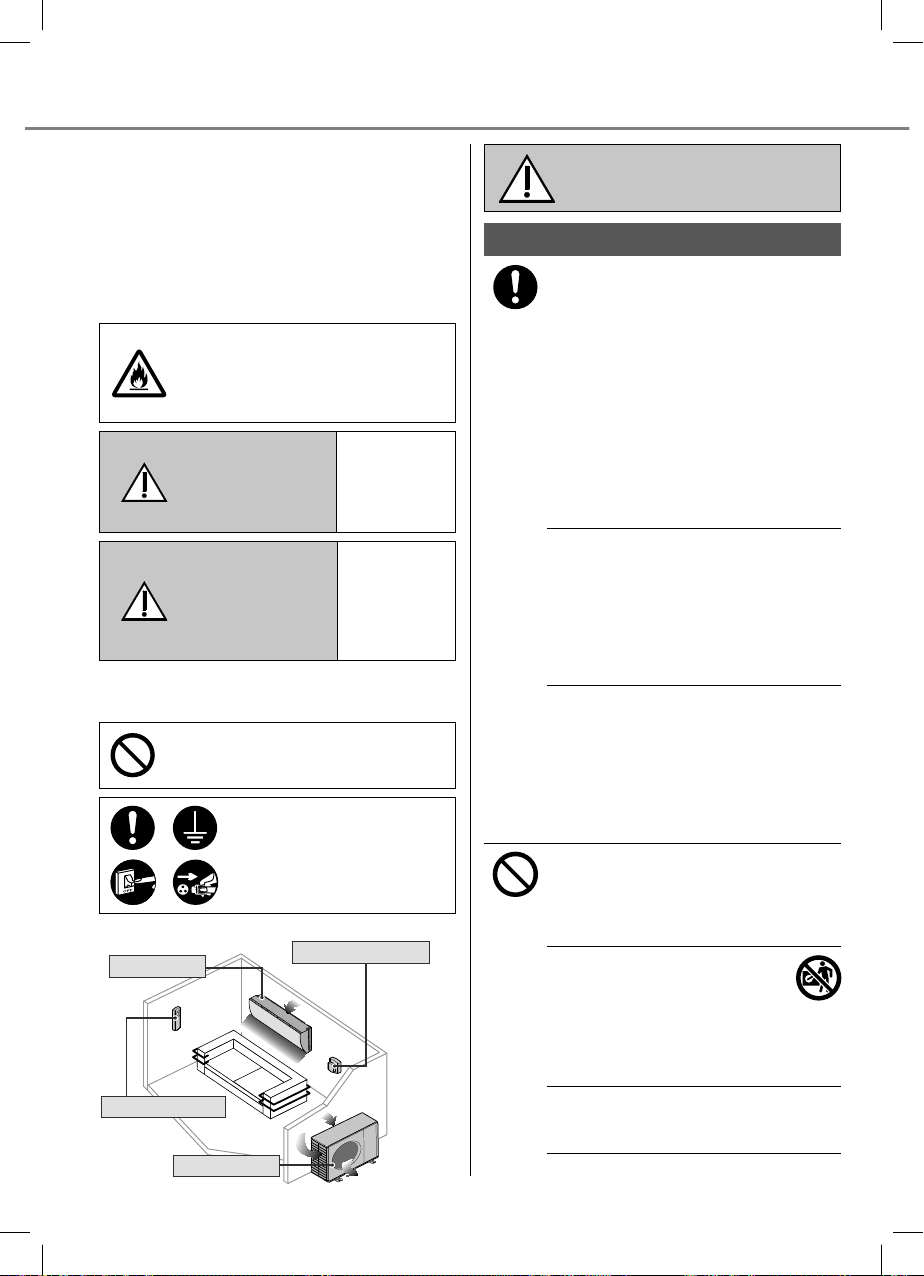

4
Safety precautions
To prevent personal injury, injury to
others or property damage, please
comply with the following:
Incorrect operation due to failure to
follow instructions below may cause
harm or damage, the seriousness of
which is classifi ed as below:
This appliance is not intended for
accessibility by the general public.
For appliance fi lled with R32
(mild fl ammable refrigerant).
If the refrigerant is leaked and
exposed to an external ignition
source, there is a risk of fi re.
WARNING
This sign
warns of
death or
serious
injury.
CAUTION
This sign
warns of
injury or
damage to
property.
The instructions to be followed are
classifi ed by the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
Please consult authorised dealer
or specialist to clean the internal
parts, repair, install, remove
and reinstall the unit. Improper
installation and handling will
cause leakage, electric shock or
fi re.
Confi rm with authorised dealer
or specialist on usage of any
specifi ed refrigerant type.
Using refrigerant type other than
the specifi ed may cause product
damage, burst and injury etc.
Do not install the unit in
a potentially explosive or
fl ammable atmosphere.
Failure to do so could result in
fi re.
Do not insert your fi ngers
or other objects into the
air conditioner indoor or
outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor
unit during lightning, it may
cause electric shock.
Indoor unit
Outdoor unit
Power supply
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet
00_ACXF55-11490_YC0617-0.indb 400_ACXF55-11490_YC0617-0.indb 4 5/31/2017 8:50:22 AM5/31/2017 8:50:22 AM

5
English
Do not expose yourself directly
to cold air for a long period to
avoid excess cooling.
Do not sit or step on the
unit, you may fall down
accidentally.
Remote control
Do not allow infants and small
children to play with the remote
control to prevent them from
accidentally swallowing the
batteries.
Power supply
Do not use a
modifi ed cord, joint
cord, extension cord
or unspecifi ed cord to
prevent overheating
and fi re.
To prevent overheating, fi re or
electric shock:
• Do not share the same power
outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power
supply cord.
• Do not operate or stop the unit
by inserting or pulling out the
power plug.
If the supply cord is damaged,
it must be replaced by the
manufacturer, service agent or
similarly qualifi ed persons in
order to avoid a hazard.
It is strongly recommended to
be installed with Earth Leakage
Circuit Breaker (ELCB) or
Residual Current Device (RCD)
to prevent electric shock or fi re.
To prevent overheating, fi re or
electric shock:
• Insert the power plug properly.
• Dust on the power plug should
be periodically wiped with a dry
cloth.
Stop using the product if any
abnormality/failure occurs and
disconnect the power plug or
turn off the power switch and
breaker.
(Risk of smoke/fi re/electric
shock) Examples of abnormality/
failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of
the unit is observed.
• Water leaks from the indoor
unit.
• Power cord or plug becomes
abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running
immediately even if it is
switched on for operation.
• The fan does not stop even if
the operation is stopped.
Contact your local dealer
immediately for maintenance/
repair.
This equipment must be earthed
to prevent electrical shock or fi re.
Prevent electric shock by
switching off the power supply
and unplug:
-Before cleaning or servicing,
-When extended non-use, or
-During abnormally strong
lightning activity.
Safety precautions
00_ACXF55-11490_YC0617-0.indb 500_ACXF55-11490_YC0617-0.indb 5 5/31/2017 8:50:22 AM5/31/2017 8:50:22 AM

6
Safety precautions
WARNING
Precaution for appliance fi lled
with R32
Pay careful attention to the following
points when operating the appliances
and dealing with diff erent refrigerants.
The appliance shall be installed,
and/or operated in a room with
fl oor area larger than Amin (m²)
and keep away from ignition
sources, such as heat/sparks/
open fl ame or hazardous areas
such as gas appliances, gas
cooking, reticulated gas supply
systems or electric cooking
appliances, etc. (Refer to Table
A of Installation instructions table
for Amin (m²))
Be aware that refrigerant may
not contain an odour, highly
recommended to ensure suitable
fl ammable refrigerant gas
detectors are present, operating
and able to warn of a leak.
Since the working pressure is
higher than that of refrigerant
R22 models, some of the piping
and installation and service tools
are special.
Especially, when replacing a
refrigerant R22 model with a new
refrigerant R32 model, always
replace the conventional piping
and fl are nuts with the R32 and
R410A piping and fl are nuts on
the outdoor unit side.
The R32 fl are nut and pipe on
the outdoor unit side can also be
used for a R410A model.
Models that use refrigerant R32
and R410A have a diff erent
charging port thread diameter to
prevent erroneous charging with
refrigerant R22 and for safety.
Therefore, check beforehand.
[The charging port thread
diameter for R32 and R410A is
12.7 mm (1/2 inch).]
Be extra careful so that foreign
matter (oil, water, etc.) does not
enter the piping.
Also, when storing the piping,
securely seal the opening by
pinching, taping, etc. (Handling
of R32 is similar to R410A.)
This appliance shall be stored in
a well ventilated area.
This appliance shall be stored
in a room without continuously
operating open fl ames and
ignition sources.
This appliance shall be stored
so as to prevent mechanical
damage from occurring.
Do not use means to accelerate
the defrosting process or
to clean, other than those
recommended by manufacturer.
Any unfi t method or using
incompatible material may cause
product damage, burst and
serious injury.
Do not pierce or burn as the
appliance is pressurized. Do not
expose the appliance to heat,
fl ame, sparks, or other sources
of ignition. Else it may explode
and cause injury or death.
00_ACXF55-11490_YC0617-0.indb 600_ACXF55-11490_YC0617-0.indb 6 5/31/2017 8:50:23 AM5/31/2017 8:50:23 AM

7
English
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit
with water, benzine, thinner
or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation
of precise equipment, food,
animals, plants, artwork or other
objects. This may cause quality
deterioration, etc.
Do not use any combustible
equipment in front of the airfl ow
outlet to avoid fi re propagation.
Do not expose plants or pet
directly to airfl ow to avoid injury,
etc.
Do not touch the sharp
aluminium fi n, sharp parts
may cause injury.
Do not switch ON the indoor
unit when waxing the fl oor. After
waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and
smoky areas to prevent damage
to the unit.
Do not dismantle the unit for
cleaning purpose to avoid injury.
Do not step onto an unstable
bench when cleaning the unit to
avoid injury.
Do not place a vase or water
container on the unit. Water may
enter the unit and degrade the
insulation. This may cause an
electric shock.
Do not open window or door
for long time during operation,
it may lead to ineffi cient power
usage and uncomfortable
temperature changes.
Safety precautions
Prevent water leakage by
ensuring drainage pipe is:
-Connected properly,
- Kept clear of gutters and
containers, or
-Not immersed in water
After a long period of use or use
with any combustible equipment,
aerate the room regularly.
After a long period of use, make
sure the installation rack does
not deteriorate to prevent the unit
from falling down.
Remote control
Do not use rechargeable (Ni-Cd)
batteries. It may damage the
remote control.
To prevent malfunction or
damage of the remote control:
• Remove the batteries if the unit
is not going to be used for a
long period of time.
• New batteries of the same type
must be inserted following the
polarity stated.
Power supply
Do not disconnect the plug
by pulling the cord to prevent
electric shock.
00_ACXF55-11490_YC0617-0.indb 700_ACXF55-11490_YC0617-0.indb 7 5/31/2017 8:50:23 AM5/31/2017 8:50:23 AM

8
AIR SWING
AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
AIR SWING
TEMP
OFF/ON

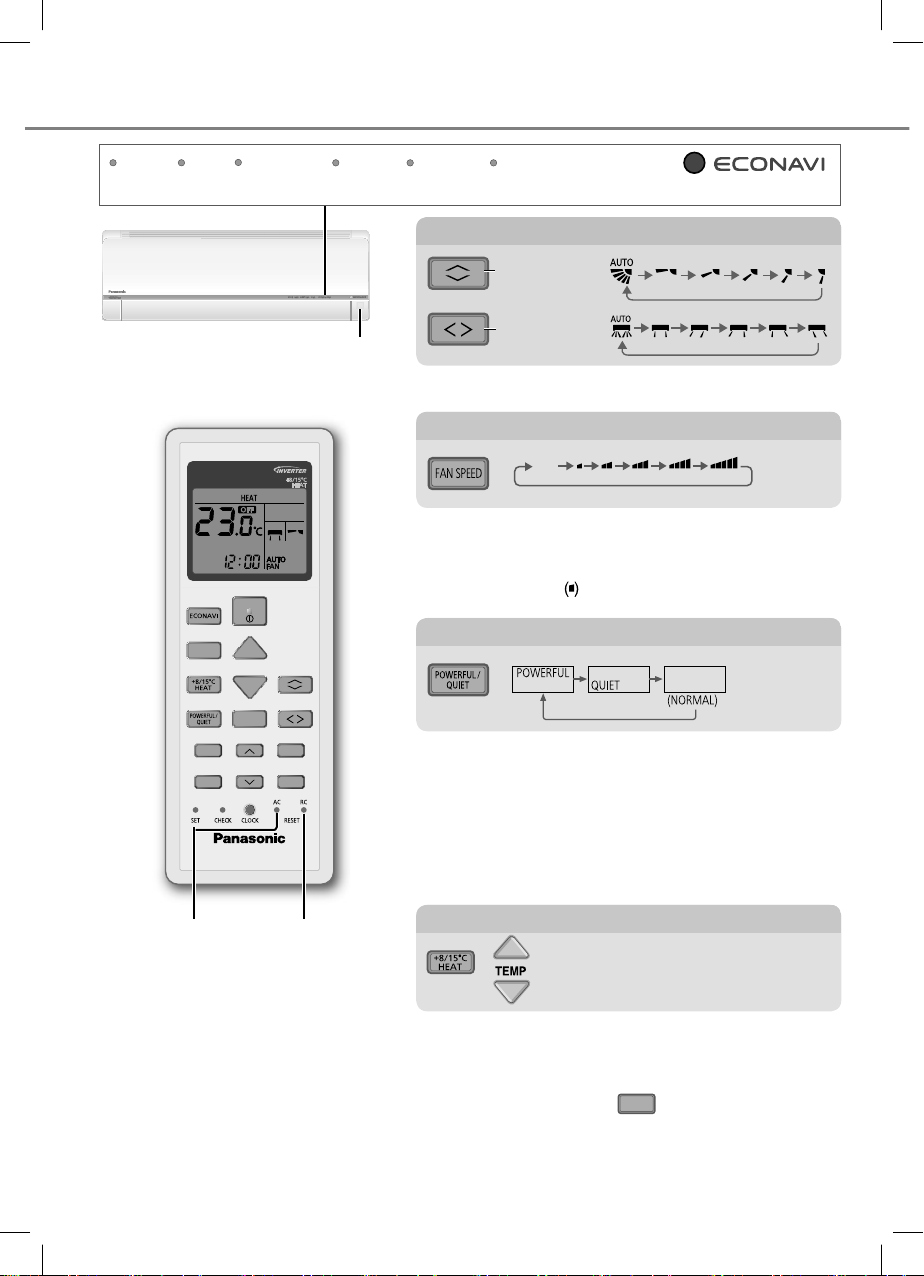

How to use
Not used
in normal
operations.
Press to restore
the remote
control to default
setting.
To adjust airfl ow direction
To adjust fan speed
To switch between powerful/quiet
POWERFUL:
To reach the preset temperature quickly
• This operation stops automatically after 4 hours.
QUIET:
To enjoy quiet operation
• This operation reduces airfl ow noise.
Upper direction
Lateral direction
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• To have low noise priority operation, select the
lowest fan speed .
AUTO
FAN
• Do not adjust the fl ap by hand.
To use maintenance heating
• Maintain indoor temperature at 8/15°C. Fan switches
to high fan speed automatically.
• This operation overwrite the operation mode and could
be cancelled by pressing
MODE
.
•
Defrost operation at outdoor unit will result in sudden
cold air from indoor unit. Eliminate cold air with heat
mode.
15˚C
8˚C
Sunlight sensor and
remote control receiver
Indicator
TIMER +8/15°C HEAT DEICE POWERFUL QUIET
POWER
(Green) (Green) (Blue) (Orange)(Orange)(Orange) (Green)
00_ACXF55-11490_YC0617-0.indb 800_ACXF55-11490_YC0617-0.indb 8 5/31/2017 8:50:23 AM5/31/2017 8:50:23 AM

9
English
To save energy
• When manual AIR SWING is selected,
the ECONAVI operations will be cancelled.
See "To learn more..." for details.

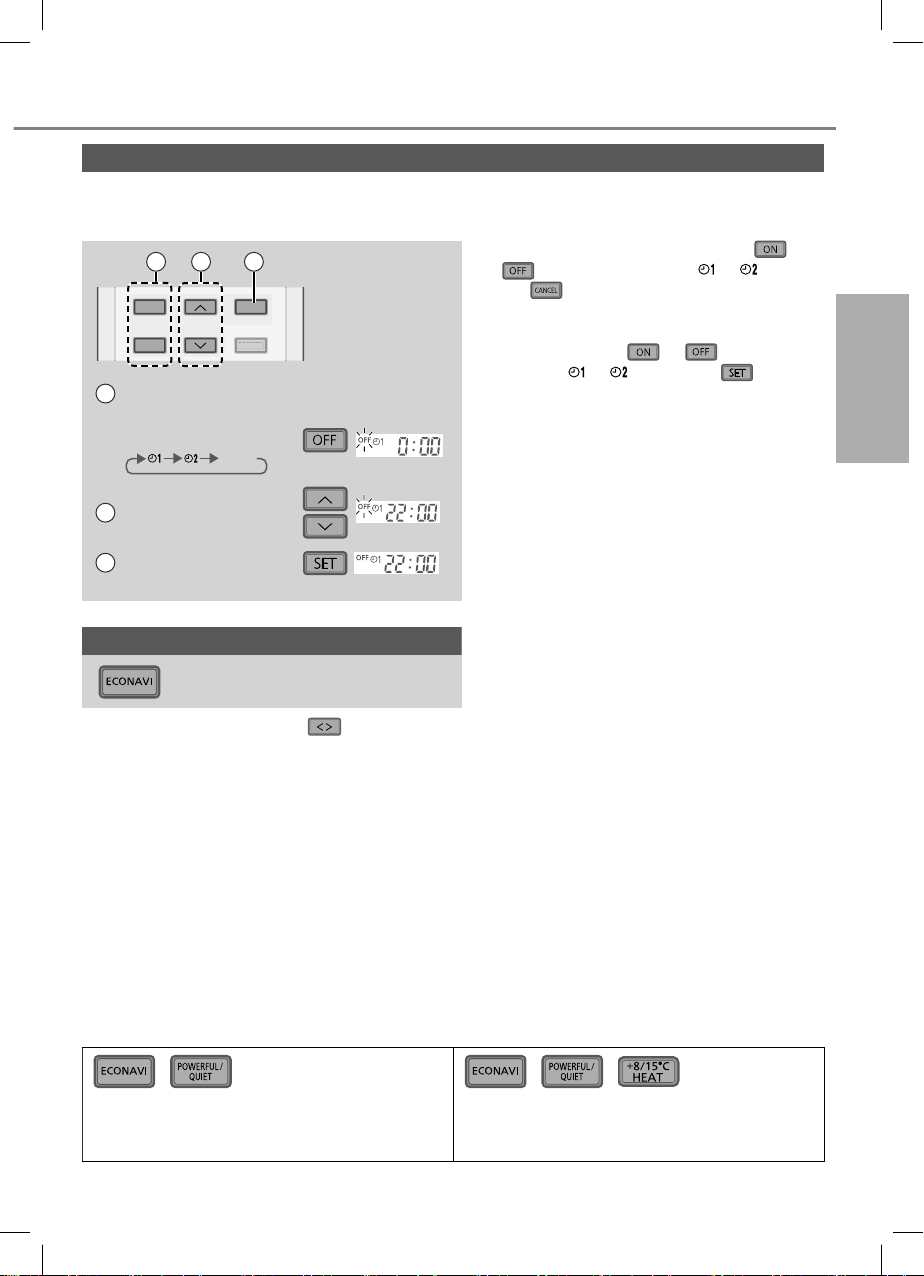

To set the timer
Note
, , ,
• Can be activated in all modes and can be
cancelled by pressing the respective button
again.
• Cannot be selected at the same time.
ON
OFF
TIMER
CANCEL
SET
C
AN
C
E
L
21 3
1Select ON or OFF
timer
Example:
OFF at 22:00
• Each time pressed:
Cancel
2Set the time
3Confi rm
• To cancel ON or OFF timer, press
or to select respective or then
press .
• If timer is cancelled manually or due to
power failure, you can restore the timer
again by pressing or to select
respective or then press .
• The nearest timer setting will be displayed
and will activate in sequence.
• Timer operation is based on the clock set
in the remote control and repeats daily
once set. For clock setting, please refer to
Quick Guide.
2 sets of ON and OFF timers are available to turn ON or OFF the unit at diff erent preset
times.
How to use
00_ACXF55-11490_YC0617-0.indb 900_ACXF55-11490_YC0617-0.indb 9 5/31/2017 8:50:24 AM5/31/2017 8:50:24 AM

10
Operation mode
HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while
to warm up.
Unit may stops warm air supply for deice. The deice indicator ON during this
operation.
COOL : Provides effi cient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
FAN : To circulate air in the room.
AUTO : During operation, the POWER indicator will blinks at initial.
Unit selects operation mode every 10 minutes according to the setting and room
temperatures.
Energy saving temperature setting
Operating the unit within the recommended temperature range may save energy.
HEAT : 20.0 °C ~ 24.0 °C / 68 °F ~ 75 °F.
COOL : 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
Air fl ow direction
In COOL/DRY mode:
If AUTO is set, the fl ap swings left/right and up/down automatically.
In HEAT mode:
If AUTO is set, the horizontal fl ap is fi xed at the predetermined position. The vertical fl ap
swings left/right after the temperature rises.
Auto restart control
If power is resumed after a power failure, the operation will restart automatically after a
period of time with previous operation mode and airfl ow direction.
• This control is not applicable when TIMER is set.
To learn more...
00_ACXF55-11490_YC0617-0.indb 1000_ACXF55-11490_YC0617-0.indb 10 5/31/2017 8:50:24 AM5/31/2017 8:50:24 AM

11
English
ECONAVI
■ Econavi with the sunlight sensor
Econavi detects potential waste of energy using the sunlight sensor.
The sunlight sensor detects the changes in sunlight intensity in the room. It reduces the
energy wastage during less sunlight conditions.
Sunlight detection
Adjusts power to
changes in sunlight
intensity.
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F) Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8) 16 (60.8) 11 (51.8)
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -20 (-4.0) -
+8/15°C
HEAT
Max. 15 (59.0) - - -
Min. 8 (46.4) - -20 (-4.0) -
DBT : Dry bulb temperature, WBT : Wet bulb temperature
To learn more...
00_ACXF55-11490_YC0617-0.indb 1100_ACXF55-11490_YC0617-0.indb 11 5/31/2017 8:50:25 AM5/31/2017 8:50:25 AM

12
Cleaning instructions
To ensure optimal performance of the
unit, cleaning has to be carried out at
regular intervals. Dirty unit may cause
malfunction and you may see error code
“H 99”. Please consult authorised dealer.
• Switch off the power supply and unplug
before cleaning.
• Do not touch the aluminium fi n, sharp parts
may cause injury.
• Do not use benzine, thinner or scouring
powder.
• Use only soap ( pH 7) or neutral
household detergent.
• Do not use water hotter than 40 °C / 104 °F.
Indoor unit
Wipe the unit gently with a soft,
dry cloth.
Outdoor unit
Make sure the air outlet of the
outdoor unit is not blocked by
fallen leaves or snow.
Clear any blockage from the
drain pipe.
Air fi lters
Once every 2 weeks
• Wash/rinse the fi lters gently
with water to avoid damage to
the fi lter surface.
• Dry the fi lters thoroughly under shade, away
from fi re or direct sunlight.
• Replace any damaged fi lters.
Remove air fi lter Attach air fi lter
Insert into the unit
Front panel
Wash gently and dry.
Remove the front panel Close it securely
Raise
Pull out
1
2Insert at both sides 1
Press both ends of the front panel
3
Close down
2
Indoor unit
Air Purifying Filter
Air Purifying Filter
• Do not wash the air purifying fi lter.
• Replace the fi lter every 10 years or replace
any damaged fi lter.Part no.: CZ-SA32P
Aluminium fi n
Front panel
Air fi lters
Air Purifying Filter
00_ACXF55-11490_YC0617-0.indb 1200_ACXF55-11490_YC0617-0.indb 12 5/31/2017 8:50:25 AM5/31/2017 8:50:25 AM

13
English
The following symptoms do not indicate malfunction.
Symptom Cause
Mist emerges from indoor unit. • Condensation eff ect due to cooling process.
Water fl owing sound during operation. • Refrigerant fl ow inside the unit.
The room has a peculiar odour. • This may be due to damp smell emitted by the wall,
carpet, furniture or clothing.
Indoor fan stops occasionally during automatic
fan speed setting. • This helps to remove the surrounding odour.
Airfl ow continues even after operation has
stopped. • Extraction of remaining heat from the indoor unit (maximum 30 seconds).
Operation is delayed a few minutes after
restarting. • The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
TIMER indicator is always on. • The timer setting repeats daily once set.
During deice operation, fl ap is closed. • The AIR SWING is set to AUTO.
POWER indicator blinks during HEAT mode
with no warm air supply (and fl ap is closed). • The unit is in defrost mode (and AIR SWING is set to AUTO).
Indoor fan stops occasionally during heating
operation. • To avoid unintended cooling eff ect.
POWER indicator blinks before the unit is
switched on. • This is a preliminary step in preparation for the operation when the ON timer has been set.
When ON Timer is set, the unit may start earlier (up
to 35 minutes) before the actual set time in order to
achieve the desired temperature on time.
Cracking sound during operation. • Changes of temperature caused the expansion/
contraction of the unit.
Dusts accumulated on the wall. • Due to air circulation or static electricity generated
by the air conditioner. Some types of wall paper may
collect dusts easily (recommended to clean the area
around the air conditioner frequently).
Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic
parts, accelerated when exposed to heat, sun light, UV
light or environmental factor.
Cooling/heating capacity reduced during the
lowest fan speed setting. • The low fan speed is low noise priority operation, so cooling/heating capacity may be reduced (depending
on the condition). Increase the Fan Speed to increase
the capacity.
Check the following before calling for servicing.
Symptom Check
Operation in HEAT/COOL mode is not working
effi ciently. • Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the fi lters.
•
Clear any obstruction at the air inlet and air outlet vents .
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is weak.)
• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the
remote control. • Make sure the receiver is not obstructed.
• Certain fl uorescent lights may interfere with signal
transmitter. Please consult authorised dealer.
Troubleshooting
Cleaning instructions / Troubleshooting
00_ACXF55-11490_YC0617-0.indb 1300_ACXF55-11490_YC0617-0.indb 13 5/31/2017 8:50:26 AM5/31/2017 8:50:26 AM

14
Troubleshooting
When...
■The remote control is missing or a malfunction has occurred
AUTO
OFF/ON
1.Raise the front panel.
2.Press the button once to use in AUTO mode.
3. Press and hold the button until you hear 1 beep, then release to use in
forced COOL mode.
4. Repeat step 3. Press and hold the button until you hear 2 beeps, then
release to use in forced HEAT mode.
5.Press the button again to turn off .
■The indicators are too bright
• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds.
■ Conducting a seasonal inspection after extended non-use
• Check the remote control batteries.
• Check that there is no obstruction around the air inlet and outlet vents.
• Use Auto OFF/ON button to select COOL/HEAT operation. After 15 minutes of operation, it
is normal to have the following temperature diff erence between the air inlet and outlet vents:
COOL: ≥ 8 °C / 14.4 °F HEAT: ≥ 14 °C / 25.2 °F
■ The units are not going to be used for a long period of time
• Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to
prevent mould growth
.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
NON SERVICEABLE CRITERIAS
TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised
dealer when in following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
00_ACXF55-11490_YC0617-0.indb 1400_ACXF55-11490_YC0617-0.indb 14 5/31/2017 8:50:26 AM5/31/2017 8:50:26 AM

15
English

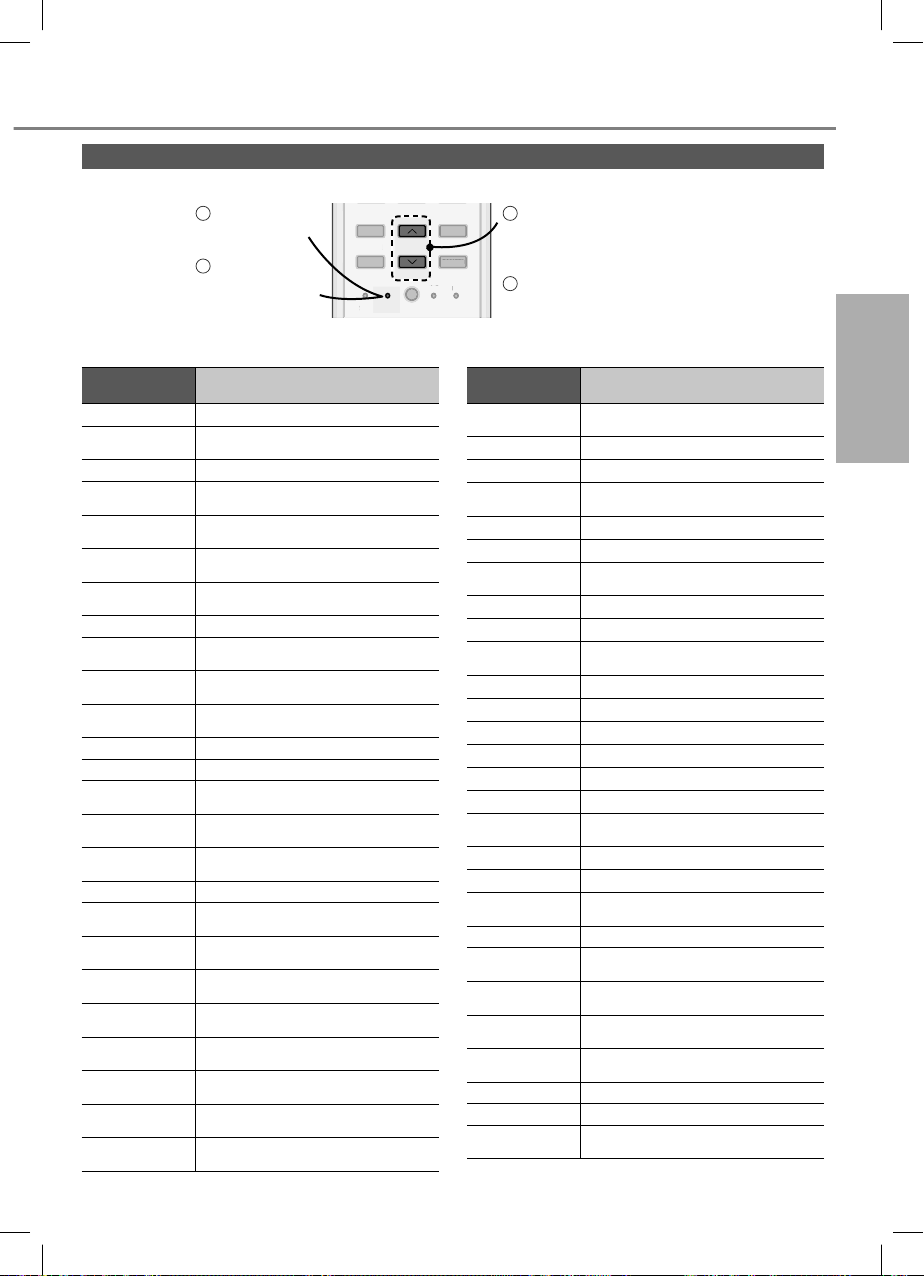

How to retrieve error codes
If the unit stops and the TIMER indicator blinks, use the remote control to retrieve the error code.
TIMER
SET
CANCEL
ON
OFF
SET CHECK CLOCK RESET
AC RC
TIMER
S
ET
C
AN
C
E
L
ON
O
FF
S
ET CL
O
C
K
R
E
S
ET
A
C
RC
Press for
5 seconds
Press for 5
seconds to quit
checking
Press until you hear beep
sound, then write down the
error code
Turn the unit off and
reveal the error code to
authorised dealer
21
3
4
• For certain errors, you may restart the unit for limited operation if there are 4 beeps when operation starts.
Troubleshooting
Diagnostic
display Abnormality/Protection control
H 00 No memory of failure
H 11 Indoor/outdoor abnormal
communication
H 12 Indoor unit capacity unmatched
H 14 Indoor intake air temperature sensor
abnormality
H 15 Outdoor compressor temperature
sensor abnormality
H 16 Outdoor current transformer (CT)
abnormality
H 17 Outdoor suction temperature sensor
abnormality
H 19 Indoor fan motor mechanism lock
H 21 Indoor fl oat switch operation
abnormality
H 23
Indoor heat exchanger temperature
sensor 1 abnormality
H 24
Indoor heat exchanger temperature
sensor 2 abnormality
H 25 Indoor ion device abnormality
H 26 Minus ION abnormality
H 27 Outdoor air temperature sensor
abnormality
H 28
Outdoor heat exchanger temperature
sensor 1 abnormality
H 30 Outdoor discharge pipe temperature
sensor abnormality
H 31 Abnormal swimming pool sensor
H 32
Outdoor heat exchanger
temperature sensor 2 abnormality
H 33 Indoor/outdoor misconnection
abnormality
H 34 Outdoor heat sink temperature sensor
abnormality
H 35 Indoor/outdoor water adverse current
abnormality
H 36 Outdoor gas pipe temperature
sensor abnormality
H 37 Outdoor liquid pipe temperature
sensor abnormality
H 38 Indoor/outdoor mismatch
(brand code)
H 39 Abnormal indoor operating unit or
standby units
Diagnostic
display Abnormality/Protection control
H 41 Abnormal wiring or piping
connection
H 50 Ventilation fan motor locked
H 51 Ventilation fan motor locked
H 52 Left-right limit switch fi xing
abnormality
H 58 Indoor gas sensor abnormality
H 59 Eco sensor
abnormality
H 64 Outdoor high pressure sensor
abnormality
H 67 nanoe abnormality
H 70 Light sensor
abnormality
H 71
DC cooling fan inside control board
abnormality
H 72 Abnormality tank temperature sensor
H 97 Outdoor fan motor mechanism lock
H 98 Indoor high pressure protection
H 99 Indoor operating unit freeze protection
F 11 4-way valve switching abnormality
F 16 Total running current protection
F 17 Indoor standby units freezing
abnormality
F 18 Dry circuit blocked abnormality
F 87 Control box overheat protection
F 90 Power factor correction (PFC)
circuit protection
F 91 Refrigeration cycle abnormality
F 93 Outdoor compressor abnormal
revolution
F 94 Compressor discharge pressure
overshoot protection
F 95 Outdoor cooling high pressure
protection
F 96 Power transistor module overheating
protection
F 97 Compressor overheating protection
F 98 Total running current protection
F 99 Outdoor direct current (DC) peak
detection
* Some error code may not be applicable to your model. Consult authorised dealer for clarifi cation.
00_ACXF55-11490_YC0617-0.indb 1500_ACXF55-11490_YC0617-0.indb 15 5/31/2017 8:50:27 AM5/31/2017 8:50:27 AM

16
Erbjuder maximal komfort och ren luft med optimala
energisparmetoder.
Solljussensor och
fjärrkontrollmottagare
Snabbguide
Sätta i batterier
12
3
1
Dra loss bakstycket på
fjärrkontrollen
2
Sätt i batterier av typen
AAA eller R03 (kan
användas ~ 1 år)
3 Stäng locket
A Klockinställning
1 Tryck på och ställ
in tiden
.
• Tryck och håll
ner i cirka 5
sekunder för att visa
tiden i 12 timmars-
(F.M./E.M.) eller 24
timmarsformat.
2 Bekräfta .
Fjärrkontrollen
måste befi nna
sig inom 8 m från
inomhusdelens
mottagare.
AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
AIR SWING
TEMP
OFF/ON
AIR CONDITIONER
ON
OFF
TIMER
CANCEL
FAN SPEED
AIR SWING
A
B
00_ACXF55-11490_YC0617-0.indb 1600_ACXF55-11490_YC0617-0.indb 16 5/31/2017 8:50:27 AM5/31/2017 8:50:27 AM

17
Svenska
Innehållsförteckning
Säkerhetsföreskrifter............ 18-21
Hur den används.................
22-23
Läs mer... ..........................
24-25
Rengöringsinstruktioner............
26
Problemlösning...................
27-29
Information................................ 73
Bilderna i denna skötselanvisning
är endast illustrativa och kan därför
skilja sig från den faktiska modellen.
Förändringar kan göras utan föregående
meddelande angående framtida
förbättringar.
B Grundläggande användning
1 Tryck på
MODE
för att
välja önskat läge.
AUTO
HEAT COOL
FAN DRY
2 Tryck på för
att starta/stoppa
användningen.
POWER
• Observera att
lampan visas för att
starta enheten.
3 Välj önskad temperatur.
Upp
Ned
• Valområde: 16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
(Ej tillgängligt i läget FAN).
• Tryck och håll ner i cirka
10 sekunder för att växla
temperaturindikeringen mellan
°C och °F.
Tack för ditt köp av Panasonic
luftkonditionering.
Tillbehör
• Fjärrkontroll
• AAA eller R03 batterier × 2
• Hållare för fjärrkontroll
• Skruvar för fjärrkontrollens
hållare × 2
VARNING
Den här symbolen visar
att utrustningen har ett
antändbart
kylmedel. Om
kylmedlet läcker fi nns risk
för antändning vid en extern
gnistkälla.
FÖRSIKTIGHET
Den här symbolen visar att
bruksanvisningen ska läsas
igenom noggrant.
FÖRSIKTIGHET
Den här symbolen visar
att det fi nns information i
bruksanvisningen och/eller
installationshandboken.
Econavi
De intelligenta
solljussensorerna övervakar
solljusintensitet.
Se ”Läs mer...” för mer information.
00_ACXF55-11490_YC0617-0.indb 1700_ACXF55-11490_YC0617-0.indb 17 5/31/2017 8:50:28 AM5/31/2017 8:50:28 AM

18
Säkerhetsföreskrifter
För att undvika skada på dig själv,
skada på andra, eller skada på
egendom, var god iaktta följande:
Felaktig användning orsakad av att
skötselanvisningen inte följts kan leda
till skador, nedan klassas deras allvar:
Denna apparat är inte avsedd att vara
tillgänglig för allmänheten.
För apparat fylld med R32 (milt
lättantändligt kylmedel).
Om kylmelet läcker och exponeras
för en extern tändningskälla fi nns
risk för brand.
VARNING
Denna symbol
varnar för
dödsfara eller
allvarliga
skador.
FÖRSIKTIGHET
Denna
symbol
varnar för
personskada
eller skada på
egendom.
Instruktioner klassifi ceras med följande
symboler:
Denna symbol betecknar
en handling som är
FÖRBJUDEN.
Dessa symboler betecknar
handlingar som är
NÖDVÄNDIGA.
VARNING
Inomhus- och utomhusenhet
Den här apparaten kan användas
av barn från åtta år och uppåt
och personer med fysiska eller
mentala hinder eller med brist på
erfarenhet och kunskap, förutsatt
att de har fått övervakning
eller instruktioner angående
användning av apparaten på ett
säkert sätt och förstår riskerna
som medföljer. Barn bör inte
leka med apparaten. Rengörning
och användarunderhåll ska inte
utföras av barn utan övervakning.
Kontakta en auktoriserad
återförsäljare eller specialist för
att rengöra de interna delarna,
reparera, installera, avlägsna
eller återinstallera enheten.
Felaktig installation kan leda till
läckage, elektriska stötar eller
eldsvåda.
Kontrollera med en auktoriserad
återförsäljare eller specialist
för användning av ett godkänt
köldmedia.
Att använda ett köldmedia annat
än det som är specifi cerat kan ge
upphov till skada på produkten,
bristning och skada, etc.
Installera inte enheten i
en potentiellt explosiv eller
lättantändlig miljö. Underlåtenhet
i detta kan resultera i skada till
följd av eldsvåda.
För inte in dina fi ngrar
eller andra föremål i
luftkonditionerarens
inomhus- eller
utomhusenhet, eftersom
roterande delar kan orsaka
personskada.
Rör inte utomhusenheten
under blixtoväder, då det
kan orsaka elstöt.
Inomhusdel
Utomhusdelen
Strömförsörjning
Fjärrkontroll
Luftintag
Luftintag
Luftintag
Luftintag
Utblåsning
Utblåsning
Utblåsning
Utblåsning
00_ACXF55-11490_YC0617-0.indb 1800_ACXF55-11490_YC0617-0.indb 18 5/31/2017 8:50:29 AM5/31/2017 8:50:29 AM

19
Svenska
Utsätt dig inte för direkt kalluft
under en längre tid för att
undvika för kraftig nedkylning.
Sitt inte och ställ dig inte på
enheten, eftersom du då
kan trilla och skada dig.
Fjärrkontroll
Låt inte små barn leka med
fjärrkontrollen för att förhindra
att de av olyckshändelse råkar
svälja batterierna.
Strömförsörjning
Använd inte
modifi erad sladd,
förgreningssladd,
förlängningssladd
eller ospecifi cerad
sladd för att undvika
överhettning och
eldsvåda.
För att förhindra överhettning,
eldsvåda eller elchock:
• Dela inte det använda uttaget
med annan utrustning.
• Manövrera inte enheten med
våta händer.
• Böj inte elsladden för mycket.
• Manövrera inte enheten
genom att dra ut eller sätta i
elkontakten.
Om nätsladden blir skadad,
måste den, för att farliga
situationer ska undvikas, bytas ut
av tillverkaren, servicepersonal
eller en person med
motsvarande kompetens.
Denna utrustning
rekommenderas starkt att
installeras med Jordfelsbrytare
(ELCB, Earth Leakage Circuit
Breaker) eller Skyddsenhet
för Restström (RCD, Residual
Current Device) för att undvika
elstöt eller eldsvåda.
För att förhindra överhettning,
eldsvåda eller elchock:
• Sätt i elkontakten på rätt sätt.
• Damm på elkontakten skall
torkas av med jämna mellanrum
med en torr trasa.
Sluta använda produkten om
något onormalt/fel uppträder och
koppla ur strömkontakten eller
stäng av med strömväxlaren och
brytaren.
(Risk för rök/eld/elstöt)
Exempel på vad som är
onormalt/fel
• Jordfelsbrytaren (ELCB:n) löser
ofta ut.
• Det luktar bränt.
• Onormala störljud eller
vibrationer hos enheten.
• Vatten läcker från
inomhusenheten.
• Strömsladden eller -kontakten
blir onormalt het.
• Fläkthastigheten kan inte
kontrolleras.
• Enheten stoppar direkt även om
den satts på för drift.
• Fläkten stoppar inte även om
driften stoppas.
Kontakta omedelbart din lokala
återförsäljare för underhåll/
reparation.
Denna utrustning måste jordas
för att undvika elstöt eller
eldsvåda.
Förhindra elskador genom att
stänga av strömmen och koppla
ur:
-Innan rengöring eller
underhållsarbete,
-Vid långvarig avstängning, eller
-Vid kraftigt åskväder.
Säkerhetsföreskrifter
00_ACXF55-11490_YC0617-0.indb 1900_ACXF55-11490_YC0617-0.indb 19 5/31/2017 8:50:29 AM5/31/2017 8:50:29 AM

20
Säkerhetsföreskrifter
VARNING
Försiktighetsåtgärd för enhet
som har fyllts med R32
Var särskilt försiktig med följande saker
när du använder apparater och hanterar
köldmediet.
Apparaten ska installeras och/
eller användas i ett rum med
en golvyta som överstiger Amin
(m²) och inte vara i närheten av
antändliga källor som värme/
gnistor/öppna lågor eller farliga
områden som gasapparater,
gasspisar, gassystem eller
elspisar osv. (Se tabell A för
installationsanvisningar och
tabellen för Amin (m²)).
Var medveten om att kylmedlet
inte får innehålla någon
lukt. Vi rekommenderar
att du använder lämpliga
kylmedelsgasdetetektorer, för
användning och läckagevarning.
Eftersom driftstrycket är högre än
för modeller med köldmediet R22
används en del specialverktyg
för rörsystem, installation samt
service.
Särskilt när man byter ut en
modell med köldmediet R22 mot
en ny modell med köldmediet
R32, ska man alltid byta ut det
konventionella rörsystemet och
kopplingsmuttrarna med det som
gäller för R32 och R410A för
utomhusenheten.
Flänsmuttern och röret för R32
på utomhusenhetens sida kan
också användas för modell
R410A.
Modeller som använder
köldmediet R32 och R410A
har en annan gängdiameter
för påfyllningsöppningen för
att undvika att man fyller på
med köldmediet R22 och av
säkerhetsskäl.
Därför ska man på kontrollera
detta på förhand. [Gängdiameter
för påfyllningsöppningen för R32
och R410A är 12,7 mm.]
Var extra försiktig så att
främmande föremål (olja,
vatten, etc.) inte kommer in
i rörsystemet. Likaså, täta
öppningen ordentligt genom att
klämma, tejpa, etc. vid lagring av
rörsystemet (hanteringen av R32
liknar R410A).
Denna apparat ska förvaras i ett
välventilerat utrymme.
Denna apparat ska förvaras i
ett rum fritt från öppna lågor och
antändningskällor.
Denna apparat ska förvaras så
att man förhindrar att mekaniska
skador inträff ar.
Använd inte metoder för att
påskynda avfrostnings- eller
rengöringsprocessen, förutom
de tillvägagångssätt som har
rekommenderats av tillverkaren.
Olämpliga metoder eller
användning av inkompatibelt
material kan orsaka
produktskada, explosion eller
allvarlig personskada.
Får ej punkteras eller brännas då
apparaten är trycksatt. Utsätt inte
apparaten för värme, eld, gnistor
eller andra källor av antändning.
Då det kan leda till explosion
och orsaka personskada eller
dödsfall.
00_ACXF55-11490_YC0617-0.indb 2000_ACXF55-11490_YC0617-0.indb 20 5/31/2017 8:50:29 AM5/31/2017 8:50:29 AM
