Panasonic CS-VA75KE User manual

1 Features 2
2 Functions 3
3 Product Specifications 6
4 Dimensions 12
5 Refrigeration Cycle Diagram 14
6 Block Diagram 16
7 Wiring Diagram 17
8 Operation Details 20
9 Operating Instructions 36
10 Installation And Servicing Air Conditioner Using R410A 60
11 Installation Instructions 71
12 2-way, 3-way Valve 80
© 2000 Matsushita Air-Conditioning Corp. Sdn. Bhd.
(183914D) All rights reserved. Unauthorized copying
and distribution is a violation of law.
CS-VA75KE CU-VA75KE
CS-VA95KE CU-VA95KE
CS-VA125KE CU-VA125KE
13 Servicing Information 87
14 Troubleshooting Guide 90
15 Technical Data 92
16 Exploded View 97
17 Replacement Parts List 98
18 Exploded View 99
19 Replacement Parts List 100
20 Exploded View 101
21 Replacement Parts List 102
22 Electronic Parts List 103
23 Electronic Circuit Diagram 104
Room Air Conditioner
CONTENTS
Page Page
Order No: MAC0010055C2

• Environmental Friendly
− R410A, which does not contain chlorine, is used as its
refrigerant, so there is no danger of damage to the
ozone layer in Stratosphere.
• High Efficiency
• Compact Design
• Comfort Environment
− 8 hours of sleep mode operation
− Air filter with function to reduce dust and smoke
− Wider range of horizontal discharge air
• Auto Restart
− Random auto restart after power failure for safety restart
operation
• Removable and Washable Front Panel
• Remote Control Self-illuminating Button
• Catechin Air Purifying Filter
− Trap dust, tabacco smoke and tiny particles
− Prevent the growth of bacteria and viruses trapped
• Deodorizing Air Purifying Filter
− Remove unpleasant odors from the air
• Quality Improvement
− Gas leakage protection
− Prevent compressor reverse cycle
− 2-stage OLP to protect compressor
− Noise prevention during soft dry operation.
• Service Improvement
− Easy fan motor replacement procedure
• Operation Improvement
− Economy mode to reduce electrical power consumption
− Powerful mode to reach the desired room temperature
quickly
• Long Installation Piping
− CS/CU-VA75KE, CS/CU-VA95KE, long piping up to 10
meter
− CS/CU-VA125KE, long piping up to 15 meter
1 Features
2
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

2 Functions
Remote Control
Operation OFF / ON
OFF / ON IRoom Temperature Setting
TEMP.
Operation Mode Selection
•AUTO Automatic Operation Mode
•HEAT Heating Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
MODE
TIMER Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Sleep Mode Operation OFF / ON
SLEEP
Indoor Fan Speed Selection
FAN SPEED
•h j k Low Speed
l
•h j k Medium Speed
lll
•h j k High Speed
lllll
•AUTOFAN Automatic Fan Speed
Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER Timer Operation Selection
SET
CANCEL Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
•AUTO Automatic Airflow Direction
Control
•MANUAL Airflow Direction Manual
Control
Powerful Mode Operation OFF/ON
POWERFUL
Economy Mode Operation OFF/ON
ECONOMY
• Temperature Setting (16°C to 30°C)
• Automatic Operation
Operation with 2°C higher than
standard temperature.
Operation with standard
temperature.
Operation with 2°C lower than
standard temperature.
8 HI
a
a
a
9 Lo
Self illuminating
button
3
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

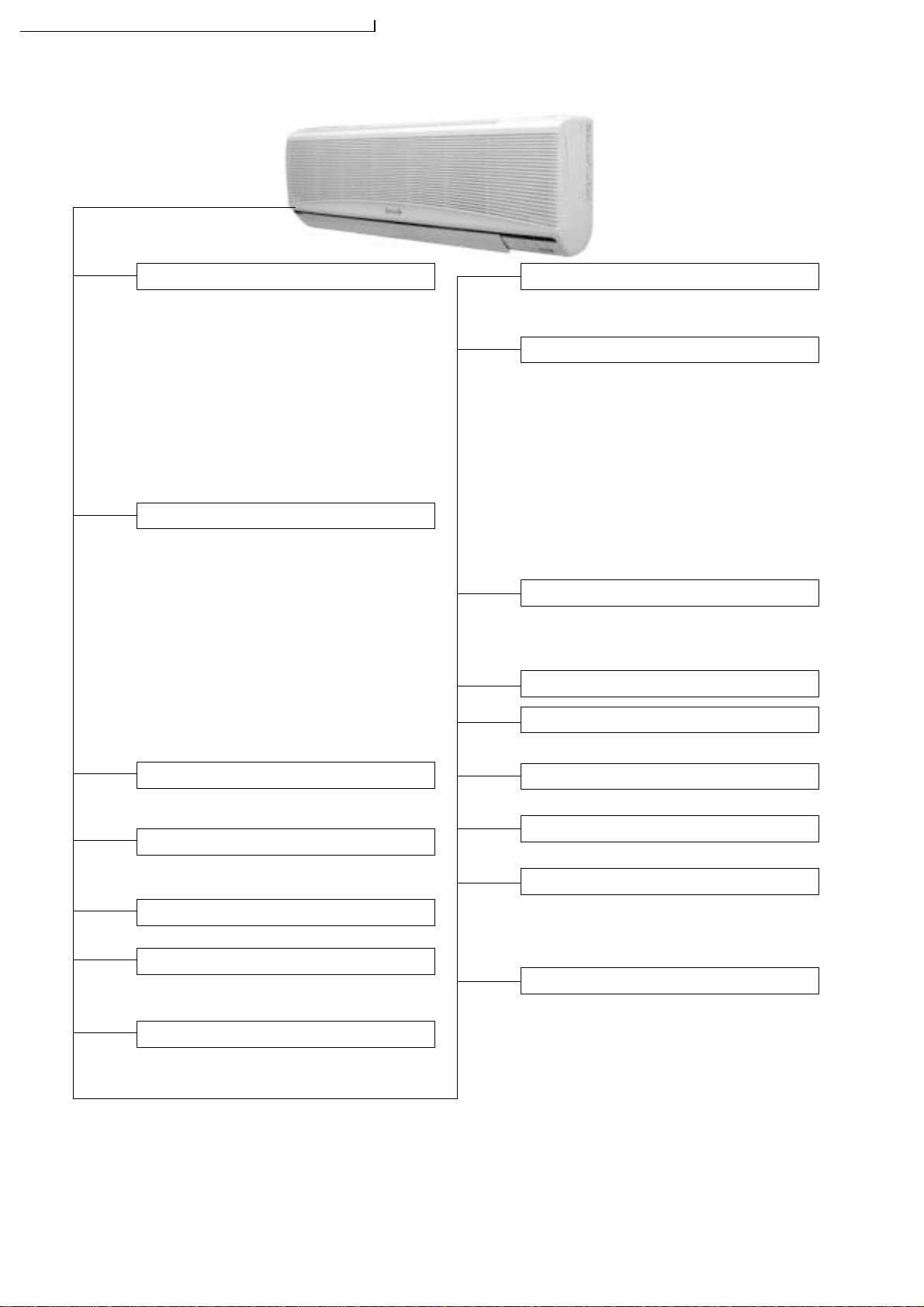

Indoor Unit
Sleep Mode Auto Control
•Indoor Fan operates at Low speed.
•Operation stops after 8 hours.
•Automatic air swing and manual adjusted
by remote control for vertical airflow.
•
Manually adjusted by hand for horizontal airflow.
Airflow Direction Control
Automatic Operation Button
•Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
•Press continuosly for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
•Press continuosly for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep”sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
•POWER (Green) ........Lights up in operation,
blinks in Automatic
Operation Mode
judging.
•SLEEP (Orange)........Lights up in Sleep
Mode Operation.
•TIMER (Orange) .......Lights up in Timer
Setting.
•POWERFUL (Orange)..Lights up in Powerful
Mode Operation.
•ECONOMY (Green) .....Lights up in Economy
Mode Operation.
Operation Mode
•Heating, Cooling, Soft Dry and
Automatic Mode.
Powerful Operation
•Reaches the desired room temperature
quickly.
Time Delay Safety Control
• Restarting is inhibited for appro. 3 minutes.
Starting Current Control
Economy Operation
•To reduce electrical power consumption.
7 Minutes Time Save Control
•Cooling Operation only.
Random Auto Restart Control
•Operation is restarted randomly after
power failure at previous setting mode.
Anti-Freezing Control
•Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
Anti Cold Draft Control
• The indoor fan operates at SSLo when the
indoor heat exchanger temperature is low.
Hot-Start Control
•At Heating Operation the indoor fan will
operate at Lo speed when indoor heat
exchanger temperature reaches 30°C.
Indoor Fan Speed Control
•High, Medium and Low.
•Automatic Fan Speed Mode
–Heating: Fan speed varies from Me
;Lo in accordance with
indoor heat exchanger.
–Cooling : Fan rotates at Hi and Me
speed. Deodorizing control
is available.
–Soft Dry: Fan rotates at Lo speed.
Deodorizing control
is available.
30 Minutes Time Save Control
•Heating Operation only.
4
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

Outdoor Unit
•To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
•Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
•2-Stage OLP to protect the compressor.
Overload Protector will trip when
–Temperature of compressor increases
to 120°C.
–High temperature or high current flows
to compressor.
(Refer circuit diagram for OLP
characteristic)
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
•Inner protector.
CU-VA75KE / CU-VA95KE CU-VA125KE
4-Way Valve Control
•When the unit is switched to “OFF”
during Heating Operation, 4-way valve
stays at Heating position for 5 minutes.
Overload Protection Control
•Outdoor fan stops when indoor heat
exchanger temperature rises to 51°C
and above, and restarts when the indoor
heat exchanger temperature drops to
49°C and below.
•Compressor stop when indoor heat
exchanger temperature reaches 65°C or
above. (Heating Operation Only)
Deice Control
•To prevent frosting at outdoor heat
exchanger. (Only for Heating Operation)
•
Temperature of outdoor heat exchanger
is sensed by TRS (Thermal Reed Switch).
TRS OFF temperature 4°C.
TRS ON temperature -3°C.
Compressor Protection Control
•If the outdoor fan motor is not running
after compressor starts for 50 secs.,
compressor will stop. (Cooling and Soft
Dry Operation only).
5
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

3 Product Specifications
Unit CS-VA75KE CU-VA75KE
Cooling Capacity kW
kcal/h 2.20 1,890
Heating Capacity kW
kcal/h 2.40 2,060
Moisture Removal l/h
Pint/h 1.4 3.0
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 5.9 (210) —
Heating; 6.2 (220)
Indoor Air (Me) m3/min (cfm) Cooling; 6.2 (220) —
Heating; 7.5 (270)
Indoor Air (Hi) m3/min (cfm) Cooling; 7.5 (270) —
Heating; 8.4 (300)
Indoor Air (SHi) m3/min (cfm) Cooling; 8.4 (300) —
Heating; 8.4 (300)
dB (A) Cooling; High 34, Low 26 Cooling; High 46
Heating; High 36, Low 26 Heating; High 48
Noise Level
Power level dB Cooling; High 47 Cooling; High 61
Heating; High 49 Heating; High 63
Electrical Data Input WCooling; 640
Heating; 590
Running Current ACooling; 3.1
Heating; 2.9
EER W/W (kcal/hw) Cooling; 3.44 (2.95)
COP W/W (kcal/hw) Heating; 4.07 (3.49)
Starting Current A13.0
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L ; Half Union 1/4”G ; 3-way valve 3/8” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G ; (gas side) 3/8” L ; (liquid side) 1/4”G ; (gas side) 3/8” L ; (liquid side) 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
6
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch (mm) 10 - 31/32 (279) 18 - 29/32 (480)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 7 - 27/32 (199) 9 - 21/32 (245)
Net Weight lb (kg) 20 (9.0) 71 (32.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rate Output W—550
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 30% AES + Glass Fiber 12%
Motor Type Induction (4-poles) Induction (6-poles)
Input W20.6 65.8
Rate Output W10 20
Fan Speed Low rpm Cooling; 820 —
Heating; 855
Medium rpm Cooling; 855 —
Heating; 1,040
High rpm Cooling; 1,040 —
Heating; 1,160
SuperHigh rpm Cooling; 1,160 —
Heating; 1,160
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Pre Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×14 1×18
FPI 18 19
Size (W × H × L) mm 614 × 294 × 25.4 856 × 457.2 × 22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —RB68A (300)
Refrigerant (R410A) g (oz) —880 (31.1)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —C (× 2); 970, C-H; 310 H; 610
Flow Rate l/min —C (× 2); 5.0, C-H; 11.3 H; 6.5
Inner Diameter mm —C (× 2); 1.2, C-H; 1.3 H; 1.2
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —15 µF, 440VAC
Fan Motor Capacitor µF, VAC 1.0 µF, 400VAC 1.2 µF, 400VAC
• Specifications are subject to change without notice for further improvement.
7
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

Unit CS-VA95KE CU-VA95KE
Cooling Capacity kW
kcal/h 2.85 2,450
Heating Capacity kW
kcal/h 3.40 2,920
Moisture Removal l/h
Pint/h 1.7 3.6
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.1 (220) —
Heating; 6.1 (220)
Indoor Air (Me) m3/min (cfm) Cooling; 7.5 (270) —
Heating; 7.5 (270)
Indoor Air (Hi) m3/min (cfm) Cooling; 8.9 (310) —
Heating; 9.5 (340)
Indoor Air (SHi) m3/min (cfm) Cooling; 9.5 (340) —
Heating; 9.5 (340)
dB (A) Cooling; High 38, Low 26 Cooling; High 48
Heating; High 38, Low 26 Heating; High 48
Noise Level
Power level (dB) Cooling; High 51 Cooling; High 63
Heating; High 51 Heating; High 63
Electrical Data Input WCooling; 950
Heating; 860
Running Current ACooling; 4.3
Heating; 3.9
EER W/W (kcal/hw) Cooling; 3.00 (2.58)
COP W/W (kcal/hw) Heating; 3.95 (3.40)
Starting Current A20.0
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L ; Half Union 1/4”G ; 3-way valve 3/8” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G ; (gas side) 3/8” L ; (liquid side) 1/4”G ; (gas side) 3/8” L ; (liquid side) 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
8
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

Dimensions Height inch (mm) 10 - 31/32 (279) 18 - 29/32 (480)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 7 - 27/32 (199) 9 - 21/32 (245)
Net Weight lb (kg) 20 (9.0) 73 (33.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rate Output W—750
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 30% AES + Glass Fiber 12%
Motor Type Induction (4-poles) Induction (6-poles)
Input W26.9 65.8
Rate Output W13 20
Fan Speed Low rpm Cooling; 830 —
Heating; 830
Medium rpm Cooling; 1,030 —
Heating; 1,030
High rpm Cooling; 1,215 —
Heating; 1,300
SuperHigh rpm Cooling; 1,300 —
Heating; 1,300
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Pre Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×14 1×18
FPI 18 19
Size (W ×H×L) mm 614 ×294 ×25.4 856 ×457.2 ×22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —RB68A (350)
Refrigerant (R410A) g (oz) —870 (30.7)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —C(×2); 970, C-H; 590 H; 590
Flow Rate l/min —C(×2); 5.0, C-H; 17.5 H; 8.2
Inner Diameter mm —C(×2); 1.2, C-H; 1.7 H; 1.3
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —25 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 1.2 µF, 400VAC
• Specifications are subject to change without notice for further improvement.
9
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

Unit CS-VA125KE CU-VA125KE
Cooling Capacity kW
kcal/h 3.65 3,140
Heating Capacity kW
kcal/h 4.20 3,610
Moisture Removal l/h
Pint/h 2.1 4.4
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 6.4 (230) —
Heating; 6.4 (230)
Indoor Air (Me) m3/min (cfm) Cooling; 8.0 (280) —
Heating; 8.0 (280)
Indoor Air (Hi) m3/min (cfm) Cooling; 9.0 (320) —
Heating; 9.6 (340)
Indoor Air (SHi) m3/min (cfm) Cooling; 9.6 (340) —
Heating; 9.6 (340)
dB (A) Cooling; High 39, Low 29 Cooling; High 49
Heating; High 39, Low 29 Heating; High 49
Noise Level
Power level (dB) Cooling; High 52 Cooling; High 64
Heating; High 52 Heating; High 64
Electrical Data Input kW Cooling; 1.24
Heating; 1.17
Running Current ACooling; 5.6
Heating; 5.3
EER W/W (kcal/hw) Cooling; 2.94 (2.53)
COP W/W (kcal/hw) Heating; 3.59 (3.09)
Starting Current A25.0
Piping Connection Port
(Flare piping) inch inch G ; Half Union 1/2” L ; Half Union 1/4”G ; 3-way valve 1/2” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G ; (gas side) 1/2” L ; (liquid side) 1/4”G ; (gas side) 1/2” L ; (liquid side) 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
10
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

Dimensions Height inch (mm) 10 - 31/32 (279) 19 - 7/8 (505)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 7 - 27/32 (199) 9 - 21/32 (245)
Net Weight lb (kg) 20 (9.0) 84 (38.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rate Output W—1,100
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 30% AES + Glass Fiber 12%
Motor Type Induction (4-poles) Induction (6-poles)
Input W28.7 65.8
Rate Output W15 20
Fan Speed Low rpm Cooling; 890 —
Heating; 890
Medium rpm Cooling; 1,125 —
Heating; 1,125
High rpm Cooling; 1,260 —
Heating; 1,340
SuperHigh rpm Cooling; 1,340 —
Heating; 1,340
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Pre Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×14 2×19
FPI 21 16
Size (W ×H×L) mm 614 ×294 ×25.4 706.2
669.9 ×457.2 ×44
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —RB68A (430)
Refrigerant (R410A) g (oz) —1.14k (40.2)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —C; 515, H; 720
Flow Rate l/min —C; 13.0, H; 11.0
Inner Diameter mm —C; 1.5, H; 1.5
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —30 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 1.2 µF, 400VAC
• Specifications are subject to change without notice for further improvement.
11
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

4 Dimensions
12
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

13
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

5 Refrigeration Cycle Diagram
14
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

15
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

6 Block Diagram
16
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

REMARKS
B:BLUE
BR : BROWN
BL : BLACK
W: WHITE
R:RED
O: ORANGE
P: PINK
Y/G : YELLOW/GREEN
Resistance of Indoor Fan Motor Windings
MODEL CS-VA75KE
CONNECTION CWA921033
YELLOW-BLUE 707.1 Ω
YELLOW-BROWN 71.1 Ω
BROWN-ORANGE 64.7 Ω
ORANGE-WHITE 15.7 Ω
WHITE-RED 116.2 Ω
Resistance of Outdoor Fan Motor Windings
MODEL CU-VA75KE
CONNECTION CWA95245
BLUE-YELLOW 260.5 Ω
YELLOW-RED 446.0 Ω
Resistance of Compressor Windings
MODEL CU-VA75KE
CONNECTION 5RS080DAA
C-R 5.807 Ω
C-S 9.304 Ω
7 Wiring Diagram
17
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

REMARKS
B:BLUE
BR : BROWN
BL : BLACK
W: WHITE
R: RED
O: ORANGE
P: PINK
Y/G : YELLOW/GREEN
Resistance of Indoor Fan Motor Windings
MODEL CS-VA95KE
CONNECTION CWA921043
YELLOW-BLUE 451.2 Ω
YELLOW-BROWN 86.7 Ω
BROWN-ORANGE 98.4 Ω
ORANGE-WHITE 51.5 Ω
WHITE-RED 240.8 Ω
Resistance of Outdoor Fan Motor Windings
MODEL CU-VA95KE
CONNECTION CWA95245
BLUE-YELLOW 260.5 Ω
YELLOW-RED 446.0 Ω
Resistance of Compressor Windings
MODEL CU-VA95KE
CONNECTION 5PS112DAA
C-R 3.166 Ω
C-S 4.573 Ω
18
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

REMARKS
B:BLUE
BR : BROWN
BL : BLACK
W: WHITE
R:RED
O: ORANGE
P: PINK
Y/G : YELLOW/GREEN
Resistance of Indoor Fan Motor Windings
MODEL CS-VA125KE
CONNECTION CWA921031
YELLOW-BLUE 450.7 Ω
YELLOW-BROWN 68.2 Ω
BROWN-ORANGE 56.7 Ω
ORANGE-WHITE 56.9 Ω
WHITE-RED 102.0 Ω
Resistance of Outdoor Fan Motor Windings
MODEL CU-VA125KE
CONNECTION CWA95245
BLUE-YELLOW 260.5 Ω
YELLOW-RED 446.0 Ω
Resistance of Compressor Windings
MODEL CU-VA125KE
CONNECTION 5KS150DAA
C-R 2.206 Ω
C-S 3.529 Ω
19
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE

Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Save Control
Starting Current Control
Anti-Freezing Control
• If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes or more, the
compressor turns off to protect the indoor heat exchanger
from freezing. The fan speed setting remains the same.
• Compressor will restart again when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
Compressor Reverse Rotation Protection Control
8 Operation Details
8.1. Cooling Mode Operation
• When the compressor is stopped by Remote Control, it restarts after 3 minutes when it is turned ON by Remote Control.
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
• When the compressor, outdoor fan motor & indoor fan motor are simultaneously started, the indoor fan motor will operate 1.6
second later.
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and
indoor heat exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
sT = Intake air temperature - Indoor heat exchanger temperature
This is to protect reverse rotation of the compressor when there is a instantaneous power failure.
20
CS-VA75KE CU-VA75KE / CS-VA95KE CU-VA95KE / CS-VA125KE CU-VA125KE
