Panasonic CS-E12QD3EAW User manual

Operating Instructions
Air Conditioner
Български Português Español Français Eλληνικά Italiano Nederlands Deutsch English
Model No.
Indoor Unit Outdoor Unit
CS-E9PD3EA
CS-E12PD3EA
CS-E12QD3EAW
Single Split (R410A)
CU-E9PD3EA
CU-E12PD3EA
CU-E12QD3EA
* Outdoor Unit
Multi Split (R410A)
CU-2E15PBE
CU-2E18PBE
CU-3E18PBE
CU-4E23PBE
CU-4E27PBE
CU-5E34PBE
CU-2E12SBE
CU-2E15SBE
CU-2E18SBE
CU-3E23SBE
* Outdoor Unit
Multi Split (R32)
CU-2Z35TBE
CU-2Z41TBE
CU-2Z50TBE
CU-3Z52TBE
CU-3Z68TBE
CU-4Z68TBE
CU-4Z80TBE
CU-5Z90TBE
Operating Instructions
Air Conditioner 2-11
* Kindly consult authorised dealer for
connectivity validity.
Bedienungsanleitung
Klimagerät 12-21
* Wenden Sie sich bei Fragen zur
Gültigkeit der Konnektivität an Ihren
Fachhändler.
Handleiding
Airconditioner 22-31
* Wij verzoeken u vriendelijk een
geautoriseerde dealer advies te vragen
over de aansluitmogelijkheden.
Istruzioni di funzionamento
Condizionatore d’aria 32-41
* Si prega di consultare un rivenditore
autorizzato per la validità della
connettività.
Οδηγίες λειτουργίας
Κλιματιστικό 42-51
* Συμβουλευτείτε τον εξουσιοδοτημένο
αντιπρόσωπο για την καταλληλότητα
της σύνδεσης.
Comment utiliser l’appareil
Climatiseur 52-61
* Consultez un revendeur agréé pour
connaître la validité de la connectivité.
Instrucciones de funcionamiento
Climatizador de aire
62-71
* Consulte a un distribuidor autorizado
para conocer la validez de la
conectividad.
Instruções de funcionamento
Aparelho de ar condicionado 72-81
* Consulte o representante autorizado
para validar a conectividade.
Инструкции за работа
Климатик 82-91
* Моля, обърнете се към оторизиран
дилър относно валидността на
връзките.
ACXF55-10820

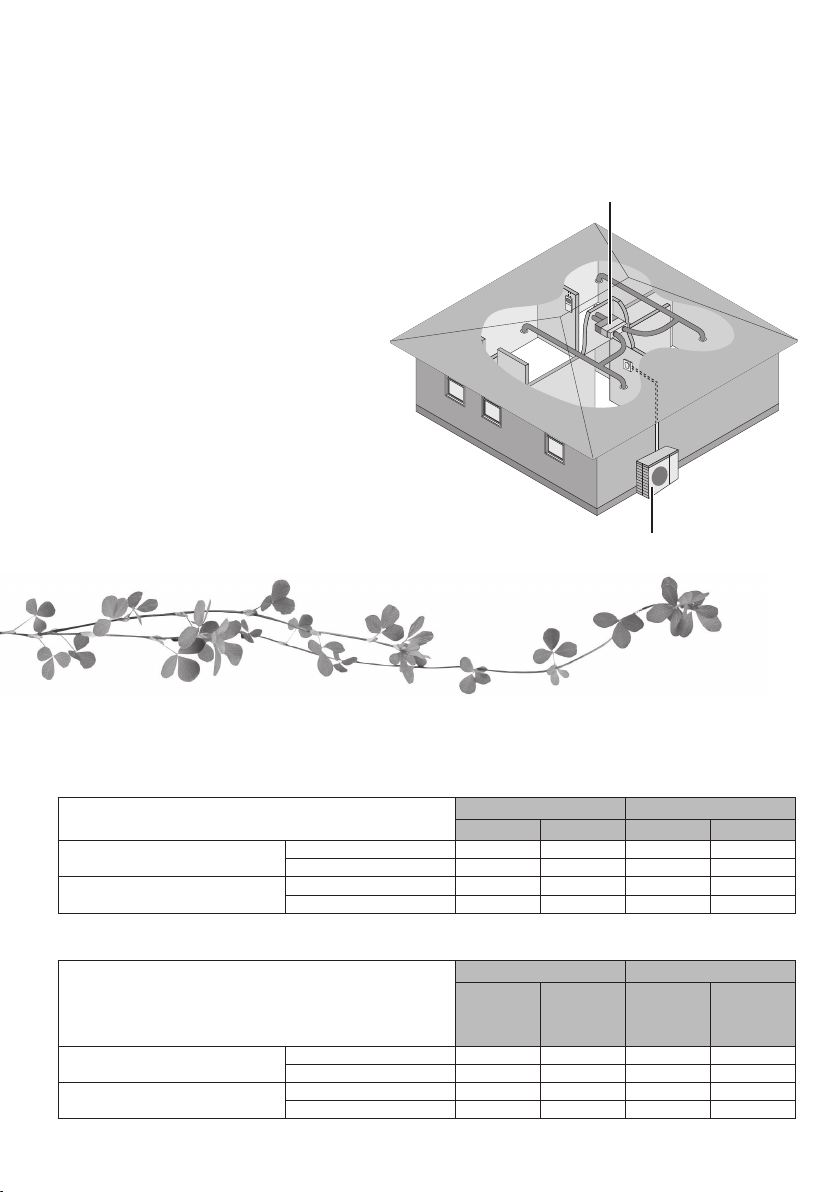

2
Operation conditions
Use this air conditioner under the following temperature range.
DBT : Dry bulb temperature
WBT : Wet bulb temperature
CU-E9PD3EA, CU-E12PD3EA, CU-E12QD3EA Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8) -10 (14.0) -
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -10 (14.0) -
°C (°F) (temperature)
Multi split outdoor unit
CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE,
CU-4E27PBE, CU-5E34PBE, CU-2E12SBE, CU-2E15SBE,
CU-2E18SBE, CU-3E23SBE, CU-2Z35TBE, CU-2Z41TBE,
CU-2Z50TBE, CU-3Z52TBE, CU-3Z68TBE, CU-4Z68TBE,
CU-4Z80TBE, CU-5Z90TBE
Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 46 (114.8) 26 (78.8)
Min. 16 (60.8) 11 (51.8) -10 (14.0) -
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -15 (5.0) -16 (3.2)
°C (°F) (temperature)
Thank you for purchasing Panasonic Air Conditioner.
Installation instructions attached.
Before operating the unit, read these operating instructions thoroughly and keep them for future
reference.
The illustrations in this manual are for explanation purposes only and may differ from the actual unit.
They are subject to change without notice for future improvement.
Multi air conditioner system
Multi air conditioner systems save space by
letting you connect multiple indoor units to a
single outdoor unit.
• For complete product features, please refer
catalogue.
Indoor units
Outdoor unit
Indoor units
• It is possible to operate the indoor units
individually or simultaneously. The priority
of operation is placed on the first unit that
turned on.
• During operation, HEAT and COOL modes
cannot activate at the same time for different
indoor units.
• The power indicator blinks to indicate the
indoor unit is standing by for a different
operation mode.

3
English

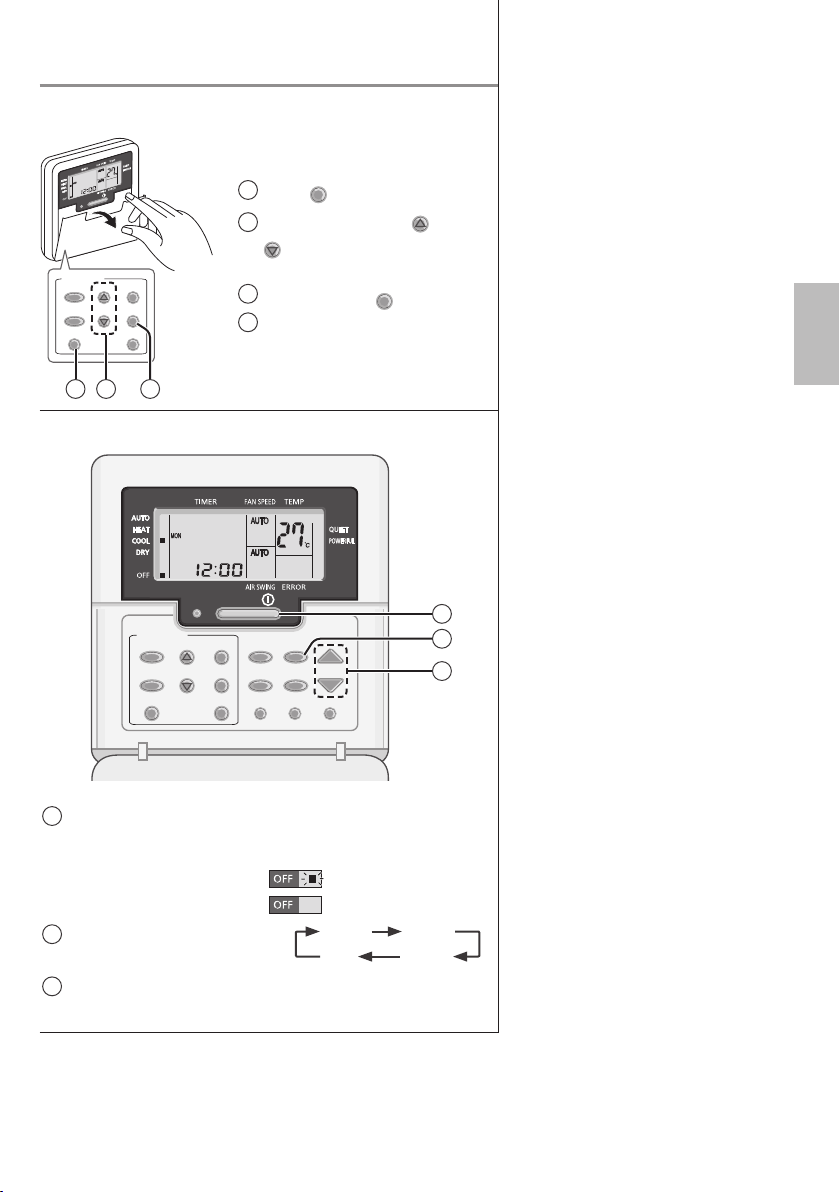

Quick guide
Remote control preparation
OFF /ON
TIMER/CLOCK
MODE
OFF/ON
CANCELCLOCK
SET
SELECTUP
DOWN
31 2
Open the cover to use the buttons
1Press
CLOCK
2
Press TIMER
UP
or
DOWN
to
select current day
3Press
SET
to confirm
4Repeat steps 2 and 3 to set
the current time
Basic operation
OFF /ON
TEMP
TIMER/CLOCK
MODE
QUIET/
POWERFUL
FAN SPEED
MODE
CHECK RESET
AIR SWING
OFF/ON
CANCELCLOCK
SET
SELECTUP
DOWN
AC RC
3
1
2
1
Start/stop the operation
• Please note that the OFF indication is
as follows:
To start:
To stop:
2Select the desired mode
DRY
AUTO HEAT
COOL
3Select the desired temperature
• Selection range: 16 °C ~ 30 °C / 60 °F ~ 86 °F.
Table of contents
Safety precautions...................4-7
How to use...............................8-9
Information...............................8-9
To set the timer......................9-10
Troubleshooting........................ 11

4

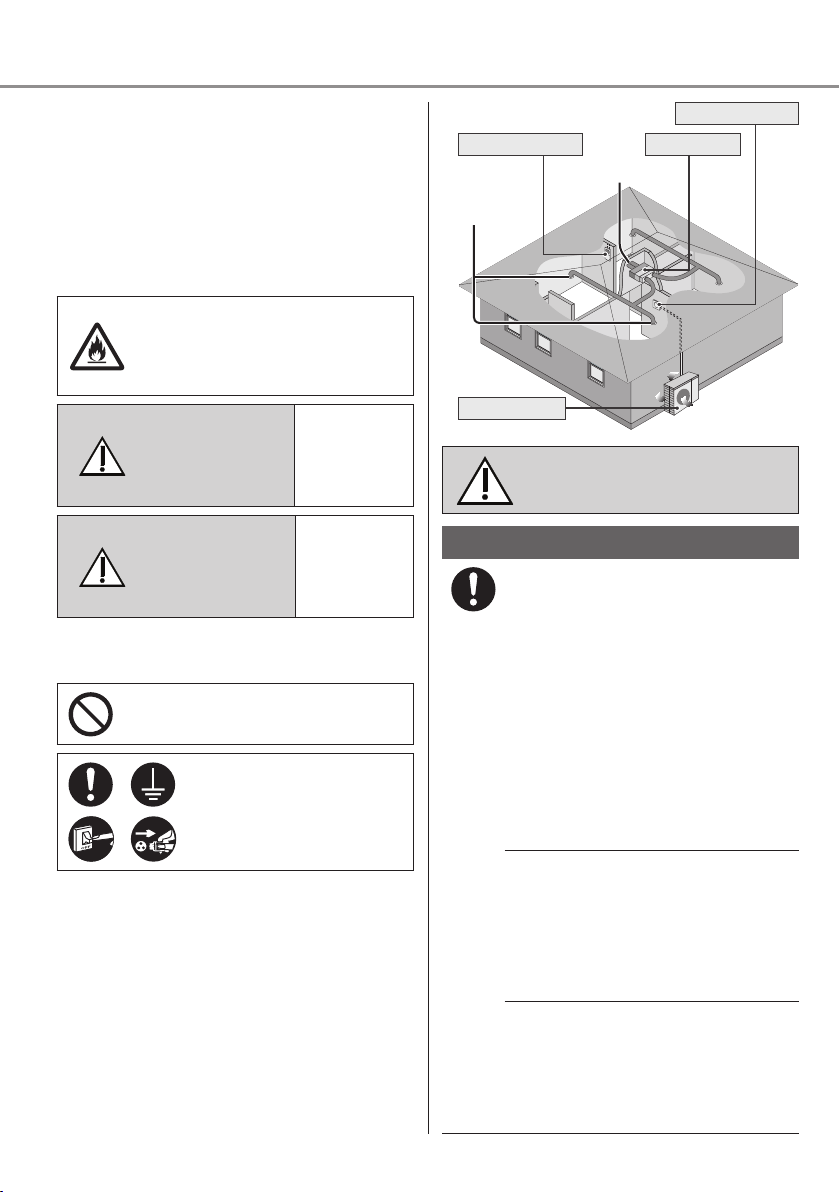

Safety precautions
To prevent personal injury, injury to
others or property damage, please
comply with the following:
Incorrect operation due to failure to
follow instructions below may cause
harm or damage, the seriousness of
which is classified as below:
This appliance is not intended for
accessibility by the general public.
For appliance filled with R32
(mild flammable refrigerant).
If the refrigerant is leaked and
exposed to an external ignition
source, there is a risk of fire.
WARNING
This sign
warns of
death or
serious
injury.
CAUTION
This sign
warns of
injury or
damage to
property.
The instructions to be followed are
classified by the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
Please consult authorised dealer
or specialist to clean the internal
parts, repair, install, remove
and reinstall the unit. Improper
installation and handling will
cause leakage, electric shock or
fire.
Confirm with authorised dealer
or specialist on usage of any
specified refrigerant type.
Using refrigerant type other than
the specified may cause product
damage, burst and injury etc.
Air inlet
Air inlet
Air outlet
Air outlet
Remote control
Outdoor unit
Power supply
Indoor unit
Air inlet vent
Air outlet
vent

5
EnglishSafety precautions
Do not install the unit in
a potentially explosive or
flammable atmosphere.
Failure to do so could result in
fire.
Do not insert your fingers
or other objects into the
air conditioner indoor or
outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor unit
during lightning, it may cause
electric shock.
Do not expose yourself directly
to cold air for a long period to
avoid excess cooling.
Do not sit or step on the
unit, you may fall down
accidentally.
Remote control
Do not allow infants and small
children to play with the remote
control to prevent them from
accidentally swallowing the
batteries.
Power supply
Do not use a
modified cord, joint
cord, extension cord
or unspecified cord to
prevent overheating
and fire.
To prevent overheating, fire or
electric shock:
•Do not share the same power
outlet with other equipment.
•Do not operate with wet hands.
•Do not over bend the power
supply cord.
•Do not operate or stop the unit
by inserting or pulling out the
power plug.
If the supply cord is damaged,
it must be replaced by the
manufacturer, service agent or
similarly qualified persons in
order to avoid a hazard.
It is strongly recommended to
be installed with Earth Leakage
Circuit Breaker (ELCB) or
Residual Current Device (RCD)
to prevent electric shock or fire.
To prevent overheating, fire or
electric shock:
•Insert the power plug properly.
•Dust on the power plug should
be periodically wiped with a dry
cloth.
Stop using the product if any
abnormality/failure occurs and
disconnect the power plug or turn
off the power switch and breaker.
(Risk of smoke/fire/electric
shock)
Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of
the unit is observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes
abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running
immediately even if it is
switched on for operation.
• The fan does not stop even if
the operation is stopped.
Contact your local dealer
immediately for maintenance/
repair.
This equipment must be earthed
to prevent electrical shock or fire.
Prevent electric shock by
switching off the power supply
and unplug:
-Before cleaning or servicing,
-When extended non-use, or
-During abnormally strong
lightning activity.

6
Safety precautions
WARNING
Precaution for appliance filled
with R32
Pay careful attention to the following
points when operating the appliances
and dealing with different refrigerants.
The appliance shall be installed,
and/or operated in a room with
floor area larger than Amin (m²)
and keep away from ignition
sources, such as heat/sparks/
open flame or hazardous areas
such as gas appliances, gas
cooking, reticulated gas supply
systems or electric cooking
appliances, etc. (Refer to Table
A of Installation instructions table
for Amin (m²))
Be aware that refrigerant may
not contain an odour, highly
recommended to ensure suitable
flammable refrigerant gas
detectors are present, operating
and able to warn of a leak.
Since the working pressure is
higher than that of refrigerant
R22 models, some of the piping
and installation and service tools
are special.
Especially, when replacing a
refrigerant R22 model with a new
refrigerant R32 model, always
replace the conventional piping
and flare nuts with the R32 and
R410A piping and flare nuts on
the outdoor unit side.
The R32 flare nut and pipe on
the outdoor unit side can also be
used for a R410A model.
Models that use refrigerant R32
and R410A have a different
charging port thread diameter to
prevent erroneous charging with
refrigerant R22 and for safety.
Therefore, check beforehand.
[The charging port thread
diameter for R32 and R410A is
12.7 mm (1/2 inch).]
Be extra careful so that foreign
matter (oil, water, etc.) does not
enter the piping.
Also, when storing the piping,
securely seal the opening by
pinching, taping, etc. (Handling
of R32 is similar to R410A.)
This appliance shall be stored in
a well ventilated area.
This appliance shall be stored
in a room without continuously
operating open flames and
ignition sources.
This appliance shall be stored
so as to prevent mechanical
damage from occurring.
Do not use means to accelerate
the defrosting process or
to clean, other than those
recommended by manufacturer.
Any unfit method or using
incompatible material may cause
product damage, burst and
serious injury.
Do not pierce or burn as the
appliance is pressurized. Do not
expose the appliance to heat,
flame, sparks, or other sources
of ignition. Else it may explode
and cause injury or death.

7
English
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit
with water, benzine, thinner
or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation
of precise equipment, food,
animals, plants, artwork or other
objects. This may cause quality
deterioration, etc.
Do not use any combustible
equipment in front of the airflow
outlet to avoid fire propagation.
Do not expose plants or pet
directly to airflow to avoid injury,
etc.
Do not touch the sharp
aluminium fin, sharp parts
may cause injury.
Do not switch ON the indoor
unit when waxing the floor. After
waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and
smoky areas to prevent damage
to the unit.
Do not dismantle the unit for
cleaning purpose to avoid injury.
Do not step onto an unstable
bench when cleaning the unit to
avoid injury.
Do not place a vase or water
container on the unit. Water may
enter the unit and degrade the
insulation. This may cause an
electric shock.
Do not open window or door
for long time during operation,
it may lead to inefficient power
usage and uncomfortable
temperature changes.
Prevent water leakage by
ensuring drainage pipe is:
-Connected properly,
-Kept clear of gutters and
containers, or
-Not immersed in water
After a long period of use or use
with any combustible equipment,
aerate the room regularly.
After a long period of use, make
sure the installation rack does
not deteriorate to prevent the unit
from falling down.
Remote control
Do not use rechargeable (Ni-Cd)
batteries. It may damage the
remote control.
To prevent malfunction or
damage of the remote control:
•Remove the batteries if the unit
is not going to be used for a
long period of time.
•New batteries of the same type
must be inserted following the
polarity stated.
Power supply
Do not disconnect the plug
by pulling the cord to prevent
electric shock.
Safety precautions

8

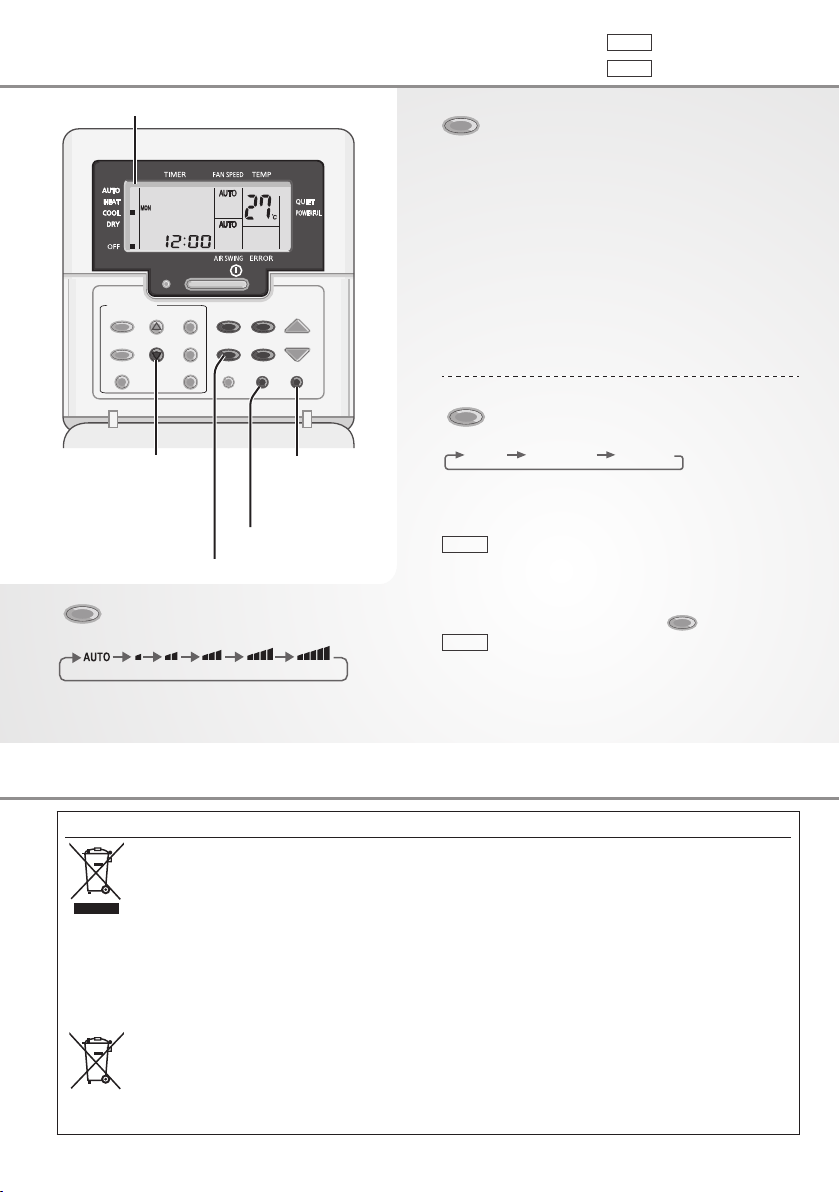

FAN SPEED
To select fan speed
(Remote control display)
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
How to use
MODE
To select operation mode
AUTO - For your convenience
• Unit selects operation mode every 10 minutes
according to setting temperature and room
temperature.
HEAT - To enjoy warm air
• Unit takes a while to warm up.
COOL- To enjoy cool air
• Use curtains to screen off sunlight and outdoor
heat to reduce power consumption during COOL
mode.
DRY - To dehumidify the environment
• Unit operates at low fan speed to give a gentle
cooling operation.
QUIET/
POWERFU
L
To switch between
quiet & powerful
QUIET POWERFUL NORMAL
QUIET: To enjoy quiet operation
• This operation reduces airflow noise.
POWERFUL: To reach temperature quickly
Single • This operation stops automatically after
20 minutes.
• To eliminates the POWERFUL indicator
after 20 minutes operation, press
QUIET/
POWERFU
L
button again.
Multi • Press the button again or turn OFF the
unit to stop this operation.
Can be activated in all modes and can be
cancelled by pressing the respective button again.
OFF /ON
TEMP
TIMER/CLOCK
MODE
QUIET/
POWERFUL
FAN SPEED
MODE
CHECK RESET
AIR SWING
OFF/ON
CANCELCLOCK
SET
SELECTUP
DOWN
AC RC
Remote control display
Press and hold
for approximately
10 seconds to show
temperature setting
in °C or °F.
Press to restore the
remote control to
default setting.
Not used in normal
operations.
Not applicable
Information for Users on Collection and Disposal of Old Equipment
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection
points, in accordance with your national legislation.
By disposing of these products correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of old products, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of disposal.
Information
Single Single split system
Multi Multi split system

NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY then please consult
authorised dealer under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote
control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
9
English
To set the timer
Daily timer setting
To turn ON or OFF the unit at a preset time.
TIMER/CLOCK
CANCELCLOCK
SELECT
MO
D
E
O
FF
/ON
S
E
T
U
P
D
O
W
N
3
4
1
2
1Press TIMER
MODE
to enter timer mode
• Press once to change the display from
clock to timer or vice-versa.
• Press for 4 seconds to change the display
from daily timer to weekly timer or vice-
versa.
2Select ON or OFF
timer
Example:
OFF at 22:00
OFF/ON
3Set the time
UP
DOWN
4Confirm
SET
• To cancel, press
CANCEL
.
• When ON timer is set, the unit may start early
before the actual set time in order to achieve
the desired temperature on time.
• Timer operation is based on the clock set in
the remote control and repeats daily once set.
• The timer closest to the current time will be
activated first.
• If timer is cancelled manually or due to power
failure, you can restore the previous setting
by pressing
SET
.
How to use / Information / To set the timer
To ensure optimal performance of the unit,
cleaning has to be carried out at regular
intervals. Please consult authorised dealer.
• Switch off the power supply before cleaning.
• Do not touch the aluminium fin, sharp parts
may cause injury.
• Do not use benzine, thinner or scouring
powder.
• Use only soap ( pH 7) or neutral household
detergent.
• Do not use water hotter than 40 °C / 104 °F.
For seasonal inspection after extended
non-use
• No obstruction at air inlet and air outlet
vents.
• These units are mounted inside the ceiling.
It uses external air intake vent and air
outlet vent to operate. Please consult your
nearest dealer for seasonal inspection.
• After 15 minutes of operation, it is normal to
have the following temperature difference
between air inlet and air outlet vents:
COOL: ≥8 °C / 14.4 °F
HEAT: ≥14 °C / 25.2 °F
For extended non-use
• Activate HEAT mode for 2~3 hours to
remove moisture left in the internal parts
thoroughly to prevent mould growth.
• Turn off the power supply.

10
To set the timer
Weekly timer setting
Promotes energy saving by allowing you to set
up to 6 programmes in any given day.
TIMER/CLOCK
CANCELCLOCK
SELECT
MO
D
E
O
FF
/ON
S
E
T
U
P
D
O
W
N
Lights up if Timer operation is selected
Programme number in a
day (1 ~ 6)
Time to be selected
(10 minutes step)
ON Timer
OFF Timer
Day to be selected
Indicates the selected day
Indicates the next timer
operation day
1. Press TIMER
MODE
for 4 seconds to change
display to weekly timer.
2. Press TIMER
UP
or
DOWN
to select your
desired day.
3. Press
SELECT
to confirm your selection.
4. “1” will be blinking, press
SELECT
to set
programme 1.
5. Press TIMER
OFF/ON
to select ON or OFF timer.
6. Press TIMER
UP
or
DOWN
to select your
desired time.
If you want to set the timer together with
your desired temperature, press
TEMP
to
select the temperature.
7. Press
SET
to confirm programme 1. The
selected day will be highlighted with .
• After 2 seconds, the display will move to the
next programme. Repeat steps 4 to 7 to set
programmes 2 to 6.
• During timer setup, if no button is pressed within
30 seconds, or if the
SET
button is pressed, the
setting at that moment is confirmed and timer
setup is ended.
To check current timer programme
1.Press TIMER
MODE
to enter timer mode and
press
SELECT
to enter day setting.
2.Press TIMER
UP
or
DOWN
until your desired day is
shown, press
SELECT
to confirm your selection.
3.Press TIMER
UP
or
DOWN
to check the set
programmes.
To modify current timer programme or
add new timer programme
1.Press TIMER
MODE
to enter timer mode and
press
SELECT
to enter day setting.
2.Press TIMER
UP
or
DOWN
until your desired day is
shown.
3.Perform steps 4 to 7 of “Weekly timer setting”
to modify existing timer programme, or add any
timer programme.
To cancel current timer programme
1.Press
SELECT
to enter day.
2.Press TIMER
UP
or
DOWN
until your desired day is
shown, press
SELECT
to enter programme setting.
3.Press TIMER
UP
or
DOWN
until your desired day
is shown. Press
CANCE
L
to cancel the programme
and will disappear.
To disable/enable Weekly Timer
• To disable weekly timer setting, press TIMER
MODE
, then press
CANCEL
.
• To enable previous weekly timer setting, press
TIMER
MODE
, then press
SET
.
Note
• Daily timer and weekly timer could not be set
at the same time.
• Same timer programme cannot be set in the
same day.
