Panasonic DA-MC700 User manual

Digital Imaging System
DA-MC700
Operating Instructions (For PostScript)
Before operating this machine, please read
these instructions completely and keep these
operating instructions for future reference. English

TRADEMARKS/COPYRIGHTS
The following trademarks and registered trademarks are used throughout this manual.
Microsoft, MS-DOS, Windows, and Windows NT are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
i386, i486, and Pentium are either registered trademarks or trademarks of Intel Corporation.
Adobe, the Adobe logo, Adobe PostScript, Acrobat, Acrobat Reader, and Acrobat logo are either
registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
Apple, the Apple logo, LaserWriter, Mac, Mac logo, Macintosh, Power Macintosh, and TrueType
are either registered trademarks or trademarks of Apple Computer, Inc. in the United States and/
or other countries.
Novell, Novell Client, Novell Directory Services, Novell Distributed Print Services, Netware,
intraNetware, NDPS, NDS, , IPX, IPX/SPX, NDS Admin, NDS Administrator are either registered
trademarks or trademarks of Novell, Inc., in the United States and/or other countries.
Panasonic Document Imaging Company has made every effort to supply trademark information
about company names, products and services mentioned in this documentation. All third party
and/or other trademarks identified herein are the property of their respective owners.
Copyright © 2001 by Matsushita Graphic Communication Systems, Inc.
All rights reserved.
Copyright protection claimed includes all forms and matters of copyrightable material and
information now allowed by statutory or judicial law or hereinafter granted, including without
limitation, material generated from the software programs that are displayed on the screen such
as styles, templates, icons, screen displays, looks, etc.
Contents are subject to change without notice.
Printed in Japan.

i
Preface
Thank you for purchasing the PostScript Driver Library.
These Operating Instructions contain information on the various types of software included
in the PostScript Printer Driver & Documentation CD-ROM as well as on how to install and
use them. Please read this manual first before you begin to use the software to ensure smooth
operation.
This manual is written with the assumption that you are familiar with the basics of the
Microsoft Windows Operating System and Macintosh, and that you have understood the
operation of the printer with the aid of the Operating Instructions (For Printer). You may also
refer to their respective user manuals regarding the basic knowledge and operation method
of the product. Note that this manual is written for users operating the DP-6000/7000* with a
client computer installed with an English edition operating system only.
After reading, keep these operating instructions handy for a quick reference should you
encounter any difficulties when using the machine.
* DP-6000 USA/Canada only.

ii
PostScript Driver Library
The following types of software are included in the PostScript Printer Driver &
Documentation CD-ROM.
Types of Software Included
The “Readme.txt” files contain important information. Be sure to read them.
Printer Driver (for Windows 95/98/Me)
Adobe PostScript driver (AdobePS 4.4) for Windows 95/98/Me, including a
PPD file to add Panasonic printer information to the driver. Refer to section
“1.2 Installing the Printer Driver (AdobePS 4.4)” to install the printer driver.
Printer Driver (for Windows NT 4.0)
Adobe PostScript driver (AdobePS 5.1) for Windows NT 4.0, including a PPD
file to add Panasonic printer information to the driver. Refer to section “2.2
Installing the Printer Driver (AdobePS 5.1)” to install the printer driver.
Printer Driver (for Windows 2000)
Microsoft PostScript driver (MS PScript 5) for Windows 2000, including a PPD
file to add Panasonic printer information to the driver. Refer to section “3.2
Installing the Printer Driver (Microsoft PScript 5)” to install the printer driver.
ATM (for Windows 95/98/Me and Windows NT 4.0)
Adobe Type Manager for Windows 95/98/Me and Windows NT 4.0.
Adobe Screen Fonts (for Windows 95/98/Me and Windows NT 4.0)
Includes 136 typefaces of screen fonts which are standard for Adobe PostScript
3. There are 19 TrueType fonts and 117 PostScript fonts. To install these fonts,
open the Fonts folder in Control Panel and from the “File” menu, choose the
appropriate command.
Acrobat Reader (for Windows 95/98/Me, Windows NT 4.0 and Windows 2000)
Adobe Acrobat Reader for Windows 95/98/Me, Windows NT 4.0 and Windows
2000 to view and print PDF (Portable Document Format) files.

iii
Printer Driver (for Macintosh)
Adobe PostScript driver (AdobePS 8.5/8.7) for Macintosh. Refer to section “4.3
Installing the Printer Driver (AdobePS 8.5/8.7)” for the details.
PS Utility (for Macintosh)
This is used to specify printer settings from Macintosh. Refer to section “4.6
Panasonic PS Utility” for the details.
ATM (for Macintosh)
Adobe Type Manager for Macintosh.
Adobe Screen Fonts (for Macintosh)
Includes 136 typefaces of screen fonts which are standard for Adobe PostScript
3. There are 19 TrueType fonts and 117 PostScript fonts. In addition, 37
PostScript fonts of the Central European (CE) character set are included. Refer
to section “4.5 Installing the Adobe Screen Fonts” to install the fonts.
Acrobat Reader (for Macintosh)
Adobe Acrobat Reader for Macintosh to view and print PDF files.

iv
Contents
Preface........................................................................................................ i
PostScript Driver Library ......................................................................... ii
Contents ................................................................................................... iv
About the Attached CD-ROM................................................................. vi
Using These Operating Instructions ....................................................... vii
Chapter 1 Installing the Printer Driver for Windows 95/98/Me
1.1 About the Software ...................................................................................... 2
1.1.1 Bundled Software ............................................................................ 2
1.1.2 Hardware/Software Requirements................................................... 2
1.2 Installing the Printer Driver (AdobePS 4.4)................................................ 3
1.2.1 Method of Installation ..................................................................... 3
1.2.2 Optional Settings ............................................................................. 7
1.2.3 Features List..................................................................................... 8
1.3 Using Help ................................................................................................. 11
Chapter 2 Installing the Printer Driver for Windows NT 4.0
2.1 About the Software .................................................................................... 14
2.1.1 Bundled Software .......................................................................... 14
2.1.2 Hardware/Software Requirements................................................. 14
2.2 Installing the Printer Driver (AdobePS 5.1).............................................. 15
2.2.1 Method of Installation ................................................................... 15
2.2.2 Optional Settings ........................................................................... 20
2.2.3 Printer Features .............................................................................. 21
2.3 Using Help ................................................................................................. 23
Chapter 3 Installing the Printer Driver for Windows 2000
3.1 About the Software .................................................................................... 26
3.1.1 Bundled Software .......................................................................... 26
3.1.2 Hardware/Software Requirements................................................. 26
3.2 Installing the Printer Driver (Microsoft PScript 5) ................................... 27
3.2.1 Method of Installation ................................................................... 27
3.2.2 Optional Settings ........................................................................... 32
3.2.3 Printer Features .............................................................................. 33
3.3 Using Help ................................................................................................. 36

v
Chapter 4 Installing the Printer Driver for Macintosh
4.1 Configuring the Printer .............................................................................. 38
4.1.1 Enabling Port and Setting Protocol ............................................... 38
4.1.2 Other Settings ................................................................................ 40
4.2 About the Software .................................................................................... 41
4.2.1 Bundled Software .......................................................................... 41
4.2.2 Hardware/Software Requirements................................................. 41
4.3 Installing the Printer Driver (AdobePS 8.5/8.7)........................................ 42
4.3.1 Installing the Printer Driver........................................................... 42
4.3.2 Configuring the Printer Driver ...................................................... 44
4.4 Printer Features .......................................................................................... 47
4.4.1 Printer Specific Options................................................................. 47
4.5 Installing the Adobe Screen Fonts............................................................. 49
Appendix
A Cautions/Limitations.................................................................................. 52
Index...................................................................................................... 54

vi
About the Attached CD-ROM
The following are files included in CD-ROM “PostScript Printer Driver & Documentation”.
About the attached CD-ROM
CD-ROM for the PS3 (PostScript 3) kit: “PostScript Printer Driver &
Documentation (Macintosh/Windows)”
• AdobePS (Adobe PS printer drivers and PPD files)
(for Windows 95/98/Me, Windows NT 4.0, Windows 2000, Macintosh)
• ATM (Adobe Type Manager)
(for Windows 95/98/Me, Windows NT 4.0, Macintosh)
• SFONT (Adobe PS 3 Screen Font) (TrueType/Type 1)
(for Windows 95/98/Me, Windows NT 4.0, Macintosh)
• ACROBAT (Adobe Acrobat Reader)
(for Windows 95/98/Me, Windows NT 4.0, Windows 2000, Macintosh)
• Manual (in PDF format):
PostScript.pdf: “Operating Instructions (For PostScript)”
• Readme.txt
Manuals Bundled With DP-6000/7000
Several manuals are bundled with DP-6000/7000 machine, including Operating
Instructions (For Copier), Operating Instructions (For Printer), and Operating
Instructions (For Scanner). These manuals explain how to set up, manage, and
use the machine.

vii
Organization of This Manual
The following is a brief summary of each chapter.
Chapter 1 Installing the Printer Driver for Windows 95/98/Me
This chapter explains the procedure of installing the Adobe printer driver on
Microsoft Windows 95/98/Me operating systems, the necessary settings and the
items that can be set during printing.
Chapter 2 Installing the Printer Driver for Windows NT 4.0
This chapter explains the procedure of installing the Adobe printer driver on
Microsoft Windows NT Workstation operating system version 4.0 and
Microsoft Windows NTServer network operating system version 4.0, the
necessary settings and the items that can be set during printing.
Chapter 3 Installing the Printer Driver for Windows 2000
This chapter explains the procedure of installing the Microsoft Windows 2000
printer driver on Microsoft Windows 2000 operating system and Microsoft
Windows 2000 Server network operating system, the necessary settings and the
items that can be set during printing.
Chapter 4 Installing the Printer Driver for Macintosh
This chapter explains how to install the printer driver, fonts and utility on the
Macintosh, and at the same time, how to utilize them.
Appendix
This section explains how to download the latest version of the software from
the internet, the points which you have to take note, and the limitations of the
printer.
Using These Operating Instructions

viii
Conventions
The following icons are used in this manual.
Indicates important information and must be read in detail.
Indicates supplementary information.
Indicates references used in this manual. Manual titles are noted without
double quotes while specific sections like “4.2.2 Hardware/Software
Requirements” are found within double quotes.
The following conventions are used in this manual.
“ ” : Double quotes are used to indicate names of files,
windows, dialog boxes and input contents.
E.g. The “Run” dialog box appears.

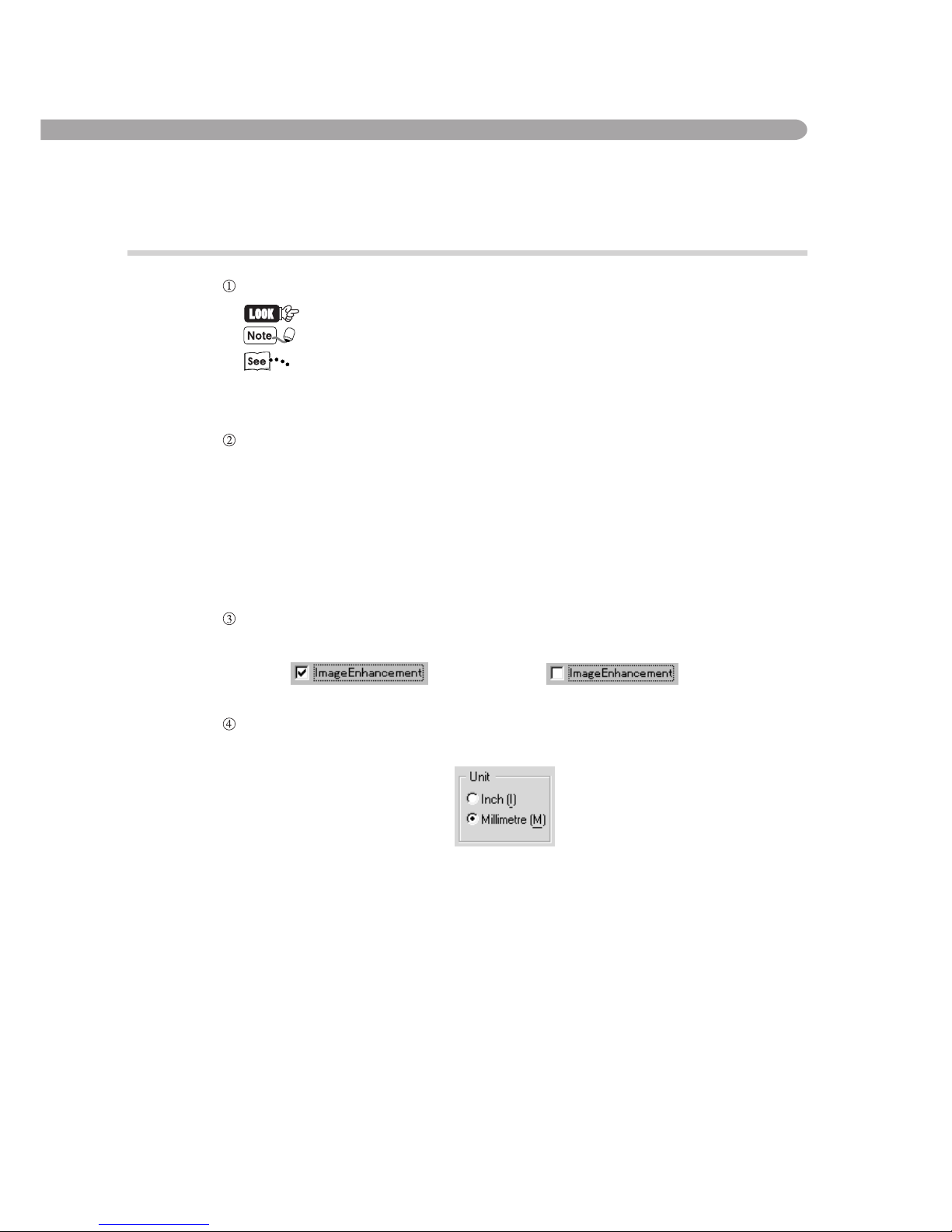

Bold face : Boldface characters refer to window menu items,
dialog box items and all kinds of buttons.
E.g. Click OK.
When a checkbox is checked, it indicates ON, otherwise it indicates OFF.
E.g. “Image Enhancement” is on. “Image Enhancement” is off.
The item with the radio button checked is the selected item.
E.g. “Millimetre” is selected.

Installing the
Printer Driver for
Windows95/98/Me
1.1 About the Software................................................................................ 2
1.2 Installing the Printer Driver (AdobePS 4.4) .......................................... 3
1.3 Using Help........................................................................................... 11

2
This section explains the types of software provided and the hardware/software required to
use with the printer when operating on Windows 95,Windows 98 or Windows Me.
1.1.1 Bundled Software
The following items are included in the “Driver PS3\Win9x_Me” folder and
“Utilities\Win9x_Me” folder on the enclosed CD-ROM.
• AdobePS Printer Driver (ver. 4.4x) and PPD files
Adobe PostScript driver and PPD files (for Windows 95/98/Me).
• ATM (Adobe Type Manager) (ver. 4.0)
Helps you to install typefaces, activate and manage your fonts.
• Adobe Screen Fonts (TrueType/PostScript)
Includes 136 screen font typefaces (19 TrueType fonts and 117 PostScript
fonts) which are compatible with the printer fonts. ATM is used to install the
PostScript screen fonts. When using these fonts to print, you are
recommended to use the Adobe PostScript (4.4x) printer driver.
• Acrobat Reader
Enables you to view and print PDF files on all major computing platforms.
• Readme.txt
Contains the cautionary notes on using the printer driver. Be sure to read this.
1.1.2 Hardware/Software Requirements
The operating environment for the Windows 95/98/Me printer driver is as
follows:
Computer System
• i386, i486, or Pentium processor-based personal computer (i486 or Pentium
processor recommended)
• 8 MBytes of available RAM (16 MBytes recommended)
• 6 MBytes of available hard-disk space (8 MBytes required for full driver
installation)
Basic Software
• Windows 95, Windows 98 or Windows Me
1.1 About the Software

1
3
Installing the Printer Driver for Windows 95/98/Me
1.2 Installing the Printer Driver
(AdobePS 4.4)
The Adobe printer driver (AdobePS 4.4) can be installed by simply following the
instructions displayed on the dialog boxes. Get ready the enclosed CD-ROM and follow the
procedure below. The following installation procedure is performed in Windows 95.
•Click the Help button for details on the settings and the way of operation.
•Click the Cancel button in the dialog box to end the installation and the Back button to cancel
the setting at that stage and return to the previous dialog box.
1.2.1 Method of Installation
Procedure
Switch on the printer.
Switch on the computer and start Windows 95.
Click the “Start” menu and select Settings, then Printers.
The “Printers” window appears.
You can also double-click the Printers icon on “My Computer” window.
Double-click the “Add Printer” icon on the “Printers” window.
Follow the instructions and click Next.
If the printer is to be connected directly to the computer, select Local
printer. Otherwise, select Network printer.
Here, we select Local printer as an example.

4
1.2 Installing the Printer Driver (AdobePS 4.4)
Click Next.
If Network printer is selected, enter the Network path or queue name and
then click Next. You can also click the Browse button and search the
network for the printer.

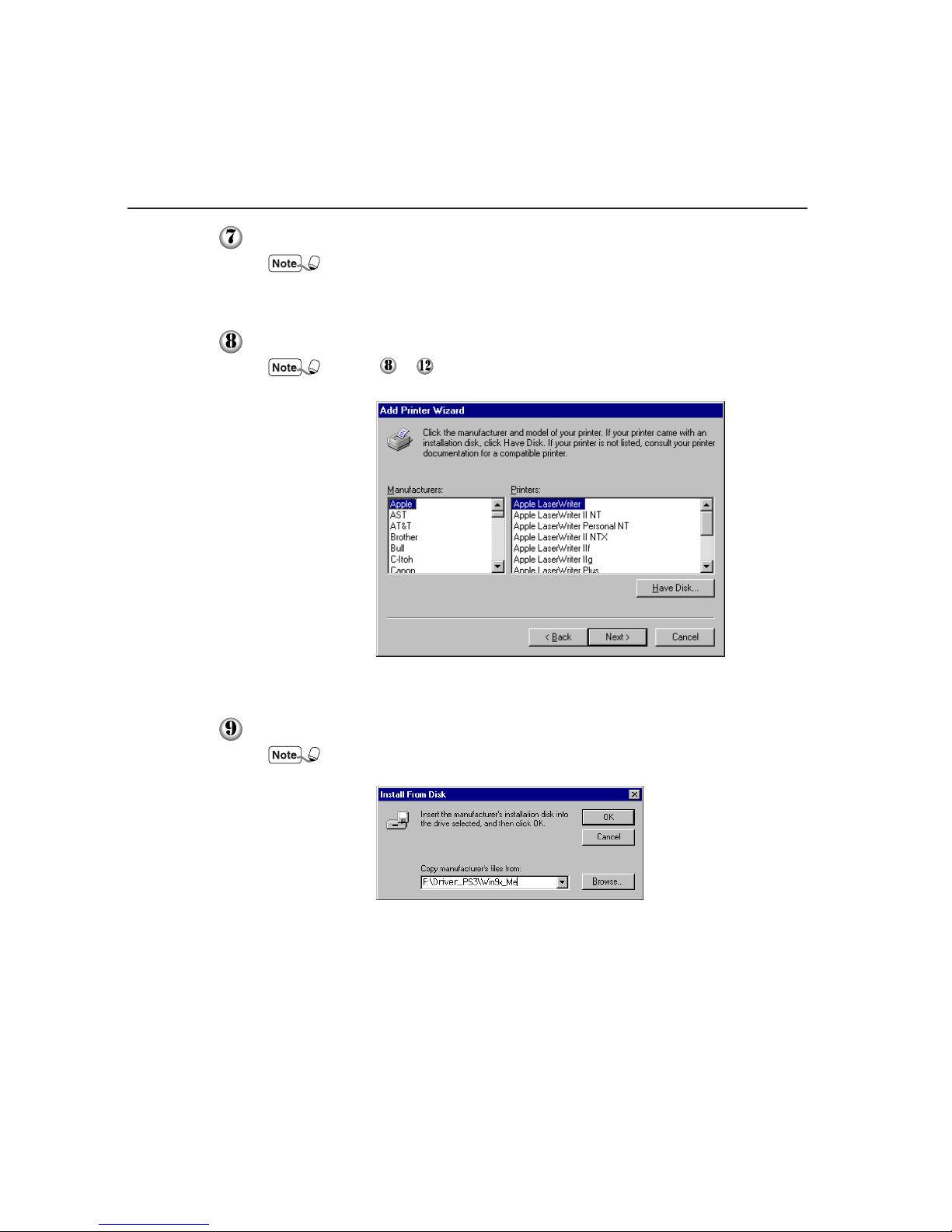

Click Have Disk.
Steps to are not necessary depending on the network environment
settings you are using.
The “Install From Disk” dialog box is displayed.
Insert the CD-ROM, enter “F:\Driver_PS3\Win9x_Me” and click OK.
In this manual, “F:” is used as a CD-ROM drive, but if you are using a
different drive for the CD-ROM, please specify accordingly.
The “Add Printer Wizard” dialog box is displayed.

Installing the Printer Driver for Windows 95/98/Me
1
5
1.2 Installing the Printer Driver (AdobePS 4.4)
From the printers available, select Panasonic DP-6000/7000 PS and
click Next.
Select the port to be used and click Next.
Refer to the printer/scanner kit or the manuals bundled with the printer
that contain information about the printer features for the details of
configuring the port.
Input the printer name. Choose whether you want to use the printer as the
default printer, then click Next.
To change the printer name, enter a name of your choice in the text box.
Otherwise the printer name displayed in the text box will be used.
Select Yes if you want to use the printer as the default printer.

6
1.2 Installing the Printer Driver (AdobePS 4.4)
After the printer is installed, specify whether to print the test page by
clicking Yes or No. Then click Finish. If you have selected Yes to print
test page, a test page will be printed after the installation is finished.
The “End User License Agreement” dialog box is displayed.
Click Accept.
The file is copied and installation of the printer driver is completed. Take
out the CD-ROM. If you have selected to test print, a dialog box is
displayed. Click Yes if the test print is printed correctly. If it is not, click
No and follow the instructions on the dialog box.
•Select the Decline button and a dialog box “The installation is
incomplete. If you exit now, the driver may not be installed correctly. Do
you want to exit now?” is displayed.
•Store the CD-ROM properly.

Installing the Printer Driver for Windows 95/98/Me
1
7
1.2 Installing the Printer Driver (AdobePS 4.4)
1.2.2 Optional Settings
To configure optional settings installed on the printer, select the “Options” tab
on the “Printer Properties” dialog box. The following shows how to display the
“Options” tab.
Procedure
Click on the printer icon on the “Printers” window.
From the “File” menu, click Properties.
Click the “Options” tab.
Hardware Options
Option Paper Source
Specify the type of option sheet feeder installed. The options
available are 3 Trays + Multi-Tray*, 4 Trays (default), 3 Trays
(HCF) + Multi-Tray* and 4 Trays (HCF). If the High Capacity
Feeder (HCF) is installed on your printer, select 4 Trays (HCF).
* Multi-Tray is not available in the DP-6000/7000.
Option Output Tray
Specify the type of option output tray installed on your printer. The
options available are Main Tray (default) and Finisher.
Memory Configuration
The standard memory for this machine is 96 MBytes and this setting
cannot be changed.

8
1.2 Installing the Printer Driver (AdobePS 4.4)

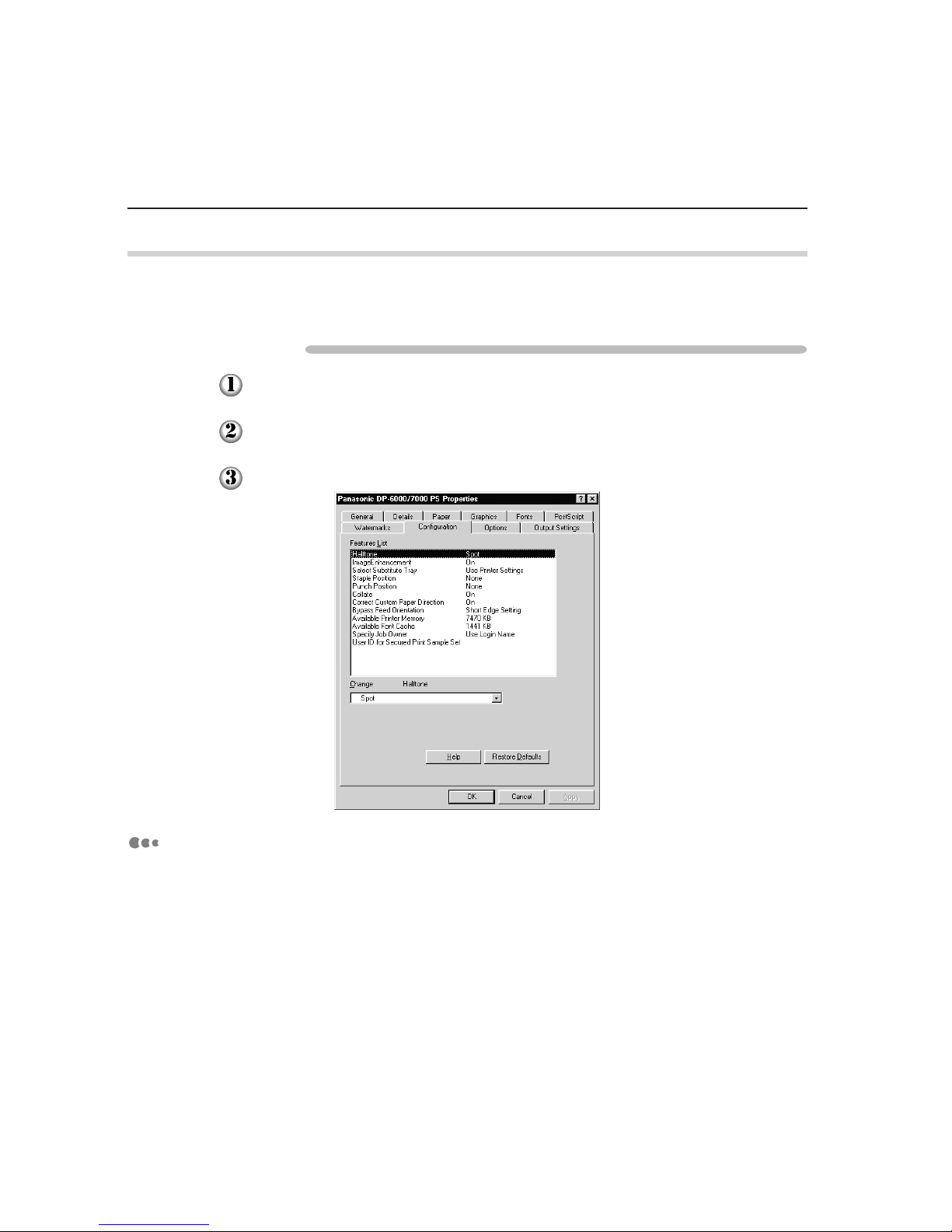

1.2.3 Features List
To do settings for the features list, click the “Configuration” tab on the “Printer
Properties” dialog box.
Procedure
Click on the printer icon on the “Printers” window.
From the “File” menu, click Properties.
Click the “Configuration” tab.
Features List
Halftone
Select here the type of toning pattern you want. The settings that are
selectable in the application may become invalid.
Image Enhancement
Reduce the slipping and jagging of the black and white boundary and
increase the pseudo resolution.

Installing the Printer Driver for Windows 95/98/Me
1
9
1.2 Installing the Printer Driver (AdobePS 4.4)
Select Substitute Tray
The following selections are available:
Use Printer Settings
Nearest size (Adjust to Fit)
Nearest size (No Zoom)
Next larger size (Adjust to Fit)
Next larger size (No Zoom)
Abort Job
Staple Position
Specify whether you want the documents to be stapled and where
you want them stapled.
Punch Position
Specify whether you want the documents to be punched and where
you want them punched.
Collate
Specify whether you want the documents to be collated or not.
Correct Custom Paper Direction
When you are using a non-standard paper size, select the paper
direction. Depending on the application, printing may be done
incorrectly on the non-standard sized paper. Select On to avoid this.
Bypass Feed Orientation
Specify Short Edge Setting or Long Edge Setting.
Available Printer Memory
Specify the memory in KB that can be used as the printer memory.
Enter an integer between 0 and 200000.
Available Font Cache
Specify the font cache in KB that can be used. Enter an integer
between 0 and 25600.

10
1.2 Installing the Printer Driver (AdobePS 4.4)
Specify Job Owner
The following selections are available:
Use Login Name
Use the Windows Logon Name as a job owner name. The job owner
name will become the “Logon User Name\Host Name”. Up to 31
characters can be used for the logon name. If it exceeds 31
characters, only the first 31 characters will be used.
Input Owner Name
Select this if you wish to specify a custom job owner name. Enter
any job owner name in the “Job Owner Name” edit box. Up to 31
characters can be entered for the job owner name. If it exceeds 31
characters, only the first 31 characters will be used. Its default value
is “Unknown User”.
User ID for Secured Print Sample Set
Specify the user ID for Secured Print or Sample Set with a maximum
of 24 alphanumeric characters. If the user ID is previously specified,
it will be displayed in the edit box. If you are using Secured Print,
you will also be prompted to enter the password. You can enter up to
four digits and each input digit is represented by an asterisk.
