Panasonic DVD-PV55 User manual

Portable DVD/Video CD/CD Player
Operating Instructions
Model No. DVD-PV55
Dear customer
Thank you for purchasing this product.
For optimum performance and salety, please read these instructions carefully.
Betlore connecting, operating or adjusting this product, please read these instructions com-
pletely. Please keep this manual for future relerence
in the U.S.A.; http/Awww.panasonic.com — =
| D | In Canada ; www panasonic ca [VAT 8644-1 |

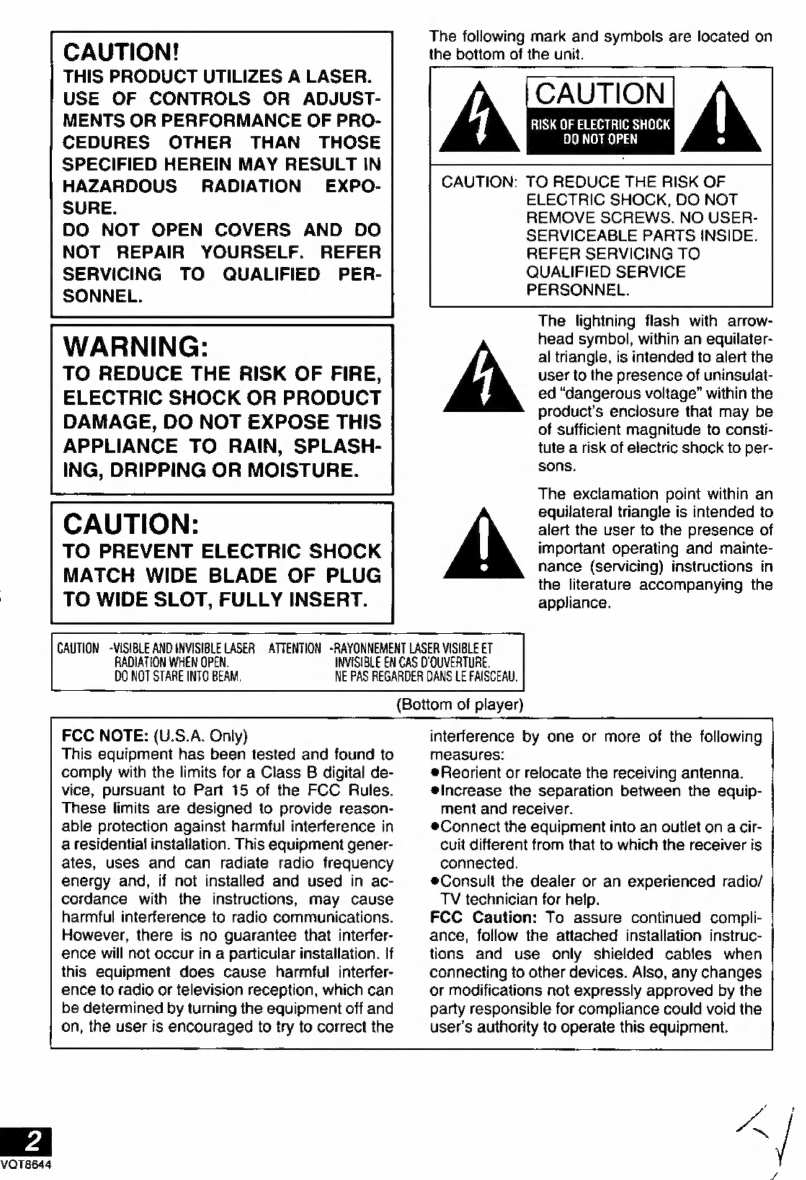

CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUST-
MENTS OR PERFORMANCE OF PRO-
CEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPO-
SURE.
DO NOT OPEN COVERS AND DO
NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PER-
SONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PRODUCT
DAMAGE, DO NOT EXPOSE THIS
APPLIANCE TO RAIN, SPLASH-
ING, DRIPPING OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK
MATCH WIDE BLADE OF PLUG
TO WIDE SLOT, FULLY INSERT.
The following mark and symbols are located on
the bottom of the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE SCREWS. NO USER-
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrow-
head symbol, within an equilater-
al triangle, is intended to alert the
user to the presence of uninsulat-
ed “dangerous voltage” within the
product’s enclosure that may be
of sufficient magnitude to consti-
tute a risk of electric shock to per-
sons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and mainte-
nance (servicing) instructions in
the literature accompanying the
appliance.
CAUTION -VISIBLE AND INVISIBLE LASER ATTENTION -RAYONNEMENT LASER VISIBLE ET
RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM,
FCC NOTE: (U.S.A. Only)
This equipment has been tested and found to
comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference in
a residential installation. This equipment gener-
ates, uses and can radiate radio frequency
energy and, if not installed and used in ac-
cordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation. If
this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off and
on, the user is encouraged to try to correct the
INVISIBLE EN CAS D'OUVERTURE.
NE PAS REGARDER DANS LE FAISCEAU.
{Bottom of player)
interference by one or more of the following
measures:
eReorient or relocate the receiving antenna.
Increase the separation between the equip-
ment and receiver.
Connect the equipment into an outlet on a cir-
cuit different from that to which the receiver is
connected.
eConsult the dealer or an experienced radio/
TV technician for help.
FCC Caution: To assure continued compli-
ance, follow the attached installation instruc-
tions and use only shielded cables when
connecting to other devices. Also, any changes
or modifications not expressly approved by the
party responsible for compliance could void the
user's authority to operate this equipment.

VQT8644

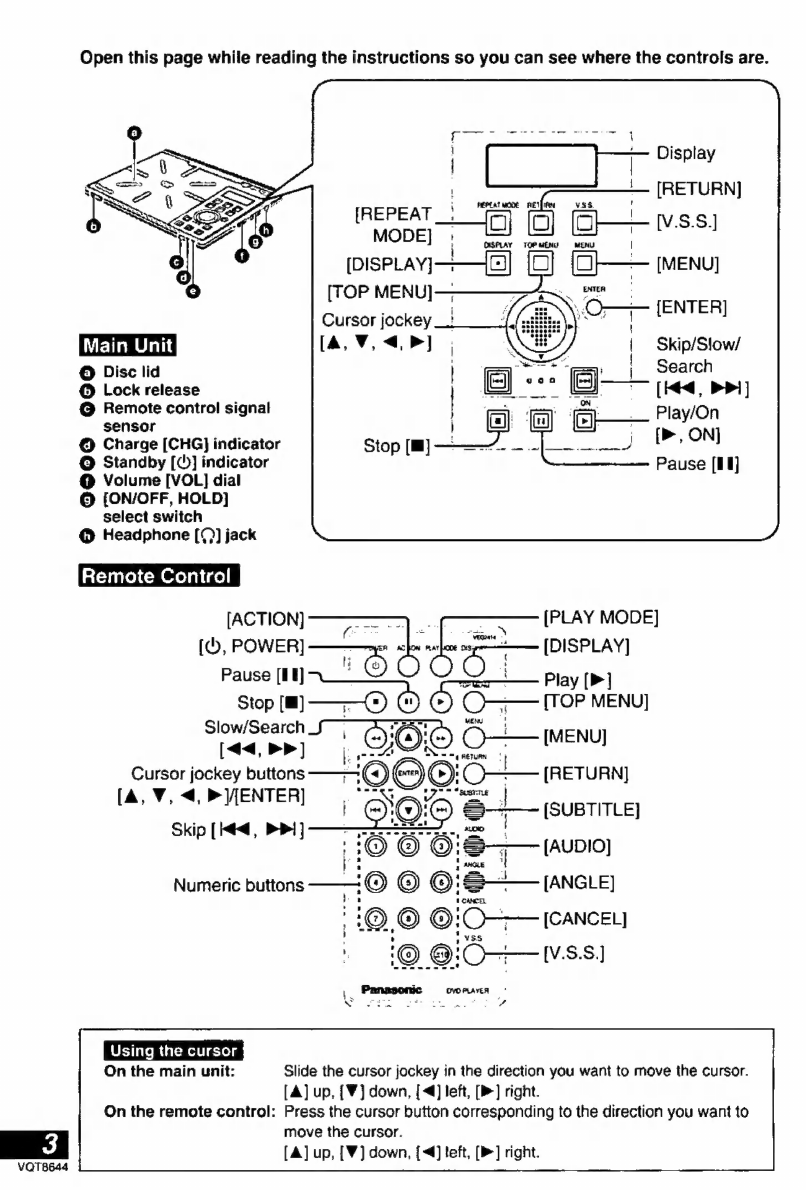

Open this page while reading the instructions so you can see where the controis are.
| > | L [RETURN]
RS n > fs [REPEAT Ti) REPEAT MODE AEJ|iAN | VSS:
Sg I7 MODE] E DISPLAY TOP MENU MENU |
Ru — [MENU]
[TOP MENU] x ce are
Cursor jockey |
[Main
Unit|
[A,V,
<>]
\
|
|
Skip/Stow/
©
Disc
lid
|
fa...
a
hele
Search
© Lock release | B-l [Hed >]
O
Remote
control
signal
=.
|
Plav/O
sensor
=
g
Ê—
ON
© Charge [CHG] indicator
© Standby [0] indicator
@ Volume [VOL] dial
© (ON/OFF, HOLD]
select switch
© Headphone [Q] jack
Remote Control
[ACTION]
[cb kiss
Pause [I y- © Play [P]
Stop mO So DO — C-—— [TOP MENU]
Slow/Search < 200!
[1a >>] JÖ; O—— menu
Stop [W] ARTE PARRORTRES
Pause [Il]
[PLAY MODE]
[DISPLAY]
Cursor jockey but 6600 O-— [RETURN]
(a, V, <4, DJIENTER
i an [SUBTITLE]
Skip [M< ae
E O0 © © S
Numeric buttons —© © © © © S
HORO) ©: = tanos
', ‘© @: Q Ö=— ss]
i, Panasonic OVO PLAYER
Using the cursor
On the main unit: Slide the cursor jockey in the direction you want to move the cursor.
[à] up, {F] down, [4] left, [>] right.
On the remote control: Press the cursor button corresponding to the direction you want to
move the cursor.
[A] up, [¥] down, [<4] left, [>] right.

" var644 (DVD)
Accessories
Please check and identify the
F supplied accessories.
{For U.S.A.)
To order accessories contact 1-800-332-5368
or web site (http:/www.panasonic.com).
(For Canada)
To order accessories, call the dealer from
whom you have made your purchase.
O Remote control
(VEQ2414)
O Button-type battery
for remote control (CR2025)
(] Audio/video cable
(RJL3X001X15)
O AC adaptor ....... tiene
(VSK0578)
CQ AC power supply cord............. 1
(RJA0065-A)
Optional accessories:
Battery pack
(For U.S.A.: CGP-H5014/1B)
(For Canada: CGP-H501C/1B)
Mini optical digital audio cable (RP-CA2120)
Carrying case (DY-CC20)
Headphones (RP-HC100 or RP-HS900)
Use numbers indicated in parentheses when
asking for replacement parts.
The included AC power supply cord and AC
adaptor are for use with this unit only. Do not use
them with other equipment.
m The functions depend on the disc being
played. These marks indicate the func-
tions available.
DV
(Video CD) (Audio CD)
Table of contents
6
Listening caution................. 7
Disc information ................. 8
Disc and unit handling
precautions.................... 9
ROSES |
Basic play: 4. soso.) 14
eStopping play. ...........-....... 15
SP ausing play se ra Lei s 16
eSkipping chapters and tracks ....... 16
| Operations:
Repeat play...................... 17
Other play modes
Program DAV un 5 man dites se 18
eRandom play .................... 18
Changing soundtracks, subtitle
languages and angles ........... 19
Ro Your FEES
Changing initial settings
eCommon procedures.............. 25
ei Disc Languages ................ 26
$2 Raths ie oies rade: 27
e3 Menu Language ................ 27
@4 On-Screen Messages............ 28
9 Other Settings ................. 28
How images appear on your TV..... 30
Connecting other equipment ....... 31

cs
mo
Maintenance..................... 9 Easy setup— Television connections =
Preparing the remote contro!....... 10 and settings ................... os,
Power supply f =
eUsing the AC adaptor ............. 10 3
eUsing the battery pack............. 11 E?
g=
@Slow MOtOn. .................... 16 eStarting play from a selected title or &
© Fast forward and rewind— WACK. cans nndtiauauteanateseuad S
SEARCH a me ta aee oe 16 eReturning to a menu .............. re
eFrame-by-frame viewing ........... 16 Ss
2
Switching vocals ON or OFF for elcons for unit information........... 23 Ke
Karaoke discs.................. 20 Enjoying Virtual Surround Sound ‘a
Using On-Screen Menu Icons NSS dE ire Rens 24 m
eBasic operation .................. 20 8
eShuttle screen ................... 21 Ss
elcons for disc information .......... 22 ‘=
Enjoying more powerful sound e Connection to a 2-channel digital
Connection to an amplifier with amplifier or mini-system
5.1
channel
input
terminals
(Digital
connection)
...............
‘8
(Analogue connection) ............ 32 Connecting headphones........... E
e Connection to an amplifier with a built-in Speaker settings ................. D
decoder (or an amplifier and decoder Digital settings................... m
combination) (Digital connection) . . . . 33 Troubleshooting Guide ............ 5
Connection to a 2-channel amplifier or ` Glossary........................ a
mini-system Specifications ............,.......
(Analogue connection) ............ 34 Servicenter List (US) ..............
Product Service..................
Open the facing page when
using the operating instructions.
Lj m
VOT8644

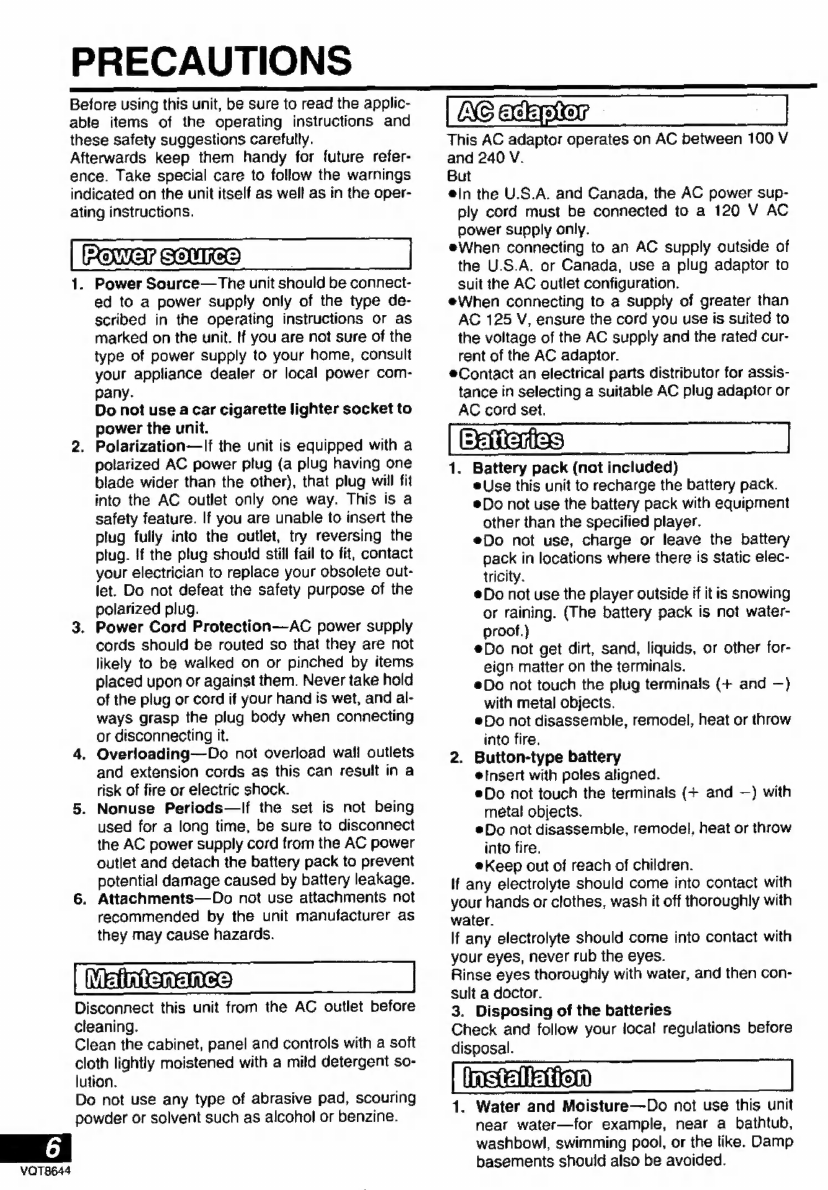

PRECAUTIONS
Before using this unit, be sure to read the applic-
able items of the operating instructions and
these safety suggestions carefully.
Afterwards keep them handy for future refer-
ence. Take special care to follow the warnings
indicated on the unit itself as well as in the oper-
ating instructions.
AIT ETS
1. Power Source—The unit should be connect-
ed to a power supply only of the type de-
scribed in the operating instructions or as
marked on the unit. If you are not sure of the
type of power supply to your home, consult
your appliance dealer or local power com-
pany.
Do not use a Car cigarette lighter socket to
power the unit.
2. Polarization—lf the unit is equipped with a
polarized AC power plug (a plug having one
blade wider than the other), that plug will fit
into the AC outlet only one way. This is a
safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete out-
let. Do not defeat the safety purpose of the
polarized plug.
3. Power Cord Protection—-AC power supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them. Never take hold
of the plug or cord if your hand is wet, and al-
ways grasp the plug body when connecting
or disconnecting it.
4, Overloading—Do not overload wall outlets
and extension cords as this can result in a
risk of fire or electric shock.
5. Nonuse Periods—lf the set is not being
used for a long time, be sure to disconnect
the AC power supply cord from the AC power
outlet and detach the battery pack to prevent
potential damage caused by battery leakage.
6. Attachments—Do not use attachments not
recommended by the unit manufacturer as
they may cause hazards.
MEANS
Disconnect this unit from the AC outlet before
cleaning.
Clean the cabinet, panel and controls with a soft
cloth lightly moistened with a mild detergent so-
lution.
Do not use any type of abrasive pad, scouring
powder or solvent such as alcohol or benzine.
This AC adaptor operates on AC between 100 V
and 240 V.
But
ein the U.S.A. and Canada, the AC power sup-
ply cord must be connected to a 120 V AC
power supply only.
eWhen connecting to an AC supply outside of
the U.S.A. or Canada, use a plug adaptor to
suit the AC outlet configuration.
eWhen connecting to a supply of greater than
AC 125 V, ensure the cord you use is suited to
the voltage of the AC supply and the rated cur-
rent of the AC adaptor.
Contact an electrical parts distributor for assis-
tance in selecting a suitable AC plug adaptor or
AC cord set.
1. Battery pack (not included)
eUse this unit to recharge the battery pack.
®Do not use the battery pack with equipment
other than the specified player.
eDo not use, charge or leave the battery
pack in locations where there is static elec-
tricity.
eDo not use the player outside if it is snowing
or raining. (The battery pack is not water-
proof.)
eDo not get dirt, sand, liquids, or other for-
eign matter on the terminals.
eDo not touch the plug terminals (+ and —)
with metal objects.
eDo not disassemble, remodel, heat or throw
into fire.
2. Button-type battery
einser with poles aligned.
®Do not touch the terminals (+ and —) with
métal objects.
eDo not disassemble, remodel, heat or throw
into fire.
eKeep out of reach of children.
If any electrolyte should come into contact with
your hands or clothes, wash it off thoroughly with
water.
If any electrolyte should come into contact with
your eyes, never rub the eyes.
Rinse eyes thoroughly with water, and then con-
sult a doctor.
3. Disposing of the batteries
Check and follow your local regulations before
disposal.
NSEATON
1. Water and Moisture—Do not use this unit
near water—for example, near a bathtub,
washbowl, swimming pool, or the like. Damp
basements should also be avoided.

2. Condensation—Moisture may form on the
lens in the following conditions...
eimmediately after a heater has been turned
on.
ein a steamy or very humid room.
ewhen the unit is suddenly moved from a
cold environment to a warm one. If moisture
forms inside this unit, it may not operate
properly. To correct this problem wait about
one hour for the moisture to evaporate.
3. Heat—Never use or place this unit or battery
near a heat source. Do not leave it in an au-
tomobile exposed to direct sunlight for a long
time with the doors and windows closed as
this may deform the cabinet.
4. Foreign Materiali—Care should be taken so
that objects do not fall into and liquids are not
spilled into the unit. Do not subject this unit to
excessive smoke, dust, mechanical vibration,
or shock.
1. Damage Requiring Service—The unit
should be serviced by qualified service per-
sonnel when:
(a) The AC power supply cord or AC adaptor
is damaged; or
(b) Objects have fallen or liquid has spilled
into the unit; or
{c} The unit has been exposed to water; or
(d) The unit does not appear to operate nor-
mally or exhibits a marked change in per-
formance; or
(e) The unit has been dropped, or the enclo-
sure damaged.
2. Servicing—The user should not attempt to
service the unit beyond that described in the
operating instructions. All other servicing
should be referred to authorized service per-
sonnel.
For the address of an authorized servi-
center:
in the U.S.A., calf 1-800-211-7262, e-mail
consumerproducts @panasonic.com, or
visit www.panasonic.com
In Canada, call 905-624-5505 or visit
www.panasonic.ca
3. Replacement parts—When parts need re-
placing, ensure the servicer uses parts spec-
ified by the manufacturer or parts that have
the same characteristics as the original parts.
Unauthorized substitutes may result in fire,
electric shock, or other hazards.
4. Safety check—After repairs or service, ask
the servicer to perform safety checks to con-
firm that the unit is in proper working condi-
tion.
Listening caution
€
ras
Do not play your headphones or earphones at a
high volume. Hearing experts advise against
continuous extended play.
If you experience a ringing in your ears, reduce
volume or discontinue use.
Do not use while operating a motorized vehicle.
it may create a traffic hazard and is illegal in
many areas.
You should use extreme caution or temporarily
discontinue use in potentially hazardous situ-
ations.
Even if your headphones or earphones are the
open-air type designed to let you hear outside
sounds, don’t turn up the volume so high that you
can't hear what's around you.
Sound can be deceiving. Over time your hearing
“comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be
loud and harmful to your hearing.
Guard against this by setting your equipment at a
safe level BEFORE your hearing adapts.
To establish a safe level:
eStart your volume control at a low setting.
eSlowly increase the sound until you can hear it
comfortably and clearly, and without distortion.
Once you have established a comfortable sound
level:
eSet the dial and leave it there.
CAUTION:
The batteries used in this device may present
a risk of fire or chemical burn if mistreated.
Do not disassemble, heat the button-type
battery above 100 °C (212 °F), heat the bat-
tery pack above 60 °C (140 °F), or incinerate.
Do not recharge the button-type battery.
Replace only with Panasonic part number in-
dicated below;
Button-type battery (Lithium battery)
{for remote control) CR2025
Battery pack (Lithium ion battery pack}
For U.S.A.: CGP-H5014/1B
For Canada: CGP-H501C/1B
Use of other batteries may present a risk of
fire or explosion.
s. PRE
gs
pi ge N
7 x,
f = `
w=
rs, REA
>
VQT8644

VQT8644
Disc information
Discs supported by this
unit
DVD-Video
Video CD
DIGITAL VIDEO
Audio CD*
DIGITAL AUDIO
Discs not supported by this
unit
eDVD with a region number other than “1” or
“ALL” (See below.)
Photo CD eCD-R
ePAL discs eCD-RW
eDVD-ROM eDVD-RW
eDVD-R eDVD+RW
eDVD-RAM eCVD
eCD-ROM e Divx Video Disc
eVSD © eDVD-AUDIO
eCDV eSVCD
eCD-G eSACD
etc.
Do not try to play Photo CD or CD-R.
Data on the disc may be damaged.
*You can also play CDs recorded with DTS (DTS CD) (æ page 42).
M Region number supported by this
unit
Region numbers are allocated to DVD play-
ers and software according to where they
are sold.
e The region number of this unit is “1”.
eThis unit will play DVDs marked with la-
bels containing the region number “1” or
“ALL”.
Read the disc's instructions carefully.
Example:
E Playing DVDs and Video CDs
The producer of the material can control
how these discs are played. This means
that you may not be able to control play of a
disc with some operations described in
these operating instructions. Read the
disc’s instructions carefully.
@ How the picture appears on your tele-
vision
It depends on the aspect ratio of your tele-
vision, and the television's screen mode
and the aspect ratio recorded on the disc
(= page 30).

Disc and unit handling precautions
CSC] CES
Do not use irregularly shaped discs, such
as heart-shaped.
(These discs can damage the unit.)
ä ©
m How to hold a disc
Do not touch the recorded shiny surface.
1D
@
@ If the surface is dirty
Wipe it with a damp cloth and then wipe
dry. Wipe from the center toward the cir-
cumference.
Play surface (shiny surface)
B If the disc is brought from a cold to a
warm environment, moisture may
form on the disc
Wipe with a soft, dry, lint-free cloth before
using the disc.
Maintenance
E Handling precautions
eDo not write on the label side with a ball-
point pen or other writing instrument.
eDo not use record cleaning sprays, ben-
zine, thinner, static electricity prevention
liquids or any other solvent.
Do not attach labels or stickers to discs.
eDo not use discs with exposed adhesive
from tape or left over peeted off stickers.
eDo not use scratch-proof protectors or
covers other than those specified for use
with this unit.
E Do not place or store discs in the fol-
lowing places
eLocations exposed to direct sunlight
e Humid or dusty locations
Locations directly exposed to a heat vent
or heating appliance
TO PIEWER CHEE
Avoid the following;
è Spraying flammable insecticides near the
unit,
eTouching the lens and other parts of the
laser pickup.
Do not use the unit in the following places;
Sandy places such as beaches,
eOn top of cushions, sofas, or hot equip-
ment such amplifiers.
Do not rest the unit on your lap for along
time while using it. The unit can become
hot and cause burns.
@ To clean this unit, wipe with a soft,
dry cloth.
If the surfaces are extremely dirty, use a
soft cloth dipped in a soap-and-water solu-
tion or a weak detergent solution.
eNever use alcohol, paint thinner or ben-
zine to clean this unit.
eBefore using chemically treated cloth,
read the instructions that came with the
cloth carefully.
@ Maintenance of the lens
elf dust is attached to the lens, remove
dust carefully with an air blower for cam-
era lenses (optional).
eBe careful not to touch the lens with your
fingers.
=
. @
a od
“ea
an
E
=
À J
D

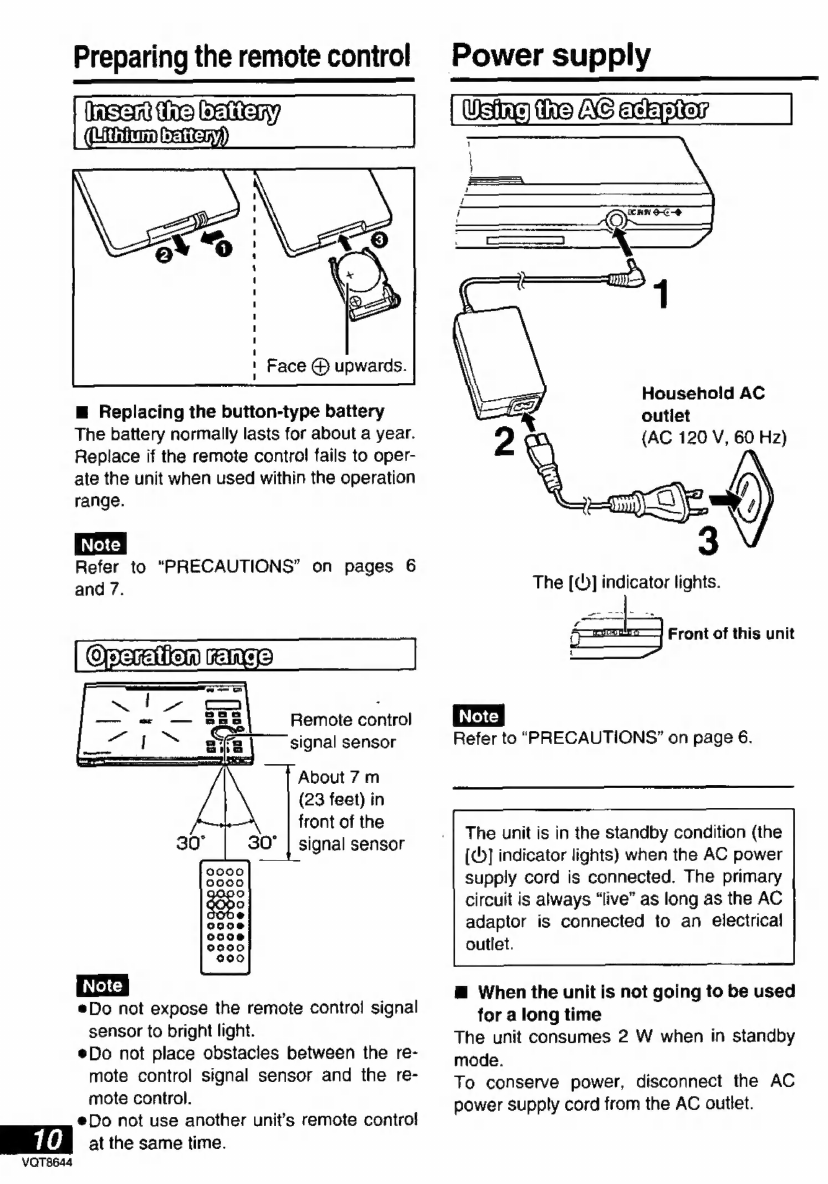

Preparing the remote control
Insert the battery
(don EE)
Face @ upwards.
E Replacing the button-type battery
The battery normally lasts for about a year.
Replace if the remote contro! fails to oper-
ate the unit when used within the operation
range.
Refer to “PRECAUTIONS” on pages 6
and 7.
Onionmmg |
Remote control
signal sensor
About 7 m
(23 feet) in
front of the
signal sensor
eDo not expose the remote control signal
sensor to bright light.
eDo not place obstacles between the re-
mote control signal sensor and the re-
mote control.
eDo not use another units remote contro!
at the same time.
VQT8644
Power supply
Using the AC ackptor
1
Househo!d AC
outiet
{AC 120 V, 60 Hz)
2*
Vu)
The [Ù] indicator lights.
wn 77
en mans)
La
i Front of this unit
a
Refer to “PRECAUTIONS” on page 6.
The unit is in the standby condition (the
[Ù] indicator lights) when the AC power
supply cord is connected. The primary
circuit is always “live” as long as the AC
adaptor is connected to an electrical
outlet.
@ When the unit is not going to be used
for a long time
The unit consumes 2 W when in standby
mode.
To conserve power, disconnect the AC
power supply cord from the AC outlet.

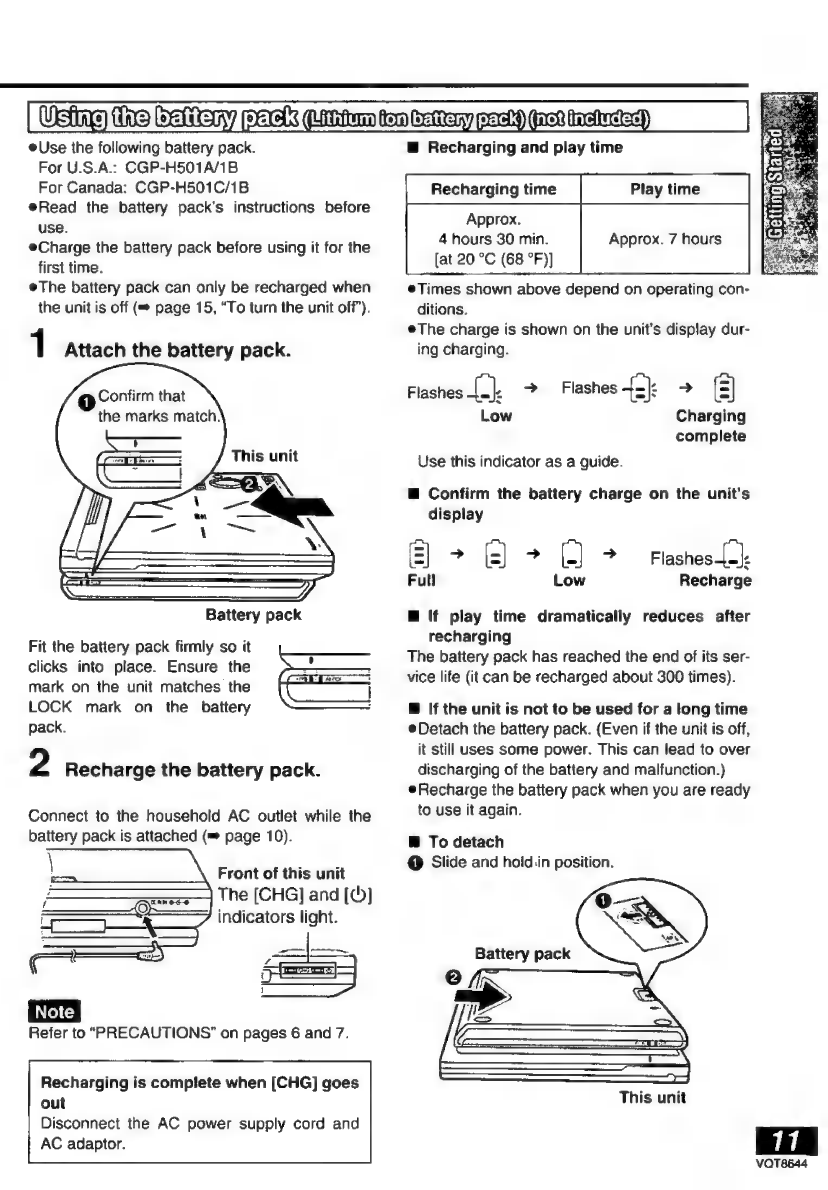

Use the following battery pack.
For U.S.A.: CGP-H501A/1B
For Canada: CGP-H501C/1B
eRead the battery pack’s instructions before
use.
eCharge the battery pack before using it for the
first time.
The battery pack can only be recharged when
the unit is off ( page 15, “To turn the unit off’).
1 Attach the battery pack.
Confirm that
the marks match.
This unit
Battery pack
Fit the battery pack firmly so it
clicks into place. Ensure the
mark on the unit matches the
LOCK mark on the battery
pack.
2 Recharge the battery pack.
Connect to the household AC outlet while the
battery pack is attached (= page 10).
Front of this unit
The [CHG] and [Ù]
indicators light.
nee
f
D a
Refer to “PRECAUTIONS” on pages 6 and 7.
Recharging is complete when [CHG] goes
out
Disconnect the AC power supply cord and
AC adaptor.
E Recharging and play time
4 hours 30 min.
[at 20 °C (68 °F)]
Approx. 7 hours
eTimes shown above depend on operating con-
ditions.
eThe charge is shown on the unit's display dur-
ing charging.
Flashes [.} + Flashes <=}
Low Charging
complete
Use this indicator as a guide.
@ Confirm the battery charge on the unit's
display
Flashes {=}.
=] > + ( >
Low Recharge Full
E If play time dramatically reduces after
recharging
The battery pack has reached the end of its ser-
vice life (it can be recharged about 300 times).
B If the unit is not to be used for a long time
eDetach the battery pack. (Even if the unit is off,
it still uses Some power. This can lead to over
discharging of the battery and malfunction.)
Recharge the battery pack when you are ready
to use it again.
B To detach
© Slide and hoid.in position.
This unit
VOT8644

Easy setup—Television connections and settings

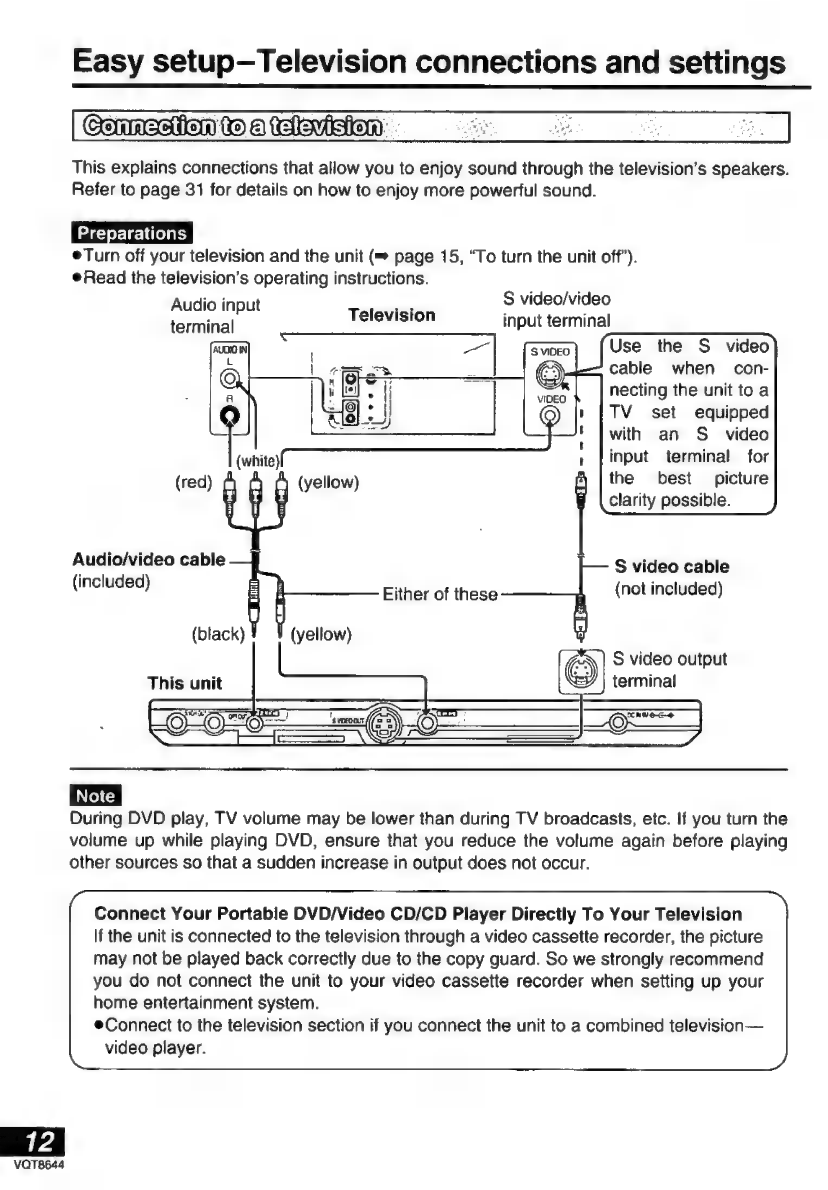

Connection © a television: :
This explains connections that allow you to enjoy sound through the television’s speakers.
Refer to page 31 for details on how to enjoy more powerful sound.
Preparations
e Turn off your television and the unit (= page 15, “To turn the unit off’).
eRead the television’s operating instructions.
Audio
input
fas
S
video/video
terminal
Television
input
terminal
Use the S video
cable when con-
necting the unit to a
TV set equipped
with an S video
input terminal for
the best picture
clarity possible.
Audio/video
cable
S
video
cable
(included)
Either
of
these
{not
included)
(black)
(yellow)
S video output
terminal
This unit
During DVD play, TV volume may be lower than during TV broadcasts, etc. If you turn the
volume up while playing DVD, ensure that you reduce the volume again before playing
other sources so that a sudden increase in output does not occur.
Connect Your Portable DVD/Video CD/CD Player Directly To Your Television
If the unit is connected to the television through a video cassette recorder, the picture
may not be played back correctly due to the copy guard. So we strongly recommend
you do not connect the unit to your video cassette recorder when setting up your
home entertainment system.
Connect to the television section if you connect the unit to a combined television—
video player.

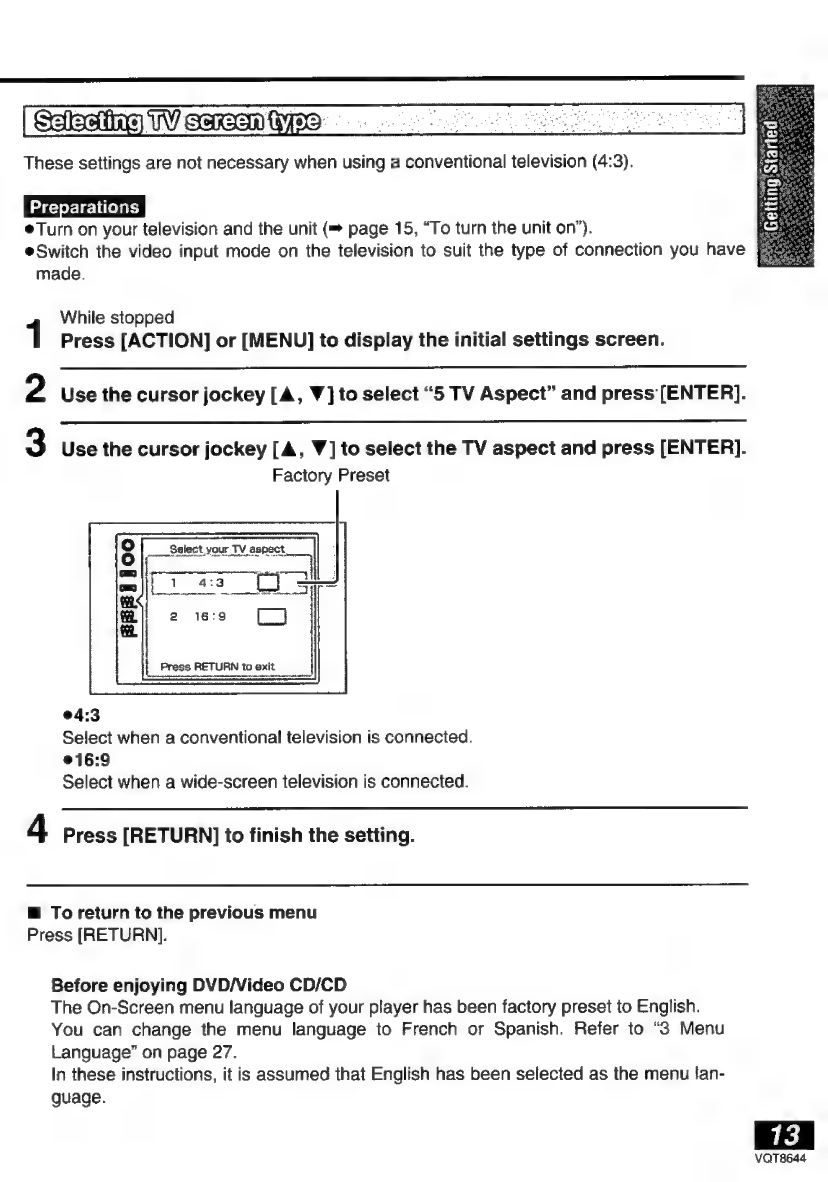

These settings are not necessary when using à conventional television (4:3).
eTurn on your television and the unit (œ page 15, “To turn the unit on”).
eSwitch the video input mode on the television to suit the type of connection you have Ee
made.
While stopped
1 Press [ACTION] or [MENU] to display the initial settings screen.
Use the cursor jockey [A, ¥] to select “5 TV Aspect” and press [ENTER].
3 Use the cursor jockey [A, V] to select the TV aspect and press [ENTER].
Factory Preset
Press RETURN to exit
04:3
Select when a conventional television is connected.
16:9
Select when a wide-screen television is connected.
4 Press [RETURN] to finish the setting.
E To return to the previous menu
Press [RETURN].
Before enjoying DVD/Video CD/CD
The On-Screen menu language of your player has been factory preset to English.
You can change the menu language to French or Spanish. Refer to “3 Menu
Language” on page 27.
In these instructions, it is assumed that English has been selected as the menu lan-
guage.

VOT8644
Basic play
ePrepare the power supply (= pages 10 and 11).
e Connect the television and adjust the necessary settings (= pages 12 and 13).
60000
© v 0 0
(CEE
lid.
Slide the lock release and open the disc
N
insert a disc.
Close the disc lid by hand.
ClickS
@
Face
the
label
of
the
side
to
be
played
up.
start play.
Press and hold [b, ON] to
The unit comes on automatically. Lights —
See below if a menu appears.
Display
fu 2 Sy nta ee
l 1
; LUI |
LE pp OS ME A
Chapter/track Elapsed
number playing time
Using menus: Basic operations
2-9: | MT EAST ASIA
2. SOUTH ASIA
3. MIDDLE EAST
(a AFRICA O
[5. EUROPE
Press the numeric buttons to select an
item.
Or
DA)
Use the cursor jockey [A, V, <, P] to
highlight an item and press [ENTER].
E Selecting an item numbered 10 and
over with numeric buttons
e.g. 10: [210]—>[1][0]
e.g. 25: [210]—[2]—[5]
@ Other menu operations
Operation of menus differs from disc to
disc, so read the disc’s instructions for de-
tails.
[>>] : To move to the next menu
[ dd] : To return to the previous
menu
[TOP MENU]: To return to the first menu
[MENU] : To show menus
[RETURN] : To show menus
E “SO” appears on the television
This indicates that an operation is not al-
lowed by the unit or disc at that time.
E When the disc ends
If you have finished using the unit, turn it off
to conserve power (™ page 15, “To turn the
unit off”).
e The surface of the unit may become warm
if it is used for a long time, but this is nor-
mal and not an indication of malfunction.
eThe disc is still spinning while a menu is
on the television. Press [W] if you have
finished viewing.

@ To turn the unit on
Instead of pressing and holding [», ON),
the unit can be turned on as follows.
<On the unit>
aw IL] Slide (ON/OFF, HOLD] to
Qu “ON/OFF” for a few sec-
onds.
<With the remote control>
pi Press [(), POWER].
©
@ To turn the unit off
The unit can be turned off as follows. The
[Ù] indicator lights when you are using the
AC adaptor.
<On the unit>
mL Slide [ON/OFF, HOLD] to
ns “ON/OFF” for a few sec-
onds.
<With the remote control>
paa Press [(), POWER].
©)
eYou cannot use the remote control to turn
the unit on when it is being powered by
the battery pack.
@The unit automatically turns off after being
stopped for 15 minutes (5 minutes when
the battery pack is being used).
(Auto power-off function)
@ To prevent accidental operation
wwf TT} Slide (ON/OFF, HOLD] to
>| “HOLD”.
In the hold mode, the unit does not respond
when you press the buttons. If you press a
button in the hold mode, “Ho ig” appears
on the unit's display and the [Ù] indicator
flashes.
To release:
Slide [ON/OFF, HOLD] to “ON/OFF”.
DD) (WED
SSRI) DENY
During play
Press [W].
The position you stopped play at is record-
ed by the unit when “>” is flashing on the
unit's display.
Flashes
While “>” is flashing on the units display,
press [>] to start play from where you
stopped it (Resume function).
If you are playing DVDs, the following dis-
play also appears.
Press PLAY to Chapter Preview |
Press [>] while this is displayed to activate
the Chapter Preview feature.
Chapter Preview:
The beginning portions of each chapter up
to the current one are played. Full play re-
sumes from the point where you stopped
play. (Chapter Preview feature works only
within a title.)
E To cancel the resume function
Press [W].
eThe resume function does not work if the
disc’s play time is not displayed.
eThe resume position remains in memory
even if the unit is off.
eltis cleared if you open the disc lid.
VOT8644

Basic play

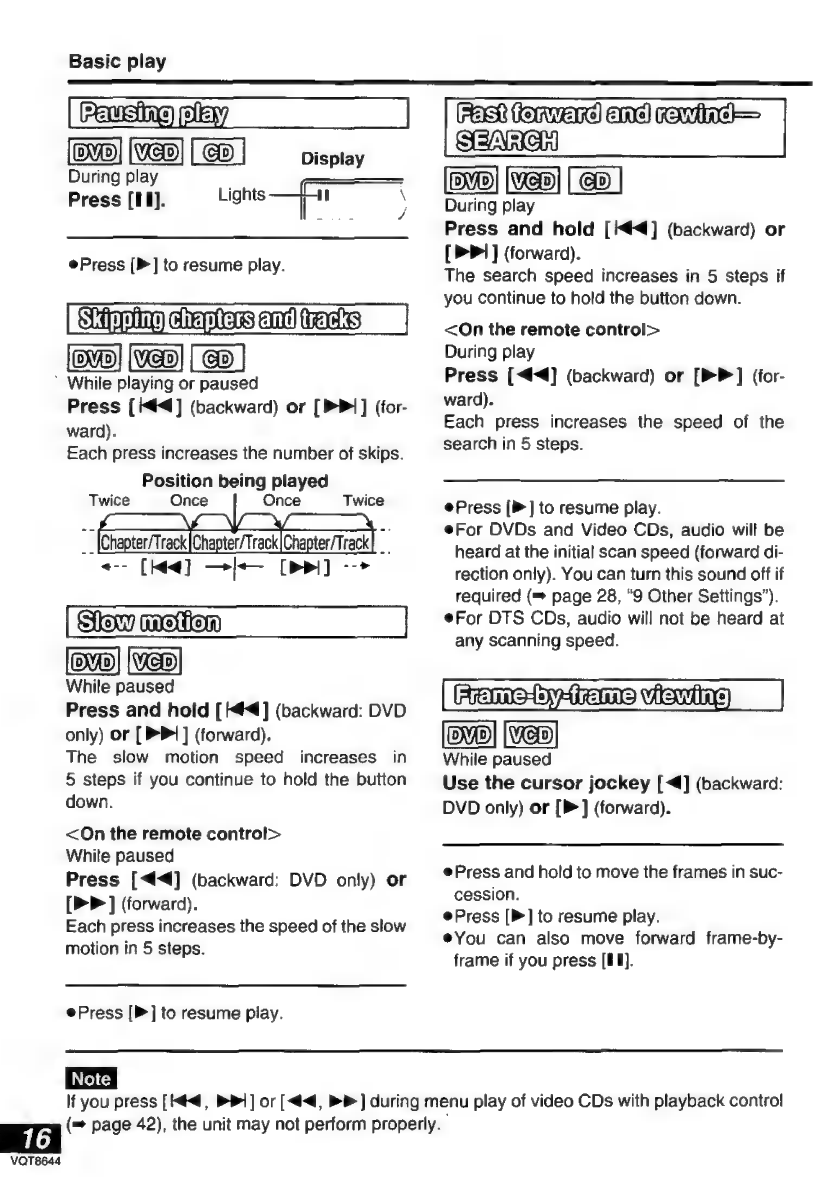

Peug ay "|
ae | Display
uring play -
Press [H]. Lights | 11 \
= its /
Press [P] to resume play.
Sono chantas ant tacks
` While playing or paused
Press [i444] (backward) or [PP] (for-
ward).
Each press increases the number of skips.
Position being played
Twice Once Once Twice
pF (oe
Chapter/Track|Chapter/Track|Chapter/Track} _
«-- [ee] is [P>] -->
Som? moin
bo)! co)
While paused
Press and hold [#4] (backward: DVD
only) or [Pl ] (forward).
The slow motion speed increases in
5 steps if you continue to hold the button
down.
~
<On the remote control>
While paused
Press [<4] (backward: DVD only) or
[> ] (forward).
Each press increases the speed of the slow
motion in 5 steps.
ePress [>] to resume play.
tastiforwaraland
SEARCH
During play
Press and hold [i] (backward) or
[> ] (forward).
The search speed increases in 5 steps if
you continue to hold the button down.
<On the remote control>
During play
Press [<4<4} (backward) or [>>] (for-
ward).
Each press increases the speed of the
search in 5 steps.
Press [> ] to resume play.
eFor DVDs and Video CDs, audio wilt be
heard at the initial scan speed (forward di-
rection only). You can turn this sound off if
required (= page 28, “9 Other Settings”).
For DTS CDs, audio will not be heard at
any scanning speed.
| eH By, TE me VE W in j .
DAAD) | WACO)
While paused
Use the cursor jockey [<4] (backward:
DVD only) or [> ] (forward).
ePress and hold to move the frames in suc-
cession.
ePress [>] to resume play.
eYou can also move forward frame-by-
frame if you press [RH].
If you press [ <4, PP] or [<4 >] during menu play of video CDs with playback contro!
(= page 42), the unit may not perform properly. `
VQT8644

Starting platy tom a
ee) tile or track
While stopped
Press the numeric buttons.
Play starts from the selected title/track.
@This also works during play if the disc is a
karaoke DVD, Video CD, or CD. (See below if
the disc has playback control.)
®This may not work with some discs.
€ *When playing Video CDs with play-
back control
Before performing the above operation, press
(W) to cance! menu play.
The “P b£” indicator on the units display goes
out.
To restore menu play
While stopped
1. Press {B] to clear “>” on the units display.
2. Press [>].
The "P $f" indicator on the units display
comes on.
EWTN) © à MOEN
The actual contents of menus differ from disc to
disc, so here we explain only the basic opera-
tions.
DARAD VAD)
During play
Press [MENU]. (DVD)
Press [RETURN]. (Video CD)
@ With DVDs that contain multiple menus
Pressing [TOP MENU] also takes you to a menu.
eThe menus displayed when you press [MENU]
and [TOP MENU] may differ.

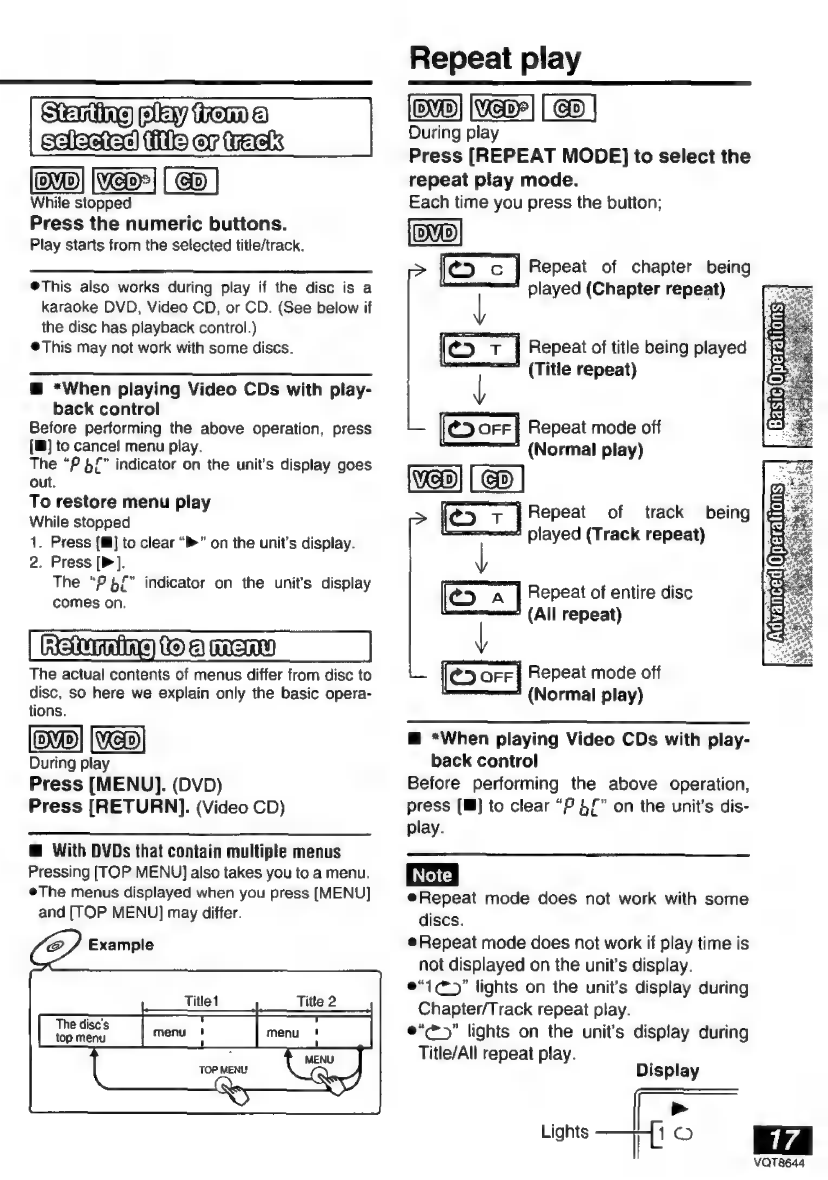

Repeat play
During play
Press [REPEAT MODE] to select the
repeat play mode.
Each time you press the button;
(DAYAo)
Repeat of chapter being
" played (Chapter repeat)
À Repeat of title being played
™ (Title repeat)
[eorr] Repeat mode off
— (Normal play)
į Repeat of track being
played (Track repeat)
Repeat of entire disc
(All repeat)
[> oFF] Repeat mode off
——— (Normal play)
m “When playing Video CDs with play-
back control
Before performing the above operation,
press [MI] to clear “P £f" on the unit's dis-
play.
eRepeat mode does not work with some
discs.
e Repeat mode does not work if play time is
not displayed on the unit's display.
e“1@ 5" lights on the unit’s display during
Chapter/Track repeat play.
e*@ >” lights on the unit's display during
Title/All repeat play.
Display
Lights mi S
VOQT8644

VOT8644

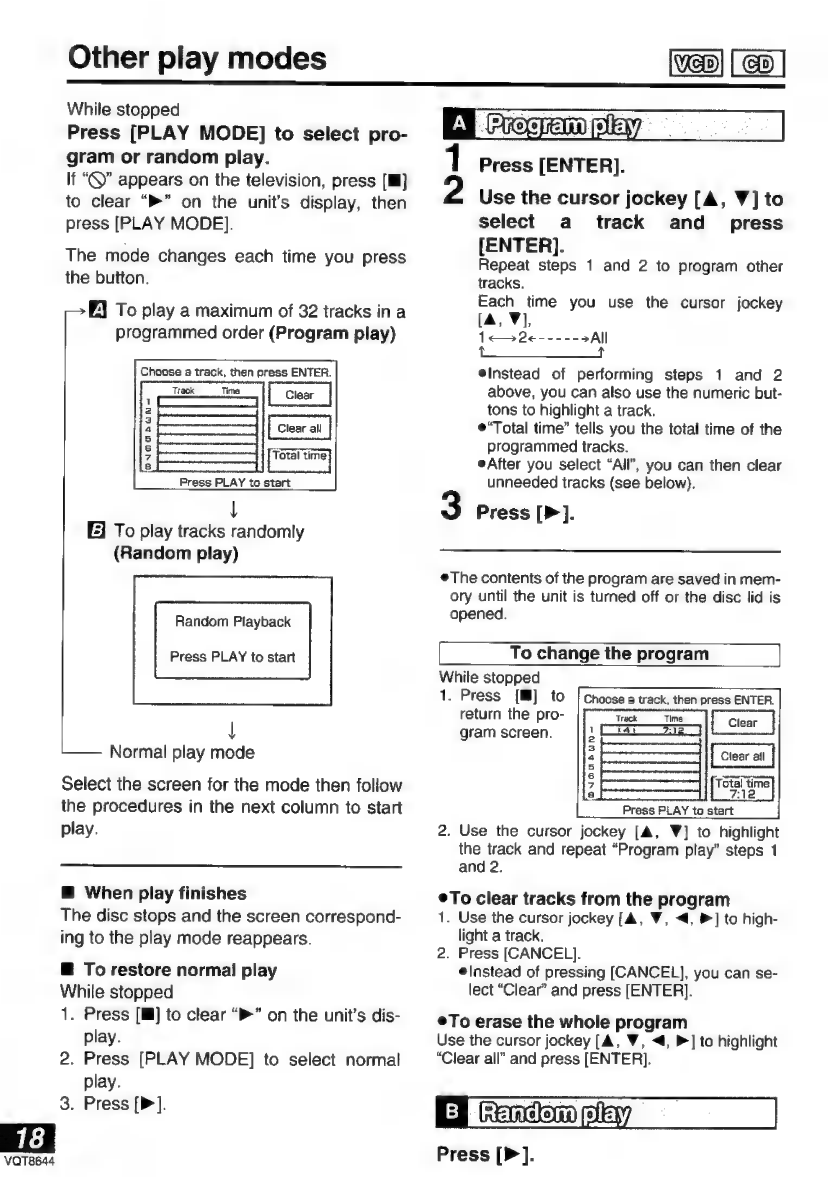

Other play modes
While stopped
Press [PLAY MODE] to select pro-
gram or random play.
If “Q” appears on the television, press [I]
to clear “>” on the units display, then
press [PLAY MODE].
The mode changes each time you press
the button.
— E] To play a maximum of 32 tracks in a
programmed order (Program play)
Choose a track, then press ENTER.
Clear
Clear all
Total time
Press PLAY to start
Ej] To play tracks randomly
(Random play)
Random Playback
Press PLAY to start
l
— Normal play mode
Select the screen for the mode then follow
the procedures in the next column to start
play.
@ When play finishes
The disc stops and the screen correspond-
ing to the play mode reappears.
@ To restore normal play
While stopped
1. Press [M] to clear “>” on the unit’s dis-
play.
2. Press [PLAY MODE] to select normal
play.
3. Press [P].
1 Press [ENTER].
Use the cursor jockey [A, V] to
select a track and press
[ENTER].
Repeat steps 1 and 2 to program other
tracks.
Each time you use the cursor jockey
[A, ¥],
1 <»2<----- >All
tb. ~~ — Ft
einstead of performing steps 1 and 2
above, you can also use the numeric but-
tons to highlight a track.
¢‘Total time” tells you the total time of the
programmed tracks.
eAfter you select “All”, you can then clear
unneeded tracks (see below).
Press [P].
The contents of the program are saved in mem-
ory until the unit is turned off or the disc lid is
opened.
To change the program
While stopped
1.
Press
[W]
tO
|
Choose
a
track,
then
press
ENTER.
return
the
pro-
gram
screen.
Press PLAY to start
2. Use the cursor jockey [A, Y] to highlight
the track and repeat “Program play” steps 1
and 2.
eTo clear tracks from the program
1. Use the cursor jockey [A, V, <4, >] to high-
light a track.
2. Press [CANCEL].
elnstead of pressing [CANCEL], you can se-
lect “Clear” and press [ENTER].
eTo erase the whole program
Use the cursor jockey (A, ¥, <4, P] to highlight
“Clear all” and press [ENTER].
Press [P].

Changing soundtracks, subtitle languages
and angles DVD
Cie
During play
Press [AUDIO]. During play
The audio number changes each time you Press [SUBTITLE].
press the button. The subtitle number changes each time
(“—*” is displayed if sound is not recorded you press the button.
on the disc.) (‘_—” is displayed if subtitles are not
|
aa
.
recorded
on
the
disc.)
€)
1
Ne
Se
Ich
|
ba
Sig
ae
BS
|
l | E To turn the subtitles on and off
While stopped or playing Use the cursor jockey [<4, P].
Press [ANGLE].
The angle number changes each time you
press the button.
eYou can also use the cursor jockey [A, Y], or numeric buttons to change the num-
ber to another soundtrack/subtitle language/angle.
ef you select a soundtrack/subtitle language number that is not recorded on the disc,
“©” appears on the television.
eYou can also use the On-Screen Menu Icons to change soundtrack/subtitle lan-
guage/angle numbers (æ page 22, “Audio number”, “Subtitles” and “Angle
number’).
E To clear the on-screen display
Press [ENTER].
The on-screen icons will disappear automatically if nothing is selected.
@The “A, V” mark around the on-screen icon is not displayed if only one soundtrack/subti-
tle language/angle number is recorded.
eThere may be a slight delay before subtitles are shown.
eYou can also adjust language settings before play with the soundtrack/subtitle language
settings (= page 26).
eSome discs allow changes to soundtracks/subtitle languages/angles only by using the
disc’s menus.
eYou can only switch angles in scenes that have multiple angles recorded. Some discs
allow you to set angles before multi-angle scenes are played. Read the instructions that
come with the DVD. 19
VQT8644

Switching vocals ON
or OFF for Karaoke
discs
DD VED aa
During play
1 Press [AUDIO].
(DVD) (Video CD)
{Or . oe | [eur
2 Use the cursor jockey [<, P]
(DVD\[A, V] (Video CD), or press
[AUDIO] (Video CD only) to change
the audio mode.
DVD karaoke disc (Solo)
[---] : Vocal OFF (for karaoke)
[ON] : Vocal ON
DVD karaoke disc (Duet)
[---] : Vocal OFF (for karaoke)
[1+2]: Vocal 1 and 2 ON
[V1] : Vocal 1 only ON (for duet)
[V2] : Vocal 2 only ON (for duet)
VCD karaoke disc
[LR] : Vocals (Vocals seem to come from
the right)
[L] : No Vocals (for karaoke)
[R] : Vocals (Vocals seem to come from
both left and right)
@ To clear the on-screen display
Press [ENTER].
The on-screen icons will disappear auto-
matically if nothing is selected.
You cannot connect a microphone directly
to this unit. Connect the unit to an amplifier
(= pages 32-34) that has a microphone
jack when you want to enjoy karaoke and
voreeaa Sing along.
Using On-Screen Menu Icons
On-Screen Menu Icons are long thin
menus that contain information about the
disc or unit. These menus allow you to per-
form operations by changing this infor-
mation.
| asic Operation
1 While stopped or playing
Press [DISPLAY] to select the
On-Screen Menu Icons.
The screen changes each time you
press the button.
Example: DVDs
Icons for disc information:
(™ page 22)
You can change items like the track or
chapter and audio.
PCS 10627 [64 eres sree CD 10e [0 1]
{
Icons for unit information:
(= page 23)
You can start repeat play or mark parts
you want to play again.
SE RL] [67 :
l
Shuttle screen:
(= page 21)
You can fast forward, rewind, or start
slow motion play.
On-Screen Menu Icons cleared
