Panasonic Whisper Green FV-11VK3 User manual

Service Manual
PEG1111029CE
Version:1302
CONTENTS
1. Parts Identification
3. Parts List
2.Wiring Diagram
PAGE
1~4
6~9
5
Ceiling Mount Ventilating Fan
(North America Market)
Whisper Green
TM
FV-11VK3
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
FV-11VKL3
4. Replacement Guide
10~12
Specifications

1
FV-11VK3

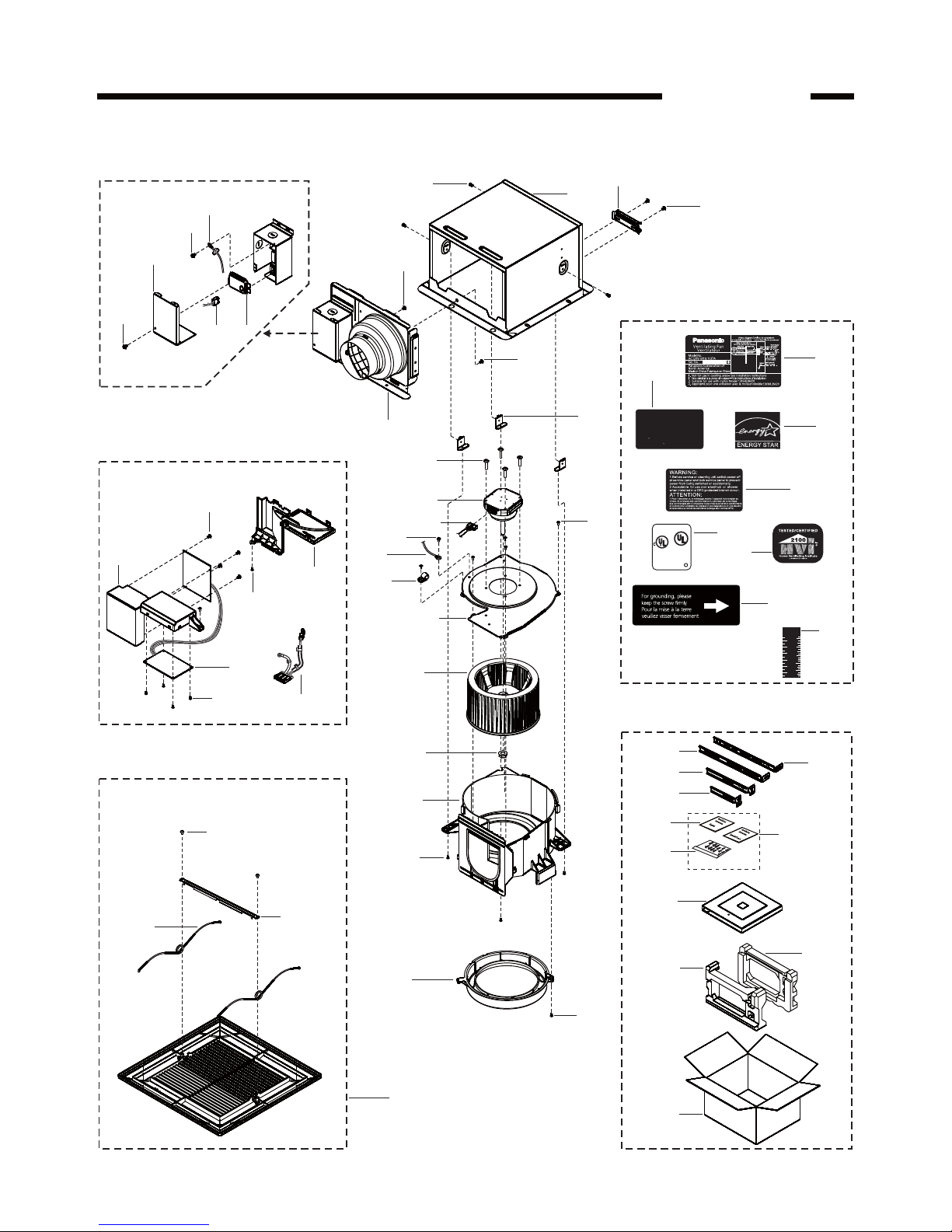

1.Parts Identification
A
38
37
36
39
41 40
42
Main Packing Materials
32
33
34
35
Main Labels
(Stuck On Frame Assembly)
1
2
B
(3pcs) A
(2pcs)
8
(3pcs)
D
(4pcs)
9
10
C
11
12
E
13
14
15
B
(3pcs)
(5pcs)
A
3
(20)
4
5
6
7
A
Details Of Wiring Section
Main PCB Section
F
(4pcs)
F
(4pcs)
17
19
18
E
(2pcs)
20
Grille Unit
16
G
(2pcs)
22
(2pcs)
21
23
E
24
C
26
27
30
28
29
mm
Inch
60 2
50
40
30
20
10
1
_
2
2
11
_
2
1
1
_
2
25
31
CAUTION:
2.1m(7feet)above the floor.
To reduce the risk of injury to persons,install fan at least
ATTENTION:
Afin de reduire les risques de blessures corporelles,
Installer le ventilateur a au moins 2,1m(7 pieds)du sol.
FAN
8B68
US
LISTEN
A375682G8 C
Main Body Section
FV-11VK3

2

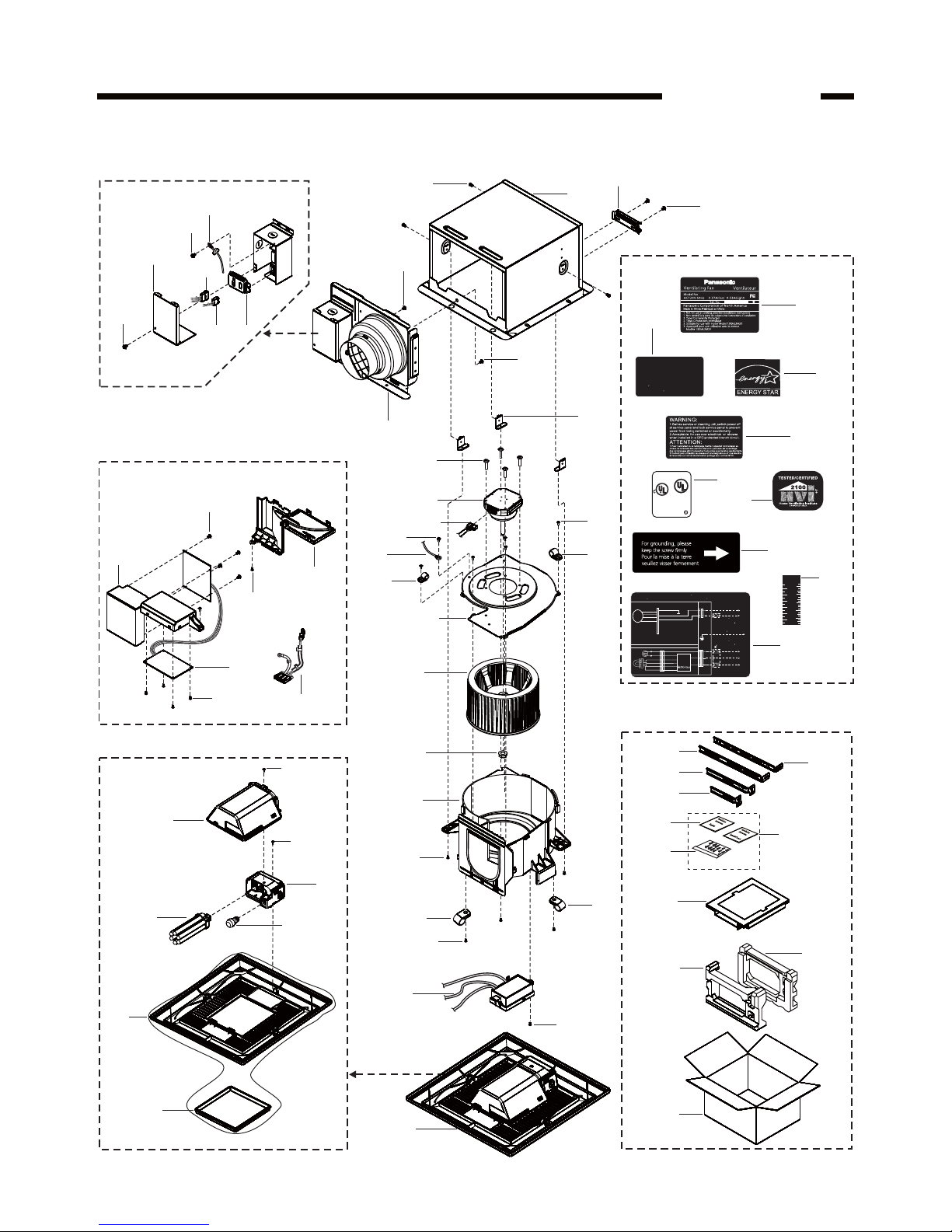

1.Parts Identification FV-11VKL3
E
23
25
28
24
26
G
A
44
43
42
45
47 46
48
Main Packing Materials
38
39
40
41
Main Labels
29
31
32
35
33
34
37
Main PCB Section
mm
Inch
60 2
50
40
30
20
10
1
_
2
2
11
_
2
1
1
_
2
1
2
B
(3pcs) A
(2pcs)
8
(3pcs)
D
(4pcs)
9
10
C
12
13
E
12
15
16
17
B
(3pcs)
18
E
F
(4pcs)
F
(4pcs)
20
21
22
E
(2pcs)
30
36
(5pcs)
A
14
12
E
(2pcs)
3
4
6
5
7
A
Details Of Wiring Section
11
19
(19)
Flourescent
lamp/Ampoule flourescente
Night
lamp/
Veilleuse
ON
ON
Main control circuit/
Circuit de commande principal
Blue/Bleu
Red/Rouge
White/Blanc White/Blanc Live/Sous
tension
Live/Sous
tension
Live/Sous
tension
Neutral/
Neutre
Neutral/
Neutre
()
VENT.
()
N.LIGHT
()
LIGHT
Black/Noir
Black/Noir
DC-
Motor/
DC-
Moteur
AC120V
60Hz/
120V CA
60Hz
AC120V
60Hz/
120V CA
60Hz
AC120V
60Hz/
120V CA
60Hz
Wiring diagram/Schema de connexions
ON
Fan body/Boite du ventilateur Junctionbox/Boite de raccordement
(Power supply/
Alimentation
electrique)
(Power supply/
Alimentation
electrique)
Lighting unit/Appareil d eclairage
Electronic
ballast/
Ballast
Red/RougeRed/Rouge
Red/RougeRed/Rouge
Black/Noir Black/Noir
White/Blanc White/Blanc
Blue/Bleu
Blue/Bleu Blue/Bleu
Blue/Bleu
White/
Blanc
White/
Blanc
White/
Blanc
Black/
Noir
Green/
Green/Vert
Vert
Black/
Noir
Black/
Noir
Black/
Noir
(Earth ground/
Mise a la terre)
Switch box/Boite
de commutation
Switch box/Boite
de commutation
Main Body Section
C
CAUTION:
2.1m(7feet)above the floor.
To reduce the risk of injury to persons,install fan at least
ATTENTION:
Afin de reduire les risques de blessures corporelles,
Installer le ventilateur a au moins 2,1m(7 pieds)du sol.
FAN
8B68
US
LISTEN
A375682G8 C
27
49
(Stuck On Frame Assembly)
FV-11VKL3
Grille Unit

3
1.Parts Identification

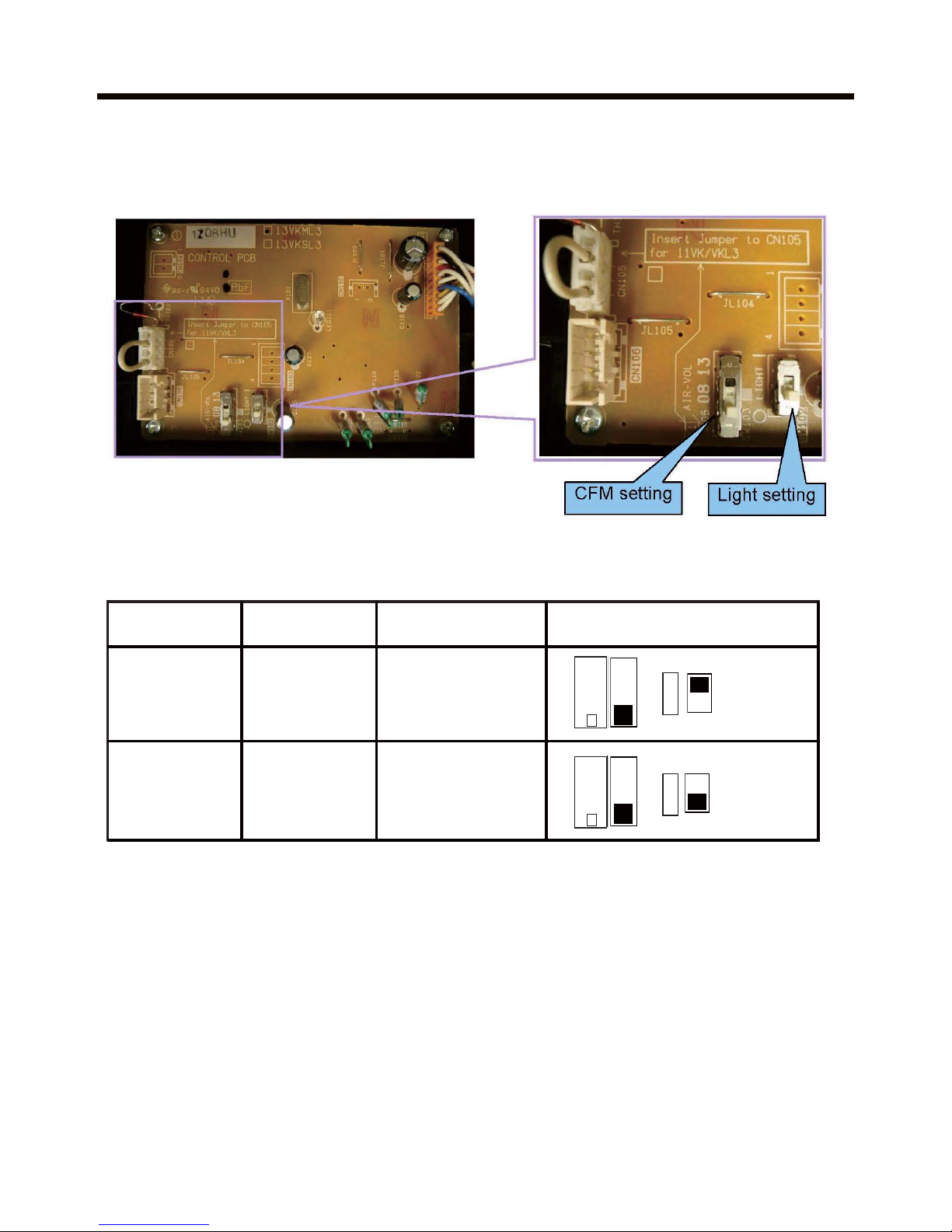

Replace Main PCB Assembly
The main PCB assembly is commonly used in below models.If you replace PCB,please
set up the switch according to below table firstly.
Model Part No. Part Name Switch seting condition for PCB
(SW103、SW102)
FV-11VK3 FFV3740024S Main PCB Assembly
FV-11VKL3 FFV3740024S Main PCB Assembly
0 I
LIGHT 0 I
LIGHT
AIR-VOL
/05 08 13
11
AIR-VOL
/05 08 13
11

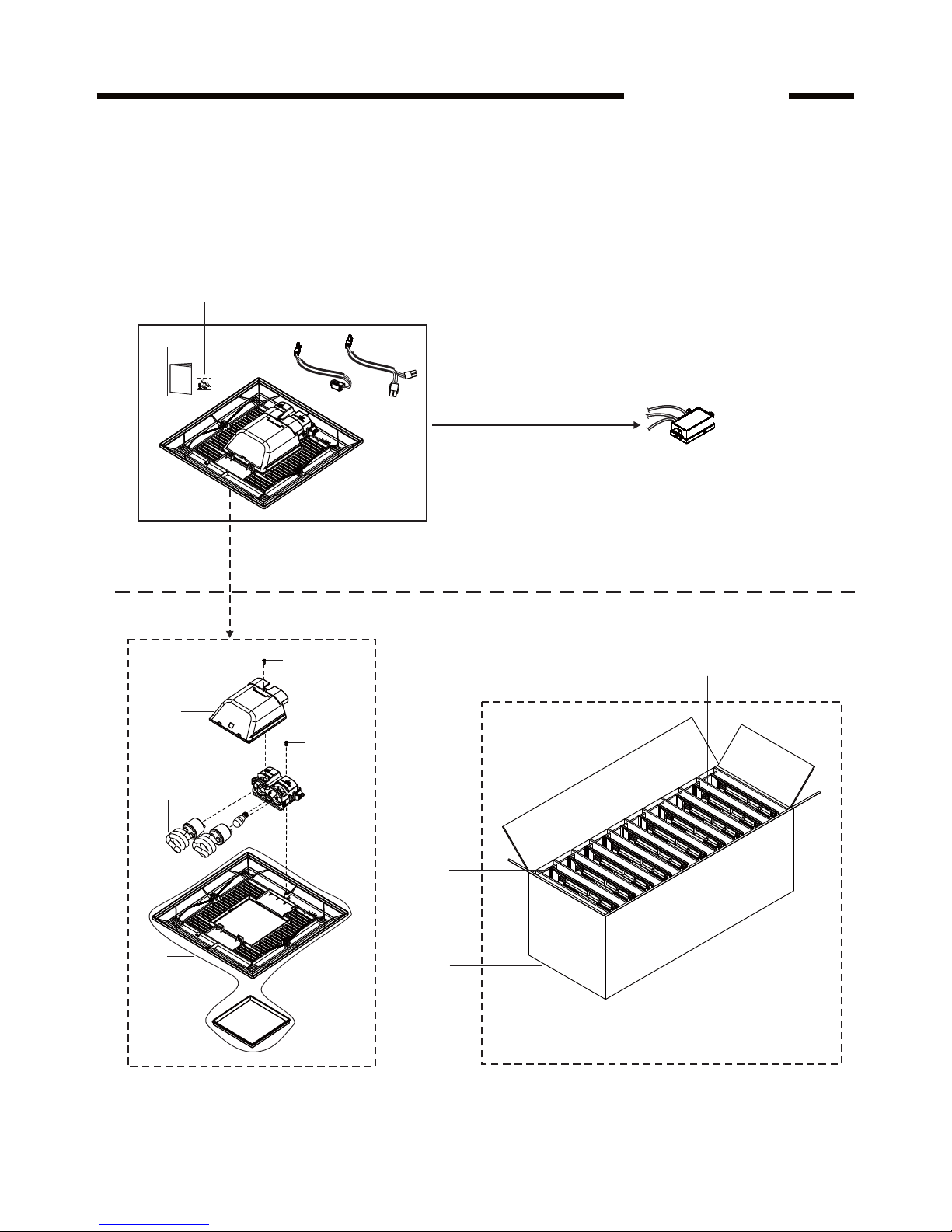

Ballast Assembly Replacement Method
Total Packing Set:10sets
Replacement
Panasonic
Packing Method
51 52
57
58
56
(2pcs)
(11pcs)
If the ballast assembly was damaged,please order the new grille unit section(FFV3420057S) to
replace defective ballast assembly& .Please refer to P10-P12 for replacement
guide.
Remark:The minimum quantity of an order for this new grille unit is 10 sets.
original grille unit
(18)
50
Grille Unit
53
(28)
54
(26)
55
(E)
(27)
(2pcs)
(G)
4
1.Parts Identification FV-11VKL3
Ballast Assembly

5

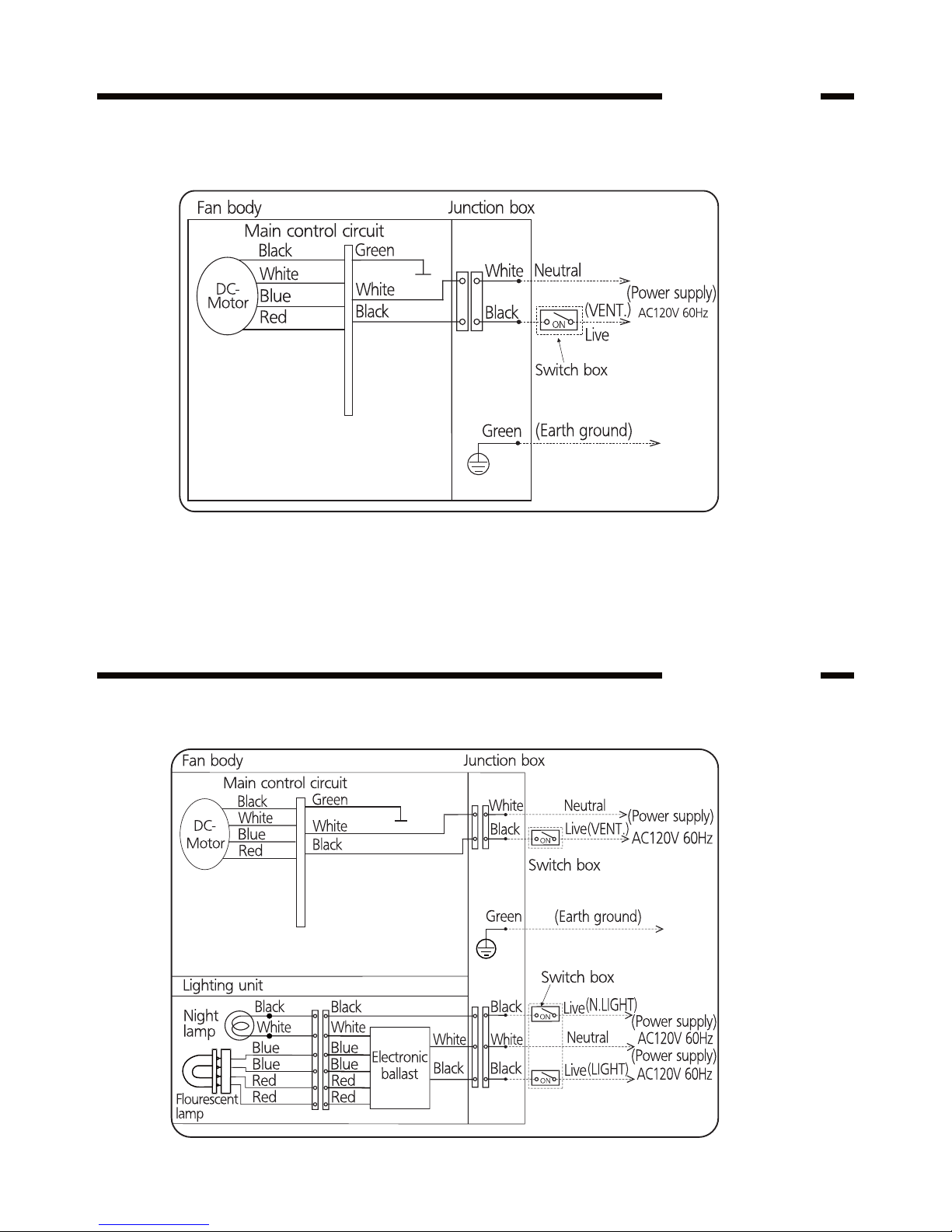

2.Wiring Diagram FV-11VK3
FV-11VKL3

6
3.Parts List FV-11VK3
No. Part No. Part Name Q'ty Remark
1 FFV0420027S Bracket Cover 1
2 FFV1600111S Frame Assembly 1
3 FFV0000116S Adapter Assembly 1
4 FFV0900052S Connector Plate 1
5 FFV0900049S Connector Assembly V 1
6 FFV1340008S Earth Lead Wire Assembly 1
7 FFV2800012S Junction Cover 1
8 FFV0800001S Casing Support 3
9 FFV3700323S Motor Assembly 1
10 FFV3700324S Motor Lead Wire Assembly 1
11 FFV0960001S Nylon Clamp 1
12 FFV3700327S Motor Support 1
13 FFV0400103S Blade 1
14 FFV7020021S Nut 1 For Fixing Blade
15 FFV0790077S Casing 1
16 FFV4300131S Orifice 1
17 FFV3740014S Main PCB Cover 1
18 FFV3740016S Main PCB Box 1
19 FFV3740024S Main PCB Assembly 1
20 FFV4620075S Power Lead Wire 1
21 FFV5560037S Spring Stopper 1
22 FFV5560017S Spring 2
23 FFV3402124S Grille Section 1
24 FFV4020737S Name Plate 1
25 FFV6730041S Warning Label 1
26 FFV1320001S ESP Mark 1
27 FFV0810002S Caution Label 1
28 FFV2260003S UL Mark 1
29 FFV2260002S HVI Mark 1
30 FFV6730045S Warning Label 1
31 FFV5720015S Scale Tape 1
32 FFV5710023S Suspension Bracket Ⅰ1
33 FFV5710024S Suspension Bracket Ⅱ1
34 FFV5710018S Suspension Bracket Ⅳ1
35 FFV5710019S Suspension Bracket Ⅲ1
36 FFV2540113S Installation Instruction 1 English,For CA Market/USA Market

7
3.Parts List FV-11VK3
No. Part No. Part Name Q'ty Remark
37 FFV6730048S Wiring Label 1
38 FFV5710023S Suspension Bracket Ⅰ1
39 FFV5710024S Suspension Bracket Ⅱ1
40 FFV5710018S Suspension Bracket Ⅳ1
41 FFV5710019S Suspension Bracket Ⅲ1
42 FFV2540110S Installation Instruction 1 English,For CA Market/USA Market
43 FFV2540111S Installation Instruction 1 French,For USA Market
(43) FFV2540112S Installation Instruction 1 Spanish,For CA Market
44 FFV0010200S Accessory A 1
45 FFV4710343S Grille Case Assembly 1
46 FFV4710344S Right Pad 1
47 FFV4710345S Left Pad 1
48 FFV9001012S Packing Case Assembly 1
49 FFV3420032S Grille Unit 1
50 FFV2540164S Installation Instruction 1
51 FFV0010230S Accessory A 1
52 FFV0730032S Cord Assembly B 1
53 FFV3420066S Light Kit Cover Assembly 1
54 FFV3420071S Lamp Holder Section 1
55 FFV3420067S Fluorescent Lamp 2
56 FFV9001068S Packing Case 1
57 FFV4710361S Pad A 2
58 FFV4710362S Pad B 11
A FFV7000108S Truss Tap Screw 5
B FFV7000065S Bind Screw 6
C FFV7000168S Earth Screw Assembly 2
D FFV7000109S Stainless Steel Screw 4
E FFV7000089S Truss Tap Screw 11
F FFV7000164S Pan Tap Screw 8
G FFV7000191S Bind Screw 1 For Fixing Light Kit Cover Assembly

8
3.Parts List FV-11VKL3
No. Part No. Part Name Q'ty Remark
1 FFV0420027S Bracket Cover 1
2 FFV1600111S Frame Assembly 1
3 FFV0900048S Connector Plate 1
4 FFV0900049S Connector Assembly V 1
5 FFV0900039S Connector Assembly L 1
6 FFV1340008S Earth Lead Wire Assembly 1
7 FFV2800012S Junction Cover 1
8 FFV0800001S Casing Support 3
9 FFV3700323S Motor Assembly 1
10 FFV3700324S Motor Lead Wire Assembly 1
11 FFV0000112S Adapter Assembly 1
12 FFV0960001S Nylon Clamp 2
13 FFV3700325S Motor Support 1
14 FFV0740027S Nylon Clamp 1
15 FFV0400103S Blade 1
16 FFV7020021S Nut 1 For Fixing Blade
17 FFV0790077S Casing 1
18 FFV3420057S Grille Unit Section 1 Include Packing Section
19 FFV4620075S Power Lead Wire 1
20 FFV3740014S Main PCB Cover 1
21 FFV3740024S Main PCB Assembly 1
22 FFV3740016S Main PCB Box 1
23 FFV3420025S Light Kit Cover Assembly 1
24 FFV3420026S Lamp Holder Section 1
25 FFV3420027S Fluorescent Lamp 1
26 FFV3420005S Night Lamp 1
27 FFV3420028S Grille Section 1 Include Lamp Cover
28 FFV3420029S Lamp Cover 1
29 FFV4020738S Name Plate 1
30 FFV6730041S Warning Label 1
31 FFV1320001S ESP Mark 1
32 FFV0810002S Caution Label 1
33 FFV2260003S UL Mark 1
34 FFV2260002S HVI Mark 1
35 FFV6730045S Warning Label 1
36 FFV5720015S Scale Tape 1

9
3.Parts List FV-11VKL3
No. Part No. Part Name Q'ty Remark
37 FFV6730048S Wiring Label 1
38 FFV5710023S Suspension Bracket Ⅰ1
39 FFV5710024S Suspension Bracket Ⅱ1
40 FFV5710018S Suspension Bracket Ⅳ1
41 FFV5710019S Suspension Bracket Ⅲ1
42 FFV2540110S Installation Instruction 1 English,For CA Market/USA Market
43 FFV2540111S Installation Instruction 1 French,For USA Market
(43) FFV2540112S Installation Instruction 1 Spanish,For CA Market
44 FFV0010200S Accessory A 1
45 FFV4710343S Grille Case Assembly 1
46 FFV4710344S Right Pad 1
47 FFV4710345S Left Pad 1
48 FFV9001012S Packing Case Assembly 1
49 FFV3420032S Grille Unit 1
50 FFV2540164S Installation Instruction 1
51 FFV0010230S Accessory A 1
52 FFV0730032S Cord Assembly B 1
53 FFV3420066S Light Kit Cover Assembly 1
54 FFV3420071S Lamp Holder Section 1
55 FFV3420067S Fluorescent Lamp 2
56 FFV9001068S Packing Case 1
57 FFV4710361S Pad A 2
58 FFV4710362S Pad B 11
A FFV7000108S Truss Tap Screw 5
B FFV7000065S Bind Screw 6
C FFV7000168S Earth Screw Assembly 2
D FFV7000109S Stainless Steel Screw 4
E FFV7000089S Truss Tap Screw 11
F FFV7000164S Pan Tap Screw 8
G FFV7000191S Bind Screw 1 For Fixing Light Kit Cover Assembly

10

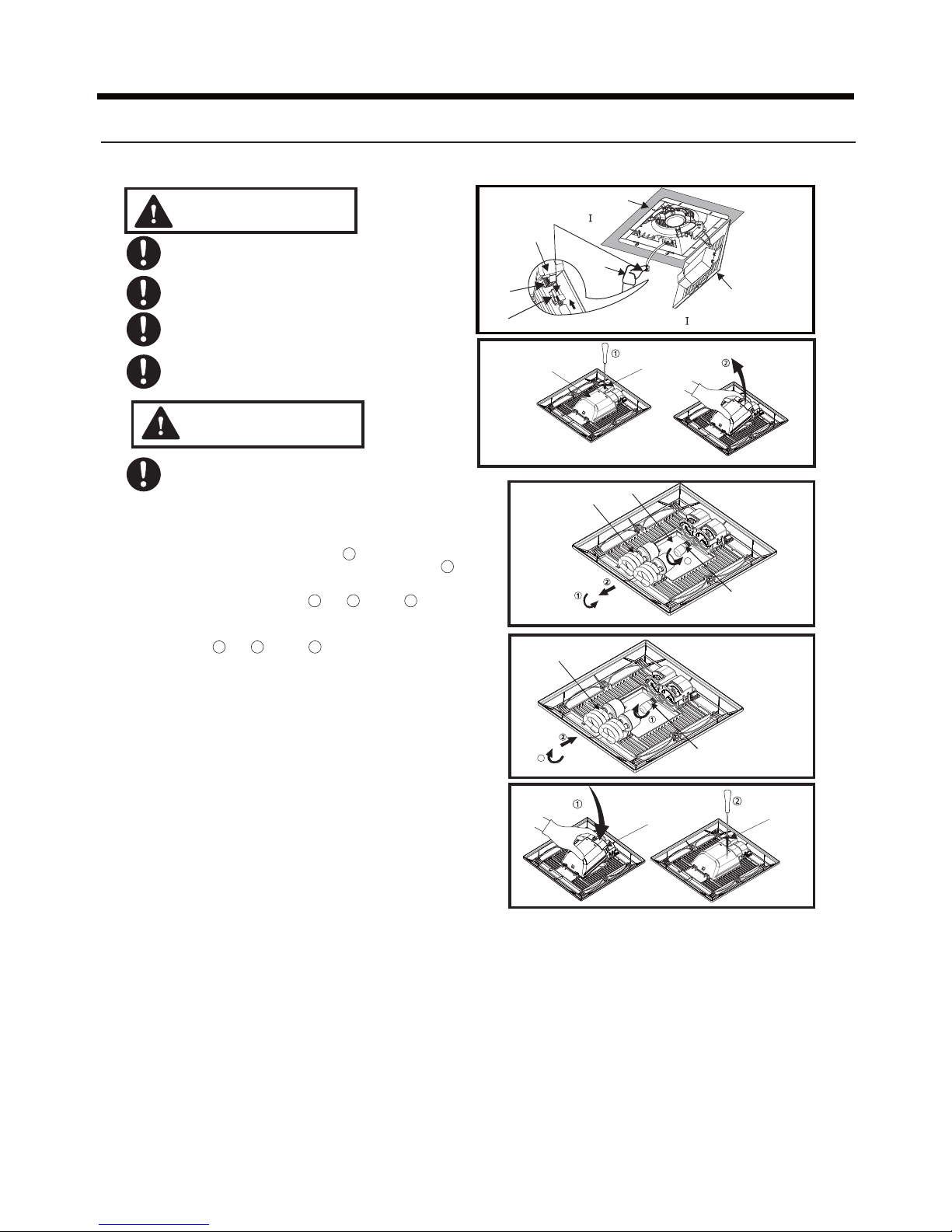

2. Take off the ballast assembly by removing 3 screws
(ST4.2X12). (Fig.2)
Ceiling
Grille
Gloves
Rib
Claw
Ballast Assembly
Switch box
Lighting unit
Plug connector
Mounting spring
Fig.3
Fig.4
Only fix the sensor lead wire.
Fig.1
Light lead wire assembly A
3 screws(ST4.2X12)
INSTALLATION
Fig.2
3 screws(ST4.2X12),3 cord clips(5N)
Remove the tapes from grille and springs
before installation new light kit grille as below
Tapes
Light kit cover
assembly
Remove screw
(M4X8)

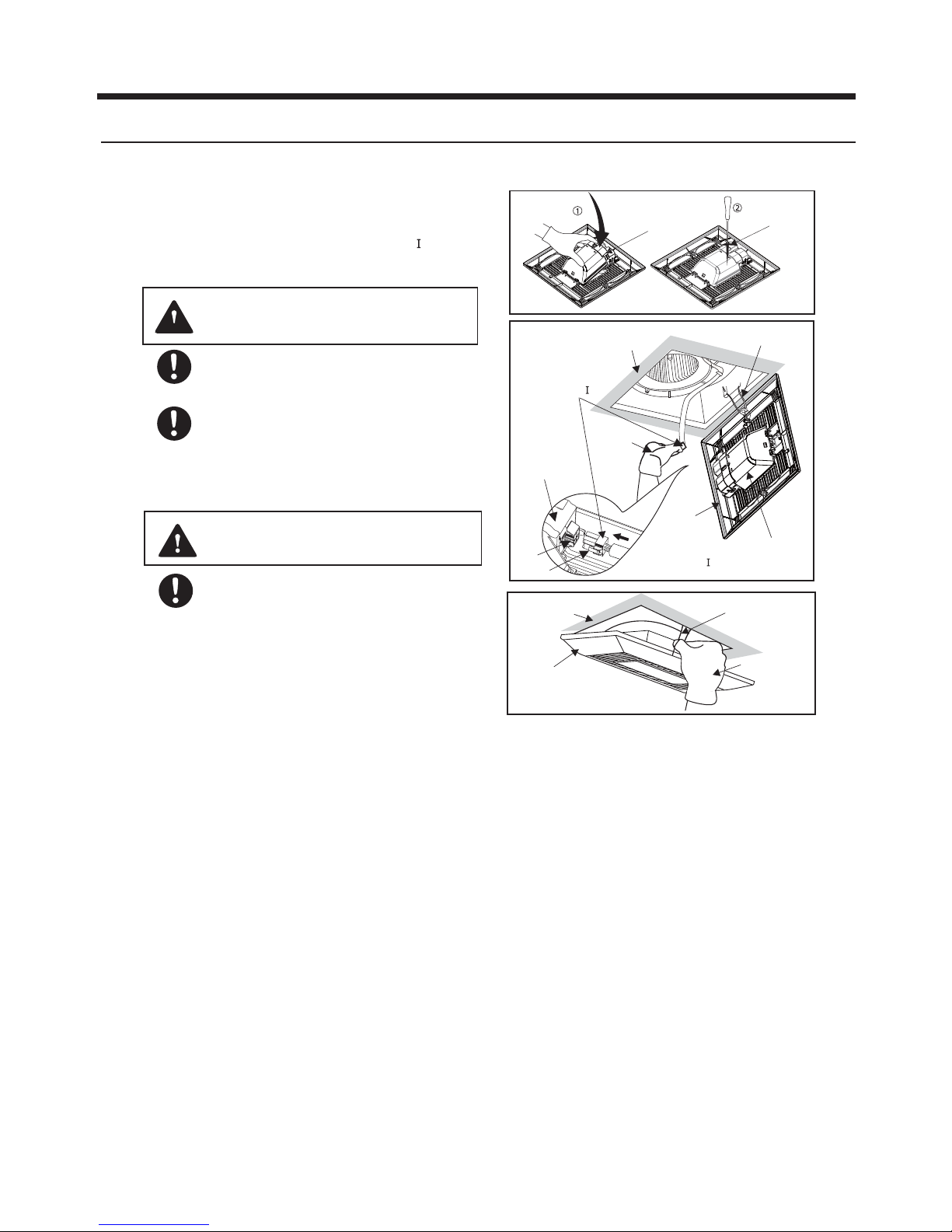

4.Replacement Guide
3. Take out the light lead wire assembly A from
accessories, and connect to junction box. Then
fix the light lead wire assembly by 3 screws (ST4.2X12),
and 3 cord clips(5N,from accessories).(Fig.3)
1. Remove the primary light kit grille by pulling down
one mounting spring and remove plug connector ,
then pull down the other mounting spring (Squeeze
mounting spring and pull down carefully) (Fig.1)
Ⅰ
.
Keep the screws that are removed for
following use.
CAUTION
Disconnect power source before working
on unit.
WARNING
4.Take out the new light kit grille.Remove screw(M4X8).
Remove light kit cover assembly. (Fig.4)
3Fig.5
Fluorescent
lamp
Night lamp
5. Install the night lamp and fluorescent lamps.
(Fig.5)

11
8. Insert the other mounting spring into the slot as
shown and mount grille to fan body. (Fig.8)
Fig.7
Fig.8
7. Insert the grille mounting spring on the wiring
side into the slot and insert the plug connector
into the housing of the lighting unit.(Fig.7)
Mount grille carefully so that lead wire of
lighting unit is not pinched.
Before turn on the light, make sure the
connector at the correct position. If not, the
lighting can’t work.
The claw of connector must latch the rib
completely. (Fig.7)
Ceiling
Grille
Grille
Ceiling
Gloves
Gloves
Rib
Claw
Insert
lighting unit
lighting unit
Plug connector
Plug connector
Mounting spring
Mounting spring
CAUTION
CAUTION
INSTALLATION
4.Replacement Guide
Fig.6
Secure screw
(M4X8)
Light kit cover
assembly
6. Install light kit cover assembly. (Fig.6)

12
4.Replacement Guide
MAINTENANCE(REPLACEMENT OF LAMP)
4. Install new night lamp (MAX 4W incandescent lamp) and
new fluorescent lamps (Maxlite MLS13GU35,13W) as
shown in step 1 ,step 2 and step 3 of (Fig.4)
WARNING
Remove dust and dirt from light kit cover
assembly and lens, before replace the lamps.
CAUTION
3. Remove the fluorescent lamps (Maxlite MLS13GU35,13W)
and night lamp as shown in step 1 ,step 2 and step 3 of (Fig.3)
2. Remove the screw as shown in step 1 of (Fig.2)
Remove the light kit cover assembly as shown in step 2 of (Fig.2)
1. Remove grille by pulling down one mounting spring. Then
pull down the other mounting spring. (Squeeze mounting
spring and pull down carefully) (Fig.1)
5.Install light kit cover assembly.(Fig.5)
Disconnect power source before working
on unit.
Make sure the temperature of lens and lighting
unit has cooled down before maintenance
(cleaning) or replacement of lamp.
This is a pin type lamp base and the lamp’s
glass is fragile.To remove,pull out carefully.
4W night lamp has threaded base,Remove
by turning counterclockwise.
Fig.2
Fig.3
3
Lens
3
Fig.4
Fig.5
Secure screw
(M4X8)
Fluorescent
lamp
Night lamp
Light kit cover
assembly
Fluorescent
lamp
Night lamp
Light kit cover
assembly
Remove screw
(M4X8)
Plug connector
lighting unit
Insert Plug connector
Rib
Claw Fig.1
Gloves
Ceiling
Grille
