Panasonic RG-C811A User manual

Model No.
READ AND SAVE THESE INSTRUCTIONS
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before attempting
to install, operate or service the Panasonic product. Please
carefully read the “GENERAL SAFETY INFORMATION”.
Failure to comply with instructions could result in personal
injury or property damage. Please explain to users how to
operate and maintain the product after installation and this
manual should be presented to users. Please retain this
manual for future references.
RG-C811A, RG-C811HA
Ventilating Fan
The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage
caused when the denotation is disregarded and improper use is performed.
To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always
observe the following safety precautions.
WARNING
CAUTION
Denotes a potential hazard that could result in serious injury or death.
Denotes a hazard that could result in minor injury.
Denotes a hazard that could result in property damage.
The following symbols are used to classify and describe the type of instructions to be observed.
This symbol is used to alert users not to disassemble the equipment.
This symbol is used to alert users to make sure of grounding when using the equipment with the grounding
terminal.
This symbol is used to alert users to a specific operating procedure that must be followed in order to
operate this unit safely.
This symbol is used to alert users to a specific operating procedure that must not be performed.
INSTALLATION INSTRUCTIONS

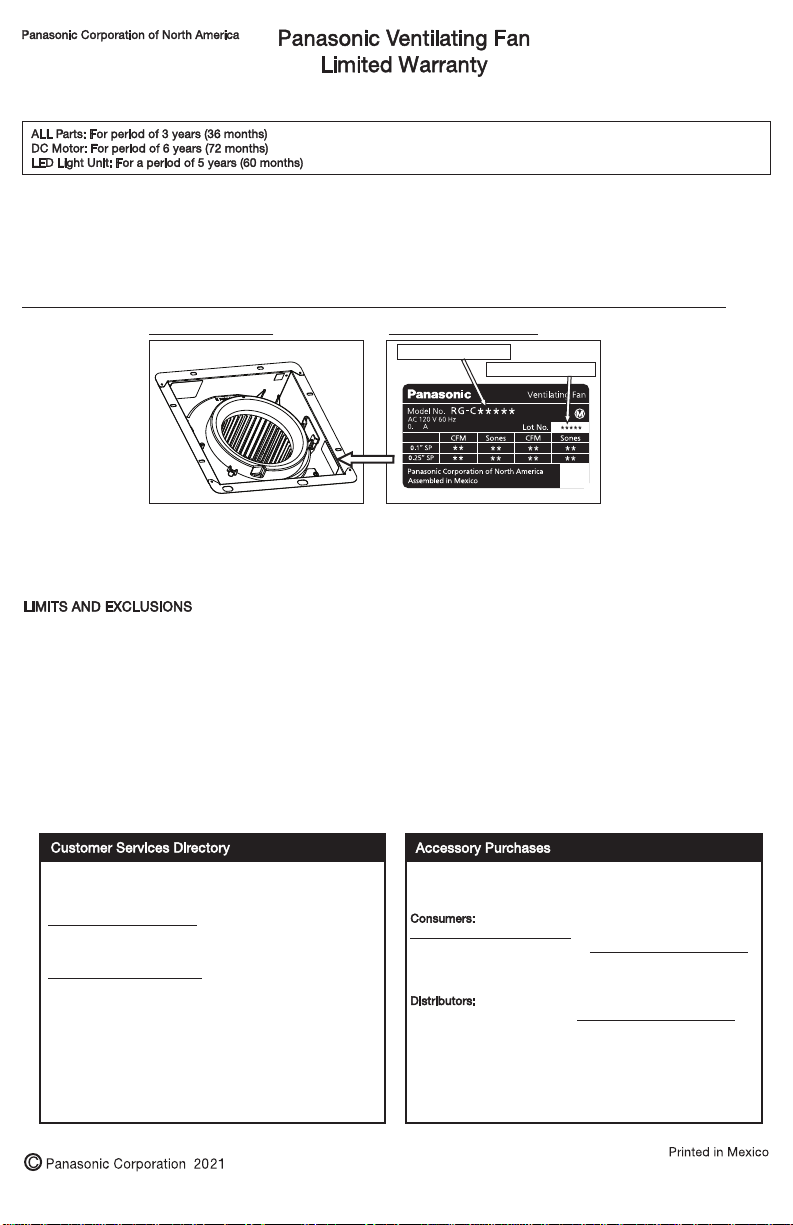

See page 12 for “Panasonic Warranty Sheet”.
GENERAL SAFETY INFORMATION
C8 1 1 A1 4 2 0 A

WARNING
To reduce the risk of fire, electric shock or injury to persons, observe the following:
Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the
manufacturer.
burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and
safety standards such as those published by the National Fire Protection Association (NFPA), and the
American Society of Heating, Refrigerating and Air-Conditioning Engineers
(ASHRAE) and the local code
authorities.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means
to prevent power from being switched on accidentally. When the service disconnecting means cannot be
locked, securely fasten a prominent warning device, such as a tag, to the service panel.
Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel
Ducted exhaust fans must always be vented to the outdoors.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and
connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.
These models are UL listed for tub and shower enclosures.
If this product is no longer to be used, it must be removed from the ceiling to prevent it from falling.
Do not install with a method which is not approved in the instructions.
This product must be properly grounded.
Do not use this fan with any solid-state speed control device. Solid state controls may cause harmonic
distortion which can cause a humming noise in the motor.
Do not disassemble the unit for reconstruction. It may cause fire or electric shock.
The ceiling joist must be able to withstand a static load of at least five times the weight of the product.
2
GENERAL SAFETY INFORMATION (CONTINUED)

3
Make sure that the electric service supply voltage is AC 120 V 60 Hz.
Do not install this ventilating fan in a location where the interior room temperature may exceed 104 °F (40 °C).
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupational Safety and Health Administration (OSHA).
CAUTION
Always disconnect the power source before working on or near the fan, motor or junction box.
Protect the supply wiring from sharp edges, oil, grease, hot surfaces,
chemicals or other objects.
Do not kink the supply wiring.
Not for use in cooking area. (Fig. A)
The special-purpose or dedicated parts, such as
mounting fixtures, must be used if such parts are
provided.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
Floor
45°
45°
Cooking
equipment
Fig. A
(Cooking area)
Do not install above or
inside this area
Provide make up air for proper ventilation.
Do not connect multiple units in parallel. If two or more units are connected to one switch in parallel, the units
may not function.
Do not install the unit where ducts are configured as shown in below:
Bend close to duct adaptorSqueezed ductSuccessive bending
Excessive bending
Adaptor
DESCRIPTION
These products use a sirocco fan driven by a DC motor powered by an integral transformer. The motor is designed to
have long operating life, high dynamic response, higher speed ranges and energy savings. The grille covering the fan
body is a spring-attached, quick removal type. A damper for preventing air counter flow is provided. The blower uses
a high-capacity sirocco fan developed to reduce the noise level.
These products are listed by UL under UL file No. E78414.
(RG-C811HA only)
This Panasonic ventilating fan model is equipped with a humidity sensor that turns on automatically when humidity
increases rapidly, or when humidity rises above a 30% - 80% relative humidity set-point. It is user-adjustable to
operate 0.5 ~ 60minutes after the sensors are no longer detected.
GENERAL SAFETY INFORMATION (CONTINUED)

4
Unpack and carefully remove the unit from carton. Refer to the Supplied Accessories list to verify that all parts are
present.
Part name Appearance Quality
Grille
Flex-Z Fast ™
bracket (with 4
tapping screws
- ST4.2X20)
1
1
Part name Appearance Quality
1
4
Installation
instructions/
Warranty
sheet
Self-drilling
screw
Part name Part nameNo. No.
Blade
Grille
Junction box
Adaptor
PCB box
Pick-A-Flow™ switch
Fan body
Damper
Flex-Z Fast™ bracket
Unit: inches (mm)
RG-C811HA
RG-C811A
UNPACKING
DIMENSIONS
SUPPLIED ACCESORIES
12 (304)
10 1/4 (260)
3 7/8 (100)
5 7/8 (151)
7 1/2 (190)
13 (330)
13 1/4 - 15 1/2 (336-394)
16 1/2 - 18 3/4 (419-480)
21 1/4 - 23 1/2 (540-597)
10 5/8 (270)
3 3/8
(86)
7/8 (23.5)
1 1/2 (37)
4 1/2 (114)
13 (330)
10 1/4 (261) 3 7/8
(100)
12 (304)
10 1/4 (260)
3 7/8 (100)
5 7/8 (151)
7 1/2 (190)
13 (330)
13 1/4 - 15 1/2 (336-394)
16 1/2 - 18 3/4 (419-480)
21 1/4 - 23 1/2 (540-597)
10 5/8 (270)
3 3/8
(86)
7/8 (23.5)
1 1/2 (37)
4 1/2 (114)

RG-C811HA
5
RG-C811A
RG-C811HA
DIMENSIONS (CONTINUED)
WIRING DIAGRAM
SELECTOR INDICATION (RG-C811HA only)
AC 120 V 60 Hz
(Power supply)
Fan body
Main control circuit
DC
Motor Main control
circuit
(Ground wire)
Green
Junction box
Neutral
White
Black Live (Fan)
AC 120 V 60 Hz
(Power supply)
Junction box Neutral
White
Black Live (Fan)
(Ground wire)
Green
DC
Motor
Fan body
Main control circuit
Main control
circuit Humidity sensor
Selector
TimerHumidity
setting
Humidity
preset selector Timer
preset selector
Selector indications on
blower unit
Factory setting is around 50%.
Timer preset selector positions
13 (330)
10 1/4 (261) 3 7/8
(100)
Part name Part nameNo. No.
Blade
Grille
Junction box
Adaptor
PCB box
Pick-A-Flow™ switch
Fan body
Damper
Flex-Z Fast™ bracket
Selector
Humidity sensor

Duct length, elbows and other factors increase static pressure which can hinder the performance of most ventilation
fans. This fan utilizes Smart Flow™ microchip technology that monitors the static pressure in the system and speeds
up or slows down the rpm of the fan depending upon the amount of resistance within the ducts. This feature allows
the fan to perform as rated and avoid potential installation issues.
These products are built using DC motor technology. The DC motor is 30% ~ 70% more energy
efficient than the minimum ENERGY STAR requirements.
Pick-A-Flow™ Feature:
This product comes with Pick-A-Flow™ speed
options. The Pick-A-Flow™ switch on the face of the product allows the
option to choose 80 or 110 CFM.
This product can run continuously or intermittently, depending upon the
needs of the owner.
Pick-A-Flow™
switch
RG-C811A
RG-C811HA 80 CFM
80
80 110 110
Air volume (CFM) Factory setting
6
80 CFM
CFM
130 150
0811 MODEL
80 110
1315 MODEL
Tape
Adaptor Damper
WARNING
Disconnect power supply before
installing the unit.
Please wear gloves to protect hands
during the installation.
Remove the tape placed on the damper and
adaptor before installation. Failure to do so
will cause the product to work inefficiently and
create a loud noise.
OPERATION (RG-C811HA only)
INSTALLATION (RETROFIT)
FEATURES
Power
switch
Conden-
sation
sensor
Product
ON OFF
Stop Run
Environment humidity
Humidity trigger setting
about 5 %RH
Delay
1
operation
*
The product will continue to run for about
20 minutes after the sensor detects that
the humidity is ~5 % RH lower than the
humidity setting before stopping.
1
*
Stop
Note:
1. The power switch should be left on at all times.
2. The product will also run when the humidity rises rapidly but does not reach the humidity trigger setting, and then stop after
the time delay.
3. The activation humidity settings on the dial are continuous from 30 %RH ~ 80 %RH.
4. The humidity detected by the sensor may differ from the value on your hygrometer.
5. The product may cycle on and off if the humidity is constantly near the trigger point. This can be addressed by raising
the humidity trigger setting on the dial.
6. The fan will run for 20 minutes when power switch is first turned on, regardless of the humidity sensor settings. After 20
minutes, the fan will return to sensor mode.

7
Remove existing fan Joist
Unit: inches (mm)
Conduit Circular duct
Ceiling (already existed)
1Remove the existing fan and cut the ceiling opening
according to the required dimensions.
1
2
1Insert Flex-Z Fast™ bracket into the opening and
extend.
3
Align and install bracket to joist by using
2-preinstalled tapping screws.
Joist
4
2 Tapping
screws
(ST4.2X20)
Extend
3
4
Extend bracket to the other joist.
Install bracket to joist by using 2-preinstalled tapping
screws.
Flex-Z Fast™ bracket position can be adjusted from 16" to 24" (406mm to 610mm) between joists.
Install Flex-Z Fast™ bracket
Joist
2 Tapping screws
(ST4.2X20)
Flex-Z Fast™ bracket
Align
2
Joist
Flex-Z Fast bracket
™
Joist
Align the edge of Flex-Z Fast™
with the edge of the ceiling
opening on the side where the
adapter will be installed.
Drywall
Flex-Z Fast™ bracket
1
Joist
Drywall
Joist
INSTALLATION (RETROFIT) (CONTINUED)
Remove adaptor
from fan body
Disconnect plug connector from
the receptacle and remove adaptor
from fan body by removing the
machine screw (M4X8) before
installation.
1
Machine screw
(M4X8)
Fan body
Adaptor
1
Plug connector
Receptacle

8
Refer to WIRING DIAGRAM (Page 5). Follow all the local electrical safety codes as well as the National Electrical
Code (NEC). Use UL approved wire nuts to connect fan wires. After connecting wires, replace junction box cover.
3
Install and secure fan body
2 self-drilling
screws
Plug connector
Receptacle
Insert fan body and slide into adaptor assembly until the flange overlaps the Flex-Z Fast™ bracket.
1
2
3
Secure the fan body to Flex-Z Fast™ bracket by using 2 self-drilling screws.
Plug connector into receptacle and secure fan body to adaptor by using machine screw (M4X8).
Please take care when installing the machine screw (Step 5) to avoid cross threading and to ensure that the
screw does not strip or come in contact with Flex-Z Fast™ bracket.
2
3
Insert circular exhaust duct
1
2
4
Remove screw from junction box cover to remove the knock-out hole and secure conduit or stress relief to junction
box knock-out hole.
Install the circular exhaust duct and secure it with clamps or ties and seal it with mastic or approved foil tape. A 4
inch circular duct is needed to connect to the relevant part of the adaptor.
Install the adaptor to Flex-Z Fast™ bracket by using 2 self-drilling screws.
Machine screw
(M4X8)
INSTALLATION (RETROFIT) (CONTINUED)
3
Earth ground
Earth ground
Conduit
Junction
box
Neutral
Live
AC 120 V
60 Hz
LINE IN
Switch box
Wire nuts
GREEN
BLACK
WHITE
2 Self-drilling screws
Mastic or
approved
foil tape
Circular exhaust
duct
Junction box
cover
Knock-out
hole
Conduit
4
1
2
2 Self-drilling screws
1
Fan body
Joist
Joist
Flex-Z Fast™
bracket

9
Remove adaptor
from fan body
Disconnect plug connector from
the receptacle and remove adaptor
from fan body by removing the
machine screw (M4X8) before
installation.
Machine screw
(M4X8)
Fan body
Adaptor
1
Sealing
1
Adjust Pick-A-Flow™ switch. (Refer to explanation under
FEATURES). (Page 6)
2
Once fan body is mounted and secure, fill gap between flange
and ceiling with caulk or other sealant to prevent air leakage.
Joist
Joist
1
Tape
Adaptor Damper
WARNING
Disconnect power supply before
installing the unit.
Please wear gloves to protect hands
during the installation.
Remove the tape placed on the damper and
adaptor before installation. Failure to do so
will cause the product to work inefficiently and
create a loud noise.
1
Install Flex-Z Fast™ bracket
Flex-Z Fast™ bracket position can be adjusted from 16" to 24" (406mm to 610mm) between joists.
Unit: inches (mm)
Joist
Bend down 4 tabs
1
2
2 Tapping screws
(ST4.2X20)
Flex-Z Fast™ bracket
Align
1
2Align and install bracket to joist by using
2-preinstalled tapping screws.
Bend down 4 tabs and align bracket to the joist.
Plug connector
Receptacle
INSTALLATION (RETROFIT) (CONTINUED)
INSTALLATION (NEW CONSTRUCTION)
Install grille Mounting spring
Grille Gloves
Drywall
Insert the mounting springs into the slot as
shown to mount grille to fan body.
1
1

Disconnect power source before working on unit.
Routine maintenance must be done every year.
Please wear gloves during the cleaning work.
Never use gasoline, benzene, thinner or any other
such chemicals for cleaning the ventilating fan.
Do not immerse motor in water when cleaing.
Do not soak resin parts in water over 140°F (60°C).
Do not use cleaning sprays, solvents, or water on
or near the sensor.
10
Follow steps from “RETROFIT” Installation
1Follow the steps 4 to 7 on “INSTALLATION (RETROFIT)”.
Remove grille
1
Gloves Slot
Grille
Mounting spring
1Remove grille by pulling down one mounting spring
then pull the other.
Extend
Joist
3
4
2 Tapping screws
(ST4.2X20)
3
4
Extend bracket to the other joist.
Install bracket to joist by using 2-preinstalled
tapping screws.
MAINTENANCE (CLEANING)
INSTALLATION (NEW CONSTRUCTION) (CONTINUED)

Properly insulate the area around the fan to minimize
building heat loss and gain. Loose fill or batt
insulation can be placed directly over the fan housing
in the attic. Our fans do not create excessive heat
that is a common problem with recessed light fixtures
or some competitor’s fan/light combination. Our
efficient, cool-running motors do not create enough
ambient heat to be subjected to these limitations.
The ducting from this fan to the outside of the building
has a strong effect on the air flow, noise and energy
use of the fan. Use the shortest, straightest duct routing
possible for best performance, and avoid installing the
fan with smaller ducts than recommended. Insulation
around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve
their rated air flow.
4 inches roof jack, wall cap,
or soffit vent with backdraft damper
Mechanically connect duct to termination
and seal with mastic or approved foil
faced tape
2-3 ft straight run before elbow
In attic installation,
caulk box to drywall
Short piece of flexible duct helps
alignment and absorbs sound.
Clamps plus mastic or approved
foil faced tape at all flex joints
Insulation
Foil tape tightly covers all metal
duct joints (glue PVC joints)
Model No. Air
direction Voltage
(V) Frequency
(Hz)
Duct
diameter
(inches)
Air volume
at 0.1” WG
(CFM)
Noise
(sones) Speed
(rpm) Power
(W) Weight
lb. (k )
Exhaust
Exhaust
80
80
110
110
0.5
0.5
<0.3
<0.3
824
984
824
984
6.5
11.1
6.5
11.1 9.3(4.2)
9.5(4.3)
120
120
60
60
4 or 6
4 or 6
HVI Certified performance based on HVI Procedures 915, 916, 920.
Warning Concerning Removal of Covers. The unit should be serviced by qualified technicians only.
Your product is designed and manufactured to ensure a minimum of maintenance. Should your unit
require service or parts, call Panasonic Call Center at 1-866-292-7299 (USA).
RG-C811A
RG-C811HA
11
23
Remove dust and dirt from fan body
using a vacuum cleaner. Using a cloth dampened with kitchen detergent,
remove any dirt from fan body. Wipe dry with clean
cloth. Reinstall grille after finishing.
2
3
Maintenance of unit Gloves
1
1Clean grille. (Don’t put into hot water. Use non-abrasive
kitchen detergent, wipe dry with clean cloth.)
NOTE: The grille should be dry after cleaning.
MAINTENANCE (CLEANING) (CONTINUED)
SPECIFICATIONS
PRODUCT SERVICE
Drywall Drywall
PRACTICAL GUIDE TO INSTALLATION
Vacuum
cleaner Gloves

P0929-1 C811A1420A
12
2 Riverfront Plaza
Newark, NJ 07102
Panasonic Corporation of North America (”the Warrantor”) will, at its sole discretion, replace this product with new parts or exchange this
product, free of charge, in the USA, in the event of defects in material or workmanship in accordance to the following:
Service in the USA, can be obtained during the warranty period by contacting the selling Distributor or Panasonic Customer Call Center at
1-866-292-7299, toll free.
This warranty only covers failures due to defects in materials or workmanship that occur during normal use and does not cover shipping
damages, whether visible or concealed, normal wear or cosmetic damage. The warranty does not cover failures that are caused by products
and peripherals not supplied by the Warrantor, or failures which result from accident, misuse, abuse, negligence, mishandling,
misapplication, alteration, modification, faulty installation, improper setups or adjustments, improper or lack of maintenance, alterations or
modifications, power line surge, improper line voltage, lightning damage, or damage that is attributable to acts of God.
There are no express warranties except as listed above. THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL CONSEQUENTIAL,
OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL PROFITS OR REVENUE, LOSS OF USE OF THIS
PRODUCT OR ANY ASSOCIATED EQUIPMENT, COST OF SUBSTITUTE PRODUCT, DOWNTIME COST, OR CLAIMS OF ANY PARTY
DEALING WITH BUYER FOR SUCH DAMAGES, RESULTING FROM THE USE OF THIS PRODUCT OR ARISING FROM BREACH OF
WARRANTY OR CONTRACT, NEGLIGENCE OR ANY OTHER LEGAL THEORY, EXCEPT AS EXPRESSLY PROVIDED ABOVE. THERE IS NO
WARRANTY OR ANY OTHER KIND, EXPRESS OR IMPLIED, THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitation may not apply to you.
Obtain Product Information and Operating Assistance, locate
your nearest distributor, or make Customer Service and
Literature requests by visiting our Web Site at:
us.panasonic.com/ventfans
or send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-866-292-7299 Monday-Friday 9 am - 6 pm, EST.
For hearing or speech impaired TTY users, TTY:
1-877-833-8855
Purchase Parts and Accessories for Panasonic Ventilation
Products by visiting our Website:
www.buypanasonicparts.com
or send your request by Email to: [email protected]
You may also contact us directly at 1-800-332-5368
(Monday-Friday 8am to 6pm, EST.)
Send your request by Email to: [email protected]
You may also contact us directly at 1-866-292-7299
(Monday-Friday 9 am- 6 pm, EST.)
Panasonic Consumer Electronics Company
Customer Service Group
2 Riverfront Plaza, Newark, NJ 07102
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
This warranty does not cover labor charges for removal and installation of parts. This warranty is extended only to the original purchaser of a
new product, which was not sold “as is”, who purchased the product either directly from the Warrantor or from the Warrantor’s authorized
resellers (including authorized retail and Internet-based sellers), unless otherwise prohibited by law.
This warranty only applies to products purchased in the United States.
To claim warranty proof of purchase date will be required, in addition to fan model and serial number as shown in the photos below.
Example of display Example of Name Plate
Indicates: Model No.
If a problem with this product develops during or after the warranty period, you may contact your Distributor or Panasonic Customer Call
Center. If the problem is not handled to your satisfaction, then write to Panasonic Corporation of North America at the address indicated
above.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Indicates: Serial No.
31
