Panasonic S-80MW1E5 Service manual

ȖȯȠȘȕȥȦȟȝ
ǏǕǕǑǗǓǔǤ
PORTUGU S
NEDERLANDS
ITALIANO DEUTSCH ESPAÑOL FRANÇAIS ENGLISH
Air-to-Water Heatpump
■ R410A Models
Model No.
Indoor Units
Type Indoor Unit Type Rated Capacity
80 125
W1 Air-to-Water
S-80MW1E5 S-125MW1E5
ENGLISH
Read through the Installation Instructions before you proceed with the installation.
In particular, you will need to read under the “IMPORTANT!” section at the top of the page.
FRANÇAIS
Lisez les instructions d’installation avant de commencer l’installation.
En particulier, vous devez lire la section “IMPORTANT!” en haut de la plage.
ESPAÑOL
Lea las Instrucciones de instalación antes de proceder con la instalación del equipo.
En concreto, deberá leer detenidamente la sección “¡IMPORTANTE!” situada al principio de la página.
DEUTSCH
Lesen Sie die Einbauanleitung, bevor Sie mit der Installation beginnen.
Insbesondere die Hinweise im Abschnitt “WICHTIG!” oben auf der Seite müssen unbedingt gelesen werden.
ITALIANO
Leggere le Istruzioni di installazione prima di procedere con l’installazione.
Prestare particolare attenzione alla sezione “IMPORTANTE!” all’inizio della pagina.
NEDERLANDS
Lees de installatie-instructies zorgvuldig door voor u begint met de installatie.
U moet vooral het gedeelte waar “BELANGRIJK!” boven staat heel goed lezen.
PORTUGU S
Leia cuidadosamente as instruções de instalação antes de prosseguir com a instalação.
Em particular, é necessário ler as informações na secção “IMPORTANTE!” na parte superior da página.
ǏǕǕǑǗǓǔǤ
ǎǶǭǮȉȀȁDZȁǶǿǙǰdzǯȌDZǿDZǯǷǭȁȉȀȁǭȀdzǿǽǾǶǺȀȂǺDZȅȌȀDZȁDZǹDZȁdzǺDZǯǷǭȁȉȀȁǭȀdzƔ
ǜȂǯǷDZǷǾǶǹȊǺǭƑǴǭȅǾDZǶǭȀȁDZȌǺǭǰǶǭǮȉȀDZȁDZȁdzǺDZǺȏȁdzȁǭƩǜǑǖNjǗǝǓǔǙƘƪȀȁǼǽȉǺȇǹȊǾǼǿȁdzǿȀDZǸȌǰǭǿƔ
ȖȯȠȘȕȥȦȟȝ
ȤəɗɠɎɛɎɛɎɑɖɚɛəɜɓɟɑɑɛɎɐɉɑɖɚɛɉɔɑəɉɖɎɘəɎɍɑɍɉɘəɗɍɣɔɏɑɛɎɚɑɖɚɛɉɔɑəɉɖɎɛɗƔ
ȗɠɉɚɛɖɗɚɛƑɢɎɛəɨɊɋɉɍɉɘəɗɠɎɛɎɛɎəɉɐɍɎɔɉƤȗȕțȢȣƘơɋɌɗəɖɉɛɉɠɉɚɛɖɉɚɛəɉɖɑɟɉɛɉƔ
for Refrigerant R410A
INSTALLATION INSTRUCTIONS
F616843
00_271229_aLL.indb 12015-7-28 11:09:14

2
IMPORTANT!
Please Read Before Starting
This Air-to-Water must be installed by the sales dealer or
installer.
This information is provided for use only by authorized
persons.
Be sure to read the installation instructions relevant to
the VRF system connected to this Air-to-Water and all
appliances connected to the VRF system.
For safe installation and trouble-free operation, you must:
●Carefully read this instruction booklet before beginning.
●Follow each installation or repair step exactly as shown.
●This Air-to-Water shall be installed in accordance with
National Wiring Regulations.
●For water circuit installation work, follow to relevant
European and national regulations (including EN61770)
and local plumbing and building regulation.
●
The unit is only for use in a closed water system.
Utilization in an open water circuit may lead to excessive
corrosion of water piping and risk of incubating bacteria
colonies, particularly Legionella, in water.
●Pay close attention to all warning and caution notices
given in this manual.
WARNING
This symbol refers to a hazard or unsafe
practice which can result in severe
personal injury or death.
CAUTION
This symbol refers to a hazard or unsafe
practice which can result in personal injury
or product or property damage.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help for a
special problem, contact our sales/service outlet or your
certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
WARNING
Do not modify the wiring of indoor/outdoor
unit for installation of other components
(i.e. heater, etc). Overloaded wiring or wire
connection points may cause electrical
shock or fire.
CAUTION
Do not apply excessive force to water
pipes that may damage the pipes. If water
leakage occurs, it will cause flooding and
damage to other properties.
Carry out drainage piping as mentioned in installation
instructions. If drainage is not perfect, water may enter the
room and damage the furniture.
SPECIAL PRECAUTIONS
WARNING When Wiring
ELECTRICAL SHOCK CAN
CAUSE SEVERE PERSONAL
INJURY OR DEATH. ONLY A
QUALIFIED, EXPERIENCED
ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS
SYSTEM.
• Do not supply power to the unit until
all wiring and tubing are completed or
reconnected and checked.
• Highly dangerous electrical voltages are
used in this system.
Carefully refer to the wiring diagram and
these instructions when wiring. Improper
connections and inadequate grounding
can cause accidental injury or death.
• Connect all wiring tightly. Loose wiring
may cause overheating at connection
points and a possible fire hazard.
•Provide a power outlet to be used
exclusively for each unit.
•Provide a power outlet exclusively for
each unit, and full disconnection means
having a contact separation in all poles
must be incorporated in the fixed wiring
in accordance with the wiring rules.
•To prevent possible hazards from
insulation failure, the unit must be
grounded.
• This equipment is strongly recommended
to be installed with Earth Leakage
Circuit Breaker (ELCB) or Residual
Current Device (RCD). Otherwise, it may
cause electrical shock and fire in case
of equipment breakdown or insulation
breakdown.
When Transporting
Be careful when picking up and moving
the indoor and outdoor units. Get a partner
to help, and bend your knees when lifting
to reduce strain on your back. Sharp
edges or thin aluminum fins on the air
conditioner or Air-to-Water can cut your
fingers.
00_271229_aLL.indb 22015-7-28 11:09:14

3
ENGLISH
When Installing…
Select an installation location which is
rigid and strong enough to support or
hold the unit, and select a location for
easy maintenance.
…In a Room
Properly insulate any tubing run inside a
room to prevent “sweating” that can cause
dripping and water damage to walls and
floors.
CAUTION Keep the fire alarm and
the air outlet at least
1.5 m away from the unit.
…In Moist or Uneven Locations
Use a raised concrete pad or concrete
blocks to provide a solid, level foundation
for the outdoor unit. This prevents water
damage and abnormal vibration.
…In an Area with High Winds
Securely anchor the outdoor unit down
with bolts and a metal frame. Provide a
suitable air baffle.
…In a Snowy Area (for Heat Pump-
type Systems)
Install the outdoor unit on a raised
platform that is higher than drifting snow.
Provide snow vents.
…In laundry rooms
Do not install in laundry rooms. Indoor
unit is not drip proof.
When Connecting Refrigerant Tubing
Pay particular attention to refrigerant
leakages.
WARNING
WARNING
• When performing piping work, do not
mix air except for specified refrigerant
(R410A) in refrigeration cycle. It
causes capacity down, and risk of
explosion and injury due to high
tension inside the refrigerant cycle.
• If the refrigerant comes in contact
with a flame, it produces a toxic gas.
• Do not add or replace refrigerant
other than specified type. It may
cause product damage, burst and
injury, etc.
• Ventilate the room immediately, in the
event that is refrigerant gas leaks during
the installation. Be careful not to allow
contact of the refrigerant gas with a
flame as this will cause the generation
of toxic gas.
• Keep all tubing runs as short as
possible.

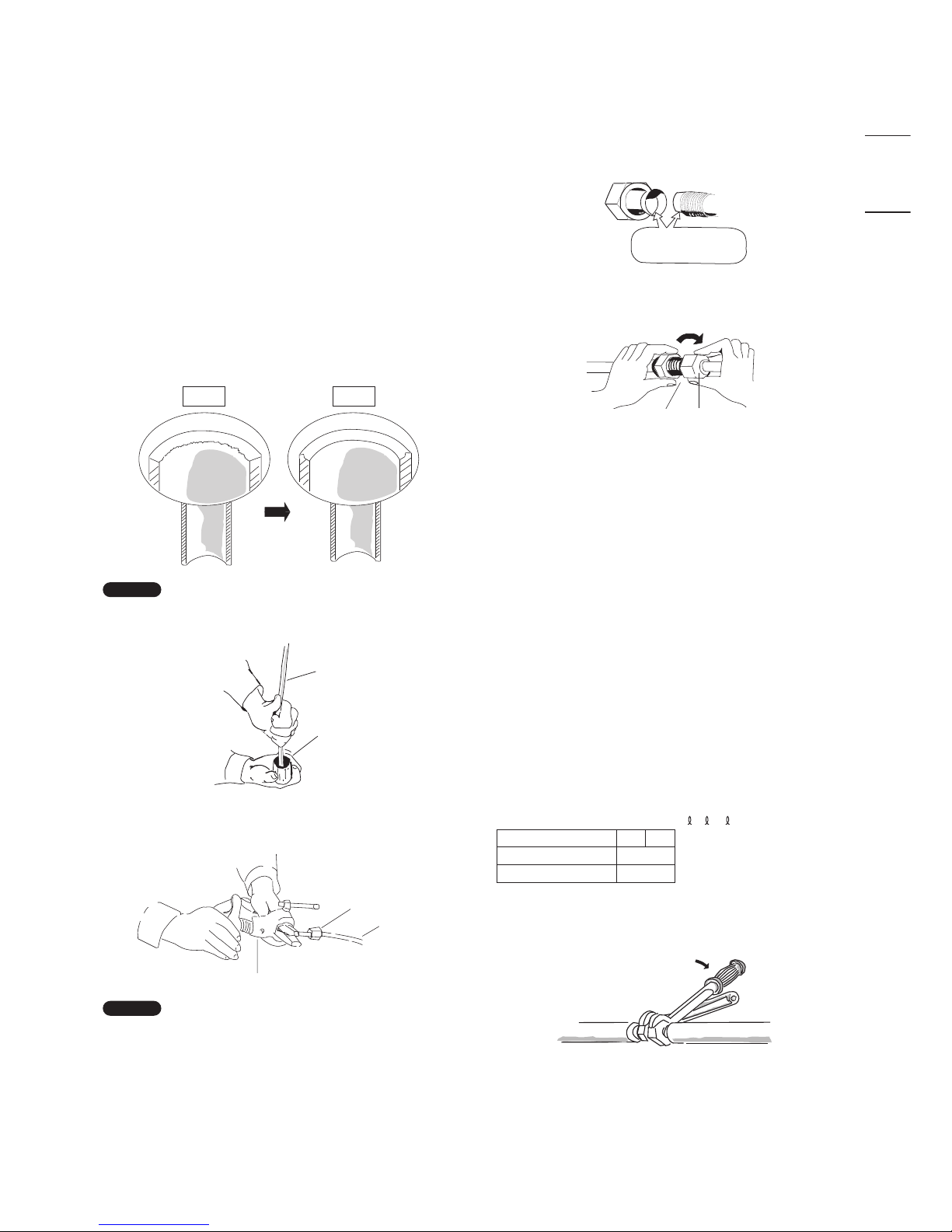

• Apply refrigerant lubricant to the
matching surfaces of the flare and union
tubes before connecting them, then
tighten the nut with a torque wrench for
a leak-free connection.
• Check carefully for leaks before starting
the test run.
• Do not leak refrigerant while piping work
for an installation or re-installation, and
while repairing refrigeration parts.
Handle liquid refrigerant carefully as it
may cause frostbite.
When Servicing
• Turn the power OFF at the main
power box (mains) before opening
the unit to check or repair electrical
parts and wiring.
• Keep your fingers and clothing away
from any moving parts.
• Clean up the site after you finish,
remembering to check that no metal
chips or bits of wiring have been left
inside the unit.
WARNING
WARNING
• This product must not be
modified or disassembled under
any circumstances. Modified or
disassembled unit may cause fire,
electric shock or injury.
• Do not clean inside the indoor and
outdoor units by users. Engage
authorized dealer or specialist for
cleaning.
• In case of malfunction of this
appliance, do not repair by yourself.
Contact the sales dealer or service
dealer for repair.
00_271229_aLL.indb 32015-7-28 11:09:15

4
IMPORTANT INFORMATION REGARDING THE REFRIGERANT USED
This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent gases into the atmosphere.
Refrigerant type: R410A
GWP(1) value: 1975
(1)GWP = global warming potential
Periodical inspections for refrigerant leaks may be required depending on European or local legislation.
Please contact your local dealer for more information.

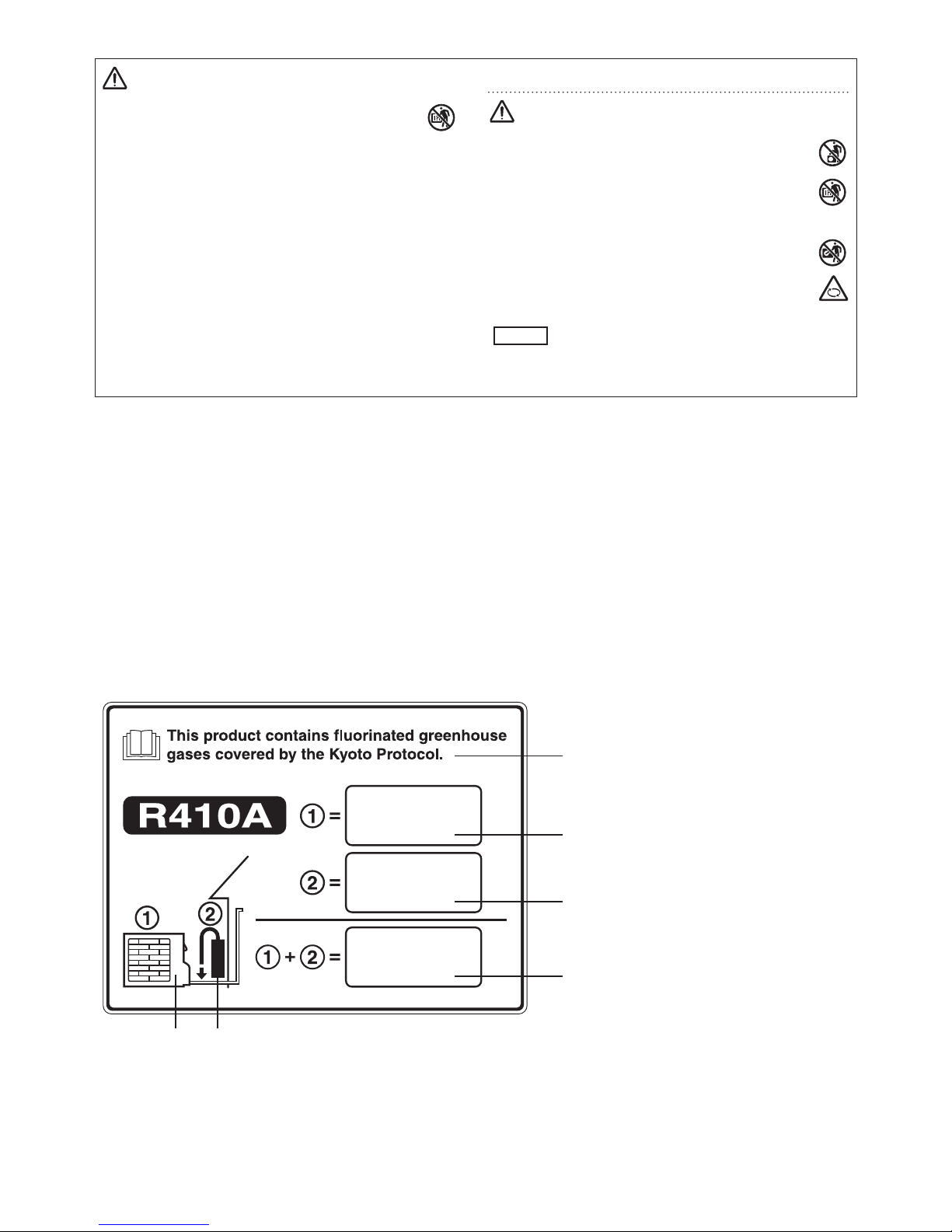

Sample label: MF2 type outdoor unit
Please fill in with indelible ink,
■1the factory refrigerant charge of the product
■2the additional refrigerant amount charged in the field and
■1+ 2the total refrigerant charge
on the refrigerant charge label supplied with the product.
The filled out label must be adhered in the proximity of the product charging port (e.g. onto the inside of the service cover).
1
4
2
3
5 6
kg
kg
kg
* English text printed on this label is original. Each
language label will be sealed on this original text.
1. Factory refrigerant charge of the product: see unit name plate
2. Additional refrigerant amount charged in the field
3. Total refrigerant charge
4. Contains fluorinated greenhouse gases covered by the Kyoto Protocol
5. Outdoor unit
6. Refrigerant cylinder and manifold for charging
WARNING
CAUTION
• Do not touch the air inlet or the
sharp aluminum fins of the
outdoor unit. You may get injured.
• Ventilate any enclosed areas when
installing or testing the refrigeration
system. Leaked refrigerant gas, on
contact with fire or heat, can produce
dangerous toxic gas.
• Confirm after installation that no
refrigerant gas is leaking. If the gas
comes in contact with a burning
stove, gas water heater, electric room
heater or other heat source, it can
cause the generation of toxic gas.
Others
WARNING
CAUTION
• Do not sit or step on the unit, you
may fall down accidentally.
• Do not touch the air inlet or the
sharp aluminum fins of the
outdoor unit. You may get injured.
• Do not stick any object into the
FAN CASE.
You may be injured and the unit
may be damaged.
NOTICE
The English text is the original instructions. Other
languages are translations of the original instructions.
00_271229_aLL.indb 42015-7-28 11:09:16

5
ENGLISH
CONTENTS
Page
Page
IMPORTANT! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Please Read Before Starting
IMPORTANT INFORMATION REGARDING THE
REFRIGERANT USED . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

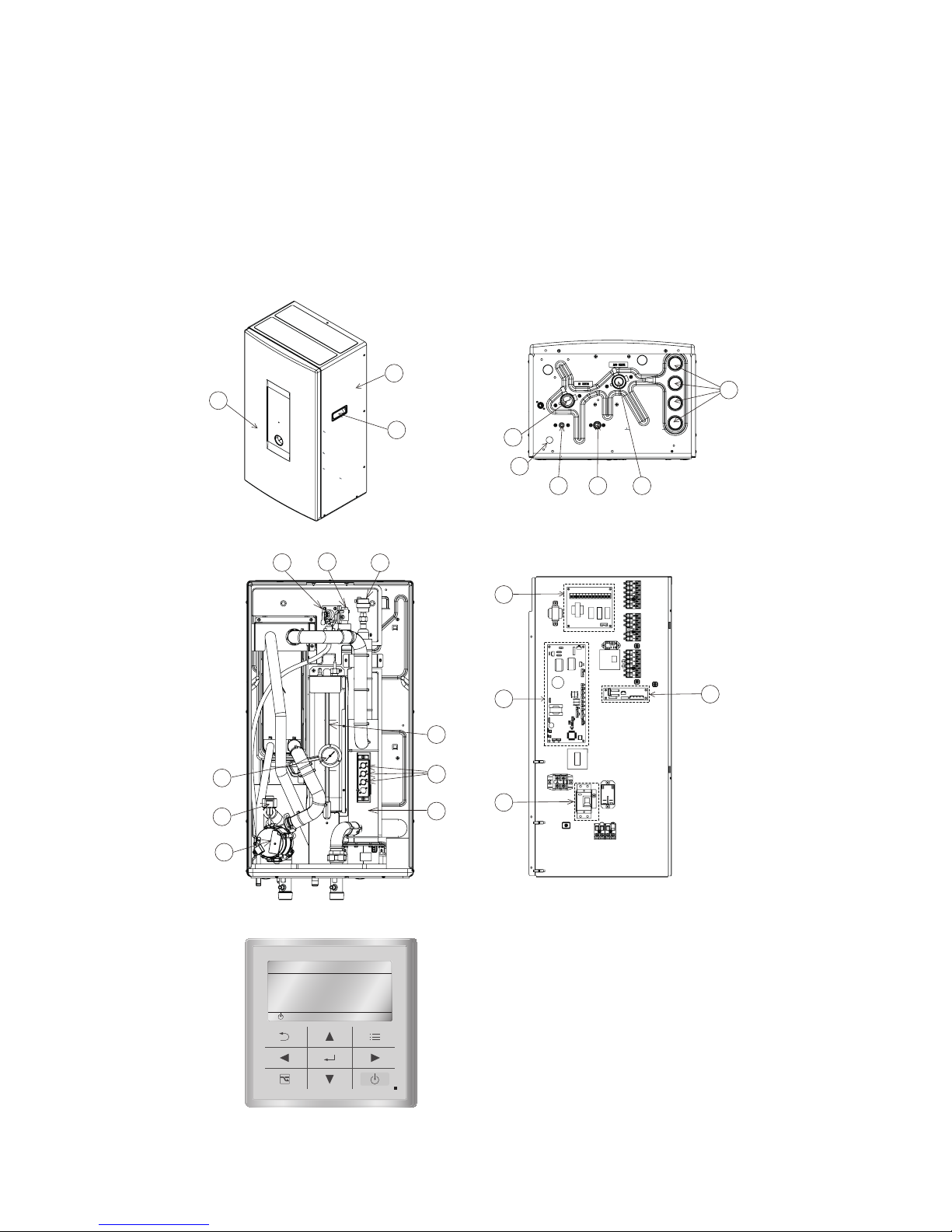

1-1. Main Components
1-2. Tools Required for Installation (not supplied)
1-3. Accessories Supplied with Unit
1-4. Field Supply Accessories
1-5. Type of Copper Tube and Insulation Material
1-6. Additional Materials Required for Installation
2. SELECTING THE INSTALLATION SITE . . . . . . . . . . . 8
2-1. Indoor Unit
3. HOW TO INSTALL THE INDOOR UNIT . . . . . . . . . . . 8
3-1. Select the Best Location
3-2. How to Fix Installation Plate
3-3. To Drill a Hole in the Wall and Install a Piping
Sleeve
3-4. Indoor Unit Installation
3-5. Water Piping Installation
3-6. Indoor Unit Refrigerant Piping Installation
3-7. Drain Hose Installation
3-8. Drain Elbow and Hose Installation
4. ELECTRICAL WIRING . . . . . . . . . . . . . . . . . . . . . . . 11
4-1. General Precautions on Wiring

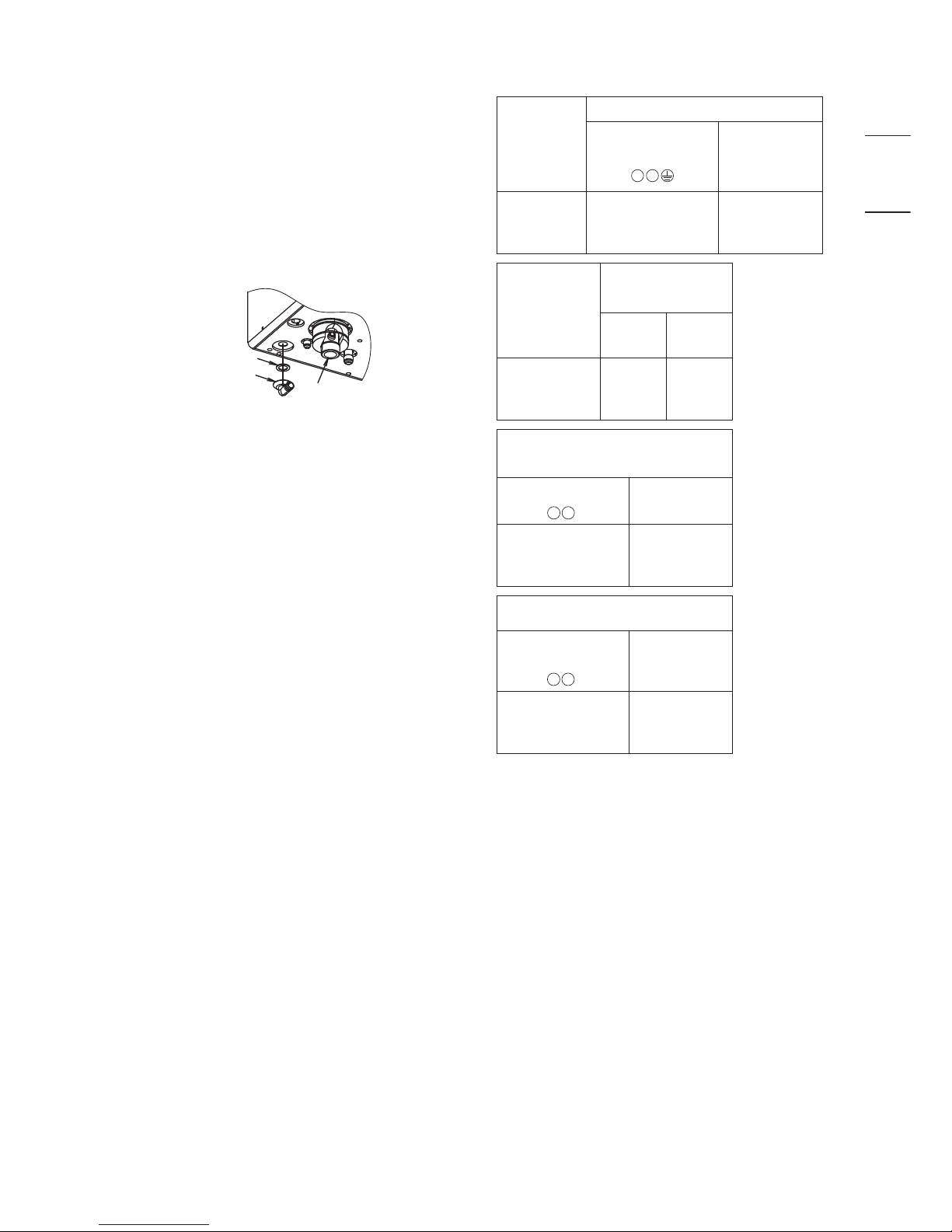

4-2. Recommended Wire Length and Wire Diameter
for Power Supply System

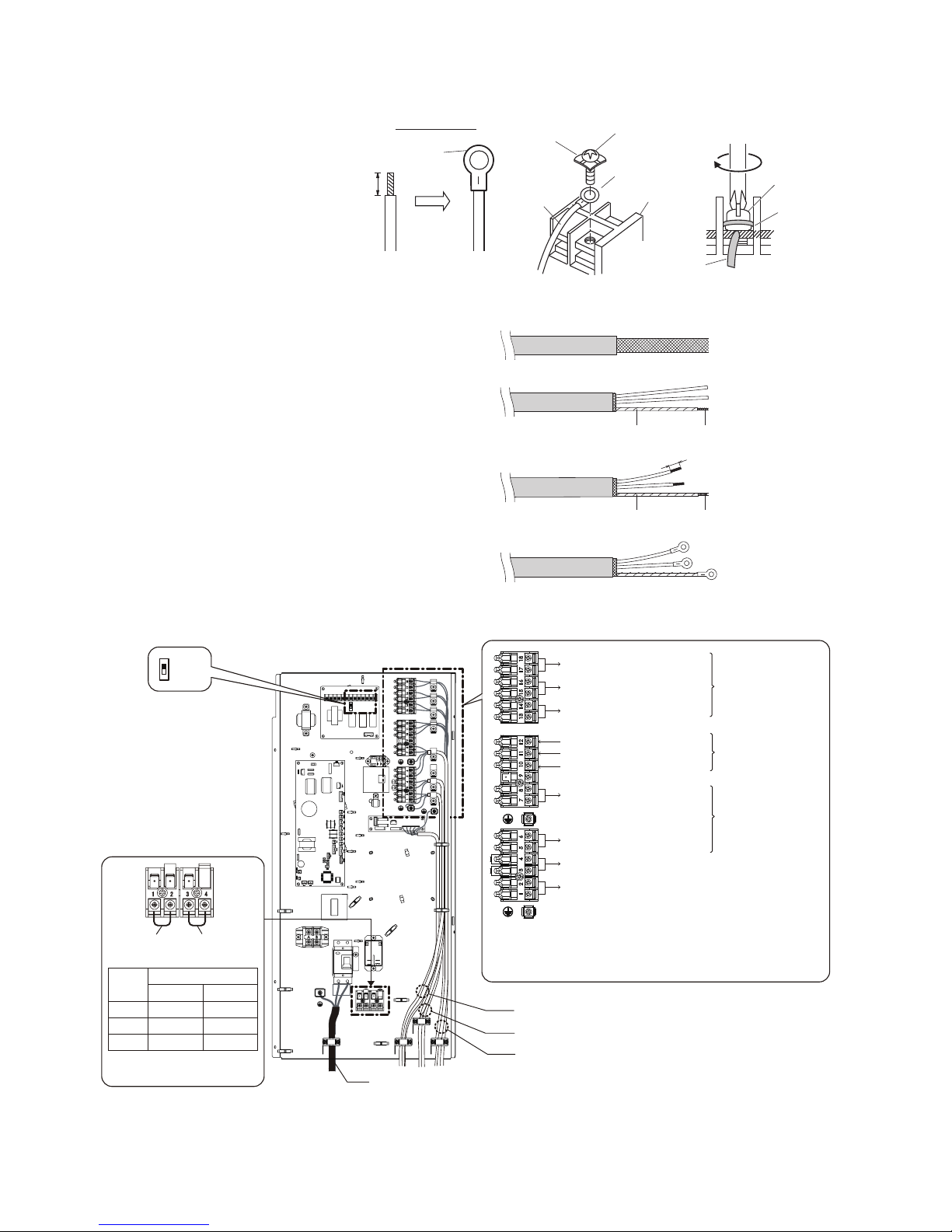

4-3. Wiring System Diagram
■ For stranded wiring
■ Examples of shield wires
■ Wiring sample

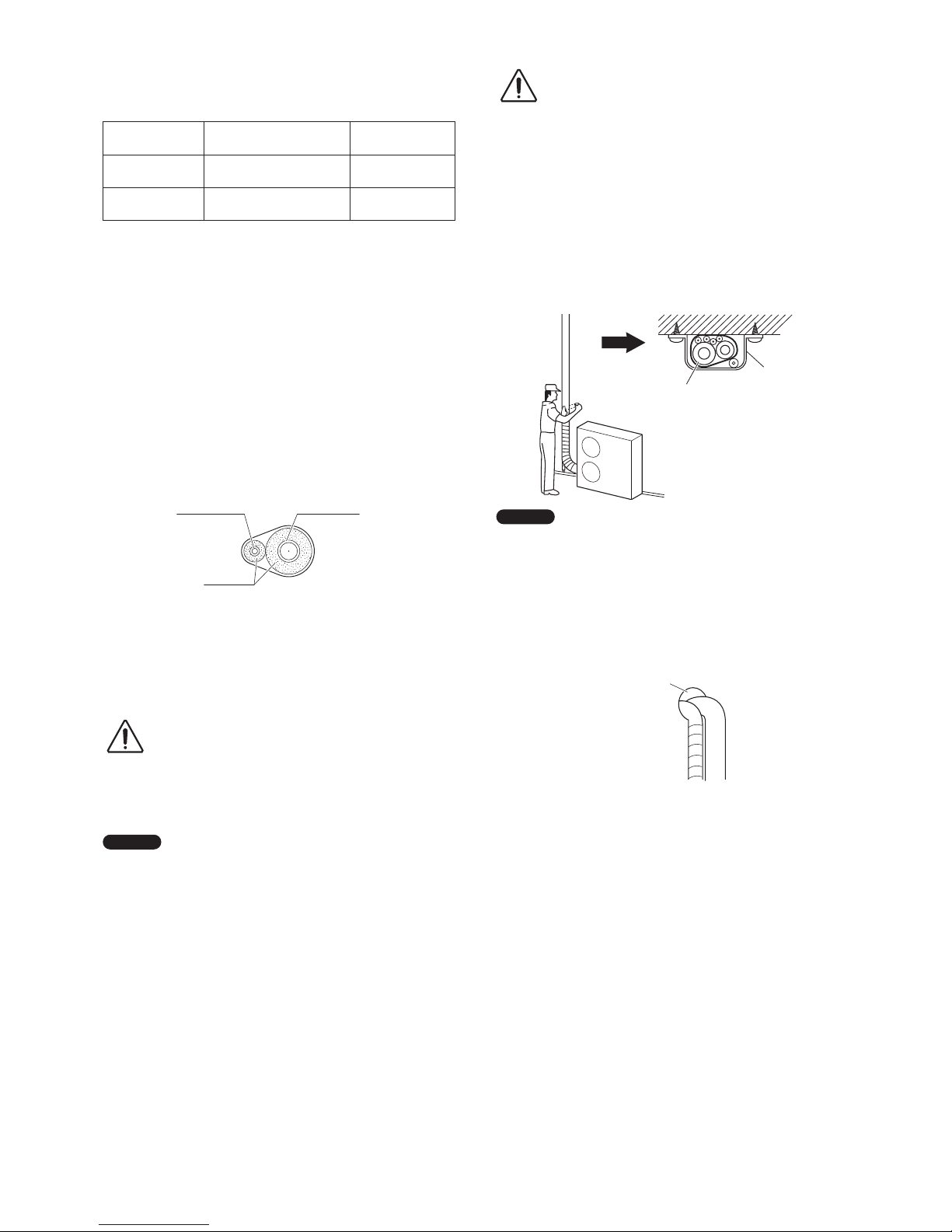

5. HOW TO PROCESS TUBING . . . . . . . . . . . . . . . . . . 15
5-1. Connecting the Refrigerant Tubing
5-2. Connecting Tubing Between Indoor and Outdoor
Units
5-3. Insulating the Refrigerant Tubing
5-4. Taping the Tubes
5-5. Finishing the Installation

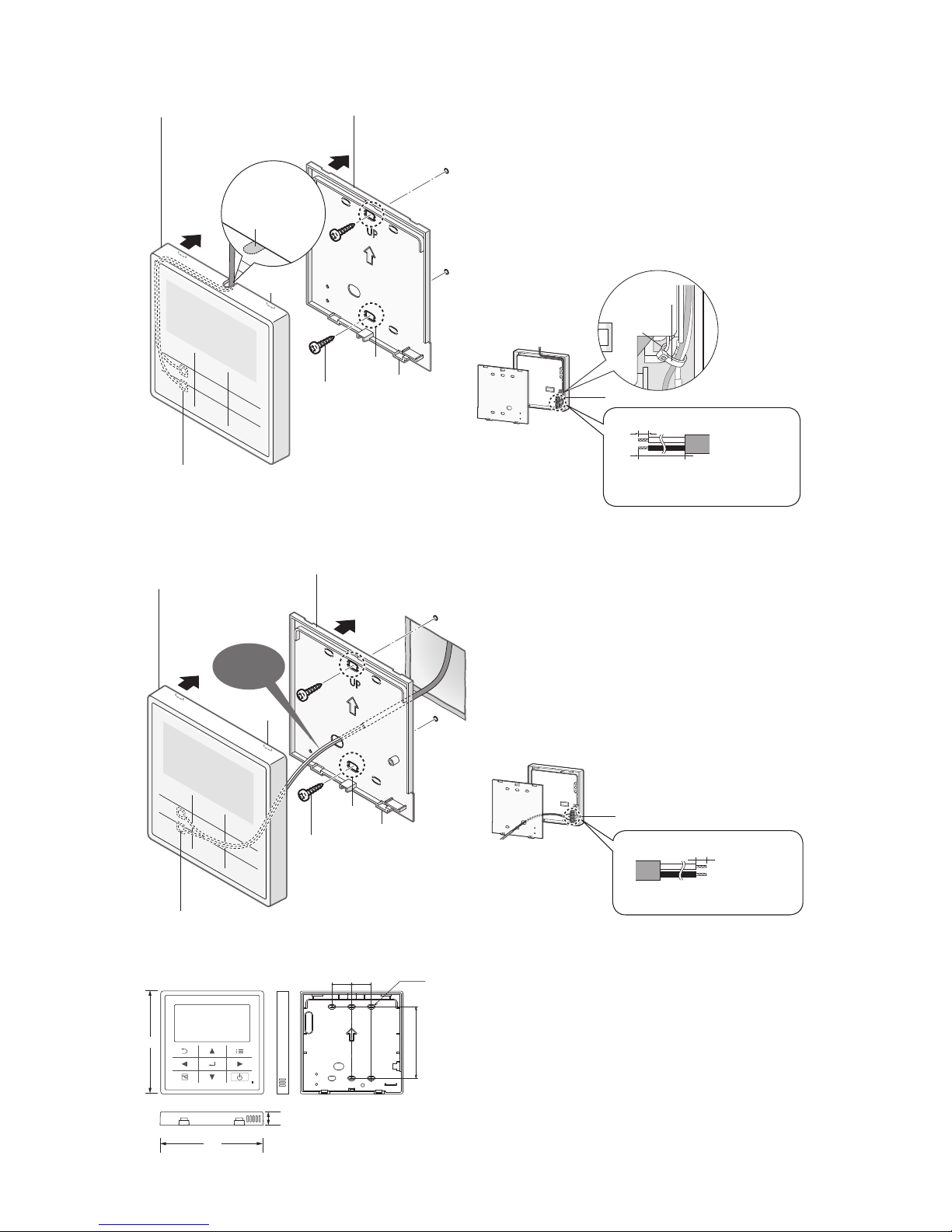

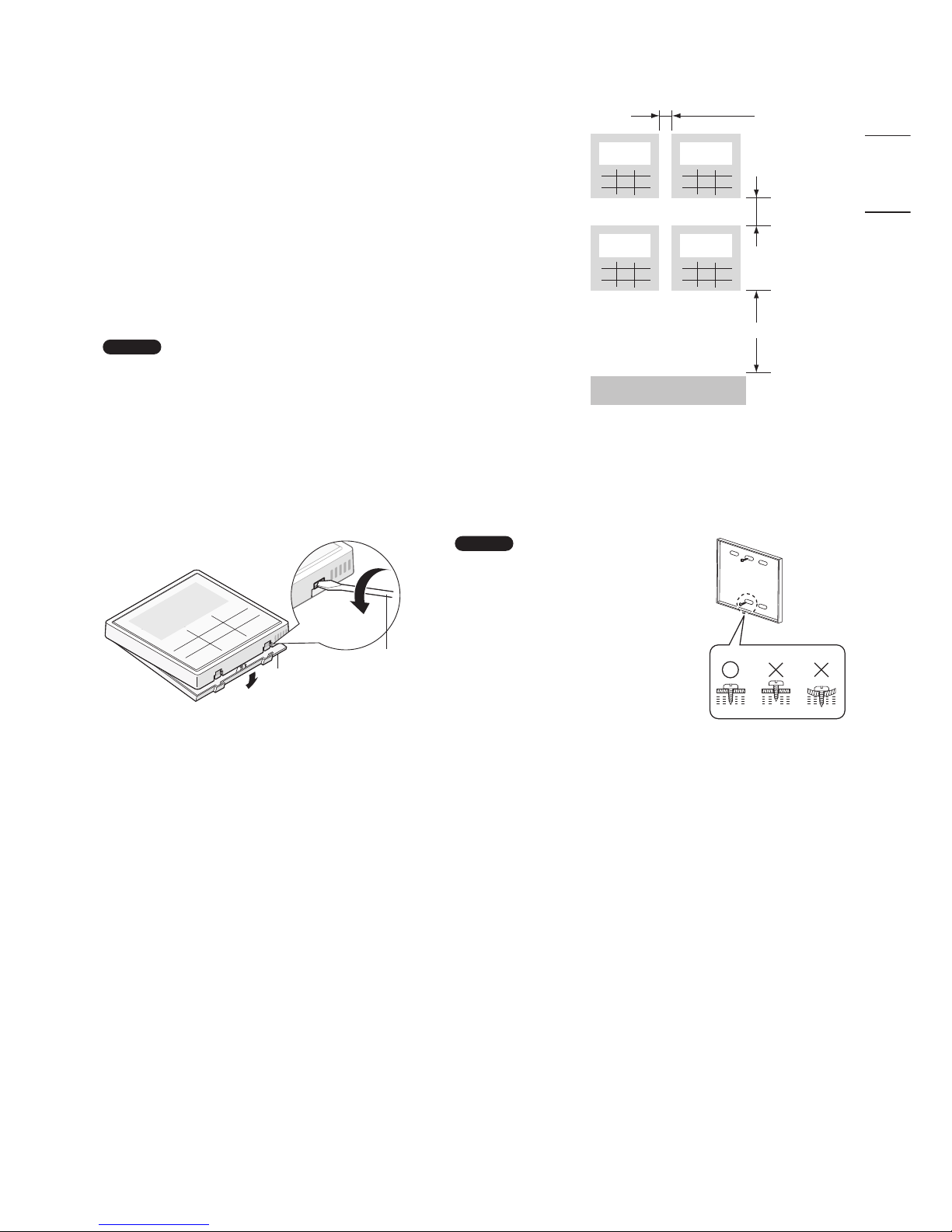

6. HOW TO INSTALL THE HIGH-SPEC WIRED REMOTE
CONTROLLER (OPTIONAL PART) . . . . . . . . . . . . . 17
6-1. Installation Location
6-2. Mounting
6-3. Dimensions
7. TEST RUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7-1. How to Remove Front Plate
7-2. How to Remove Side Cabinet
7-3. Initial Setting for Air-to-Water Unit
7-4. Detailed settings for Air-to-Water (extract)
8. OVERLOAD PROTECTOR . . . . . . . . . . . . . . . . . . . . 23
9. CHECK WATER PRESSURE . . . . . . . . . . . . . . . . . . 24
10. CHECK PRESSURE RELIEF VALVE . . . . . . . . . . . . 24
11. CHECK AIR PURGE VALVE . . . . . . . . . . . . . . . . . . . 24
12. CHECK RCCB/ELCB . . . . . . . . . . . . . . . . . . . . . . . . 24
13. APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
■ Troubleshooting
■ Error Code
■ Tips for Energy Saving
00_271229_aLL.indb 52015-7-28 11:09:16

6
1. GENERAL
This booklet briefly outlines where and how to install the Air-to-Water system. Please read over the entire set of instructions for the
indoor units and make sure all accessory parts listed are with the indoor units before beginning.
1-1. Main Components
Indoor unit
1. PCB (Main)
2. PCB (Relay Board)
3. PCB (3WAY)
4. Pressure relief valve
5. Flow switch
6. Pressure gauge
7. Water pump
8. 1 phase RCCB/ELCB
9. Cabinet front plate
10. Cabinet
11. Handle (2 pieces)
12.
Overload protector (3 pieces)
13. Expansion vessel
14. Heater assembly
15. Bushing
16. Air purge valve
17. Expansion valve
Connector name
18. Water outlet
19. Gas refrigerant
20. Liquid refrigerant
21. Water drainage
22. Water inlet
ʸʾ
ʾ
ʽ
ʸʻ
ʸʺ
ʸʽ
ʸʹ
ʼ
ʻ
ʸʷ
ˀ
ʸʸ
ʹʸ
ʸʼ
ʹʷ
ʹʹ
ʸˀ ʸʿ
ʺ
ʹ
ʸ
ʿ
START[ ]
20:30 (THU)
START[ ]
20:30 (THU)
* Only one High-spec Wired Remote Controller (CZ-RTC5) is
necessary for one Air-to-Water.
* Sub-remote controller cannot be connected.
* Group controller function cannot be used for Air-to-Water unit.
00_271229_aLL.indb 62015-7-28 11:09:17

7
ENGLISH
1-2. Tools Required for Installation (not supplied)
1. Flathead screwdriver
2. Phillips head screwdriver
3. Knife or wire stripper
4. Tape measure
5. Carpenter’s level
6. Sabre saw or keyhole saw
7. Hacksaw
8. Core bits
9. Hammer
10. Drill
11. Tube cutter
12. Tube flaring tool
13. Torque wrench
14. Adjustable wrench
15. Reamer (for deburring)
1-3. Accessories Supplied with Unit
No. Accessories Qty. No. Accessories Qty. No. Accessories Qty.
aInstallation
plate 1dPS Foam 2 gDrain elbow 1
bScrew 3eLong Banding
Strap 4
cInstallation
plate 1fPacking 1
1-4. Field Supply Accessories
No. Optional Parts Qty. Model Source Maker
i 2-way Valve Kit 1 Electromotoric Actuator SFA21/18 AC230V Siemens
2-port Valve VVI46/25 -- Siemens
ii Room Thermostat 1 Analog Type RAA20 AC230V Siemens
Programmable Type REV200
1-5. Type of Copper Tube and Insulation Material
If you wish to purchase these materials separately from a local source, you will need:
1. Deoxidized annealed copper tube for refrigerant tubing.
Cut each tube to the appropriate lengths +30 cm to 40 cm to dampen vibration between units.
2. Foamed polyethylene insulation for copper tubes as required to precise length of tubing. Wall thickness of the insulation should be
not less than 8 mm.
3. Use insulated copper wire for field wiring. Wire size varies with the total length of wiring.
Refer to 4. ELECTRICAL WIRING for details.
CAUTION
Check local electrical codes and regulations before obtaining wire. Also, check any specified instructions or limitations.
1-6. Additional Materials Required for Installation
1. Refrigeration (armored) tape
2. Insulated staples or clamps for connecting wire (See your local codes.)
3. Putty
4. Refrigeration tubing lubricant
5. Clamps or saddles to secure refrigerant tubing
6. Scale for weighing
00_271229_aLL.indb 72015-7-28 11:09:18

8
1. The indoor unit must be within a maintenance space.
[ ]
Drain Hose
300 mm
or more
300 mm
or more
300 mm or more
ø9.52 mm
(3/8”) Liquid
Refrigerant
Piping
ø15.88 mm (5/8”) Gas
Refrigerant
Piping
Water Inlet
piping
Water Outlet
piping Check that all the
cables do not touch
the hot piping, etc.
Cable list:
● Power Supply cable
● Inter-unit control wiring
● Remote controller wiring
● MINI Seri-Para I/O wiring
● Other cable
● 2-way Valve cable
● Room Thermostat cable
● External Controller cable
Optional
Type
designation
60245 IEC
57 or heavier
cable
2. SELECTING THE INSTALLATION SITE
2-1. Indoor Unit
AVOID:
●areas where leakage of flammable gas may be expected.
●places where large amounts of oil mist exist.
●direct sunlight.
●locations near heat sources which may affect the
performance of the unit.
●locations where external air may enter the room directly.
This may cause “condensation” on the air discharge ports,
causing them to spray or drip water.
●locations where the remote controller will be splashed with
water or affected by dampness or humidity.
●installing the remote controller behind curtains or furniture.
●locations where high-frequency emissions are generated.
DO:
●select an appropriate position from which every corner of the
room can be uniformly cooled.
●select a location where the ceiling is strong enough to
support the weight of the unit.
WARNING
●select a location which can support a load that is four times
the indoor unit weight.
●select a location where tubing and drain pipe have the
shortest run to the outdoor unit.
●allow room for operation and maintenance as well as
unrestricted air flow around the unit.
●install the unit within the maximum elevation difference
above or below the outdoor unit and within a total tubing
length (L) from the outdoor unit as detailed in the installation
instructions packed with the outdoor unit.
●allow room for mounting the remote controller about 1 m off
the floor, in an area that is not in direct sunlight nor in the
flow of cool air from the indoor unit.
N OT E
Air delivery will be degraded if the distance from the floor to the
ceiling is greater than 3 m.
3. HOW TO INSTALL THE INDOOR UNIT
3-1. Select the Best Location
●There should not be any heat source or steam near the unit.
●A place where air circulation in the room is good.
●A place where drainage can be easily done.
●A place where noise prevention is taken into consideration.
●Do not install the unit near the door way.
●Ensure the spaces indicated by arrows from the wall, ceiling,
fence or other obstacles.
●Recommended installation height for indoor unit shall be at
least 800 mm.
●Must install on a vertical wall.
●When install electrical equipment at wooden building
of metal lath or wire lath, according to electrical facility
technical standard, no electrical contact between equipment
and building is allowed. Insulator must be installed in
between.
●Do not install the indoor unit at outside a building. This is
designed for indoor installation only.
00_271229_aLL.indb 82015-7-28 11:09:18

9
ENGLISH

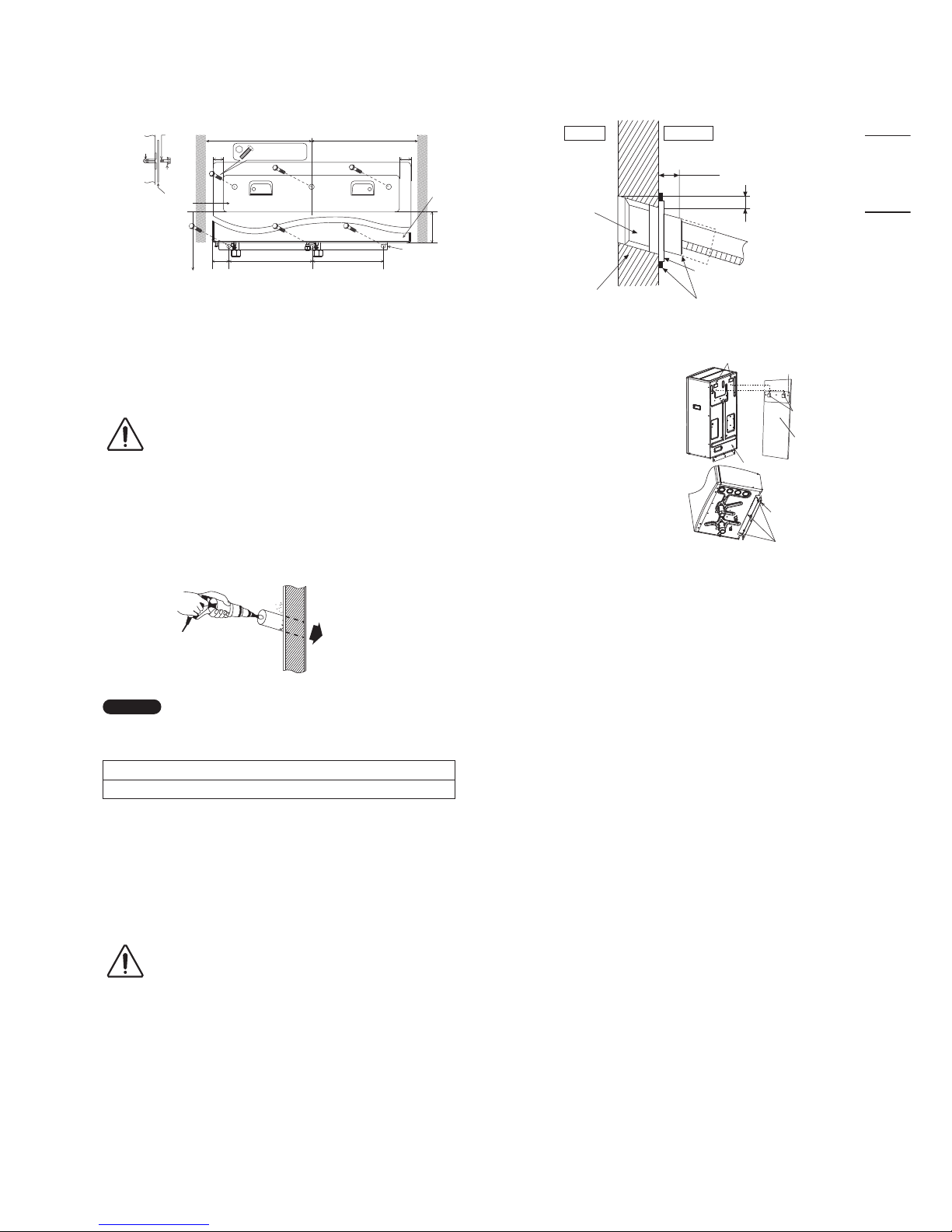

3-2. How to Fix Installation Plate
The mounting wall is strong and solid enough to prevent it from
vibration.
Washer
Wall
Wall
Installation
plate a
Installation
plate c
Indoor
unit
body
Wall
745
71 160 200
6
6
1550 from
ground
More than 551 More than 551
(Unit: mm)
Bolt-size M8
Bolt-
size
M8
Appropriate
Plugs (M8)
The centre of installation plate should be at more than 551 mm
at right and left of the wall.
The distance from installation plate edge to ground should more
than 1550 mm.
●
Always mount the installation plate horizontally by aligning
the marking thread and using a level gauge.
●
Mount the installation plate on the wall with 6 sets of plug,
bolt and washer (all non-supply) with size M8.
CAUTION
Also avoid areas where electrical wiring or conduits are
located.
The above precautions are also applicable if tubing goes
through the wall in any other location.
(1) Using a sabre saw, keyhole saw or hole-cutting drill
attachment, cut a hole in the wall.
N OT E
Hole should be made at a slight downward slant to the outdoor
side.
Hole Dia. (mm)
70
3-3. To Drill a Hole in the Wall and Install a Piping
Sleeve
(1) Insert the piping sleeve to the hole.
(2) Fix the bushing to the sleeve.
(3) Cut the sleeve until it extrudes about 15 mm from the wall.
CAUTION
When the wall is hollow, please be sure to use the Piping
sleeve assembly to prevent dangers caused by mice biting the
connection cable.
(4) Finish by sealing the sleeve with putty or caulking
compound at the final stage.
15 mm
Wall
Indoor Outdoor
Approx. 5 ~ 7 mm
Bushing for tube
Assembly
Putty or caulking compound
Sleeve for tube
assembly
ø70 mm
through hole
3-4. Indoor Unit Installation Installation
plate a
Slots
Hooks
Wall
Indoor unit (back)
Installation
plate c
Screws b
1. Engage the slots on the
indoor unit to the hooks of
installation plate a. Ensure
the hooks are properly
seated on the installation
plate by moving it left and
right.
2. Fix the screws bto the
holes on the hooks of
installation plate c, as
illustrated at right.

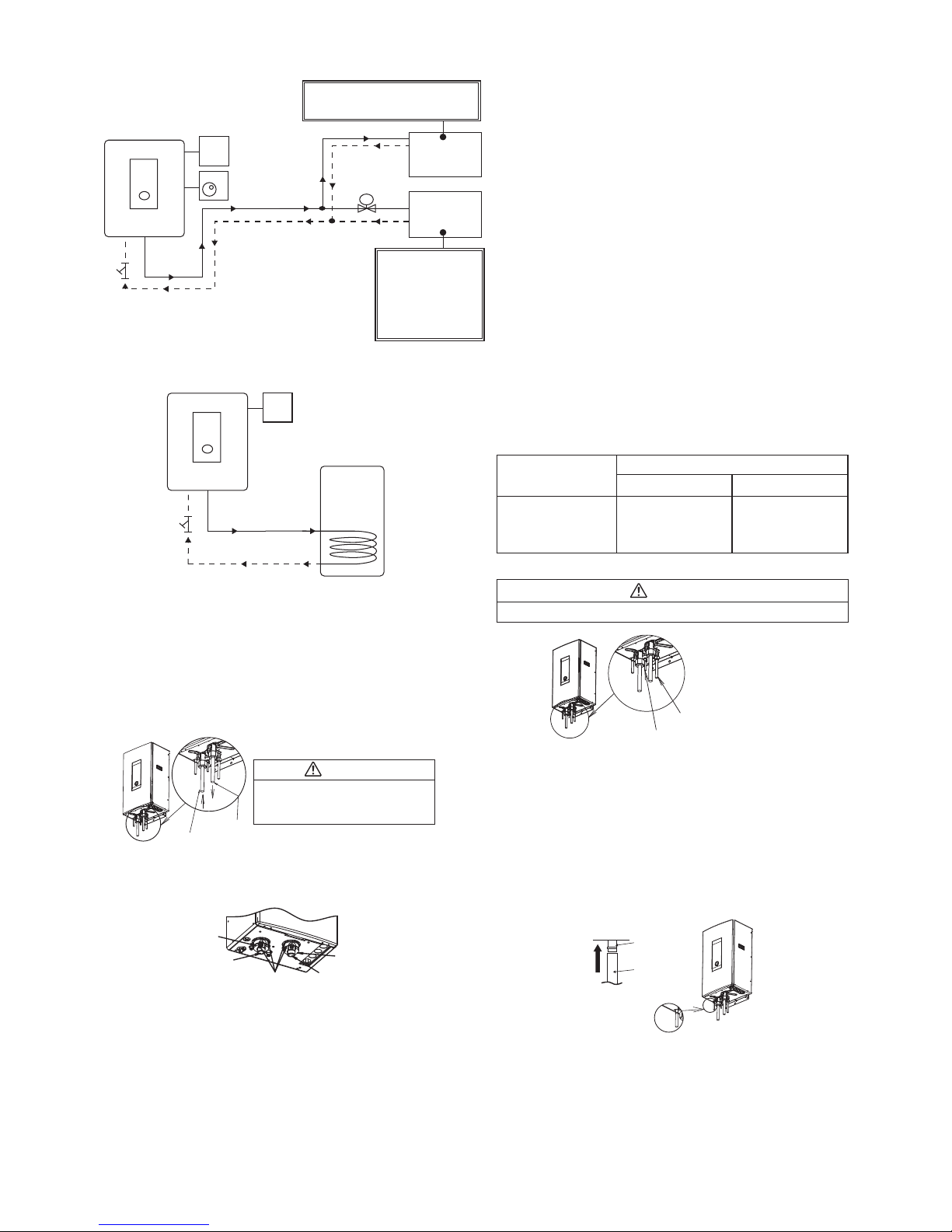

3-5. Water Piping Installation
●
The minimum requirement of water in the system is 50 litres.
If this value could not be achieved, please install additional
buffer tank (field supply).
●
Water inlet and water outlet in indoor unit are used for
connection to water circuit.
Please request a licensed technician to install this water
circuit.
●
This water circuit must comply with all relevant European and
national regulations, i.e. IEC/EN 61770.
●
Be careful not to deform the piping with excessive force when
doing piping connection job.
●
Use Rp 1-1/4” nut for both water inlet and outlet connection
and clean all pipings with tap water before connecting to the
indoor unit.
●
Cover the piping end to prevent dirt and dust when inserting it
through a wall.
●
Choose proper sealer which can withstand the pressures and
temperatures of the system.
●
If an existing tank is to be connected to this indoor/outdoor
unit, ensure the pipings are clean before water piping
installation is carried out.
●
An external filter (30 mesh or more, field supplied) must
be installed before the water inlet of the indoor unit (with
“WATER IN” indication).
●Water operating temperatures (Minimum ~ Maximum) : 5 °C
~ 65 °C
●Water operating pressures (Minimum ~ Maximum) : 0.05 MPa
~ 0.3 MPa
Indoor side Outdoor side
00_271229_aLL.indb 92015-7-28 11:09:20

10
Water Piping Installation of Air-Conditioning mode
Water Piping Installation of TANK mode
Water Inlet
Tank Unit
Panasonic
Air-to-Water
Heatpump
Indoor Unit
External Filter
(Field Supply)
Water
Outlet
High-Spec Wired Remote
Controller (CZ-RTC5)
●
Be sure to use two spanners to tighten the connection.
Tighten the nuts with torque wrench: 117.6 N•m {1176 kgf•cm}.
●
If non-brass metallic piping is used for installation, make sure
to insulate the pipings to prevent galvanic corrosion.
●
Make sure to insulate the water circuit pipings to prevent
reduction of heating capacity.
●
After installation, check the water leakage condition in
connection area during test run.
Water Inlet
Water Outlet
CAUTION
Do not overtighten,
overtightening may cause
water leakage.
Insulation
●
Mount the PS foam dand long banding strap eto water
inlet and outlet connectors, as shown in below illustration.
PS Foam d
PS Foam d
Water Connector
Water Connector
Long Banding Strap e
Panasonic Air-to-Water
Heatpump Indoor Unit
Fan Coil Unit
Radiator/Floor
Heater
High-spec Wired
Remote Controller
(CZ-RTC5)
Room Thermostat
(Field Supply)
Space cooling can be achieved
through the fan coil unit ONLY.
Make sure to install
the 2-way Valve in
case that radiator/
floor heater is
installed in the
cooling circuit.
External
Filter (Field Supply)
Water
Outlet
Water
Inlet
2-way
Valve
Expansion Vessel
●
Expansion Vessel with 10 L air capacity and initial pressure of
1 bar is installed in this indoor unit.
●
Total amount of water in system should be below 200 L.
(Note: This amount of water does not include the tank unit
volume)
●
If total amount of water is over 200 L, please add expansion
vessel. (field supply)
●
Please keep the installation height difference of system water
circuit within 10 m.
(Inner volume of same indoor unit is about 5 L)
3-6. Indoor Unit Refrigerant Piping Installation
1. Please make flare after inserting flare nut (located at joint
portion of tube assembly) onto the copper pipe. (In case of
using long piping)
2. Do not use pipe wrench to open refrigerant piping. Flare nut
may be broken and cause leakage. Use proper spanner or
ring wrench.
3. Connect the piping:
●
Align the centre of piping and sufficiently tighten the flare
nut with fingers.
●
Further tighten the flare nut with torque wrench in
specified torque as stated in the table.
Model Piping size (Torque)
Gas Liquid
S-80MW1E5
S-125MW1E5
ø15.88 mm (5/8”)
65 N•m
{650 kgf•cm}
ø9.52 mm (3/8”)
42 N•m
{420 kgf•cm}
CAUTION
Do not overtighten, overtightening may cause gas leakage.
Liquid Refrigerant Piping
Gas Refrigerant Piping
3-7. Drain Hose Installation
●
Use inner diameter 15 mm drain hose in the market.
●
This hose must be installed in a continuously downward
direction and in a frost-free environment.
●
Do not insert this hose into sewage or drain hose that may
generate ammonia gas, sulfuric gas, etc.
●
If necessary, use hose clamp to further tighten the hose at
drain hose connector to prevent leakage.
●
Water will drip from this hose, therefore the outlet of this hose
must be installed in an area where the outlet cannot become
blocked.
Drain hose
Drain water outlet
Drain hose
connector
00_271229_aLL.indb 102015-7-28 11:09:22

11
ENGLISH
3-8. Drain Elbow and Hose Installation
●
Fix the drain elbow gand packing fto the bottom of
indoor unit, as shown in below illustration.
●
Use inner diameter 17 mm drain hose in the market.
●
This hose must be installed in a continuously downward
direction and in a frost-free environment.
●
Guides this hose’s outlet to outdoor only.
●
Do not insert this hose into sewage or drain hose that may
generate ammonia gas, sulfuric gas, etc.
●
If necessary, use hose clamp to further tighten the hose at
drain hose connector to prevent leakage.
●
Water will drip from this hose, therefore the outlet of this
hose must be installed in an area where the outlet cannot
become blocked.
Drain Elbow g
Water Connector
Packing f
4. ELECTRICAL WIRING
4-1. General Precautions on Wiring
(1) Before wiring, confirm the rated voltage of the unit as
shown on its nameplate, then carry out the wiring closely
following the wiring diagram.
(2) Provide a power outlet to be used exclusively for each
unit, and a power supply disconnect and circuit breaker for
overcurrent protection should be provided in the exclusive
line.
(3) To prevent possible hazards from insulation failure, the unit
must be grounded.
(4) Each wiring connection must be done in accordance with
the wiring system diagram. Wrong wiring may cause the
unit to misoperate or become damaged.
(5) Do not allow wiring to touch the refrigerant tubing,
compressor, or any moving parts of the fan.
(6) Unauthorized changes in the internal wiring can be very
dangerous. The manufacturer will accept no responsibility
for any damage or misoperation that occurs as a result of
such unauthorized changes.
(7) Regulations on wire diameters differ from locality to
locality. For field wiring rules, please refer to your LOCAL
ELECTRICAL CODES before beginning.
You must ensure that installation complies with all relevant
rules and regulations.
(8) To prevent malfunction of the Air-to-Water caused by
electrical noise, care must be taken when wiring as follows:
●
The remote control wiring and the inter-unit control wiring
should be wired apart from the inter-unit power wiring.
●
Use shielded wires for inter-unit control wiring between
units and ground the shield on both sides.
●
Use shielded wires for remote control wiring between
units and ground the shield on indoor unit’s side.
(9) If the power supply cable of this appliance is damaged,
it must be replaced by a repair shop appointed by the
manufacturer, because special-purpose tools are required.
4-2. Recommended Wire Length and Wire Diameter
for Power Supply System
Power supply
(A) Power supply cable
Minimum power
supply cables Length
(m)*1
LN
220/230/240V~ 2 mm2Max. 130
Leakage current
breaker
Circuit breaker
(Minimum capacity)
Switch Fuse
20A 20A 20A
(B) Inter-unit (between outdoor and
indoor units) control wiring
Control wiring
Length (m)
U1 U2
0.75 mm2(AWG #18)
Use shielded wiring *2Max. 1000
(C) Remote control wiring
Remote control wiring
Length (m)
R1 R2
0.75 mm2(AWG #18)
Use shielded wiring
*2Max. 500
*1 This maximum length shows a 2% voltage drop
*2 With ring-type wire terminal
Only for Air-to-Water unit
00_271229_aLL.indb 112015-7-28 11:09:23

12
4-3. Wiring System Diagram
N OT E
(1) Refer to “4-2. Recommended Wire Length and Wire Diameter for Power Supply System” for the explanation of “A”, “B” and “C” in
the above diagram.
(2) The layout of terminal boards in your equipment may differ from the diagram. Be sure to confirm the actual terminal boards.
(3) Refrigerant Circuit (R.C.) address should be set before turning the power on.
(4) Regarding R.C. address setting, refer to the installation instructions supplied with the outdoor unit. Auto address setting can be
executed by remote controller automatically.
(5) Sub-remote controller cannot be connected.
(6) Group controller function cannot be used for Air-to-Water unit.
WARNING
This equipment must be properly earthed.
U2
U1 U1
U2
R2
R1
L
N
R2
R1
R2
R1
R2
R1
2
1
2
1
U2
U1
L
N
U2
U1
L
N
U2
U1
L
N
2
1
2
1
2
1
C
B
A
L
N
L
N
L
N
L
N
2
1
A
A
A
B
C
B
2
1
L1
L2
L3
N
2
1
L1
L2
L3
N
BL1
L2
L3
N
L1
L2
L3
N
C
Power supply
220/230/240V ~50/60Hz
Remote
controller
Remote
controller
Remote
controller
WHT
BLK
WHT
BLK
WHT
BLK
Power supply
220/230/240V ~50/60Hz
Power supply
220/230/240V ~50/60Hz
Power supply
220/230/240V ~ 50Hz
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Ground Ground
Outdoor unit
INV unit
Power supply
380/400/415V, 3 N~, 50Hz
Power supply
380/400/415V, 3 N~, 50Hz
Outdoor unit
INV unit
Ground
Ground
Ground
Ground
Ground
Ground
Indoor unit
(No. 1)
Indoor unit
(No. 2)
Indoor unit
(Type W1)
Indoor unit
(No. 3)
Group control:
Ground
Regarding normal indoor and outdoor unit, refer to each
installation instructions.
Air-to-Water
00_271229_aLL.indb 122015-7-28 11:09:25

13
ENGLISH
CAUTION
(1) When linking the outdoor units in a network, disconnect the terminal extended from the short plug from all outdoor units
except any one of the outdoor units.
(When shipping: In shorted condition.)
For a system without link (no wiring connection between outdoor units), do not remove the short plug.
(2) Do not install the inter-unit control wiring in a way that forms a loop.
Outdoor unit Outdoor unit Outdoor unit
Indoor unit Indoor unit Indoor unit Indoor unit
Prohibited
Prohibited
Indoor unit
(3) Do not install the inter-unit control wiring such as star branch wiring. Star branch wiring causes mis-address setting.
Outdoor unit Indoor unitIndoor unit
Indoor unitIndoor unit
NO
Branch point
(4) If branching the inter-unit control wiring, the number of branch points should be 16 or fewer.
Central Controller
Outdoor unit
Outdoor unit
Indoor unit
Indoor unit
Indoor unit Indoor unit Indoor unit
Indoor unit Indoor unit
Indoor unit Indoor unit
Outdoor unit
: Branch point
More than 2 m required
(5) Use shielded wires for inter-unit control wiring (B)
and ground the shield on both sides, otherwise
misoperation from noise may occur.
Connect wiring as shown in Section “4-3. Wiring System
Diagram”.
Shielded wire
Ground Ground
(6) • Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 5 or 3 *1.5 mm2
flexible cord. Type designation 60245 IEC57 (H05RN-F, GP85PCP etc.) or heavier cord.
• Use the standard power supply cables for Europe (such as H05RN-F or H07RN-F which conform to CENELEC (HAR)
rating specifications) or use the cables based on IEC standard. (60245 IEC57, 60245 IEC66)
WARNING
Loose wiring may cause the terminal to overheat or result in unit malfunction. A fire hazard may also occur. Therefore, ensure
that all wiring is tightly connected.
When connecting each power wire to the terminal, follow the instructions on “How to connect wiring to the terminal” and fasten the wire
securely with the terminal screw.
00_271229_aLL.indb 132015-7-28 11:09:26

14
How to connect wiring to the terminal
■ For stranded wiring
(1) Cut the wire end with cutting pliers,
then strip the insulation to expose
the stranded wiring about 10 mm and
tightly twist the wire ends.
(2) Using a Phillips head screwdriver,
remove the terminal screw(s) on the
terminal board.
(3) Using a ring connector fastener or
pliers, securely clamp each stripped
wire end with a ring pressure terminal.
(4) Place the ring pressure terminal,
and replace and tighten the removed
terminal screw using a screwdriver.
■ Examples of shield wires
(1) Remove cable coat not to scratch braided shield.
(2) Unbraid the braided shield carefully and twist the
unbraided shield wires tightly together. Insulate the shield
wires by covering them with an insulation tube or wrapping
insulation tape around them.
(3) Remove coat of signal wire.
(4) Attach ring pressure terminals to the signal wires and the
shield wires insulated in Step (2).
ʿÃÃ




Stranded wire
Ring
pressure
terminal Screw and
Special washer
Ring
pressure
terminal
Terminal board
Ring pressure
terminal
Screw
Special
washer
Wire
Wire
Strip 10 mm
Insulation tape
Insulation tape
Shield mesh
Shield mesh
6:
/ 1
&1
6:



  
  

 
 

 


   

Ͽ Ͽ
Ͽ 
Ͽ


ϿƓ
Ɠ









 


  
  

  





 

 

 
 
   

 

 

   
  
     

 

Wire from No.1 to 4 of terminal block and CN003
Wire from No.5 to 8, 10 to 12 of terminal block
Wire from No.13 to 18 of terminal block
External Device Ready
Demand*1DC24V 1A
Cable
(2 × 0.5 mm2)
DC24V 6mA
Cable
(3 × 0.5 mm2)
Cable
(4 × 0.5 mm2)
Use shielded wiring
2-way Valve
Water Pump
Room Thermostat
External Device Notice*2
AC/DC 24V Input
MINI Seri-Para I/O Board
(+,-)
MINI Seri-Para I/O Board
(R/C Line A)
Wired Remote Controller
Outdoor Unit or Indoor Unit
■ Wiring sample
*Switch (SW1) must
be upper position.
Power Supply cable
*1 When the heat capacity for Air-to-Water is
insufficient, output signal is sent to the external
device.
*2 Notice can be input from the external device.
When the notice is input, the icon appears on the
wired remote controller.
Black Orange
Wiring Color
Black Orange
3kW
2kW
1kW
Internal heater Capacity
connect
disconnect
00_271229_aLL.indb 142015-7-28 11:09:27

15
ENGLISH
5. HOW TO PROCESS TUBING
5-1. Connecting the Refrigerant Tubing
Use of the Flaring Method
Many of conventional split system air conditioners employ the
flaring method to connect refrigerant tubes which run between
indoor and outdoor units. In this method, the copper tubes are
flared at each end and connected with flare nuts.
Flaring Procedure with a Flare Tool
(1) Cut the copper tube to the required length with a tube
cutter. It is recommended to cut approx. 30 ~ 50 cm longer
than the tubing length you estimate.
(2) Remove burrs at the end of the copper tube with a tube
reamer or a similar tool. This process is important and
should be done carefully to make a good flare. Be sure to
keep any contaminants (moisture, dirt, metal filings, etc.)
from entering the tubing.
N OT E
When reaming, hold the tube end downward and be sure that
no copper scraps fall into the tube.
(3) Remove the flare nut from the unit and be sure to mount it
on the copper tube.
(4) Make a flare at the end of copper tube with a flare tool.
N OT E
A good flare should have the following characteristics:
●inside surface is glossy and smooth
●edge is smooth
●tapered sides are of uniform length
Deburring
Before After
Copper
tubing
Reamer
Flare tool
Flare nut
Copper
tubing
Caution Before Connecting Tubes Tightly
(1) Apply a sealing cap or water-proof tape to prevent dust or
water from entering the tubes before they are used.
(2) Be sure to apply refrigerant lubricant (ether oil) to the
surface of a flare before making piping connections.
Pay attention not to attach the oil to the surface of screw.
This is effective for reducing gas leaks.
(3) For proper connection, align the union tube and flare tube
straight with each other, then screw in the flare nut lightly
at first to obtain a smooth match.
●Adjust the shape of the liquid tube using a tube bender at the
installation site and connect it to the liquid tubing side valve
using a flare.
Cautions During Brazing
● Replace air inside the tube with nitrogen gas to prevent
copper oxide film from forming during the brazing
process. (Oxygen, carbon dioxide and Freon are not
acceptable.)
● Do not allow the tubing to get too hot during brazing.
The nitrogen gas inside the tubing may overheat,
causing refrigerant system valves to become damaged.
Therefore allow the tubing to cool when brazing.
● Use a reducing valve for the nitrogen cylinder.
● Do not use agents intended to prevent the formation
of oxide film. These agents adversely affect the
refrigerant and refrigerant oil, and may cause damage or
malfunctions.
5-2. Connecting Tubing Between Indoor and Outdoor
Units
(1) Tightly connect the indoor-side refrigerant tubing extended
from the wall with the outdoor-side tubing.
(2) To fasten the flare nuts, apply specified torque.
Indoor Unit Tubing Connection ( 1, 2... n-1)
Indoor unit type 80 125
Gas tubing (mm) ø15.88
Liquid tubing (mm) ø9.52
●When removing the flare nuts from the tubing connections,
or when tightening them after connecting the tubing, be sure
to use a torque wrench and a spanner.
If the flare nuts are over-tightened, the flare may be
damaged, which could result refrigerant leakage and cause
in injury or asphyxiation to room occupants.
Torque wrench
Indoor unit Spanner
Outdoor unit
Apply refrigerant
lubricant
Union Flare nut
00_271229_aLL.indb 152015-7-28 11:09:28

16
CAUTION
After a tube has been insulated, never try to bend it into a
narrow curve because it can cause the tube to break or crack.
5-4. Taping the Tubes
(1) At this time, the refrigerant tubes (and electrical wiring if
local codes permit) should be taped together with armoring
tape in 1 bundle.
(2) Wrap the armoring tape from the bottom of the outdoor
unit to the top of the tubing where it enters the wall. As you
wrap the tubing, overlap half of each previous tape turn.
(3) Clamp the tubing bundle to the wall, using 1 clamp approx.
each meter.
N OT E
Do not wind the armoring tape too tightly since this will
decrease the heat insulation effect. Also ensure that the
condensation drain hose splits away from the bundle and drips
clear of the unit and the tubing.
5-5. Finishing the Installation
After finishing insulating and taping over the tubing, use sealing
putty to seal off the hole in the wall to prevent rain and draft
from entering.
●For the flare nuts at tubing connections, be sure to use the
flare nuts that were supplied with the unit, or else flare nuts
for R410A (type 2). The refrigerant tubing that is used must
be of the correct wall thickness as shown in the table.
Tube diameter Tightening torque,
approximate Tube thickness
ø9.52 mm
(3/8")
34 – 42 N · m
{340 – 420 NJI · cm} 0.8 mm
ø15.88mm
(5/8")
68 – 82 N · m
{680 – 820 NJI · cm} 1.0 mm
Because the pressure is approximately 1.6 times higher than
conventional refrigerant pressure, the use of ordinary flare
nuts (type 1) or thin-walled tubes may result in tube rupture,
injury, or asphyxiation caused by refrigerant leakage.
●In order to prevent damage to the flare caused by over-
tightening of the flare nuts, use the table above as a guide
when tightening.
●When tightening the flare nut on the liquid tube, use an
adjustable wrench with a nominal handle length of 200 mm.
5-3. Insulating the Refrigerant Tubing
Tubing Insulation
●Thermal insulation must be applied to all unit tubing,
including distribution joint (purchased separately).
* For gas tubing, the insulation material must be heat
resistant to 120°C or above. For other tubing, it must be
heat resistant to 80°C or above.
Insulation material thickness must be 10 mm or greater.
If the conditions inside the ceiling exceed DB 30°C and RH
70%, increase the thickness of the gas tubing insulation
material by 1 step.
CAUTION
If the exterior of the outdoor unit valves has been finished
with square duct covering, make sure you allow sufficient
space to use the valves and to allow the panels to be
attached and removed.
N OT E
Gas Leakage Detector
Note that the gas leakage detector should be capable of
detecting the refrigerant R410A.
Air Purging
Refer to “AIR PURGING” in the separate Installation
Instructions for the outdoor unit in regard to air purging with a
vacuum pump (for test run) preparation.
Taping the flare nuts
Cover up the tubing connections with the supplied flare
insulator. Then fasten the insulator at both ends with the vinyl
clamps (field supply).
Insulation material
The material used for insulation must have good insulation
characteristics, be easy to use, be age resistant, and must not
easily absorb moisture.
Never grasp the drain or refrigerant connecting outlets
when moving the unit.
Insulated tubes
Clamp
Liquid tubing Gas tubing
Insulation
Two tubes arranged together
Apply putty here
Tubing
00_271229_aLL.indb 162015-7-28 11:09:28

17
ENGLISH
6. HOW TO INSTALL THE HIGH-SPEC WIRED REMOTE CONTROLLER (OPTIONAL PART)
6-1. Installation Location
●Install at the height of 1 to 1.5 m from the floor (Location where average
room temperature can be detected).
●Install vertically against the floor.
●When installing more than 1 remote controller next to each other, keep
distance of 5 mm on the right and left and 50 mm on top and bottom.
●Avoid the following locations for installation.
• By the window, etc. exposed to direct sunlight or direct air
• In the shadow or backside of objects deviated from the room air flow.
• Location where condensation occurs. The remote controller is not
moisture proof or drip proof.
• Location near heat source
• Uneven surface
●Keep distance of 1 m or more from the TV, radio and PC. (Cause of fuzzy
images or noise)
N OT E
●Be careful not to connect cables to other terminals of indoor units
(e.g. power source wiring terminal). Malfunction may occur.
●Do not bundle together with the power source wiring or store in the same
metal tube. Operation error may occur.
●If noise is induced to the unit power supply, attach a noise filter.
6-2. Mounting
1. Remove the bottom case.
2. Mount to the wall.
There are two types of mounting: Exposed type and
Embedded type for the wired remote controller. See
the next page for the details.
N OT E
Mounting the bottom case
●Tighten the screws securely until the
screw heads touch the bottom case.
Otherwise, loose screw heads may hit
the PCB and cause malfunction when
mounting the top case.
●Do not over-tighten the screws.
The bottom case may be deformed,
resulting in fall of the unit.
Connecting the remote control wiring
●Arrange the wires as shown in the
illustration for in step 2, avoiding unnecessary wires being stored
in the remote controller case.
Caught wires may destroy the PCB.
●Avoid wires touching parts on the PCB.
Caught wires may destroy the PCB.
5 mm or more
Floor
1 to 1.5 m
50 mm or
more
Bottom
case
Insert the
screwdriver and
slightly turn.
Flat-blade
screwdriver
00_271229_aLL.indb 172015-7-28 11:09:29

18
2-1. Exposed type
Preparation: Make 2 holes for screws using a screwdriver.


Mount the top case.
●Align the claws of the top
case and then align the
claws of the bottom case.
Connect the remote control wiring
●Arrange the wires along the groove of the case.
Cut here with
a nipper and
remove the burr
with a file.
Wall to which
the remote
controller is
fixed
Claw
(2 places)
Claw
(2 places)
Bottom case
(Back side)
Remote controller terminal board
Remove the coating. Approx. 6 mm
Remove the sheath. Approx. 180 mm
Make sure the wiring connection is in
the correct direction.
Top case
(Back side)
Wood screw
(supplied)
Hole for
screw
Mount the bottom case to the wall.
Clamper
(supplied)
Pass through
the hole
2-2. Embedded type
Preparation: Make 2 holes for screws using a screwdriver.


Mount the top case.
●Align the claws of the
top case and then
align the claws of the
bottom case.
Mount the bottom case to the wall.
●Pass the wire through the hole in the centre of
the bottom case.
Connect the remote control wiring
Wood screw
(supplied)
Claw
(2 places)
Avoid the
wire being
caught.
Claw
(2 places)
Hole for
screw
Bottom case
(Back side)
Remote controller terminal board
Remove the coating. Approx. 6 mm
Make sure the wiring connection is
in the correct direction.
Top case
(Back side)
6-3. Dimensions
ʹʺʹʺ
ʿʺƔʼ
ʼƖʼÎˀ
ʸʹʷ
ʸʹʷ
ʸʽ
(Unit: mm)
00_271229_aLL.indb 182015-7-28 11:09:30

19
ENGLISH
7. TEST RUN
■ Test Run of Water Circuit
CAUTION
Panasonic
Air-to-Water
Heatpump
Indoor Unit
External
Pump
●When external pump is used, be sure
to install it in independent water circuit
and not direct to the Air-to-Water
heatpump indoor unit circuit.
7-1. How to Remove Front Plate
Please follow the steps below to remove the front plate. Before removing the front plate of indoor unit, always switch off all power
supply (i.e. indoor unit power supply, heater power supply and tank unit power supply).
1. Remove the 2 mounting screws which located at bottom of the front plate and 1 mounting screw at the front of the plate.
2. Gently pull the lower section of the front plate towards you to remove the front plate from left and right hooks.
3. Hold the left edge and right edge of front plate to lift up front plate from hooks.
Hook
Lift up
Screws Fix the left and right hooks
to cabinet slot properly when
reinstalling front plate.
When reinstalling the
front plate, first set the
2 hooks, which located
at the top of front plate,
into the slots at cabinet.
Then carry out above
steps in the reverse
order.
7-2. How to Remove Side Cabinet
Please follow the steps below to remove the side cabinet. Before removing the front plate of indoor unit always switch off all power
supply (i.e. indoor power supply, heater power supply and tank unit power supply).
1. Perform the steps in “7-1. How to Remove Front Plate”.
2. Remove all the 13 mounting screws on the left, right and top of the side cabinet.
3. Gently remove the side cabinet by holding both of the handles.
00_271229_aLL.indb 192015-7-28 11:09:32

20
7-3. Initial Setting for Air-to-Water Unit * To complete the initial setting, it is necessary to carry out the
Test Run for Water Circuit.
* If the Test Run for Water Circuit is not complete, “L16” alarm
will occur.
7-3-2. Test Run for Water Circuit
* You cannot perform the test run of refrigerant circuit if test run
for water circuit has not been completed.
* First, pour water into the water circuit.
High-spec Wired Remote Controller (CZ-RTC5)
ƾ ƿ
ʹʷƓʺʷƺƻ
1. Keep pressing the ,

and

buttons
simultaneously for 4 or more seconds.
The “Maintenance func” screen appears on the LCD display.
0DLQWHQDQFHIXQF
(&21$9,LQIR
2XWGRRUXQLWHUURUGDWD
6HUYLFHFRQWDFW
5&VHWWLQJPRGH
6HO 3DJH> @&RQILUP
7+8
2. Press the or

button to see each menu. If
you wish to see the next screen instantly, press the

or

button.
Select “13. Air-to-Water unit” on the LCD display and press
the

button.
0DLQWHQDQFHIXQF
6HWHOHFFRQVXPSWLRQ
6HWWRXFKNH\
&KHFNWRXFKNH\
6HO 3DJH> @&RQILUP
7+8
$LUWR:DWHUXQLW

   
   
START
RESTART
7-3-1.
Mode Select
7-3-2.
Test Run for Water Circuit
• Air purge
7-3-2.
Test Run for Water Circuit
• Pump Speed Setup
FINISH
7-3-1. Mode Select
High-spec Wired Remote Controller (CZ-RTC5)
ƾ ƿ
ʹʷƓʺʷƺƻ
■ When switching on the power for the first time after
installation, it is necessary to make the initial setting for the
Air-to-Water unit.
Press the or

button to select “TANK” or “A/C”
and press the

button to finish this process.
After confirmation, the system restarts automatically.

$LUWR:DWHUXQLW
6HOHFWFRQQHFWLQJXQLW
7+8
> @&RQILUP
&KDQJH
7$1.
$LUWR:DWHUXQLW
6HOHFWFRQQHFWLQJXQLW
7+8
> @&RQILUP
&KDQJH
$&
$LUWR:DWHUXQLW
6HOHFWFRQQHFWLQJXQLW
7+8
> @&RQILUP
&KDQJH
7$1.
$VVLJQ7$1.PRGH"
12<(6
$LUWR:DWHUXQLW
6HOHFWFRQQHFWLQJXQLW
7+8
> @&RQILUP
&KDQJH
$&
$VVLJQ$&PRGH"
12<(6
00_271229_aLL.indb 202015-7-28 11:09:34
