ORDER NO. KME8110001C1
Service Manual
Color Video Monitor
CT-110MA/CT-110MCA
Chassis
No. NMX-K6NA(CT-110MA)
No. NMX-K6NB(CT-11OMCA)
Main Manual
The ervice technician i required to read and follow the "Safety Precaution and Important Safety Notice in thi
ervice manual.
P mui sorUc Co pany
DhHsion of Matsushita Electric
Corpofation of A erica
Ona Panasonic Way. Secaucus,
Naw J of say 07094
Specifications
Power Input:
120 volt , 50/60 Hz, AC
Speaker:
3 inche Round Type
Power Con umption:
58 watt average 0.9 ampere max.
1612, voice Coil
Video Input (Bridging):
1.0Vp-p± 10%
High or 75H witchable
BNC type bridging and 8-pin
connector
Automatic Circuit :
Automatic Frequency and Pha e
Control
Horizontal Automatic Frequency
Control
Audio Input (Bridging):
RCA type bridging and 8-pin
connector
Automatic degau ing
Automatic Voltage Regulator
Semiconductor :
20 tran i tor
27 diode
Automatic Beam Limiter
Automatic Color Control
1 po i tor
Picture Tube:
290KB22 52 Square inche
Integrated Circuit :
2
10 inche mea ured diagonally
Anode Voltage:
24.0 kV ±. 1 kV (at zero beam
90° deflection Quintrix 0, In-Line
current)
Dimen ion ;
Height: 10-% inche (275 mm)
Sound Output:
0.9watt (10% di tortion)
Maximum 1.2 watt
Weight;
Width: 1 1-% inche (297 mm)
Depth; 12-% inche (323 mm)
22 lb . (10.0 kg)
Panasonic Sales Co pany,
Division of Matsushita Electric
of Puerto Rico, Inc.
Ave 65 De infantena. KM 9 7
Victoria Industrial Park
Carolina, Puerto Rico 00630
Panasonic.
Specification are ubject to change without notice.
Panasonic Hawaii.Inc.
91-238 Kauhi SI. Ewa Beach
P.O. Box 774
Honolulu, Hawaii 96808-0774
Panasonic Canada
Ohrision of Matsushita Electric
of Canada UntHod
5770 A oier Drive. Mississauga.
Ontario. Canada. L4W 2T3

ORDER NO. KME8110001C1
Service Manual
Color Video Monitor
CT-110MA/CT-110MCA
Chassis
No. NMX-K6NA(CT-110MA)
No. NMX-K6NB(CT-110MCA)
Main Manual
The ervice technician i required to read and follow the "Safety Precaution ' and Important Safety Notice in thi
ervice manual.
Panasonic Co pany
Division of MaiauaMta Electric
Corporation of A erica
Ona Panasonic Way. Secaucus.
Naw Jersey 07094
Specifications
Power Input: 120 volt , 50/60 Hz, AC
Speaker
3 inche Round Type
Power Con umption:
58 watt average 0.9 ampere max.
1 6T2, voice Coil
Video Input (Bridging):
1.0Vp-p± 10%
High or 7512 witchable
BNC type bridging and 8-pin
connector
Automatic Circuit :
Automatic Frequency and Pha e
Control
Horizontal Automatic Frequency
Control
Audio Input (Bridging):
RCA type bridging and 8-pin
connector
Automatic degau ing
Automatic Voltage Regulator
Semiconductor :
20 tran i tor
27 diode
Automatic Beam Limiter
Automatic Color Control
1 po i tor
Picture Tube:
290KB22 52 Square inche
Integrated Circuit :
2
10 inche mea ured diagonally
Anode Voltage:
24.0 kV ± 1 kV (at zero beam
90° deflection Quintrix Q, In-Line
current)
Dimen ion :
Height: 10-% inche (275 mm)
Sound Output:
0.9watt (10% di tortion)
Maximum 1.2 watt
Weight:
Width: 1 1-% inche (297 mm)
Depth: 12-% inche (323 mm)
22 lb . (10.0 kg)
Panasonic Sales Co pany.
Division of Matsushita Electric
of Puerto Rico. Inc.
Ave 65 De Infantena. KM 9 7
Victoria Industrial Park
Carolina. Puerto Rico 00630
Panasonic.
Specification are ubject to change without notice.
Panasonic Hawaii.Inc.
91-238 Kauht St Ewa Beach
P.O. Box 774
Honolulu. Hawaii 96808-0774
Panasonic Canada
Division of Matsushita Electric
of Canada Li ited
5770 A bler Drive. Mississauga.
Ontario. Canada. L4W 2T3

T-11OMA/11OMCA
I f
J

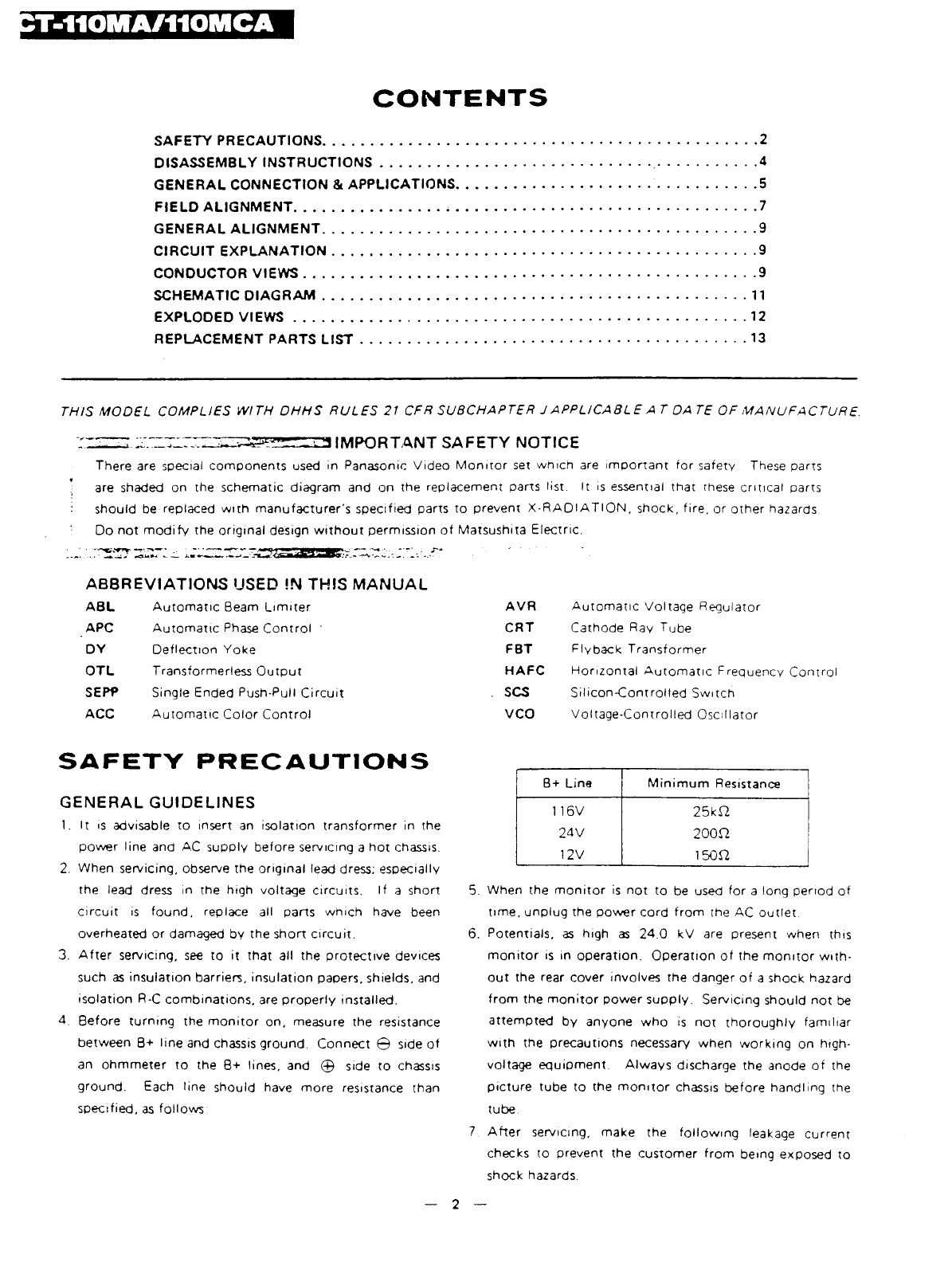

CONTENTS
SAFETY PRECAUTIONS ............................................................................................................................ 2
DISASSEMBLY INSTRUCTIONS ............................................................................... 4
GENERAL CONNECTION & APPLICATIONS ......................................................... 5
FIELD ALIGNMENT ........................................... 7
GENERAL ALIGNMENT ............................................................................................................................ 9
CIRCUIT EXPLANATION ......................................................................................................................... 9
CONDUCTOR VIEWS ................................................................................................................................. 9
SCHEMATIC DIAGRAM .......................................................................................................................... 11
EXPLODED VIEWS .................................................................................................................................. 12
REPLACEMENT PARTS LIST ............................................................................................................... 13
THIS MODEL COMPLIES WITH DHHS RULES 21 CF R SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.
IMPORTANT SAFETY NOTICE
There are pecial component u ed in Pana onic Video Monitor et which are important for afety The e part
are haded on the chematic diagram and on the replacement part li t. It i e ential that the e critical part
hould be replaced with manufacturer' pecified part to prevent X-RADIATION, hock, fire, or other hazard .
Do not modify the original de ign without permi ion of Mat u hita Electric.
ABBREVIATIONS USED IN THIS MANUAL
ABL Automatic Beam Limiter
AVR
Automatic Voltage Regulator
APC
Automatic Pha e Control *
CRT
Cathode Ray Tube
DY
Deflection Yoke
FBT Flyback Tran former
OTL
Tran formerle Output
HAFC
Horizontal Automatic Frequency Control
SEPP
Single Ended Pu h-Pull Circuit
c
Silicon-Controlled Switch
ACC
Automatic Color Control vco
Voltage-Controlled O cillator
SAFETY PRECAUTIONS
GENERAL GUIDELINES
1. It i advi able to in ert an i olation tran former in the
power line and AC upply before ervicing a hot cha i .
2. When ervicing, ob erve the original lead dre ; e pecially
the lead dre in the high voltage circuit . If a hort
circuit i found, replace all part which have been
overheated or damaged by the hort circuit.
3. After ervicing, ee to it that all the protective device
uch a in ulation barrier , in ulation paper , hield , and
i olation R-C combination , are properly in talled.
4. Before turning the monitor on, mea ure the re i tance
between B+ line and cha i ground. Connect © ide of
an ohmmeter to the B+ line , and © ide to cha i
ground. Each line hould have more re i tance than
pecified, a follow :
B+ Line
Minimum Re i tance
1 16V
25kft
24V
200ft
12V
150ft
5. When the monitor i not to be u ed for a long period of
time, unplug the power cord from the AC outlet.
6. Potential , a high a 24.0 kV are pre ent when thi
monitor i in operation. Operation of the monitor with 
out the rear cover involve the danger of a hock hazard
from the monitor power upply. Servicing hould not be
attempted by anyone who i not thoroughly familiar
with the precaution nece ary when working on high-
voltage equipment. Alway di charge the anode of the
picture tube to the monitor cha i before handling the
tube.
7 After ervicing, make the following leakage current
check to prevent the cu tomer from being expo ed to
hock hazard .
— 2 —

CT-IIOMA/IIOMCi
LEAKAGE CURRENT COLD CHECK (See figure 1.)
1, Unplug the AC cord and connect a jumper between the
two prong on the plug.
2. Turn on the monitor' power witch.
3. Mea ure the re i tance value, with an ohmmeter,
between the jumpered AC plug and each expo ed
metallic cabinet part on the monitor, uch a crew 
head , antenna , control haft , handle bracket, etc.
When the expo ed metallic part ha a return path to the
cha i , the reading hould be between 240 kft and
5.2 MH.
When the expo ed metal doe not have a return path to
the cha i , the reading mu t be <» .
LEAKAGE CURRENT HOT CHECK (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not
u e an i olation tran former for thi check.
2. Connect a 1.5 kf2, 10 watt re i tor, in parallel with a
0.15 m F capacitor, between each expo ed metallic part
on the et and a good earth ground uch a a water pipe,
a hown in figure 1.
3. U e an AC voltmeter, with 1000 ohm /volt or more
en itivity, to mea ure the potential acro the re i tor.
4. Check each expo ed metallic part, and mea ure the
voltage at each point.
5. Rever e the AC plug in the AC outlet and repeat each of
the above mea urement .
6. The potential at any point hould not exceed 0.75 volt
RMS. A leakage current te ter (Simp on Model 229 or
equivalent) may be u ed to make the hot check , leakage
current mu t not exceed 1/2 milliamp. In ca e a mea 
urement i out ide of the limit pecified, there i a
po ibility of a hock hazard, and the monitor hould be
repaired and rechecked before it i returned to the
WARNING. 1. The potential ource of X-Radiation in TV
et i the High Voltage ection and the
picture tube.
2. When u ing a picture tube te t jic for
ervice, make ure the jig i capable of
handling 25.0 kV without cau ing X-
Radiation.
NOTE: It i important to u e an accurate, periodically
calibrated high voltage meter.
1. Turn the Bright and the Panabrite control fully counter 
clockwi e.
2. Set the SERVICE witch to SERVICE.
3. Mea ure the High Voltage. The upper meter (electro 
tatic type) reading hould indicate 24 kV ± 1.0 kV.
If the upper meter indication i out of tolerance, im 
mediate ervice and correction i required to prevent
the po ibility of premature component failure.
4. To prevent an X-Radiation po ibility , it i e ential to
u e the pecified picture tube.
5. To prevent expo ure to X-Radiation, the picture tube
hield mu t be kept in place with power applied to the
et.
HORIZONTAL OSC. DISABLE CIRCUIT TEST
SERVICE WARNING: Thi te t mu t be made a a final
check before the et i returned to the cu tomer.
1. With rear cover removed, upply nominal 120 V AC to
the et and turn on the power witch.
2: Adju t the cu tomer control to normal po ition.
3. Short the collector and the emitter of Q801 with a
jumper wire.
Confirm that the picture tube creen black out (hori 
zontal o cillation top ).
4. If thi doe not occur, the Horizontal OSC. Di able
Circuit i not operating.
Follow the Horizontal O cillator Di able Circuit Repair
Procedure before the et i returned to cu tomer.
HORIZONTAL OSC. DISABLE CIRCUIT REPAIR
PROCEDURE
1) Connect a DC voltmeter between the cathode of D504
and cha i ground of the main.circuit board. If nearly
20 V i not pre ent on the cathode, find the cau e.
Check R527. D504 and C519.
2) Connect a DC voltmeter between the cathode of D505
and cha i ground of the main circuit board. If nearly
11.0 V i not pre ent on the cathode, find the cau e.
Check R518, R519 and D506.
3) Repeat tep 2) procedure. If nearly 11.0 V i pre ent on
the cathode, check IC401 , R520, C525 and D505.
4) Carefully check above pecified part , and related
cirucit and part . When the circuit i repaired, try the
horizontal o cillator di able circuit te t again.
— 3 —

: t - iioma / homca
DISASSEMBLY INSTRUCTIONS
BACK CABINET REMOVAL
1. Remove 7 (A) crew hown in figure 2.
2. Pull the cabinet toward you.
TOP CABINET REMOVAL
1. Remove OFF-ON Volume knob on the front panel ana
place the et with the picture tube face down.
2. Remove 8 ® crew and then carefully pull the top
panel upward a hown in figure 3.
SPEAKER BLOCK REMOVAL
1. Di connect a coupler © and remove 5 © crew hown
in figure 4.
2. Pull off the peaker block from the cha i bracket.
CHASSIS REMOVAL
1. Di connect C-Board and anode lead from CRT, 6 cou 
pler from A-Board, 1P lug terminal from cha i bracket
and 1P connector from C-Board.
2. Then lowly lide the cha i backward and remove
from the rail .
CRT REMOVAL
1. Remove 4 © crew and remove CRT o"f a hown in
figure 5.
Figure 2
Figure 4
Figure 3
Figure 5
— 4 —

CT-11OMA/11OMC.
GENERAL CONNECTION & APPLICATIONS
[Video/Audio Ter inals]
75Q ----- HIZ
o !□ o
VIDEO AUDIO
INPUT
OUTPUT
VTR
Signal level and Ter inal i pedance
Ite
Ter inal
Level
I pedance Re arks
VIDEO
INPUT 1VP-P
75H/HIZ
Video Signal include
Sync. Signal
OUTPUT
1Vp-p
75Q/HIZ
AUDIO
INPUT
0 dB 10
1 V rm = 0 dB
400 Hz
OUTPUT
0 dB
10 kQ
AUDIO/VIDEO
VTR
IVp-p
75ft
Video and Audio
Signal
OdB 20 kH
— 5 —

-11OMA/11OMCA
[75U-HIZ Switch]
HIZ
Position
Position
HIZ
75 Q
Position 4 s
75 Q ----- M |z
O O
VIOCO AUDIO
INFUT
OUTFUT
<o> o
VTR
The last
Monitor
[Application with other equip ent]
Ter inal
VTR/LINE
Selector Position
Signal Equip ent
Re arks
input
LINE
Line-in Signal
from other
equipment
VTR/Video Camera
Line-in and line-out connector are
bridged, (connected in parallel)
OUTPUT
LINE Line-in Signal Monitor or VTR
When thi connector i not u ed, then
. termination elect witch hould be et
;o 75 ohm po ition. When another
monitor' line-in i connected to thi
monitor' line-out connector, the ter 
mination elect witch hould be et
to HIZ po ition. The la t monitor in
the erie of monitor hould then
have it' witch et to 75 ohm .
VTR
(8-pin )
VTR
Video/Audio
Signal in/out
from/to VTR
Ya inch VTR, 7 2 ,
% inch VCR and
VHS VCR
[Connectors]
Video Input (Bridging)
Audio Input (Bridging)
Video/Audio Output
More than 1.0Vp-p, High impedance or 75ft witch 
able, BNC-type bridging and 8-pin connector .
RCA-type and 8-pin connector
BNC-type video and RCA-type audio connector .
— 6 —

CT-11OMA/11OMCA
FIELD ALIGNMENT OF VIDEO MONITOR
Note: U e Video pattern Generator for following align 
ment . (Video input hould read 1.0Vp-p)
A. WITHOUT TEST EQUIPMENT
Alignment can be accompli hed by general procedure . The
following de cribe imple alignment method that do not
require exten ive ervice hop te t equipment.
VERTICAL HEIGHT ADJUSTMENT
Adju t Vertical Height control (R402) until the picture or
te t pattern i ymmetrical from top to bottom.
COLOR PURITY ADJUSTMENT
(See figure 6, 7, 8 and 10.)
1. Operate the monitor for 20 minute , with the Bright
control at maximum to warm up the CRT.
2. Degau the monitor fully by u ing an external degau 
ing coil.
3. Roughly adju t the convergence. (See page 8.)
4. Apply black and white pattern.
5. Turn the Red and Blue Cut-Off control fully counter 
clockwi e to obtain a green field. Adju t the R. Drive
control if the green field cannot be obtained.
6. Loo en the deflection yoke clamp crew and move the
deflection yoke a clo e to the purity magnet a
po ible.
7. Loo en the purity magnet clamp (See figure 7) and
adju t the purity magnet to et the vertical green ra ter
preci ely at the center of the creen. (See figure 8.)
Then tighten the clamp.
8. Slowly move the deflection yoke forward and adju t
for the be t overall green creen.
9. Tighten the deflection yoke clamp crew.
10. Produce a blue and red ra ter with the Cut-Off control
and ob erve that good purity i obtained on the re 
pective field.
11. Ob erve that a uniform white ra ter i obtained by
adju ting the R.G.B. Cut-Off control . If the creen
i not uniformly white, repeat the above procedure.
COLOR TEMPERATURE ADJUSTMENT
(See figure 9 and 10.)
1. U e a black and white video pattern.
2. Turn the R, G, and B Cut-Off control fully counter 
clockwi e, and then turn each forward (clockwi e) 90°.
3. Turn the Screen Control (R550) fully counterclockwi e
and et Service Switch to the Service po ition.
4. Turn the Screen Control clockwi e lowly , until any one
of the R, G, or B line ju t become vi ible.
(See figure 9.)
End of CY
17.2 + 0.5
Position of
Convergence Yoke
CRT Pin Base
Figure 6
Figure 8 Figure 9
5. Turn the other two Cut-Off control (for the color
which did not appear on the creen) lowly clockwi e, o
they al o become ju t vi ible.
(Adju t one control and color line at a time.)
6. Set the Service Switch in the Normal po ition.
7. Turn the Bright and Panabrite control to maximum.
8. Adju t the drive control to obtain a white ra ter at
maximum brightne .
— 7 —

-UOMA/HOMCA
Figure 11
B. WITH TEST EQUIPMENT
When mea uring voltage with a VTVM, be ure to u e the
te t point located at the conductor ide of the circuit
board . U e an i olation tran former for the e.
CONVERGENCE ADJUSTMENT
Note: Before any convergence adju tment are made
vertical neight and focu adju tment mu t be
completed.
1. U e 3 dot pattern to complete thi adju tment.
2. The brightne level hould be no higher than nece ary
to obtain a clear pattern.
3. Loo en the convergence magnet clamp and converge the
red and blue dot at the center of the creen, by rotating
the R-8 Static Convergence Magnet. (See figure 7.)
4. Align the converged red/blue dot with the green dot at
the center of the creen, by rotating the (RB)-G Static
Convergence Magnet. (See figure 7.)
5. Tighten the convergence magnet clamp.
6. Remove the DY wedge ( ee figure 7) and lightly tilt
(do not rotate) the deflection yoke horizontally and
vertically to obtain good overall convergence.
7. Secure the deflection yoke by rein erting the wedge .
(See figure 11.)
8. If purity error i found, repeat the purity adju tment .
NOTE
1. Wedge A hown in figure 11 hould be fixed within a
range of 0° — 30° to the left of the vertical line a hown
2. After in erting wedge A, in ert wedge B and C. The
wedge hould be et 120° apart from each other.
3 Be certain that the three wedge are firmly fixed and the
Deflection Yoke i tightly clamped in place. Otherwi e
the Deflection Yoke may hift it po ition and cau e a
lo of convergence and purity.
POWER LINE VOLTAGE (116V) ADJUSTMENT
1. Connect a voltmeter between TP91 and ground.
2. Adju t R809 to obtain a reading of 116.0 V ± 0.5 V.
HIGH VOLTAGE ADJUSTMENT
1. Adju t color temperature. (See color temperature adju t 
ment.)
2. Slide the Service Switch to the Service po ition.
3. U e an electro tatic type high voltage meter to confirm
that the high voltage i within the range of 24.0 kV ±
1.0 kV.
4. If the high voltage i out of tolerance, adju t R809 until
the high voltage i within tolerance without over or
under going B+ voltage tolerance.
Note: Be cartain that B+ i 116.0 V ± 0.5 V with beam
current at zero during the High Voltage Adju t 
ment.
ABL ALIGNMENT
Thi i factory aligned. U ually no further alignment i
required in the field. However, when the A-Board, or CRT
i replaced, the following alignment i nece ary.
1. Set the monitor to receive a cro hatch pattern from a
video ignal generator
2. Set Bright and Panabrite control at each click po ition.
3. Connect the DC voltmeter between TP86 and TP87
(po itive lead of the voltmeter to TP87 and negative lead
to TP86.)
4. Adju t the ABL control (R313) to obtain a voltmeter
reading of 6.0 V ± 0.2 V.
— 8 —

GENERAL ALIGNMENT
Note: U e Video Pattern Generator for following align 
ment . (Video input hould read 1.0 Vp-p.)
ALIGNMENT OF SUB CONTRAST
1. U e a color bar ignal.
2. Set Color control ( R605) fully counterclockwi e.
3. Connect an o cillo cope to TP48 of C-Board.
(TNP12950ZA)
4. Adju t the SUB-CONT control (R303) to obtain 1.7 V
p-p ± 0.1 Vp-p from the white level to pede tal level.
(See figure 12.)
APC ALIGNMENT
Preliminary Step (See figure 13)
1. U e a color bar ignal.
2. Set Color Control (R605), Bright Control (R309) and
Panabrite Control ( R304) in a fully clockwi e po ition.
3. Set Tint Control (R603) to mid-po ition.
4. Connect a jumper between terminal @ and terminal ®
ofIC601 .
5. Connect a 15 kC2 re i tor between terminal @ of IC601
and +12 V Line.
Alignment Procedure
1. Adju t APC Control (C607) to ju t ync the color bar .
2. Remove the jumper between terminal ® and terminal
© of IC601.
3. Remove the 15 kQ re i tor between terminal @ of
IC601 and +12 V Line.
CONDUCTOR VIEWS
C-BOARD TNP12950ZA
HORIZONTAL HOLD ALIGNMENT
Alignment Procedure
1. U e a black and white video pattern.
2. Turn Horizontal-Hold Control VR (R507) on main
circuit board fully counterclockwi e.
3. Short R529 with jumper wire.
4. Turn the VR (R507) lowly clockwi e and et at the
point where horizontal hold ju t pull -in.
5. Di connect jumper wire.
CIRCUIT EXPLANATION
HORIZONTAL OSC, DISABLE CIRCUIT
1. Under normal operating condition , zener diode (D505)
i cut OFF due to it low cathode voltage.
2. When the pul e amplitude applied to diode D504 in 
crea e , it rai e the cathode voltage of zener diode D505.
A a re ult, D505 conduct .
3. The conduction of D505 increa e pin © voltage of
IC401 . Thi cau e the Horizontal O cillator Circuit to
top and the high voltage i reduced to zero.
D-BOARD TNP55997ZA
- .,,-.©5 'I TM='
«;■ 5 S 55997 ‘
— 9 —

A BOARD TNP61892BC FOR CT-110MA
TNP61892CD FOR CT-110MCA
; 0204 ’
• 0203 :
— 2302 1
C I 115V i
! c i
42\ z
c
• 3.4V 
■ B I 43V :
i e I
0.5V
3
1.2V
! 6 | 42V
1
OV
• c
0 5V ’
30 -.Hi
1 16V
6 M.T/
0.7Vp-p 'HI
12.0V •
R605
2:
OV 2
— ♦WttHH-
C.ivo-p ( h ;
9
1C
7
8
12 i.9V 25
13
93
- R204
0508
C209
C81J
CW9
061 I
<201
CS33
COOS
X60I
P2 ...... PI
R3I0
C32S
P602
3312
-RX*
R322
d :03
C 5»C
C5OS
L - 54
^1 ai 8
116V ADJ.}
Drea
4 y
rr
/
TP46G
T202
0-6A
TP87
CA08
C522 . .
TP86,
CX8
(pANAgnj^^
RX4
9^03
C2Cy*
C6O«\
VTR *NOR V Al-TV* SERVICE^
3V 21 ; 8,7V i
6V 22 3.4V
3V 23
5V 24
; _________ IC501 I
\ __ 1
12V
16 i
9.5V ;
o
9V
16 =
8.7V I
_ 3_
9V
17 1
8.3V I
£
6.3V
18 1
10.7V 1
_5_
3.3V
19 :
4.4V |
6
2.6V
20 i
ov !
TNP6I892
J3*
9514
RX7
TP42
3V
2 3V ;
rr
CIRCUIT
30^
511 TNP
55997
RS07
C20S
R211
C0-5A
D2O2 \
R2 5>203 .C2O7
2.4V :
C535-
EYPR
\XV-0
R212
C202
M -- J ~
0001 • A 13 5221
A 151
L6O2
C2O3
2CVp-o (V)
IC
401
• 1
’ 5.8 V
10 I
6.5V !
2.2V
11 1
6.7V
3
2.1V
I
2.1V :
4
5 4V
« - ;
6.5V
c
ov
1 A
S.5V
__ □_
2 V
• X
13.5 V
__ 7
9.1V
*6 .
10.9 V
__ c_ CV
• 7 •
2.9V
9
0 5 V
ic ;
0.16V i
C5«0 '.
R323
®3II
R3:2
XM3
P46B
M09
CtOl
\ C324 ' *3^2 F3KJ
2241
- C323
|03A 125V*
«0l
DEAD |
Cl RCUIT]
. 1037
R344
*X2
3VO-P (H)
~c
5 6 V
a
4* V
c
3 .4V
‘ Q2Q4 •
i 12V
62V
; e
53V
j ....
1 __________
‘ 0202 ‘
. C
• 9 4V
T 8
61V
; . E 5 3V '
■ GCC1 1
c
: 5 oV
6
4V
■A
4 V
QC02 !
v C
5.6V
8
4V
• E
i 3.3V
Q33J __ *
____ C
€
■
c
•* ' * •

SCHEMATIC DIAGRAM FOR MODELS CT-110MA (CHASSIS NO. NMX-K6NA)
CT-110MCA (CHASSIS NO. NMX-K6NB)
in ut S ignal selector sw
EAS8P7RGB
AUDIO CONTROL
HEAD PHONEJACK
/OKA
I' VIDEO OUT CIRCUIT |
R CUT-OFF
G-CUT-OFF
R35S
[ POWER SUPPLY-CIRCUIT |
Q351-353
2SC 1473-ONC
ROUTS
2.7K
C BOARD
TNP12950ZA
SA801
EVVGU5F30AI4
POWE7T SA
cm
-L R3feS
-♦ uhiihi H-
TOO ’ a
12 p connector
SAME ACTION
CZOE 0.0IM//OOV
B -CUT-OFF
AUDIO IN
AUDIO OUT
AJi3
HOH cnntctor
FJi( no
i
'ciooi ’
csoz
CO IC
70V do (H )
fO
ft Z*T
7SCHU
0
H PRE O/WF ] fy-ca/vt]
?SO794i2i.lP.Ql
J_ .IUWUU -----
1301
ETD19Z344T For CT-112MCA
0 9Vo<, (H )
RSGB nA
__ CJ0J
CED6
IfOH
FOALS SUP=LY CORO
UPESOTP
CO-? A
TLY15349F
we
.Cole
CJJ3
5 MF
D5<5
HAISO
XVJSl
r.V<T372
JJO m
CCO a
330 A
1351
2 7O^H
‘ L'W_ _____ R30S
IZA ®
K303
IOKB
0 HOARD
TUP5533NA
DSlO
NA ISO
I BOZ
ILK.-ISIOiONl
C50S
T 330P
29OKB22
PrCHXL
CJ07
50P
0303
DSOB
TrJADIZttM
DS07
aia ZS ao
a 00?
ZSU3I7CR 5)
R40^R40 z R4oe
n
w X^. ‘ <n CSOZ
2 M T2kJ 0.004K
I toov ’
A BOARD
INP61892BC For CT-HOMA
TNP61B92C0 For CT-HOMCA
TR CONNECTS
LIVE. CIRCUIT
CZO3 ._
33/./UV
lOOOP/Dt For CT-HOMA
IOOOP/EL For CT-1I0MCA
TVS RB -24-040
TVS RM I IM
■OOI I -------
<
COOI
Roo? S6O
0001
’ 3 Z5CP43AI
x 2 SC/46S I
.1 IMPORTANT SAFETY NOTICE
LIVE
CIRCUIT
IS
IC801]
TVS |
CN53I0
ANS3I0
CHROMA
circuit
: ET0I9Z ISAY Fo> CT-DCMA
ETD19Z40AY For CHKMA
C0C4
IDOOP/Dl ForCT-llOMA
IOOCP/EL For CT-HOMCA
R33S
Q303 AT
JSCW (P01
-rr ik >* iPni
rsctciA
[1A24Z2IAY For CT-HCMA
‘ ^ZZSAY For CT-HOMCA
-J ihihhh J- :
0.7VP-P (H)
12VOO(H)
NOTICE
2SCI3l7(RSi
OZZ^
• 50V
I viOEO CIRCUIT |
C5Z4
tool?
R52S
•op'/l *
CSM
4: CHS
HOOP
Rlti ®
(to h *
1
V ” 6^'
T 5KB
V HEIGHT
K+OZ
IDAS
C+O4
| « CSOB
x- -
(T) > R303
>10*.
HORIZONTAL
DEF. CIRCUIT
2. CAPACITOR
THE SHADED AREA ON THIS SCHEMATIC DIAGRAM INCORPORATES SPECIAL FEATURES
IMPORTANT FOR PROTECTION FROM X-RAOiATlON. FIRE ANO ELECTRICAL SHOCK HAZARDS.
WHEN SERVICING IT IS ESSENTIAL THAT ONLY MANUFACTURERS SPECIFIED PARTS BE
USED FOR THE CRITICAL COMPONENTS IN THE SHADED AREAS OF THE SCHEMATIC.
AC irvuo** »•« C*'txx> |. ’ 4W rrnlW. O(h<>»--k< rolrd
th<
U m Of rcMii''C« 1 O H M in I (K • I.OOO. M . 1.000.0001
O : SoH! xwior : Thvcwor
• : M«nt o><!» ’ e--nio : F vm revvtx
Cl : \V«< -Ov^d rcVAIOr Q ;
J ; Nez' o ’ U^rrwtk -rwMCX
?SO;?4i2).(R(J
R .03
; IK
'/ t W
2i
u 'Cs
'.4
UV
0*0 ’
MA ISO
X
I v.our circuit ]
DP DC* At —
(HIP
■n
OUT CIRCUIT |
EVMPUCS25I97
A" ClpJCHO'l Ht Ctumic S0V OPX'IO'. Olhe^ — M
LM'i of c*pA<<t*zK« ri P F. vnreii
no<ed tft* follo^ fl irin
This sche atic is (he latest al the ti e of printing.
Primed in Japan.

'»OTE. Pan or Component with (NA) and
unli ted are not available at a 'e ^ctmem part
12,
— 12 —

CT-11OMA/11OMC
REPLACEMENT PARTS LIST
I portant Safety Notice
Co ponents identified by shaded area have special characteristics i portant for safety. When replacing any of these
available a a complete printed circuit board.
’ Co ponents use onty anufacturer' rspecrfiectpartrz"
Note: ~TNP61892BC (A-Board), TNP61892CD (A-Board), TNP12950ZA (C-Board) and TNP55997ZA (D-Board) are not
Ref. No.
Part No.
Description
Ref. No.
Part No.
Description
R001
RESISTORS
ERD50TJ220
C 22ohm J 1/2W
R332
R333
R334
ERD25T3682
ERD25TJ103
ERD25TJ331
C 6.8Kohm J 1/4W
C lOKohm J 1/4W
C 330ohm J 1/4W
R002
ERD25TJ561
C 560ohm J 1/4W
R335 ERD25T3391
C 390ohm J 1/4W
R003
ERD25TJ562
C 5.6Kohm J 1/4W
R336
ERD25TJ151
C 150ohm J 1/4W
R004
ROO6
ERD25TJ273
ERD25TJ101
C 27Kohm J 1/4W
C lOOohm J 1/4W
R337 ERD25T3151
C 150ohm J 1/4W
R201
ERD25TJ 123
C 12Kohm J 1/4W
R338
R339
ERD25TJ561
ERD25TJ102
C 560ohm J 1/4W
C IKohm J 1/4W
R202
ERD25TJ473
C 47Kohm J 1/4W
R34O ERD25TJ153
C 15Kohm 3 1/4W
R203
ERD25TJ122
C 1. 2Kohm J 1/4W
R341 ERD25TJ103
C lOKohm J 1/4W
R205
R206
ERD25TJ823
ERD25TJ103
C 82Kohm J 1/4W
C lOKohm J 1/4W
R342
ERD25TJ682
C 6.8Kohm J 1/4W
R207
ERD25TJ152
C l.SKohm J 1/4W
R343
R344
ERD25TJ331
ERD25TJ331
C 330ohm J 1/4W
C 330ohm J 1/4W
R208 ERD25TJ 151
C 150ohm 3 1/4W
R345
ERD25TJ474
C 470Kohm J 1/4W
R209
ERD25TJ122
C 1. 2Kohm J 1/4W
R351
EVLS3NA00B53
CONTROL B 5Kohm
R210
R21 1
ERD25TJ473
ERD25TJ823
C 47Kohm J 1/4W
C 82Kohm 3 1/4W R352
ERD25TJ272
C 2.7Kohm J 1/4W
R212
ERD50TJ273
C 27Kohm 3 1/2W
R353
R354
EVLS3MA00B13
ERG1ANJ153H
CONTROL B IKohm
M 15Kohm J 1W
R213
ERD25TJ270 C 27ohm 3 1/4W
R355 ERC12GM272
8 2.7Kohm M 1/2W
R214
ERQ12HJ221
F 220oh 3^ 1/214
- R356
EVLS3MA00B53
CONTROL B 5Kohm
R215
R251
ERD25TJ331
ERD50TJ 680
C 330ohm J 1/4W
C 68ohm 3 1/2W
R357
ERD25TJ272
C 2.7Kohm J 1/4W
R30 1
ERD25TJ102
C IKohm J 1/4W
' R358
R35<7
EVLS3MA00B13
ERG1ANJ153H
CONTROL B IKohm
M 15Kohm J 1W
R302
ERD25TJ102
C IKohm 3 1/4W
R360 ERC12GM272 S 2.7Kohm M 1/2W
R303
EVLS0MA00B14
CONTROL B lOKohm R361 EVLS3MAOOB53
CONTROL B 5Kohm
R304
R306
EVHTLAF25B14
EVH2TAS20B14
CONTROL B lOKohm
CONTROL B lOKohm
R363 ERD25TJ272
C 2.7Kohm J 1/4W
R307
ERD25TJ 101 C lOOohm 3 1/4W
R363
R366
ERG1ANJ153H
ERC12GM272
M 15Kohm J 1W
S 2.7Kohm M 1/2W
R308
ERD25TJ392 C 3.9Kohm J 1/4W R367
ERC12GM105 S IMohm M 1/2W
R309
EVHTLAF25B52
CONTROL B 500ohm
R368
ERD25TJ471
C 470ohm J 1/4W
R31 1
R312
ERD25TJ182
ERD25TJ 103
C 1. 8Kohm J 1/4W
C lOKohm 3 1/4W R4O1
EVHTAAF25B14
CONTROL B lOKohm
R313
EVLS0MA00B23
CONTROL B 2Kohm
R402
R403
EVLVONOOMB14
ERD25TJ682
CONTROL B lOKohm
C 6.8Kohm J 1/4W
R314
ERD25TJ222
C 2.2Kohm 3 1/4W
R404
ER025CKF1002
C lOKohm F 1/4W
R315
ERD25TJ271
C 270ohm J 1/4W
R405
ER025CKF3301
C 3.3Kohm F 1/4W
R316
R317
ERD25TJ271
ERD25TJ271
C 270ohm J 1/4W
C 270ohm 3 1/4W
R406
ER025CKF3301
C 3.3Kohm F 1/4W
R318
ERD25TJ222
C 2.2Kohm J 1/4W
R407
R408
ERD25TJ 182
ERD25TJ102
C 1.8Kohm J 1/4W
C IKohm 3 1/4W
R319
ERD25TJ272
C 2.7Kohm 3 1/4W
R409
ERD50TJ 102
C IKohm J 1/2W
R320
ERD25TJ391
C 390ohm 3 1/4W
R410
ERD25FJ820
C 82ohm J 1/4W
R321
R322
ERD25TJ 101
ERD25TJ 101
C lOOohm 3 1/4W
C lOOohm J 1/4W
R411
ERQ12AJ3R3P
F 3.3ohm J 1/2W
R323
ERD25TJ 101
C lOOohm 3 1/4W
R412
R413
ERD25TJ332
ERX1ANJ2R2H
C 3.3Kohm J 1/4W
M 2.2ohm J 1W
R330
ERD25TJ221
C 220ohm J 1/4W
R416
ERD50TJ681
C 680ohm J 1/2W
R331
ERD25TJ221
C 220ohm J 1/4W
R417
ERD25TJ273
C 27Kohm J 1/4W
— 13 —

■11OMA/11OMCA
Ref. No.
Part No.
Description
Ref. No.
Part No.
Description
R418
ERD25TJ823
C 82Kohm J 1/4W
R61 1
ERD25TJ101
C lOOohm J 1/4W
R419
ERD25TJ 100
C lOohm J 1/4W
R803
ERF10HMJ^71
W 270ohm J 10W
R501
ERD25TJ391
C 390ohm J 1/4W
RG04
ERD25FJ123
C 12Kohm J 1/4W
R502
ERD25TJ564
C 560Kohm J 1/4W
R803
ERQ14AJ470P F 47ohm J 1/4W
R503
ERD25TJ123
C 12Kohm J 1/4W
R806
ERD25TJ274 C 270Kohm J 1 /4W
R504
ERD25TJ223
C 22Kohm J 1/4W
R807
ERD50TJ153
C ISKohm J 1/2W
R505 ERD25TJ123
C 12Kohm J 1/4W
R808
ER050CKF5602
m 56Kohm F 1/2W
R506
ERD25TJ222
C 2.2Kohm J 1/4W
R809
EVLS0MA00B53 CONTROL B SKohm
R507
EVLUONOOMB23
CONTROL., H ZKohm
R8L0
ER025CKF6801 rr 6.8Kohm F 1 /4W
R508
ERD25TJ273
C 27K.ohm J 1/4W
R81L
ERF20HMJ120Y
UI 12ohm J 20W
R5O<9
ERG2ANJ103H
ft . LOKaho* J ’ 2W
R812L
ERD25TJ 122
C 1.2Kohm J 1/4W
R510
ERD25TJ561
C 560ohm J 1/4W
RI OOI
ERC12GJ75O
S 75ohm J 1/2W
R51 1
ERD25TJ271
C 270chm J 1/4W
RI 002
ERC12GJ750
S 75ohm J 1/2W
R5I2
ERG2ANJ562H
M- 3.6Kohm J 2M
R2O0 1
ERD50TJ 103
C 10Kohm J 1/2W
R5L3
R514
R515
ERG2ANJL52
E R D 5 O T J 5 6 1
ERG! ANJI22H
M L.5Koha» J 2W
C 560ohm J 1/2W
IT t-ZKahnr J 1W
C00 1
CAPACITORS
ECEA1CS221
E 220uF 160
R5I6
ERQL2HKR39
F O.39chm K L/2W
CO02
ECEAICS 100
E lOuF 16V
R517 ERQ2CJ1RO F Lahm J 2W
C003
ECEA0JS102
E 100OuF 6.3V
R518
ER025CKF330I
IT 3.3Koh(TV F 1/4W
C004
ECKDDL102ZE Type DL/CT — HOMA
R519
R52O
ER025CKF4701
ERD25TJ393
IT 4-7Kohm F 1/4W
C 39Kohm J 1/4W
C004
C201
ECKDEL102ND
ECEA1HS010
Type EL/CT-HOMCA
E luF 50V
R521
ERD25TJ 152
C l.SKohm J 1/4W
C202
ECEAICS 100 E lOuF 16V
R522 ERD25TJ223
C 22Kohm J 1/4W
C203
ECEA1CS330
E 33uF 16V
R523
ERG2ANJ223T
IT 22Kohn> J 2W
C204
ECEA50ZR22
E 0.22uF 50V
R524
R525
ERD25TJ 152
ERG2ANJ820H
C l.SKohm J 1/4W
M 82ohm J 2W
C205
C206
ECEA1HSR47
ECQM2103KZ
E 0.47uF 50V
P O.OluF K 200V
R526
ERD5OTJ1O1
C lOOchm J 1/2W
C207 ECEA2CS1O0
E lOuF 160V
R527
ERQ14AJ2R2P
F 2. 2ohra J 1/4W
C208
ECEA2CS220
E 22uF 1 60V
R529
ERD25TJ 123
C IZKohm J 1/4W
C209
ECKD2H272KB2 C 2 7OOpF K 500V
R530
R531
ERD25TJ 152
ERD25TJ221
C l.SKohm J 1/4W
C 220ohm J 1 /4W
C210
C21 1
ECEAICS 101
ECKD2H222KB2
E 1 OQuF 16V
C 2200pF K 500V
R532
ERD25TJ391
C 390ohm J 1/4W C212
ECOM1H103KZ
P O.OluF K. 50 V
R533 ERD25TJ392
C 3.9Kohm J 1/4W
C301
ECKF1H151KB
C 150pF K SOV
R534 ERQ12AJ471 F 470chm J 1/2W
C302
ECEA1CN100S
E 1 OuF 16V
R5SO
R601
EVMPUGS25197
ERD25TJ122
CONTROL
C 1.2Kohm J 1/4W
C303
C304
ECEA1HN010S
ECEA1ES4R7
E luF SOV
E 4.7uF 25V
R602
ERD25TJ102
C 1 Kohm □ 1 /4W
C305
EC0M1H153KZ
P 0.015uF K SOV
R 6 0 3
EVHTAAF25B14
CONTROL B lOKohm
C306
ECEA1HS010
E luF SOV
R604
ERD25TJ562 C 5.6Kohm J 1/4W
C307
ECCF1H270J
C 27pF J 50V
R605
R6U6
EVHTAAF25B 14
ERD25TJ394
CONTROL B lOKohm
C 390Kohm J 1/4W
C308
C309
ECKF1H101KB
ECEAICS 100
C lOOpF K SOV
E lOuF 16V
R607
ERD25TJ102
C IKohm J 1/4W
C310 ECCF1H330JC
C 33pF J SOV
R608
ERD25TJ222 C 2.2Kohm J 1/4W
C320
ECEAICS 100
E 1 u F 16V
R610
ERD25TJ 122 C 1.2Kohm J 1/4W
C321
ECEA1CS330
E 33uF 16V
— 14 —

CT-11OMA/11OMC.
Ref. No.
Part No.
Description
Ref. No.
Part No.
Description
C323
ECSZ16EF4R7E
T 4.7uF 16V
C531
ECKF1H121KB
C 120pF K 50V
C324
ECEA1CS221
E 220uF 16V
C532
ECCF1H560J
C 56pF J 50V
C325
ECKF1H681KB
C 680pF K 50V
C533
ECKD3D152JB8
C 1500pF J 2KV
C35 1
ECKF1H331KB
C 330pF K 50V
C534
ECKD3D152JB8
C 1500pF J 2KV
C352
ECKF1H331KB
C 330pF K 50V
__ C33a
ECKD3D152JB8
C ISOOpF J 2KV
C353
ECKF1H331KB
C 330pF K 50V
C532»
ECXD3bi52OT
C ISOOpF J 2KV
C354
ECKD3D222KBN
C 2200pF K 2KV
C541 ECKD2H222KB2
C 2200pF K 500V
C355
ECCF1H560J
C 56pF J 50V
C543 ECKFHH681KB
C 680pF K SOV
C356
ECCF1H560J
C 56pF J 50V
C544
ECCF1H150JC
C 15pF J 50V
C357
ECCF1H560J
C 56pF J 50V
C601
ECCF1H330J
C 33pF J 50V
C401
ECQM1H183KZ
P O.OlSuF K 50V
C602
ECKF1H103ZF
C O.OluF Z 50V
C402
ECSZ16EF3R3V
T 3»3uF 16V
C603
ECQM1H103KZ
F O.OluF K SOV
C4O3
C404
ECSZ16HS3R3
ECEA1CN1O1S
T 3.3uF 16V
E lOOuF 16V
C604
C605
ECEA1CS331
ECCF1H820J
E 330uF 16V
C S2pF J 50V
C405
ECEA25Z10
E lOuF 25V
C606
ECCF1H22OJ
C 22pF J SOV
C406
C407
ECEA1ES221
ECEA1ES222
E 22OuF 25V
E 22OOuF 25V
C607
C608
ECV1ZW50X32
ECCF1H330JC
Trimmer
C 33pF J SOV
C408
ECEA16Z22
E 22uF 16V
C609
ECKF 1 H 121 KB
C 120pF K SOV
C409
ECEAICS 101
E lOOuF 16V
C610
ECQM1H823KZ
F' 0.082uF K SOV
C41 1
ECKF1H103ZF
C O.OluF Z 50V
C61 1
ECEA50ZR22
E 0.22uF SOV
C412
ECKF1H103ZF
C O.OluF Z 50V
C612 ECEA1EN4R7S
E 4.7uF 25V
C501
C502
C503
ECEA1HS2R2
ECEAICS 100
ECQM1H104MZ
E 2.2uF 50V
E 1 OuF 1 6V
P 0. luF M 50V
C613
C614
C615
ECEA50ZR22
ECEA1HSR47
ECKF1H152KB
E 0.22uF SOV
E 0.47uF 50V
C ISOOpF K SOV
C504
ECQM1H123KZ
P 0.012uF K 50V
C8OI
ECKD2H103PE7
C O.OluF P 500V
C505
ECQM1H123KZ
P 0.012uF K 50V
C8O2
ECKD2H103PE7'
C O.OluF P 500V
C5<J6 ECEA1HS010
E 1 uF 50V
CSOZ>
ECKD2H1O3PE7 C O.OluF P 500V
C507
ECQP1472JZ
P 4700pF J 100V
C805
ECET2PR33LSW
E 330uF 180V
CSOB
C509
ECEA1CS470
ECKF1H331KB
E 47uF 16V
C 33OpF K 50V
C80<6
C1001
ECEA2CS22O
ECKDDL1O2ZE
E 22uF 160 V
Type DL/CT-110MA
C510 ECKD2H222KB2
C 22OOpF K 500V
C1001
ECKDEL102MD
Type EL/CT-110MCA
can
card*
C51Z
C518
C519
EEEA<16OV33Z
ECQF2H274JZ
ECEA1CN330S
ECEA1VS331
ECEA1VS22O
E 33uF 16OV
P 0^27uF J 2OOV
E 33uF t6U
E 33OuF 35V
E 22uF 35V
L301
L302
L351
COILS
TLK817
TLT101K999G
TLT271K999G
Delay Line
Peaking lOOuH
Peaking 270uH
C52O
C521
ECEA1CS33O
ECKF 1 Hl52KB
E 33uF 16V
C ISOOpF K 50V L352
L353
TLQ100K205C
TLQ100K205C
Peaking lOuH
Peaking 10uH
C522
C523
ECEA1HS 100
ECQM1H563MZ
E lOuF 50V
P 0.056uF M 50V
L354
TLQ100K205C
Peaking lOuH
C524
ECKF1H102KB
C lOOOpF K 50V
L501
L601
TLY15349F
TLQ180K205C
Deflection Yoke
Peaking 18uH
C525
C526
ECEA0JS330
ECCD2H220K
E 33uF 6.3V
C 22pF K 500V
L602
L603
TLQ330K205C
TLT542K999G
Peaking 33uH
Peaking 5.4mH
C527
C528
ECQM1H222JZ
ECKF1H331KB
P 22OOpF J 50V
C 330pF K 50V
L802
TLK 15901 ONI
Degau Coi 1
— 15 —

Ref. No.
Part No.
Description
Ref. No.
Part No.
Description
LSSt
TLP65O2P ;
Line FiIter..-'
Q201
2SC1685 — P.Q
Audio A p
Q202
2SC 1685 — P.Q
Audio Amp
TRANSFORMERS
Q203
2SC1473-QNC
Audio Out
Q204 2SC1473 — QNC Audio Out
TZOL
ETDt9zt5AY
Audi o/CT-t 10MA —
□301
2SC945A — P.Q
Video Amp
TZOt
ETD19Z4OAY
Audi a/ CT-110MCA
TZOZ
ETAZ4ZZ1AY
Audi. o/CT-t LOMA
Q302
2SC945A-P.Q
Video Amp
TZOZ
ETAZ4Z25AY
Audio/CT-LIOMCA
Q303
2SC945A — P.Q
Video Amp
T3OL
ETDL9ZI6AY
Video/CT-t rOMA^ ... ;
Q304
2SC1317-R.S
Video Amp
□351
2SC1473-QNC
Video Out <B)
T3Ct
ETnt9Z34A¥
VI decR^CT — C LOMCA
□352
2SC1473-QNC
Video Out (R)
T501
TLH6436
H. Drive Tran .
T3O2 TLHSZO^
Pincr» CorF'ectiarr
□353
2SC1473-QNC Video Out (G)
■R5O3
TLF14629F
Flyback Tran
Q401
2SD794 (2)
V. Out-P.Q
□402
2SD794 (2)
V. Out-P.Q
DIODES
□501
2SC1505 (1)
H. Drive
□502
2SD1 171
H. Out
DOO1
TVSRM1ZM Di ode
DOO 2
TVSRD5.6EB
Zener Diode 5.6V
□503
2SC1383-R.S
Regulator
D202
MA 150 Di ode
' ’ Qaor
x 2SCr76B
Requlator
D203
MA 150
Di ode
< Q8OZ
iZSCt^TTT-QNC
Error ’ Detector
D301
MA 150
Di ode
I.C.
D302
MA 1 50 Di ode
D303
MA 150 Di ode
IC401
AN5435
H/V O c. V Drive
D401
MA 150 Di oce
IC601
TVSCN5310
Chroma
D501
MA 150
Di ode
D502
MA 150 Di ode
FILTERS
D503
TVSERB24-04C
Di ode
X601
TSS816M
Cry tal
D504-
TVSRH1
Diode*'
D305 TVSRD12EBIT
Zener Diodo 12V
D5O<6
MA26WO Diode*
SWITCHES
D5O7
MA26WQ
Diode*
S301
EVQR4AL13
Service SW
D508 TVSRD12EBrr Zener Diode 12V
aoi EVVGU5F30A14
Switch Volume
D51G
MA 150
Di ode
S 1001
TSE356
Impede. Change SW
D51 1
LN28RP
LED
SI 002
TSE1459
Signal Select SW
D512
MA 150 Di ode
D513 TVSRD4.7EB2
Zener Diode 4.7V
OTHERS
D514 TVS1S954
Di ode
D515 MA 1 50 Diode
D801
TVSMI15RC
Diode
D802
TVSMI15SC
Diode
"2V0KB22
Picture Tube
D803
ERPF5B0M080F
Posistor
EAS8P79GB
Speaker
D804
TVSRM1ZM
Di ode
TBL 173303
Rubber Foot
TBM37292
Servi ce Pl ate
TRANSISTORS
TBX 1762500
Front Cont. Knob
TBX 1764101
Volume Cont. Knob
QOO 1
2SC945A-P.Q
Video Amp TBX 1765300
Signal Selec Knob
Q002
2SC1317 — R.S
Video Amp
— 16 —

CT-11OMA/11OMC
Ref. No.
Part No.
Description
Ref. No.
Part No.
Description
THT945 — 2
TJB17910
TJC6319
TJS148180
TJS 148290
CRT Mount Screw
Terminal Board
Fu e Holder
BNC Connector
Headphone Jack
TXFKUUOMA
TXFKU110MCA
XANT322
XBAIF08NU14A
XBA1F30NU14A
Back/CT — 1 10MA
Back/CT- 1 10MCA
Neon Lamp
Fu e- L25V 0.8A
Fu e 125V 3A
TJS168110
TJS 188010
TJS29770
3P Mini-Connector
RCA Socket
VTR 8P Connector
XZB75X65C04
Set Cover
■
TKA61213
CRT Socket
Metal Cabinet
TKE270501-1
TKK 170288
TKK69568 — 1
TKP17 16322-1
TKP 1716323-1
Front Cabinet
Handle
Cha i Rail
Door/CT- 1 10MA
Door/CT-110MCA
TKZ 768202
TLC2036
TML61089
TMM 1551
TMM 15701
CRT U Wa her
Convergence Yoke
Focu Rubber Cap
CRT Cu hion
Spacer A
TMM 15702
TMM 17538
TMM543T-1
TMM81571
TNP12950ZA
Spacer B
DY Wedge
•Screw Gro et
Rubber Cu hion
Circuit Board C
TNP55997ZA
TNP61892BC
TNP61892CD
TPC62033
TPC62034
Circuit Board D
A Board/CT-110MA
A Board/CT-110MCA
Carton/CT — 1 10MA
Carton/CT — 1 10MCA
TPD159619
TPD191 171
TPD191 172
TPD192177
TPD192178
Cu hion Front
Cu hion Top(R)
Cu hion Top(L)
Cu hion Bottom(R)
Cu hion Bottom(L)
TQB61 1617
TQB61 1618
TSXBlOt-2
TXAJT01112V
TXAJT02110M
Fan Bag/CT-UOMA
Fan Bag/CT- 11 DMCA
Power Supply Cord
3P Coup 1 Kit-C05A
12P Socket Kit
TXAJT02F5
TXAJT03110M
TXAJT03112V
TXAJT04110M
TXFJT01 1 10V
3P Coupl Kit-COIA
12P Plug Kit
3P Coupl Kit-C03A
3P Coupl Kit-C06A
IP Tip Kit — COIC
— 17 —

ORDER NO. KME8312027S1
Service Manual
yr Color Monitor
y Color Di play
CT-110MA, CT-1 01 OM, CT-1020M
PHA4100A, CT-160, DT-D1000G
BT-S700N , BT-S70 1 N , BT-S702N
FT-H900T
Plea e u e thi upplement manual together with original ervice manual for each model mentioned below:
Substitution of Transistors
Following tran i tor u ed for each model may be ub tituted by new type .
Original
Substitute
Used in Models
2S(
21383
VCBO “ 30V
V q E0 = 25V
2S(
21384
V C BO = 60V
„ V CE0 = 50V
CT-110MA, PHA4 100 A. CT- 160, CT-1020M. BT-S700N
2S(
3641
-V CB O = 30V
— V CEO = 25V
2SI
3642
- V CBO = 60V
-V CEO - 50V
CT-160, DT-D1000G, BT-S700N, BT-S701N, BT-S702N
2S(
3638
V CB0 = 30V
V CE0 = 25V
2SI
3639
V CB O = 60V
V CEO = 60V
CT-1010M, BT-S700N, BT-S701N, BT-S702N
2S(
3636
V CBO = 30V
V CEO = 25V
2SI
3637
V C BO = 60V
V CEO = 50V
CT-1010M, CT-160, DT-D1000G , BT-S700N, BT-S701N
BT-S702N, FT-H900T
Note: Difference between original and ub titute tran i tor are only V^ bo an d V CEO (breakdown voltage).
Sub titute tran i tor have higher V qbo and V CEO fban original one . Thu there i no problem.
I portant: Rever e ub titution cannot be done. I.E. if 2SC1384 i u ed in an original application, do not try
to ub titute with 2SC1383.
Panasonic
Matsushita Engineering and
Service Co pany
50 Meadowland Parkway.
Secaucus. New Jersey 07094
Panasonic Hawaii Inc.
91-238 Kauhi St. Ewa Beach
P O Box 774
Honolulu. Hawaii 96808-0774
Panasonic Sales Co pany,
Division of Matsushita Electric
of Puerto Rico. Inc.
Ave, 65 Oe intantena. KM 9.7
Victoria Industrial Park
Carolina. Puerto Rico 00630
