Panasonic PT-LB10NTU User manual

ORDERNO. VED0404352C0
D10
LCD Projector
PT-LB10NTU / PT-LB10NTE / PT-LB10U / PT-LB10E / PT-
LB10VU / PT-LB10VE / PT-LB10SU / PT-LB10SE
SPECIFICATIONS
1
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2004 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
2
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Please refer to theOperating Instructions
PT-LB10NTU/U/VU/SU
3
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1. Safety Precautions
1.1. General Guidelines
-For continued safety, no modification of anycircuitmust be
attempted.
-Unplug the power cord from the power outlet before disassembling
thisprojector.
-Itisadvisableto use an isolation transformer inthe AC power line
before the service.
-Observe the original lead dress during the service. Ifashort circuit
isfound, replace all the parts overheated or damaged bythe short
circuit.
-After the service, all the protective devices such as insulation
barriers, insulation papers, shields, and isolation R-C
combinations must be properlyinstalled.
-After the service, check the leakage current to prevent the
customer from getting an electricshock.
1.2. Leakage Current Check
1. Prepare the measuring circuitas showninFig.1.
Besure to use avoltmeter having the performance described in
Table1. Fig. 1
Table 1
Fig. 2
4
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2. Assemblethe circuitas showninFig. 2. Plug the power cord ina
power outlet.
3. Connect M1 to T1 according to Fig. 2and measure the voltage.
4. Change the connection of M1 from T1 to T2 and measure the
voltage again.
5. The voltmeter must read 0.375 Vor lower inboth of steps 3and 4.
Thismeans that the current must be 0.75 mAor less.
6. Ifthe reading isout of the above standard, the projector must be
repaired and rechecked before returning to the customer because
of apossibilityof an electricshock.
1.3. UVPrecaution and UHMLamp Precautions
-Besure to unplug the power cord from the power outlet when
replacing the lamp.
-Because the lamp reaches averyhigh temperature during its
operation, waituntil itcoolscompletelywhen replacing the Lamp
Unit.
-The lamp emits small amounts of UV-radiation, avoiddirect-eye
contact with the light.
-Because the high pressure lamp involves arisk of explosion, never
touch the lamp wire lead during the service. (See Fig. 3)
Fig.3
2. Ext Option
This projectorhas EXTOPTION inaddition tostandardon-screenmenus.
5
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-There are SELF CHECK and SERVICEMODEfor service, etc.
2.1. Procedure to enter EXT OPTION
1. Press "MENU"button on the mainunitor remote control unitto
display"MENU"screen, then select "OPTION1" and press
"ENTER"button.
2. Select "OSD"on "OPTION1" menu and press "ENTER"button 3
seconds or longer.
MENU OPTION1OSD

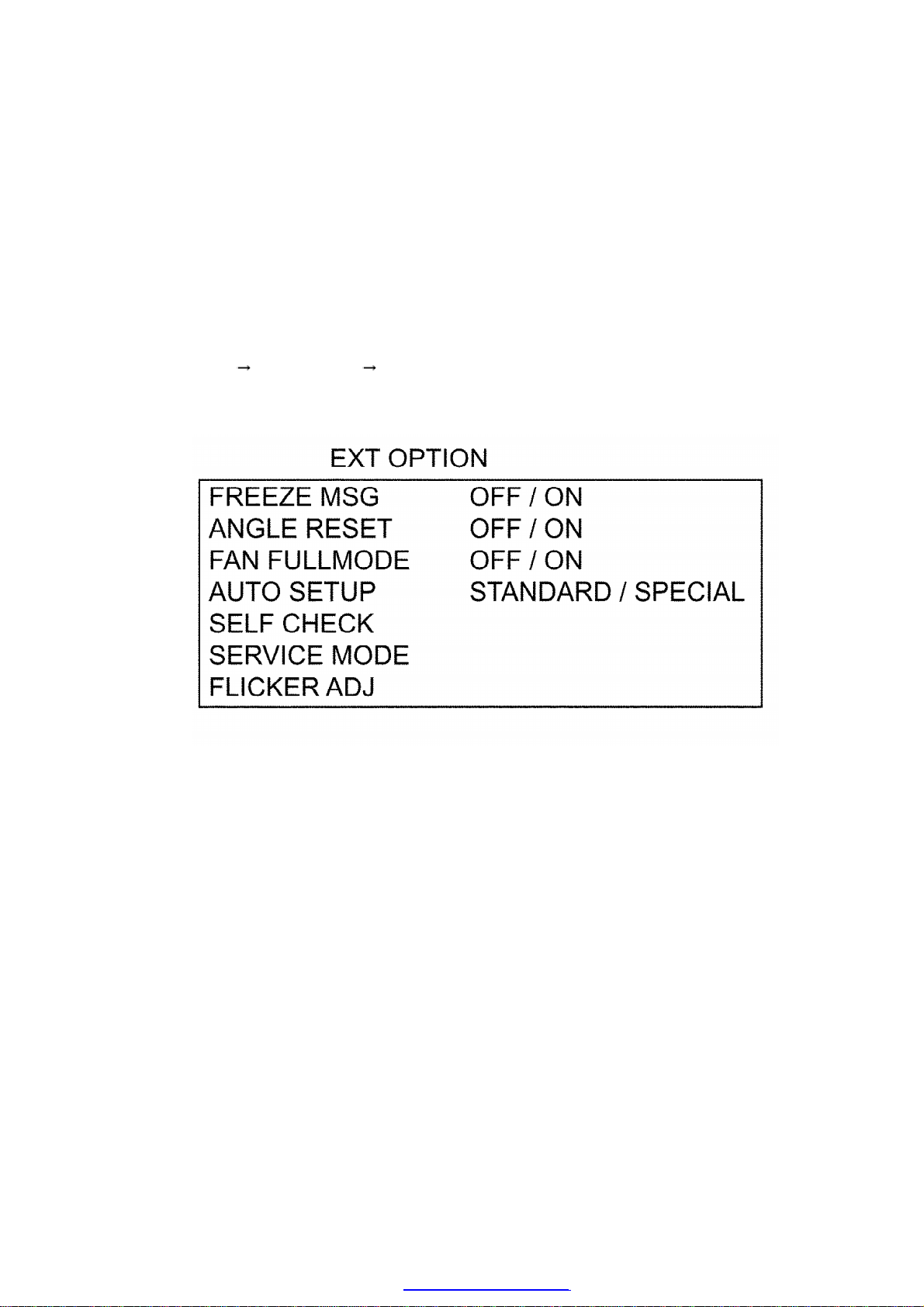

2.2. EXT OPTIONMenu and Functions
-FREEZE MSG
Switching ON/OFF "FREEZE" on-screen display
-ANGLE RESET
Switching ON/OFF "AUTO KEYSTN(AutomaticKeystone)"
reference level setting
Note:
-Normally, do not select. (Anglereset data will be rewritten.)
-FAN FULLMODE
Setting the cooling fan motor rotation speed
-Switching ON"FAN FULLMODE", the rotation level of the fan
becomes high-speed rotation (fixed). Moreover, when "FAN
FULLMODE" isON, changing "FAN CONTROL" inOPTION2
becomes impossible(setting FAN FULLMODEisgiven priority
6
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

more thanFAN CONTROL).
-AUTOSETUP
Setting AUTO SETUPmode
-STANDARD:To set the normal mode (the dot clock isadjusted
strictly))
-SPECIAL: To set the special mode (the dot clock isadjusted
roughly)
Note:
-Donot change the initial setting (STANDARD).
-SELF CHECK
To enter the self-check mode
-SERVICEMODE
To enter the service mode
-FLICKERADJ
To enter the flicker adjustment mode
2.3. Canceling EXT OPTION
Press "MENU" button on the mainunit orremote control unit.
3. Self-Check Mode
This mode is usedtonarrowdownthe location of the failure.
3.1. Procedure to enter the self-check mode
Select "SELF CHECK" on "EXTOPTION" menu and press "ENTER" button on the mainunit or
remote control unit.

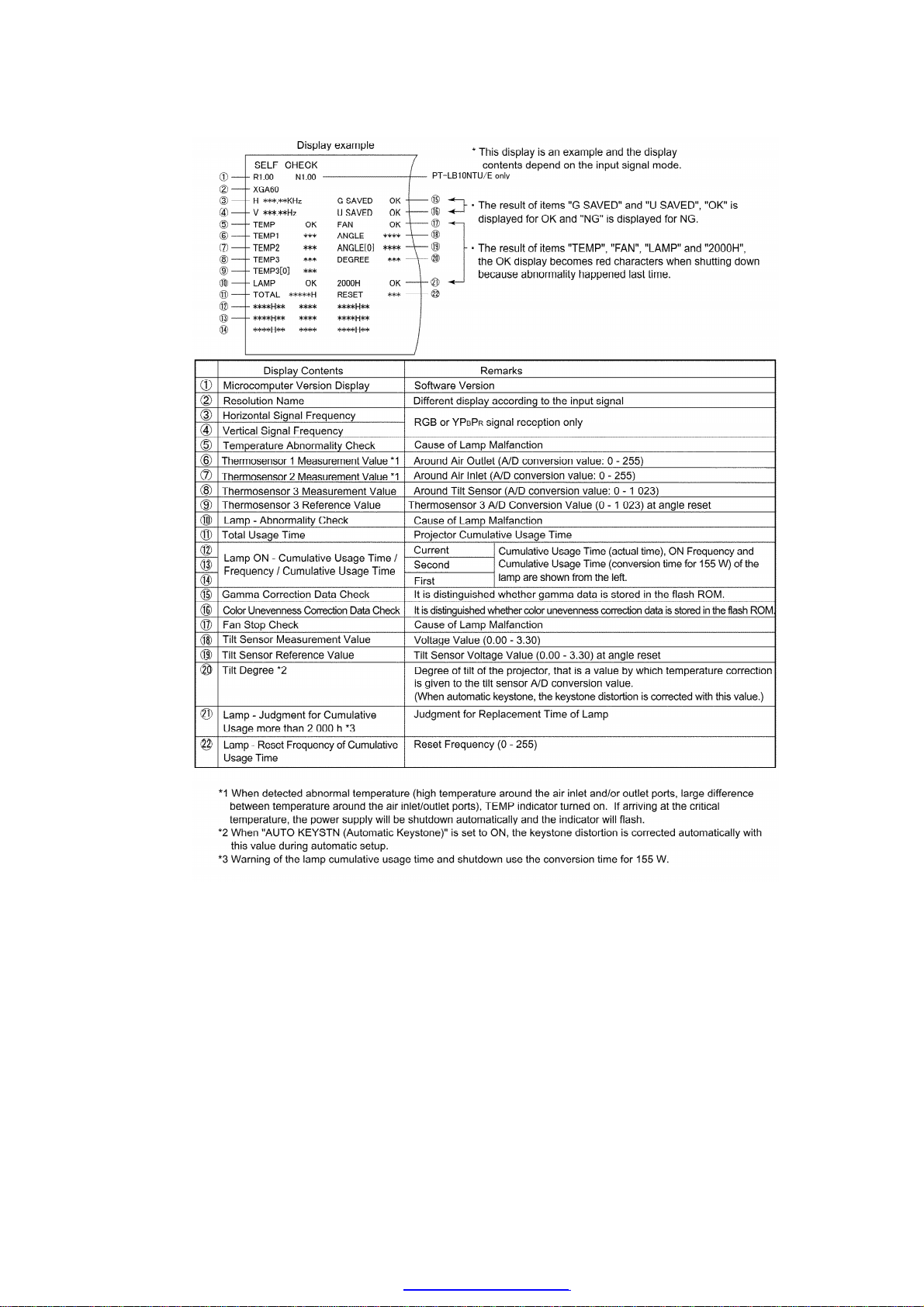

3.2. SelfCheck Displayand Contents
7
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

3.3. Canceling the self-check mode
Press "MENU" button on the mainunit orremote control unit.
4. Service Mode
This mode is usedtodisplaysevenkinds of test patterns [Horizontal lines, Vertical lines, Dots,
Crosshatch, White cross, Black cross and White (Nopattern)] inthe fourcolors (White, Red,
Greenand Blue)..
Note:
-Onthe service mode, displaysabove patterns byeach color
without test equipment such as PCor SG. Use the service mode
for simplified adjustments byyour eyes and so on.
8
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4.1. Procedure to enter the service mode
Select "SERVICE MODE" on "EXTOPTION" menu and press "ENTER" button on the mainunit
orremote control unit.
Note:
-Inthe service mode, pressing the up-arrow " "or down-arrow " "
button allowsthe test pattern selection and theleft-arrow " "or
right-arrow " "button the color selection (White / Red / Green /
Blue).
4.2. Canceling the service mode
Press "MENU" button on the mainunit orremote control unit.
5. Flicker Adjustment Mode
If replacing the optical parts (Analysis / LCD / Lens block) of this projectorand/orA-P.C.Board
(assembly), enterthe flickeradjustment mode and minimize the flicker.
5.1. Procedure to enter the adjustment mode
Select "FLICKER ADJ" on "EXTOPTION" menu and press "ENTER" button on the mainunit or
remote control unit.
Note:
"DESK setting (blue)" is displayedwhenentering the adjustment mode.

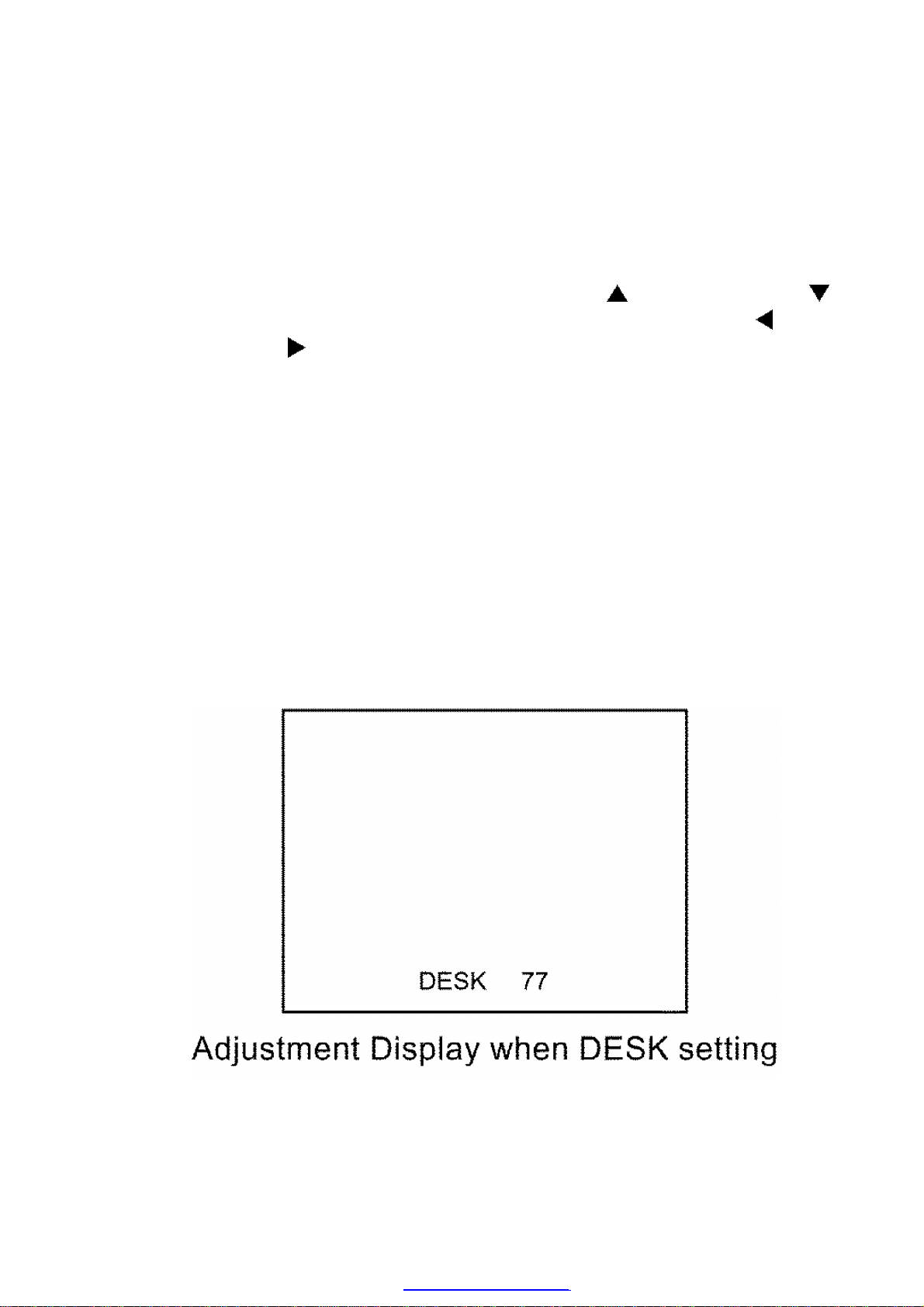

5.2. Adjustment Displayand Contents
9
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-Setting value isincreased and decreased with the right-arrow " "
and left-arrow " "buttons.
" ": Decrease, " ": Increase
-Adjust the setting value to minimize the flicker on the screen.
-Execute the adjustment by6patterns below.
-The pattern (adjustment display)isswitched with the up-arrow " "
and down-arrow " "buttons.
" ": Forward direction, " ": Reverse direction
-There are 6patterns of "DESKsetting (blue)", "DESKsetting (red)",
"DESKsetting (green)", "CEILING setting (blue)", "CEILING setting
(red)" and "CEILING setting (green)".
-The setting value issaved into thisprojector when the pattern is
switched.
5.3. Canceling the flicker adjustment mode
Press "MENU" button on the mainunit orremote control unit.
Note:
When"MENU" button is pressed, the setting value at that time is savedintothis projectorand
the adjustment mode is canceled.
6. Using the SERIAL Connector
The serial connectorwhichis on the back connectorpanel of the projectorconforms toRS-
232C standard. This projectorcanbe controlledbya PC whichis connectedas shownin"6.1.
Connection".
Forcontrolling this projectorbya PC, requires communication software on the market, and
inputs control commands according tocommunication settings and basic format below.
6.1. Connection
Note:
Use a propercommunication cable whichis suitable forthe PC toconnect the optional serial
adapter, whichis connectedwithSERIALconnectorof this projector, and the PC.
10
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

6.2. PinLayout and Signal Names for SERIALConnector
PinNo Signal Name Contents
3 RXD Receive data
4 GND Ground
5 TXD Transmit data
1 ---
2 --- Connectedinternally
6 ---
7 --- NC
8 --- NC
6.3. Communication Settings
Signal Level Contents Description
Sync. method Asynchronous Synchronizes every1
character
bits)
Baud rate Conforms
to 9 600 bps Data transferspeed
Parity RS-232C None Errordetection method
Characterlength standard 8 bits Numberof bit composing 1
character
Stop bit 1 bit Uses stop bit when
asynchronous
method
X parameter Not used
S parameter Not used
6.4. BasicFormat
The data sent fromthe PC tothe projectoris transmittedinthe format shownbelow.
11
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Notes:
-Ifsending multiplecommands, check that acall back has been
received from the projector for 1command before sending the
next command.
-When acommand which does not require parameters issent, the
colon (:) isnot required.
6.5. Control / QueryCommands
Control Commands
QueryCommands
12
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Parameters
[Example]
Whencontrols the audiovolume to+30 bya PC
(Sends commands as the following:)
-When acommand which does not require parameters issent, the
colon (:) isnot required.
6.6. Communication CableSpecifications
13
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

6.7. Signal Selector Connecting CableSpecifications
Whenconnecting toa signal selector(ex. TW-SWS62J), use a cable withspecifications below.
Connecting method: Connects a videosignal cable fromthe signal selectorto"VIDEO IN", and
anRGB signal cable to"RGB1 IN".
Note:
Set VP control terminal switchof the signal selectortoVP TYPE "B".
7. Disassembly Instructions
Warning:
-Besure to unplug the power cord from the power outlet before
disassembling thisprojector.
Caution:
-Whileturning over aprinted circuitboard, be sure to put a
insulating material under itto prevent ashort circuit.
-Printed circuitboards and wires must not be pulled forcibly, but be
handled carefully.
-Connectors also must be handled carefully.
-After repairing thisprojector, be sure to put back the wires and
connectors to the original condition.
7.1. Printed CircuitBoard and MainParts Location
Electrical Parts
14
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Optical Parts
7.2. Removal of Upper Case
Note.
-For PT-LB10NTU/E, remove awireless card before disassembling.
1. Turn the projector upside down.
2. Unscrew the 6screws.
3. Return the projector to the normal position.
15
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4. Lift the upper case upward (approx. 10 cm).
5. Disconnect the cablefrom S1-P.C.Board (connector A8on A-
P.C.Board) and remove the upper case.
7.3. Removal of A-P.C.Board
1. Remove the upper case according to the section 7.2. "Removal of
Upper Case".
2. Unscrew the 1screw on the backside and remove the connector
cover.
3. Unscrew the 1screw fixing the connector metal fittings on the
backside.
4. Unscrew the 3screwsand remove the grounding metal (2).
5. Disconnect the connectors from/to the A-P.C.Board.
6. Unscrew the screws(PT-LB10NTU/E: 5, Others: 2) and remove the
A-P.C.Board block (PT-LB10NTU/E: with WL- and S2-P.C.Boards,
Others: with S2-P.C.Board).
16
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

7. Whiledisconnecting the 2connectors, remove the WL-P.C.Board
from the A-P.C.Board block (PT-LB10NTU/Eonly).
8. Unscrew the 10 screwsand remove the connector metal fittings.
Note:
-Because the S2-P.C.Board block isattached, work carefullywhen
removing the connector metal fittings.
9. Whiledisconnecting the connector between A-and S2-
P.C.Boards, remove the S2-P.C.Board block.
7.4. Removal of WL-P.C.Board (PT-LB10NTU/ Eonly)
Remove the WL-P.C.Boardaccording tothe steps 1 through 6 inthe section 7.3. "Removal of A-
P.C.Board".

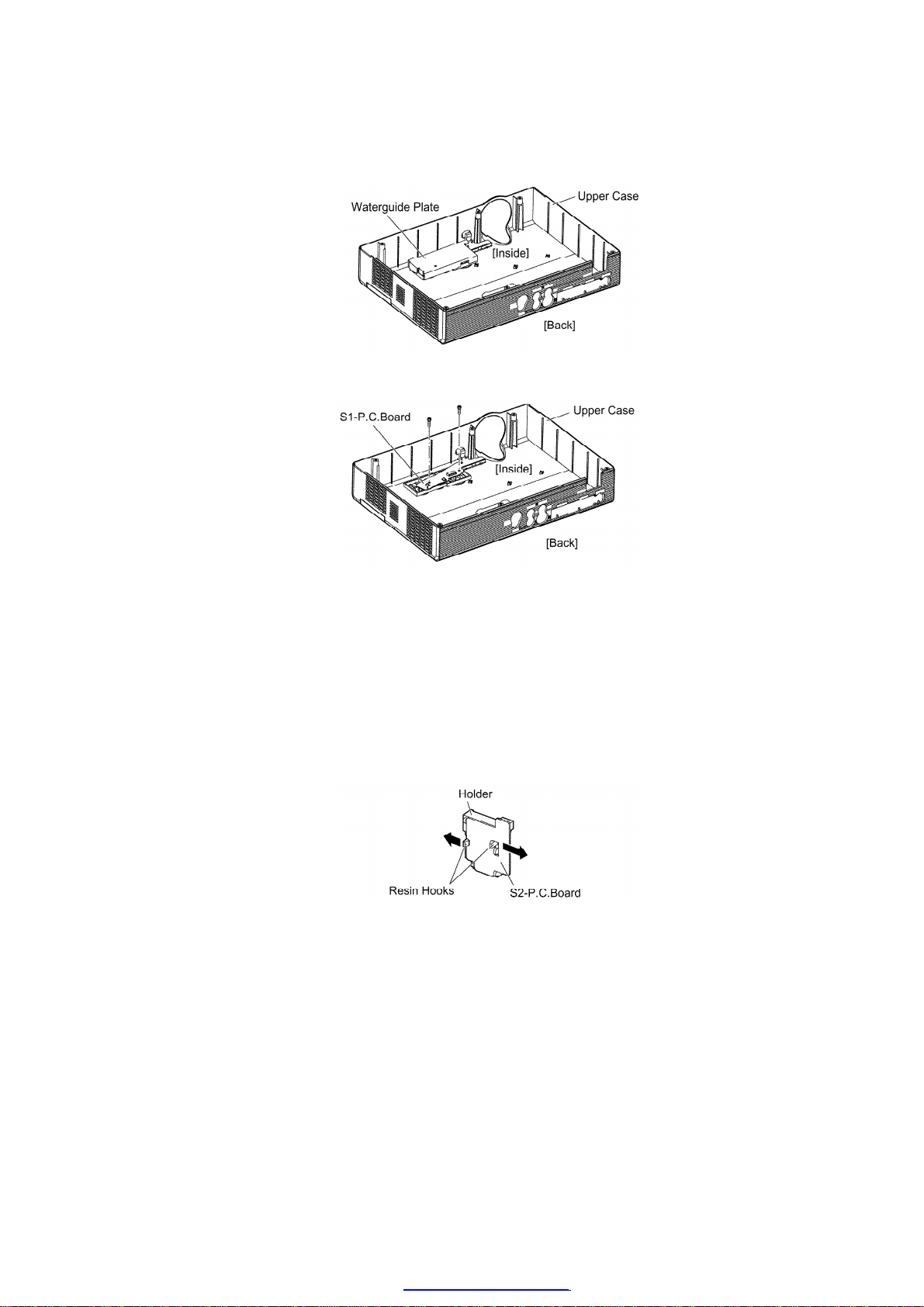

7.5. Removal of S1-P.C.Board
1. Remove the upper case according to the section 7.2. "Removal of
Upper Case".
17
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2. Remove the water guide plate.
3. Unscrew the 2screwsand remove the S1-P.C.Board.
7.6. Removal of S2-P.C.Board
1. Remove the S2-P.C.Board block according to the section 7.3.
"Removal of A-P.C.Board".
2. Remove the holder whileexpanding the resinhooks outside.
Note:
-Work carefullynot to damage the resinhook.
7.7. Removal of K-P.C.Board
1. Remove the analysisblock, LCD block and lens according to the
steps 1through 3inthe section 7.11. "Removal of AnalysisBlock
and Lens".
2. Unscrew the screws(PT-LB10NTU/E: 1, Others: 3) and remove the
grounding metal.
18
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

3. Unscrew the 2screwsand remove the lamp unitterminal.
4. Unscrew the 2screwsand remove the exhaust fan and speaker
block.
5. Unscrew the 2screwsand remove the lamp house and
thermofuse attachmemt fittings.
6. Unscrew the 2screwsand remove the K-P.C.Board.
7.8. Removal of B/ Q-Module
1. Remove the A-P.C.Board block according to the steps 1through 6
inthe section 7.3. "Removal of A-P.C.Board".
2. Unscrew the screws(PT-LB10NTU/E: 1, Others: 3) and remove the
grounding metal.
3. Unscrew the 2screwsand remove the lamp unitterminal.
19
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4. Unscrew the 3screwsand remove the lamp house and
thermofuse attachment fittings.
5. Unscrew the 1screwsand remove the exhaust fan and speaker
block.
6. Unscrew the 4screwsand remove the B/Q-Module.
7.9. Removal of P-Module
1. Remove the A-P.C.Board block according to the steps 1through 6
inthe section 7.3. "Removal of A-P.C.Board".
2. Unscrew the screws(PT-LB10NTU/E: 1, Others: 3) and remove the
grounding metal.
3. Unscrew the 4screwsand remove the P-Module.
20
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
