Panasonic TY-TB10AV User manual

1 Safety Precautions 2
1.1. General Guidelines 2
2 Prevention of Electrostatic Discharge (ESD) to
Electrostatically Sensitive (ES) Devices 3
3 About lead free solder (PbF) 4
4 Connections & Installing the AV terminal box 5
5 Disassembly Instructions 6
5.1. Remove the rear metal. 6
5.2. Remove the AV-Board 6
5.3. Remove the front metal and the front panel 6
© 2007 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
6 Circuit Board Layout 7
6.1. AV-Board 7
7 Schematic Diagram 8
7.1. Schematic Diagram Notes 8
7.2. AV-Board Schematic Diagram 10
8 Exploded Views & Replacement Parts List 11
8.1. Packing Exploded Views 11
8.2. Replacement Parts List Notes 12
8.3. Mechanical Replacement Parts List 13
8.4. Electrical Replacement Parts List 14
AV Terminal Box
Specifications
Dimensions (W × H × D) 180 mm × 44.5 mm × 74.8 mm
180 mm × 44.5 mm × 133.5 mm (With cable cover)
Mass
A
V Terminal BOX : 910 g
Cable cover : 52 g
CONTENTS
Page Page
ORDER NO. ITD0706030CE
B34 Canada: B10

1 Safety Precautions
1.1. General Guidelines
1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires
have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
3. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight out.
4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the two prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on
the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the
chassis, the reading should be between 1MWand 5.2MW.
When the exposed metal does not have a return path to the chassis, the reading must be .
Figure 1
1.1.2. Leakage Current Hot Check (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a 1.5kW, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a
good earth ground such as a water pipe, as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.
6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may
be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits
specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to
the customer.
2
TY-TB10AV / TY-TB10AVC

2 Prevention of Electrostatic Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable
conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing
together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to
damage an ES device).
3
TY-TB10AV / TY-TB10AVC

3 About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
·
· ·
· Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C) higher.
Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
·
· ·
· Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
·
· ·
· After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto
the opposite side. (see figure below)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.
4
TY-TB10AV / TY-TB10AVC

4 Connections & Installing the AV terminal box
5
TY-TB10AV / TY-TB10AVC

5.1. Remove the rear metal.
1. Remove the screw (A) and the screw (B).
2. Remove the rear metal.
5.2. Remove the AV-Board
1. Remove the screw.
2. Remove the AV-Board.
5.3. Remove the front metal and
the front panel
1. Remove the screw.
2. Remove the front metal and the front panel.
5 Disassembly Instructions
6
TY-TB10AV / TY-TB10AVC

6 Circuit Board Layout
6.1. AV-Board
AV-BOARD (FOIL SIDE)
TNPA4278
AV-BOARD (COMPONENT SIDE)
TNPA4278
TY-TB10AV/AVC
AV-BOARD TNPA4278
7
TY-TB10AV / TY-TB10AVC

7 Schematic Diagram
7.1. Schematic Diagram Notes
8
TY-TB10AV / TY-TB10AVC

9
TY-TB10AV / TY-TB10AVC

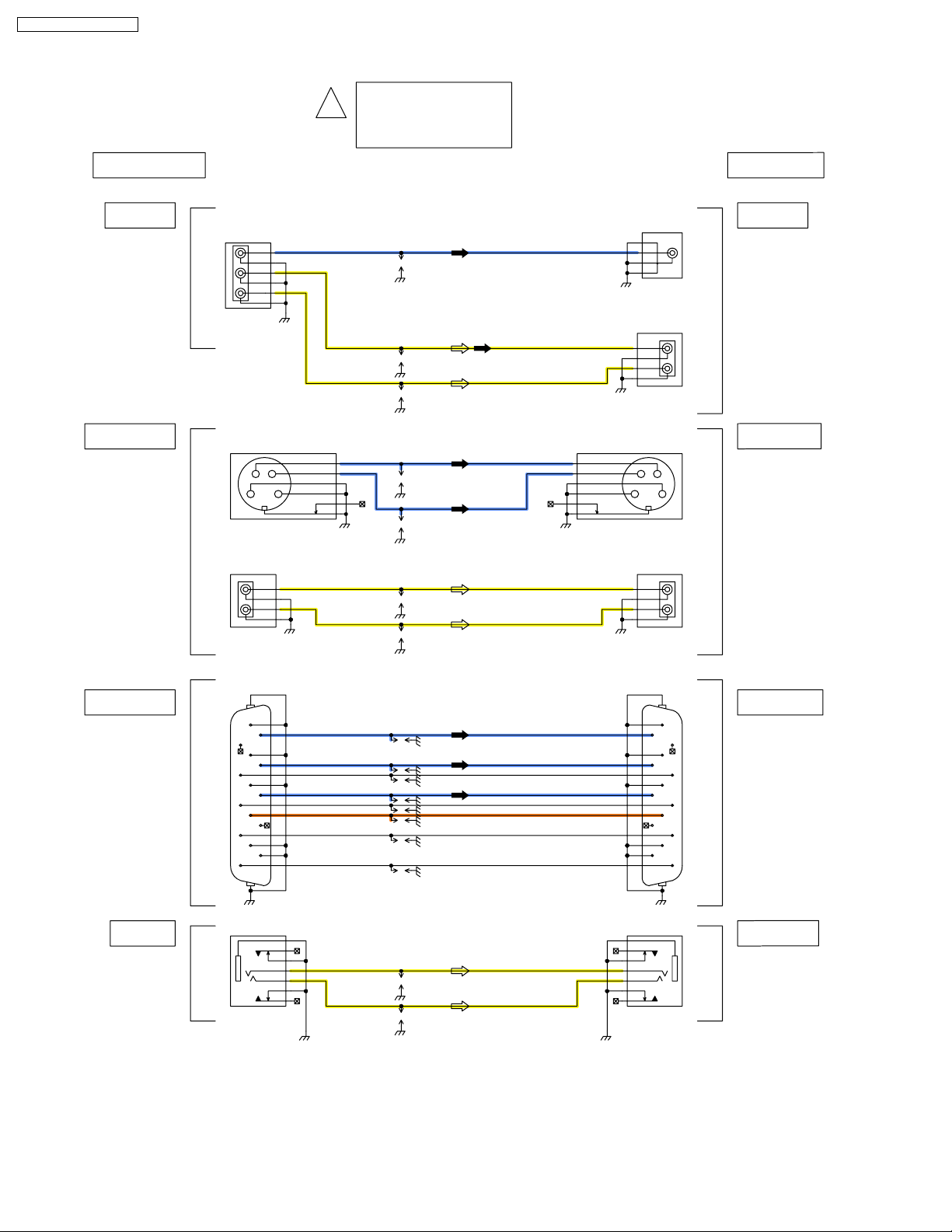

7.2. AV-Board Schematic Diagram
CY
Y
L
R
CY
S3305
GAP0.3
JK3304
K1CB106B0027
JK3301
K2HA306B0048
Y
Y- G
L
L-G
R
R-G
JK3309
K2HC103B0105
JK3306
K2HA204B0176
L
L-G
R
R-G
JK3303
K2HA204B0097
L
L-G
R
R-G
JK3305
K1QBB1AB0008
GAP0.3
S3301
S3306
GAP0.3
JK3311
K2HC103B0105
S3303
GAP0.3
JK3310
K1FB115BA020
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
JK3308
K1CB106B0027
S3302
GAP0.3
S3316
GAP0.3
JK3307
K2HA204B0176
L
L-G
R
R-G
S3304
GAP0.3
JK3312
K1FB115BA020
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
R_IN
L_IN
R_IN
L_IN
VIDEO
S-VIDEO
VIDEO
S-VIDEO
IN
IN
L_IN
R_IN
R_IN
VIDEO
S-VIDEO
VIDEO
S-VIDEO
IN
IN
L_IN
L
R
L
R
R (PR/CR)
G (Y)
B (PB/CB)
SDA
H SYNC
SCL
V SYNC
USER SIDE SET SIDE
AUDIO
D-SUB15
AUDIO
D-SUB15
+5V
AV-BOARD
!
TNPA4278
TY-TB10AV/AVC
AV-Board Schematic diagram
10
TY-TB10AV / TY-TB10AVC

8 Exploded Views & Replacement Parts List
8.1. Packing Exploded Views
11
TY-TB10AV / TY-TB10AVC

8.2. Replacement Parts List Notes
12
TY-TB10AV / TY-TB10AVC

Ref. No. Part No. Part Name &
Description
Pcs Remarks
TBLG3108 FOOT RUBBER 2CHAP.5.1.
THEA068N SCREW 4
1THEL0239 SCREW 9CHAP.5.1.
THTF011N SCREW (PCB) 2CHAP.5.2.
2TKLA3101 MOUNT METAL 1
TKPB14101 FRONT PANEL 1CHAP.5.3.
3TKRA60501 CABLE COVER 1
4TPCB13163 CARTON BOX 1TY-TB10AV
4TPCB13164 CARTON BOX 1TY-TB10AVC
5TPDF1103 CUSHION 1
6TPEH354 POLY BAG
(SET/COVER)
2
7TQE6691 POLY BAG 2
8TQZH839 INSTRUCTION BOOK 1TY-TB10AV
8TQZH912 INSTRUCTION BOOK 1TY-TB10AVC
9XMM41+16FJK SCREW 2
10 XMS31+16FJK SCREW 2
XTV3+10GFJK SCREW(REAR
TERMINAL)
3CHAP.5.1.
XTV3+8GFJ SCREW(FRONT) 4CHAP.5.3.
11 XZBT6506 POLY BAG 1
8.3. Mechanical Replacement Parts List
13
TY-TB10AV / TY-TB10AVC

Ref. No. Part No. Part Name &
Description
Pcs Remarks
JK3301 K2HA306B0048 JACK 1
JK3303 K2HA204B0097 JACK 1
JK3304 K1CB106B0027 CONNECTOR 1
JK3305 K1QBB1AB0008 CONNECTOR 1
JK3306,07 K2HA204B0176 JACK 2
JK3308 K1CB106B0027 CONNECTOR 1
JK3309 K2HC103B0105 JACK 1
JK3310 K1FB115BA020 CONNECTOR 1
JK3311 K2HC103B0105 JACK 1
JK3312 K1FB115BA020 CONNECTOR 1
TNPA4278 CIRCUIT BOARD AV 1
8.4. Electrical Replacement Parts List
14
TY-TB10AV / TY-TB10AVC
