Panasonic PN26161K-NZ User manual

 Thank you for purchasing our product.
 This manual provides important information about safe and proper
operations of this Ethernet Switch.
 Please read the "Important Safety Instructions" on pages 3 to 5.
 Any problems or damages resulting from disassembly of this Ethernet Switch
by customers are not covered by the warranty.
C0219-20622
ZEQUO 2310
Model No.
Installation Guide
Printed in Japan
PN26161K-TH
PN26161K-MY
PN26161K-ID
PN26161K-SG
PN26161K-NZ
2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021
©
Panasonic Electric Works Networks Co.,Ltd.
Panasonic Electric Works Networks Co.,Ltd. 2022
 The instruction manuals (CLI Version and Web Version), latest
firmware and SDN application (ZEQUO assist Plus) can be
downloaded from the following URL.
https://panasonic.co.jp/ew/pewnw/english/datadownload/index.html

Contents
2
Important Safety Instructions
Basic Instructions for the Use of This Product
1. Product Outline
1.1 Features
1.2 Specifications
1.3 Accessories
1.4 Basic operation
2. Part Names and Functions
3. Installation and Configuration
3
6
7
7
8
9
10
11
13
3.2 Installing on level shelves 14
3.1 Grounding Cable Connection 13
3.3 Mounting to rack
3.4 Configuration of IP address (Basic)
Troubleshooting
14
15
17

3
This chapter contains important safety instructions for preventing bodily injury
and/or property damage. Please read carefully, and follow them at all times.
Do not use power supply other than AC 100 - 240 V.
Deviation could lead to fire, electric shock, and/or equipment failure.

Do not handle this Ethernet Switch and connection cables during a thunderstorm.
Deviation could lead to electric shock.
Do not disassemble and/or modify this Ethernet Switch.
Deviation could lead to fire, electric shock, and/or equipment failure.
Do not damage the power cord. Do not bend too tightly, stretch, twist, bundle
Do not unplug nor plug in the power plug with wet hands.
Deviation could lead to electrical shock, and/or equipment failure.
Do not insert or drop any foreign objects such as metal or readily combustible
things into Ethernet Switch through the openings.
Deviation could lead to fire, electrical shock, and/or equipment failure.
Do not store or use the Ethernet Switch in places where it might get splashed
with liquids such as water, in places with high humidity, with conductive dust,
or in places where there are corrosive and combustible gases.
Deviation could lead to fire, electrical shock, and/or equipment failure.
Do not use the Ethernet Switch in very dusty areas such as on floors, underneath
floors, the backside of ceilings, or boards.
Deviation could lead to fire, electrical shock, and/or equipment failure.
It is recommended that the Ethernet Switch be operated in environments such as the
inside of racks where it is difficult for dust to be generated.
Do not store or use the Ethernet Switch in places where it will be exposed to
direct sunlight or high temperatures.
The temperature inside will rise, which may cause fire.
with other cord, pinch, put under a heavy object and/or heat it.
Damaged power cord could lead to fire, short, and/or electric shock.





This symbol indicates a potential hazard
that could result in serious injury or death.
 Severity of bodily injury and/or property damage, which could result from incorrect
use of the Ethernet Switch, are explained below.

The following symbols are used to classify and describe the type of instructions to be observed.
Important Safety Instructions
WARNING
CAUTION This symbol indicates safety instructions.
Deviation from these instructions could lead
to bodily injury and/or property damage.
This symbol is used to alert
users what they must do.
This symbol is used to alert
users what they must not do.
WARNING
Do not store or use the Ethernet Switch in places where there are lots of
vibrations and impacts, or in unstable areas.
It might fall, which may cause injuries and/or equipment failure.

Do not put the Ethernet Switch into fire.
Deviation could lead to explosion and/or fire.

4
Use the bundled power cord (AC 100 – 240 V specifications).
Deviation could lead to electric shock, malfunction, and/or equipment failure.
Unplug the power cord in case of equipment failure.
Deviation, such as keep connecting for a long time, could lead to fire.
Connect the power cord firmly to the power port.
Deviation could lead to electric shock,fire, and/or malfunction.
If the STATUS LED is blinking in orange (systemtfault), check for the cause
via the system log, since it might be a malfunction if it is not the temperature,
loop detection and shutoff, unplug the power plug.
Deviation, such as keep connecting for a long time, could lead to fire.




Handle the Ethernet Switch carefully to prevent fingers and hands from being
damaged by twisted pair port, SFP extension slot, console port, SD card slot,
or power cord hook block.
CAUTION
Do not connect any other devices except for 10BASE-T/100BASE-TX/1000BASE-T
devices to the twisted pair ports.
Deviation could lead to equipment failure.
Do not insert any other modules except for our optional SFP module
(PN54022/PN54024) to the SFP extension slots.
Check out our website for the latest information on supported SFP modules.
Be sure to connect the ground cable.
Otherwise this might cause electrical shocks, misoperations and malfunctions.
Connect the Ethernet Switch via the supplied power cord to the outlet which is
connected to the ground.
If the outlet is not connected to the ground, connect the ground cable to the
ground terminal screw.
Be sure to check the precautions which are printed on the product labels
before using.
Deviation could lead to electric shock.







CAUTION
Check whether the optical fiber cable connectors are contaminated with dust, etc.
This might cause the optical signal to not be transmitted normally, and cause
misoperations and malfunctions. If they are contaminated, make sure to clean
them off, then connect them to the optical fiber ports.
This Ethernet Switch is to be periodically serviced in order to maintain its
performance.
Please assign a product administrator, and be sure to implement periodic
maintenance. When doing maintenance, check the inspection chart that is
posted on our website which has the requisite items listed on it.
When using this Ethernet Switch to design systems, use it after applying
appropriate measures such as setting up redundant configurations.
Communication failures might be generated due to causes such as malfunctions or
misoperations while the Ethernet Switch is being used.
When using this Ethernet Switch for applications which require extremely high
reliability, be careful to expend all possible means to ensure safety and
reliability.
This Ethernet Switch is not designed or manufactured with the intention that it be
used for applications (in use with railways, aviation, and medical care, etc. where
the influence rate due to communication failures is extremely high in regard to
systems that directly affect systems and human lives) which require extremely high
reliability.
It is recommended that this Ethernet Switch be replaced about five years after
it has been installed.
This may vary depending upon conditions such as utilisation rates and usage
environments, but performance might decrease due to the age-related degradation,
etc. of components.
Be careful in regards to environmental restrictions whereby the Ethernet Switch
can be used.
Please isolate the business power lines and communication lines. Isolate distribution
lines and other distribution lines, and low current power lines, optical fiber cables,
metallic water conduits, and gas conduits, etc. Noise may be generated in the
communication lines which might cause communication glitches.
Do not connect the console ports with any other device except for serial
communication terminal.
Deviation could lead to equipment failure.
5



Basic Instructions for the Use of This Product
For inspection and/or repair, consult the retailer.
Use commercial power supply from a wall socket, which is close and easily accessible to
this Ethernet Switch.
Unplug the power cord when installing or moving this Ethernet Switch.
Unplug the power cord when cleaning this Ethernet Switch.
Use this Ethernet Switch within the specifications. Deviation could lead to malfunction.
Do not touch the metal terminal of the RJ45 connector, the modular plug of connected
twisted pair cable, or the metal terminal of the SFP extension slot. Do not place charged
objects in the proximity of them. Static electricity could lead to equipment failure.
Do not put the modular plug of the connected twisted pair cable on objects that can
carry static charge, such as carpet. Do not place it in the proximity. Static electricity could
lead to equipment failure.
Do not put a strong shock, including dropping, to this Ethernet Switch. Deviation could
lead to equipment failure.
Before connecting a console cable to the console port, discharge static electricity, for
example by touching metal appliance (do not discharge by touching this Ethernet Switch).
Do not store and/or use this Ethernet Switch in the environment with the characteristics
listed below. (Store and/or use this Ethernet Switch in the environment in accordance
with the specification.)
- High humidity. Possible spilled liquid (water).
- Dusty. Possible static charge (such as carpet).
- Under direct sunlight.
- Possible condensation. High/low temperature exceeding the specifications
environment.
- Strong vibration and/or strong shock.
Please use this Ethernet Switch in place where ambient temperature is from 0 to 50°C.
Failure to meet the above conditions may result in fire, electric shock, breakdown,

Select the appropriate cables and lay them.
Communications might be affected by how the cables are laid, and environmental noise.
and/or malfunction. Please beware because such cases are out of guarantee.
Additionally, do not cover the bent hole of this Ethernet Switch.
Deviation could lead to high internal temperature, equipment failure and/or
malfunction.

1. Please note that Panasonic shall not bear any liability whatsoever for any damages
(this shall include, but isnotlimited to,lost earnings,lost opportunities, etc.)
which were generated in relation to damages caused by operations and usage,
or the inability to use this Ethernet Switch, whereby the customer does not follow
this Installation Guide.
2. The contents described in this document may be changed without prior notice.
3. For any question, please contact the retailer where you purchased the product.
6
When using two Ethernet Switches, do not stack them. When you place them side by
side, allow for a space of 20 mm or more between them.
Operation is not guaranteed if a module other than the optional SFP extension modules
(PN54022/PN54024) is inserted into the SFP extension slot.
For the latest information about compatible SFP extension modules, check our website.

Product Outline
1.1 Features
1
 Ports 1 to 20 are 10BASE-T/100BASE-TX/1000BASE-T ports corresponding to
autonegotiation.
Also their speed and communication mode can be switched by configuration.
However, ports 17 to 20 do not support half-duplex mode.
 Ports 17 to 20 are SFP extension slots.
These ports and the 1000BASE-T twisted pair cable ports cannot be used
simultaneously.
 Settings and firmware can be changed and saved by using an SD card.
 All twisted pair ports support straight/cross cable auto sensing function. Simply
connect devices with straight cables, whether it is a terminal or a network device.
7
The ZEQUO 2310 is a Layer 2 all giga Ethernet Switch equipped with management
functions that has 20 10/100/1000BASE-T ports and 4 SFP expansion ports.
(To prevent loop failures, ports 1 to 16 are fixed to MDI-X at factory default settings.)
The connection status for each port is detected by the power saving mode, and it can
reduce the power consumption to required levels when not linked up.
(Factory default: deactivated)
Due to the loop detection/shutoff function, a port where loop has occurred can be
automatically shut off to prevent loop failures. When a port is shut off and recovered
automatically, SNMP trap can be sent to notify the incident to the administrator.
Moreover, the port with a loop can be identified by loop notification on the LEDs on
the main unit and referring the history of loop on the setting screen.
 The IEEE802.1p compatible QoS function is supported.
Equipped with energy efficient Ethernet (EEE) conforming to IEEE802.3az(LPI). When
there is no data transmission at link up, the energy-saving state automatically starts so
that power consumption can be reduced on each port.
Supports triple authentication that can simultaneously wait on IEEE802.1X
authentication, MAC authentication, and WEB authentication via one port, and an
authentication network which is matched to the kinds of connection terminals can be
constructed.
Equipped with step authentication functions, and can prevent illegal access of the
terminals.
The Ring Redundant Protocol (RRP) is supported, allowing to make a redundant net-work-
via ring topology.

1.2 Specifications
Interface Twisted pair ports 1–20: RJ45 connector
SFP extension slots 17-20
* Select ether of RJ45 or SFP for use.
SD card slot: SD/SDHC, 128MB-32GB
Console port: RJ45 connector
Switching mode Store and Forward method: Forwarding rate
10BASE-T: Max. 14,880 pps/port
100BASE-TX: Max. 148,800 pps/port
1000BASE-T/SX/LX: Max. 1,488,000 pps/port
MAC Address table: Max. 16K entry/unit
tinu/etybM2:reffuB
Switching capability: 40Gbps
Layer 2 Features STP/RSTP/MSTP
Multicast (IGMP Snooping, MLD Snooping)
QoS (PQ, WRR), Authentication (IEEE802.1X, Web-based Access
control, MAC-based Access control), Storm control, RRP
Management DHCP relay agent, Console, TELNET, SSH, WEB
SNMPv1/v2c/v3, ZEQUO assist Plus
Power supply AC 100-240 V, 50/60 Hz, 0.6 A
8
Product Outline
1
Tag VLAN, MAC base VLAN, Subnet base VLAN,
Protocol base VLAN, Dynamic VLAN, Guest VLAN,
Link aggregation (STATIC/LACP), SPAN, RSPAN, Port monitoring,
IEEE 802.3Transmission system:
Transmission system:
RS-232C (ITU-TS V.24)
10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
SFF-8472 (DMI: Diagnostic Monitoring Interface)
IEEE802.3z 1000BASE-SX/1000BASE-LX
Power consumption Normally, Max. 18.1 W, Min. 10.4 W
Storage environment Temperature: -20–70°C, Humidity: 10–90% RH (no condensation)
Mass (Weight) 3,800 g
External dimensions 44 mm (Height) × 440 mm (Width) × 312 mm (Depth) (Excluding
protruding sections)
Operating environment Temperature: 0–50°C,Humidity: 20–80% RH (no condensation)
Fan Not installed

1.3 Accessories
Installation Guide (this document) 1 (*)

Mounting bracket (for 19-inch rack) 2

Screw (for 19-inch rack) 4

Screw (for fixing the main unit and the mounting bracket) 8
Rubber foot 4
Dummy SD card 1 (unit mounted)
Power cord 1
* Just the PN26161K-TH has 1 Installation Guide in Thai (a total of 2 guides).
[Power Cord]
Please be sure to confirm the content.
The following power cords are supplied as per the intended nation of delivery.
The XXs are identical to the intended nation of delivery codes.
Please contact our distributor if any of the contents are insufficient.
Quantity

[Optional accessories]
PN54022-XX 1000BASE-SX SFP Module (i)
PN54024-XX 1000BASE-LX SFP Module (i)
Locale
Thailand 250 VAC 6 A TIS166-2549-
Indonesia 250 VAC 10 A
250 VAC 10 A
250 VAC 5 A
CEE7/7
BS1363
BS1363
-
13 A
5 A
Malaysia
Singapore
Product Number
PN26161K-TH
PN26161K-ID
PN26161K-MY
PN26161K-SG
250 VAC 10 A AS/NZS 3112-
Australia
New Zealand
PN26161K-NZ
Power Cord Rating FUSE Rated Current Plug Type
9

10
Product Outline
1
1.4 Basic operation
This Product does not have a power ON/OFF switch. Connect the supplied power
cord to this Ethernet Switch and connect the other end into an electric outlet.
This Ethernet Switch operates at AC 100 - 240 V (50/60 Hz).
When power is supplied, all the LEDs are turned ON.
Then, POWER LED (Power) lights in green, STATUS LED lights up orange, and the
hardware’s self-diagnostic is implemented.
On completion of self-diagnosis, STATUS LED light in green, and the Ethernet Switch
starts operation as a Ethernet Switch.
When this Ethernet Switch successfully communicates with a terminal connected to a
port, the Port LED lights up.
When the terminal is not operating normally, for example when power is not
supplied to the terminal, the Port LED does not light up.
* For configuration and management method, please see the PDF version
Operating Instructions on Panasonic’s website.

1
CONSOLE
9600.N.8.1(DTE)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
SFP▲(17)
SFP▼(18)
SFP▲(19)
SFP▼(20)
SD CARD SLOT
POWER
STATUS
SD CARD
ZEQUO 2310
AC 100-240V
Part Names and Functions
2
Power cord hook block
If the supplied power cord is hanged to this block, the cord becomes hard to pull out
from the power port.
SD card slot
Insert an SD card into this slot to change/save settings and firmware.
10/100/1000BASE-T port (ports 1–20)
Devices such as 10/100/1000BASE-T terminal, hub, repeater, bridge, and Ethernet
Switch can be connected to this port . Install the device so that the length of twisted
pair cable (CAT5e or above) becomes 100 m or less.
SFP extension slot (ports 17-20)
Install SFP module. (It becomes exclusive usage with twisted pair port.)
When SFP extension slot is linked, the port is automatically switched to SFP extension
mode.
SFP port supports only the full duplex communication.
Console port
Connect a VT100 compatible terminal, etc. with this port to configure or manage this
Ethernet Switch.
Transmission mode : RS-232C
Transmission speed : 9,600 bps
Stop bit : 1 bit
Flow control : None
Emulation mode : VT100
Data length : 8 bits
Parity control : None
Transmission connector : RJ45
Ground terminal
Only qualified personnel should install minimum 18AWG green-and-yellow stranded
copper wire to Ground terminal screw.
10BASE-T/100BASE-TX/1000BASE-T port
Console portSD card slot
Front panel
SFP extension slot
MAC Address label
MAC Address label
Power cord hook block
Back panel
Serial number label
Serial number label
Ground terminal
Power port
Power port
Connect the supplied power cord to this port and connect the other end into an
electric outlet.
11
Communication mode on ports 17 to 20 support full-duplex mode only. Half-duplex
mode is not supported.

1
CONSOLE
9600.N.8.1(DTE)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
SFP▲(17)
SFP▼(18)
SFP▲(19)
SFP▼(20)
SD CARD SLOT
POWER
STATUS
SD CARD
ZEQUO 2310
POWER LED (Power)
Green Light : Power is ON.
Off : Power is OFF. Or, an internal power fault.
STATUS LED
Green Light : The system is normally operating.
Orange Light : Starting up
Orange Blink : System failure
Off : Power is OFF.
SD CARD LED
Green Light : SD card inserted
Green Blink : Reading/writing data
Orange Light : SD card error
Off : No SD card
Port LED (Port 1-20)
Green Light : Link is established at 10/100/1000 Mbps.
Green Blink : Transmitting and receiving data at 10/100/1000 Mbps.
: Shutting off due to loop detection and shutoff functions/storm controls/
BPDU guard
Orange Light
Orange Blink
Off : No devices are connected.
Port LED (SFP Port 17-20)
Green Light : Link is established at 1000 Mbps.
Green Blink : Transmitting and receiving data at 1000 Mbps.
: Shutting off due to loop detection and shutoff functions/storm controls/
BPDU guard
Orange Light
Orange Blink
Off : No devices are connected.
DELSUTATSDELDRACDS
Port LED
Green Blink : One or more ports are within 3 days after loop resolution.
12
Part Names and Functions
2
: Transmitting and receiving specific packets including loop detection
packets.
: Transmitting and receiving specific packets including loop detection
packets.
POWER LED
AC 100-240V

13
3.1 Grounding Cable Connection
The chassis of the equipment must be grounded properly so that the lightning can flow to
the ground, which improves the capability of the chassis for resisting the electromagnetic
interference.
1. Ensure that the grounding cable is connected correctly so that the equipment is
protected against lightning and interference. The correct connection of the grounding
cable is an important measure to ensure the human safety.
2. Connect the chassis to the ground by using a grounding cable. The grounding resistance
must be smaller than 0.10 ohms and the gauge of the grounding cable must be no less
than 18 AWG and the length is 50 cm.
3. The ground installed screw shall comply with 3.5mm minimum in nominal thread
diameter, and engage at least two complete threads into metal chassis with appropriate
fixing hardware like washer.
4. The grounding cable shall not be removed during normal operation, servicing or
maintenance.
5. Installation steps:
Step 1: Ensure the detachable power supply cord removed.
Step 2: Use the screwdriver to turn the screws on the earth ground screw point.
Step 3: Strip one end of the ground wire to the ground hole of system.
Step 4: Connect the other end of the ground wire to a suitable grounding point of
building at your side.

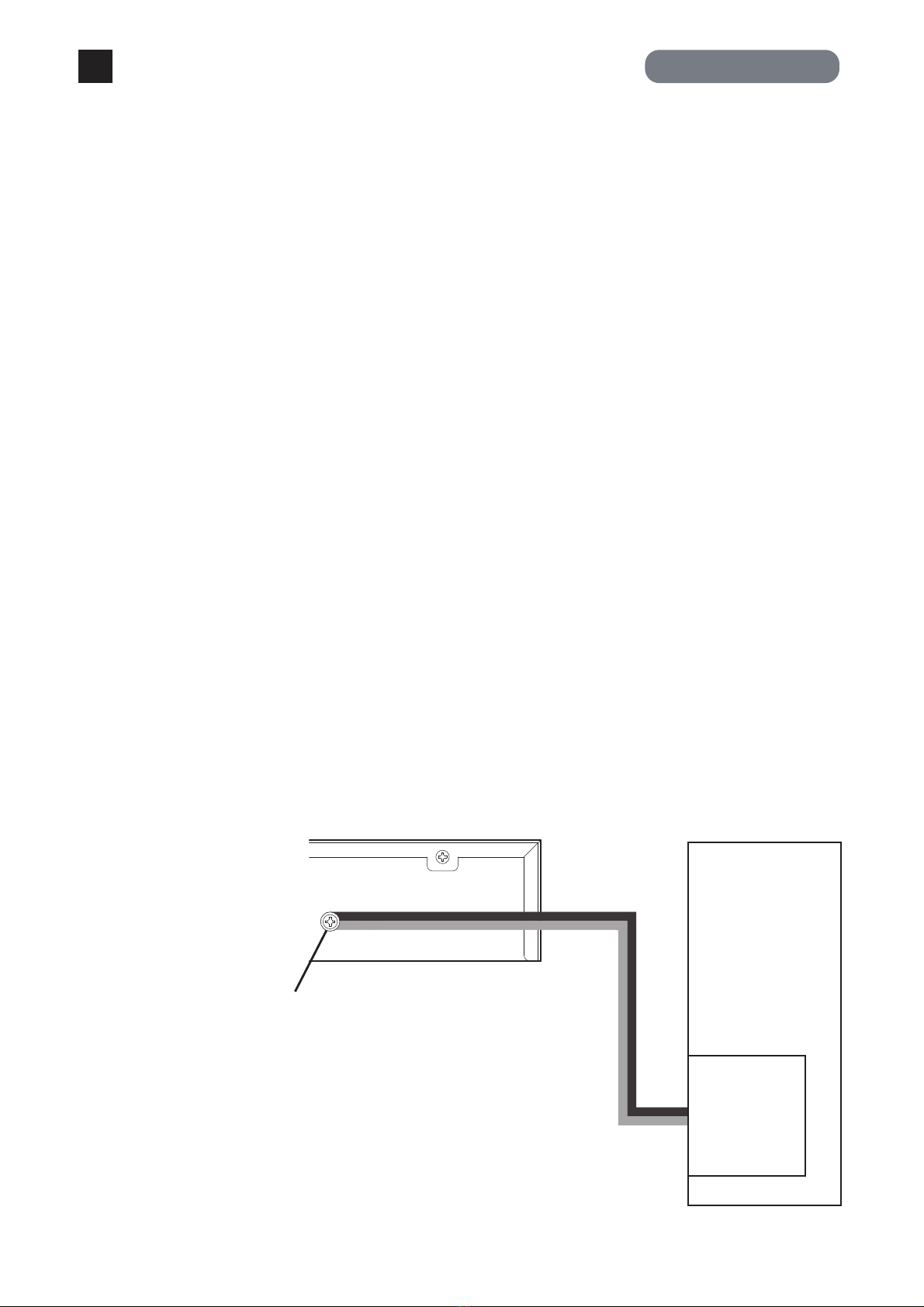

Figure shows the grounding points.
Back panel
Installation and Configuration
3
Main Power
Switch
earth
terminal
Green/Yellow
Ground cable
1. 18 AWG min.
2. 50 cm
Building
Grounding point

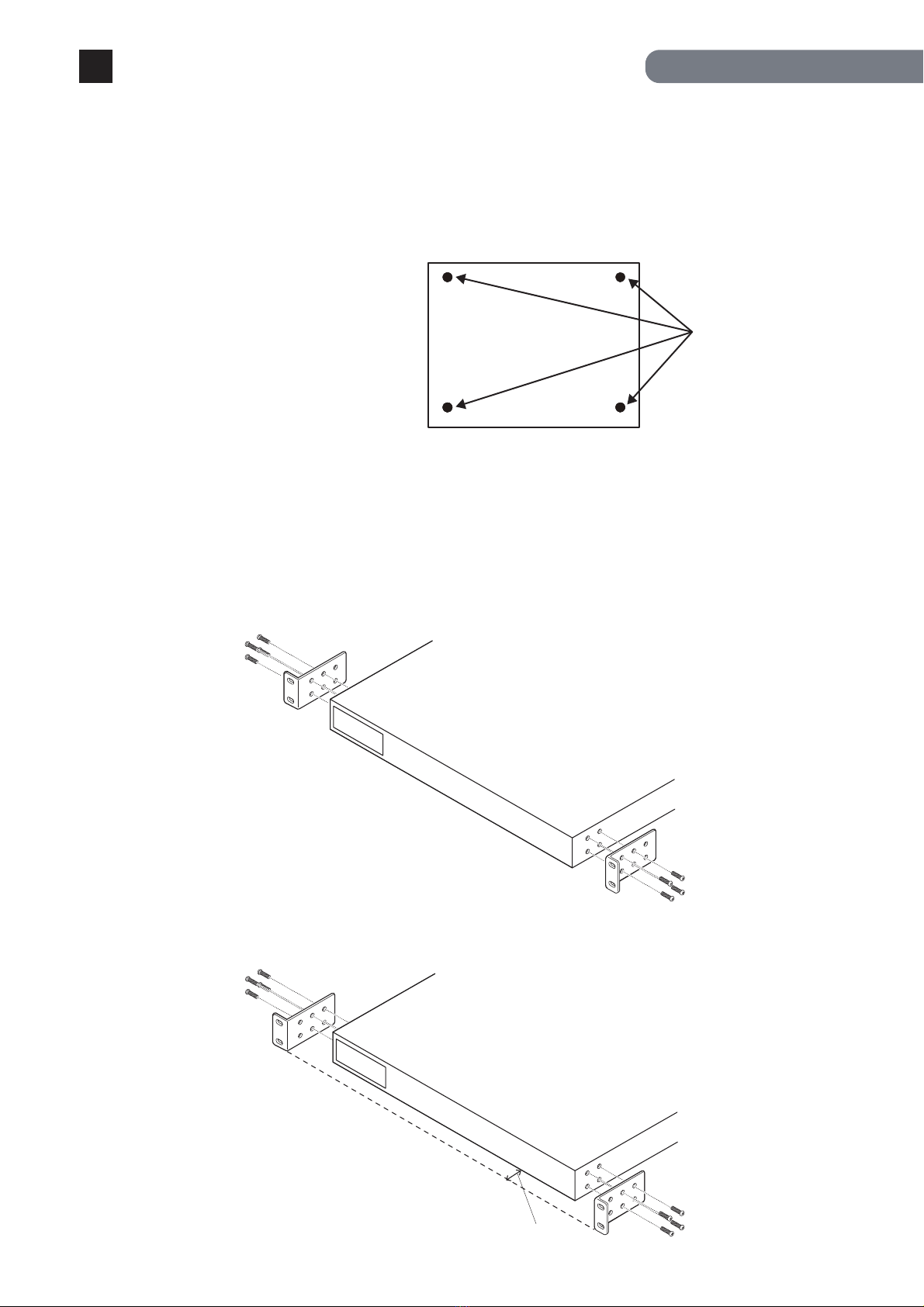

3.3 Mounting to rack
Take out the supplied 2 mounting brackets (for 19-inch rack) and 8 screws (for fixing
the main unit and the mounting bracket), and fix the brackets to the main unit by
tightening screws into 4 holes located at the sides. Then, mount this Ethernet Switch
firmly to the rack using the supplied 4 screws (for 19-inch rack) or screws furnished
at the rack.
The main unit can be placed 20 mm back on the rack by changing the bracket fixing
position.
20 mm
3.2 Installing on level shelves
(1) Apply the supplied rubber feet onto the bottom surface of the unit.
(2) Install in a level area.
Caution
- Do not stack and use.
Set up with a clearance of
20 mm or more.
Bottom surface
Rubber feet
14
Installation and Configuration
3

3.4 Configuration of IP address (Basic)
(1) Connect this Ethernet Switch and PC with a RJ45–DSub 9-pin console cable and
start up the terminal emulator (ZEQUO assist Plus, etc.).

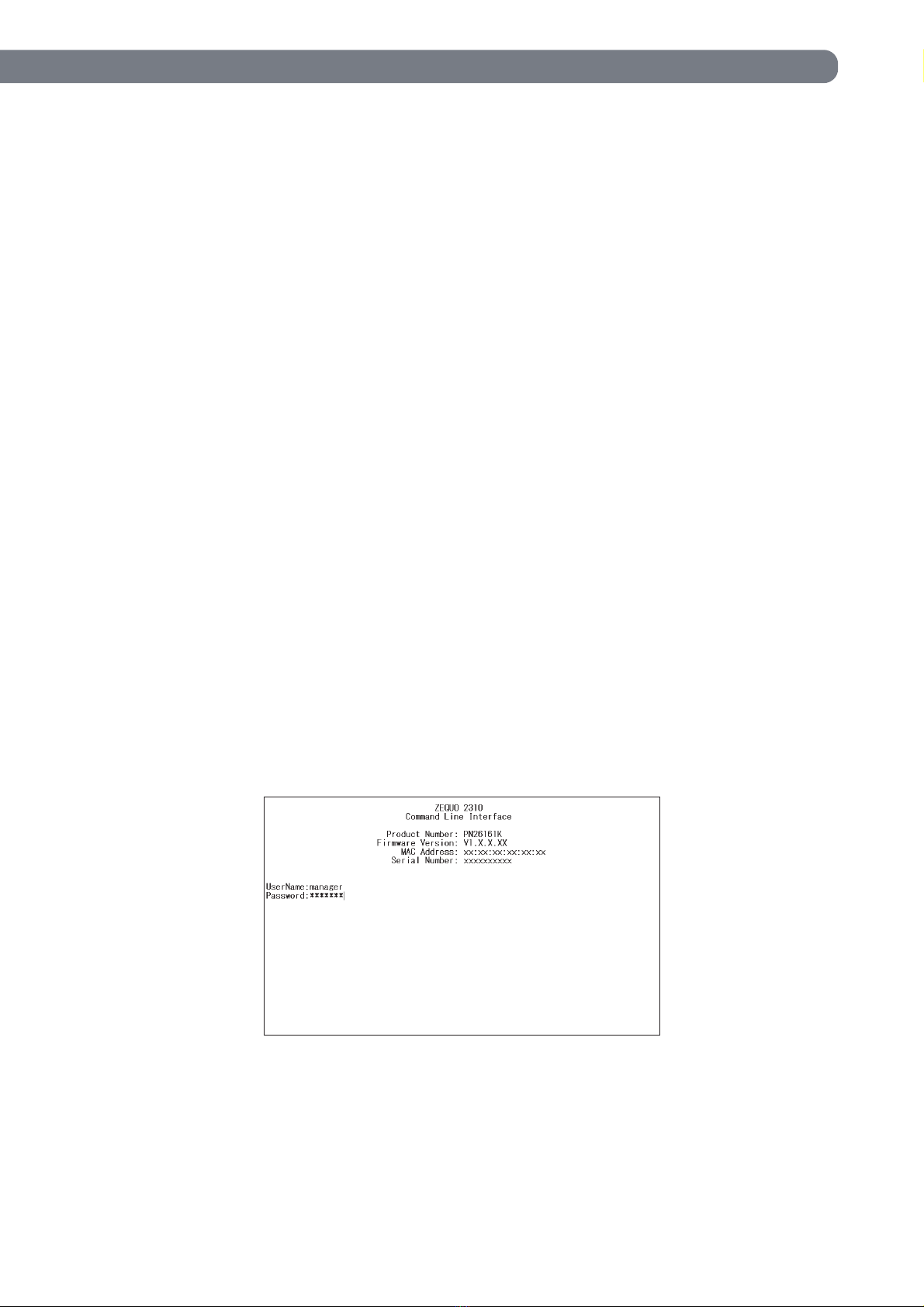

(2) Pressing Enter key 1 time opens Login screen. Enter UserName and Password
(the default is "manager" for both). (Screen 1)
(3) The command input screen is displayed. (Screen 2)
(4) Enter the IP address and subnet mask using the following command. (Screen 3)
>enable
#configure
(config)#interface vlan1
(config-if)#ip address 192.168.1.254 255.255.255.0
(5) Enter the following command to save the setting. Since the following screen is
displayed, enter “Y” and the settings will be saved. (Screen 4)
(config-if)#exit
(config)#exit
#copy running-config startup-config
(6) From terminals connected to network, confirm that the settings are reflected
correctly by executing PING test for entered address.
1neercS
15

* For detailed settings and administration methods, please see the
PDF version of the Operating Instructions on Panasonic’s website.
- Detailed configuration and management methods using the CLI.
- Configuration and management method from ZEQUO assist Plus.
2neercS
4neercS
3neercS
16
Installation and Configuration
3

If you find any problem, please take the following steps to check.
LED
The POWER LED (Power) is not lit.
Is the power plug connected?
Check that the power plug is firmly connected, so the connection is not loose at
The SD CARD LED is not lit.
Is the SD card installed?
Check that the SD card
the power port.
is firmly inserted.
If the STATUS LEDs are blinking orange
If the STATUS LEDs are blinking green
Is the Ethernet Switch being used at a temperature between 0 and 50℃?
Checkwhether theloopshave occurred, since this is an indication that one or more
ports are within3 days after loop resolution.
17
Troubleshooting
Use the Ethernet Switch in its operating temperature range.
If used at a temperature out of the operating temperature range, STATUS LED
blinks in orange and indicates abnormality.
Communication Failure
Is the UTP/fiber cable connected to the correct port?
Are the SFP modules complied with the same standard each other?
Is the fiber cable correct the fiber mode (single or multi)?
Are the communication speed and mode settings correct?
If the communication mode signal cannot be properly obtained, the Ethernet Switch
operates in half-duplex mode. Check the auto negotiation setting again.
Do not fix the speed/duplex mode of the connected terminal to full-duplex mode.




Attempt to disable “EEE conforming to IEEE802.3az (LPI)”function at target port.


Are the equipment linked up?
If Embedded power-saving mode is set to "Full", change it to "Half" or "Disabled".

Is the device whose communication mode fixed to half-duplex mode or full-duplex
mode connected to ports 17 to 20?
Ports 17 to 20 do not link up with devices in fixed mode.
Connect the device to ports 1 to 16 or enable auto negotiation of the device you
want to connect.
Is the usage rate of the network to which this Ethernet Switch is connected excessively
high?
Try separating this

Ethernet Switch from the network.

the PDF version Operating Instructions in CD-ROM.
Are the port LEDs lit up orange, or blinking orange?
If the port LEDs are lit up orange, or blinking orange, the ports will be blocked via
the loop detection and blocking functions. After the port controlled loop
connections are resolved, release the port blocking from the settings screen as to
whether the standby time will be longer than the recovery time until the
auto-recovery of the loop detection and blocking.

18
Troubleshooting
* Please refer to the instruction manual on the ZEQUO assist Plus
on Panasonic’s website in regard to settings and management
methods.
