Panasonic ZEQUO 2210 Series User manual

 Thank you for purchasing our product.
 This manual provides important information about safe and proper
operations of this Switching Hub.
 Please read the "Important Safety Instructions" on pages 3 to 5.
 Any problems or damage resulting from disassembly of this Switching Hub
by customers are not covered by the warranty.
I0716-10719 Printed in Japan
ZEQUO 2210
Installation Guide
Model No. PN26161-TH
PN26161-MY
PN26161-ID
PN26161-SG
2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021
©2019

Contents
2
Important Safety Instructions
Basic Instructions for the Use of This Product
1. Product Outline
1.1 Features
1.2 Specifications
1.3 Accessories
1.4 Basic operation
2. Part Names and Functions
3. Installation and Configuration
3.1 Mounting to rack

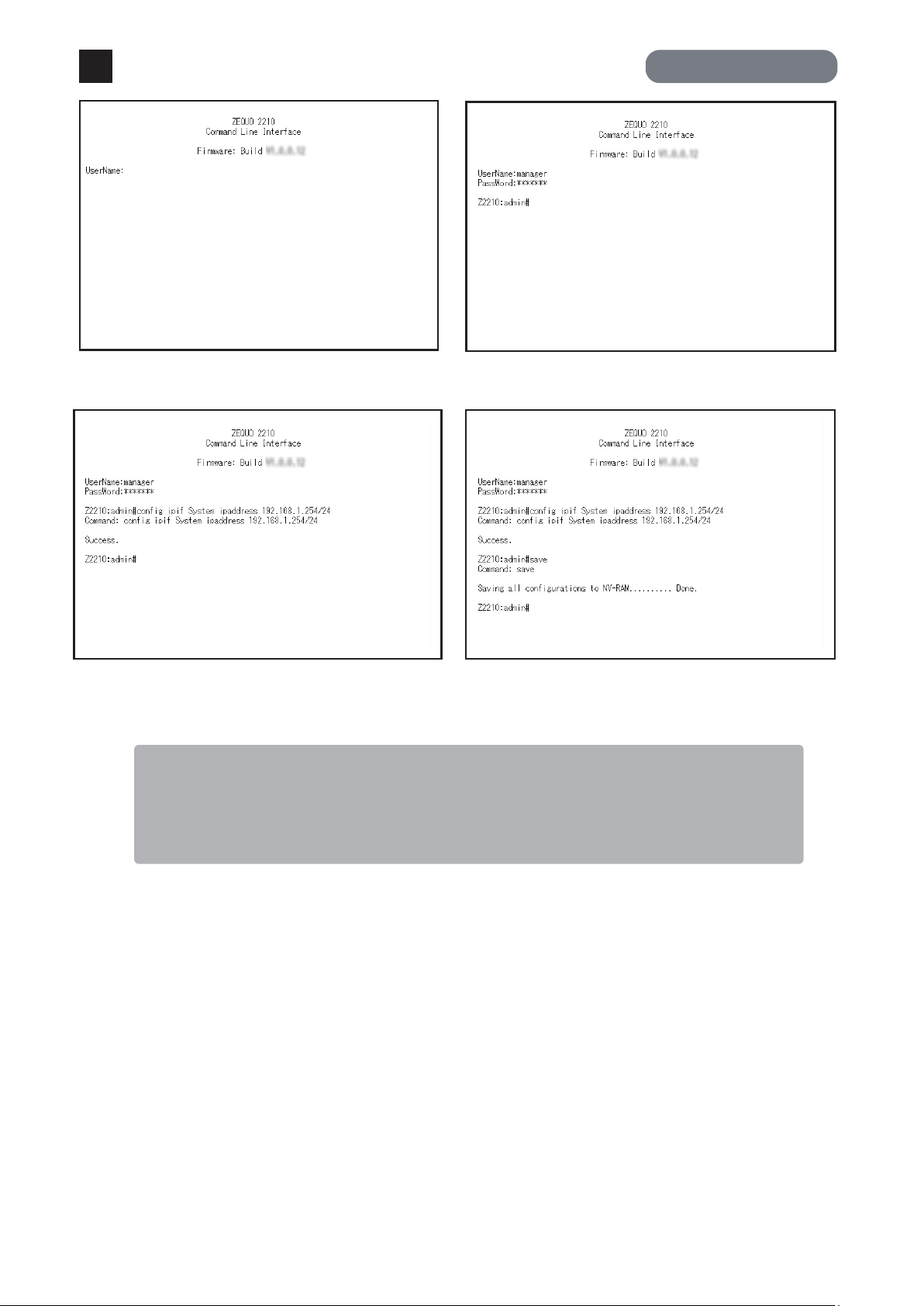

3.2 Configuration of IP address (Basic)
Troubleshooting
3
6
7
7
8
9
9
10
12
12
13
15

3
This chapter contains important safety instructions for preventing bodily
injury and/or property damage. You are required to follow them.
Do not use power supply other than AC 100 - 240 V.
Deviation could lead to fire, electric shock, and/or equipment failure.
Do not handle the power cord with wet hand.
Deviation could lead to electric shock, and/or equipment failure.
Do not handle this Switching Hub and connection cables during a
thunderstorm.
Deviation could lead to electric shock.
Do not disassemble and/or modify this Switching Hub.
Deviation could lead to fire, electric shock, and/or equipment failure.
Do not damage the power cord. Do not bend too tightly, stretch, twist, bundle
Do not unplug nor plug in the power plug with wet hands.
Deviation could lead to electrical shock, and/or equipment failure.
Do not insert nor drop any foreign objects such as metal or readily combustible
things into the inside through the openings.
Deviation could lead to fire, electrical shock, and/or equipment failure.
Do not store or use the Switching Hub in places where it might get splashed
with liquids such as water, in places with a lot of humidity, in places with
conductive dust, or in places where there are corrosive and combustible gases.
Deviation could lead to fire, electrical shock, and/or equipment failure.
Do not store or use the Switching Hub in places where it will be exposed to
direct sunlight or high temperatures.
The temperature inside will rise, which may cause fire.
Do not store or use the Switching Hub in places where there are lots of
vibrations and impacts, or in unstable areas.
It might fall, which may cause injuries and/or equipment failure.
with other cord, pinch, put under a heavy object and/or heat it.
Damaged power cord could lead to fire, short, and/or electric shock.





This symbol indicates a potential hazard
that could result in serious injury or death.
 Severity of bodily injury and/or property damage, which could result from incorrect
use of the Switching Hub, are explained below.
 The following symbols are used to classify and describe the type of instructions to
be observed.
Important Safety Instructions
WARNING
CAUTION This symbol indicates safety instructions.
Deviation from these instructions could lead
to bodily injury and/or property damage.
This symbol is used to alert
users to what they must do.
This symbol is used to alert
users to what they must not do.
WARNING

4
Do not put the Switching Hub into fire.
Deviation could lead to explosion and/or fire.
Do not insert nor drop any foreign objects such as metal or readily combustible
things into the inside through the openings, twisted pair ports, console ports,
SFP extension slots, or SD card slots.
Deviation could lead to fire, electrical shock, and/or equipment failure.


Use the bundled power cord (AC 100 – 240 V specifications).
Deviation could lead to electric shock, malfunction, and/or equipment failure.

Unplug the power cord in case of equipment failure.
Deviation, such as keeping connected for a long time, could lead to fire.

Connect this Switching Hub to ground.
Deviation could lead to electric shock, malfunction, and/or equipment failure.

Connect the power cord firmly to the power port.
Deviation could lead to electric fire, shock, and/or malfunction.

Unplug the power cord if the STATUS LED blinks in orange (system fault).
Deviation, such as keeping connected for a long time, could lead to fire.





Handle the Switching Hub carefully so that fingers or hands may not be
damaged by twisted pair port, SFP extension slot, console port, or power
cord hook block.
CAUTION
WARNING
Do not connect any other devices except for 10BASE-T/100BASE-TX/1000BASE-T
devices to the twisted pair ports.
Deviation could lead to equipment failure.
Do not insert any other modules except for the our optional SFP module
(PN54021K/PN54023K) to the SFP extension slots.
Unplug the power plug when there is a malfunction.
Deviation could lead to fire if the power is allowed to be supplied for extended periods
of time.
Be sure to connect the ground cable.
Otherwise this might cause electrical shocks, misoperations and malfunctions.
Connect the Switching Hub via the supplied power cord to the outlet which is
connected to the ground.
If the outlet is not connected to a ground, connect the ground cable to the ground
terminal screw.

5
CAUTION






This Switching Hub is to be periodically serviced in order to maintain its
performance.
Please choose a product administrator, and have them be sure to implement
periodic maintenance. When doing maintenance, check the inspection chart that is
posted on our website which has the requisite items listed on it.
When using this Switching Hub to design systems, use it after applying
appropriate measures such as setting up redundant configurations.
Communications failures might be generated due to causes such as malfunctions or
misoperations while the Switching Hub is being used.
When using this Switching Hub for applications which require extremely high
reliability, be careful to expend all possible means to ensure safety and
reliability.
This Switching Hub was not designed nor manufactured with the intention that it be
used for applications (in use with railways, aviation, and medical care, etc. whereas
the influence rate due to communications failures is extremely high in regard to
systems that directly affect systems and human lives) which require extremely high
reliability.
It is strongly recommended that a lightning arrester (SPD) be installed on the
twisted pair port side and the power supply side of this Switching Hub.
Malfunctions might be caused due to overcurrent and overvoltage due to the effects
of lightning strikes.
It is recommended that this Switching Hub be replaced about five years after it
has been installed.
This may vary depending upon conditions such as utilisation rates and usage
environments, but performance might decrease due to the age-related degradation,
etc. of components.
Be careful in regards to environmental restrictions whereby the Switching Hub
can be used.
Please isolate the business power lines and communications lines. Isolate distribution
lines and other distribution lines, and low current power lines, optical fiber cables,
metallic water conduits, and gas conduits, etc. Noise may be generated in the
communications lines which might cause communications glitches.

Basic Instructions for the Use of This Product
For inspection and/or repair, consult the shop.
Use commercial power supply from a wall socket, which is close and easily accessible to this
Switching Hub.
Unplug the power cord when installing or moving this Switching Hub.
Unplug the power cord when cleaning this Switching Hub.
Use this Switching Hub within the specifications. Deviation could lead to malfunction.
Do not touch the metal terminal of the RJ45 connector, the modular plug of connected
twisted pair cable, or the metal terminal of the SFP extension slot. Do not place charged
objects in the proximity of them. Static electricity could lead to equipment failure.
Do not put the modular plug of the connected twisted pair cable on objects that can carry
static charge, such as carpet. Do not place it in the proximity. Static electricity could lead to
equipment failure.
Do not put a strong shock, including dropping, to this Switching Hub. Deviation could lead to
equipment failure.
Before connecting a console cable to the console port, discharge static electricity, for example
by touching metal appliance (do not discharge by touching this Switching Hub).
Do not store and/or use this Switching Hub in the environment with the characteristics listed
below.
(Store and/or use this Switching Hub in the environment in accordance with the
specification.)
- High humidity. Possible spilled liquid (water).
- Dusty. Possible static charge (such as carpet).
- Under direct sunlight.
- Possible condensation. High/low temperature exceeding the specifications environment.
- Strong vibration and/or strong shock.
Please use this Switching Hub in place where ambient temperature is from 0 to 50°C.
Failure to meet the above conditions may result in fire, electric shock, breakdown, and/or
malfunction. Please take notice because such cases are out of guarantee.
Additionally, do not cover the bent hole of this Switching Hub.
Deviation could lead to high internal temperature, equipment failure and/or malfunction.
When stacking Switching Hubs, leave a minimum of 20 mm space between them.
If any module other than the optional SFP extension modules(PN54021K/PN54023K) is
inserted into the SFP extension slot,operation is not guaranteed.For the latest information
about compatible SFP extension modules,check our website.
2. The contents described in this document may be changed without prior notice.
3. For any question, please contact the shop where you purchased the product.
6
1. Please note that Panasonic shall not bear any liability whatsoever for any damages
(this shall include lost earnings, lost opportunities, etc. but this is not restricted to these
things) which were generated in relation to damages caused by operations and usage,
or the inability to use this Switching Hub, whereby the customer does not follow
this Installation Guide.

Product Outline
ZEQUO 2210 is a Layer 2 Switching Hub with management function having
10BASE-T/100BASE-TX/1000BASE-T ports, SFP extension slots.
1.1 Features
1
 Has wire-speed Layer 2 switching function.
 Ports 1 to 20 are 10/100/1000BASE-T ports corresponding to autonegotiation.
The speed and communication mode can be changed by changing the settings.
However, ports 17 to 20 do not support the half-duplex mode.
Ports 17 to 20 can be used exclusively as an SFP extension slot.
 Ports 17 to 20 are SFP extension slots.
These ports and the 1000BASE-T twisted pair cable ports cannot be used
simultaneously.
 Settings and firmware can be changed and saved by using an SD card.
 All twisted pair ports support straight/cross cable auto sensing function. Simply
connect devices with straight cables, whether it is a terminal or a network device.
(This function does not work if the port communication configuration is set at Fixed
or Link Aggregation.)
 Power saving mode detects the connection status automatically and
saves power consumption to minimum.
 Supports ring protocol.
Connecting Switching Hubs in a ring shape enables a redundant structure.
7

1.2 Specifications
Interface Twisted pair ports 1–20: RJ45 connector
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
SFP extension slot 17-20
IEEE802.3z 1000BASE-SX/1000BASE-LX
* Select ether of RJ45 or SFP for use.
SD card slot: SD/SDHC, 128MB-32GB
Console port: RJ45 connector
Switching mode Store and Forward method: Forwarding rate
10BASE-T: Max. 14,880 pps/port
100BASE-TX: Max. 148,800 pps/port
1000BASE-T/SX/LX: Max. 1,488,000 pps/port
MAC Address table: Max. 16K entry/unit
tinu/etyb1.5M:reffuB
Switching capability: 40Gbps
Layer 2 Features STP/RSTP/MSTP
VLAN, Link Aggregation, Port monitoring,
Multicast (IGMP Snooping, MLD Snooping)
QoS (PQ, WRR), Authentication (IEEE802.1X, Web-based Access
control, MAC-based Access control), Storm control
Internet Protocol IPv4/v6
Power supply AC 100-240 V, 50/60 Hz, 2.0 A
Power consumption Normally, Max. 21.8 W, Min. 11.4 W
Storage environment Temperature: -20–70 ℃, Humidity: 10–90% RH (no condensation)
Mass (Weight) 3,750 g
External dimensions 44 mm (Height) × 440 mm (Width) × 312 mm (Depth) (Excluding
protruding sections)
Operating environment Temperature: 0–50℃ , Humidity: 20–80% RH (no condensation)
8
Product Outline
1

1.3 Accessories
Installation Guide (this document) 1 (*)
CD-ROM (PDF version of Operating Instructions) 1
Mounting bracket (for 19-inch rack) 2
Screw (for 19-inch rack) 4
Screw (for fixing the main unit and the mounting bracket) 8
Rubber foot 4
Dummy SD card 1
Power cord 1
Please be sure to confirm the content.
Please contact our distributor if any of the contents are insufficient.
1.4 Basic operation
This Product does not have a power ON/OFF switch. Connect the supplied power
cord to this Switching Hub and connect the other end into an electric outlet.
This Switching Hub operates at AC 100 - 240 V (50/60 Hz).
When power is supplied, all the LEDs are turned ON.
Then, POWER LED lights in green, STATUS LED lights in orange, and self-diagnosis of
hardware is executed.
On completion of self-diagnosis, POWER LED and STATUS LED light in green, and
the Switching Hub starts operation as a Switching Hub.
When this Switching Hub successfully communicates with a terminal connected to a
port, the Port LED lights up.
When the terminal is not operating normally, for example when power is not
supplied to the terminal, the Port LED does not light up.
Quantity
For configuration and management method, please see the PDF version
Operating Instructions in CD-ROM.
9
[Optional accessories]
PN54021K-XX 1000BASE-SX SFP Module
PN54023K-XX 1000BASE-LX SFP Module
* Just the PN26161-TH has 1 Installation Guide in Thai (a total of 2 guides).
[Power Cord]
The following power cords are supplied as per the intended nation of delivery.
Locale
Thailand 250 VAC 6 A TIS166-2549-
Indonesia 250 VAC 10 A
250 VAC 10 A
250 VAC 5 A
CEE7/7
BS1363
BS1363
-
13 A
5 A
Malaysia
Singapore
Product Number
PN26161-TH
PN26161-ID
PN26161-MY
PN26161-SG
Power Cord Rating FUSE Rated Current Plug Type
The XXs are identical to the intended nation of delivery codes.

Part Names and Functions
2
10/100/1000BASE-T port
Console portSD card slot
Power port
MAC Address label
Power cord hook block
Back panel
Front panel
SFP extension slot
Power port
Connect the supplied power cord to this port and connect the other end into an
electric outlet.
Power cord hook block
If the supplied power cord is hanged to this block, the cord becomes hard to pull out
from the power port.
SD card slot
Insert an SD card into this slot to change/save settings and firmware.
10/100/1000BASE-T port (ports 1–16)
Devices such as 10/100/1000BASE-T terminal, hub, repeater, bridge, and Switching
Hub can be connected to this port. Install the device so that the length of twisted pair
cable (CAT5e or above) becomes 100 m or less.
SFP extension slot (ports 17-20)
Install SFP module. (It becomes exclusive usage with twisted pair port.)
When SFP extension slot is linked, the port is automatically switched to SFP extension
mode.
SFP port supports only the full duplex communication.
Console port
Connect a VT100 compatible terminal, etc. with this port to configure or manage this
Switching Hub.
Transmission mode : RS-232C
Transmission speed : 9,600 bps
Stop bit : 1 bit
Flow control : None
Emulation mode : VT100
Data length : 8 bits
Parity control : None
Transmission connector : RJ45
Serial number label
Ground terminal
Ground terminal
Only qualified personnel should install minimum 18AWG green-and-yellow stranded
copper wire to Ground terminal screw.
10/100/1000BASE-T port (ports 17–20)
Devices such as 10/100/1000BASE-T terminal, hub, repeater, bridge, and Switching
Hub can be connected to this port.
Supports the full-duplex communication mode only.Does not support the half-duplex mode.
10

POWER LED
Green Light : Power is ON.
Off : Power is OFF.
STATUS LED
Green Light : The system is normally operating.
Orange Light : Starting
Orange Blink : Malfunction (Contact the seller.)
Off : Power is OFF.
SD CARD LED
Green Light : SD card inserted
Green Blink : Reading/writing data
Orange Blink : SD card error
Off : No SD card
Port LED
LINK/ACT. (Port 1-28)
Green Light : Link is established at 1000 Mbps duplex mode.
Green Blink : Transmitting and receiving data at 1000 Mbps duplex mode.
Orange Light : Link is established at 100 Mbps or 10 Mbps.
Orange Blink : Transmitting and receiving data at 100 Mbps or 10 Mbps.
Off : No devices is connected.
LINK/ACT. (Port 25-28)
Green Light : Link is established at 1000 Mbps duplex mode.
Green Blink : Transmitting and receiving data at 1000 Mbps duplex mode.
Off : No devices is connected.
POWER LED
DELSUTATSDELDRACDS
Port LED
11

3.1 Mounting to rack
Take out the supplied 2 mounting brackets (for 19-inch rack) and 8 screws (for fixing
the main unit and the mounting bracket), and fix the brackets to the main unit by
tightening screws into 4 holes located at the sides. Then, mount this Switching Hub
firmly to the rack using the supplied 4 screws (for 19-inch rack) or screws furnished
at the rack.
The main unit can be placed 20 mm back on the rack by changing the bracket fixing
position.
20 mm
Installation and Configuration
3
12

3.2 Configuration of IP address (Basic)
(1) Connect this Switching Hub and PC with a RJ45–DSub 9-pin console cable and
start up the terminal emulator (ZEQUO assist Plus, etc.).
(2) Pressing Enter key 1 times opens Login screen. Enter UserName and Password
(the default is "manager" for both). (Screen 1)
(3) The command input screen is displayed. (Screen 2)
(4) Enter the IP address and subnet mask using the following command. (Screen 3)
Z2210:admin#config ipif System ipaddress 192.168.1.254/24
(5) Enter the following command to save the setting. (Screen 4)
Z2210:admin#save
(6) From terminals connected to network, confirm that the settings are reflected
correctly by executing PING test for entered address.
13

2neercS
4neercS3neercS
1neercS
* For the following, please see the PDF version Operating Instructions
in CD-ROM.
- Detailed configuration and management methods using the CLI.
- Configuration and management method from ZEQUO assist Plus.
14
Installation and Configuration
3

Troubleshooting
If you find any problem, please take the following steps to check.
LED
The POWER LED is not lit.
Check if the power cord is disconnected. Please confirm that the power cord is
securely connected to the power port.
Is the Switching Hub operated at temperature in the range from 0 to 50℃
Ensure that the operating temperature is within the specified range.
The Port LED is not lit.
Is the cable correctly connected to the target port?
Is the cable appropriate to use?
Is the terminal connected to the relevant port conforming with 10BASE-T,
100BASE-TX, or 1000BASE-T standard?
Auto-negotiation may have failed.
Check the port settings of this Switching Hub or the terminal settings.
The SD CARD LED is not lit.
Check if the SD card is disconnected.
Ensure that the card is securely connected
Communications are slow.
Are the communication speed and mode settings correct?
If the proper communication mode signal cannot be obtained, apply
half-duplex mode.
Please reconfirm autonegotiation setting.
Is not the utilization ratio of the network to which this Switching Hub is
connected too high?
Try separating this Switching Hub from the network.
* For detailed configuration and management method, please see
the PDF version Operating Instructions in CD-ROM.
You can also downloads the latest Operating Instructions from
our website.
Check if equipment with a fixed communication mode is connected to
any ports from 17 to 20.Change the settings for ports 17 to 20 of
the Switching Hub and the opposed ports to auto negotiation or
the same communication speed in the full-duplex mode.
Check if equipment of which communication mode is set to the half-duplex mode is
connected to ports 17 to 20.
Ports 17 to 20 do not link up with equipment in the half-duplex mode.
Connect such equipment to port 1 to 16.
15
