Panasonic KX-NT511 User manual

Quick Reference Guide
IP Proprietary Telephone
Model No. KX-NT511/KX-NT551
KX-NT553/KX-NT556
Thank you for purchasing an IP Proprietary Telephone (IP-PT). Please read this
manual carefully before using this product and save this manual for future use. For
more details, please refer to the manuals of the PBX.
This product supports the following PBX versions and CODEC
types:
RKX-NS300/KX-NS500: PFMPR Software File Version 1.0000 or later
RKX-NS1000: PCMPR Software File Version 3.0000 or later*1
RKX-NCP500/KX-NCP1000: PBMPR Software File Version 8.0000 or later
RKX-TDE100/KX-TDE200: PMMPR Software File Version 8.0000 or later
RKX-TDE600: PGMPR Software File Version 8.0000 or later
RCODEC: G.722, G.711, G.729A
*1 For KX-NT511, PCMPR Software File Version 3.0100 or later
Note
RIn this manual, the suffix of each model number is omitted unless necessary.
RThe illustrations may differ from the appearance of the actual product.
Trademarks
RPlantronics is a trademark or registered trademark of Plantronics, Inc.
RAll other trademarks identified herein are the property of their respective owners.

Important Information
For Users in the European Union
Information for Users on Collection and Disposal of Old Equipment
and used Batteries
These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recycling of old products and used
batteries, please take them to applicable collection points, in accordance with
your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save
valuable resources and prevent any potential negative effects on human
health and the environment which could otherwise arise from inappropriate
waste handling.
For more information about collection and recycling of old products and
batteries, please contact your local municipality, your waste disposal service
or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.
Information on disposal in other countries outside the
European Union
These symbols are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer
and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol
examples):
This symbol might be used in combination with a chemical symbol.
In this case it complies with the requirement set by the Directive for
the chemical involved.
For information of Compliance with EU relevant Regulatory Directives,
Contact to Authorized Representative:
2
Important Information

Panasonic Testing Center
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
For Users in Australia and the United Kingdom
RThis unit is capable of being used in conjunction with hearing
aids fitted with inductive coil pick-ups. The handset should be
held as for normal conversation. For operation, the hearing aid
should be set to its "T" position or as directed in the operating
instructions for the hearing aid.
RThis unit is designed to aid the visually handicapped to locate dial keys and
buttons.
For Users in the United Kingdom
RThis unit is designed to be installed under controlled conditions of ambient
temperature and a relative humidity.
RAvoid installing the unit in damp or humid environments, such as bathrooms or
swimming pools.
R999 and 112 can be dialed on the product after accessing the outside line for the
purpose of making outgoing calls to the BT emergency (999) and (112) services.
For users in New Zealand
RThis equipment shall not be set to make automatic calls to the Telecom ‘111’
Emergency Service.
RThis device is equipped with pulse dialing while the telecom standard is DTMF
tone dialing. There is no guarantee that the Telecom Lines will always continue
to support pulse dialing.
PTC General Warning
RThe grant of a Telepermit for any item of terminal equipment indicates only that
Telecom has accepted that the item complies with minimum conditions for
connection to its network. It indicates no endorsement of the product by
Telecom, nor does it provide any sort of warranty. Above all, it provides no
assurance that any item will work correctly in all respects with another item of
3
Important Information

Telepermitted equipment of a different make or model, nor does it imply that any
product is compatible with all of Telecom’s network services.
The Use of IP Networks through the PSTN
RInternet Protocol (IP) by its nature introduces delay into speech signals as each
data packet is formulated and addressed. Telecom Access Standards
recommends that suppliers, designers and installers using this technology for
calls to or from the PSTN refer to ITU E Model requirements in the design of
their networks. The overall aim is to minimize delay, distortion and other
transmission impairments, particularly for those calls involving cellular and
international networks, which already suffer extensive delay.
Echo cancellation
REcho cancelers are not normally required in the Telecom PSTN because
geographic delays are acceptable where CPE return loss is maintained within
Telepermit limits. However, those private networks making use of Voice over IP
technology are required to provide echo cancellation for all voice calls. The
combined effect of audio / VoIP conversion delay and IP routing delay can cause
the echo cancellation time of ³ 64 ms to be required.
4
Important Information

Accessory Information
Included Accessories
Handset (1) Handset Cord (1) AC adaptor
(1)*1
Screws for
wall mounting
(2)*2
Stand (1)
KX-NT511 KX-NT551 KX-NT553/KX-NT556
*1 KX-NT511Axx only
Part No.: PNLV226/PNLV226AG/PNLV226CE/PNLV226E/PNLV226LB/
PNLV226SX
*2 KX-NT511Axx/KX-NT511Pxx only
5
Accessory Information

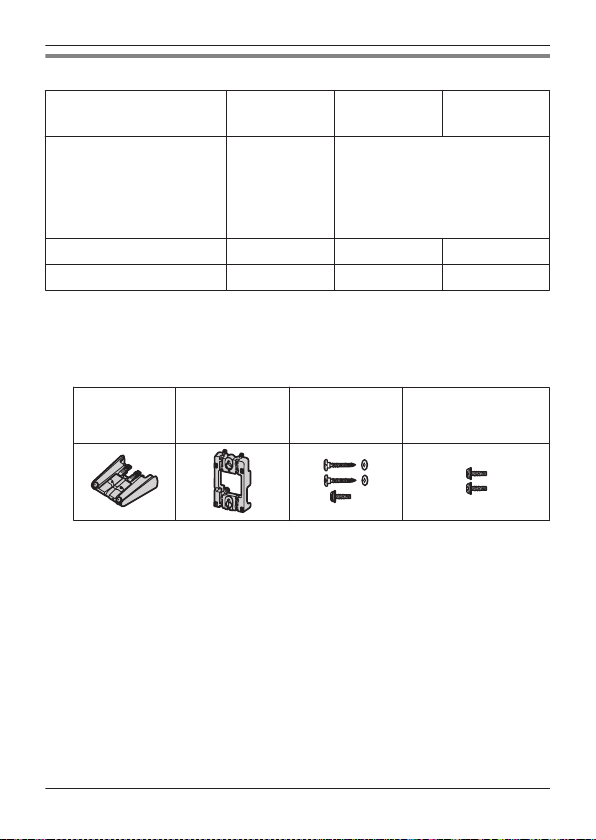

Optional Accessories
KX-NT511 KX-NT551 KX-NT553/
KX-NT556
AC adaptor*1 —
KX-A239BX (PQLV206CE)/
KX-A239AL (PQLV206AL)/
KX-A239UK (PQLV206E)/
KX-A239EJ (PQLV206E)/
KX-A239X (PQLV206)/
KX-A420BR (PSLP1662)
Wall mount kit —KX-A432X KX-A433X
Add-on 48 key module — — KX-NT505X*2
*1 To order an optional AC adaptor, please order using the "KX-A239xx/
KX-A420BR" model number (not "PQLV206xx/PSLP1662"). Can also be used
with the KX-NT505X.
For users in Argentina, power can only be supplied by PoE.
*2 KX-NT505X has the following accessories.
Stand (1) Wall mounting
adaptor (1)
Screws for
wall mounting
(3)*1
Screws for
attaching to the unit
(2)
*1 Two screws for attaching the KX-NT505X to a wall.
One screw for attaching the wall mounting adaptor to the unit.
6
Accessory Information

Location of Controls
KX-NT511
KX-NT551
7
Location of Controls

KX-NT553
KX-NT556
AMain LCD (Liquid Crystal Display):
KX-NT511/KX-NT551: 1 line, KX-NT553: 3 lines,
KX-NT556: 6 lines
BMessage/Ringer Lamp*1:
When you receive an intercom call, the lamp flashes green,
and on an outside call, the lamp flashes red. When someone
has left you a message, the lamp stays on red.
CFlexible CO Buttons: Used to seize an outside line or perform
a feature that has been assigned to the key.
DHandset Hook: Keeps the handset stable when the unit is
mounted on a wall.
EHeadset Jack*2
FPAUSE/PROGRAM (KX-NT551 only): Used to insert a pause
when storing a telephone number. This button is also used for
programming this unit.
PAUSE (KX-NT553/KX-NT556 only): Used to insert a pause
when storing a telephone number.
8
Location of Controls

GCONF/STORE (KX-NT511 only): Used to establish a multiple
party conversation or store programme changes.
CONF (KX-NT551/KX-NT553/KX-NT556 only): Used to
establish a multiple party conversation.
HMESSAGE*2: Used to leave a message waiting indication or
call back the party who left the message waiting indication.
IFLASH/RECALL: Used to disconnect the current call and
make another call without hanging up.
JREDIAL: Used to redial the last dialed number.
KAUTO ANS/MUTE: Used to receive an incoming call in
hands-free mode or mute the microphone/handset during a
conversation.
LTRANSFER: Used to transfer a call to another party.
MAUTO DIAL/STORE*2: Used for System/Personal Speed
Dialing or storing programme changes.
NHOLD: Used to place a call on hold.
OINTERCOM: Used to make or receive intercom calls.
PSP-PHONE (Speakerphone): Used for performing hands-free
operations.
QMicrophone: Used for hands free conversations.
RVOLUME (KX-NT511 only): Used to adjust the volume and the
display contrast.
Navigator Key (KX-NT551/KX-NT553/KX-NT556 only): Used
to adjust the volume and the display contrast or select desired
items.
SENTER*3: Used to assign the selected item.
TSoft Buttons (S1-S4)*3: S1-S4 (located from left to right) are
used to select the item displayed on the bottom line of the
display.
UEHS (Electronics Hook Switch) Jack*3
VFWD/DND*3: Used to switch Call Forwarding or Do Not Disturb
on your extension.
9
Location of Controls

WCANCEL*3: Used to cancel the selected item.
XNEXT PAGE*3: Used to switch the page for the Self Labeling
feature.
YSub LCD*3: 12 lines
*1 For KX-NT511, the lamp flashes red when receiving an intercom call.
*2 KX-NT551/KX-NT553/KX-NT556 only
*3 KX-NT553/KX-NT556 only
10
Location of Controls

Before Operating the Telephone
Speaker volume
While in a hands-free conversation
Press [ ] or [ ] to adjust the volume.
Handset/Headset volume*1
While using the handset or headset
Press [ ] or [ ] to adjust the volume.
Ringer volume
While on-hook or receiving a call
Press [ ] or [ ] to adjust the volume.
LCD Contrast (For main LCD)*2
While on-hook
1. Press the
PROG
soft button (S1).*3
2. Enter .
3. Press [ENTER].*4
4. Press [ ] or [ ] to adjust the LCD contrast.
5. Press [ENTER].*4
6. Press [CANCEL].*5
*1 If you hear your own voice through the handset or headset, decrease the
volume.
*2 To change the sub LCD contrast of the KX-NT553/KX-NT556, enter in
Step 2.
*3 For KX-NT511, press and hold one of the flexible CO buttons for more than 2
seconds.
For KX-NT551, press [PAUSE/PROGRAM].
*4 For KX-NT511, press [CONF/STORE].
For KX-NT551, press [AUTO DIAL/STORE].
*5 For KX-NT511, go off-hook, and then go on-hook.
For KX-NT551, press [PAUSE/PROGRAM].
11
Before Operating the Telephone

Ring Tone
1. Press the
PROG
soft button (S1).*1
2. Press a flexible CO button or [INTERCOM] 2 times.
3. Enter 2 digits (01-30) using the dial keys (0-9), or press [ ] or [ ] to
select the ring tone.
4. Press [ENTER].*2
5. Press [CANCEL].*3
LCD Backlight *4
While on-hook
1. Press the
PROG
soft button (S1).*1
2. Enter .
3. Press [ENTER].*2
4. Press a dial key to select the LCD backlight mode.
: Automatic
: Always ON
: Always OFF
5. Press [ENTER].*2
6. Press [CANCEL].*3
*1 For KX-NT511, press and hold one of the flexible CO buttons for more than 2
seconds.
For KX-NT551, press [PAUSE/PROGRAM].
*2 For KX-NT511, press [CONF/STORE].
For KX-NT551, press [AUTO DIAL/STORE].
*3 For KX-NT511, go off-hook, and then go on-hook.
For KX-NT551, press [PAUSE/PROGRAM].
*4 KX-NT551/KX-NT553/KX-NT556 only
12
Before Operating the Telephone

Feature Operations
Making Calls
Calling
MTo an extensionN
1. Go off-hook.
2. Dial an extension number.
MTo an outside partyN
1. Go off-hook.
2. Press a flexible CO button.
3. Dial the outside party’s phone number.
Redial
1. Go off-hook.
2. Press [REDIAL].
Quick Dialing
1. Go off-hook.
2. Dial a quick dialing number.
Doorphone Call
1. Go off-hook.
2. Enter .
3. Enter a doorphone number (2 digits).
4. After the confirmation tone, talk.
System Speed Dialing
1. Go off-hook.
2. Enter .*1
3. Enter a system speed dialing number (3 digits).
*1 For KX-NT551/KX-NT553/KX-NT556, you can also press [AUTO DIAL/
STORE].
13
Feature Operations

Personal Speed Dialing
MTo storeN
1. Go off-hook.
2. Enter .
3. Enter a personal speed dialing number (2 digits).
4. Enter the phone number to store (max. 32 digits).*1
5. Press .
6. After the confirmation tone, go on-hook.
MTo dialN
1. Go off-hook.
2. Enter .*2
3. Enter .
4. Enter a personal speed dialing number (2 digits).
One-touch Dialing
MTo storeN
1. Press the
PROG
soft button (S1).*3
2. Press a flexible CO button.
3. Enter .
4. Enter the number to store (max. 32 digits).*1
5. Press [ENTER].*4
6. Enter the text to store (max. 12 digits).*5
7. Press [ENTER].*5
8. Press [CANCEL].*6
MTo dialN
1. Go off-hook.
2. Press the flexible CO button assigned as a One-touch Dialing
button.
*1 Enter the outside line access number before an outside phone number.
*2 For KX-NT551/KX-NT553/KX-NT556, you can also press [AUTO DIAL/
STORE].
*3 For KX-NT511, press and hold one of the flexible CO buttons for more than 2
seconds.
For KX-NT551, press [PAUSE/PROGRAM].
*4 For KX-NT511, press [CONF/STORE].
For KX-NT551, press [AUTO DIAL/STORE].
*5 KX-NT553/KX-NT556 only
14
Feature Operations

*6 For KX-NT511, go off-hook, and then go on-hook.
For KX-NT551, press [PAUSE/PROGRAM].
15
Feature Operations

During a Conversation
Call Hold
MTo holdN
1. Press [HOLD].
2. After the confirmation tone, go on-hook.
MTo retrieve a call at the holding extensionN
1. Go off-hook.
2. Press a flexible CO button or [INTERCOM].
MTo retrieve an outside call from another extensionN
1. Go off-hook.
2. Press a flexible CO button.
Call Transfer
MTo an extensionN
1. Press [TRANSFER].
2. After the confirmation tone, dial an extension number.
3. Talk.
4. Go on-hook.
MTo an outside partyN
1. Press [TRANSFER].
2. After the confirmation tone, press a flexible CO button.
3. Dial an outside phone number.
4. Talk.
5. Go on-hook.
16
Feature Operations

Setting the Telephone According to Your Needs
Do Not Disturb
1. Go off-hook.
2. Enter .
3. Press a dial key to select the setting.
: Both outside and intercom calls
: Outside calls only
: Intercom calls only
4. To enable Do Not Disturb, enter .
To cancel Do Not Disturb, enter .
5. After the confirmation tone, go on-hook.
Timed Reminder
MTo setN
1. Go off-hook.
2. Enter .
3. Enter the hour and minute (4 digits).
4. If 12-hour-time display is set, enter (AM) or (PM).
5. Enter (1 time) or (daily).
6. After the confirmation tone, go on-hook.
MTo cancelN
1. Go off-hook.
2. Enter .
3. After the confirmation tone, go on-hook.
MTo stop or answer the ring backN
1. Press [INTERCOM], or go off-hook.
17
Feature Operations

Useful Features
Multiple Party Conversation
MTo add other parties during a conversationN
1. Press [CONF].*1
2. After the confirmation tone, dial the phone number of the party to
add.
3. Talk to the new party.
4. Press [CONF].*1
5. After the confirmation tone, talk with multiple parties.
MTo leave a conferenceN
1. Press [CONF].*1
2. After the confirmation tone, go on-hook.
*1 For KX-NT511, press [CONF/STORE].
Before Leaving Your Desk
Call Forwarding
1. Go off-hook.
2. Enter .
3. Press a dial key to select the types of calls to apply this feature to.
: Both outside and intercom calls
: Outside calls only
: Intercom calls only
4. Press a dial key to select the status.
: All calls
: Busy
: No answer
: Busy/No answer
: Cancel*1
5. Enter an extension number, and then enter , or enter a CO line
access number, an outside phone number, and then enter .
6. After the confirmation tone, go on-hook.
*1 If you enter in Step 4, you can skip Step 5.
18
Feature Operations

Self Labeling (KX-NT553/KX-NT556 only)
The KX-NT553/KX-NT556 features 12 flexible buttons, with an LCD screen next to
the buttons. Each item can be named on the LCD screen through personal or
system programming to reflect the function of its corresponding flexible button.
Additionally, the KX-NT553 (KX-NT556) flexible buttons can be organized into 2 (3)
“pages”, allowing you to assign a total of 24 (36) items to the 12 flexible buttons.
You can toggle between pages by pressing [NEXT PAGE], as follows:
レヹノワヵブブピ
Bank
Home
London offc.
NY offc.
Sales
Chris Walace
Andre Romel
Sean Carter
Keith Murray
Log-in/out
LCS
CO 13
CO 12
CO 11
CO 10
CO 09
CO 08
CO 07
CO 06
CO 05
CO 04
CO 03
CO 02
CO 01
Storing a One-touch Dialing button, and setting the displayed text
for the Self Labeling LCD
1. Press the
PROG
soft button (S1).
2. Press a flexible CO button, or press [NEXT PAGE], and then press
a flexible CO button.
3. Enter .
4. Enter the number to store (max. 32 digits).*1
5. Press [ENTER].
6. Enter the text to store (max. 12 digits).
7. Press [ENTER].
8. Press [CANCEL].
*1 Enter the outside line access number before an outside phone number.
19
Feature Operations

Installation and Setup
Note
RPanasonic assumes no responsibility for injuries or property damage resulting
from failures arising out of improper installation or operation inconsistent with this
documentation.
Attaching a KX-NT505 to the KX-NT553/KX-NT556
The KX-NT505 allows 48 additional flexible CO buttons to
be added to this unit. These buttons are used to seize an
outside line, make a call using One-touch Dialing, or
perform a feature that has been assigned to the key.
1. Open the flat cable cover of
your unit.
2. Attach the KX-NT505 to your
unit with the 2 screws*1.
3. Plug the flat cable into the
connector (A), then bend the
cable slightly as shown (B).
4. Close the cover.
*1 Included with the KX-NT505X.
20
Installation and Setup
