Installation Guide
AT-OME-RX31
Omega 4K/UHD Scaler for HDBaseT and HDMI
AT-OME-RX31
The Atlona AT-OME-RX31 is an HDBaseT receiver, three-input switcher, and 4K/UHD scaler
with a local HDMI input. Part of the Omega™ Series of integration products for modern AV
communications and collaboration, the OME-RX31 features two HDBaseT inputs for receiving
video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up
to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-RX31 is
HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion.
Additionally, it provides integrated control for displays and room functions such as motorized
screens, and can be externally triggered with the addition of an occupancy sensor. The OME-
RX31 is ideal for 4K presentation applications with Omega, HDVS-200, or UHD-EX Series
transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI
sources, and the Gain™ Series ampliers.
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-RX31 for the latest rmware
updates and documentation.
Package Contents
1 x AT-OME-RX31
2 x Mounting brackets
4 x Mounting screws
2 x 5-pin captive screw connector
1 x 4-pin captive screw connector
1 x 3-pin captive screw connector
1 x 24 V DC power supply
1 x Installation Guide

2
Installation Guide
AT-OME-RX31
OMEGATM
AT-OME-RX31
FW
3
2
1
PWR
INPUT
IP MODE
RESET
LANSHOW IP
AT-OME-RX31
DC 24VRELAY
COM C2RX C1P TX TX RX
1 2
RS-232TRIGGER I/O
-
+
L R
- -
+ +
OUTPUTINPUT
3
21
Panel Descriptions
Front
1 2 3 4
5
6 7
1 PWR
This LED indicator glows solid green when the unit is powered.
2 SHOW IP
Press and release this button to display the IP address of the AT-OME-RX31 on the
connected display.
3 LAN
Connect Ethernet cables to these ports to control the unit and/or to pass Ethernet to a local
device.
4 IP MODE
Press and release this button, next to the green LED indicator, to switch the IP mode
between DHCP and static IP modes. The LED indicator will provide the current IP mode.
Refer to IP Conguration (page 10) for more information.
5 RESET
Press and release this button to reset the unit to factory-default settings. Refer to Resetting
to Factory-Defaults (page 11) for more information.
6 INPUT
Press and release this button to cycle through each of the three inputs. A solid green LED
indicator will display the currently active input. Each LED indicator corresponds to each of
the numbered inputs on the rear panel of the unit.
7 FW
Connect a USB to mini-USB cable from this port to a computer to updated the rmware.
Refer to the User Manual for more information.

3
Installation Guide
AT-OME-RX31
1 INPUT (HDBaseT)
Connect up to two category cables (CAT-5e or better) from each of these ports to a
compatible HDBaseT transmitter.
2 INPUT (HDMI)
Connect an HDMI cable from this port to a UHD/HD source.
3 OUTPUT (HDMI)
Connect an HDMI cable from this port to a display device.
4 OUTPUT (AUDIO)
Connect an audio output device to this port using the included 5-pin captive screw block.
Refer to Audio Output Connector (page 4) for wiring information.
5 TRIGGER I/O
Connect voltage-controlled device to this port. A 4-pin captive screw connector is required.
Refer to TRIGGER I/O Connector (page 5) for wiring information.
6 RS-232
Connect the included 5-pin captive screw to this port to provide RS-232 control for the AT-
OME-RX31 and the connected display. Refer to RS-232 Connector (page 6) for wiring
information.
7 RELAY
Connect the included 3-pin captive screw block to this port. This port provides a port,
which allows the control of screens, curtains, and other devices. Use a 48 V DC relay
with no more than 1 A current draw. Refer to RELAY Connector (page 7) for wiring
information.
8 DC 24V
Connect the optional locking 24 V DC power supply to this power receptacle.
OMEGATM
AT-OME-RX31
FW
3
2
1
PWR
INPUT
IP MODE
RESETLANSHOW IP
AT-OME-RX31
DC 24VRELAY
COM C2RX C1P TX TX RX
1 2
RS-232TRIGGER I/O
-
+
L R
- -
+ +
OUTPUT
INPUT
3
21

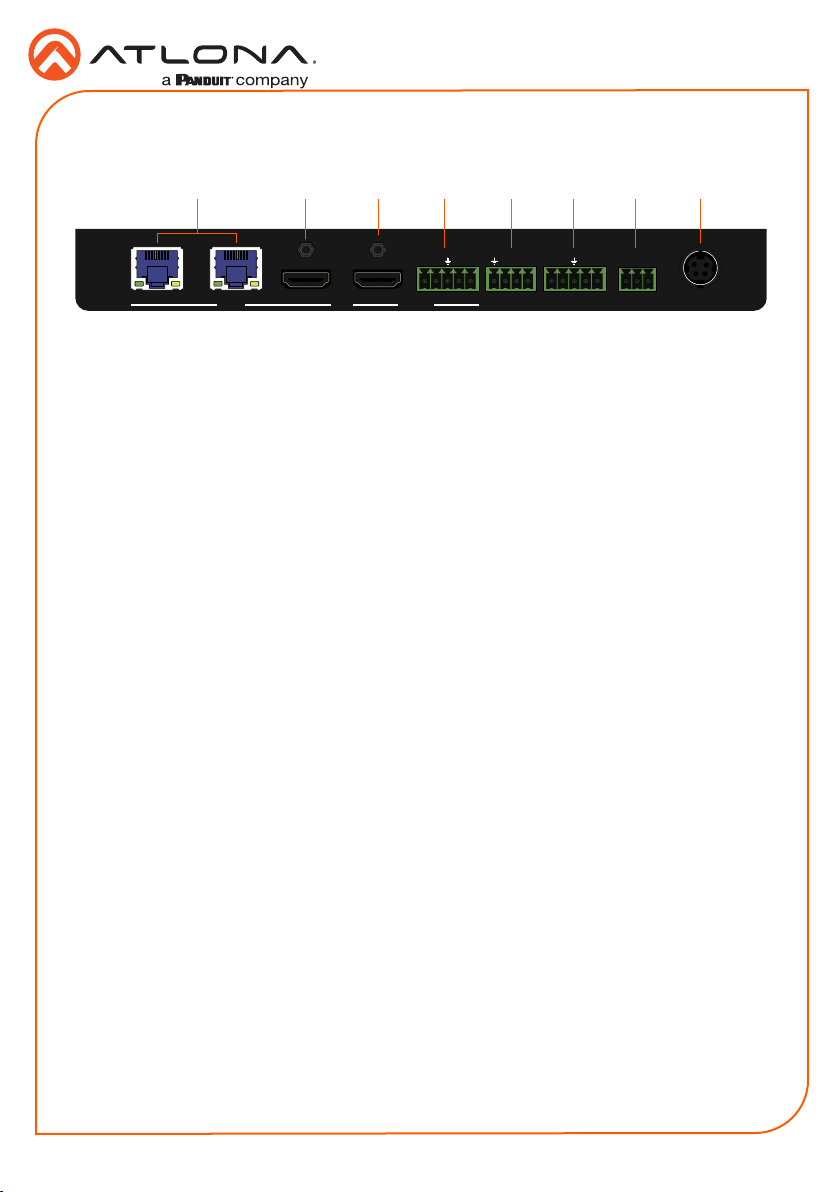

Panel Descriptions
Rear
21 3 4 5 6 7 8

4
Installation Guide
AT-OME-RX31
The AT-OME-RX31 provides two-channel LPCM audio de-embedding of the source device, using
a dedicated audio output port.
Audio Output Connector
Unbalanced
Balanced
1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16” (5 mm) of insulation from each of the wires.
3. Insert the wires into the correct terminals using the included 5-pin captive screw connector.
4. Attach the 5-pin connector block to the OUTPUT audio port on the AT-OME-RX31.
GND
Side View Side View
+
GND
+
-
2 1
3
2 1
3
GND GND
-
+
Rear View Rear View
-
+
- + + -
- + + -

5
Installation Guide
AT-OME-RX31

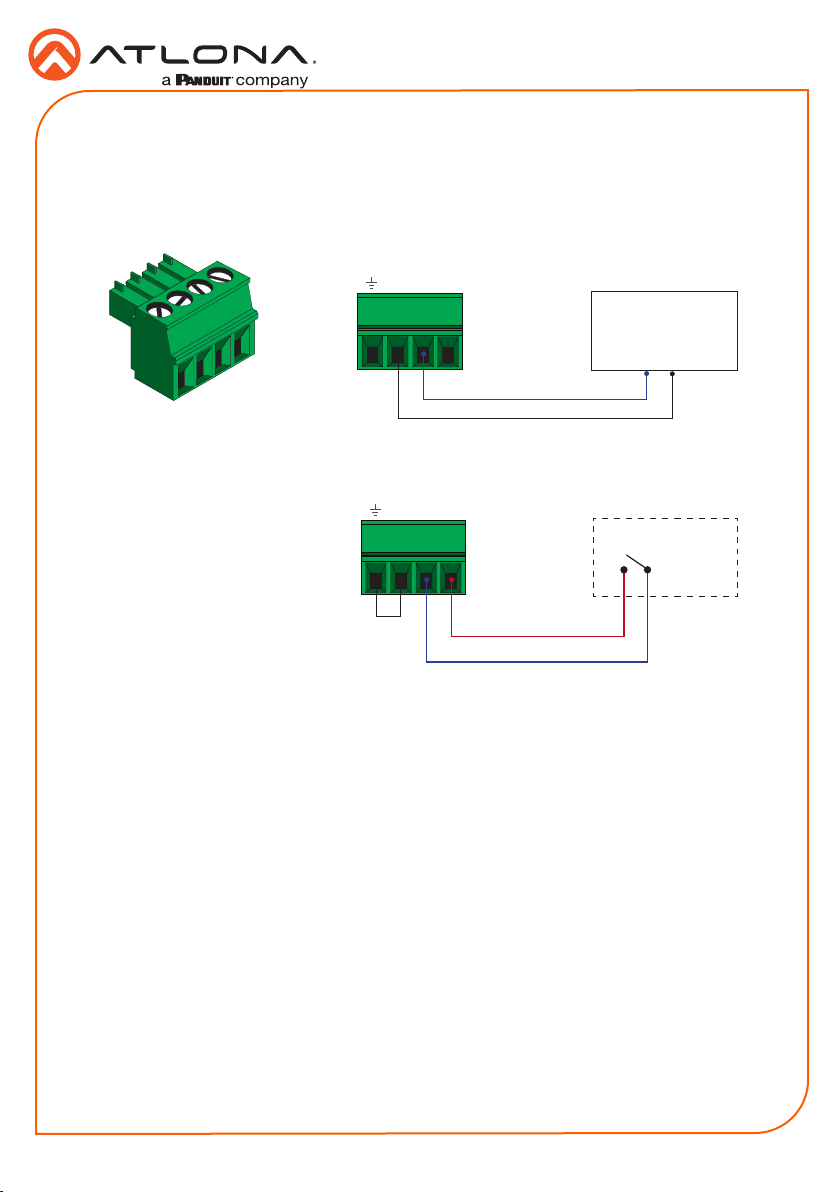

The TRIGGER I/O port allows voltage-controlled devices, such as an occupancy sensor, to be
connected to the AT-OME-RX31. Use the included 4-pin captive screw connector to connect the
device. The voltage range is 3 V to 30 V DC.
TRIGGER I/O Connector
1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16” (5 mm) of insulation from each of the wires.
3. Insert the wires into correct terminal using the included 4-pin captive screw connector.
4. Attach the 4-pin connector block to the TRIGGER I/O port on the AT-OME-RX31.
Common (Set LOW)
Control (Set HIGH)
Powered sensor
30 V (max.)
- + P
Control (Set HIGH)
+12 V DC
Passive sensor
- + P
Powered Sensor
Passive Sensor

6
Installation Guide
AT-OME-RX31
1 2
RX TX TX RX
GND
GND
RX
TX
RX
TX
5 3 2
5 3 2
The AT-OME-RX31 provides an RS-232 port for RS-232 control. RS-232 1 is used for controlling
the connected display. RS-232 2 is used for controlling the AT-OME-RX31. Note that the ground
pin is shared between port 1 and port 2.
NOTE: Typical DB9 connectors use pin 2 for TX, pin 3 for RX, and pin 5 for
ground. On some devices functions of pins 2 and 3 are reversed.
RS-232 Connector
1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16” (5 mm) of insulation from each of the wires.
3. Insert the wires into correct terminal using the included 5-pin captive screw connector.
4. Attach the 5-pin connector block to the RS-232 port on the AT-OME-RX31.

7
Installation Guide
AT-OME-RX31
The RELAY port allows the control of screens, curtains, and other devices. Use a 48 V DC relay
with no more than 1 A current draw.
When the AT-OME-RX31 is powered-on or rebooted, C1 and C2 are set to the Normally Open
(NO) state.
RELAY Connector
1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16” (5 mm) of insulation from each of the wires.
3. Insert the wires into correct terminal using the included 3-pin captive screw connector.
4. Attach the 3-pin connector block to the RELAY port on the AT-OME-RX31.
C2
COM
C1
C1 COM C2

8
Installation Guide
AT-OME-RX31
OMEGATM
AT-OME-RX31
FW
3
2
1
PWR
INPUT
IP MODE
RESETLANSHOW IP
AT-OME-RX31
DC 24VRELAY
COM C2RX C1P TX TX RX
1 2
RS-232TRIGGER I/O
-
+
L R
- -
+ +
OUTPUT
INPUT
3
21
OMEGATM
AT-OME-RX31
FW
3
2
1
PWR
INPUT
IP MODE
RESET
LANSHOW IP
AT-OME-RX31
DC 24VRELAY
COM C2RX C1P TX TX RX
1 2
RS-232TRIGGER I/O
-
+
L R
- -
+ +
OUTPUTINPUT
3
21
1. Connect an Ethernet cable from one of the LAN ports to the Local Area Network. Connect
another Ethernet cable from one of the LAN ports to a display device, allowing IP control.
2. Connect up to category cables (CAT-5e or better) from compatible HDBaseT transmitters to
the INPUT 1 and INPUT 2 ports.
3. Connect an HDMI cable from INPUT 3 to a UHD/HD source device.
4. Connect an HDMI cable from the HDMI OUTPUT port to a display device.
5. OPTIONAL: Connect an audio output device to this port using the included captive screw
block.
6. OPTIONAL: Connect a voltage-controlled device, such as an occupancy sensor, to the
TRIGGER I/O port. Refer to TRIGGER I/O Connector (page 5) for wiring information.
7. OPTIONAL: Connect a serial cable from RS-232 1 port to a display device. Refer to RS-
232 Connector (page 6) for wiring information.
8. OPTIONAL: Connect a serial cable from RS-232 2 port to a control system, to control the
AT-OME-RX31 remotely. Refer to RS-232 Connector (page 6) for wiring information.
9. OPTIONAL: Connect an the RELAY port to the motor control for screens, curtains, and
other devices. Use a 48 V DC relay with no more than 1 A current draw. Refer to RELAY
Connector (page 7) for more information.
10. Connect the included 24 V DC power supply from this receptable to an available AC outlet.
Installation
3 4 5 6 7 8 9 10
1
2

9
Installation Guide
AT-OME-RX31
The AT-OME-RX31 includes two mounting
brackets, which can be used to attach the unit
to any at surface. Use the two enclosure
screws, on the sides of the unit to attach the
mounting brackets.
1. Using a small Phillips screwdriver, remove
the two screws from the left side of the
enclosure.
2. Position one of the mounting brackets, as
shown below, aligning the holes on the
side of the enclosure with one set of holes
on the mounting bracket.
3. Use the screws from Step 1 to attach the
mounting bracket.
4. Repeat steps 1 and 2 to attach the
second mounting bracket to the opposite
side of the unit.
5. Mount the unit to a at surface using the
oval-shaped holes, on each mounting
bracket. If using a drywall surface, a #6
drywall screw is recommended.
OMEGA
TM
PWR
LINK
FW
1
2
3
INPUT TEST
AT-OME-ST31
OMEGA
TM
PWR
LINK
FW
1
2
3
INPUT TEST
AT-OME-ST31
OMEGA
TM
PWR
LINK
FW
1
2
3
INPUT TEST
AT-OME-ST31
NOTE: Mounting brackets can
also be inverted to mount the
unit under a table or other at
surface.
Mounting Instructions

10
Installation Guide
AT-OME-RX31
OMEGATM
AT-OME-RX31
FW
3
2
1
PWR
INPUT
IP MODE
RESET
LANSHOW IP
AT-OME-RX31
DC 24VRELAY
COM C2RX C1P TX TX RX
1 2
RS-232TRIGGER I/O
-
+
L R
- -
+ +
OUTPUTINPUT
3
21

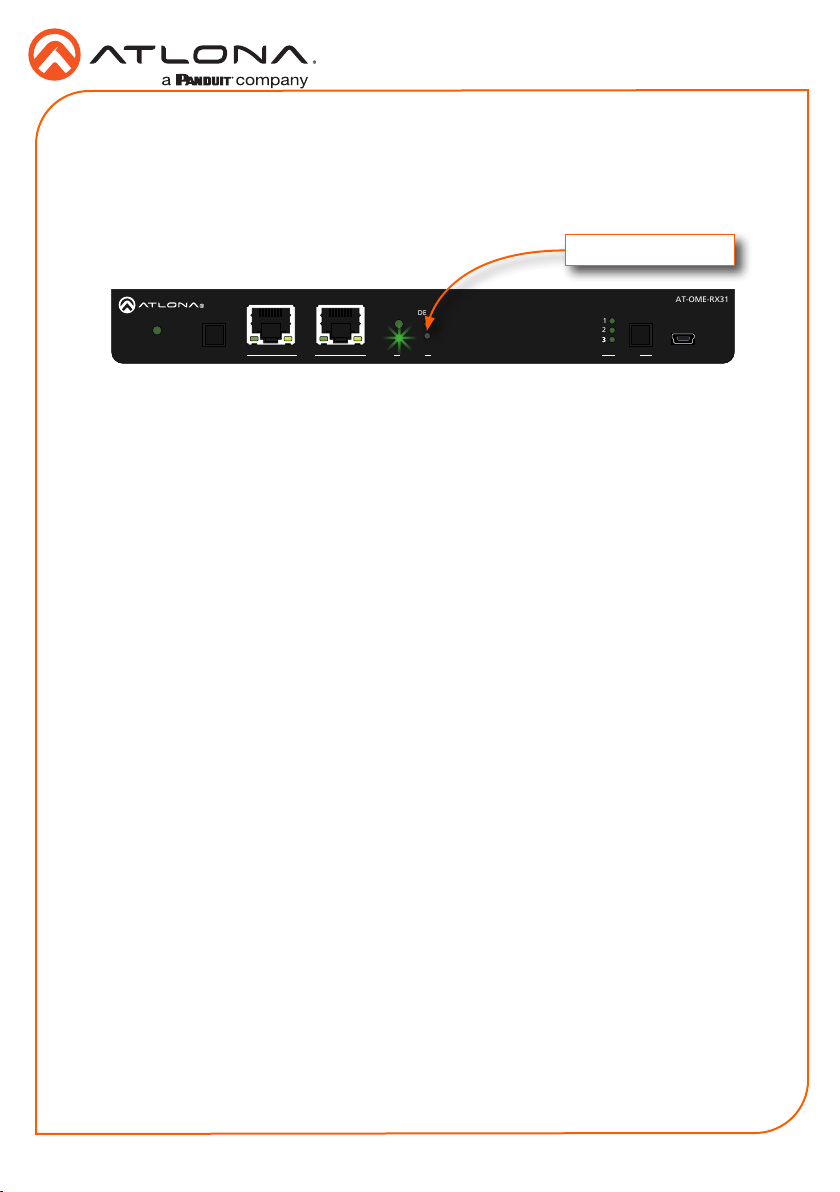

IP Conguration
1. Make sure the AT-OME-RX31 is powered
2. Press and hold the IP MODE button, on the rear of the unit, for approximately ve seconds.
The AT-OME-RX31 is shipped with DHCP enabled. Once connected to a network, the DHCP
server (if available), will automatically assign an IP address to the unit. If the AT-OME-RX31
is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP
address within the range of 169.254.xxx.xxx.
Use an IP scanner, along with the MAC address on the bottom of the unit, to identify the unit on
the network. If a static IP address is desired, the unit can be switched to static IP mode.
The default static IP address is 192.168.1.254.
Switching the IP mode
IP MODE LED ashes Description
Two Factory Static IP mode (IP address set to 192.168.1.254)
Four DHCP mode
3. Release the button once the LED indicator, next to the IP MODE button, begins to ash
green. The number of ashes will indicate the currently selected IP mode.
IP Mode button
To display the IP address of the AT-OME-RX31, on the connected display, press and release the
SHOW IP button on the front panel.
Displaying the IP Address

11
Installation Guide
AT-OME-RX31
Resetting to Factory-Defaults
To reset the AT-OME-RX31 to factory-default settings, press and hold the RESET button for
approximately 5 seconds. Release the button when the RESET LED indicator begins to ash.
The LED indicator will ash three times to indicate that the reset procedure has completed.
For easy conguration of Atlona devices, AMS 2.0 is available from https://atlona.com/ams for
free. Two options can be used for installation: The free easy-to-install AMS software (AT-AMS-
SW) download or the AMS server hardware (AT-AMS-HW).
Once AMS has been set up:
1. Open a browser on the same network as AMS 2.0 and go to the IP address of AMS 2.0.
View the AMS 2.0 installation instructions on how to nd the IP address of the software, if
necessary.
2. Enter the login information on the AMS 2.0 web page, then click the Login button.
3. View the AT-OME-RX31 manual for more information.
AMS 2.0
Web GUI
The AT-OME-RX31 includes a built-in web GUI, which allows easy management and control of all
features. Follow the instructions below to access the web GUI.
1. Set the IP mode of the AT-OME-RX31. Refer to IP Conguration (page 10) for more
information.
2. Connect an Ethernet cable from one of the LAN port on the AT-OME-RX31 to the Local Area
Network (LAN).
3. Connect an HDMI cable from the AT-OME-RX31 to a display, then press the SHOW IP
button on the front panel to display the IP address.
4. Launch a web browser and enter the IP address of the unit.
5. The AT-OME-RX31 Login page will be displayed.
6. Enter the following information on the Login page. Login credentials are case-sensitive.
Login: admin
Password: Atlona
7. Click the Login button.
OMEGATM
AT-OME-RX31
FW
3
2
1
PWR
INPUT
IP MODE
RESET
LANSHOW IP
AT-OME-RX31
DC 24VRELAY
COM C2RX C1P TX TX RX
1 2
RS-232TRIGGER I/O
-
+
L R
- -
+ +
OUTPUTINPUT
3
21
IP Mode button

12
Installation Guide
AT-OME-RX31

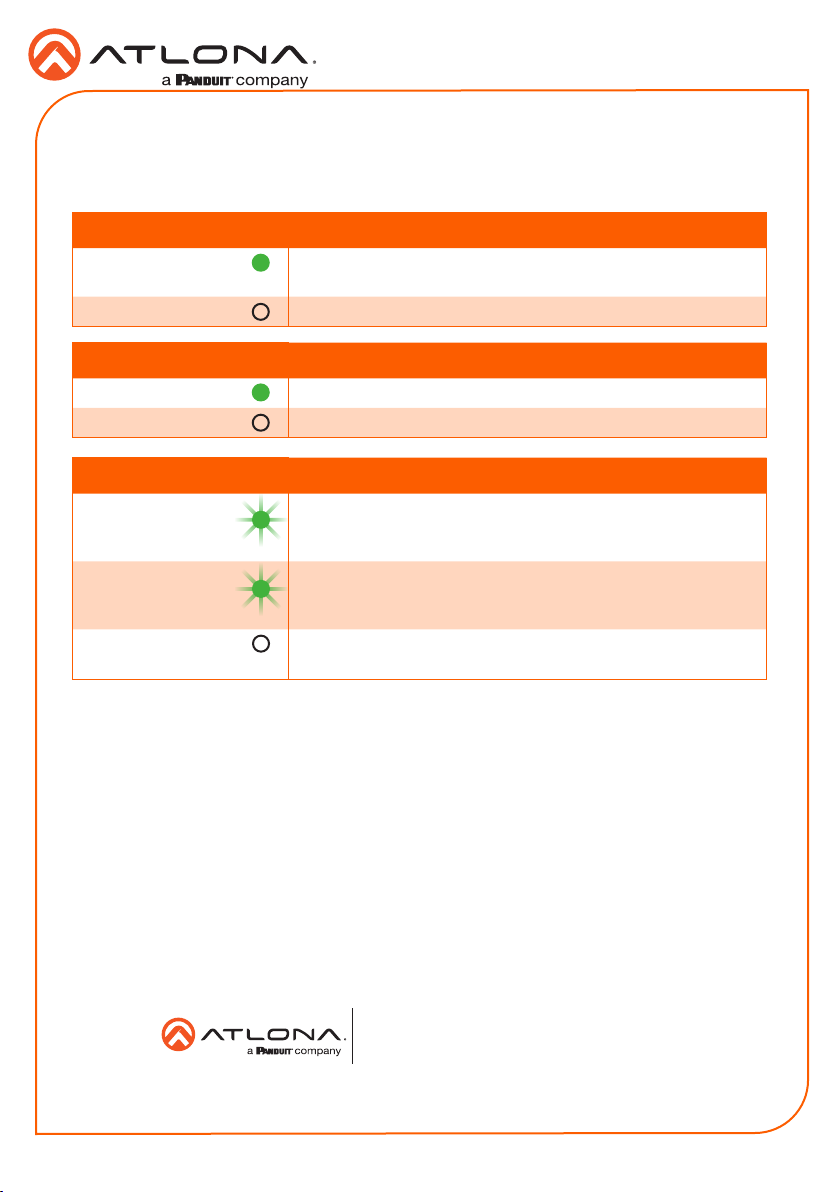

Front Panel LED Indicators
The LED indicators on both the front and rear of the unit provide basic information on the current
status of the unit.
PWR Description
Solid green Unit is receiving power using the optional 24 V DC power
supply.
O Unit is not powered.
1, 2, 3 Description
Solid green The input is the currently selected input.
O The input is not selected.
IP MODE Description
Flashes green (4x) Flashes four times to indicate that the unit is being set to
DHCP mode. Refer to IP Conguration (page 10) for more
information.
Flashes green (2x) Flashes four times to indicate that the unit is being set to
DHCP mode. Refer to IP Conguration (page 10) for more
information.
O Normal operating mode.
Version 1
© 2020 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered
trademarks are the property of their respective owners. Pricing, specications and availability subject to change without notice. Actual products, product images, and
online product images may vary from images shown here.
Toll free US International
atlona.com •877.536.3976 •41.43.508.4321
