Panduit PES400 User manual

PES400
PA28981A01
Rev. 014-2018
PORTABLE EMBOSSING SYSTEM
OPERATION MANUAL
© Panduit Corp. 2018
Email:
ga-techsupp[email protected]
EU Website:
www.panduit.com/emea
EU Email:
emeatoolservicecenter
@panduit.com
www.panduit.com
US & Canada Technical Support:
Tel: [phone]
Panduit Europe
EMEA Service Center
Almelo, Netherlands
Tel: [phone]
Fax: [phone]

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
Table of contents
1. SETUP and INSTALLATION GUIDE................................................................................................................1
1.1 Unpacking..............................................................................................................................1
1.2 Checking the Accessories...................................................................................................1
1.3 Connecting Communication Cables...................................................................................3
1.4 Install Software for the USB to Serial Adapter ..................................................................4
1.4.1 System Requirements ........................................................................................................4
1.4.2 Install Software for the USB to Serial Adapter (XP, Vista, 2000)....................................4
1.4.3 Windows 7, 8 and 10...........................................................................................................5
1.5 Install External Hopper.........................................................................................................5
1.6 Easy-Mark Plus™ Software Installation .............................................................................5
2. INTRODUCTION................................................................................................................................................7
3. SYSTEM SPECIFICATIONS ...........................................................................................................................12
3.1 Electrical Specification.......................................................................................................12
3.1.1 Equipment Classification and Standard Reference......................................................12
3.1.2 Working Condition...........................................................................................................12
3.1.3 Dimensions and Weight ..................................................................................................12
3.1.4 Production Capacity ........................................................................................................13
3.2 Safety Regulations and Operating Precautions ..............................................................14
4. MACHINE SETUP FOR PRODUCING PLATES..........................................................................................16
4.1 Quick Start Steps for Changing Plate Sizes and Embossing ........................................16
4.2 Detailed Setup Instructions ...............................................................................................18
4.2.1 Remove Top Clamp...........................................................................................................18
4.2.2 Remove Top Weights........................................................................................................18
4.2.3 Remove Plates...................................................................................................................18
4.2.4 Move RH Side Wall............................................................................................................18
4.2.5 Plate Support Block Changeover....................................................................................19
4.2.6 Install Top Clamp ..............................................................................................................23
4.2.7. Gate Height Adjustment..................................................................................................23
4.2.8. Guide Rail Adjustment ....................................................................................................26
4.2.9 Loading Marker Plates......................................................................................................28
4.2.10 Side Eject Guide Plate Adjustment:..............................................................................28
4.2.11 External Hopper Adjustment.........................................................................................29
4.2.12 Turn on PES400 ..............................................................................................................31
4.2.13 Open and use Panduit Easy-Mark Plus™ software.....................................................31
4.2.14 Embossing Plates...........................................................................................................34
4.2.15 Changing Plate Formats ................................................................................................35
4.3 Embossing Force Adjustment...........................................................................................35
5. Error Codes ..................................................................................................................................................38
5.1 PES400 Display...................................................................................................................38
5.2 Easy-Mark Plus™ Errors....................................................................................................41
6. TROUBLE SHOOTING .................................................................................................................................42
7. GENERAL MAINTENANCE..........................................................................................................................43
8. CLEANING AND MAINTENANCE SCHEDULE FOR PES400....................................................................44
9. CONTACT INFORMATION • For Technical Support:..............................................................................46
NOTE: In the interest of higher quality and value, Panduit products
are continually being improved and updated.
Consequently, pictures may vary from the enclosed product.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 1 of 46 4-2018
1. SETUP and INSTALLATION GUIDE
1.1 Unpacking
CAUTION
CAUTION! HEAVY OBJECT
FOUR PERSON LIFT REQUIRED
THE MACHINE & CRATE WEIGHS 210 lbs. (95 Kg).
The Dimensions are: 33” (830 mm) X 29” (730 mm) X 24” (600 mm).
All movement of the machine and crate should be done by a
forklift; or by at least four persons, as the gross weight is approx.
210 lbs. (95 Kg).
•The PES400 system is delivered in a wooden case.
•Insure that facility doors, lifts, hoists, etc. are adequately sized to handle the crate and
machine when selecting an installation site.
Dismantle the case, with the following procedure:
•Unscrew the side
upper screws to
remove the top
cover.
•Remove the
accessories:
cables,
documentation, etc.
•Remove the top
polyurethane shell.
•Unscrew the
bottom screws to
remove the side
cover.
•Extract the machine
from the bottom
polyurethane shell
(using at least four
persons).
•Remove the plastic
wrap from machine.
It is advisable to keep the box, the pallet and the protective materials for possible reuse.
NOTE: In addition to the machine, the components shown and listed below are included
with the PES400.
1.2 Checking the Accessories
Before installing the machine, check that all the accessories are present and that none
have been damaged during transport. If any single element has been damaged the
general operation of the machine can be compromised. The following items are supplied
with the Embosser:

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 2 of 46 4-2018
ACCESSORIES (ITEMS INCLUDED WITH EMBOSSER)
# DESCRIPTION # DESCRIPTION
1 1 SOFT SIDED CASE 10
1 USB FLASH DRIVE WITH EASY-MARK
PLUS SOFTWARE AND OPERATION
MANUAL
2
1 EXTERNAL HOPPER WITH MULTIPLE
WIDTH INSERT; AND SMALL PLATE
INSERTS
11 2 KEYS FOR TECHNICAL SERVICE
USE
3 1 SERIAL CABLE, 9-25 PIN 12
3COMBINATION WRENCHES (13mm,
7mm & 5mm)
4
2 SHORT PLATE WEIGHTS
1 EXTRA WIDE PLATE WEIGHT 13 SHORT AND LONG LOADER TOP
CLAMP
5 SHORT AND LONG PLATE SUPPORT
BLOCKS 14
1 WIDE PLATE WEIGHT
1 MEDIUM PLATE WEIGHT
1 NARROW PLATE WEIGHT
6 GATE HEIGHT GAUGE SET 15
1 RS232 TO USB ADAPTER SERIAL
PORT CABLE
7
1 ALLEN WRENCH (2.5mm)
16
TEST PLATES
8
2 MACHINE COVER KEYS
17
POWER CORD FOR 220V
9 POWER CORD FOR 110V 18
3 GUIDE RAIL SIZING BLOCKS:
1 FOR WIDE PLATES,
1 FOR MEDIUM PLATES
1 FOR NARROW PLATES

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 3 of 46 4-2018
1.3 Connecting Communication Cables
1. Safety Lock
Safety Lock is only to be used when the machine is being serviced by a qualified
professional. Machine is defaulted to protective mode disabling operation when front
cover is open.
2. Serial Cable
Connect the Serial Cable between the machine and the computer serial port (no driver
needed) or USB to serial cable. Connection is limited to 9.8 feet (3 meters) max. in
length.
3. USB/Serial Cable
Connect between Serial Cable and computer USB port. Driver needed for USB to serial
port.
4. AC
Connect the AC cable to the rear input of the machine and to the proper AC source. Be
sure to verify the power required.
WARNINGS AND ADVICE DURING INSTALLATION
WARNING! To avoid electric shock the power plate protective grounding conductor
must be connected to a ground circuit that conforms to the National Standard.
AVERTISSEMENT! Pour éviter les risques de décharge électrique, le conducteur de
protection de la plaque d’alimentation doit être connecté à un circuit de mise à la
terre conforme à la norme nationale.
WARNING! Remember to connect the serial cable to the machine while it is switched
off to avoid damaging the circuits.
AVERTISSEMENT! Il est important d’éteindre la machine avant d’y connecter le câble
série afin d’éviter d’endommager les circuits.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 4 of 46 4-2018
•The Identification Label attached to the rear panel contains information about the
serial number, the type of machine, the necessary power supply and maximum
current.
•Before switching the machine on, be sure that all the cables have been connected
correctly and that the local power supply corresponds to that stated on the label.
•The label layout is as follows:
Model: PES400
Type: Embossing Machine
Volt: 100 – 240 VAC
Hz: 50/60
Imax: 5.6 A
S/N: Serial Number
Mfg.: Manufacture Date
Fuse rating: 2x – T5A 250VAC
1.4 Install Software for the USB to Serial Adapter
1.4.1 System Requirements
•Windows 10, Windows 8, Windows 7, Vista, Windows 2000 SP4 or Windows
XP SP2.
•USB to Serial DB9 adapter
•Computer with available USB ports
1.4.2 Install Software for the USB to Serial Adapter (XP, Vista, 2000)
a. Insert the Flash Drive that came with the PES400 into the USB port on the
target computer.
b. If the auto start runs the installation go to Step 6, if not continue.
c. Click on the My Computer icon, either on the desktop or click Start and then
My Computer.
d. Double-click on the icon for the Flash Drive to display the files.
e. Find the Autorun.exe or Setup.exe file and double-click on it.
f. Select the option to install the USB to Serial Adapter you have with the
Windows version you are running.
g. Connect the USB to serial cable to serial cable from embosser and USB port
on computer. Reboot if prompted to reboot.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 5 of 46 4-2018
1.4.3 Windows 7, 8 and 10
a. Connect the USB to serial cable to serial cable from embosser and USB port
on computer.
b. Operating system will automatically download the driver.
1.5 Install External Hopper
1. Use the 2 screws provided to mount external hopper. Place the screw heads to the
outside, nuts and washers to the inside of the embosser.
2. Slide hopper back and forth on screws to line up divider in 0.75” (19mm) slot, see
[Figure 24], with side eject guide plate @ 0.75” (19mm) see [Figure 23].
3. Tighten screws to lock hopper position.
1.6 Easy-Mark Plus™ Software Installation
***Version 1.2 or higher is required to operate the PES400 Embossing System***
SYSTEM REQUIREMENTS:
- Windows XP, Vista, 7, 8, 9, or 10
- 32 or 64 bit operating systems
- Microsoft .NET Framework 4.0 or higher
- 300MB of hard drive space and 2 GB of Memory
- USB port
- Mouse or compatible pointing device
- Keyboard
Perform the following steps to install the Easy-Mark Plus™ labeling software:
1. Insert the provided USB Flash Drive into an available USB port on the destination PC.
NOTE: DO NOT remove the label from USB drive.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 6 of 46 4-2018
2. Using Windows Explorer, navigate to the folder “Removable Disk X:\Easy-Mark Plus”
(substituting the “X” with the assigned letter of the USB drive).
3. In the folder, double-click on the program Easy-Mark Plus_setup.exe.
4. When prompted, select your preferred language for installation instructions, and click
‘OK’ to proceed.
5. Follow the prompts in the on-screen installation guide, to finish the installation.
When the installation is completed you will see the Easy-Mark Plus™ icon on your desktop and
the new Panduit “Easy-Mark Plus” folder in the Start-Programs list.
NOTE: Save the Flash Drive packaging, as it contains the Serial number, which
will be required for activation.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 7 of 46 4-2018
2. INTRODUCTION
The Panduit PES400 is an automatic embossing system for metal marker plates.
It is computer operated and runs with Panduit Easy-Mark Plus™ software. (e.g.: PC compatible).
The PES400 has the following characters available in two sizes (3mm and 5mm font):
A through Z, numbers 0 through 9, and special characters:
@ # % & * ( ) - + : , . / ’
The Panduit PES400 machine stamps exclusively the Panduit Metal Marker Plates and Tags shown
below. Visit www.panduit.com for the latest information.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 8 of 46 4-2018
MMP337W53-MAL-4
3mm Font: 20 Characters
Max. per line, 8 lines max.
5mm Font: 14 Characters
Max. per line, 8 lines max.
Plate Thickness: .015” - .016”
(.38mm-.40mm)
Material: ALUM
MMP337W71-MAL-3
3mm Font: 20 Characters
Max. per line, 9 lines max.
5mm Font: 14 Characters
Max. per line, 9 lines max.
Plate Thickness: .015”-.016”
(.38mm-.40mm)
Material: ALUM
MMP172-M / M316
3mm Font: 12 Characters
Max. per line, 3 lines max.
5mm Font: 8 Characters
Max. per line, 3 lines max.
Plate Thickness: .010” (.25mm)
Material: 304 / 316

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 9 of 46 4-2018
MMP172W38-M / M316
3mm Font: 8 Characters
Max. per line, 1 line max.
5mm Font: 6 Characters
Max. per line, 1 line max.
Plate Thickness: .010” (.25mm)
Material: 304 / 316
MT172W38-M
3mm Font: 12 Characters
Max. per line, 1 line max.
5mm Font: 8 Characters
Max. per line, 1 line max.
Plate Thickness: .010” (.25mm)
Material: 304
MT172-M / M316
3mm Font: 12 Characters
Max. per line, 3 lines max.
5mm Font: 8 Characters
Max. per line, 3 lines max.
Plate Thickness: .010” (.25mm)
Material: 304 / 316
MMP350W38-M / M316
3mm Font: 25 Characters
Max. per line, 3 lines max.
5mm Font: 18 Characters
Max. per line, 1 line max.
Plate Thickness: .010” (.25mm)
Material: 304 / 316
MMP350-M / M316
3mm Font: 25 Characters
Max. per line, 3 lines max.
5mm Font: 18 Characters
Max. per line, 3 lines max.
Plate Thickness: .010” (.25mm)
Material: 304 / 316

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 10 of 46 4-2018
MMP350H-M / M316
3mm Font: 22 Characters
Max. per line, 3 lines max.
5mm Font: 16 Characters
Max. per line, 3 lines max.
Plate Thickness: .010” (.25mm)
Material: 304 / 316
MT350W38-M316
3mm Font: 29 Characters
Max. per line, 1 line max.
5mm Font: 20 Characters
Max. per line, 1 line max.
Plate Thickness: .010” (.25mm)
Material: 316
MT350-M / M316
3mm Font: 29 Characters
Max. per line, 3 lines max.
5mm Font: 20 Characters
Max. per line, 3 lines max.
Plate Thickness: .010” (.25mm)
Material: 304 / 316
MMP350HW54-MAL
3mm Font: 22 Characters
Max. per line, 2 lines max.
5mm Font: 16 Characters
Max. per line, 2 lines max.
Plate Thickness: .012” (.30mm)
Material: ALUM
MMP350H-MAL
3mm Font: 22 Characters
Max. per line, 3 lines max.
5mm Font: 16 Characters
Max. per line, 3 lines max.
Plate Thickness: .012” (.30mm)
Material: ALUM

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 11 of 46 4-2018
MMP350W17-M
3mm Font: 25 Characters
Max. per line, 7 lines max.
5mm Font: 18 Characters
Max. per line, 7 lines max.
Plate Thickness: .015”-.016”
(.38mm-.40mm)
Material: 304
MT350W17-M
3mm Font: 29 Characters
Max. per line, 7 lines max.
5mm Font: 20 Characters
Max. per line, 7 lines max.
Plate Thickness: .015”-.016”
(.38mm-.40mm)
Material: 304
MT350W17-D-4HL
3mm Font: 25 Characters
Max. per line, 7 lines max.
5mm Font: 18 Characters
Max. per line, 7 lines max.
Plate Thickness: .015”-.016”
(.38mm-.40mm)
Material: 304

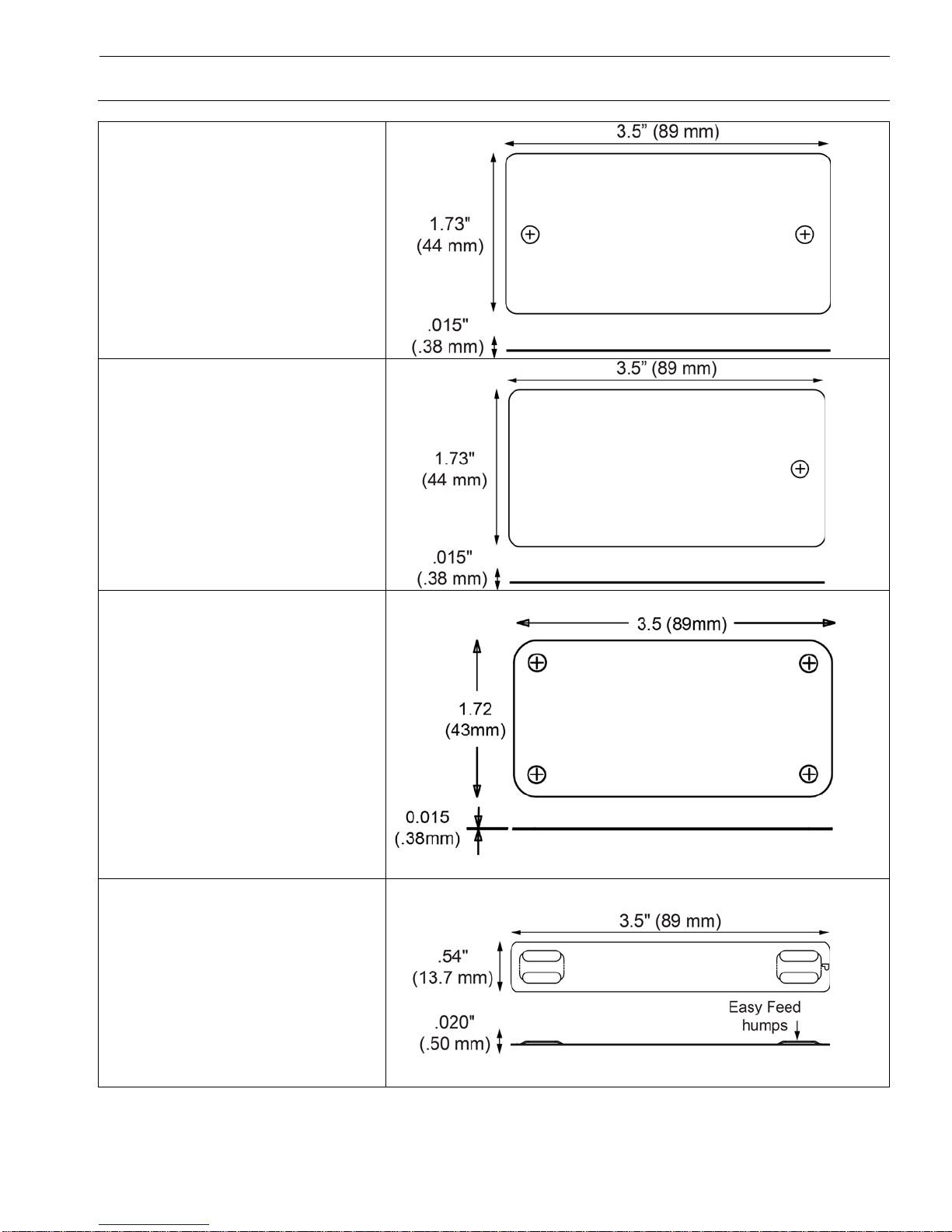

NCMP350W54T20-AL
3mm Font: 22 Characters
Max. per line, 2 lines max.
5mm Font: 16 Characters
Max. per line, 2 lines max.
Plate Thickness: .020” (.50mm)
Material: ALUM

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 12 of 46 4-2018
3. SYSTEM SPECIFICATIONS
3.1 Electrical Specification
PES400
Power Supply
100-240 VAC 50/60Hz
5.6 A max.
Use only properly rated supplied cords by
Panduit. Install only per National Regional
Electrical Codes and Standards.
3.1.1 Equipment Classification and
Standard Reference
CISPR 32:2015 COR 1:2016, Class A
AS/NZS CISPR 32:2015, Class A - Electromagnetic Compatibility Of Multimedia Equipment - Emission Requirements
FCC 47 CFR, Part 15:2017, §15.107 and §15.109, Class A, test method: ANSI C63.4-2014 - Radio Frequency Devices
ICES-003, Issue 6:2016 - Information Technology Equipment (Including Digital Apparatus) – Limits and Methods of
Measurement
KN 61000-6-4:2012
KN 61000-6-2:2012
KN 61000-3-3:2014
KN 61000-3-2:2012
IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
UL STD 60950-1:2007 Ed.2 +R:14Oct2014 - Information Technology Equipment Safety - Part 1: General Requirements
CSA STD C22.2#60950-1-07:2007 Ed.2 - Information Technology Equipment Safety - Part 1: General Requirements
(R2016)
3.1.2 Working Condition
PES400
Listings in ( ) are metric.
Operating
Temperature
+50° to +104° F
(+10° to +40° C)
Relative
Humidity
20% to 85%
Storing
Temperature
+32° to +122° F (0° to +50° C)
3.1.3 Dimensions and Weight
PES400
Listings in ( ) are metric.
Height
16.5” (42cm)
Width
35.8” (91cm)
Depth
23.6” (60cm)
Weight [Net]
155 lbs. (70 Kg)

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 13 of 46 4-2018
3.1.4 Production Capacity
PES400
Loader Capacity
Capacity 200 Plates
(0.5mm Plate Thickness)
External Hopper
Capacity
Capacity 100 Plates
Plate Production
Rate
350 Plates per hour,
40 Character Plate

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 14 of 46 4-2018
3.2 Safety Regulations and Operating Precautions
•The machine should be used in a closed room protected from dust and excessive
humidity. The machine should be positioned in such a way that its distance from the walls,
doors, windows, other machines or working positions guarantees immediate access in
case of emergency, maintenance or repairs.
•La machine doit être installée dans un local fermé, à l’abri de la poussière et de l’humidité
excessive. Elle doit être suffisamment éloignée des murs, des portes, des fenêtres, des
autres machines et des postes de travail pour assurer un accès immédiat en cas
d’urgence, d’entretien ou de réparation.
•
Do not install this machine in the
neighborhood of other operating machines which
produce dust since dust can deposit itself inside the machine and cause damage to the
internal electrical parts
•Ne pas installer cette machine à proximité d’autres machines en fonction qui produisent
de la poussière : celle-ci peut se déposer à l’intérieur de la machine et endommager les
pièces électriques internes.
•The machine is furnished with special safety guards which protect the operator from
coming into contact with the mechanical and electrical parts inside the machine. Only
those persons who are specialized in repairs and maintenance and who have been
authorized should have access to the above mentioned parts. Simple general
maintenance can be safely performed by the operator so long as the machine has been
stopped and the electrical power supply has been disconnected.
•La machine est équipée de dispositifs de sécurité spéciaux qui empêchent l’opérateur
d’entrer en contact avec les pièces mécaniques et électriques à l’intérieur de la machine.
Ces pièces ne doivent être accessibles qu’aux personnes autorisées et spécialisées en
réparation et en entretien. L’opérateur peut effectuer l’entretien général en toute sécurité
si la machine est éteinte et que l’alimentation électrique est coupée.
•
The machine has been made with fire resistant materials thus diminishing the risk of fire.
Short circuit protection has been implemented so that the power supply is immediately
isolated thus avoiding unwanted current absorption from the external power line.
•La machi
ne est fabriquée en matériaux résistants au feu afin de réduire les risques
d’incendie. Elle est dotée d’une protection coupant immédiatement l’alimentation
électrique en cas de courts-
circuits afin d’éviter l’absorption indésirable de courant
provenant de la ligne électrique extérieure.
•
Do Not place liquids on the machine cover since it is not waterproof. It is particularly
important to avoid high humidity conditions which would add to the wear and corrosion of
the mechanical parts.
•Ne pas placer de liquides sur le couvercle de la machine, car il n’est pas étanche. Il est
essentiel d’éviter les conditions d’humidité élevée qui pourraient contribuer à l’usure et à
la corrosion des pièces mécaniques.
The machine has labels that indicate any danger areas.
The meanings of these labels are explained below.
La machine est munie d’étiquettes identifiant toutes les zones de risque.
L’explication de ces étiquettes se trouve ci-dessous.
Panduit cannot be held responsible for the consequences of not abiding
by these safety rules when using the machine.
Therefore, in the case of breakdown, please call for Technical Assistance.
Panduit ne saurait être tenu responsable des conséquences du non-respect
de ces règles de sécurité lors de l’utilisation de la machine.
Il est préférable, en cas de panne, de communiquer avec l’assistance technique.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 15 of 46 4-2018
UNDER NO CIRCUMSTANCES REMOVE OR MODIFY THE INTERNAL COMPONENTS.
NE RETIRER NI MODIFIER EN AUCUN CAS LES COMPOSANTS INTERNES.
DO NOT REMOVE SAFETY GUARD
These safety guards
should be removed only by specialized and authorized technical
persons who take care to adopt all security measures to avoid any risk of danger and injury.
NE PAS ENLEVER LES DISPOSITIFS DE SÉCURITÉ
Les dispositifs de sécurité ne doivent être retirés que
par des techniciens autorisés et
spécialisés qui s’appliquent à adopter toutes les mesures de sécurité afin d’éviter tout risque
et toute blessure.
CAUTION: BE CAREFUL OF YOUR HANDS!
RISK OF BEING CRUSHED OR STRUCK
The machine, plus the wooden crate weighs 210 lbs. (95 Kg)
and the net weight is 155 lbs. (70 Kg); therefore, all lifting should
be done with four persons present.
MISE EN GARDE : PRENDRE GARDE À SES MAINS!
RISQUE DE S’ÉCRASER OU SE COINCER LES DOIGTS
La machine et sa caisse en bois ont un poids total de 95 kg
(210 lb) et la machine elle-même pèse 70 kg (155 lb); elle doit
donc être déplacée par quatre personnes.
DANGER! HIGH VOLTAGE
Do not perform any maintenance work while the machine is connected to the power supply.
To replace a fuse or do internal maintenance, disconnect the power supply.
DANGER! HAUTE TENSION
Ne pas effectuer de travaux d’entretien lorsque la machine est connectée à l’alimentation
électrique. Pour remplacer un fusible ou effectuer un entretien à l’intérieur, couper
l’alimentation.
ATTENTION! MOVING MACHINE COMPONENTS
If any maintenance work has to be done the technician must disconnect the power supply
and work on the machine only when it has been stopped.
ATTENTION! COMPOSANTS DE MACHINE EN MOUVEMENT
Le technicien doit éteindre la machine et couper l’alimentation électrique avant d’effectuer
des travaux d’entretien.
ATTENTION! DANGER
The machine when at work has several moving units.
Do not work on the inside of the machine.
Do not remove the cover or guards except for the front cover which is used to load the plates.
ATTENTION! DANGER
Lorsqu’elle est en fonction, la machine comprend plusieurs unités en mouvement.
Ne pas travailler à l’intérieur de la machine.
Ne pas retirer le couvercle ou les dispositifs de sécurité, excepté le couvercle frontal pour
charger les plaques.
GROUNDED (EARTHED) CABLES
This symbol indicates that all the connected cables have been grounded (earthed).
CÂBLES MIS À LA TERRE
Ce symbole indique que tous les câbles connectés sont reliés à la terre.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 16 of 46 4-2018
4. MACHINE SETUP FOR PRODUCING PLATES
*Easy-Mark Plus™ version 1.2 or higher, also located on the provided USB Drive, is required
to operate the PES400 Embossing System.
4.1 Quick Start Steps for Changing Plate Sizes and Embossing
□Unlock cover with cover key and open machine cover.
□Remove the top clamp by loosening both thumbscrews. see [Figure 1] on [Page 18].
□Remove the top weight(s) [Figure 1]. (For 1.72” (43mm) wide plates, complete Step 4.2.4
on [Page 18]first.)
□Remove any remaining plates. (For 1.72” (43mm) wide plates, complete Step 4.2.4 on
[Page 18]first.)
□Loosen the right-hand side knob and slide the right-hand side wall to open the loader.
[Figure 1and Figure 5]
□Change the Plate Support Block if needed, Step 4.2.5 on [Page 19] to determine correct
plate support block.
□Put correct top clamp on and tighten.
□Adjust the Gate Height [Page 23].
□Remove top clamp.
□Position Guide Rails [Page 26].
□Load the plates [Page 28] with Easy Feed Humps up.
□Put the top weight on [Figure 20].
□Put the top clamp back on and tighten.
□Align the back edge of Side Eject Guide Plate [Page 28].
□Close machine cover.
□Adjust the insert of the external hopper to corresponding slot or use corresponding insert
[Figure 24] on [Page 30].
□Turn on PES400 [Page 31].
□Run Easy-Mark Plus [Page 31]. ***Version 1.2 or higher required***
□Emboss one plate [Page 34] to review if embossing force adjustment [Page 35] is needed.
□If any error happens, check the Error Codes on [Page 38] to debug the issue.

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 17 of 46 4-2018
Table 1Accessories Table
NOTE: Dimensions in parentheses ( ) are mm.
Plates
Plate
Height
(in)
Guide Rail
Size Block
(Figure 16)
Plate
Width
(in)
Plate
Support
Block &
Top Clamp
Top
Weight
(Figure 20)
Hopper
Divider
Position
and
Inserts
MMMP350W38-M,
MMP350W38-M316,
MT350W38-M316
.38”
(9.6) Narrow
3.5”
(89) Long Narrow .38”
(9.6)
MMP172W38,
MT172W38-M 1.72” (43) Short Short
Divider
@ .75” (19),
using Insert
.38” x 1.72”
(9.6 x 43)
MMP350HW54-MAL,
NCMP35W54T20-AL .54” (13.7) Medium 3.5” (89) Long Medium .54” (13.7)
MMP350-M, MMP350-M316,
MMP350H-M,
MMP350H-M316,
MMP350H-MAL,
MT350-M .75”
(19) Wide
3.5”
(89) Long Wide .75” (19)
MMP172-M,
MT172-M, 1.72” (43) Short 2 Short Use Insert
.75” x 1.72”
(19 x 43)
MMP350W17-M,
MT350W17-M,
MT350W17-D-4HL
1.72”
(43) None
1/16”
(1.6mm)
clearance
3.5”
(89) Long Extra-Wide 1.72” (43)
MMP337W53-MAL-4,
MMP337W71-MAL-3 2.12” (54) 3.37” (86) Long Extra-Wide Not Needed

© Panduit Corp. 2018 OPERATION MANUAL
PES400
ENGLISH
PES400: PA28981A01_01 Page: 18 of 46 4-2018
4.2 Detailed Setup Instructions
4.2.1 Remove Top Clamp
Loosen thumbscrews at both ends of top clamp and slide clamp off loader.
4.2.2 Remove Top Weights
a. Lift the top weight out of the loader.
b. For 1.72” (43mm) wide plates the weight is not accessible. Remove the weight
after moving the RH side wall in Step 4.2.4 [Figure 5]. Note that 1.72” x 0.75”
(43mm x 19mm) will have 2 identical weights.
4.2.3 Remove Plates
a. Remove any plates remaining in the loader and place in original packaging to
prevent damage. (For 1.72” (43mm) wide plates, complete Step 4.2.4 first)
4.2.4 Move RH Side Wall
a. Loosen RH Side Knob [Figure 1] and move right hand side wall out of the way
[Figure 5] by pushing on the bottom of the wall assembly.
Figure 1
3.5” (89mm) Plate width
