Panio HD1400K User manual

1
PANIO
HD1400K User manual

2
Contents
1. Packing ..................................................................................................................3
2. Panel description .................................................................................................. 3
3. EDID DIP switch .....................................................................................................5
4. COM Control Commands ...................................................................................... 6
5. IR Control System ..................................................................................................6

3
1. Packing
2. Panel description
Front panel
1Power LED
2When the HDMI IN port connects an active source device, the green LED will be on.
3When the HDMI LOOP OUT port connects an active display device, the green LED will be on.
4When the HDBT OUTPUT port connects an HDBaseT Receiver, the corresponding green OUT LED
will be on.
Back panel
1RS-232.
No.
Name
Qty
Unit
No.
Name
Qty
Unit
1
HD1400K-HDBaseT Splitter
1
Pcs
6
5-pin Phoenix Connector
1
Pcs
2
HD1400K-R receivers
4
Pcs
7
Rack accessories
1
Kit
3
IR Blaster Cable (1.5 meters)
5
Pcs
8
IR Receiver cable
5
Pcs
4
RS-232 cables
1
Pcs
9
User manual
1
Pcs
5
3-pin Phoenix Connector
5
Pcs
10
Power Cord
1
Pcs

4
2Connect to IR receiver cable, the IR receive signal will emit to “IR OUT” port of the HDBaseT
Receiver.
3Connect to IR blaster cable, the IR emit signal is from “IR IN” port of the HDBaseT Receiver.
4AUDIO OUT (COAX, L/R).
5POWER switch.
6EDID DIP switch.
7HDMI INPUT port & Loop out port.
8HDBT OUTPUT port (1~4).
9Link Signal Indicator lamp (Green)
10 Data Signal Indicator lamp (Orange)
11 DC 24V

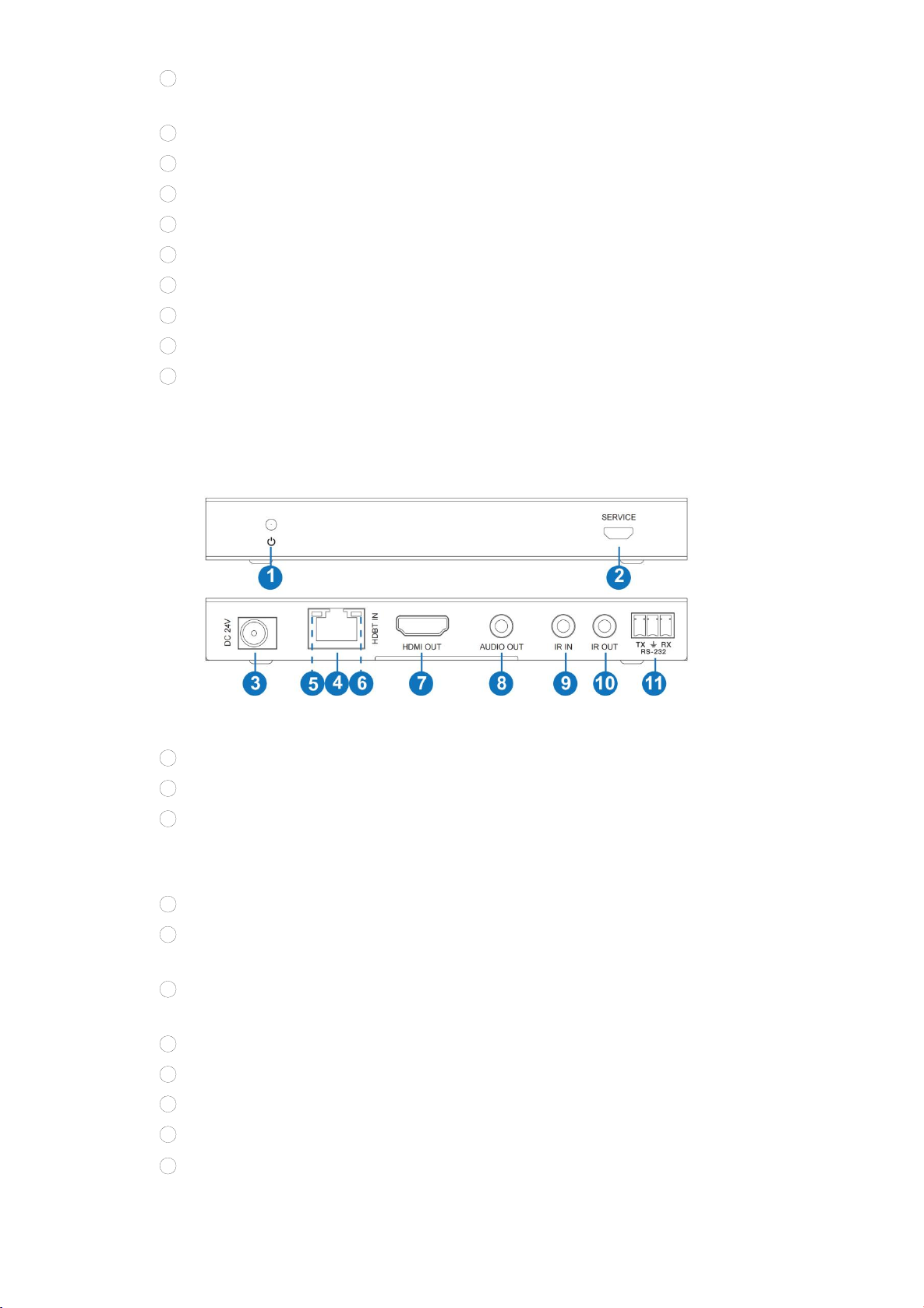

HDBaseT Receiver Panel
1Power LED.
2SERVICE port: Firmware update port.
3DC 24V/1A power supply input port. Note: The Matrix supports POC function, it means that either
transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need
power supply.
4RJ45 connector for connecting the HDBT OUTPUT port of Matrix with a CAT cable.
5▪Illuminating: Matrix and Receiver are in good connection status. ▪Flashing: Matrix and
Receiver are in poor connection status. ▪Dark: Matrix and Receiver are not connected.
6▪Illuminating: HDMI signal with HDCP. ▪Flashing: HDMI signal without HDCP. ▪Dark: No HDMI
signal.
7HDMI output port, connect to HDMI display device such as TV or monitor with HDMI cable.
8Analog audio output port. The audio is extracted from HDMI signal.
9Connect to IR receiver cable, the IR receive signal will emit to the“IR OUT”port of the Matrix.
10 Connect to IR blaster cable, the IR emit signal is from the“IR IN”port of the Matrix.
11 RS-232 Port

5
3. EDID Mode
4. COM Control Commands
RS232 cable with straight-through connection(USB-RS232 can be used directly to control)
Communication protocol:

6
Baud rate: 115200
Data bit: 8
Stop bit: 1
5. IR Control System
Power
s power z!
power on/off the device,z=0~1
(z=0 power off, z=1 power on)
power on
System Initializing... Initialization
Finished! power off
r power!
get current power state
power on /power off
s reboot!
reboot the device
Reboot…
System Initializing... Initialization
Finished!
SYSTEM Setup
r status!
Get device current status
Get the unit all status:
power, in/out connection,
edid mode
r link in!
Get the connection status of
the input port
HDMI IN: connect
r link out y!
Get the connection status of
the y output port, y=0~5(0=all,
1~4=HDBT 1~4, 5=loop out)
r link out 1!
hdbt output 1: connect

7
