Panio HD4420K User manual

1
PANIO
HD4420K User manual

2
Contents
1. Packing ..................................................................................................................3
2. Panel description .................................................................................................. 3
3. Matrix Switcher control ........................................................................................ 5
Remote Control..................................................................................................... 5
WEB GUI Browser control..................................................................................... 5
COM Control Commands.......................................................................................8
IR Control System ................................................................................................ 10

3
1. Packing
2. Panel description
Front panel
1OLED screen: Display matrix switching status, input / output port, EDID, Baud rate, IP Address.
2Power LED: The LED will illuminate in green when the product is working normally, and red when
the product is on standby.
3OUTPUT / INPUT buttons: You need to press an output button (1~4) firstly and then press an input
button (1~4) to select the corresponding input source for the output port.
4MENU / ENTER/ UP /DOWN
EDID setting: On the initial OLED display screen, press “MENU” button to enter “Select EDID”
interface, press “UP/DOWN” button to select the required EDID, and press the “ENTER” button to
enter “Copy to Input:” interface. Then press “UP/DOWN” button to select the input port you need
to set, and press “ENTER” button again to confirm.
Baud rate setting: On the initial OLED display screen, press “MENU” button twice to enter “SELECT
BAUD” interface, and press “UP/DOWN” button to select the required Baud rate, finally press the
“ENTER” button to confirm the setting.
IP Address Check: On the initial OLED display screen, press “MENU” button three times to enter
the IP interface and check the current IP address, then press “UP/DOWN” button to switch DHCP
ON/OFF, finally press the “ENTER” button to confirm the setting. Pressing the “MENU” button
again will return to the initial OLED display status.
No.
Name
Qty
Unit
No.
Name
Qty
Unit
1
HD4420K-Matrix Switcher
1
Pcs
6
5-pin Phoenix Connector
4
Pcs
2
HD4420K-R receivers
4
Pcs
7
Rack accessories
1
Kit
3
Remote Control Battery not provided
1
Pcs
8
IR Blaster&Receiver cable
10
Pcs
4
RS-232 cables
1
Pcs
9
User manual
1
Pcs
5
3-pin Phoenix Connector
4
Pcs
10
Power Cord
1
Pcs

4
5POWER button: Press and hold the POWER button for 3 seconds to enter the standby mode, then
press the button again to wake up the device.
6IR Window IR receiver window, it only receives the IR remote signal from this product.
7LOCK button Press the LOCK button to lock front panel buttons (Except the power button); Press
the button again to unlock.
Back panel
1IR IN (1/2/3/4/ALL) ports: Connect to IR receiver cable, the IR receive signal will emit to the“IR
OUT” port of the HDBaseT Receiver.
2IR OUT (1/2/3/4/ALL) ports: Connect to IR blaster cable, the IR emit signal is from the “IR IN” port
of the HDBaseT Receiver.
3AUDIO OUT (1-4) ports: 4 groups of coaxial and balanced analog audio mirrored output ports.
AUDIO OUT (1-4) follows the video output of OUTPUT (1-4) ports.
4GND: Connect the housing to the ground.
5POWER input.
6OUTPUT (1-4) ports: HDMI output ports, connect to HDMI display device such as TV or monitor
with an HDMI cable. HDBT mirrored output ports, connect to HDBaseT Receiver via CAT cable.
7INPUT (1-4) ports: HDMI input ports , connect to HDMI source device such as DVD or PS4 with an
HDMI cable.
8CONTROL ports: TCP/IP- The link port for TCP/IP control. Connect to an active Ethernet link with an
RJ45 cable. RS-232- Command control port. Connect to a PC or control system with a D-Sub 9-pin
cable to control the Matrix.
HDBaseT Receiver Panel

5
1Power LED.
2SERVICE port: Firmware update port.
3DC 24V/1A power supply input port. Note: The Matrix supports POC function, it means that either
transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need
power supply.
4RJ45 connector for connecting the HDBT OUTPUT port of Matrix with a CAT cable.
5▪Illuminating: Matrix and Receiver are in good connection status. ▪Flashing: Matrix and
Receiver are in poor connection status. ▪Dark: Matrix and Receiver are not connected.
6▪Illuminating: HDMI signal with HDCP. ▪Flashing: HDMI signal without HDCP. ▪Dark: No HDMI
signal.
7HDMI output port, connect to HDMI display device such as TV or monitor with HDMI cable.
8Analog audio output port. The audio is extracted from HDMI signal.
9Connect to IR receiver cable, the IR receive signal will emit to the“IR OUT”port of the Matrix.
10 Connect to IR blaster cable, the IR emit signal is from the“IR IN”port of the Matrix.
11 RS-232 Port
3. Matrix Switcher control
This Matrix switcher can support IR remote, RS232 / WEB GUI browser or the front push-buttons control.
Remote Control
WEB GUI browser Control

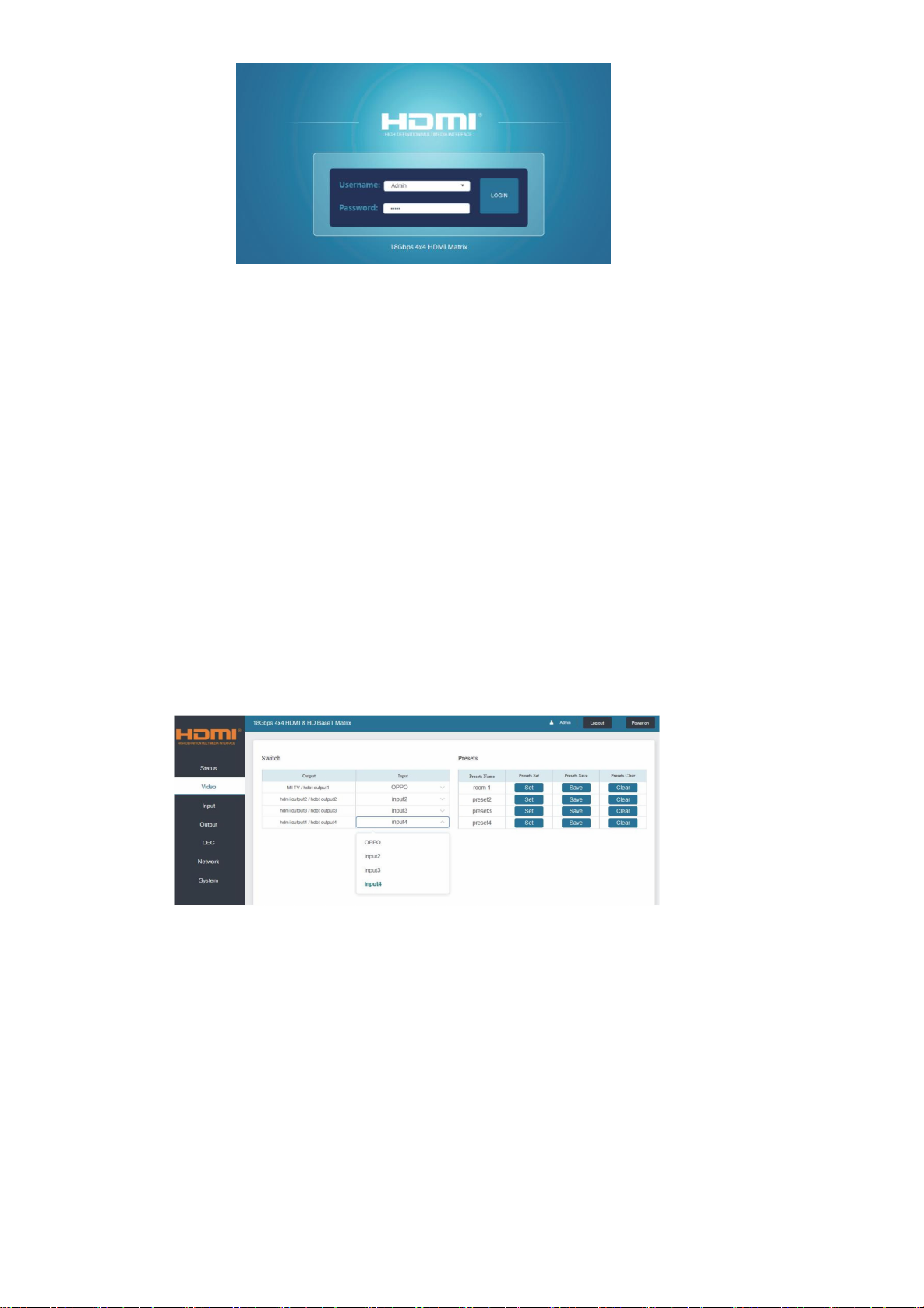

The default IP address are 192.168.1.100.
After opening the browser, users can type the matrix switcher IP address and press enter:
The default user name is Admin and the password is admin.
Power on the Matrix or set it to standby mode.- No1
Output 1 / 2 / 3 / 4 - No 2 3 4 5
1/2/3/4
Select the desired input source to Output 1 port output,
the corresponding green LED on the front panel
illuminates.
Select the last or next the desired input source to
Output 1 port output, the corresponding green LED on
the front panel illuminates.

6
Status page:
The buttons at the top right of the web interface are always available and provide the following
function:
•The Log out button will disconnect the current user from display the log in screen.
•The Power on button changes the power status of the Switcher between On and Stand-by mode.
Video page:
The Video page allows selection of the inputs source and set the Scene.
To this preset setting, first you need to select the desired input source to four output ports. Then click
the Save button to save the setting.
When you click the line Set button, this preset you have saved will be used.
The Clear button will clear the preset. There are four presets setting available.
Input page:
The Input page provides information about which inputs are connected and have a signal present.
The inputs can be giving more meaningful names, if desired.
The EDID column provides a list of EDID options for each individual input.
This page also provides a means of sending a binary EDID file to either User 1 or User 2 EDID
memories:
1.Select the binary EDID file on your PC by click on the Browse button.
2.Select either User 1 or User 2 from the drop-down list.
3.Click the Upload button.

7
The EDID data from any input or from the User 1 and User 2 locations can be read and stored on your
PC.
Output page:
The outputs can also be assigned meaningful names, if desired.
The Output page provides information about the signal status of the outputs.
You can do the following operations on the Output page:
① Outputs: Output channel of the device.
② Name: The current output channel’s name. You can modify it by entering the corresponding
name (max length: 12 characters) in the input box (Chinese name is unsupported).
③ Type: The current output channel’s type (HDMI or HDBT).
④ Cable: It indicates the connection status of output ports. When the output port is connected
to the display, it shows green, otherwise, it shows gray.
⑤ Scaler Mode: Set the current output resolution mode.
Bypass: Follow the input source. (Pass-through)
4K→1080P: Downscale to 1080p, if needed.
AUTO: Scaler to match the display requirements.
⑥ Stream: Turn on/off the output stream.

8

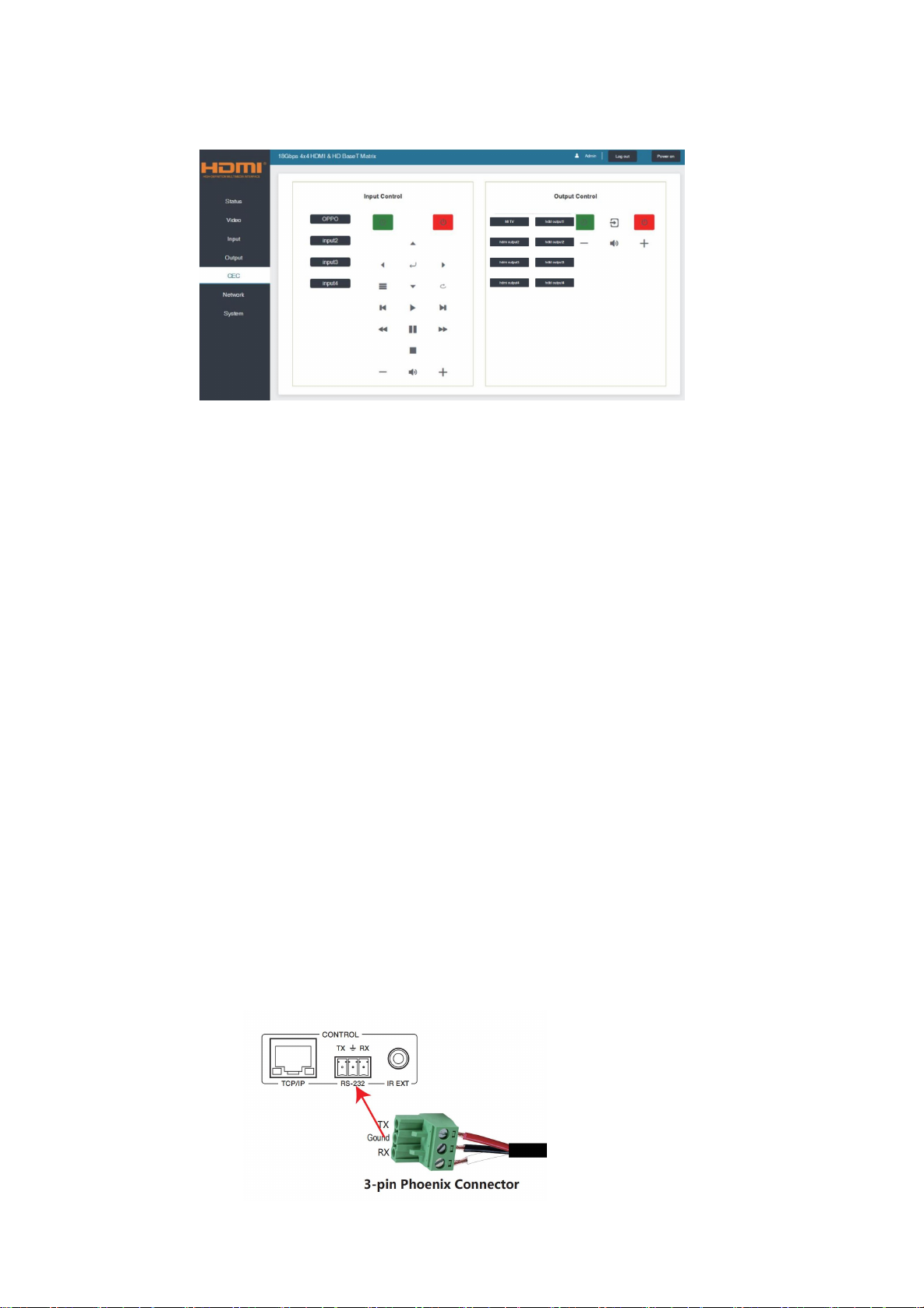

CEC page:
You can perform CEC management on this page:
① Input Control: You can control the operation of each input source by pressing the icons
on the page. (You can control multiple inputs simultaneously.)
② Output Control: You can control the operation of each display, such as power on/off,
volume +/-, active source switching. (You can control multiple outputs simultaneously.)
Note that the IP address boxes are only accessible when the Mode button is set to Static.
The log in passwords can be changed on this page.
Note that any changes to this page will require the new details into the web browser and/or the log in
screen.
System page:
The system page allows setting of the panel lock and beep on/off, control RS-232 port baud rate.
This page is also used to install new firmware update, restore the factory default settings and reboot
the Switcher.
COM Control Commands
RS232 cable with straight-through connection(USB-RS232 can be used directly to control)
Communication protocol:

9
Baud rate: 115200
Data bit: 8
Stop bit: 1
Check bit: None
Command
Explanation
Feedback
Power
s power z!
power on/off the device,z=0~1
(z=0 power off, z=1 power on)
power on
System Initializing...
Initialization Finished!
power off
r power!
get current power state
power on /power off
s reboot!
reboot the device
Reboot…
System Initializing...
Initialization Finished!
SYSTEM Setup
r status!
Get device current status
Get the unit all status:
power, beep, lock, in/out
connection, video/audio
crosspoint, edid,
scaler,hdcp, network status
r link in x!
Get the connection status of the x input port ,
x=0~4(0=all)
HDMI IN1: connect
r link out y!
Get the connection status of the y output port ,
y=0~4(0=all)
HDMI OUT1: connect
s beep z!
Enable/Disable buzzer function,z=0~1(z=0 beep
off, z=1 beep on)
beep on / beep off
r beep!
Get buzzer state
beep on / beep off
s lock z!
Lock/Unlock front panel button,z=0~1(z=0 lock
off,z=1 lock on)
panel button lock on
panel button lock off
r lock!
Get panel button lock state
panel button lock on/off
s save preset z!
Save switch state between all output port and
the input port to preset z
，
z=1~8
save to preset 1
s recall preset z!
Call saved preset z scenarios
，
z=1~8
recall from preset 1
s clear preset z!
Clear stored preset z scenarios,z=1~8
clear preset 1
r preset z!
Get preset z infomation, z=1~8
video/audio crosspoint
s baud rate xxx!
Set the serial port baud rate of RS02 module,
z=(115200,57600,38400,19200,9600,4800)
Baudrate:115200
r baud rate!
Get the serial port baud rate of RS02 module
Baudrate:115200

10
IR Control System
The product is not only a matrix switch but also an extender. It supports bi-directional IR
control. When Matrix is connected to HDBaseT Receiver through Cat 5e/6/7 cable, you can
control remote display device (HDBaseT) or input source device (Matrix) through IR signal
transmission. But you must note that the IR signal transmission method is different from the
method from Matrix (local) to HDBaseT Receiver (remote) and from HDBaseT Receiver
(remote) to Matrix (local).
At the Matrix end (Local end): the IR signal is one-to-one transmission. For example, the
IR IN 1 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 1, and the
IR IN 3 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 3. It doesn’t
follow the video switch to change. IR IN ALL port signal of the Matrix will emit to all IR OUT ports
of HDBaseT receivers simultaneously. Please see the following connection diagram.
s id z!
Set the control ID of the product, z=000~999
id 888
Output Setting
s in x av out y!
Set input x to output y
，
x=1~4
，
y=0~4(0=all)
input 1 -> output 2
r av out y!
Get output y signal status y=0~4(0=all)
input 1 -> output 1
input 2 -> output 2
……
input 4 -> output 4
s out y stream z!
Set output y stream on/off, y=0~4(0=all) z=0~1
(0:disable,1:enable)
Enable out 1 stream
Disable out 1 stream
r out y stream!
Get output y stream status, y=0~4(0=all)
Enable out 1 stream
s hdmi y scaler z!
Set hdmi output y port output scaler mode ,
y=0~4 (0=all),
z=1~3(1=bypass,2=4k->1080p,3=Auto)
hdmi 1 set to bypass mode
r hdmi y scaler !
Get hdmi output y port output mode y=0~4(0=all)
hdmi 1 set to bypass mode
s hdmi y hdcp z!
Set hdmi output y port hdcp status y=0~4(0=all)
z=0~1(1=active,0=off)
hdmi 1 hdcp active
r hdmi y hdcp!
Get HDCP status of HDMI out y, y=0~4(0=all)
hdmi 1 hdcp active
Audio Setting
s hdmi y arc z!
Turn on/off arc of HDMI output y
，
y=0~4(0=all)
z=0~1(z=0,off,z=1 on)
hdmi output 1 arc on
hdmi output 1 arc off
r hdmi y arc!
Get the arc state of HDMI output y
，
y=0~4(0=all)
hdmi out1 arc on

11
At HDBaseT receiver (Remote end): IR signal follows video switch to change. For example,
the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so IR
input signal of the HDBaseT Receiver 1 will emit to IR OUT 2 port of the Matrix. The HDMI
output signal on the HDBaseT Receiver 3 is from the HDMI INPUT 4 port. Then, IR input
signal of the HDBaseT Receiver 3 will emit to IR OUT 4 port of the Matrix etc. Any of
HDBaseT Receiver’s IR IN signal can output from IR OUT ALL port of the Matrix and the
IR OUT ALL signal of the Matrix depends on your IR remote of source device. Please see
the following connection diagram.

12
