Thank you for choosing the Pantech Matrix, our latest 3G mobile
phone.
The Pantech Matrix has many features designed to enhance your
mobile experience. From its sleek, stylish design and QWERTY
keypad, we know you will enjoy the entire Matrix experience.
This User Guide contains important and useful information that will
maximize your familiarity with all that the Pantech Matrix has to offer.

2
Specifications
Design
Dual slider with QWERTY keypad
Displays
• 260k colors TFT LCD with 2.2" internal display
• 176x220 resolution
• 7 lines for text in basic mode with 16-point font
• Two soft keys and four-way scroll and selection OK keys
Melodies
MP3, MIDI, iMelody, MMF, WAV, SMAF, AAC+
Camera
Integrated 1.3M CMOS Camera
• Resolution up to 1280 x 960 (1,228,800 pixels)
• Mpeg4 Video recording/playing up to 15f/s(QCIF size)
• Self-timer function (5 seconds or 10 seconds)
• Photo album and video album
Dimensions & Weight
• Weight: 132g/4.66oz (with standard battery)
• Dimensions: 102 mm x 50 mm x 19.9 mm
4.02" x 1.97" x 0.78"
Power Management (Performance)
Battery Type Capacity Standby Time Talk Time
Standard
Lithium-Ion
(Li-ion)
Up to
920 mAh Up to 16 days Up to 5 hours
Operating Frequency
• GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS
1900Mhz networks in North America, South America, Europe,
Africa, and Asia-Pacic where these networks are supported.
• Automatic band switching.

3
Phone overview
Number pad view
Earpiece
Display
Left/Right Soft key
Perform the functions shown
at the bottom line of the display
OK key or access MEdia Net
Press to enter menu system
Clear key
Returns to previous screen or
deletes characters in text mode.
Power on&off/Menu exit
key/End key
Turns phone on/off, ends calls,
exits menus
International call prefix key
Music key
Send key
Voicemail
Vibrate mode
Microphone
Menu features
AT&T Music Messaging Yellowpages.com
MEdia Net AT&T Mall AT&T GPS
My Stuff Address Book Settings
note: Holding the device by the internal
antenna area might affect the quality of
all calls.
Charger slot/Ear mic
Side key
Camera
Internal antenna
Navigation
key
Scroll through
the menu
options
Camera key
microSD slot

4

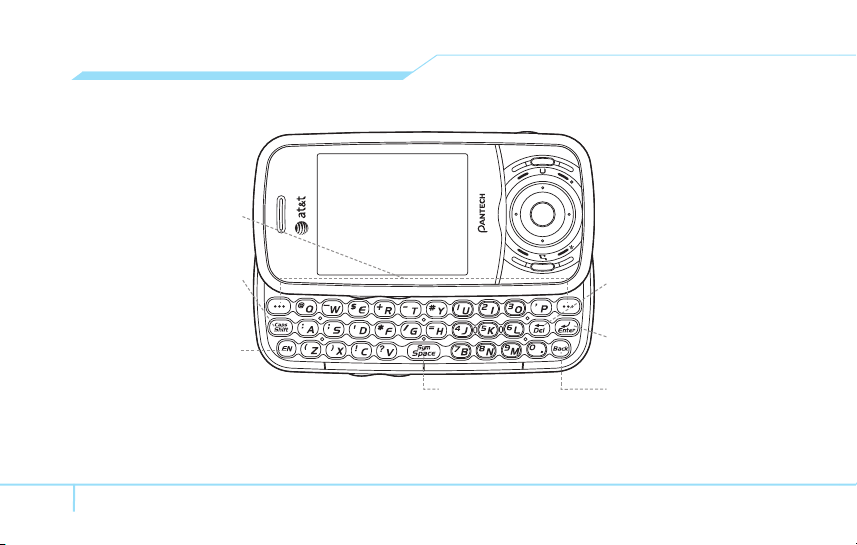

QWERTY keyboard view
Left/Right Soft key
Perform the functions
shown at the bottom line of
the display.
CAPS/Shift key
To type a single uppercase
letter, press this key then
a letter.
Function key
To enter a number or a
symbol, press the
function key, and press
the corresponding key
note: To use the QWERTY keyboard, ensure that the Number pad is closed, then hold the phone horizontally and slide the screen up.
Delete key
Press to delete a number or
letter.
Enter key
Press to create new line while
writing a message.
Clear/Back key
Return to previous screen or
delete characters in text mode.
Space key
Press to enter a space.

5
Numbered menu items, such as menus, sub-menus, and
options can be quickly accessed by using their shortcut
numbers. In Menu mode, Main Menus can be accessed by
pressing the number keys (1 to 9) corresponding to their
location on the screen.
Example: Accessing the Language menu.
1. Press the Menu.
2. Press the
9 for Settings.
3. Press the 4 for Phone.
4. Press the 1 for Language.
5. Press Select for Screen Text.
6. Press the U or D scroll key to display the list of available
languages.
Using shortcuts Menu overview
AT&T Music
Music Player
Shop Music
MusicID
XM Radio
Music Videos
Make-UR-Tones
Community
Music Apps
Messaging
Inbox
Create Message
Mobile Email
IM
Sent
Outbox
Drafts
Voice Mail
Settings
Templates
Memory Info

6
MEdia Mall AT&T GPS
AT&T Navigator
Yellowpages.com MEdia Net
MEdia Net Home
Bookmarks
Enter Address
History
Manage

7
My Stuff
Audio
Games
Applications
Graphics
Video
Tools & Utilities
Other Files
Memory Info
Address Book
Contacts
Add Contact
Speed Dial
Groups
My Business Card
Memory in Use
My Phone Number
Memory Info
Service Numbers
S
FDN ListS
Settings
Proles
Display
Call
Phone
Network Connections
Networkn
Connectivity
SecurityS
Software
Reset
TTY
S SIM dependent N Network dependent

8
Quick & easy
Keys Functions
< >
Perform the functions shown at the bottom line of the display by using these soft keys.
Scroll through the menu options in Menu mode. In standby mode,
Left: Access Mobile Email menu
Right: Access IM menu
Up: Access Create Message menu
Down: Access Contacts menu
Work in Word search mode if pressed in the Predictive text input mode.
@
Select a menu function or store user-input information, such as names. Also use this key for conrmation as the
[OK] key.
Launch the MEdia Net directly if pressed in standby mode.
B
Access AT&T Music menu.
C
Delete characters from the display, or return to previous menu.
Access Calendar menu if pressed quickly in standby mode.

9
Keys Functions
S
Send or receive a call. Show the recent call list in standby mode.
E
Complete the current call. Turn on/off the phone if pressed and held.
Cancel user input and return to main screen while in Menu mode.
1
Quickly connect to the voice mail server if pressed and held in standby mode.
0~9
Enter numbers, letters or special characters. Go to the dial screen if pressed in standby mode.
*
Enter or exit from vibrate mode if pressed and held in standby mode.
Show the symbol input screen if pressed in text input mode.
0
Enter an international dialing prex if pressed and held in standby mode.
Enter the space character in text input mode.
#
Change various text input modes if pressed at the text-editing screen.
Adjust the earpiece volume while making a call.
Control the Ringtone volume, vibrate mode and silent all mode in standby.
Mute the ringtone of an incoming call.
Q
Turn camera capture mode on.
Work as a camera shutter in capture mode.
