PAOKAI ELECTONIC ENTERPRISE HUNGRY DOGS User manual

0
MODEL NO.：WMH-609N2
NAME：HUNGRY DOGS
MANUAL
PROGRAM：
W609N0
VERSION：
Ver. 0
PAOKAI ELECTRONIC ENTERPRISE CO., LTD
http://www.PAOKAI.com.tw
ANNOUNCEMENT
Copyright © PAOKAI ELECTRONIC ENTERPRISE CO., LTD
All Rights Reserved. Violators will be prosecuted.
Please read the manual before launching the machine, and preserve the manual properly for reference.

1
INDEX
...................................................................................................................................................................................... 0
Chapter 1. OPERATION .................................................................................................................................................. 2
Chapter 2. DIP SW SETTING.......................................................................................................................................... 3
Chapter 3. Software setting mode..................................................................................................................................... 5
Chapter 4. Test mode........................................................................................................................................................ 6
Chapter 5. Error code........................................................................................................................................................ 9
Chapter 6. WIRING DIAGRAM.................................................................................................................................... 10

2
Chapter 1. OPERATION
1. How to play:
◎INSERT the coin to start the game:
After coin in, sound effects “we are hungry”, “Please feed us” and remained sound to start the
game, time to start to count down, Dog’s mouse open, game start.
◎Player operation:
Player to control the gun to shoot the ball into the mouse of the dog to get the points, each ball
could be 1. 5. 10 points, set by program.
There are two shooing guns on machine, right gun is red, left gun is right. Under the two
player model, the color of dog will change to Red or Blue. When shot balls to Red Dog, the
scores will be accounted under the Right Score, When Shot ball to Blue Dog, the scores, will be
accounted under the Left Score. When game is finished, higher scores win the game and get
tickets.
If one side is playing, two players model can be started to play after the game is completed.
◎Game Over
Play time could be 60、70、80、90 seconds, set by program.
◎BONUS
If player’s points are over the top records after game over, the Bonus will win.
2. TICKETS:
◎It can setting pay-out tickets ( 0、1、2、3) after insert coins to start the game.
◎It can setting tickets basic on points. For example, 5 points to get 1 ticket.
◎BONUS: Depend on the set of points VS credits to give tickets.
If machine without ticket dispenser function, then Bonus will no show anything on display.
3. Difficulty:
To set the difficulty by the speed and time of the mouse open of the dog, EASY and DIFFCULT are
available to set.

3
Chapter 2. DIP SW SETTING
DIP SW1
DIP SW 1
1
2
3
4
5
6
7
8
Coin vs. Credit
Free play
ON
ON
ON
1 coin=5plays
OFF
ON
ON
1 coin=2plays
ON
OFF
ON
5 coins=1play
OFF
OFF
ON
4 coins=1play
ON
ON
OFF
3 coins=1play
OFF
ON
OFF
2 coins=1play
ON
OFF
OFF
1 coin = 1play
OFF
OFF
OFF
1p and 2p coin
signal
Separate
OFF
Together
ON
Close gun
function
1P 2P Open
OFF
OFF
Close 1P
ON
OFF
Close 2P
OFF
ON
1P 2P Open
ON
ON
Game time
90 Sec.
ON
ON
80 Sec.
OFF
ON
70 Sec.
ON
OFF
60 Sec.
OFF
OFF
Default value
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF

4
DIP SW2
DIP SW 2
1
2
3
4
5
6
7
8
Play vs. Ticket
3 tickets =1 play
ON
ON
2 tickets=1 play
OFF
ON
1 ticket=1 play
ON
OFF
No ticket
OFF
OFF
Difficulty
Difficult
ON
Easy
OFF
Ticket function
Without ticket
dispenser
ON
With ticket
dispenser
OFF
Demo music
YES
ON
NO
OFF
Top records
New records after
power on
ON
Reserved after
power on
OFF
Bonus
New bonus after
power on
ON
Reserved after
power on
OFF
PLAY and Tickets
after power on
Clear
ON
Reserved
OFF
Default value
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF

5
Chapter 3. SOFTWARE SETTING MODE
Press【SET】KEY and turn on the machine at same time.
Until 『BOUNS』column display shows『01』enter <Software setting> mode.
『Score』column display setting value:
『01』:Game score can exchange 1 ticket (score 0~100). Default value 5
==>0、1、2、3、5、10、20、30、50、100
『02』:BONUS can exchange 1 ticket (score 0~100). Default value 5
==>0、1、2、3、5、10、20、30、50、100
『03』:Each play can increase BONUS value (score 0~99). Default value 1
『04』:BONUS setting score value (score 0~999). Default value 100
『05』:The top score record (score 10~300). Default value 100
『06』:Bookkeeping
Operation button:
【SET】KEY: Next setting item
【1P】KEY: Setting value increase
【2P】KEY: Setting value decrease
【VS】KEY: Confirm the setting.
Software setting :
『01』Game score can exchange 1 ticket: Default value score 5 to get 1 ticket. 5:1
0: No ticket、1:1、2:1、3:1、5:1、10:1、20:1、30:1、50:1、100:1
『02』BONUS can exchange 1 ticket: Default value score 5 to get 1 ticket. 5:1
0: No BONUS、1:1、2:1、3:1、5:1、10:1、20:1、30:1、50:1、100:1
『03』Each play can increase BONUS value (score 0~999).
『04』BONUS base score: get BONUS or setting new BONUS base score after return machine.
『05』Top score record: To setting top score record after turn on machine.
『06』Bookkeeping:
Press 1P button: the coin number of 1P is showed on BONUS and highest scores display. The coin
number of 2P is showed on 2P and 1P scores display.
Press 2P button: the ticket numbers of 1P is showed on BONUS and highest scores display. The
ticket number of 2P is showed on 2P and 1P scores display.

6
Chapter 4. TEST MODE
1. How to enter “Test Mode”
Press【TEST】KEY and turn on the machine at same time, then all RGB lights will start to do self test,
start button and eye led lights are twinkling. Press “Set” key to go next test function.
2. INPUT TEST:
『TIME』display shows『In.』.
◎On 2P “Score” Display
Digits:
A segment: Dog 1 mouth SENSOR
B segment: Dog 2 mouth SENSOR
C segment: Dog 3 mouth SENSOR
D segment: Dog 4 mouth SENSOR
E segment: Dog 5 mouth SENSOR
Ten digits:
A segment: Dog 1 mouth open SW
B segment: Dog 2 mouth open SW
C segment: Dog 3 mouth open SW
D segment: Dog 4 mouth open SW
E segment: Dog 5 mouth open SW
Hundreds digit:
A segment: Dog 1 mouth close SW
B segment: Dog 2 mouth close SW
C segment: Dog 3 mouth close SW
D segment: Dog 4 mouth close SW
E segment: Dog 5 mouth close SW

7
◎On 1P “Score” Display
Digits:
A segment: 1P Conveyor SENSOR
B segment: 2P Conveyor SENSOR
C segment: 1P Gun Top SW
D segment: 2P Gun Top SW
Ten digits:
A segment: 1P Button
B segment: 2P Button
C segment: VS Button
D segment: 1P Coin signal
E segment: 2P Coin signal
F segment: 1P Ticket signal
G segment: 2P Ticket signal
3. OUTPUT TEST:
TOP Score Display shows as below:
『-1-.』: Dog 1=>Press VS button to Open Dog 1 mouth. Press “Service 1P” button to close Dog 1 mouth.
『-2-.』: Dog 2=>Press VS button to Open Dog 2 mouth. Press “Service 1P” button to close Dog 2 mouth.
『-3-.』: Dog 3=>Press VS button to Open Dog 3 mouth. Press “Service 1P” button to close Dog 3 mouth.
『-4-.』: Dog 4=>Press VS button to Open Dog 4 mouth. Press “Service 1P” button to close Dog 4 mouth.
『-5-.』: Dog 5=>Press VS button to Open Dog 5 mouth. Press “Service 1P” button to close Dog 5 mouth.
『ALo.』:All dogs mouth open motor test, display open/close switch and output state of motor.
『ALc.』:All dogs mouth close motor test, display open/close switch and output state of motor.
『Gn1.』:1P balls shooting and conveyer motor test, display convey switch and output state of motor.
『Gn2.』:2P balls shooting and conveyer motor test, display convey switch and output state of motor.
『ALL』: Press VS button to open all dogs’ mouth. Press “Service 1P” button to close all dogs’ mouth.
『Gn1.』:Press VS button to shot ball from 1P shooting assembly.
『Gn2.』:Press VS button to shot ball from 1P shooting assembly.
『1Pt』:Press VS button to drive 1p ticket dispenser.
『2Pt』:Press VS button to drive 1p ticket dispenser.
【SET】KEY: Go to next test function.
【TEST】KEY: Back to last test function.
【1P】KEY: Decrease Value.
【2P】KEY: Increase Value.

8
On Bonus Display
Digits:
A segment: DIPSW1 (NO1)
B segment: DIPSW1 (NO2)
C segment: DIPSW1 (NO3)
D segment: DIPSW1 (NO4)
E segment: DIPSW1 (NO5)
F segment: DIPSW1 (NO6)
G segment: DIPSW1 (NO7)
H segment: DIPSW1 (NO8)
Ten digits:
A segment: DIPSW2 (NO1)
B segment: DIPSW2 (NO2)
C segment: DIPSW2 (NO3)
D segment: DIPSW2 (NO4)
E segment: DIPSW2 (NO5)
F segment: DIPSW2 (NO6)
G segment: DIPSW2 (NO7)
H segment: DIPSW2 (NO8)
4. SOUND TEST:
『TIME』display shows『on』
Operating button:
【VS】KEY: Go forward next sounds. 1~47 sounds.

9
Chapter 5. Error code
Error code message will display on 『TIME』Display.
Error code
Faulty description
Er 09
Operation Record is not correct.
Er 12
1P coin meter is out of order.
Er 13
2P coin meter is out of order
Er 14
1P Ticket meter is out of order.
Er 15
2P Ticket meter is out of order.
Er 16
Machine Chip has no respond
Er 17
Machine code is not correct.
Er 18
Wrong PCB Edition.
Er 30
1P coin mechanism is out of order.
Er 31
2P coin mechanism is out of order.
Er 34
1P No Tickets to dispense.
Er 35
2P No Tickets to dispense.
Er 38
1P Shooting motor is out of order.
Er 39
2P Shooting motor is out of order.
Er 44
Timer is not connected.
Er 58
Program is not correct (Need to back to default setting)
Er 60
Recorder FRAM Fail.
Er 70
Dog 1 do not touch SW when mouth close.
Er 71
Dog 1 do not touch SW when mouth open.
Er 72
Dog 2 do not touch SW when mouth close.
Er 73
Dog 2 do not touch SW when mouth open.
Er 74
Dog 3 do not touch SW when mouth close.
Er 75
Dog 3 do not touch SW when mouth open.
Er 76
Dog 4 do not touch SW when mouth close.
Er 77
Dog 4 do not touch SW when mouth open.
Er 78
Dog 5 do not touch SW when mouth close.
Er 79
Dog 5 do not touch SW when mouth open.

10

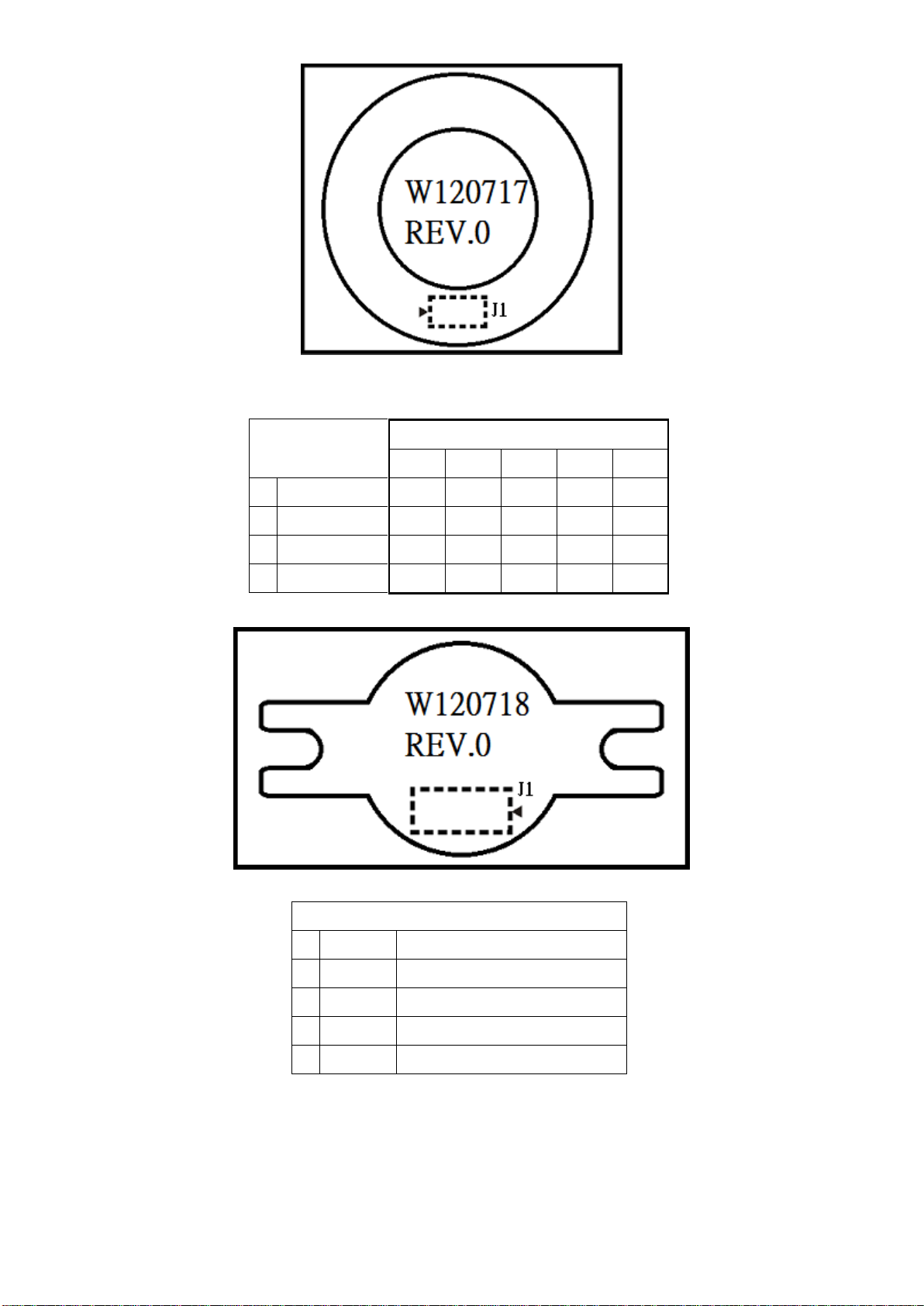

Chapter 6. WIRING DIAGRAM
W180448 WIRING DIAGRAM (main board)
J1 (3.96mm-6P) Power
1
+5V
2
+5V
3
GND
4
GND
5
+12V
6
+12V
J3 (2.5mm-7P) RS232
1
+12V
2
RTS IN
3
CTS OUT
4
RXD IN
5
TXD OUT
6
GND
7
GND

11
J2 2.54mm Red(1P) LCM connector J9 2.54mm Blue(2P) LCM
connector
1
GND
2
+5V
3
1P/2P LCM-VO
4
1P/2P LCM-RS
5
GND
6
1P/2P LCM-E
7
1P/2P –D0
8
1P/2P –D1
9
1P/2P –D2
10
1P/2P –D3
11
1P/2P –D4
12
1P/2P –D5
13
1P/2P –D6
14
1P/2P –D7
15
+5V
16
GND
J4 (2.54mm-12P) 1P Shooting Assembly
1
GND
1P Shooting Assembly
(Left)
2
Shoot Motor+
3
Conveyor motor -
4
Conveyor motor+
5
GND
to W100203 J1-3
6
SENSOR-
to W100203 J1-2
7
+12V
to W100203 J1-1
8
Shooting SW
9
GND
10
GND
J5 (2.5mm-8P) RS232
1
+12V
Reserved
2
RTS IN
3
CTS OUT
4
RXD IN
5
TXD OUT
6
GND
7
-
8
GND
J8 (2.54mm-8P) TICKET DISPENSER
1
+12v
1P TICKET
DISPENSER
2
1p ticket signal in-
3
1p ticket driving signal -/+
out
4
GND
5
+12v
2P TICKET
DISPENSER
6
2p ticket signal in-
7
2p ticket driving signal-/+
out
8
GND
J7 (2.5mm-16P)
1
Coin 1 power 12V/+
Coin 1
2
Coin 1 Signal IN-
3
GND
4
Coin 1 inhibit OUT-/+
5
Coin 2 power 12V/+
Coin 2
6
Coin 2 Signal IN-
7
GND
8
Coin 2 inhibit OUT-/+
9
GND
10
Set SW-
11
1P service SW-
12
2P service SW-
13
Test SW-
14
GND
15
GND
16
GND
J10 (2.5mm-5P) Meter
1
+12V
2
1P Coin meter
3
2P Coin meter
4
1P Ticket meter
5
2P Ticket meter

12
J12 (30 Pin) Dog Driver Assembly
1
Dog 1 motor+
MOTOR1 +
2
D1-SW1-
Dog 1 Open mouth SW
3
Dog 1 motor-
MOTOR1 -
4
D1-SW2-
Dog 1 Close mouth SW
5
Dog 2 motor+
MOTOR2 +
6
D2-SW1-
Dog 2 Open mouth SW
7
Dog 2 motor-
MOTOR2 -
8
D2-SW2-
Dog 2 Close mouth SW
9
Dog 3 motor+
MOTOR3 +
10
D3-SW1-
Dog 3 Open mouth SW
11
Dog 3 motor-
MOTOR3 -
12
D3-SW2-
Dog 3 Close mouth SW
13
Dog 4 motor+
MOTOR4 +
14
D4-SW1-
Dog 4 Open mouth SW
15
Dog 4 motor-
MOTOR4 -
16
D4-SW2-
Dog 4 Close mouth SW
17
Dog 5 motor+
MOTOR5 +
18
D5-SW1-
Dog 5 Open mouth SW
19
Dog 5 motor-
MOTOR5 -
20
D5-SW2-
Dog 5 Close mouth SW
21
Dog 1 Eye light-
EYE LED1
22
EYE LED2
Dog 2 Eye light-
23
Dog 3 Eye light-
EYE LED3
24
EYE LED4
Dog 4 Eye light-
25
Dog 5 Eye light-
EYE LED5
26
+12V
Eye 12V
27
SW COM
GND
28
SW COM
GND
29
SW COM
GND
30
GND
SW COM
J11 RED(2.54mm-6P) 1P button
1
+12V
1P button
2
LAMP1 OUT+
3
1P Start SW-
4
GND
5
GND
6
+5V

13
BONUS W100622(1)，Highest Scores W100622(2)，1P scores W100622(3), 2P scores W100622(4)
J16 (34pin) TIME W141131
1
To W100622(1)(2) J11-2
ADISPLAY a+
2
to W100622(1)(2) J11-4
ADISPLAY b+
3
to W100622(1)(2) J11-6
ADISPLAY c+
4
to W100622(1)(2) J11-8
ADISPLAY d+
5
to W100622(1)(2) J11-10
ADISPLAY e+
6
to W100622(1)(2) J11-12
ADISPLAY f+
7
to W100622(1)(2) J11-14
ADISPLAY g+
8
to W100622(1)(2) J11-13
ADISPLAY h+
9
to W100622(3)(4) J11-2
BDISPLAY
a+
10
to W100622(3)(4) J11-4
BDISPLAY b+
11
to W100622(3)(4) J11-6
BDISPLAY
c+
12
to W100622(3)(4) J11-8
BDISPLAY d+
13
to W100622(3)(4) J11-10
BDISPLAY
e+
14
to W100622(3)(4) J11-12
BDISPLAY f+
15
to W100622(3)(4) J11-14
BDISPLAY
g+
16
to W100622(3)(4) J11-13
BDISPLAY h+
17
to W141131 J1-1
CDISPLAY a+
18
to W141131 J1-2
CDISPLAY b+
19
to W141131 J1-3
CDISPLAY c+
20
to W141131 J1-4
CDISPLAY d+
21
to W141131 J1-5
CDISPLAY e+
22
to W141131 J1-6
CDISPLAY f+
23
to W141131 J1-7
CDISPLAY g+
24
to W141131 J1-8
CDISPLAY h+
25
to W100622(2)(4) J11-1
W141131 J1-10
COM1-
26
to W100622(2)(4) J11-3
W141131 J1-9
COM2-
27
to W100622(2)(4) J11-5
COM3-
28
to W100622(1)(3) J11-1
COM4-
29
to W100622(1)(3) J11-3
COM5-
30
to W100622(1)(3) J11-5
COM6-
31
X
32
X
33
X
34
X

14
J15 (50 Pin) W160202 Sensor+ RGB and W120717 Tie
1
Dog 1
to W160202 J1-1
+12V
2
Dog 1
to W160202 J1-2
B1 LED-
3
to W120717 J1-1
+12V
4
to W160202 J1-3
R1 LED-
5
to W120717 J1-2
DB1 LED-
6
to W160202 J1-4
G1 LED-
7
to W120717 J1-3
DR1 LED-
8
to W160202 J1-5
GND
9
to W120717 J1-4
DG1 LED-
10
to W160202 J1-6
IN1-
11
Dog 2
to W160202 J1-1
+12V
12
Dog 2
to W160202 J1-2
B2 LED-
13
to W120717 J1-1
+12V
14
to W160202 J1-3
R2 LED-
15
to W120717 J1-2
DB2 LED-
16
to W160202 J1-4
G2 LED-
17
to W120717 J1-3
DR2 LED-
18
to W160202 J1-5
GND
19
to W120717 J1-4
DG2 LED-
20
to W160202 J1-6
IN2-
21
Dog 3
to W160202 J1-1
+12V
22
Dog 3
to W160202 J1-2
B3 LED-
23
to W120717 J1-1
+12V
24
to W160202 J1-3
R3 LED-
25
to W120717 J1-2
DB3 LED-
26
to W160202 J1-4
G3 LED-
27
to W120717 J1-3
DR3 LED-
28
to W160202 J1-5
GND
29
to W120717 J1-4
DG3 LED-
30
to W160202 J1-6
IN3-
31
Dog 4
to W160202 J1-1
+12V
32
Dog 4
to W160202 J1-2
B4 LED-
33
to W120717 J1-1
+12V
34
to W160202 J1-3
R4 LED-
35
to W120717 J1-2
DB4 LED-
36
to W160202 J1-4
G4 LED-
37
to W120717 J1-3
DR4 LED-
38
to W160202 J1-5
GND
39
to W120717 J1-4
DG4 LED-
40
to W160202 J1-6
IN4-
41
Dog 5
to W160202 J1-1
+12V
42
Dog 5
to W160202 J1-2
B5 LED-
43
to W120717 J1-1
+12V
44
to W160202 J1-3
R5 LED-
45
to W120717 J1-2
DB5 LED-
46
to W160202 J1-4
G5 LED-
47
to W120717 J1-3
DR5 LED-
48
to W160202 J1-5
GND
49
to W120717 J1-4
DG5 LED-
50
to W160202 J1-6
IN5-
J14 (2.54mm-6P) VS button
1
+12V
VS button
2
LAMP3 OUT+
3
VS button SW-
4
GND
5
GND
6
+5V
J13 Blue (2.54mm-6P) 2P button
1
+12V
2P Button
2
LAMP2 OUT+
3
2P button SW-
4
GND
5
GND
6
+5V

15
J17 Blue (2.5mm-4P) 2P Gun RGB light
1
RGB light B LED+
to
W140518(L3)
2
RGB light R LED+
to
W140518(L2)
3
RGB light G LED+
to
W140518(L1)
4
GND
to W140518(G)
J19 RED (2.5mm-4P) 1P Gun RGB light
1
RGB light B LED+
to
W140518(L3)
to
W140518(L2)
to
W140518(L1)
to W140518(G)
2
RGB light R LED+
3
RGB light G LED+
4
GND
J18 (2.54mm-4P)
1
+5V
2
RXD
3
TXD
4
GND
J23 (2.54mm-12P) 2P Shooting Assembly
1
GND
2P Shooting Assembly
(RIGHT)
2
Shooting motor+
3
Conveyor motor-
4
Conveyor motor+
5
GND
to W100203 J1-3
6
Conveyor SENSOR-
to W100203 J1-2
7
+12V
to W100203 J1-1
8
Shooting SW
9
GND
10
GND
11
Allocating ball motor+
12
Allocating ball motor-
J24 (2.5mm-6P) W161258 J4
1
+12V
RGB light To W161258
J4 RGB light driver
2
SD
3
CK
4
LE1
5
LE2
6
GND
SP (2.5mm-2P) Speaker
1
ASP+
Speaker +
2
ASP-
Speaker -
VR (2.5mm-3P) Volume
1
VR_IN
Volume VR 5K
2
VR_OUT
3
GND
J20 (2.54mm-4P) Win signal to RGB driver board
1
OUT1-
to W141244 J1-2
2
OUT2-
X
3
OUT3-
X
4
GND
to W141244 J1-5

16
W160202 Dog Head Sensor+ RGB light board
W160202 *5
J1 (2.0mm-6P)
W180448 J15
Dog 1
Dog 2
Dog 3
Dog 4
Dog 5
1
12V
J15-1
J15-11
J15-21
J15-31
J15-41
2
LED B -
J15-2
J15-12
J15-22
J15-32
J15-42
3
LED R-
J15-4
J15-14
J15-24
J15-34
J15-44
4
LED G-
J15-6
J15-16
J15-26
J15-36
J15-46
5
GND
J15-8
J15-18
J15-28
J15-38
J15-48
6
SENSOR OUT-
J15-10
J15-20
J15-30
J15-40
J15-50

17
W120717 Dog Tie RGB light board
W120717 *5
J1 (2.0mm-4P)
W180448 J15
Dog 1
Dog 2
Dog 3
Dog 4
Dog 5
1
12V
J15-3
J15-13
J15-23
J15-33
J15-43
2
LED B -
J15-5
J15-15
J15-25
J15-35
J15-45
3
LED R-
J15-7
J15-17
J15-27
J15-37
J15-47
4
LED G-
J15-9
J15-19
J15-29
J15-39
J15-49
W120718 Dog Tie RGB light board
W120718 *5 J1 (2.5mm-5P)
1
+12V
X
2
+12V
to W120717 J1-1
3
LED B -
to W120717 J1-2
4
LED R-
to W120717 J1-3
5
LED G-
to W120717 J1-4

18
W141131 Time Display 1.8"
J1 (2.54mm-12P) W161257 J14
1
DISPLAY a+
to W180448 J16-17
2
DISPLAY b+
to W180448 J16-18
3
DISPLAY c+
to W180448 J16-19
4
DISPLAY d+
to W180448 J16-20
5
DISPLAY e+
to W180448 J16-21
6
DISPLAY f+
to W180448 J16-22
7
DISPLAY g+
to W180448 J16-23
8
DISPLAY p+
to W180448 J16-24
9
COM 2-
to W180448 J16-26
10
COM 1-
to W180448 J16-25
11
12

19
W100622 Scores Display 1.8"
W180448 J16
W100622
J11 (14pin)
W180448 J16
BONUS
Highest
Scores
1P
Scores
2P
Scores
BONUS
Highest
Scores
1P
Scores
2P
Scores
J16-25
J16-28
J16-25
J16-28
COM 2-
1
2
DISPLAY a+
J16-1
J16-1
J16-9
J16-9
J16-26
J16-29
J16-26
J16-29
COM 3-
3
4
DISPLAY b+
J16-2
J16-2
J16-10
J16-10
J16-27
J16-30
J16-27
J16-30
COM 4-
5
6
DISPLAY c+
J16-3
J16-3
J16-11
J16-11
7
8
DISPLAY d+
J16-4
J16-4
J16-12
J16-12
9
10
DISPLAY e+
J16-5
J16-5
J16-13
J16-13
11
12
DISPLAY f+
J16-6
J16-6
J16-14
J16-14
J16-8
J16-8
J16-16
J16-16
DISPLAY p+
13
14
DISPLAY g+
J16-7
J16-7
J16-15
J16-15
W100203 Phototransistor SENSOR
J1 (2.54mm-3P) W180448 1P(J4) 2P(J23)
1
12V
1P to W180448 J4-7
2P to W180448 J23-7
2
VO-
1P to W180448 J4-6
2P to W180448 J23-6
3
GND
1P to W180448 J4-5
2P to W180448 J23-5
