O W N E R ' S M A N U A L
affordable audio for the critical listener
Nomad
Outdoor & Surround Speakers
Congratulations on your purchase of this Nomad speaker system and thank you for your selection of
Parasound. This speaker system is designed to provide you with high-fidelity reproduction in a wide
variety of home theater and outdoor applications. The polypropylene woofer and ferrofluid treated wide
dispersion tweeter have been carefully constructed to resist the effects of hostile weather conditions.
The cabinets are hermetically sealed and specially coated to resist the elements in harsh environments.
Because high performance and long life depend on proper installation and wiring, please take a few
minutes to read these instructions thoroughly.
Unpacking
Save your carton and the packing inserts for future safe transport in case you move or your speakers
ever require shipping for repair. The white printed carton is not itself strong enough for safe shipping,
so you must place it into the additional outer carton before shipment. Be sure to save the allen wrench
included with the Nomad 10, it will be necessary for mounting.
Choosing a Location
Placement affects the performance of all loudspeakers. All Nomad surround/outdoor speakers are
compact for easy placement. If you are using your speakers outdoors, there are additional precautions
you should take to extend their useful life. Their bass response will be enhanced by the proximity of
nearby walls or ceilings. To obtain maximum bass output, locate each speaker near the junction of two
walls or where two walls and a ceiling meet. The trade-off of mounting them in this way is a slight
amount of sonic coloration added by the room itself. However, in most cases, the added coverage and
the enhanced bass makes this an acceptable compromise.
Your Nomad speakers will sound best when they are placed vertically, preferably with the tweeter on
top. However, when mounting them under an overhang or near the ceiling, invert the speaker so the
tweeter is below the woofer. This mounting scheme reduces high frequency reflections and provides
better bass reinforcement. If you place the speakers horizontally, mount them in a “mirror image”
configuration with both tweeters on the inside and both woofers on the outside. Outdoor speaker
placement makes it nearly impossible to hear the same level of bass as you would enjoy indoors where
the interior boundaries reinforce low frequencies. Never drive the speaker to attempt to reach the same
outdoor levels you would expect from your main indoor speakers. This could damage the speakers and/
or amplifier. If you hear distortion, this is a warning to turn down the volume right away. If you think
your amplifier is underpowered to adequately drive the speakers outside, consult your Parasound dealer
for advice. A rather large listening area may require more than a single pair of speakers to reach
satisfactory volume levels.

-2-
Surround Speaker Location
Your Nomad speakers are superb for surround sound. There is a lot of flexibility in locating your
Nomad speakers for surround sound. They should be placed where you cannot localize the sound they
reproduce. Rather, they should give you a feeling of sonic envelopment--as if you are there. You don’t
necessarily need to aim the surround speakers at the listening position. You may want to try aiming them
at the wall or even the ceiling to increase reflected sound to help diminish image localization. Expect
some experimentation with surround speaker placement to yield the best results.
Outdoor Location Considerations
Nomad speakers are designed to resist most weather conditions with minimal sonic deterioration.
However, please observe these precautions to extend their life.
1. Avoid exposure to direct sunlight to prevent the speaker being subjected to heat and ultraviolet
radiation. Direct sunlight will eventually dry out the materials in the speaker drivers and fade the
pigments in the paint finish.
2. Avoid extended exposure to salt air to prevent the speaker being subjected to its extremely
corrosive effects. If you live near the coast, locate your speakers so you can easily disconnect them,
clean them off with clear water and store them inside when not in use. Speakers showing evidence of
extended exposure to salt air or salt water corrosion are not covered under warranty.
3. Never locate your speakers directly on the ground where they can sit in a pool of water. This will
eventually break down the rust treatment and damage the cabinet. If you must place them near the
ground, place something underneath them to raise them above puddles.
4. Never submerge the speakers or attempt to use them underwater. Not only will this seriously damage
the speakers, but you will expose yourself to the risk of electrocution.
5. Do not locate the speaker near any heat source such as an exposed radiator or heating duct.
Nomad Three-Six Mounting Brackets
The mounting brackets included with your Nomad speakers are the safest way to secure the speakers so
they are out of reach of curious children or the unwanted attention of visitors. Position each bracket and
screw or bolt it into place before you mount the speaker to it. Make sure the hardware you use will
reliably support the weight of the speaker. Remove the small round sticker at both ends of the speakers
to expose the threaded holes. Gently slide the speaker into the bracket and screw the plastic knob
through the bracket and into the threaded hole in the end of each speaker one at a time. It's not necessary
to apply excessive force on the knobs to hold the speaker in place.
Nomad Ten Mounting Brackets
The unique stainless steel mounting brackets included with the Nomad Ten allow you to mount the
speaker in a variety of angles and positions.

-3-
Mounting the Bracket to the Wall
1. Determine the location on the wall where you will mount the Nomad Ten
2. Drill two horizontal pilot holes 3 1/8" apart
3. Fasten the bracket to the wall with hardware that will reliably support the weight of the speaker.
Make sure the cross member of the bracket is facing up.
4. Rotate the bracket to the desired position and fasten the bracket to the wall.
Mounting Nomad Ten to its Bracket
1. Screw the four allen screws partially into the threaded inserts in back of the Nomad Ten cabinet and
slide the speaker onto the mounting bracket. The weight of the speaker should cause the four screws
to drop into the smaller portion of keyhole openings.
2. Once you have properly seated the speaker onto its the bracket, tighten the four screws with the
supplied 5 mm allen wrench.
3. Once the Nomad Ten is securely seated in the bracket, it can also be horizontally mounted.
Mounting the Nomad Ten to a Wall using the Supplied Brackets
Hookup
Run an appropriate length of wire to each speaker. Next, strip about a 1/4” of insulation from each
speaker wire and twist the exposed strands. If practical, you should “tin” the speaker wire with molten
solder to prevent oxidation. Insert the wire into the correct speaker terminal so the insulation is snug
against the back of the terminal housing. Be sure to maintain correct + and - polarity for proper phasing.
Most wires have a ridge or pattern on one of the conductors to help facilitate this. Use at least 16 AWG
wire to assure adequate power transfer from the amplifier. If the installation requires wire to be exposed
to direct sunlight or buried, you may want to use special underground/UV resistant wire. After you
make the connections, seal around both speaker terminals with silicone and also the hole where the wires
enter any exterior house walls to prevent cold air and water leaks.
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,,
,,
,,
,,
,
,
,

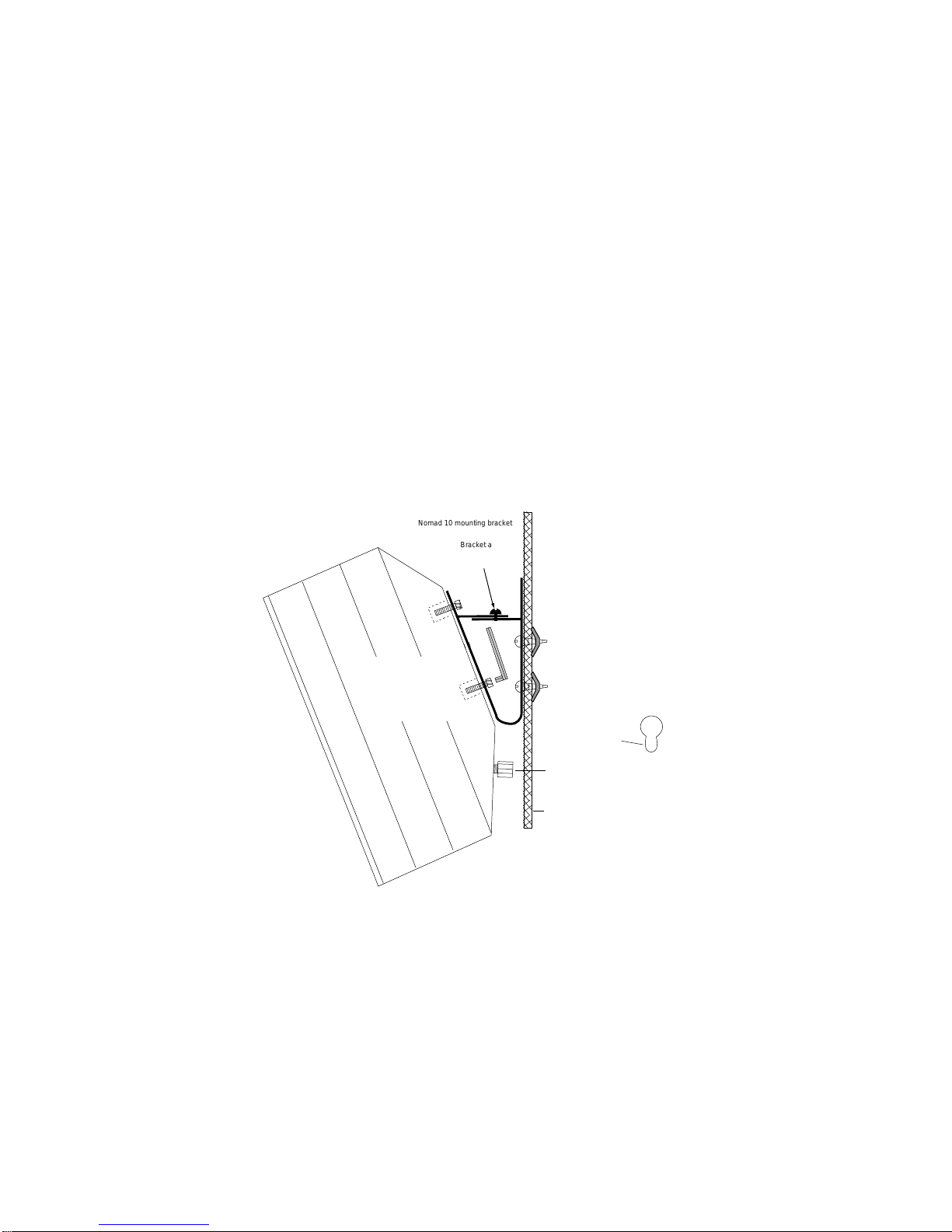

Nomad 10 mounting bracket
Bracket angle
adjustment
screw
Toggle or anchor bolts secured into wall
Note that screws mounted
in back of cabinet drop into
lower section of keyed
hole of bracket
Wall
4 Allen bolts screw
into back of cabinet.
Tighten with provided
5 mm allen wrench
Speaker Terminal

-4-
Maintenance
Keep your Nomad speakers clean and free of debris such as leaves and dirt. It is a good idea to wipe the
outside of the cabinet with a soft cloth and a quick application of spray or paste wax to keep the finish
looking new. Do not remove the grille to expose the speaker drivers or disassemble the cabinets. If the
paint gets accidentally chipped, it should be touched up immediately with automotive paint to prevent
the spread of oxidation.
In Case of Trouble
If you suspect a problem with your Nomad speakers, first recheck all your connections. If only one
speaker is inoperative, the trouble may be caused by another component or even a defective hookup
cable. We suggest you contact your authorized Parasound Dealer or Installer, or call Parasound
Technical Service. We may be able to suggest diagnostic tests you can easily perform yourself and
which will save you a lot of trouble.
If it is determined that the speaker should be returned to Parasound or an Authorized Warranty Center
for inspection and possible servicing, call for the location of a Warranty Center near you. If you choose
to send it to Parasound, you must call or write to obtain a Return Authorization number. You will be
asked to repack the unit in its original packing and an outer cardboard carton for proper protection in
transit. We will give you shipping instructions. We must refuse units that arrive without the correct
Return Authorization number, an unsuitable shipping carton or that have evidence of improper internal
packing. We cannot accept collect shipments. After repair under warranty, the unit will be returned to
you prepaid.
Parasound Limited Warranty (USA only)
Your Parasound Nomad speakers are covered by a limited warranty against defects in materials and
workmanship for a period of two years from date of purchase. This warranty is provided by the
Parasound dealer where the unit was purchased. Warranty repair will be performed only when your
purchase receipt is presented to validate your ownership, date of purchase and authorized status of the
selling dealer. Defective parts will be repaired or replaced without charge by your authorized dealer’s
store or the location designated by your dealer that is authorized to service Parasound equipment. Addi-
tional information is available by calling or writing to the Service Manager, Parasound Products, Inc. at
the address below. Charges for unauthorized service and transportation costs are not reimbursable under
this warranty. This warranty covers only audio and electrical performance. Corrosion and fading of the
cabinets are not covered under warranty.
This warranty becomes void if the product has been damaged by alteration, misuse, accident or neglect.
Alteration includes any removal, obscuring or defacement of a serial number. This warranty becomes
void if the speaker has been connected or operated contrary to printed instructions. The warrantor
assumes no liability for property damage or any other incidental or consequential damage whatsoever
which may result from the failure of this product. Any and all warranties of merchantability and fitness
implied by law are limited to the duration of this expressed warranty.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations
may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, so the above limitation or exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary state by state.

-5-
Specifications subject to change without notice
Parasound Products, Inc. 950 Battery Street, San Francisco, CA 94111
415-397-7100 / FAX [phone]
affordable audio for the critical listener
© 1996 Parasound Products, Inc.
Parasound Nomad Specifications
Nomad Three Nomad Four Nomad Five Nomad Six
Frequency Response 75 Hz-18 kHz +/- 3 dB 65 Hz-20 kHz +/- 3 dB 55 Hz-20 kHz +/- 3 dB 48 Hz-20 kHz+/- 3 dB
Nominal Impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
Sensitivity 1 Watt/1Meter 86 dB 86 dB 88 dB 88 dB
RMS Power Range 10-40 Watts 10-60 Watts 10-70 Watts 10-80 Watts
Woofer Size 4" 4" 5 1/4" 5 1/4"
Magnet Weight .35 lb 1 lb 1.1 lb 1.5 lb
Cone Material Treater Paper Polycarbon Polycarbon Polycarbon
Surround Material Butyl Rubber Butyl Rubber Butyl Rubber Butyl Rubber
Tweeter Size 1.5 " Cone 1" Dome 1.5" Cone 1" Dome
Magnet Weight .18 lb .35 lb .3 lb .65 lb
Ferrofluid Damping Yes Yes Yes Yes
Crossover Frequency 3 kHz 2.6 kHz 3.3 kHz 2.4 kHz
Crossover Slope 6 dB per octave 12 dB per octave 6 dB per octave 12 dB per octave
Nomad Ten
Frequency Response 38 Hz-20 kHz +/- 3 dB
Nominal Impedance 8 Ohms
Sensitivity 1 Watt/1Meter 89 dB
RMS Power Range 10-120 Watts
Woofer Size 6 1/2"
Magnet Weight 1.8 lb
Cone Material Polycarbon
Surround Material Butyl Rubber
Tweeter Size 1.5" Soft Dome
Magnet Weight .8 lb
Ferrofluid Damping Yes
Crossover Frequency 2.2 kHz
Crossover Slope 12 dB per octave
