pardo Bora Kala User manual

Quick reference sheet
www.pardo.es
TECHNICAL SERVICE CENTRE
([phone]
For more information, please consult the
use and maintenance manual.
Bora Kala Bed
cleaning
Daily cleaning and disinfection with soapy water:
Rails. Head board. Foot board.
Cleaning and disinfection after a patient leaves or
before a transfer:
Mattress platform area. Chassis of the bed.
Thorough cleaning and disinfection every two
months:
Support and lifting area of the bed.
Maintenance
Always check the correct state of:
Electrical wiring
Wheels.
Braking mechanisms.
Bed’scoMponents
AScrewed headboard EPatient hand control with locking
BShort telescopic guardrail for backrest FScrewed footboard
CHPL mattress platform GCentralised braking system
DLong telescopic guardrail for legrest HDouble wheels Ø10 cm.
side rails
Cód:PCO748207_FichaRapida_Bora_EN_2020_rev01ago 2023
AC E FD
GH
B
Telescopic side rails:
Rise rst section: Pull the side rail up, from central
section, until it is immobilized.
Low rst section: Slide both side handles inward
simultaneously, without releasing said handles
slide the side rail down.
Rise handrail: Simultaneously press the two devic-
es placed on the side rails and at the same time
slide the railing up, until locking.
Low handrail: Simultaneously press the two devic-
es placed on the side rails and at the same time
slide the railing down.
Rise rst section Lower rst section
Rise and lower handrail

SAFETY WARNINGS
The maximum duration of a continuous manoeuvre should not exceed 2 minutes, as damage may be caused to the equipment.
Before raising and lowering the moving parts of the mattress platform, with the other parts of the bed or accessories, it is essential to check that there are no obstacles
between them.
The Trendelenburg and reverse Trendelenburg movement should always be performed under medical supervision.
When the bed is in extended position, do not sit or lean on the foot part of the bed, since it may cause a bed dump.
Industrias Hidráulicas Pardo, S.L. C/ Los Ángeles 5, (Polígono Centrovía) - 50198 La Muela, Zaragoza (Spain)

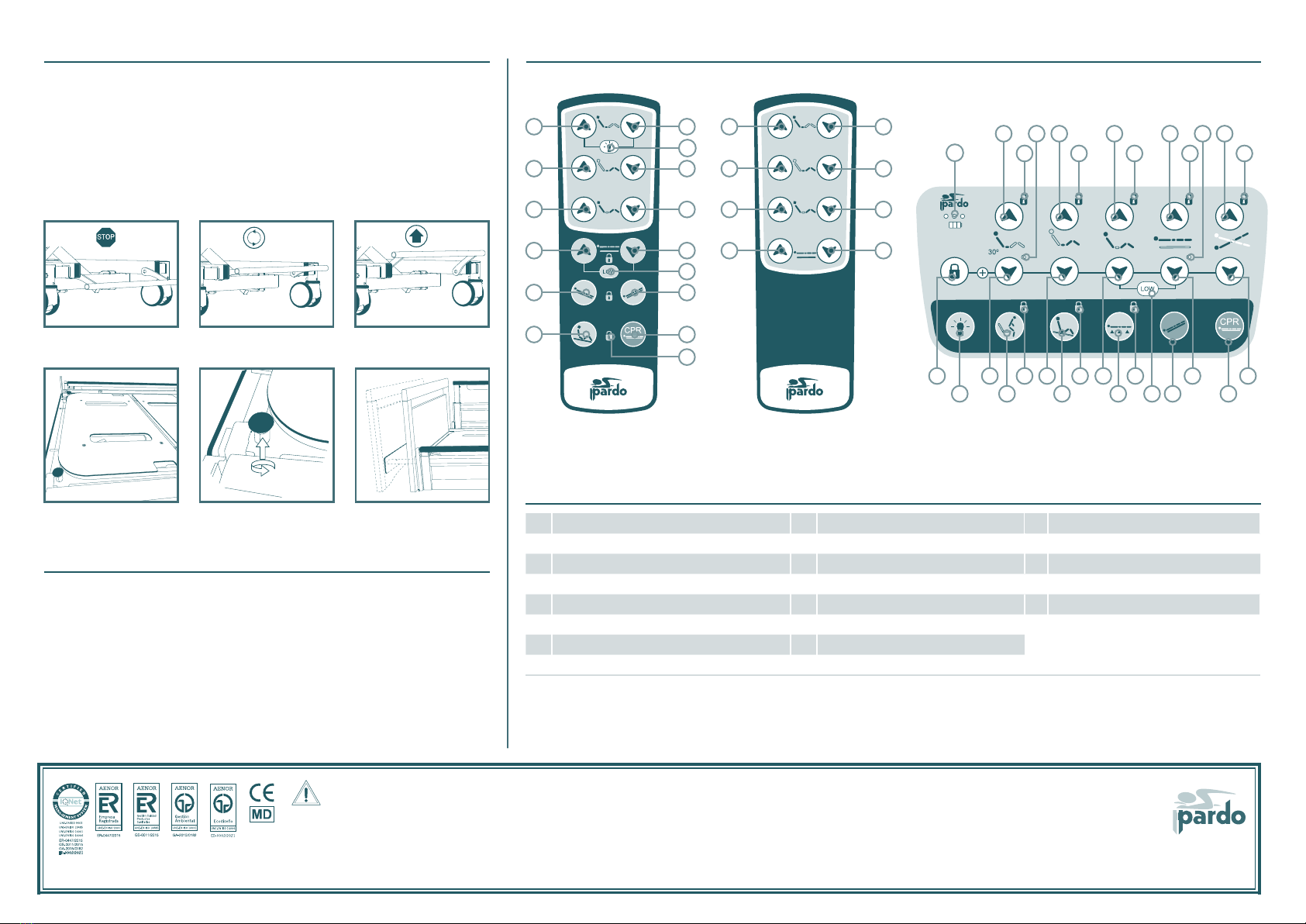

controls
instructions of use
ARise backrest IReverse trendelenburg SLow Position (minimum height) (2)
BLower backrest JTrendelenburg T30º tilting backrest indicator led
CRise legrest KLocking movements ULow position indicator led
DLower legrest LIndicator Led of locked movements WBattery indicator led
ERise all sections simultaneously (autocontour) NCardiac Chair position XExplored position (maximum height)
FLower all sections simultaneously (autocontour) OLight under bed (1) YEmergency trendelenburg position
GRise mattress platform PEmergency CPR position
HLower mattress platform RSafety exit position
(1) Press simultaneity A+B for several seconds
(2) Press simultaneity G+H, when the mattress platform is on minimum height.
B
D
G
FE
H
C
A
Patient hand control without
locking
B
O
D
G
FE
H
C
A
Patient hand control with locking
I
K
J
L
M
N
Wired nursing control with locking
A
R N X YS PO
K B D F H J
C E G I
WL
L LL
T U
L L L L
other functions
Centralised braking system (1):
Braking the bed: Pedal in low posi-
tion.
Moving the bed: Pedal in intermedi-
ate position.
Steering wheel: Pedal in raised po-
sition.
Extended bed base (2):
Pull and turn the locking knobs 180º
to unlocked the anchoring system.
Pull the footboard until extended the
bed base completely.
Push until listening “click”.
lock and unlock of patient control
Function locking is used to disable bed basic functions, mainly to lock movements which has
to be done under medical guidance.
To Lock and Unlock the bed functions, only extract or insert the locking key. This key is local-
ised at the bottom of the wired control.
• Unlock: Insert the locking key on the lateral of wired control. The Indicators (L) are
lighted on green colour.
• Lock: Extract the locking key on the lateral of wired control. The Indicators (L) are
lighted on red colour.
Brake Free movement Steering wheel
Extract the extended bed base
