pardo NewCare V3 User manual

Quick reference sheet
www.pardo.es
TECHNICAL SERVICE CENTRE
([phone] For more information, please consult the
use and maintenance manual.
NewCare V3 ACT Bed
cleaning
Daily cleaning and disinfection with soapy water:
Rails. Head board. Foot board.
Cleaning and disinfection after a patient leaves or
before a transfer:
Mattress platform area. Chassis of the bed.
Thorough cleaning and disinfection every two
months:
Support and lifting area of the bed.
Maintenance
Always check the correct state of:
Electrical wiring
Wheels.
Braking mechanisms.
Bed’scoMponents
ARemovable headboard IDouble wheels (Ø150 mm.)
BMembrane control in side rails JHeadboard and Footboard unlocking
CBackrest tilting indicator KBraking pedal
DTrend / Reverse Trend tilting indicator LTouch screen
EBackrest side rails MProtection discs
FHPL mattress platform NEmergency CPR
GRemovable footboard PExtended bed base
HLegrest side rails
Cód:PCO748853_FichaRapida_NewCareV3ACT_EN_2020feb. 2021
other functions
Side Rails (1):
Raising the rail: Pull the rail upwards until it is im-
mobilised in the highest position.
Lowering the rail: Pull the handle found under-
neath the rail outwards. The rail will automatically
lower.
Emergency CPR (2):
Activate either of the two levers located in the
middle of bed base, accompanying it in turn as
it lowers.
Braking pedal (3):
Braking the bed: Pedal in low position.
Moving the bed: Pedal in intermediate position.
Activating 5th or steering wheel: Pedal in raised
position.
Raising the rails Lowering the rails
Brake Free movement Steering or 5th wheelEmergency CPR
A
C D
EF G
K JN M I
H
B
P
L

SAFETY WARNINGS
The maximum duration of a continuous manoeuvre should not exceed 2 minutes, as damage may be caused to the equipment.
Before raising and lowering the moving parts of the mattress platform, with the other parts of the bed or accessories, it is essential to check that there are no obstacles
between them.
The Trendelenburg and reverse Trendelenburg movement should always be performed under medical supervision.
When the bed is in extended position, do not sit or lean on the foot part of the bed, since it may cause a bed dump.
Do not use CPR bilateral actuating levers to raise the backrest of the bed, it may cause raise motor breakdown and makes a bed dysfunction.
Industrias Pardo. C/ Los Ángeles 5, (Polígono Centrovía) - 50198 La Muela, Zaragoza (Spain)

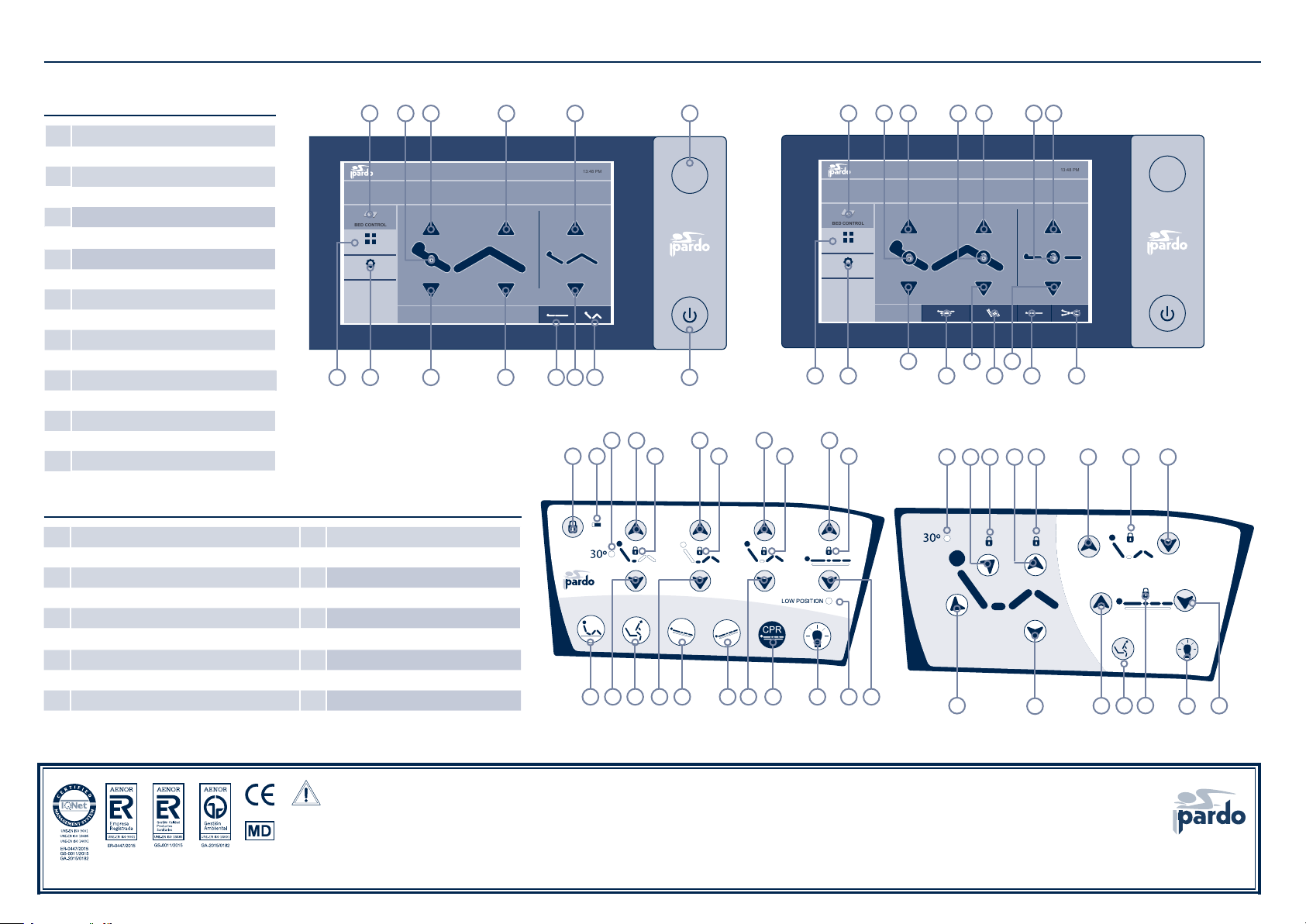

controls
T LA LLE G H
BFCRLOD
Patient membrane with locking
CPR
FEATURES
SETTINGS
BED CONTROL
BED CONTROL
13:48 PM
13:48 PM
A E I
B F R J S Q
P
K1
32
Touch screen - Basic Menu
CPR
FEATURES
SETTINGS
BED CONTROL
BED CONTROL
13:48 PM
13:48 PM
32 X N
IEA
R V
B F J
K K K
1
Touch screen - Nursing Menu
instructions of use - MeMBranes
ARise backrest JTrend
BLower backrest KLocking movements
CRise mattress platform LIndicator Led of locked movements
DLower mattress platform NCardiac chair position
ERise legrest OLight
FLower legrest PEmergency CPR
GRise all sections simultaneity (autocontour) RSafe bed exit position
HLower all sections simultaneity (autocontour) TLed indicator for backrest at 30º
IReverse Trend ULed indicator for low position
KWL
TAE G C
N R I J P O
B F H DU
Nursing membrane with locking
L L L
instructions of use - touch screen
1Function selection (basic movements
2Options selection (weighing)
3Adjustment selection
ARise backrest
BLower backrest
ERise legrest
FLower legrest
IRise button
JLower button
KLocking movements
NCardiac chair position
PEmergency CPR
QOn/Off Button (to active screen)
RMattress platform selection
SSections simultaneity selection
VTrend / Reverse Trend selection
XExplorer position (Maximum height)
