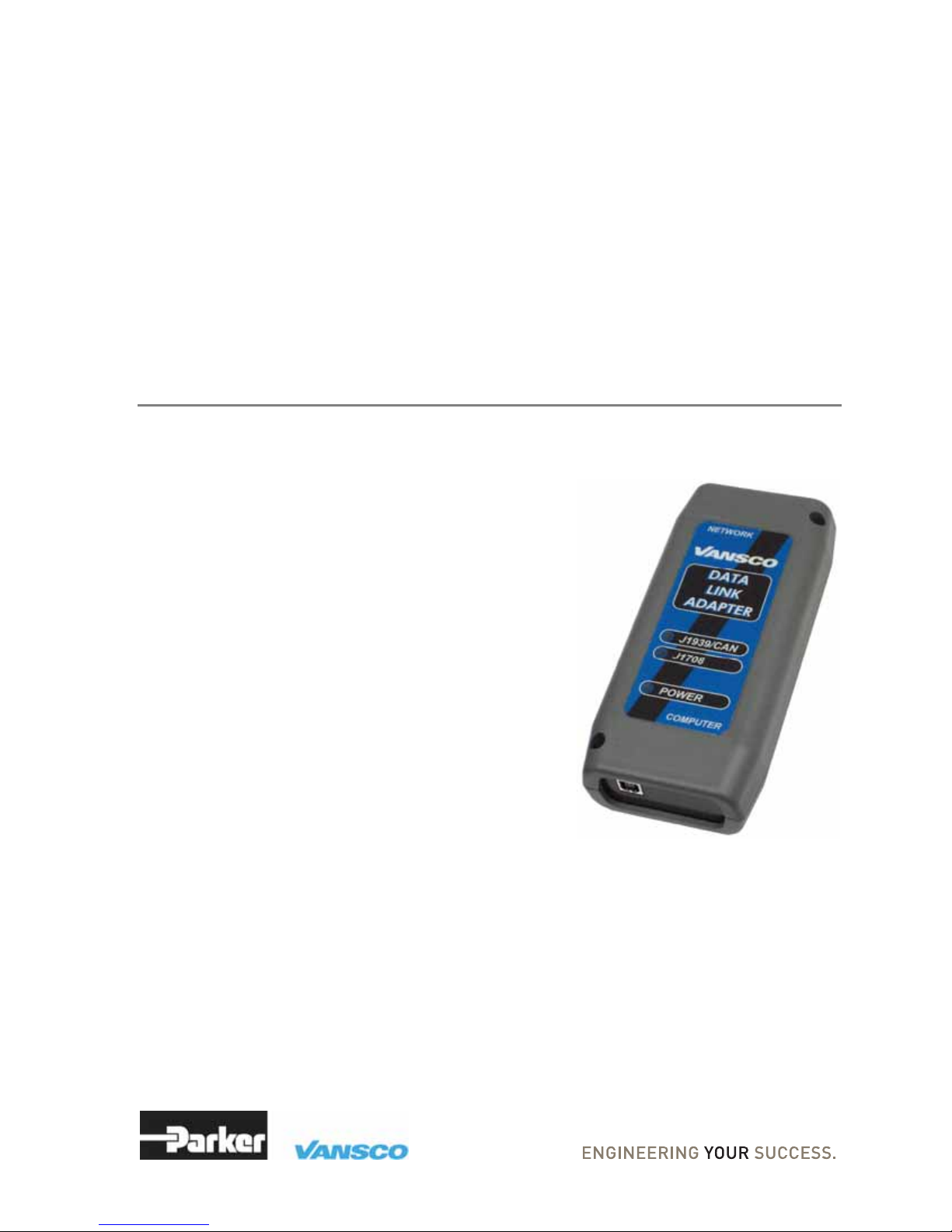

Parker USB-DLA User manual

USB-DLA
USB Data Link Adapter
User Manual HY33-5010-IB/US
Ed. 06/2010
UM-USBDLA-779A06-1.0-201006-02

Parker Hannifin Corporation
Electronic Controls Division
1305 Clarence Avenue
Winnipeg, MB R3T 1T4 Canada
Office [phone]
Fax [phone]
http://www.parker.com/ecd
http://www.vansco.ca
http://www.iqan.com
Copyright 2010 © Parker Hannifin Corporation. All rights reserved. No part of this work may be
reproduced, published, or distributed in any form or by any means (electronically,
mechanically, photocopying, recording, or otherwise), or stored in a database retrieval system,
without the prior written permission of Parker Hannifin Corporation in each instance.
Warning!
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR
SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY
AND PROPERTY DAMAGE.
This document and other information from Parker Hannifin Corporation, its subsidiaries and
authorized distributors provide product and/or system options for further investigation by users
having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of
the system and components and assuring that all performance, endurance, maintenance, safety
and warning requirements of the application are met. The user must analyze all aspects of the
application, follow applicable industry standards, and follow the information concerning the product
in the current product catalog and in any other materials provided from Parker or its subsidiaries or
authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system
options based upon data or specifications provided by the user, the user is responsible for
determining that such data and specifications are suitable and sufficient for all applications and
reasonably foreseeable uses of the components or systems.
Offer of Sale
The items described in this document are hereby offered for sale by Parker Hannifin Corporation, its
subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions
stated in the "Offer of Sale" elsewhere in this document, or available at www.parker.com.

USB Data Link Adapter 3
Contents
Contents
1. Introduction 5
1.1. Safety symbols 5
2. Precautions 6
2.1. General safety regulations 6
2.1.1. Construction regulations 7
2.1.2. Safety during installation 7
2.1.3. Safety during start-up 7
2.1.4. Safety during maintenance and fault diagnosis 7
3. USB-DLA Description 8
3.1. Contents of USB-DLA kit 8
4. Software Installation 10
4.1. Installing the USB drivers 10
5. Using the USB-DLA 13
5.1. Plug in the USB cable 13
5.1.1. Load the USB drivers 14
5.2. Plug in the vehicle interface cable 16
5.3. USB-DLA LED Indicators 16
5.3.1. LED Colors and Blink codes 16
6. Software Tools for the USB-DLA 17
6.1. USB Update Tool 17
6.2. VAPI Server 19
6.2.1. Multiple client connections 21
6.3. RP1210 Chooser 21
7. Appendix A 23
7.1. USB-DLA Electrical Specifications 23
7.2. USB-DLA Environmental Specifications 23
8. Appendix B 26
8.1. Automotive Networks 26
8.1.1. J1939 26
8.1.2. J1708 26
8.2. RP1210 Compatibility 26
8.3. Software Model 27
8.4. Software Files and Locations 28
8.4.1. Files copied during software installation: 28
8.4.2. Default File locations (all versions of Windows): 28

USB Data Link Adapter 4
Contents
9. Glossary of Terms 30
10. Index 32

USB Data Link Adapter 5
Introduction
1. Introduction
These instructions are meant as a reference tool for the vehicle manufacturer's
design, production, and service personnel.
The user of this manual should have basic knowledge in the handling of electronic
equipment.
1.1. Safety symbols
Sections regarding safety, marked with a symbol in the left margin, must be read and
understood by everyone using the system, carrying out service work or making
changes to hardware and software.
The different safety levels used in this manual are defined below.
WARNING
Sections marked with a warning symbol in the left margin, indicate that a hazardous
situation exists. If precautions are not taken, this could result in death, serious injury
or major property damage.
CAUTION
Sections marked with a caution symbol in the left margin, indicate that a potentially
hazardous situation exists. If precautions are not taken, this could result in minor
injury or property damage.
NOTICE
Sections marked with a notice symbol in the left margin, indicate there is important
information about the product. Ignoring this could result in damage to the product.
Contact the manufacturer if there is anything you are not sure about or if you have
any questions regarding the product and its handling or maintenance.
The term "manufacturer" refers to Parker Hannifin Corporation.

USB Data Link Adapter 6
Precautions
2. Precautions
2.1. General safety regulations
Work on the hydraulics control electronics may only be carried out by trained
personnel who are well-acquainted with the control system, the machine and its
safety regulations.
WARNING
Mounting, modification, repair and maintenance must be carried out in accordance
with the manufacturer's regulations. The manufacturer has no responsibility for any
accidents caused by incorrectly mounted or incorrectly maintained equipment. The
manufacturer does not assume any responsibility for the system being incorrectly
applied, or the system being programmed in a manner that jeopardizes safety.
WARNING
Damaged product may not be used. If the control system shows error functions or if
electronic modules, cabling or connectors are damaged, the system shall not be
used.
WARNING
Electronic control systems in an inappropriate installation and in combination with
strong electromagnetic interference fields can, in extreme cases, cause an
unintentional change of speed of the output function.
NOTICE
As much as possible of the welding work on the chassis should be done before the
installation of the system. If welding has to be done afterwards, the electrical
connections on the system must be disconnected from other equipment. The
negative cable must always be disconnected from the battery before disconnecting
the positive cable. The ground wire of the welder shall be positioned as close as
possible to the place of the welding. The cables on the welding unit shall never be
placed near the electrical wires of the control system.

USB Data Link Adapter 7
Precautions
2.1.1. Construction regulations
CAUTION
The vehicle must be equipped with an emergency stop which disconnects the supply
voltage to the control system's electrical units. The emergency stop must be easily
accessible to the operator. The machine must be built if possible, so that the supply
voltage to the control system's electrical units is disconnected when the operator
leaves the operator’s station.
2.1.2. Safety during installation
CAUTION
Incorrectly positioned or mounted cabling can be influenced by radio signals which
can interfere with the functions of the system.
2.1.3. Safety during start-up
WARNING
The machine's engine must not be started before the control system is mounted and
its electrical functions have been verified.
Ensure that no one is in front, behind or nearby the machine when first starting up
the machine.
Follow the instructions for function control in the Start-up section.
2.1.4. Safety during maintenance and fault diagnosis
CAUTION
Ensure that the following requirements are fulfilled before any work is carried out on
the hydraulics control electronics.
• The machine cannot start moving.
• Functions are positioned safely.
• The machine is turned off.
• The hydraulic system is relieved from any pressure.
• Supply voltage to the control electronics is disconnected.

USB Data Link Adapter 8
USB-DLA Description
3. USB-DLA Description
The purpose of a Data Link Adapter (DLA) is implied by its name: it is an adapter
that provides a link between two different data networks or protocols. The Parker
Vansco DLA provides the link between a PC and an automotive network.
Information from the engine and transmission is converted into a format that a
laptop can understand. The DLA transfers data from computer ports (USB) to
vehicle ports (J1939, J1708).
The Data Link Adapter is sold in kit form, with all of the necessary cables and
connectors included. This manual explains the contents of the kit, and how to set up
and use the DLA for USB communication.
3.1. Contents of USB-DLA kit
The USB-DLA kit is supplied in a high density polyethylene, blow-molded case. The
kit includes the following:
Table 1: Contents of USB-DLA kit
Part No. Description Remarks
USB-DLA Data Link Adapter
75144 CBL ASSY NETWORK DLA
DEUTSCH connects vehicle to DLA
75145 CBL ASSY NETWORK DLA
CANNON connects vehicle to DLA and modules
75850 CBL ASSY DLA BATTERY CLIP power cable
76547 CBL ASSY NETWORK CANNON
DEUTSCH connects VMM to vehicle bus w/Deutsch
93373 CBL ASSY J1939 0.9M CANNON connects VMM to vehicle bus
w/Cannon
51858 DT04-3P-P007 CONN RECP Y 3M
DT Deutsch J1939 y connector
53801 130446-0000 SPLICE Y 4M AU
J1939 Cannon J1939 y connector
53800 086-0068-002 PLUG TERM 4F AU
J1939 120 bus terminating plug
89248 CABLE USB 1.1 6FT MALE A-B connects USB-DLA to PC

USB Data Link Adapter 9
USB-DLA Description
Figure 1: USB-DLA kit

USB Data Link Adapter 10
Software Installation
4. Software Installation
The software for the USB-DLA should be installed before plugging the DLA into your
computer.
iINFORMATION
If you plug in the DLA first, Windows™ will try to install its own USB drivers. You will
have to cancel this driver installation and Windows™ may ignore the device the next
time it is plugged in.
The software installation is done in three parts:
1. Install the USB-DLA drivers on your PC.
2. Plug in the DLA and let the PC recognize the device and load the USB drivers.
3. Install the applications.
4.1. Installing the USB drivers
You must be logged on as an administrator to install the USB-DLA drivers. The latest
drivers for the USB-DLA are available from Parker Electronic Controls Division
website: http://www.parker.com/ecd. Go to the Customer Toolbox and select Vansco
DLA and PGM Drivers. Extract the setup files and save them to a temporary directory
using WinZip. Run the setup.exe program to launch the setup.

USB Data Link Adapter 11
Software Installation
The following example shows the installation on a computer running Windows 2000
(other Windows operating system installations are similar). Upon running
"setup.exe" the following installation screen will appear, click Next to continue:
Figure 2: Software setup screen
The next screen is a license agreement between the end user and Parker Vansco.
Once you have read and agreed to the license click on I Agree.
Figure 3: License agreement

USB Data Link Adapter 12
Software Installation

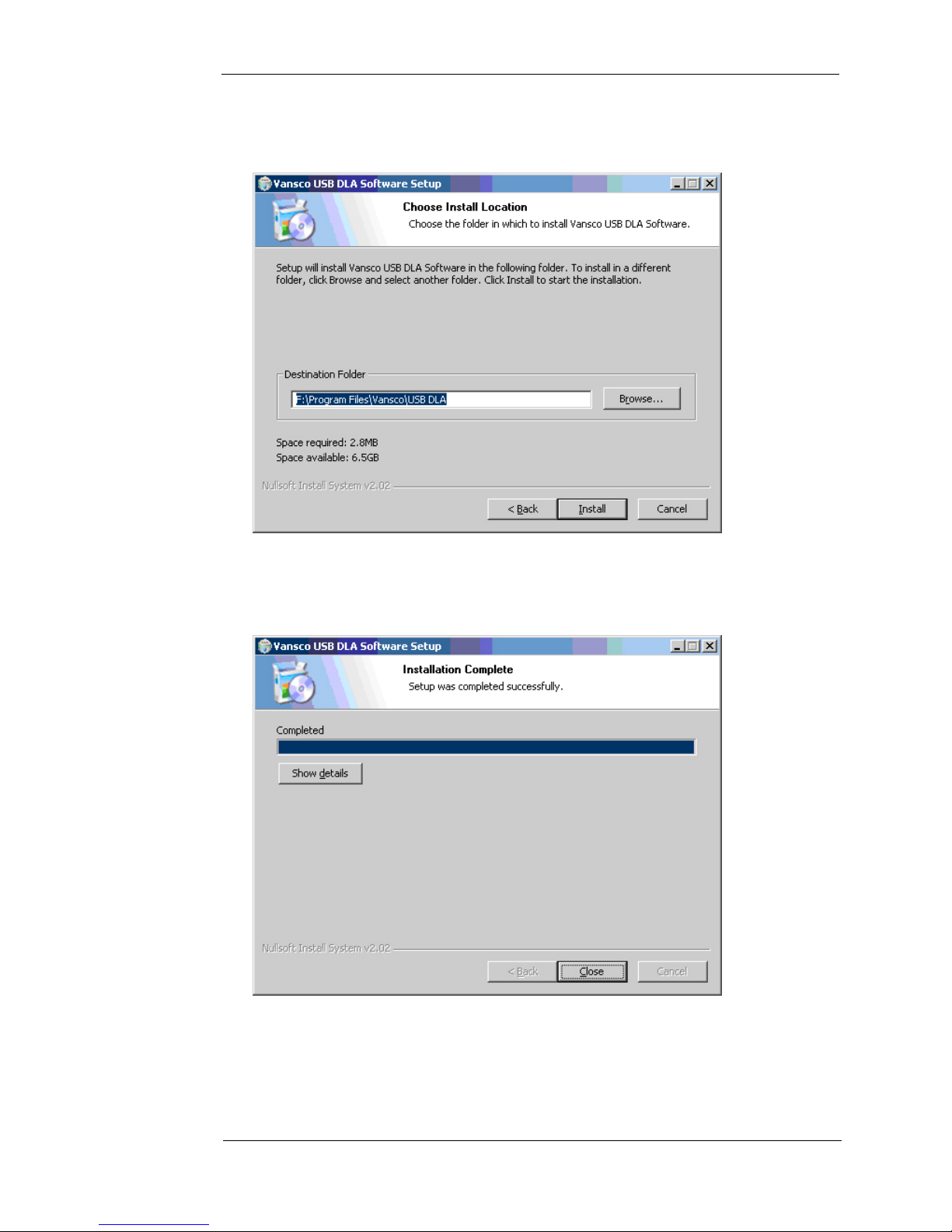

This is followed by an installation location screen. It is recommended that the files
be installed in the default location. Click Install to continue.
Figure 4: File location
After installing the files, a final screen will indicate that the setup program is
complete. Click Close to finish the software installation of the USB-DLA.
Figure 5: Installation complete

USB Data Link Adapter 13
Using the USB-DLA
5. Using the USB-DLA
5.1. Plug in the USB cable
Connect the DLA to your computer using the USB cable provided. Plug the A-type
receptacle into the back of your computer (1), and the B-type receptacle into the
DLA (2). You should hear a Windows alert every time the DLA is connected or
disconnected.
iINFORMATION
The DLA is considered a high current device because it draws more than 100mA
when operating. The unit must be plugged directly into your PC, or into a powered
USB hub. It will not operate if plugged into an un-powered USB hub.
Figure 6: Connect DLA to PC

USB Data Link Adapter 14
Using the USB-DLA

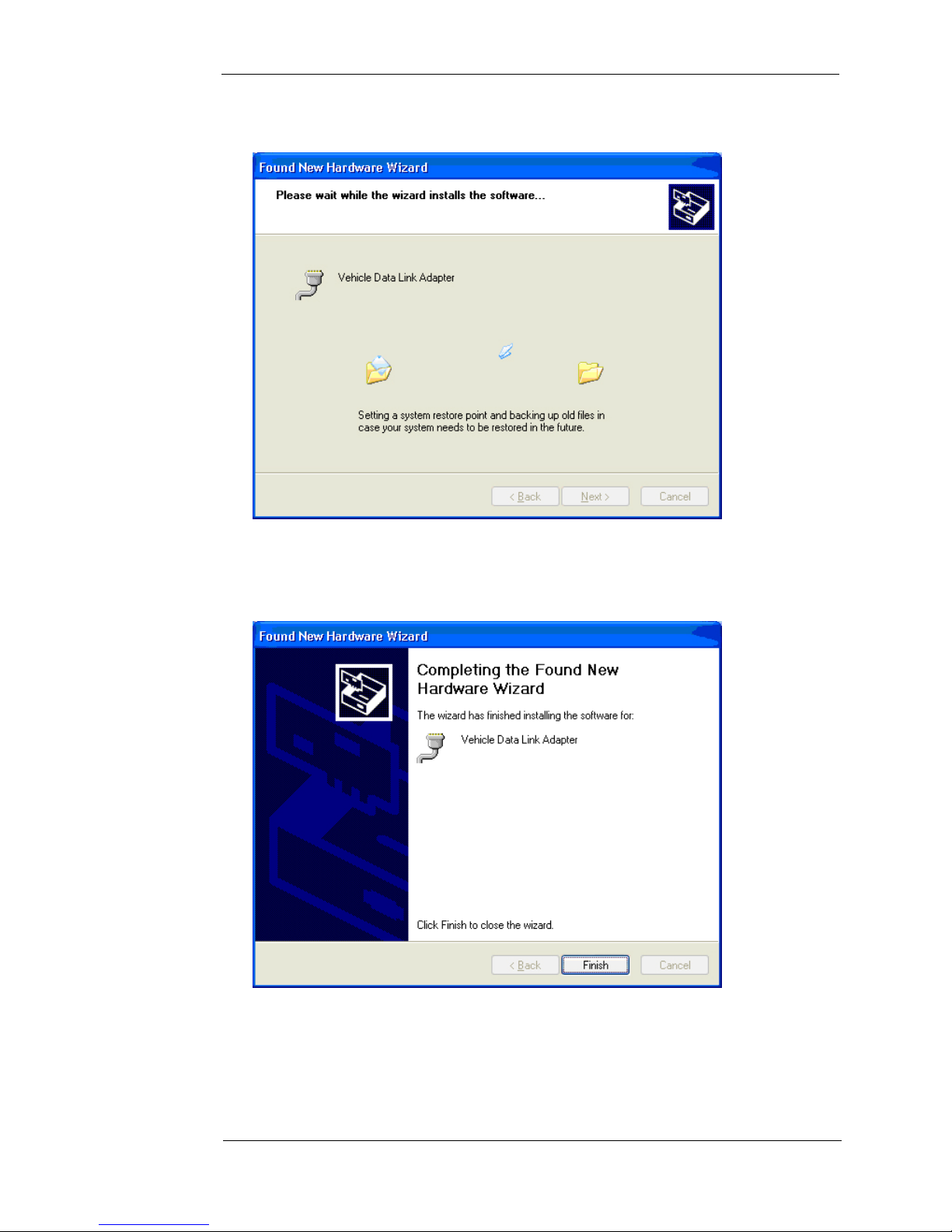

5.1.1. Load the USB drivers

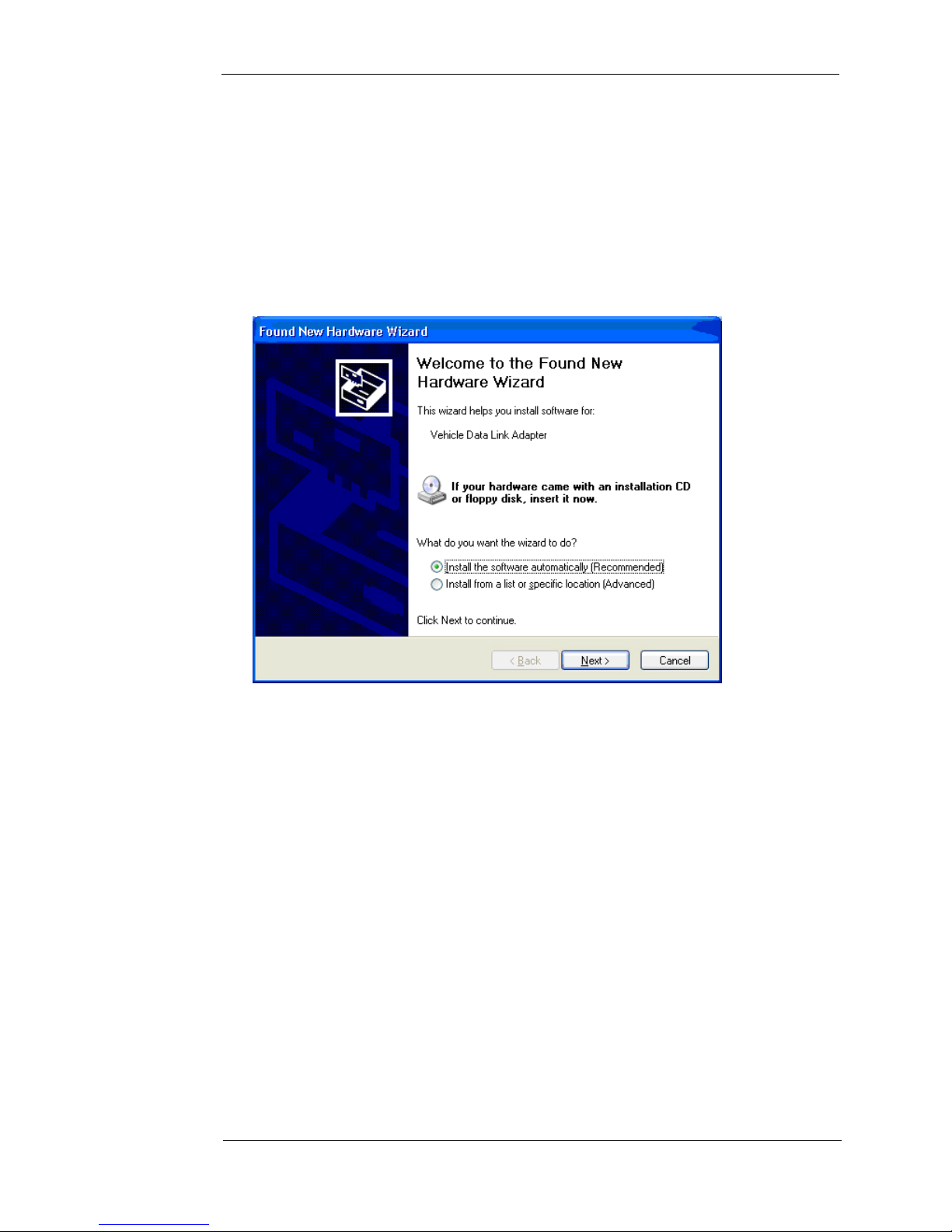

The USB-DLA will be detected automatically when it is plugged into your laptop.
The first time the device appears on a USB port, Windows will launch the Found New
Hardware Wizard in order to load the USB drivers. Windows will do this every time
the device appears on a new USB port (e.g., if you attach the USB-DLA to a new hub,
Windows will want to install the driver for each port on the hub). The USB drivers are
loaded like any other USB device. The following example shows how the drivers are
loaded in Windows XP. Select Install the software automatically (Recommended)
and click Next.
Figure 7: Found New Hardware Wizard

USB Data Link Adapter 15
Using the USB-DLA
Windows will then load the drivers for the USB-DLA.
Figure 8: DLA drivers being loaded
A final screen will indicate when the USB-DLA installation is complete. Click Finish
to close the window.
Figure 9: DLA drivers are now loaded

USB Data Link Adapter 16
Using the USB-DLA

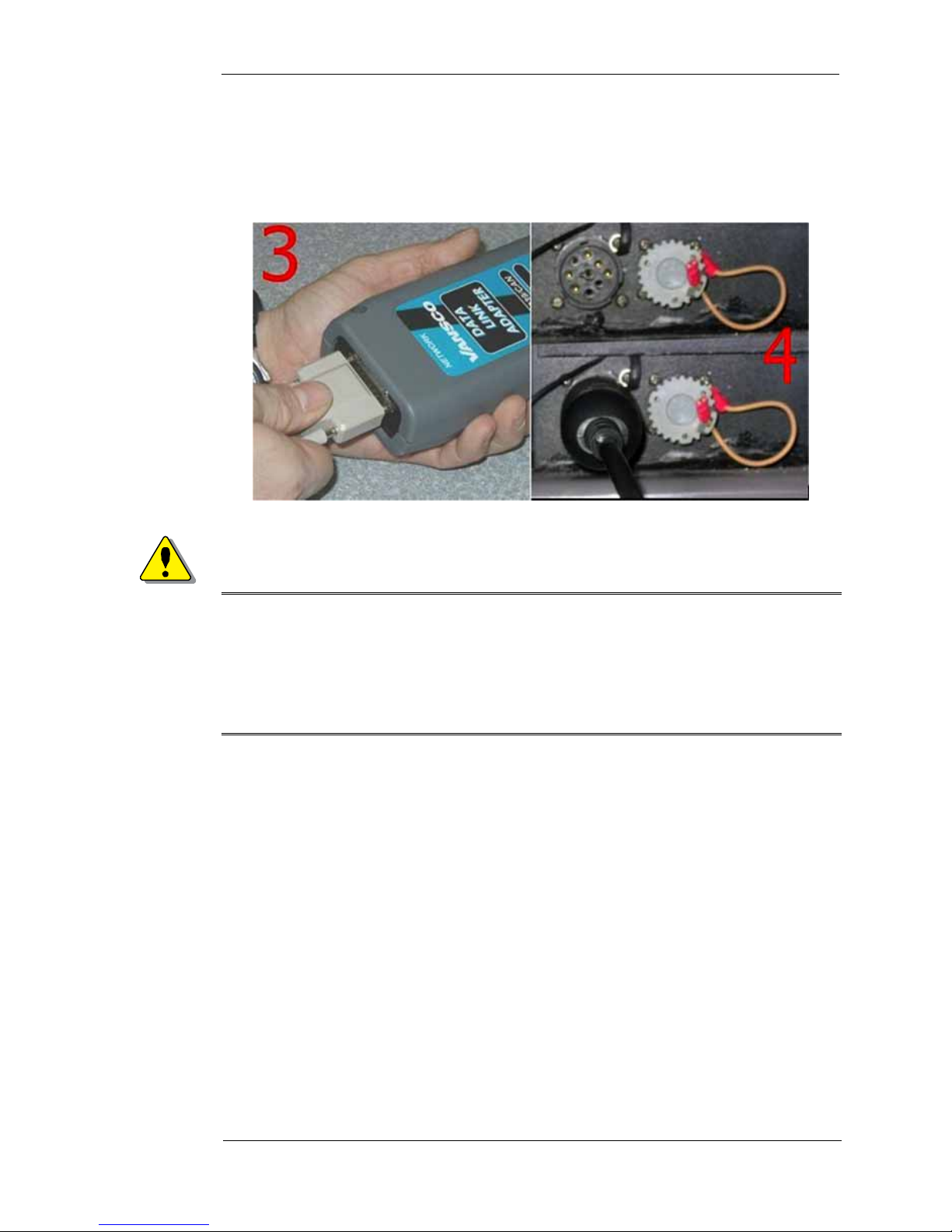

5.2. Plug in the vehicle interface cable
Connect the DLA to the vehicle using the vehicle interface cable provided. This cable
is typically a DB-15 (3) connected to a 9-pin Deutsch (4). Note that the vehicle
connector may change depending on the preference of the vehicle manufacturer.
Figure 10: Connect USB-DLA to vehicle
CAUTION
The USB ground is not isolated from the power ground. A computer connected to
the USB port must be electrically floating and not have any connections to the
outside world, including the AC power adapter and the serial port. Failure to
observe this may result in damage to the DLA and the computer USB port. If a
laptop battery needs to be charged, the USB port must be disconnected from the
DLA. If the DLA is to be used with a desktop computer, care must be taken to ensure
that the power supply to the DLA is isolated from any earth or vehicle ground.
5.3. USB-DLA LED Indicators
The USB-DLA has 3 LEDs for status indication. The LED indicators on the USB-DLA
fall into two categories: power status (1 LED) and network status (2 LEDs).
5.3.1. LED Colors and Blink codes
POWER ON (red) - The LED is off when no power applied. After the LED self-
test, the LED goes on steady.
J1708 (green) - The LED flashes on when the DLA detects traffic on the J1708
input terminals or when a J1708 message is sent from the DLA. During heavy
traffic, the LED may appear to be on steady. The LED stays off if no traffic is
detected and no messages are sent.
J1939/CAN (red) - The LED flashes on when the DLA detects traffic on the
J1939/CAN input terminals or when a J1939/CAN message is sent from the DLA.
During heavy traffic, the LED may appear to be on steady. The LED stays off if no
traffic detected and no messages are sent.

USB Data Link Adapter 17
Software Tools for the USB-DLA
6. SoftwareTools for the USB-DLA
The following software tools are used to support the DLA on a PC.
USB update tool can be used to update the embedded firmware in the DLA.
VAPIserver starts automatically when an RP1210 application is started and
provides a link between the USB or serial hardware and the PC application.
RP1210 Chooser allows the use of different DLA hardware (such as Vansco's
serial or parallel DLA) on the same computer.
Parker Vansco also has a number of software tools that are useful for troubleshooting
vehicle networks. These are applications that have been developed over the years to
assist in developing products such as instrument clusters, transmission controllers
and DLAs.
CANsniff is a PC application that displays the amount of data on the CANbus as
well as actual traffic.
SimEngine is a powerful PC application that can simulate engine controller
messages.
SimGauges creates a virtual J1939 instrument cluster on a PC for a graphical
display of data received by the DLA.
iINFORMATION
These softwares started as engineering tools and, as a result, are not full-featured,
professional software tools.
For further information about these software tools, please contact your Parker
Vansco representative.
6.1. USB Update Tool
NOTICE
USB update tool is a program for updating the embedded firmware in the USB-DLA.
If this is done incorrectly or the wrong firmware is loaded, the DLA can be rendered
inoperative. The unit must then be returned to Parker Vansco for reprogramming.
This tool is used to update the embedded firmware on the DLA itself.
Plug the DLA into the USB port and run the program udutool.exe. The program
should show you that the DLA is connected to the USB port. Click on the DLA to
select it for a firmware update.
Use the browse button (indicated by the ellipsis) to select an appropriate firmware
file. A valid DLA firmware file can be identified by three characteristics:

USB Data Link Adapter 18
Software Tools for the USB-DLA
1. The filename should start with the DLA product number 779.
Never program the DLA with firmware file that does not start with 779.
2. The filename should end with the application version number.
Never program the DLA with an application code that has a lower version
number.
3. The file type should be .VSF.
The software will display an alert asking you if you are sure you want to reprogram
the DLA. Click Yes to continue. A progress bar will move across the screen. A dialog
box will inform the user if the update was successful.
Figure 11: Updating the DLA firmware with udutool
USB update tool will only allow you to update only the application code in the DLA
and not the bootcode. This means that if you interrupt the update, you should be
able to run it again and complete the update. However, it is highly recommended
that the update be run without interruptions. The DLA should only be disconnected
when USB update tool reports the update has completed successfully.

USB Data Link Adapter 19
Software Tools for the USB-DLA
6.2. VAPI Server
A new icon appears in your system tray when you start an RP1210 application that
uses the USB-DLA. This is the VAPIserver (Vansco Application Program Interface
Server) program; it provides the interface between the applications (such as
SimGauges, SimEngine and CANsniff) and the DLA hardware.
Figure 12: VAPI Server icon
Double clicking the VAPIserver icon will bring up a window showing the status of the
VAPIserver program. The VAPIserver will search for a DLA connected to the PC once
every minute. If it finds one, the status will change to "Connected" and the
VAPIserver will use that DLA until the connection is lost. The status window shows
the number of applications that are connected to the DLA.
Figure 13: VAPI Server status window
The status window displays information on the data being sent through the DLA.
This includes counts of the bytes sent through J1939 and J1708 and also connection
status. In general, the Adapter Packets Tx count should match the Vapi Server
Packets Rx count. However, if the DLA is disconnected, the Adapter Packets TX
count will continue to increase as the PC attempts to communicate with the DLA.
Table 2: Status window messages
Description Explanation
CAN/J1939 Tx Count Number of J1939 messages transmitted by DLA
CAN/J1939 Rx Count Number of J1939 messages received by DLA

USB Data Link Adapter 20
Software Tools for the USB-DLA
J1708/J1587 Tx Count Number of J1708 messages transmitted by DLA
J1708/J1587 Rx Count Number of J1708 messages received by DLA
Adapter Packets Tx Count Number of packets transmitted by DLA to the PC
Adapter Packets Rx Count Number of packets received by DLA from the PC
Adapter Packet Errors Number of packet errors detected by the DLA
Adapter Checksum Errors Number of packet checksum errors
Vapi Server Packets Tx
Count Number of packets transmitted by the PC to the DLA
Vapi Server Packets Rx
Count Number of packets received by the PC from the DLA
Vapi Server Packets Errors Number of packet errors detected by the PC
CAN 1 Status Status of CAN 1 port. See table below
CAN 2 Status Status of CAN 2 port. See table below
J1708 Status Status of J1708 port. See table below
Other Status Status of optional port. See table below
Client Threads Number of clients
A status byte is associated with each of the vehicle ports on the DLA. The status byte
is displayed in hex format with each of the bits representing the following table.
Table 3: Status byte
Bit 7 reserved
Bit 6 reserved
Bit 5 reserved
Bit 4 reserved
Bit 3 Set to 1 when the data link is in the BUS OFF state (if applicable).
Bit 2 Set to 1 when traffic has been detected on the data link.
Bit 1 Set to 1 when the data link is enabled.
Bit 0 Set to 1 when the data link is present.
