Parker icountBSplus User manual

icountBSplus
icountBSplus
Bottle Sampler Manual
DD0000014_US RevA
© 2013, Parker Hannifin Manufacturing (UK) Ltd
www.parker.com/hfde
USA

Parker Hannifin Manufacturing (UK) Ltd
2
USA
Contents
About this manual........................................................................ 3
Overview....................................................................................................................3
Symbol glossary........................................................................................................4
Safety information.....................................................................................................4
Laser information ......................................................................................................5
Battery Information ...................................................................................................5
Exclusion of liability ..................................................................................................6
Product registration ..................................................................................................6
EC declaration of conformity....................................................................................7
Product identification labels.....................................................................................8
Introduction ................................................................................. 9
Benefits....................................................................................................................10
Product features......................................................................................................11
Technical specifications..........................................................................................13
Default settings .......................................................................................................14
Test Set-up and System Settings screens.............................................................15

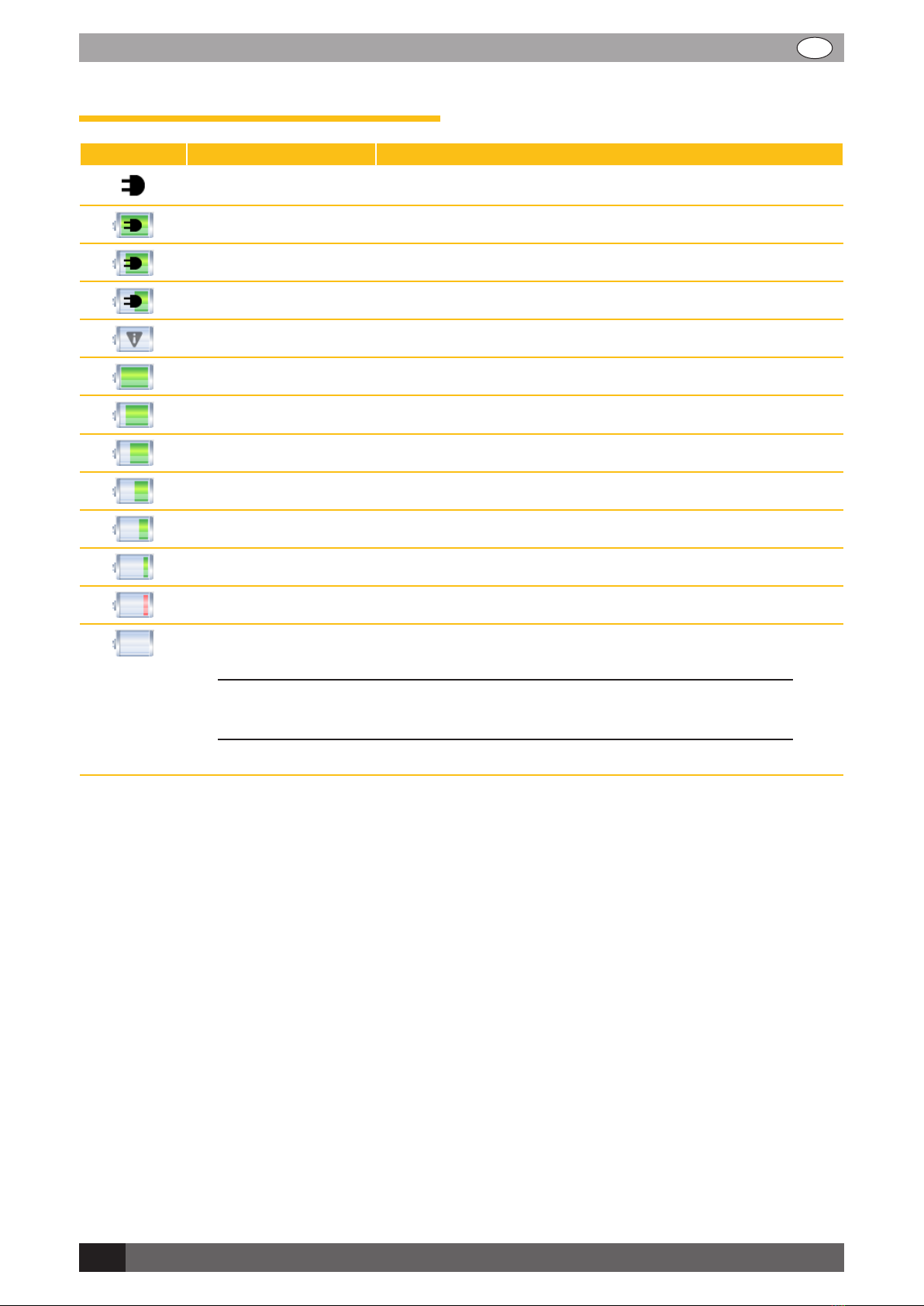

Battery charging status icons ................................................................................16
Contamination Standards.......................................................................................17
Setting up................................................................................... 18
Using the Touch Screen..........................................................................................18

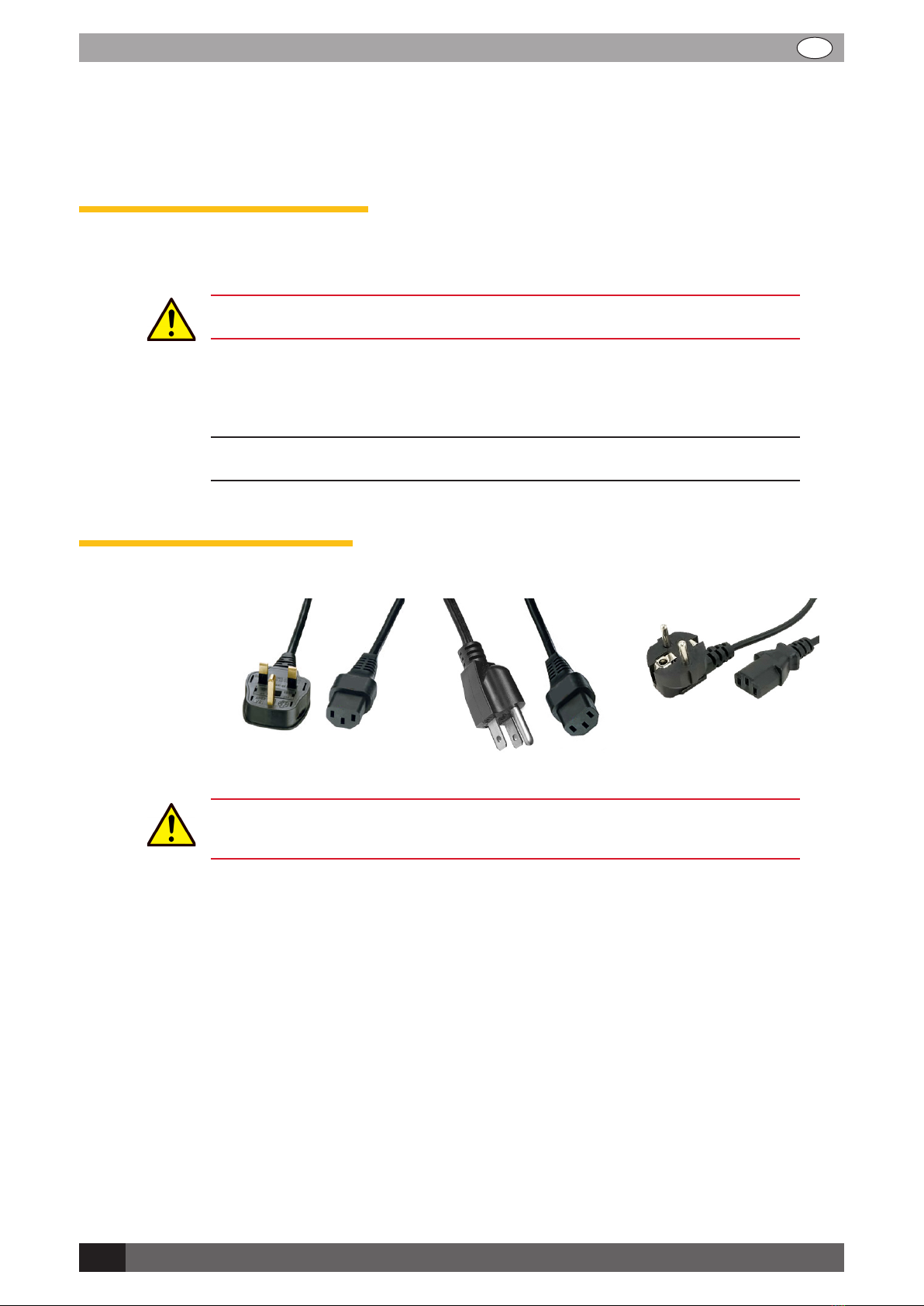

Electrical connections ............................................................................................18
Fluid connections....................................................................................................20
Printer paper installation ........................................................................................22
Getting started ........................................................................... 24
icountBSplus setup.................................................................................................24
Preparation guidelines for testing..........................................................................26
Testing ....................................................................................... 28
Inserting and removing sample bottles..................................................................28
Create new Test Sample Bottle Name ...................................................................30
Sample testing ........................................................................................................33
Viewing/Exporting test results................................................................................38
Test results (Filtering)..............................................................................................41
Importing Test results data.....................................................................................43
Reference................................................................................... 45
Ordering information...............................................................................................45
Accessory Part Numbers........................................................................................46
Fitting a replacement door seal..............................................................................49
Recalibration and servicing....................................................................................51
Troubleshooting ......................................................................................................52

icountBSplus Bottle Sampler Manual 3
USA
About this manual
Overview
Parker Hannifin’s icountBSplus is the latest in laser particle counting technology. This mineral oil or
aviation fuel contamination counter has been designed to provide accurate measurement results,
providing high standards of performance and product quality.
Its primary use is for laboratory conditions but is adaptable to allow its transport from one area to
another with minimal testing disruption.
With its Innovative touch screen technology, integrated battery power source and secure safe
operating parameters, the new icountBSplus will deliver the performance characteristics by meeting
accredited US Standards and achieving full ISO Certification to the latest ISO Medium Test Dust
standards.
The unit can be used in both on-line and off-line systems. The on-board power supply and
integrated battery allows the icountBSplus to be taken to places that laboratory equipment has
never gone before.
High resolution
touch screen
Safety features
Easy access wake-up switch
Integrated stylus
Integrated battery
Robust outer
panel design
Integrated printer

Parker Hannifin Manufacturing (UK) Ltd
4
USA
Symbol glossary
The following symbols are used in this manual.
WARNING
Warning notices are used in this publication to emphasize that hazardous
voltages, currents, temperatures, or other conditions that could cause
personal injury exist in this equipment or may be associated with its use.
A Warning notice is used in situations where inattention or misuse could
cause personal injury.
CAUTION
A Caution notice is used in situations where inattention or misuse could
cause damage to the equipment. If the equipment is used in a manner not
specified by the manufacturer, the protection/performance may be impaired.
CHECK
Notes merely call attention to information that is especially significant to
understanding and operating the equipment. You may need to check the
orientation or tightness of connections, for example.
SAFETY EQUIPMENT
Some operations require special attention to safety, such as the use of
safety glasses. Contact your local Parker Hannifin sales office if you have any
concerns.
SERVICE/REPAIR
Any servicing or repair work must be carried out by a Parker-approved
service center. Contact your local Parker Hannifin sales office for recalibration
services.
WARNING
A red band around a picture or instruction is used to emphasize that
particular care is required to avoid the danger of personal injury or other
hazard.
CAUTION
A yellow band around a picture or instruction is used to emphasize that
particular care is required in carrying out the instruction. Examples are
checking that plugs are ‘keyed’ (i.e. correctly polarized) before they are fully
inserted, or that hoses are fitted carefully so they do not leak.
Safety information
Please read the operating instructions before use and refer to this Handbook whenever appropriate
during use.
Before operating the icountBSplus ensure all electrical connections, hoses and fittings are securely
fitted to the appropriate standards.
Check all hoses and fittings for wear and or damage. If replacements are required please order new
parts using the Accessory Part Numbers on the Ordering Information section (page 45). Replace
any loose or leaking hoses immediately.
WARNING: High pressure oil or fuel systems can present a danger of serious personal
injury.

icountBSplus Bottle Sampler Manual 5
USA

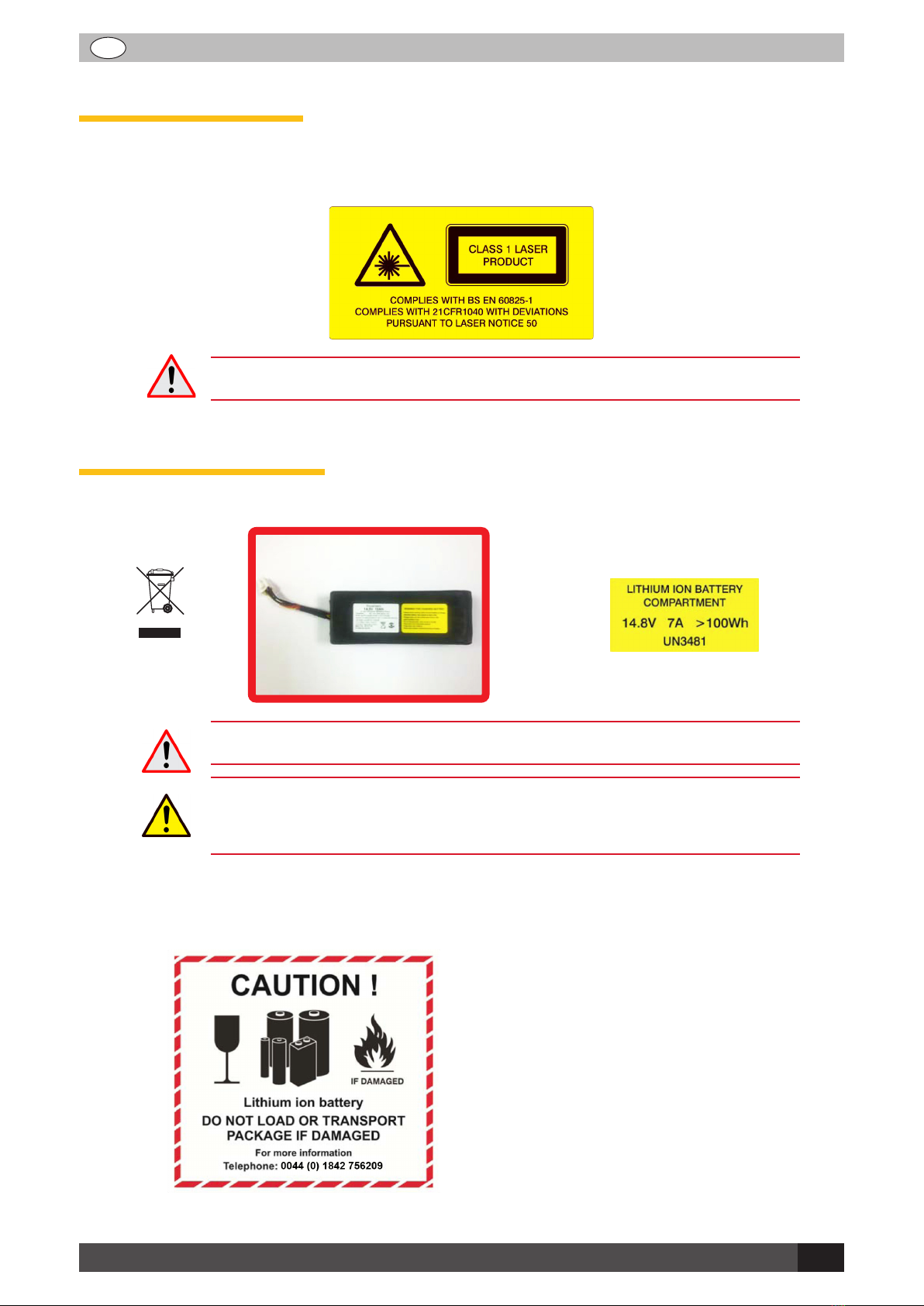

Laser information
This product contains an infrared 5mW laser.
Any dismantling of the product may result in dangerous exposure to laser radiation. The following
information about the laser is located on the side panel of the product.
WARNING: Users are not required to access the laser radiation source and should
never do so.
Battery Information
This product contains a 14.8V 10Ah 7A Li-ion Polymer battery pack.
WARNING : If it is necessary to access the battery compartment, please take
necessary precautions. If in doubt, please contact Parker Hannifin for advice.
CAUTION: Disconnect from Mains supply before accessing the battery compartment.
Do not dismantle, short circuit or modify batteries in any way.
Do not charge the battery outside of the icountBSplus product.
Do not power on the icountBSplus without the battery fitted and connected.
This Parker product has been shipped in accordance to IAATA Guidance for Lithium ion batteries in
equipment. (Ref : ICAO Technical Instruction for the Safe Transport of Dangerous Goods by Air and
the 52nd Edition (2010) off the IATA Dangerous Goods Regulations (DGR).)
The product packing should be labelled with a notice of the following type:
ATENCIÓN
Batería de Ion-Litio
NO CARGAR NI TRANSPORTAR LA
BATERÍA SI ESTÁ DAÑADA
Para más información
Teléfono 0044 (0) 1842 756224

Parker Hannifin Manufacturing (UK) Ltd
6
USA
Exclusion of liability
Parker has made every endeavour to ensure the accuracy of the content of this document, however
errors cannot be ruled out. Consequently, we accept no liability for such errors as may exist or for
any damage or loss whatsoever which may arise as a result of such errors.
All details are subject to technical modifications.
Technical specifications are subject to change without notice.
Do not open the unit
To ensure compliance with the certification, users are NOT permitted to open the unit
under any circumstances. Doing so will invalidate the unit’s calibration and it would NOT
subsequently be suitable for calibrated use.
Product registration
www.parker.com/unlock
NOTE: Registering your product online at www.parker.com/unlock allows us to offer a
speedy response time should you have a Warranty claim or other difficulty within the first
12 months of purchase.
NOTE: Do not dispose of the original packaging, as this is required to return the
icountBSplus to the Condition Monitoring Service Center safely for recalibration and
servicing.

icountBSplus Bottle Sampler Manual 7
USA
EC declaration of conformity

Parker Hannifin Manufacturing (UK) Ltd
8
USA

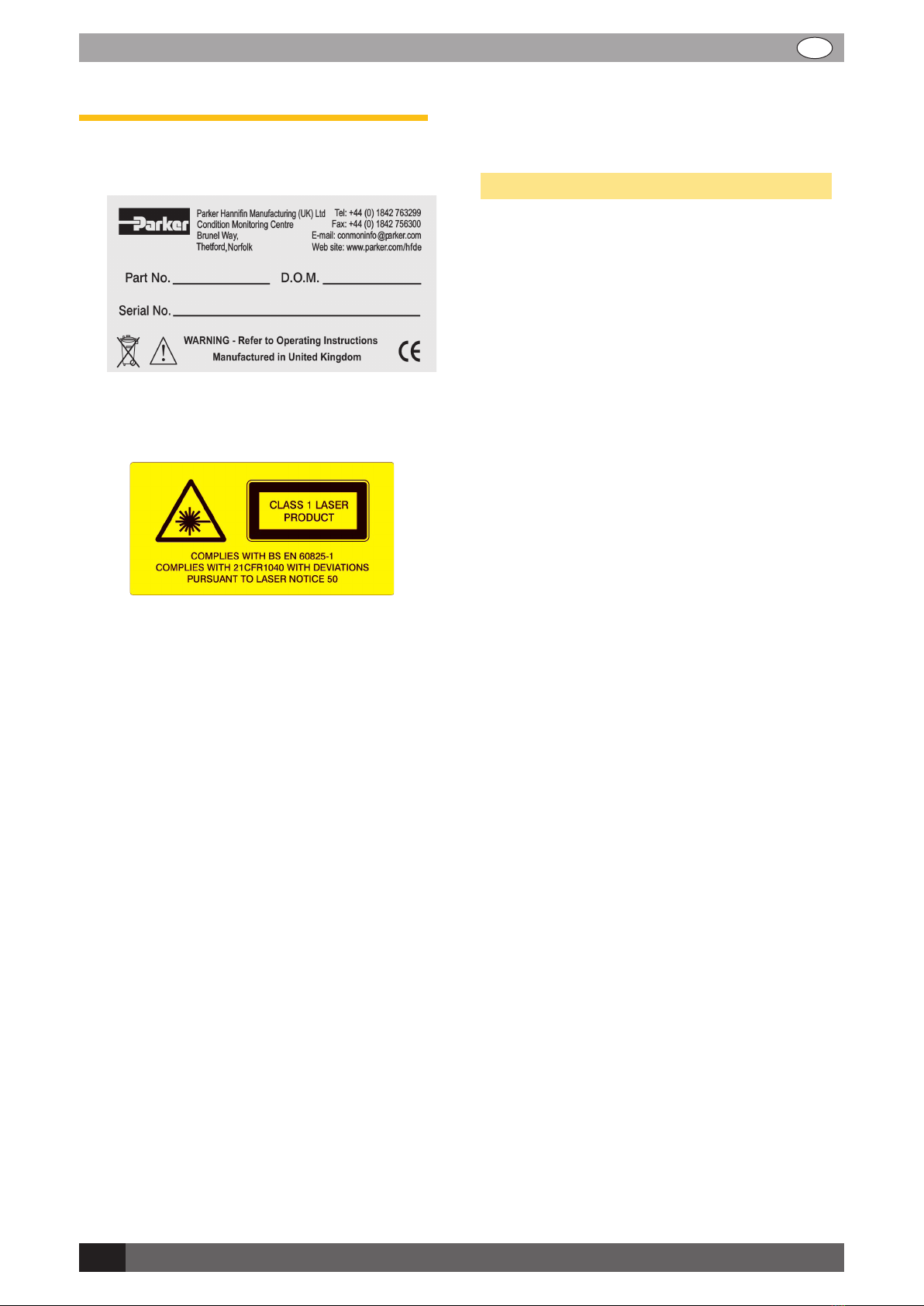

Product identification labels
On the back panel
8
4
6 5
1 3
7
2
On the side panel
9
KEY
1Part number reference
2Serial number
3Date of manufacture (D.O.M.)
4Country of manufacture
5Refer to handbook
6Waste electrical and electronic equipment
(WEEE) directive. End-of-life disposal is the
responsibility of the user
7Name and address of manufacturer
8Conformity marking of product by notified
body
9Laser warning

icountBSplus Bottle Sampler Manual 9
USA

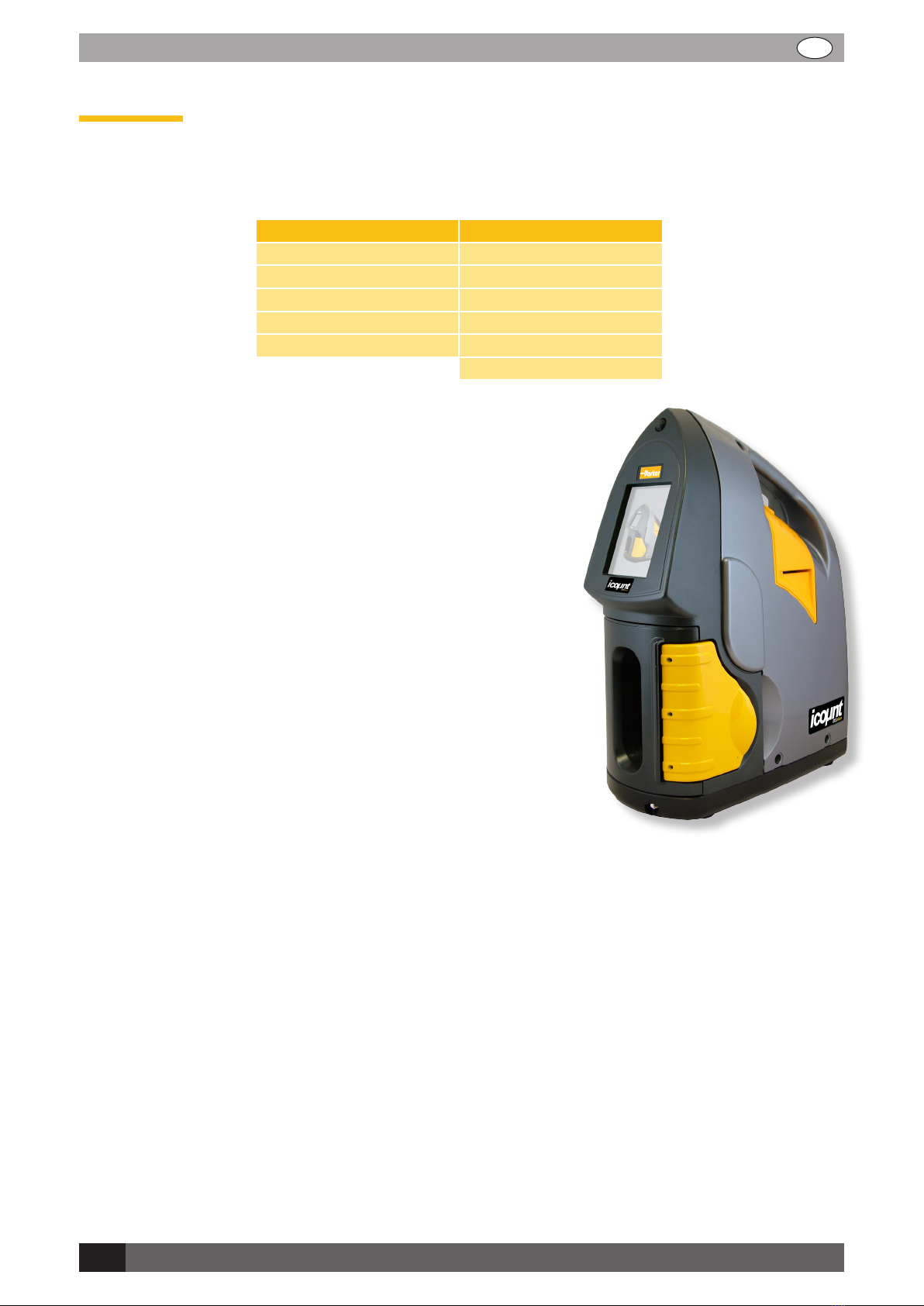

Introduction
Parker Hannifin’s icountBSplus represents the most up-to-date technology in solid particle
contamination analysis. The icountBSplus is a compact, durable, lightweight integrated laser-
based particle detector module that provides a cost-effective solution to fluid management and
contamination control.
Principles of operation
The icountBSplus measures particle contamination via a sample bottle or on line. The sampling
interval can be defined by the user so that measurements may be taken as often as required.
In contrast to other Parker particle counters (such as the CM20, LCM20, ACM20 or MCM20), the
icountBSplus allows you to set the volume of the test sample and the number of measurements
taken for each bottle sample. The results are reported immediately, but also stored in the unit’s
internal memory and may be downloaded later for analysis by third-party applications (such as
Microsoft®Excel).
The icountBSplus has high levels of controlled accuracy, stability and sensitivity.
Servicing and calibration
Please refer to the Parker Hannifin Quality and Servicing booklet (FDCB272UK), supplied on CD.
NOTE: Any servicing or repair work must be carried out by a Parker approved service
center. Contact your local Parker Hannifin Sales Company for recalibration details. The
recommended period between recalibration is 12 months.
NOTE: Keep store the Parker Transit Packaging Case in a safe place as this is required to
return the icountBSplus to the Condition Monitoring Service Center for recalibration and
servicing.

Parker Hannifin Manufacturing (UK) Ltd
10
USA
Benefits
 Independent monitoring of system contamination trends
 Calibration by recognised on-line principles confirmed by relevant International Organization
for Standardization (ISO) procedures
 Reporting codes indicate contamination levels to the following Contamination Standards:
MTD ACFTD
ISO 4406 : 1999 ISO 4406 : 1987
NAS 1638 ISO 4406 : 1991
AS4059 (Differential) NAS 1638
AS4059 (Cumulative) AS4059 (Differential)
Jet Fuel AS4059 (Cumulative)
GOST 17216 : 2001
 Eight selectable channels
 Selectable test sample sizes
 10, 20, 30, 40, 50, 60, 80 and 100ml
 Selectable Flush Sample Sizes
 10, 15, 20, 25, 50 and 100ml
 Selectable number of samples taken in one time
(dependant on the size of the volume and flush
sizes selected)
 1, 2, 3, 4 or 5 tests
 A low-cost solution to prolonging fluid life and
reducing machine downtime
 Mineral fluid / Fuel-compatible construction
 Percentage saturation reporting (for the moisture
sensor option)
 Testing capability of up to 500 continuous tests
(override auto warning option available)
 Data exporting method to USB (in XML format)
 Modular design for easy servicing
 On-board high quality pump and motor
configuration
 High resolution colour touch-screen panel with
built in stylus
 Integrated printer (selectable on/off feature)
 Self-diagnostic software
 Power-saving ‘Sleep mode’ with integrated ‘Wake up / power button’.
