Parklio Smart Parking Barrier User manual

01 | Page
www.parklio.com | [email protected] | [phone]
Hercegovacka 78, 21 000 Split | Commercial Court in Split | MBS: 060323069 | Raiffeisen Bank,
Zagreb, Petrinjska 59 | IBAN: HR7724840081107194017 | VAT: HR60755958894
PARKLIO SMART PARKING BARRIER
USER MANUAL
PARKLIO BARRIER
USER MANUAL

02 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
Dear Customers,
-
The User Guide will help you use your product quickly and safely.
•
• Always follow the safety instructions.
•

03 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
PARKLIO BARRIER DETAILED INSTRUCTIONS
01. Parking barrier................................................................................ 05
1.1 Exterior..................................................................................................... 05
1.2 Base......................................................................................................... 06
1.3 Electronics box........................................................................................ 07
1.4 Battery box ............................................................................................. 07
02. Technical data................................................................................ 09
03. Safety warnings.............................................................................. 10
04. Installation and connection............................................................ 11
4.1 Checking parts ....................................................................................... 11
4.2 Opening the barrier ................................................................................. 11
4.3 Positioning the barrier............................................................................... 12
4.4 Barrier installation..................................................................................... 12
4.5 Setting up the barrier ............................................................................... 14
4.6 Putting the barrier in operation ................................................................ 15
05. Parklio mobile application.............................................................. 17
5.1.2 Changing the name of the barrier.......................................................... 18
5.1.3 Auto-close............................................................................................ 19
5.1.4 Battery status........................................................................................ 19
5.1.5 Removing the barrier............................................................................. 20
5.1.6 Key sharing........................................................................................... 20
00. TABLE OF CONTENTS

04 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
5.1.7 Key blocking......................................................................................... 21
5.2 Ios .......................................................................................................... 22
5.2.2 Changing the name of the barrier.......................................................... 22
5.2.3 Auto-close............................................................................................ 23
5.2.4 Battery status....................................................................................... 23
5.2.5 Removing the barrier............................................................................. 24
5.2.6 Key sharing........................................................................................... 24
5.2.7 Key blocking......................................................................................... 25
06. Cleaning and maintenance............................................................. 26
6.1 Cleaning the barrier interior ..................................................................... 26
6.2 Cleaning the barrier exterior...................................................................... 26
07. Replacing the safety pin................................................................. 26
08. Manual control of the barrier.......................................................... 27
09. Disposal of equipped device........................................................... 28
10. Faq.................................................................................................. 29

05 | Page
.
PARKLIO SMART PARKING BARRIER
USER MANUAL
01. PARKING BARRIER
1.1 Exterior

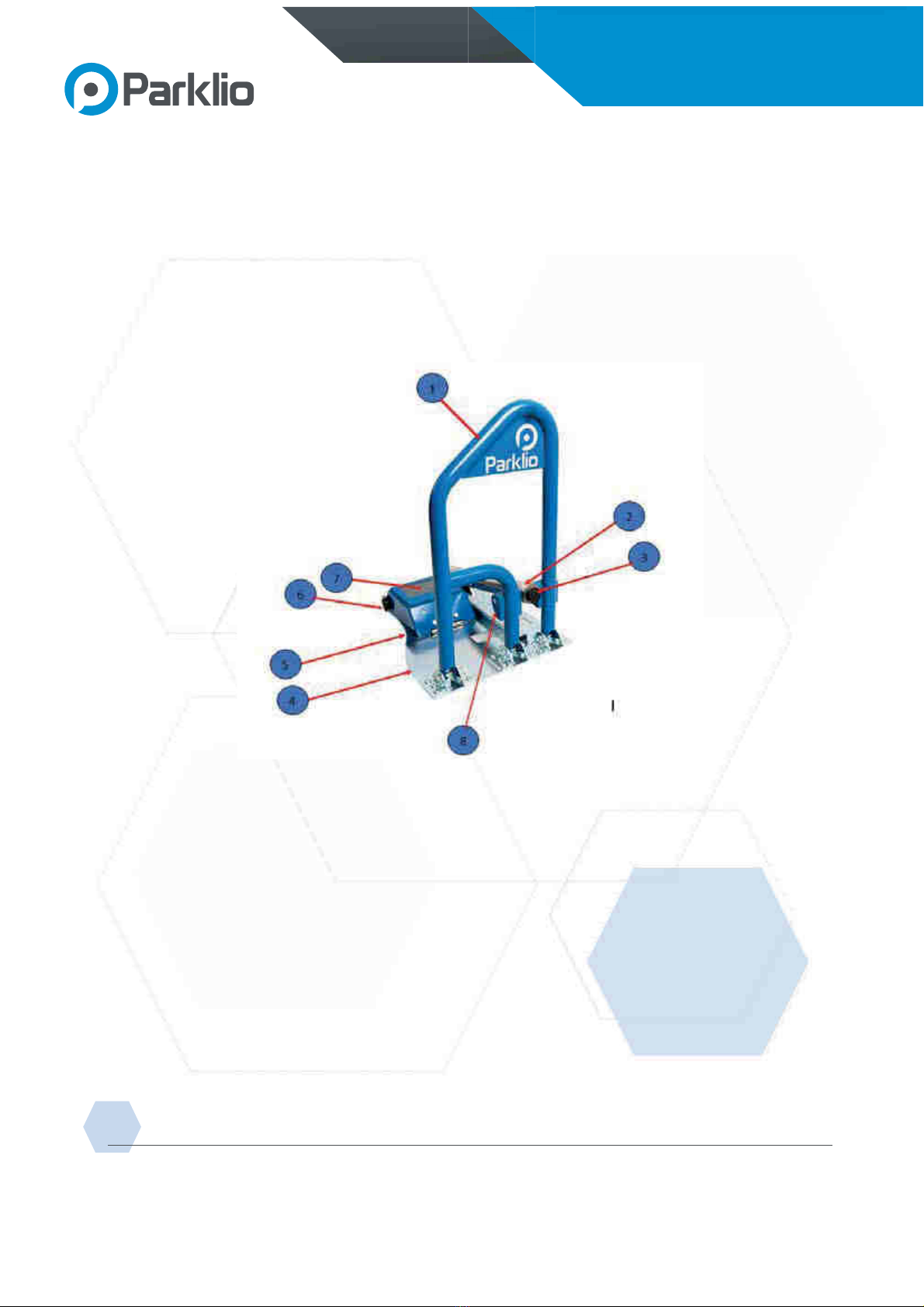

Figure 1 - Exterior of the Parking barrier
1. Arm
2. Mechanism Assembly
3. Mechanism Assembly Lock
4. Base
5. Cover
6. Cover Lock
7. Solar panel
8. Safety pin

06 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
1.2 Base
1. Battery – Electronics connector
2. Battery Box
3. Electronics Box
4. Anchor holes
5. Laser
Figure 2 - Interior of the Parking barrier

07 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL

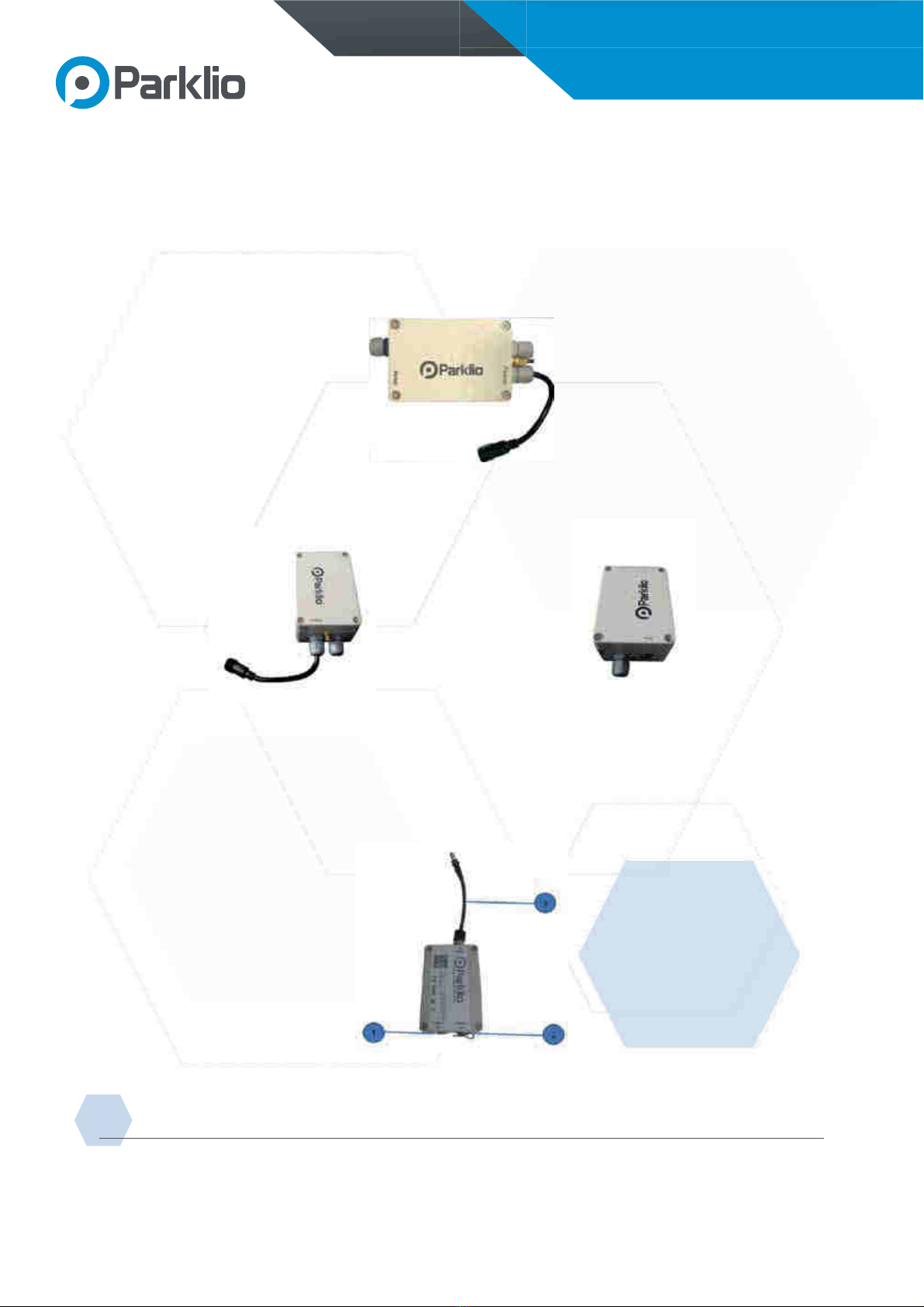

1.3 ELECTRONICS BOX
1.4 BATTERY BOX
Figure 3 - Electronics box (view from the above)
Figure 4 - Electronics box (front view)
Figure 6 - Battery box
Figure 5 - Electronics box (rear view)

08 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
1. LED charging light
2.
3. Battery box – Electronics box connecting cable
the app will warn you to charge the battery.
When the battery is full, the LED light will turn off.
Environment conditions for charging mode:
•
•
•
•
•
•
•

09 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
02. TECHNICAL DATA
-
Width 331mm
Height 68 mm
Length 918 mm
Weight 15kg
Height with raised arm 517 mm
Ingress protection level IP 65
Working temperature -20°C - 60°C
Frequency (for AC connection) 50/60 Hz
Table 1 - Technical data of the parking barrier

10 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
03. SAFETY WARNINGS
This section contains safety instructions that will help to protect you from risk of injury or
• Do not use the barrier
before.
•
• Only plugs and batteries supplied by the manufacturer of the barrier should
be used.
• Ignoring usage instructions
• Never expose the inner workings to water.
• The device must be
•
•
malfunction in the unit.
•
cause an explosion.
• -
work.
THE APPLIANCE HAS BEEN ESTABLISHED ACCORDING TO ALL VALUENT SAFETY CRI -
TERIA AND STANDARDS. HOWEVER, WE RECOMMEND THAT WITHOUT THE NEEDED
HELP AND SUPERVISION, CHILDREN BY 8 YEARS, A PERSON OF DISABLED PHYSICAL,
MOTOR OR PERSONAL EQUALITY AND RELATED PERSONS WITHOUT A PREVIOUS EX -
PERIENCE OR KNOWLEDGE DO NOT USE THE BARRIER. EXCEPTION IS THE DEVICE
USAGE UNDER ADEQUATE SUPERVISION, IF THEY HAVE RECEIVED SAFETY INSTRUC -
TIONS, OR IF THEY ARE INFORMED ABOUT THE DANGER CAUSED BY IMPROPER US -
AGE. THE SAME RECOMMENDATION IS FOR JUVENILES AND THEIR USAGE OF THE
DEVICE.
STOP CHILDREN TO PLAY WITH THE BARRIER. ALSO DO NOT LET CHILDREN CLEAN
THE APPLIANCE OR MAINTAINING IT WITHOUT ADEQUATE SUPERVISION.

11 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
04. INSTALLATION AND CONNECTION
4.1CHECKING PARTS
4.2 OPENING THE BARRIER
1. Parklio barrier
2.
3. Anchor x 4
4. Battery box
5. Electronic box
6. Key x 2
7. Safety pin
The barrier is shipped sealed and folded.

12 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
4.3 POSITIONING THE BARRIER
4.4 BARRIER INSTALLATION
Figure 7 - Positioning the barrier
It is recommended to place a barrier in half
of the parking space, up to two thirds of the
parking space.
The illustration (Figure 7) is only a proposal
for setting the barrier and does not condi -
tion users setup but is required for full func -
tionality of the barrier.
Step 1 - MARKING DRILLING SPOTS
Interior of the barrier] as a template.
Figure 8 - Marking drilling spots

13 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
Step 2 - DRILLING MARKED SPOTS
Step 3 - ANCHOR PLACEMENT
into the holes by a slight hammer stroke.
Figure 9 - Drilling marked spots
Figure 10 - Anchor placement

14 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
Step 4 - FIX THE BARRIER
Fix the barrier i.e. tighten the anchors with the
size 13 socket wrench.
4.5 SETTING UP THE BARRIER
Put the arm in a vertical position, insert the safety pin through the holes, lock the mechanism
assembly by pushing the lock. Make sure the cross pin on the safety pin is parallel to the
mechanism assembly.
If the cross pin is not positioned properly the mechanism assembly will not be
lockable. Make sure NOT to lift the mechanism assembly more than 60°.
Figure 11 - Fixing the barrier
Figure 12 - Cross pin position

15 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL

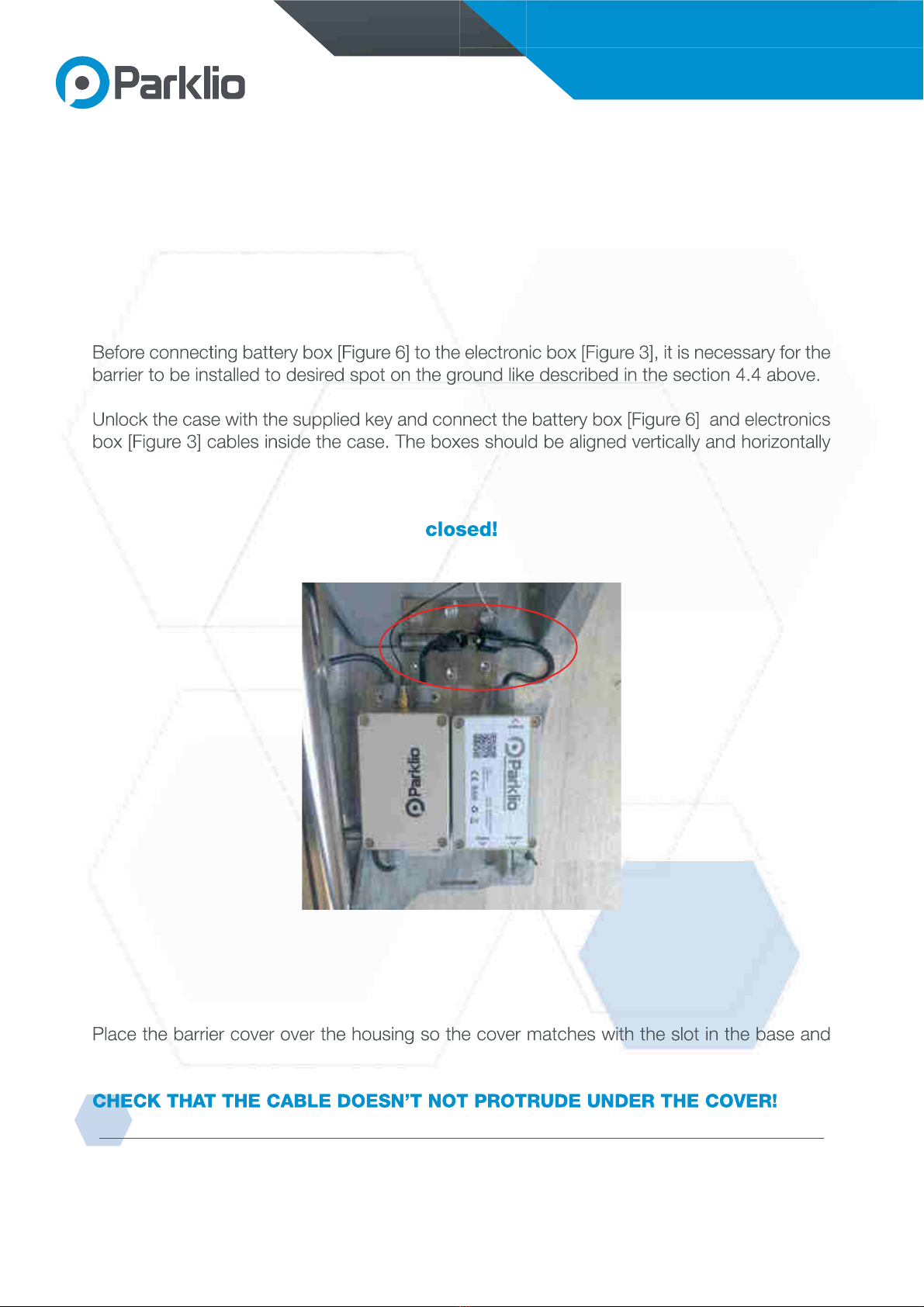

4.6 PUTTING THE BARRIER IN OPERATION
Step 1 - CONNECTING THE BATTERY BOX
one to the another.
Please, check on the battery box that the cap on the charging port is
Step 2 - CLOSING THE COVER
lock the cover by pushing in the lock.
Figure 13 - Connection of the power supply

16 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
Step 3 - DOWNLOADING THE MOBILE APP
iOS -
Or via the following links:
http://bit.ly/2iMkIn5
iOS - https://apple.co/2iaV7aA

17 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
Step 4 - REGISTRATION IN THE MOBILE APP
There are two ways to login, with e-mail or with Gmail.
-
mation message for the account within the Parklio mobile
application.
b.) Login with Gmail account
Step 5 - PAIRING THE BARRIER WITH THE MOBILE APPLICATION
By clicking the button in the lower right corner, a new screen opens where all Parklio
a particular barrier opens the screen through which you manage the chosen barrier.
-
cess, the owner must be connected to the internet so that the server
can recognize the barrier owner and verify his digital key.
Figure 14 - Email login
a.) Login with email

18 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL
05. PARKLIO MOBILE APPLICATION
5.1 ANDROID

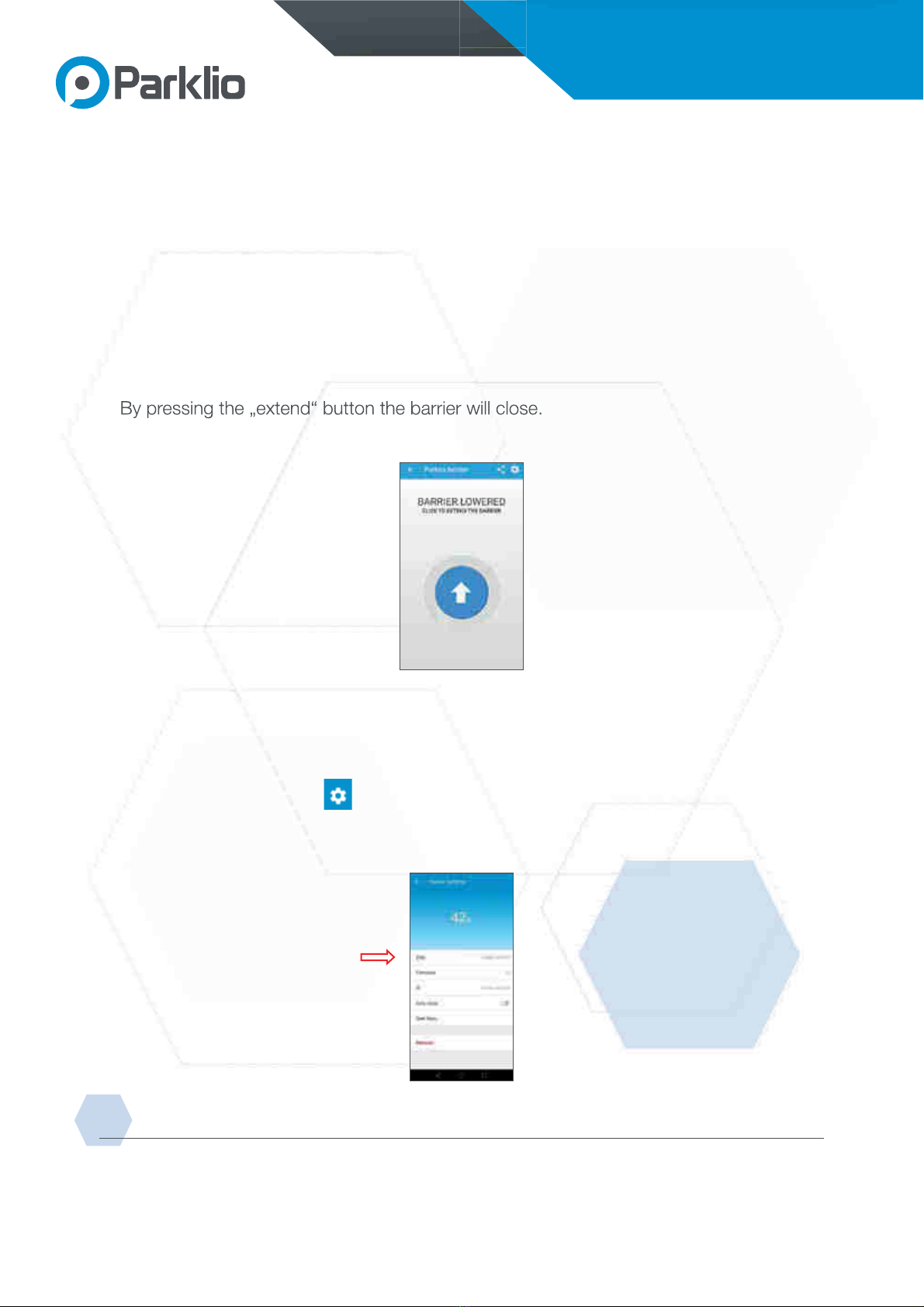

5.1.1 LOWERING AND EXTENDING THE BARRIER
• By pr essing the „lower“ button, the barrier will open.
•
5.1.2 CHANGING THE NAME OF THE BARRIER
By clicking the settings icon a new screen will open where the user can change the title
of the barrier by clicking on the „Title“ button.
Figure 15 - Barrier manipulation
Figure 16 - Changing the name of the barrier

19 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL

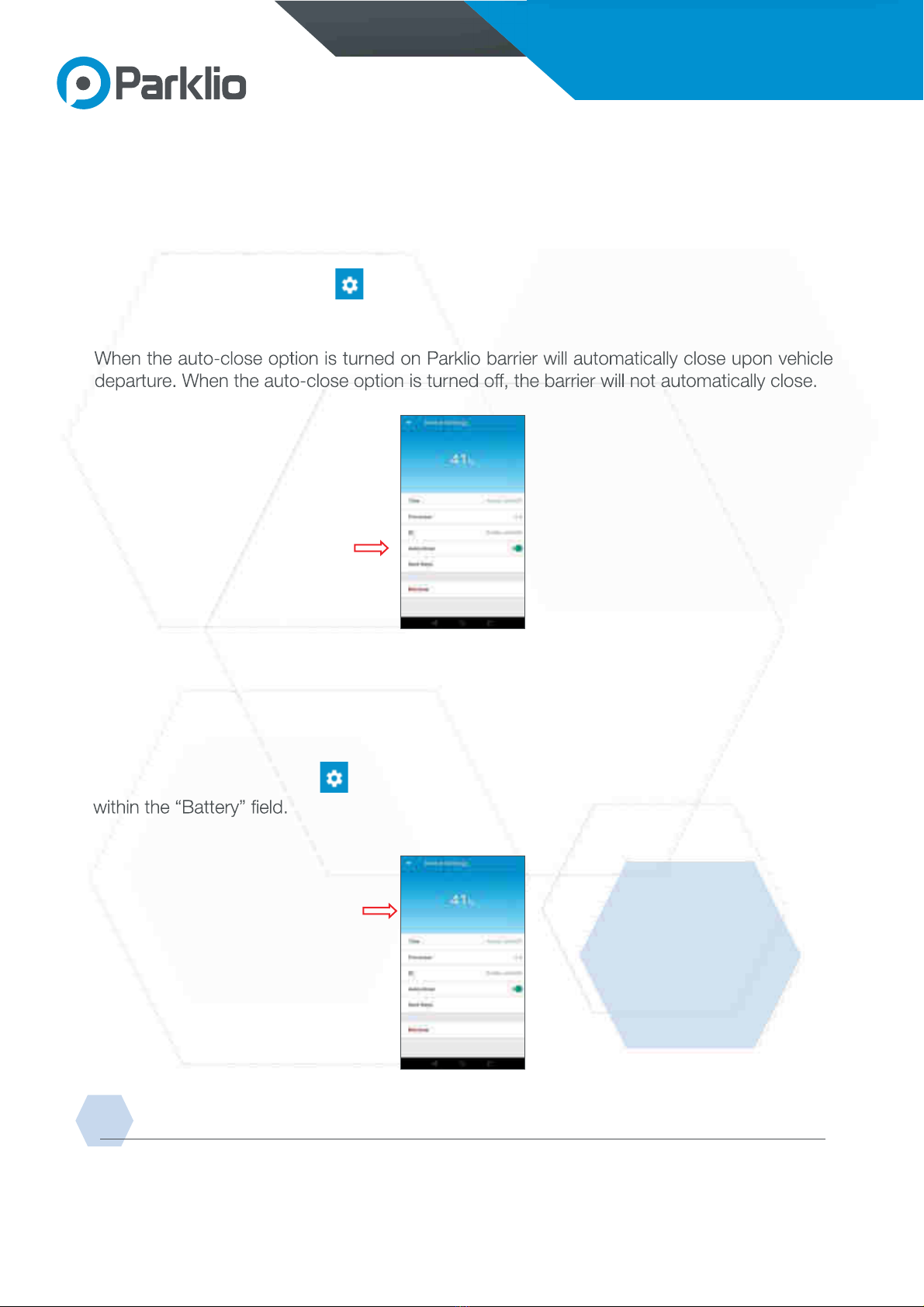

5.1.3 AUTO-CLOSE
By clicking the settings icon a new screen will open where the user can turn the au -
to-close option on or off.
5.1.4 BATTERY STATUS
By clicking the settings icon a new screen will open where the user can see battery status
Figure 17 - Auto-close option
Figure 18 - Status of the battery

20 | Page
PARKLIO SMART PARKING BARRIER
USER MANUAL

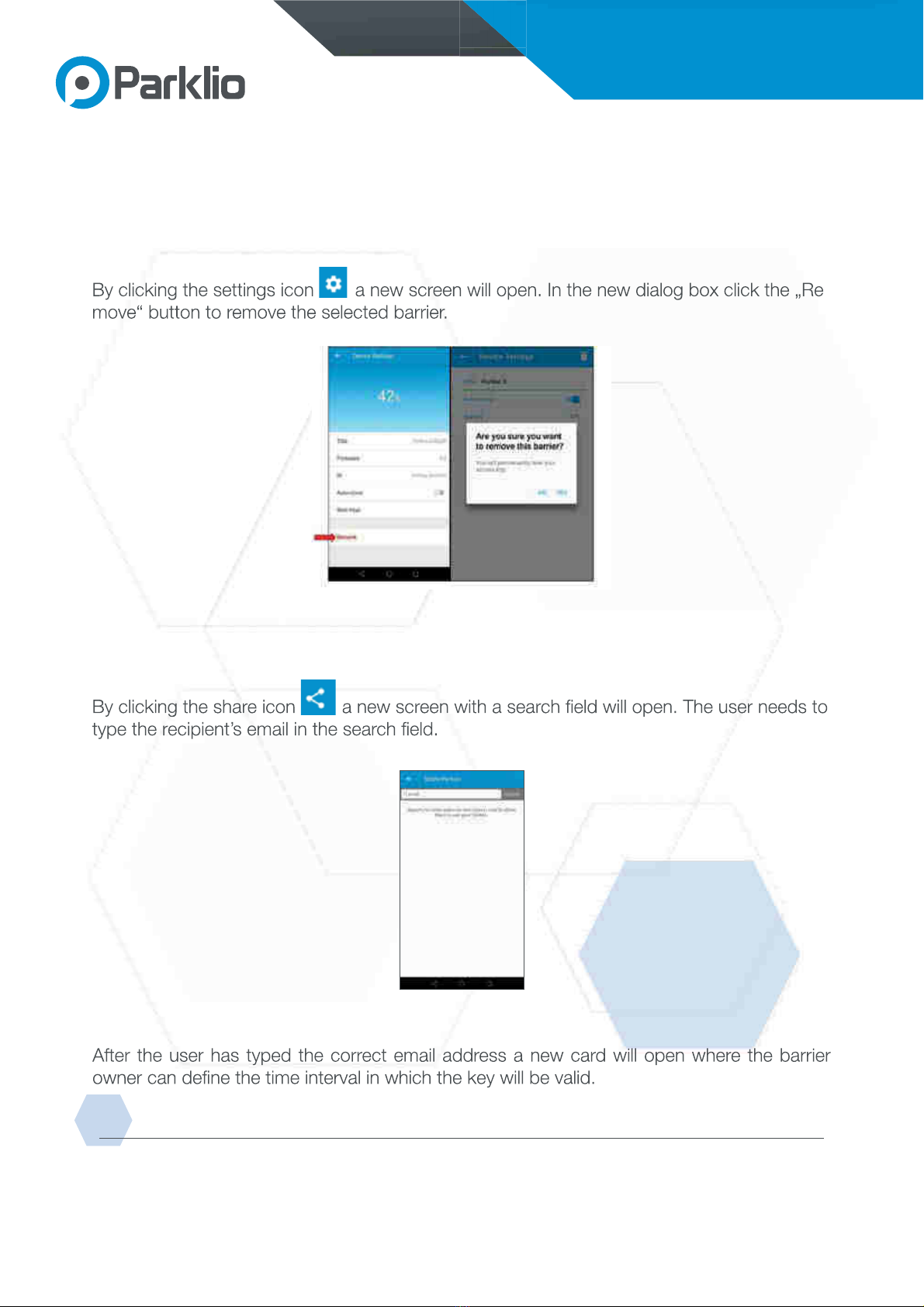

5.1.5 REMOVING THE BARRIER
-
Figure 19 - Removing the barrier
Figure 20 - Key sharing default screen
5.1.6 KEY SHARING
