Parkside 6-LIA User manual

X 3,6-LI A
6
LITHIUM ION CORDLESS
SCREWDRIVER
Operation and Safety Notes
35327_LITHIUM ION CORDLESS SCREWDRIVER_Cover_LB6.indd 2 07.08.09 10:47

GB/IE/CY Operation and Safety Notes Page 5
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the
device.
35327_LITHIUM ION CORDLESS SCREWDRIVER_Cover_LB6.indd 3 07.08.09 10:47

A B
D
C
E
1
8
9
10
2
3
4
1
6
7
8
9
5
35327_LITHIUM ION CORDLESS SCREWDRIVER_Cover_LB6.indd 4 07.08.09 10:47

5GB/IE/CY
Table of contents
Introduction
Intended purpose..........................................................................................................Page 6
Equipment Components................................................................................................Page 6
Included items ...............................................................................................................Page 6
Technical Data...............................................................................................................Page 7
General safety advice for electrical power tools
1. Workplace safety .....................................................................................................Page 7
2. Electrical safety.........................................................................................................Page 8
3. Personal safety..........................................................................................................Page 8
4. Careful handling and use of electrical power tools................................................Page 8
5. Careful handling and use of rechargeable devices...............................................Page 9
Safety advice relating to cordless drill drivers.............................................................Page 9
Original ancillaries /accessories .................................................................................Page 10
Before first use
Charging the rechargeable battery on the device......................................................Page 10
Changing the bits/screwdriver bit inserts...................................................................Page 10
Preparing the tool for use
Switching on/off the cordless screwdriver .................................................................Page 10
Changing the direction of rotation...............................................................................Page 10
Switching on/off the LED lights...................................................................................Page 11
Tips and Tricks...............................................................................................................Page 11
Maintenance and cleaning.........................................................................Page 11
Service.........................................................................................................................Page 11
Warranty...................................................................................................................Page 11
Disposal......................................................................................................................Page 12
Conformity Declaration / Manufacturer..........................................Page 12
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 5 12.08.09 16:39

6 GB/IE/CY
Introduction
Lithium ion cordless screwdriver
X3.6 - LI A
QIntroduction
Before you use it for the first time, it is es-
sential that you make yourself fully familiar
with the functions of the appliance and
find out how to correctly handle electrically powered
tools. To do this, read the following operating instruc-
tions carefully. Retain these instructions for future
reference. Additionally, pass them on to whoever
might acquire the appliance at a future date.
QIntended purpose
This device is intended for driving screws into
wood, plastic and metal. Use the appliance only as
described and only for the purposes indicated. The
device is not intended for commercial use. Any oth-
er uses, and modifications to the appliance, are
deemed to be improper usage and may result in
serious physical injury. The manufacturer accepts
no responsibility for damage(s) resulting from
improper usage.

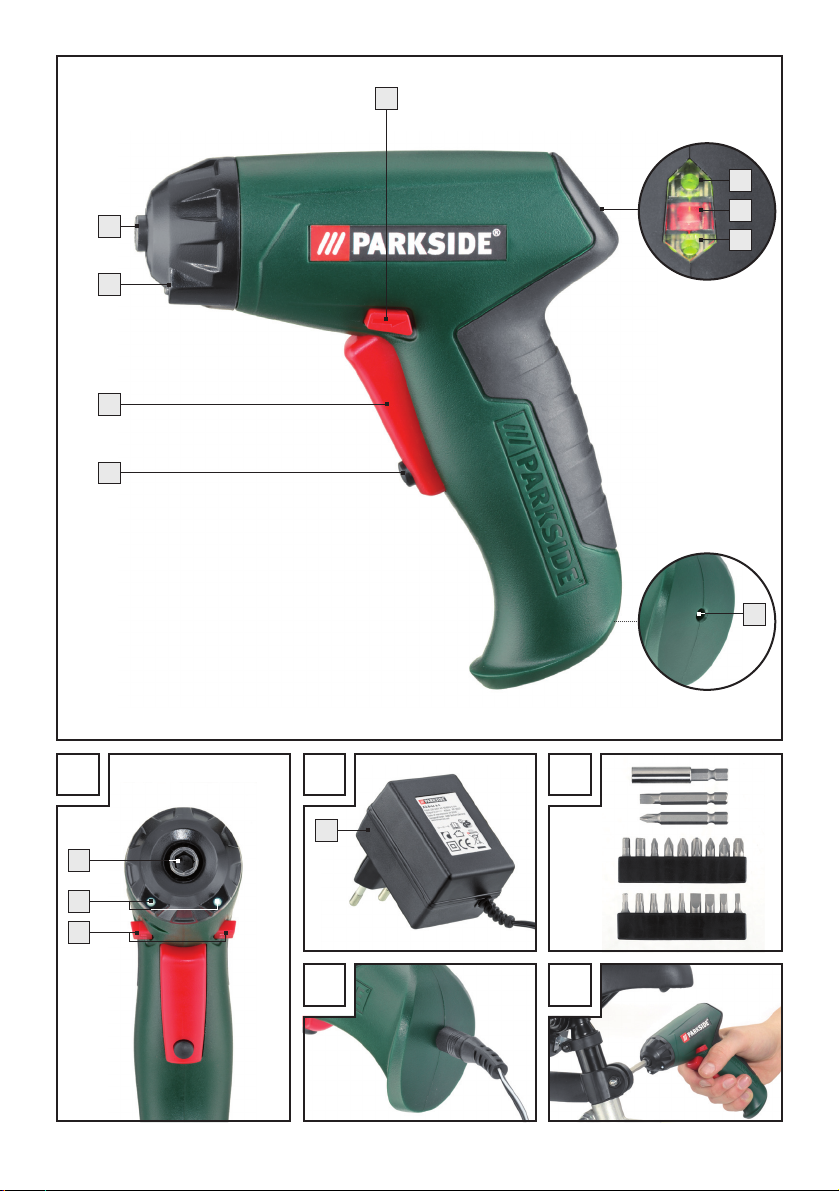

QEquipment Components
1Direction of rotation switch/lock
2Direction indicator (clockwise)
3Battery display
4Direction indicator (anticlockwise)
5Charging socket (device)
6ON/OFF switch (LED lights)
7ON/OFF switch
8LED lights
9Tool holder
10 Mains adapter
QIncluded items
1 Lithium ion cordless screwdriver X3.6-LI A
1 Mains adapter X3.6-LI A-1
1 Carry case
20 Bits (see Fig. C)
1 Bit extension (see Fig. C)
1 Operating instructions
The following pictograms are used in these operating instructions / on the device:
Read instruction manual! Safety class II
Observe caution and safety notes! Keep children away from electrical
power tools!
Caution–electric shock!
Danger to life!
Wear hearing protection, dust
protection mask, protective glasses
and protective gloves.
Risk of explosion! For indoor use only!
n0Nom. no-load speed Check that the device, mains lead and
plug are in good condition!
V~Volt (AC) Dispose packaging and appliance in
an environmentally-friendly way!
mA
A / Ah Milliamps/Amps/Amp-hours Do not dispose of rechargeable
batteries with your household refuse!
V Direct current
(Type of current and voltage)
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 6 12.08.09 16:39

7GB/IE/CY
Introduction/ General safety advice for electrical power tools
QTechnical Data
X3.6-LI A cordless screwdriver:
Rated voltage: 3.6V
Rechargeable battery
(integrated): LITHIUM
Rechargeable battery
capacity: 1350mAh
No-load speed: n0200 min-1
Torque: max. 4Nm
Tool holder: 6.35mm (1/4“)
X3.6-LI A-1 mains adapter:
INPUT:
Rated voltage: 230-240V~50/60Hz
Rated power: 5,5W
OUTPUT:
Rated voltage: 6,2V
Rated power: 400mA
Charging time: Approx. 3 hrs.
Protection class: II/
Noise / vibration data:
Values determined in accordance with EN 60745
The sound pressure level (A-weighted) of the device
is typically 55dB (A). Uncertainty K = 3dB.
The sound level while working can exceed 80dB(A).
Total vibration (vector sum of three directions) is
calculated in accordance with EN 60745:
Screwing: Vibration emission value
ah,D = 2.101m/s2,
uncertainty K = 1.5 m / s2
WARNING! The vibration level given in these
instructions has been measured in accordance with
a standardised measurement procedure specified
in EN60745 and can be used to compare devices.
Different uses of the device give rise to different
vibration levels and in many cases they may exceed
the values given in these instructions. It is easy to
underestimate the vibration load if the electrical power
tool is used regularly in particular circumstances.
Note: If you wish to make an accurate assessment
of the vibration loads experienced during a particular
period of working, you should also take into account
the intervening periods of time when the device is
switched off or is running but is not actually in use.
This can result in a much lower vibration load over
the whole of the period of working.
General safety advice
for electrical power tools
WARNING! Read all the safety advice
and instructions! Failure to observe the safety
advice and instructions may result in electric shock,
fire and/or serious injury.
KEEP ALL THE SAFETY ADVICE AND INSTRUC-
TIONS IN A SAFE PLACE FOR FUTURE REFER-
ENCE! THE TERM “ELECTRICAL TOOL” USED
IN THE SAFETY ADVICE REFERS TO ELECTRICAL
TOOLS POWERED BY MAINS ELECTRICITY (BY
MEANS OF A MAINS LEAD) AND ELECTRICAL
TOOLS POWERED BY RECHARGEABLE BATTER-
IES (WITHOUT A MAINS LEAD).
1. Workplace safety
a) Keep your working area clean and
well lit. Untidy or poorly lit working areas
can lead to accidents.
b) Do not work with the device
in potentially explosive envi-
ronments in which there
are inflammable liquids, gases or
dusts. Electrical power tools create sparks,
which can ignite dusts or fumes.
c) Keep children and other peo-
ple away while you are op-
erating the electrical tool.
Distractions can cause you to lose control of
the device.
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 7 12.08.09 16:39

8 GB/IE/CY
General safety advice for electrical power tools
2. Electrical safety
To avoid danger to
life from electric shock:
a)
The mains plug on the device must match
the mains socket. The plug must not
be modified in any way. Do not use
an adapter plug with devices fitted
with a protective earth. Unmodified
plugs and matching sockets reduce the risk of
electric shock.
b) Avoid touching earthed surfaces such
as pipes, radiators, ovens and refrig-
erators with any part of your body.
There is an increased risk of electric shock if
your body is earthed
.
c) Keep the device away from rain or
moisture. Water entering an electrical device
increases the risk of electric shock.
d) Do not use the mains lead for
any purpose for which it was
not intended, e.g. to carry the
device, to hang up the device or to pull
the mains plug out of the mains socket.
Keep the mains lead away from heat,
oil, sharp edges or moving parts of the
device. Damaged or tangled mains leads
increase the risk of electric shock.
e) When working outdoors with an elec-
trical power tool always use extension
cables that are also approved for use
outdoors. The use of an extension cable suitable
for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD)
for protection if operating the electrical
power tool in a moist environment is
unavoidable. The use of an RCD reduces
the risk of electric shock.
3. Personal safety
a) Remain alert at all times, watch what
you are doing and always proceed
with caution. Do not use the device if
you are tired or under the influence
of drugs, alcohol or medication. One
moment of carelessness when using the device
can lead to serious injury.
b) Wear personal protective
equipment and always wear
safety glasses. The wearing of
personal protective equipment such as dust
masks, non-slip safety shoes, safety helmets or
ear protectors, appropriate to the type of elec-
trical power tool used and work undertaken,
reduces the risk of injury.
c) Avoid unintentional operation of the
device. Check that the electrical pow-
er tool is switched off before you con-
nect it to the mains, pick it up or carry
it. Accidents can happen if you carry the de-
vice with your finger on the ON/OFF switch or
with the device switched on.
d) Remove any setting tools or spanners
before you switch the device on. A tool
or spanner left attached to a rotating part of a
device can lead to injury.
e) Avoid placing your body in an unnat-
ural position. Keep proper footing
and balance at all times. By doing this
you will be in a better position to control the
device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear
loose clothing or jewellery. Keep your
hair, clothing and gloves clear of mov-
ing parts. Loose clothing, jewellery or long
hair can become trapped in moving parts.
g) If vacuum dust extraction and collection
devices are fitted do not forget to
check
that they are properly connected
and
correctly used. The use of these devices re-
duces the hazard presented by dust.
4. Careful handling and use of
electrical power tools
a) Do not overload the device. Always
use an electrical power tool that is
intended for the task you are under-
taking. By using the right electrical power
tool for the job you will work more safely and
achieve a better result.
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 8 12.08.09 16:39

9GB/IE/CY
General safety advice for electrical power tools
b) Do not use an electrical power tool if
its switch is defective. An electrical power
tool that can no longer be switched on and off
is dangerous and must be repaired.
c) Pull the mains plug out of the socket
before you make any adjustments to
the device, change accessories or when
the device is put away. This precaution is
intended to prevent you from unintentionally
starting the device.
d) When not in use always ensure that
electrical power tools are kept out of
reach of children. Do not let anyone
use the device if he or she is not famil-
iar with it or has not read the instruc-
tions and advice. Electrical power tools are
dangerous when they are used by inexperienced
people.
e) Look after the device carefully. Check
that moving parts are working prop-
erly and move freely. Check for any
parts that are broken or damaged
enough to detrimentally affect the
functioning of the device. Have dam-
aged parts repaired before you use the
device. Many accidents have their origins in
poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp.
Carefully maintained cutting tools with sharp
cutting edges are less likely to jam and are
easier to control.
g) Use the electrical power tool, accesso-
ries, inserted tools etc. in accordance
with these instructions and advice,
and the stipulations drawn up for this
particular type of device. In doing
this, take into account the working
conditions and the task in hand. The
use of electrical power tools for purposes other
than those intended can lead to dangerous
situations.
5. Careful handling and use
of rechargeable devices
a) Charge a rechargeable battery unit
using only the charger recommended
by the manufacturer. Chargers are often
designed for a particular type of rechargeable
battery unit. There is the danger of fire if other
types of rechargeable battery units are used.
b) Only the rechargeable battery units
supplied are to be used with an elec-
trical power tool. The use of other recharge-
able battery units may lead to the danger of
injury or fire.
c) When they are not being used, store
rechargeable battery units away from
paperclips, coins, keys. nails, screws
or other small metal objects that could
cause the contacts to be bridged. Short-
circuiting the contacts of a rechargeable battery
unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable
battery units if they are misused. If
this happens, avoid contact with the
fluid. If contact occurs, flush the affect-
ed area with water. Seek additional
medical help if any of the fluid gets
into your eyes. Escaping battery fluid may
cause skin irritation or burns.
Safety advice relating
to cordless drill drivers
JSecurely support the workpiece. A
workpiece held in a clamp or vice is kept more
securely in place than one held by your hand.
JHold the electrical power tool firmly.
High reaction torques may occur momentarily
during tightening or loosening of screws.
JIf the inserted tool jams, switch off
the electrical power tool immediately.
Be prepared for high reaction torques as they
may cause kickback.
WARNING! The inserted tool may
strike concealed electricity cables,
therefore when working you must
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 9 12.08.09 16:39

10 GB/IE/CY
General safety advice for … / Before first use/Preparing the tool for use
hold the electrical power tool by the
insulated handle areas only. Contact
with a live wire means that the metal parts of
the electrical power tools may become live and
this can result in an electric shock.
JBefore you carry out any tasks on the
device, transport or store it, make
sure that the direction of rotation
switch is in the middle position (lock).
To prevent the device from starting up uninten-
tionally.
QOriginal ancillaries /
accessories
JUse only the ancillaries and accessories
that are detailed in the operating
instructions. The use of ancillaries and ac-
cessories other than those recommended in the
operating instructions could lead to an in-
creased risk of personal injury for you.
QBefore first use
Q
Charging the rechargeable
battery on the device
(see Fig. D)
Note: The battery is supplied partially charged.
Charge the battery for at least three hours before
first use. You can charge the Li-Ion battery at any
time without risk of shortening battery life. Interrupt-
ing the charging process does not damage the
battery.
Starting the charging process:
j Connect the mains adapter
10
to a 230/240V
~
50Hz mains socket.
jConnect the mains adapter 10 to the charging
socket on the device 5.
The rechargeable battery is charged when the
battery indicator 3changes from red to green.
Ending the charging process:
jDisconnect the mains adapter 10 from the
mains socket.
jDisconnect the mains adapter 10 from the
charging socket on the device 5.
QChanging the bits /
screwdriver bit inserts
Insertion:
jInsert the bit directly into the tool holder 9.
Removal:
jPull out the bit out of the tool holder 9.
QPreparing the tool for use
Q
Switching on/ off the
cordless screwdriver
Switching on:
jTo start the appliance squeeze on the ON/
OFF switch 7and then keep it pressed down.
Switching off:
jTo stop the appliance, release the ON/OFF
switch 7.
QChanging the
direction of rotation
Clockwise:
jSlide the direction of rotation switch 1to the
left.
jPress the ON/ OFF switch 7. The direction
indicator (clockwise) 2illuminates. You can
now screw in the screws.
Anticlockwise:
jSlide the direction of rotation switch 1to the
right.
jPress the ON/ OFF switch 7. The direction in-
dicator (anticlockwise) 4illuminates. You can
now screw out the screws.
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 10 12.08.09 16:39

11GB/IE/CY
Preparing the tool for use/ Maintenance and cleaning/Service / Warranty
Lock:
jSlide the direction of rotation switch 1into
the middle position. The ON/OFF switch 7
is now locked.
QSwitching on/ off the
LED lights 8
Switching on:
jPress the ON/OFF switch (LED lights) 6and
keep it pressed.
Switching off:
jRelease the ON/ OFF switch (LED lights) 6.
QTips and Tricks
jScrew bits are designated with their dimensions
and their shape. If you are unsure, always try
the particular screw bit out to see whether it sits
in the screw head without any free play.
QMaintenance and cleaning
JWARNING! DANGER OF ELECTRIC
SHOCK! Pull the mains adapter 10 out of the
mains socket before carrying out any cleaning
of the device.
The cordless screwdriver is maintenance-free.
jAlways keep the device clean, dry and free of
oil or grease.
jDo not allow any liquids to enter the device.
jUse a cloth to clean the housing. Never use
petrol, solvents or cleaning agents that might
attack plastic.
QService
JWARNING! Have your device
repaired at the service centre or by
qualified specialist personnel using
original manufacturer parts only. This
will ensure that your device remains safe to use.
JWARNING! If the plug or lead
needs to be replaced, always have
the replacement carried out by the
manufacturer or its service centre. This
will ensure that your device remains safe to use.
QWarranty
This appliance is guaranteed for 3 years
from the date of purchase. It has been care-
fully produced and meti-culously checked
before delivery. Please keep your receipt
as proof of purchase. Contact your service
centre by telephone in case of questions
pertaining to the warranty. Your goods can
be transmitted free of cost only in this man-
ner. This warranty applies only to the initial
purchaser and is non-transferable.
The warranty covers only material or manufactur-
ing faults, not normal wear or damage to fragile
parts such as switches or rechargeable batteries.
The appliance is intended solely for private, not
commercial, use.
If this product has been subjected to improper or in-
appropriate handling, abuse, or interventions not
carried out by one of our authorised sales and
service outlets, the warranty will be considered void.
This warranty does not affect your statutory rights.
GB
DES Ltd
Units 14-15
Bilston Industrial Estate
Oxford Street
Bilston (Great Britain)
WV14 7EG
Tel.: 0870 / 787-6177
Fax: 0870 / 787-6168
e-mail: [email protected]
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 11 12.08.09 16:39

12 GB/IE/CY
Warranty /Disposal/Conformity Declaration/Manufacturer
IE
Kompernaß Service Ireland
Tel.: [phone] (0,082 €/Min.)
* Standard call rates apply.
Mobile operators may vary.
e-mail: [email protected]
QDisposal
The packaging comprises exclusively en-
vironmentally-friendly material. Dispose
of it in your local recycling containers.
Do not dispose of electrical
appliances with your
domestic waste!
In accordance with European Directive 2002/96/EC ,
worn out electrical power tools must be collected
separately and taken for environmentally compatible
recycling.
Do not dispose of rechargeable
batteries with your household
refuse!
Defective or worn out rechargeable batteries must
be recycled according to Directive 2006 / 66 / EC.
Dispose of batteries and appliances over the existing
collection facilities.
Please contact your local council office to find out
about disposal facilities for your worn-out electrical
tools or discarded battery packs.
QConformity Declaration /
Manufacturer
We, Kompernaß GmbH, Burgstr. 21,
D-44867 Bochum, Germany, hereby declare that
this product complies with the requirements of the
following EU directives:
Machinery Directive
(98 / 37 / EC)
EC Low Voltage Directive
(2006 / 95 / EC)
Electromagnetic compatibility
(2004 / 108 / EC)
Type / Appliance Designation:
Parkside Lithium ion cordless screwdriver X3.6- LI A
Bochum, 31.08.2009
Hans Kompernaß
- Managing Director-
We reserve the right to make technical modifications
in the course of further development.
35327_LITHIUM ION CORDLESS SCREWDRIVER_Content_LB6.indd 12 12.08.09 16:39

IAN 35327
KOMPERNASS GMBH
Burgstraße 21
D-44867 Bochum
© by ORFGEN Marketing
Last Information Update: 08/2009
Ident.-No.: X3,6-LI A082009-6 6
35327_LITHIUM ION CORDLESS SCREWDRIVER_Cover_LB6.indd 1 07.08.09 10:47
