Introduction
Proper use.............................................................. Page 7
Features and equipment....................................... Page 7
Included items ....................................................... Page 8
Technical data....................................................... Page 8
Safety advice................................................. Page 8
Operation
Connecting the compressed air source ............... Page 10
Filling the blast medium container........................ Page 11
Using the sandblasting gun
(see Figs. B, C) ...................................................... Page 11
Cleaning ............................................................. Page 12
Service................................................................. Page 12
Warranty........................................................... Page 13
Disposal.............................................................. Page 14
Declaration of Conformity/
Manufacturer................................................ Page 15
Table of contents
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 5 17.03.11 13:51

6 GB/CY

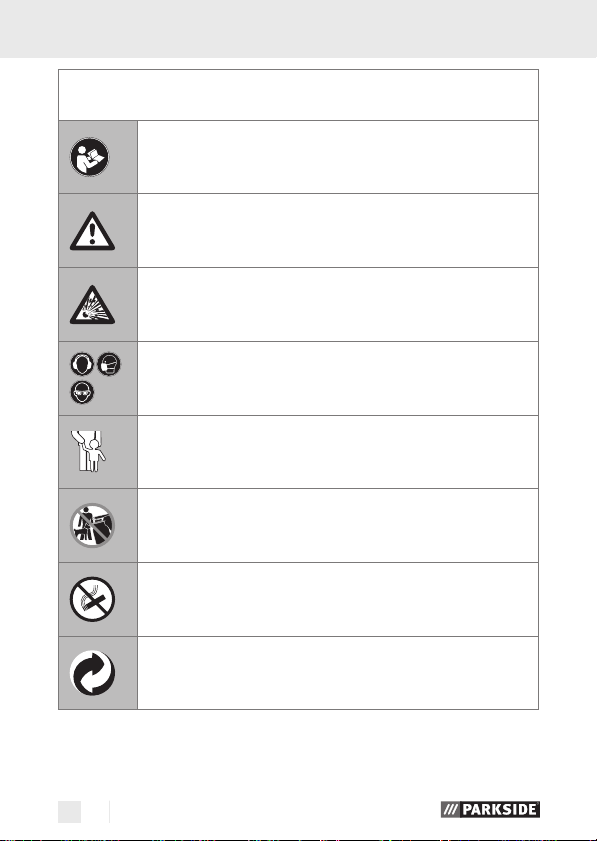

The following pictograms are used in these operating
instructions/on the device:
Read instruction manual!
Observe caution and safety notes!
Risk of explosion!
Wear hearing protection, dust protection mask
and protective glasses.
Keep children away from the device!
Never point the device at people or animals.
No smoking!
Dispose packaging and appliance in an
environmentally-friendly way!
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 6 17.03.11 13:51

7GB/CY
Sandblaster gun PDSP 1000 A1
Q
Introduction
Please make sure that you familiarise yourself fully with the
way the sandblasting gun works before you use it for the first
time and that you understand how to handle compressed
air sand blasting guns correctly. To help you do this, please read the
accompanying operating instructions. Keep these instructions in a safe
place. If you pass the sandblasting gun on to anyone else, please ensure
that you also pass on all the documentation.
Q
Proper use
This device is intended for the removal of rust and paint from metal
surfaces. Any other use or modification to the device shall be considered
as improper use and could give rise to considerable risk of accident.
We will not accept liability for loss or damage arising from improper
use. The device is intended for private, domestic use only.
Q
Features and equipment
1Sandblaster gun
2Trigger
3Plug-in nipple for compressed air connection
4Blast medium container
5Blast nozzle
Introduction
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 7 17.03.11 13:51

8 GB/CY
Introduction/Safety advice
Q
Included items
1 Sandblaster gun PDSP 1000 A1
1 Operating instructions
Q
Technical data
Max. Working pressure: 8bar
Recommended working air pressure: 3– 5 bar
Compressed air consumption: 130– 260 l/min
Nozzle ø: 2.8mm
Container capacity: 1000ml
Volume flow rate: typically 200–220 g/Min.
Required air quality: Cleaned and oil-free
Working settings: Working air pressure setting at
the pressure reducer max. 8 bar.
Sound pressure level: 86dB(A)
Sound power level: 98dB(A)
Values determined in accordance with EN 14462 (EN1953/A1:2009).
Safety advice
Read all the safety advice and instructions.
Even minor failures to observe the safety advice and instructions could
lead to severe injury.
keep all the safety advice and instructions in a safe place
for future reference.
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 8 17.03.11 13:51

9GB/CY
Safety advice
J Check the device for damage before bringing it into
use. Do not use the device if you discover any defects.
J Keep children and other people away while
you are operating the sandblasting gun. Dis-
tractions can cause you to lose control of the device.
J RISK OF INJURY! IMPROPER USE! Never point
the device at people or animals.
J For your own safety, wear suitable personal
protective equipment.
J Wear an approved dust mask/
protective hood!
J Wear protective glasses!
J RISK OF EXPLOSION! Do not use the sandblasting
gun 1in environments containing gases, open flames,
fires or gas-operated water heaters.
J NO SMOKING!
J Work in adequately ventilated spaces only.
J Never use oxygen or other combustible gas as the
energy source.
J
Never exceed the maximum working air pressure of 8bar.
J RECOIL FORCES! High working pressures can
give rise to recoil forces that under certain conditions can result in
danger from continuous loading.
J DANGER OF INJURY! Disconnect the device from the com pressed
air source before carrying out any repairs or maintenance of the
device or moving it to another location.
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 9 17.03.11 13:51

10 GB/CY
J DANGER OF INJURY! Disconnect the device from the com-
pressed air source before filling it with blast medium.
J NOTE! Please observe the safety advice provided by the manu-
facturer of the blast medium.
J Use only materials for the blast medium that are suit-
able for the sandblasting gun. Do not use quartz sand.
There is the danger of toxic silicon dust forming.
J Take precautions to ensure that other people are not
contaminated (dust generation).
J Ensure that the spent blast medium is trapped and
collected so that it can be disposed of in an environ-
mentally compatible manner.
J Do not remove rating plates or labels - they are safety-relevant
parts of the device.
J If you are inexperienced in the use of this type of device, you should
seek out information or training to learn how to handle it safely.
Q
Operation
Q
Connecting the compressed air source
NOTE: Operate the sandblasting gun 1only with cleaned, conden-
sate- and oil-free compressed air and never exceed the maximum
working air pressure at the device of 8bar.
NOTE: The compressed air source must be fitted with a (filter) / pres-
sure reducer so that the air pressure can be regulated.
j Connect the sandblasting gun to a suitable compressed air source
by connecting the quick-release coupling of the air supply hose with
the plug-in nipple 3to the sandblasting gun 1. It locks itself in
place automatically.
Safety advice/Operation
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 10 17.03.11 13:51

11GB/CY
Operation
Q
Filling the blast medium container
J Always use a suitable blast medium for your sand blasting work.
NOTE: We recommend using a silica-free blast medium
(e.g. ground blast furnace slag) with a grading of 0.2mm–0.8mm.
j Ensure that the blast medium is completely dry and not too coarse.
NOTE: The maximum particle size is 0.8mm.
j Turn the bayonet cap of the blast medium container 4to open it.
j Pull the blast medium container 4off downwards.
j Fill the blast medium container 4with the desired amount of
blast medium.
j Ensure that the maximum capacity of the container (1000 ml) is
not exceeded.
j Screw the blast medium container 4back on and lock it in place
by inserting and turning it on to the container lid (see Figs. A).
Q
Using the sandblasting gun
(see Figs. B, C)
j Carefully prepare the workpiece before sand blasting it.
Clean it if necessary.
NOTE: Deposits of dust and grease can have a considerably
detrimental effect on the result.
j Carefully mask or tape off everything that is not to be sand blasted.
j Ensure that there is always a minimum distance of 20cm between
the sandblasting gun 1and the surface being sand blasted.
Switching on:
j Press the trigger 2to start operating the sandblasting gun 1.
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 11 17.03.11 13:51

12 GB/CY
Operation/Cleaning/Service
Switching off:
j Release the trigger 2to stop operating the sandblasting gun 1.
j After you finish work, disconnect the device from the compressed
air source.
NOTE: First disconnect the hose from the compressed
air source and only then disconnect the compressed
air supply hose from the device. This will ensure that the
compressed air supply hose does not wave around in an uncon-
trolled manner.
Q
Cleaning
J DANGER OF INJURY! Always disconnect
the device from the compressed air source before you clean or
maintain it.
j Clean the sandblasting gun 1and blast medium container 4
after you finish working. Blow out the sandblasting gun 1and
the blast medium container 4with compressed air.
j Store the sandblasting gun 1in a dry, enclosed room.
Q
Service
J Have your sandblasting gun repaired
only by qualified specialist personnel using original
manufacturer parts only. This will ensure that your sandblast-
ing gun remains safe to use.
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 12 17.03.11 13:51

13GB/CY
Warranty
Q
Warranty
The warranty for this appliance is for 3 years from the
date of purchase. The appliance has been manufactured
with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the
event of a warranty claim, please make contact by tele-
phone with our Service Department. Only in this way
can a post-free despatch for your goods be assured.
The warranty covers only claims for material and maufacturing defects,
but not for transport damage, for wearing parts or for damage to frag-
ile components, e.g. buttons or batteries. This product is for private use
only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling,
use of force and internal tampering not carried out by our authorized
service branch. Your statutory rights are not restricted in any way by
this warranty.
The warranty period will not be extended by repairs made unter war-
ranty. This applies also to replaced and repaired parts. Any damage
and defects extant on purchase must be reported immediately after un-
packing the appliance, at the latest, two days after the purchase date.
Repairs made after the expiration of the warranty period are subject to
payment.
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 13 17.03.11 13:51

14 GB/CY
Warranty/Disposal
GB
Service Great Britain
Tel.: [phone]
(0,10 GBP/Min.)
e-mail: k[email protected]
IAN 64574
CY
Service Cyprus
Tel.: [phone]
e-mail: k[email protected]
IAN 64574
Q
Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
Do not dispose of the device with your household rubbish!
For details of disposing of the appliance at the end of its useful life,
please contact your district or city council.
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 14 17.03.11 13:51

15GB/CY
Declaration of Conformity/Manufacturer
Q
Declaration of Conformity/Manufacturer
We, Kompernaß GmbH, the person responsible for documents:
Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby
declare that this product complies with the following standards,
normative documents and EU directives:
Machinery Directive
(2006/ 42 /EC)
Applicable harmonised standards:
DIN EN 1953:1998+A1:2009
(EN 1953:1998+A1:2009)
DIN 31000:1979+A1:2007
Type /Device description:
Sandblaster gun PDSP 1000 A1
Date of manufacture (DOM): 03 -2011
Serial number: IAN 64574
Bochum, 31.03.2011
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifications in the course of
further development.
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 15 17.03.11 13:51

16
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 16 17.03.11 13:51

17HR
Popis sadržaja
Uvod
Namjenska uporaba........................................Stranica 19
Oprema............................................................Stranica 19
Opseg pošiljke .................................................Stranica 20
Tehnički podatci ...............................................Stranica 20
Sigurnosne upute..................................Stranica 20
Opsluživanje
Priključivanje pneumatskog izvora..................Stranica 22
Punjenje spremnika tvari za pjeskarenje ........Stranica 23
Uporaba pneumatskog pištolja
za pjeskarenje (vidite prikaz B,C)...................Stranica 23
Čišćenje ..........................................................Stranica 24
Servis...............................................................Stranica 25
Jamstveni list.............................................Stranica 25
Zbrinjavanje..............................................Stranica 26
Objašnjenje konformnosti/
Proizvođač..................................................Stranica 27
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 17 17.03.11 13:51

18 HR
U ovim uputama za uporabu/ na uređaju rabi se
slijedeće prikaze:
Čitati upute za rukovanje!
Obratiti pažnju na upozoravajuće i sigurnosne upute!
Opasnost od eksplozije!
Nosite zaštitu za uši, masku za zaštitu od prašine
od prašine i zaštitne naočale.
Držite djecu podalje od uređaja!
Ne usmjeravajte uređaj na ljude i/ ili životinje.
Zabranjeno pušenje!
Materijal ambalaže i uređaj zbrinite na način
neškodljiv za okoliš!
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 18 17.03.11 13:51

19HR
Uvod
Pneumatski pištolj za pjeskarenje PDSP 1000 A1
Q
Uvod
Prije prvog stavljanja u pogon, upoznajte se sa funkcijama
pneumatskog pištolja za pjeskarenje i raspitajte se o ispravnom
ophođenju s pneumatskim pištoljem za pjeskarenje. Pročitajte
za to slijedeće upute za uporabu. Brižljivo sačuvajte ove upute. U slučaju
prosljeđivanja pneumatskog pištolja za pjeskarenje trećim osobama,
izručite također svu pripadajuću dokumentaciju.
Q
Namjenska uporaba
Ovaj uređaj je namijenjen za otklanjanje hrđe i boje sa metalnih
površina. Svaka druga uporaba ili promjene na uređaju, smatrat će se
nenamijenskim i mogu predstavljati znatnu opasnost od nezgode. Ne
preuzimamo nikakvu odgovornost za štete nastale od nenamjenske
uporabe. Uređaj je isključivo namijenjen za privatne svrhe.
Q
Oprema
1pneumatski pištolj za pjeskarenje
2okidna poluga
3utična nazuvica za zračni priključak
4spremnik tvari za pjeskarenje
5mlazna sapnica
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 19 17.03.11 13:51

20 HR
Q
Opseg pošiljke
1 pneumatski pištolj za pjeskarenje PDSP 1000 A1
1 upute za uporabu
Q
Tehnički podatci
Maks. radni tlak: 8bar
Preporučeni radni tlak: 3–5 bari
Potrošnja zraka: 130– 260 l/min
Sapnica ø: 2,8mm
Zapremina spremnika: 1000ml
Volumni protok: tipično 200–220 g/min.
Potrebna kakvoća zraka: pročišćen i oslobođen od ulja
Namještene vrijednosti za rad:Namješteni radni tlak na reduktoru tla-
ka ili filterski tlakomjer maks. 8bar.
Razina zvučnog tlaka: 86dB(A)
Razina snage zvuka: 98dB(A)
Mjerne vrijednosti utvrđene sukladno EN 14462 (EN1953/A1:2009).
Sigurnosne upute
Pročitajte sve sigurnosne i ine upute.
Propusti kod pridržavanja sigurnosnih i inih uputa mogu prouzročiti
teške ozljede.
sačuvajte sve sigurnosne i ostale upute za ubuduće.
J Prije stavljanja u pogon, provjerite uređaj na moguća
Uvod/Sigurnosne upute
64574_par_Druckluft-Sandstrahlpistole_content_LB7.indd 20 17.03.11 13:51
