Parkside PLPRS 1.5 B3 User manual

LAMINATE/PARQUET REPAIR KIT
PLPRS 1.5 B3
IAN 326890_1904
LAMINAT-/PARKETT-REPARATURSET
Bedienungsanleitung
LAMINATE/PARQUET REPAIR KIT
Operating instructions
КОМПЛЕКТ ЗА РЕМОНТ НА
ЛАМИНАТ/ПАРКЕТ
Ръководство за експлоатация
ΣΕΤ ΕΠΙΔΙΟΡΘΩΣΗΣ ΛΑΜΙΝΕΪΤ/ΠΑΡΚΕ
Οδηүίες χρήσης
SET ZA POPRAVAK LAMINATA/PARKETA
Upute za upotrebu
SET ZA POPRAVKU LAMINATA/PARKETA
Uputstvo za upotrebu
KIT PENTRU REPARAREA PARCHETULUI
Instrucţiuni de utilizare

GB/CY Operating instructions Page 1
HR Upute za upotrebu Stranica 15
RS Uputstvo za upotrebu Strana 29
RO Instrucţiuni de utilizare Pagina 43
BG Ръководство за експлоатация Cтраница 57
GR/CY Οδηүίες χρήσης Σελίδα 71
DE/AT / CH Bedienungsanleitung Seite 87
Before reading, unfold both pages containing illustrations
and familiarise yourself with all functions of the device.
Rasklopite prije čitanja obije stranice sa slikama i nakon toga
se upoznajte sa svim funkcijama uređaja.
Pre čitanja rasklopite obe strane sa slikama te se upoznajte sa
svim funkcijama uređaja.
Înainte de a citi instrucţiunile, priviţi imaginile şi familiarizaţi-vă
cu toate funcţiile aparatului.
Преди да прочетете отворете двете страници с фигурите
и след това се запознайте с всички функции на уреда.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις
εικόνες και εξοικειωθείτε με όλες τις λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die beiden Seiten mit den Ab-
bildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.

A B
C D
E F
G H
I

3
J+H
1
J+F
6
I+F
8
H+D
10
F+D
12
E+B
14
E+G
17
C+B
4
J+G
2
J+I
5
J+E
7
H+F
9
G+E
11
F+C
13
E+A
15
E+F
16
D+C
18
C+A

GB│CY │ 1 ■PLPRS 1.5 B3
Table of contents
Introduction .....................2
Limited liability ........................2
Intended use ..........................2
Warnings used ........................3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . .3
Handling batteries .....................4
Basic safety instructions .................5
First use.........................6
Items supplied and transport inspection . . . . . 6
Disposal of the packaging ...............6
Battery insertion/exchange ..............6
Operating elements ..............7
Colour mixing chart...............7
Handling and operation ...........8
Heat up the wax melter tip ...............8
Application example....................8
Troubleshooting ..................9
Malfunction causes and remedies .........9
Cleaning .......................10
Storage when not in use ..........10
Disposal .......................10
Disposal of the appliance...............10
Disposing of the batteries ...............10
Appendix ......................11
Technical data........................11
Kompernass Handels GmbH warranty.....11
Service .............................13
Importer ............................13

■ 2 │ GB│CY PLPRS 1.5 B3
Introduction
Congratulations on the purchase of your new
appliance.
You have clearly decided in favour of a high-
quality product. These operating instructions are
a part of this product. They contain important
information in regard to safety, use and disposal.
Before using the product, familiarise yourself
with all operating and safety instructions. Use
this appliance only as described and only for
the specified areas of application. Retain these
instructions for future reference. In addition, pass
these operating instructions on to whoever might
acquire the appliance at a future date.
Limited liability
All technical information, data and information for
installation, connection and operation contained
in these operating instructions correspond to the
latest at time of printing and, to the best of our
knowledge, take into account our previous experi-
ence and know-how. No claims can be derived
from the details, illustrations and descriptions in
these instructions. The manufacturer assumes no
responsibility for damage caused by failure to
observe these instructions, improper use, incompe-
tent repairs, making unauthorised modifications or
for using unapproved replacement parts.
Intended use
This laminate/parquet repair kit is intended for
the repair of laminate, parquet, cork and wood
or plastic surfaces. The supplied wax melter is
intended exclusively for the melting of hard wax
suitable for these applications. The appliance is
intended exclusively for domestic use. Do not
use the appliance for commercial or industrial
applications. Use the appliance only in a dry
environment resp. in indoor areas. This appliance
is not intended for any other use or for uses
beyond those detailed. Claims of any kind for
damage resulting from unintended use will not
be accepted. The user alone bears the risk.

GB│CY │ 3 ■PLPRS 1.5 B3
Warnings used
In these extant operating instructions the following
warnings are used:
DANGER
A warning at this risk level indicates
a threateningly dangerous situation.
If the dangerous situation is not avoided, it could
lead to death or serious physical injury.
► Follow the instructions in this warning to avoid
the death of or serious physical injury to people.
WARNING
A warning at this risk level indicates
a potentially dangerous situation.
If the dangerous situation is not avoided, it could
lead to physical injuries.
► Follow the instructions in this warning to avoid
personal injuries.
CAUTION
A warning at this risk level indicates
potential property damage.
If the situation is not avoided it could lead to
property damage.
► Follow the directives in this warning to avoid
property damage.
NOTICE
► A notice indicates additional information
that could assist you in the handling of the
appliance.
Safety
In this chapter you will receive important safety
information regarding the handling of the appli-
ance. This appliance complies with the statutory
safety regulations. Incorrect usage can lead to
personal injury and property damage.
DANGER
► Do not use the appliance in
locations where there is a risk of
fire or explosion, e.g. in the vicinity
of inflammable liquids or gases.

■ 4 │ GB│CY PLPRS 1.5 B3
Handling batteries
WARNING
Risks from uses other than
those intended! There is a risk
of explosions and leakage!
For the safe handling of batteries,
take note of the following safety
instructions:
► Do not throw batteries into a fire.
► Never short-circuit batteries.
► Do not attempt to recharge
batteries.
► Regularly check the condition of
the batteries. Leaking battery acid
can cause permanent damage to
the appliance. Special caution
should be exercised when handling
damaged or leaking batteries.
There is a risk of receiving acid
burns! Wear protective gloves.
► Store batteries in a place
inaccessible to children. If a
battery should be swallowed,
seek medical attention
IMMEDIATELY.
► If you do not intend to use the
appliance for an extended period,
remove the batteries.

GB│CY │ 5 ■PLPRS 1.5 B3
Basic safety instructions
For safe handling of the appliance,
follow the safety information below:
■ Before use, check the appliance for
visible external damage. Do not take
into use a damaged appliance or one
that has been dropped.
■ Do not make any unauthorised
modifications or alterations to the
appliance.
■ This appliance may be used by children
aged 8 over and by persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge, provided that they are
under supervision or have been told
how to use of the appliance safely
and are aware of the potential risks.
Children must not play with the appli-
ance. Cleaning and user maintenance
tasks must not be carried out by
children unless they are supervised.
■ Protect the appliance against moisture
and liquid penetration.
■ Do not operate the appliance close to
open flames (e.g. candles).
■ Avoid direct sunlight.
■ Avoid unintentional operation of the
wax melter.
■ Avoid skin contact with the wax
melter tip and protect yourself against
dripping wax. There is a risk of burns!

■ 6 │ GB│CY PLPRS 1.5 B3
First use
DANGER
During the commissioning of the appliance
personal injury and property damage
could occur!
► Packaging material should not be used as
a play thing. There is a risk of suffocation.
Items supplied and transport
inspection
This Laminate/Parquet Repair Set is supplied with
the following components as standard:
▯ Wax melter
▯ Cleaning scraper
▯ Scraper with planer function
▯ Scraper with curvature
▯ 11 x Hard wax sticks
▯ Sanding sponge
▯ Cleaning cloth
▯ 2 x Batteries 1.5 V Type AA/LR6/Mignon
▯ Storage case
▯ This operating manual
NOTICE
► Check the contents to ensure that everything
is available and for signs of visible damage.
► If the contents are not complete, or are dama-
ged due to defective packaging or through
transportation, contact the Service Hotline
(see chapter Service).
Disposal of the packaging
Dispose of the packaging in an
environmentally friendly manner.
Note the labelling on the packaging
and separate the packaging material
components for disposal if necessary. The packaging
material is labelled with abbreviations (a) and
numbers (b) with the following meanings:
1–7: Plastics, 20–22: Paper and cardboard,
80–98: Composites.
Battery insertion/exchange
This wax melter requires 2 x 1.5 V batteries,
type AA/LR6/Mignon, for operation.
♦ Open the battery compartment on the
back of the wax melter .
♦ Insert the batteries into the wax melter
as indicated in the battery compartment
(see fig. 1).
♦ Close the battery compartment .

GB│CY │ 7 ■PLPRS 1.5 B3
AA
AA
Fig. 1

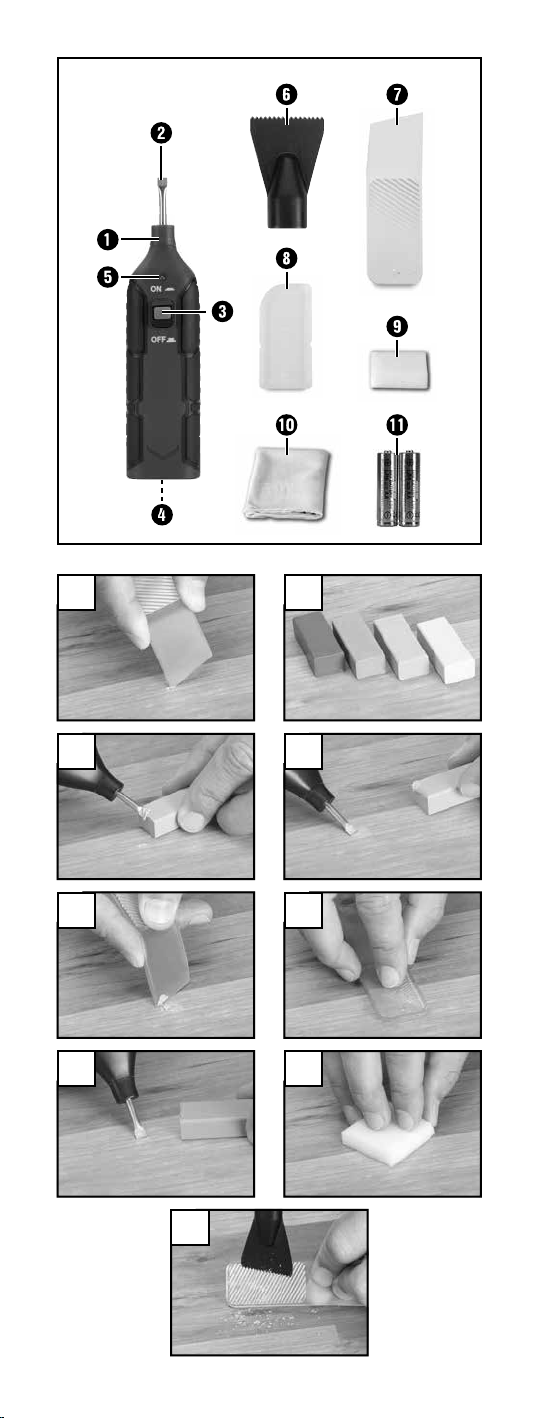

Operating elements
Wax melter
Wax melter tip
Activation button ON /OFF
Battery compartment
Red LED
Cleaning scraper
Scraper with planer function
Scraper with curvature
Sanding sponge
Cleaning cloth
Battery type AA/LR6/Mignon
Colour mixing chart
(see back fold-out page for colour samples)
The rear fold-out page shows a selection of types
of wood. The colour samples displayed there are
only intended as a guide and are non-binding.
Minor colour deviations are possible. Use the
following chart to determine your type of wood:
1Maple 2Pine
3 Birch 4 Pine Medium
5 Limba 6 Alder Medium -
Finish
7Alder Dark -
Honey 8 Beech - Dark
9 Teak 10 Pear - Dark
11 Macoré - Dark 12 Walnut - Light
13 Oak - Dark 14 Oak - Rustic
15 Oak - Brownish 16 Mahogany - Light
17 Walnut - Medium 18 Mahogany - Dark
NOTE
► To achieve your desired colour, select a base
colour (first letter, e. g. J+F) and mix it with
the second colour (second letter, e.g. J+F).
The colour selection is indicative. Several
other colours can be mixed.

■ 8 │ GB│CY PLPRS 1.5 B3
Handling and operation
In this chapter you will receive important infor-
mation for the handling and operation of the
appliance.
Heat up the wax melter tip
♦ Press and hold the activation button ON /
OFF to heat up the wax melter tip .
The red LED will remain lit as long as you
hold down the activation button ON /
OFF .
Application example
Preparation (Fig. A)
♦ Clean the damaged area with the spatula
and remove all loose parts. Press the edges
of the damaged area round.
Colour selection (Fig. B)
♦ Select the matching colour tone.
Ensure that several colour tones, from light to
dark, are always used. With real wood, it is
recommended to additionally work with trans-
parent (K), so as to achieve a sense of depth.
Melting and filling (Figs. C + D)
♦ Press and hold the activation button ON /
OFF to heat up the wax melter tip .
The appliance reaches operating temperature
after about 15 seconds.
♦ Now melt small portions of the hard wax and
place them into the damaged area, until it is
slightly overfilled. Start with the light colour
tones and progress step by step to the dark
colour tones.
NOTICE
► At pressure points it is often sufficient if you
use only the transparent hard wax (K).
Filling (Fig. E)
♦ For vertical surfaces it is recommended to mix
the colour tone beforehand, collect it on the
spatula and then fill the damaged area.
When working on curved areas the scraper
with curvature should be used to fill hard
wax into the damaged area.
CAUTION
► The wax melter tip gets very hot! When
mixing the colour, use a work surface made
of a suitable heat-resistant material, such as
ceramic.

GB│CY │ 9 ■PLPRS 1.5 B3
Smoothing (Fig. F)
♦ Allow the hard wax to cool for a few seconds
(about 10 seconds).
♦ After cooling, smooth any protrusion with the
planing grooves of the scraper . Use only
light pressure to smooth the protrusion.
Fine matching (Fig. G)
♦ For fine matching, now imitate the grain struc-
ture with a darker colour tone.
♦ Subsequently, again smooth any protrusion
with the planing grooves of the scraper .
Degreasing (Fig. H)
♦ To finish, remove the last hard wax residues
with the sanding sponge . Thereby the
gloss level of the surface will also be simulta-
neously matched. Job done!
Cleaning the planer grooves (Fig. I)
♦ Place the cleaning scraper on the plane
grooves of the scraper and scrape the wax
residues from the plane grooves.
Troubleshooting
In this chapter you will receive important informa-
tion for malfunction localisation and malfunction
remedies.
Malfunction causes and remedies
The following table will help with localising and
remedying minor malfunctions:
Defect Possible
cause Solution
The wax melter
tip does not
get hot.
The batteries
have been
inserted
incorrectly.
Insert the
batteries into
the wax melter
as indicated
in the battery
compartment
.
The batteries
are dischar-
ged.
Insert two new
batteries.
NOTICE
► If you cannot solve the problem with the
aforementioned solutions, please contact the
Service Hotline (see chapter Service) .

■ 10 │ GB│CY PLPRS 1.5 B3
Cleaning
CAUTION
Damage to the appliance!
► Ensure that, when cleaning it, no moisture can
penetrate into the appliance, so as to avoid
irreparable damage to it.
► Do not use chemical or abrasive cleaning
agents. These could damage the housing.
♦ Clean the wax melter and the wax melter
tip with the cleaning cloth only when
they have cooled down.
♦ Scrape the wax residue off the wax melter tip
using the scraper with curvature .
Storage when not in use
If you do not intend to use the appliance for an
extended period of time, remove the batteries.
Store all parts of the Laminate/Parquet Repair Kit
in the storage case and at a clean, dry location
out of direct sunlight.
Disposal
Disposal of the appliance
Do not dispose of the appliance in
your normal domestic waste. This
product is subject to the provisions of
European Directive 2012/19/EU
WEEE (Waste Electrical and Electronic
Equipment).
Dispose of the appliance through an ap-
proved disposal centre or at your community
waste facility. Please pay heed to the currently
applicable regulations. In case of doubt,
please contact your waste disposal centre.
Your local community or municipal authorities
can provide information on how to dispose of
the worn-out product.
Disposing of the batteries
Do not dispose of the batteries with domestic
waste. Every consumer is statutorily obliged to
dispose of batteries/rechargeable batteries
at a collection point in their community/district
or to a dealer.
This obligation is intended to ensure that
batteries are disposed of in an environmentally
responsible manner. Dispose of batteries only
when they are fully discharged.

GB│CY │ 11 ■PLPRS 1.5 B3
Appendix
Technical data
Voltage supply
batteries
2 x 1.5 V
(direct current)
type AA/LR6/Mignon
Dimensions approx. 14.7 x 3.5 x 2.2cm
Weight
(including batteries) approx. 90 g
Kompernass Handels GmbH
warranty
Dear Customer,
This appliance has a 3-year warranty valid from
the date of purchase. If this product has any
faults, you, the buyer, have certain statutory
rights. Your statutory rights are not restricted in
any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of pur-
chase. Please keep your receipt in a safe place.
This will be required as proof of purchase.
If any material or manufacturing fault occurs
within three years of the date of purchase of
the product, we will either repair or replace the
product for you or refund the purchase price (at
our discretion). This warranty service requires
that you present the defective appliance and the
proof of purchase (receipt) within the three-year
warranty period, along with a brief written de-
scription of the fault and of when it occurred.
If the defect is covered by the warranty, your
product will either be repaired or replaced by us.
The repair or replacement of a product does not
signify the beginning of a new warranty period.
Warranty period and statutory
claims for defects
The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any dam-
age and defects present at the time of purchase
must be reported immediately after unpacking.
Repairs carried out after expiry of the warranty
period shall be subject to a fee.

■ 12 │ GB│CY PLPRS 1.5 B3
Scope of the warranty
This appliance has been manufactured in accord-
ance with strict quality guidelines and inspected
meticulously prior to delivery.
The warranty covers material faults or produc-
tion faults. The warranty does not extend to
product parts subject to normal wear and tear
or to fragile parts which could be considered as
consumable parts such as switches, batteries or
parts made of glass.
The warranty does not apply if the product has
been damaged, improperly used or improperly
maintained. The directions in the operating
instructions for the product regarding proper use
of the product are to be strictly followed. Uses
and actions that are discouraged in the operating
instructions or which are warned against must be
avoided.
This product is intended solely for private use and
not for commercial purposes. The warranty shall
be deemed void in cases of misuse or improper
handling, use of force and modifications/ repairs
which have not been carried out by one of our
authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
■ Please have the till receipt and the item num-
ber (e.g. IAN12345) available as proof of
purchase.
■ You will find the item number on the type
plate on the product, an engraving on the
product, on the front page of the operating
instructions (below left) or on the sticker on
the rear or bottom of the product.
■ If functional or other defects occur, please
contact the service department listed either by
telephone or by e-mail.
■ You can return a defective product to us free
of charge to the service address that will be
provided to you. Ensure that you enclose the
proof of purchase (till receipt) and informa-
tion about what the defect is and when it
occurred.

GB│CY │ 13 ■PLPRS 1.5 B3
You can download these instruc-
tions along with many other
manuals, product videos and
installation software at
www.lidl-service.com.
This QR code will take you directly
to the Lidl service page (www.lidl-service.com)
where you can open your operating
instructions by entering the item number
(IAN) 123456.
Service
Service Great Britain
Tel.: [phone]
E-Mail: kom[email protected]
CY Service Cyprus
Tel.: [phone]
E-Mail: kom[email protected]
IAN 326890_1904
Importer
Please note that the following address is not the
service address. Please use the service address
provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

■ 14 │ GB│CY PLPRS 1.5 B3

HR │ 15 ■PLPRS 1.5 B3
Sadržaj
Uvod ..........................16
Ograničenje odgovornosti ..............16
Namjenska uporaba...................16
Korištena upozorenja ..................17
Sigurnost ......................17
Rukovanje baterijama ..................18
Opće sigurnosne napomene ............19
Puštanje u pogon................20
Opseg isporuke i provjera transporta......20
Zbrinjavanje ambalaže.................20
Umetanje/zamjena baterija .............20
Upravljački elementi .............21
Tablica za miješanje boja .........21
Rukovanje i rad .................22
Zagrijavanje vrha uređaja za topljenje voska 22
Primjer za primjenu ....................22
Otklanjanje smetnji ..............23
Uzroci pogrešaka i njihovo otklanjanje.....23
Čišćenje ........................24
Čuvanje za vrijeme nekorištenja ...24
Zbrinjavanje....................24
Zbrinjavanje uređaja ..................24
Zbrinjavanje baterija...................24
Prilog..........................25
Tehnički podaci.......................25
Jamstvo tvrtke Kompernass Handels GmbH . 25
Servis ..............................27
Uvoznik.............................27

■ 16 │ HR PLPRS 1.5 B3
Uvod
Srdačno čestitamo na kupnji Vašeg novog uređaja.
Time ste se odlučili za visokovrijedan proizvod.
Upute za rukovanje predstavljaju sastavni dio
ovog proizvoda. One sadrže važne napomene
za sigurnost, rukovanje i zbrinjavanje. Prije upo-
rabe uređaja upoznajte se sa svim pripadajućim
uputama za uporabu i svim sigurnosnim napo-
menama. Proizvod koristite isključivo na opisani
način i u navedenim područjima uporabe. Saču-
vajte ove upute za rukovanje. U slučaju predaje
proizvoda trećim osobama priložite i predajte i
svu dokumentaciju.
Ograničenje odgovornosti
Sve tehničke informacije, svi podaci i sve napo-
mene za priključivanje i posluživanje uređaja
sadržani u ovim uputama za rukovanje odgova-
raju najnovijem stanju tehnike u trenutku pripreme
za tisak i navedeni su uz uvažavanje naših dosa-
dašnjih iskustava i saznanja. Na osnovu navoda,
slika i opisa sadržanih u ovim uputama za ruko-
vanje ne mogu se izvoditi nikakva potraživanja.
Proizvođač ne preuzima odgovornost za štete
nastale uslijed nepridržavanja uputa za rukova-
nje, nenamjenske uporabe, nestručno izvedenih
popravaka, neovlašteno izvršenih izmjena ili
uporabe nedozvoljenih zamjenskih dijelova.
Namjenska uporaba
Set za popravak laminata/parketa predviđen je
za popravak laminata, parketa, plutenih, drvenih
i plastičnih površina. Uređaj za topljenje voska
sadržan u opsegu isporuke namijenjen je isključivo
za topljenje prikladnog tvrdog voska. Uređaj je
namijenjen isključivo za privatnu uporabu.
Uređaj ne koristite u gospodarske ili industrijske
svrhe. Uređaj koristite isključivo u suhom okruženju,
odn. u zatvorenim prostorima. Svaki drugi način
uporabe i svaka uporaba koja prelazi navedene
okvire smatra se nenamjenskom. Isključena su
sva potraživanja bilo koje vrste na temelju štete
nastale uslijed nenamjenske uporabe. Rizik snosi
isključivo sam korisnik.
