INVERTER WELDER PISG 120 B3
SK
SI
CZ
HU

GB
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
HU
Olvasás előtt hajtsa ki az ábrát tartalmazó oldalt, és ezután ismerje meg a készülék
mindegyik funkcióját.
SI
Pred branjem odprite stran s slikami in se nato seznanite z vsemi funkcijami naprave.
CZ
Než začnete číst tento návod k obsluze, rozložte stránku s obrázky a seznamte se se všemi
funkcemi zařízení.
SK
Prv než začnete čítať tento návod, rozložte si stranu s obrázkami a potom sa oboznámte so
všetkými funkciami zariadenia.
DE AT CH
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich
anschließend mit allen Funktionen des Gerätes vertraut.
GB Operation and Safety Notes Page 5
HU Kezelési és biztonsági hivatkozások Oldal 23
SI Navodila za upravljanje in varnostna opozorila Stran 43
CZ Návod k obsluze a bezpečnostní pokyny Strana 61
SK Návod na obsluhu a bezpečnostné upozornenia Strana 79
DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 97

A
C1
C3
C2
C4
B
–
(minus)
+
(plus)
1
4
10
9
5
8 7
7
11
1 2
2
3

6
11
8
7 12

5GB
Table of contents
List of pictograms used .........................................................................Page 6
Introduction..............................................................................................Page 7
Intended use................................................................................................Page 7
Package contents .........................................................................................Page 7
Parts description ..........................................................................................Page 7
Technical specifications.................................................................................Page 7
Safety instructions..................................................................................Page 8
Potential hazards during electric arc welding...................................................Page 10
Welding mask-specific safety instructions.........................................................Page 12
Environment with increased electrical hazard...................................................Page 13
Welding in tight spaces ................................................................................Page 14
Total of open circuit voltages .........................................................................Page 14
Using shoulder straps ...................................................................................Page 14
Protective clothing ........................................................................................Page 15
EMC Device Classification ............................................................................Page 15
Before use.................................................................................................Page 16
Fit welding mask....................................................................................Page 16
Using the device......................................................................................Page 17
Welding.....................................................................................................Page 18
Maintenance and cleaning...................................................................Page 19
Information about recycling and disposal.......................................Page 19
EU Declaration of Conformity..............................................................Page 19
Warranty conditions.....................................................................................Page 20
Warranty period and statutory claims for defects .............................................Page 20
Extent of warranty........................................................................................Page 20
Processing of warranty claims........................................................................Page 21
Service .......................................................................................................Page 21

6GB

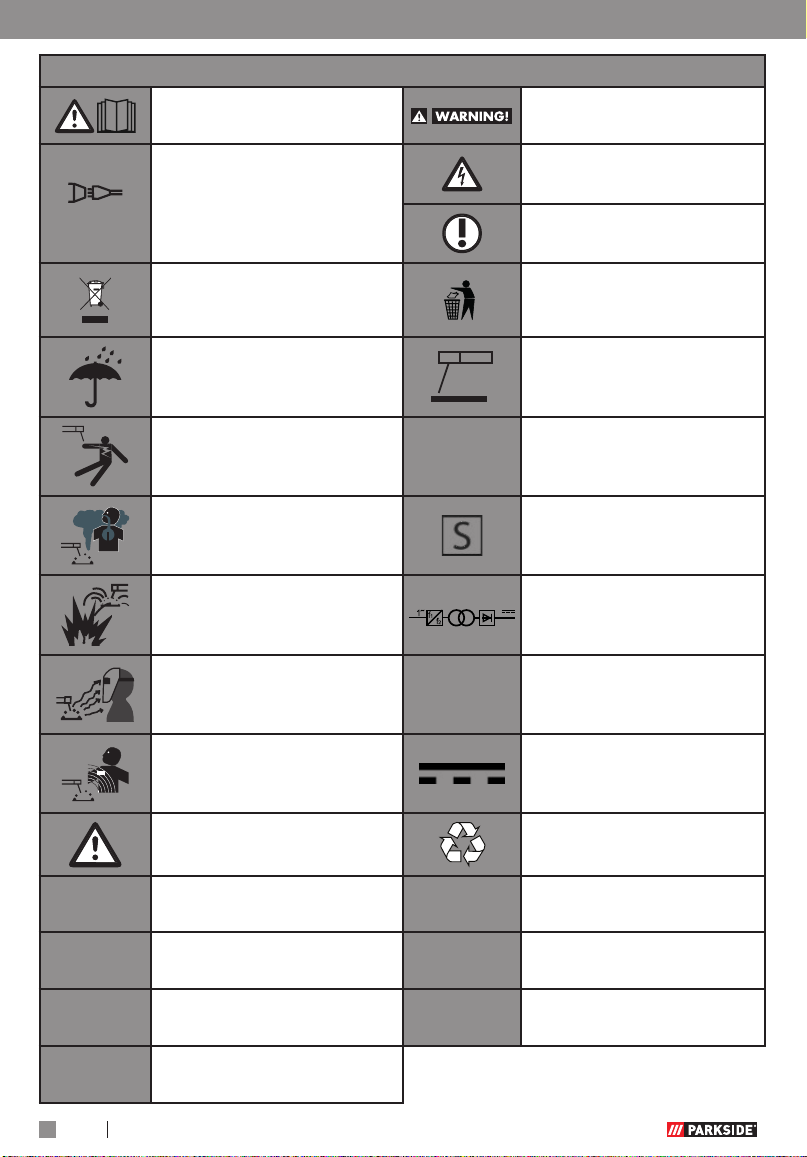

List of pictograms used
List of pictograms used
Caution! Read the operating
instructions! Risk of serious injury or death.
50/60Hz
Power input;
Number of phases and
Alternating current symbol and
rated value of the frequency.
Caution!
Risk of electric shock!
Important note!
Do not dispose of electrical
devices in household waste!
Dispose of the device and
packaging in an environmen-
tally friendly manner.
Never use the device in the
open or when it’s raining! Manual arc welding with encased rod electrodes.
Electric shock from the
welding electrode can be
fatal! IP21S Protection class.
Inhalation of welding fumes
can endanger your health. Suitable for welding under increased electrical hazard.
Welding sparks can cause
an explosion or fire.
Single-phase static frequency
converter-transformer-
commutator.
Arc beams can damage your
eyes and injure your skin. HInsulation class.
MV
Electromagnetic fields can
disrupt the function of cardiac
pacemakers. Direct current.
Warning: Potential hazards! Made from recycling
material.
X % Duty cycle. U0
Rated value of the open
circuit voltage
I1 max
Greatest rated value of the
mains current U1
Rated value of the mains
voltage
I2 max
Greatest rated value of the
welding current U2
Standardised operating
voltage
I1 eff
Effective value of the greatest
mains current

7GB
INVERTER WELDER
PISG 120 B3
zIntroduction
Congratulations!
You have purchased one
of our high-quality
products. Please familiarise yourself with
the product before using it for the first
time. Please also read the safety instruc-
tions carefully. This product must be set
up or used only by people who have
been trained to do so.
KEEP OUT OF THE REACH OF
CHILDREN!
zIntended use
This welding device is ideal for welding
metals such as carbon steel, steel alloy,
other stainless steel, copper, aluminium,
titanium, etc. The product has a control
lamp, a heat protection display and a
cooling fan. In addition, it is fitted with
a carrying strap so that the product
can be lifted and moved safely. If it is
not handled properly the product can
be dangerous for individuals, animals
and property. Use the product only
as described and only for the specific
applications as stated. Keep these
instructions in a safe place. Ensure you
hand over all documentation when
passing the product on to anyone else.
Any use that differs to the intended
use as stated above is prohibited and
potentially dangerous. Damage or
injury caused by misuse or disregarding
the above warning is not covered by the
warranty or any liability on the part of
the manufacturer. The device is intended
for professional use. Commercial use
will void the guarantee.
zPackage contents
1 Inverter welder
1 Welding mask
2 Welding cables
1 Combi wire brush with slag
hammer
1 Carrying strap
5 Welding electrodes (2 x 1.6 mm;
2 x 2.0 mm; 1 x 2.5 mm)
1 Operating instructions

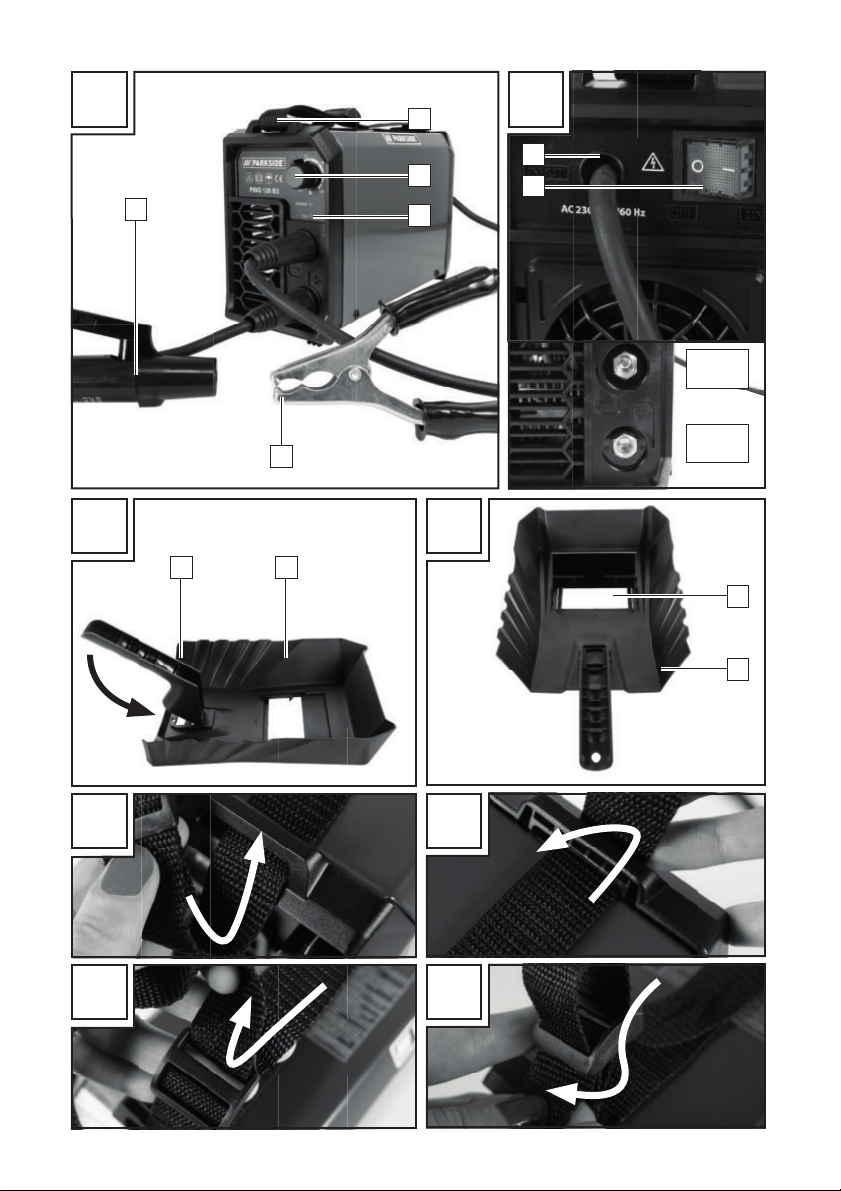

zParts description
1
Carrying strap
2
Rotary knob
3
Control lamp for overheating
4
Ground terminal
5
Electrode holder
6
Combi wire brush with slag hammer
7
Welding mask
8
Handle
9
ON/OFF switch
10
Power cable 4 m
11
Protective glass
12
Welding electrodes
zTechnical specifications
Mains connection: 230 V
50/60 Hz
Nominal power input: 3.6 kW
Max. welding current
and the appropriate
standardised operating
voltage:
10A/20.4V –
120A/24.8V
Rated value of the mains
voltage: U1:230V
Greatest rated value of
the mains current: I1max: 22 A
Introduction

8GB
Maximum effective input
current: I1eff: 11 A
Rated value of the open
circuit voltage: U0: 80 V
Protection class: IP21S
Weight: approx. 3 kg
Duty cycle X: 30% at 40°C
and 120 A
Falling characteristic
Material thicknesses
which can be welded: 1.5 mm – 3.0mm
Safety instructions
Please read the operating instruc-
tions with care and observe the
notes described. Familiarise your-
self with the device, its proper
use and the safety instructions
based on these operating instruc-
tions. The rating plate contains
all technical data of this welding
device; please learn about the
technical features of this device.
Keep the
packaging material away from
small children. There is a risk
of suffocation!
This device may be used by
children aged 16 years and
older, and by persons with
reduced physical, sensory or
mental capacities, or a lack of
experience and knowledge,
if they are supervised or have
been instructed in how to use
the device safely and under-
stand the dangers that may
arise when using it. Do not
allow children to play with the
device. Cleaning and day-to-
day maintenance must not be
performed by children without
supervision.
Repairs or/and maintenance
work must only be carried out
by qualified electricians.
Only use the weld cable
provided in the scope of
delivery.
During operation, the device
should not be positioned
directly on the wall, covered or
jammed between other devices
so that sufficient air can be
absorbed through the ventila-
tion slats. Make sure that the
device is correctly connected
to the supply voltage. Avoid
any form of tensile stress of
the power cable. Disconnect
the plug from the socket prior
to setting up the device in
another location.
If the device is not in opera-
tion, always switch it off by
pressing the ON/OFF switch.
Place the electrode holder on
an insulated surface and only
remove it from the holder after
allowing it to cool down for
15 minutes.
Introduction / Safety instructions

9GB
Pay attention to the condition
of the welding cable, electrode
holder and the earth terminal.
Wear and tear of the insulation
and the live parts can lead to
hazards and reduce the quality
of the welding work.
Arc welding creates sparks,
molten metal parts and smoke.
Therefore ensure that: All
flammable substances and/or
materials are removed from the
work station and its immediate
surrounding.
Ensure the work station is
ventilated.
Do not weld on containers,
vessels or tubes that contain or
contained flammable liquids or
gases.
Avoid any
form of direct contact with the
welding current circuit. The
open circuit voltage between
the electrode holder and earth
terminal can be dangerous,
there is a risk of electric shock.
Do not store or use the device
in a damp or wet environment
or in the rain. Protection rating
IP21S is applicable in this
case.
Protect your eyes using the
appropriate protective glasses
(DIN level 9-10), which are fas-
tened to the supplied welding
mask. Wear gloves and dry
protective clothing that are free
of oil and grease to protect the
skin from exposure to ultravio-
let radiation of the arc.
Do not use
the welding power source to
defrost pipes.
Please note:
The light radiation emitted by
the electric arc can damage
eyes and cause burns to the
skin.
Arc welding creates sparks
and drops of melted metal.
The welded workpiece starts to
glow and remains hot for a rel-
atively long period. Therefore,
do not touch the workpiece
with bare hands.
Arc welding can cause
vapours to be release that
may be hazardous to health.
Be careful not to inhale these
vapours.
Protect yourself from the
harmful effects of the electric
arc and keep people that are
not involved in the work away
from the arc maintaining a
distance of at least 2 m.
ATTENTION!
During the operation of
the welding device, other
Safety instructions

10 GB
consumers may experience
problems with the voltage sup-
ply depending on the network
conditions at the connection
point. In case of doubt, please
contact your energy supply
company.
During the operation of the
welding device, other devices
may malfunction, e.g. hearing
aids, cardiac pacemakers, etc.
z Potential hazards
during electric arc
welding
There are a series of potential
hazards that can occur during
electric arc welding. It is therefore
particularly important for the
welder to observe the following
rules to avoid endangering him/
herself and others and to prevent
damage to people and the
device.
Work on the voltage side, e.g.
on cables, plugs, sockets etc.,
may only be carried out by
qualified electricians accord-
ing to national and local
regulations.
In the event of accidents,
disconnect the welding
device from the mains voltage
immediately.
If electrical contact voltages
occur, switch off the device
immediately and have it
checked by a qualified
electrician.
Always ensure good electrical
contacts on the welding current
side.
Always wear insulating gloves
on both hands during welding
work. These provide protection
from electrical shocks (no-load
voltage of the welding current
circuit), harmful radiations
(heat and UV radiation)
and incandescent metal and
splashes of slag.
Wear sturdy, insulating shoes.
The shoes should also insulate
when exposed to moisture.
Loafers are not suitable as
falling incandescent metal
droplets can cause burns.
Wear suitable protective cloth-
ing, no synthetic garments.
Do not look into the electric
arc without eye protection;
only use a welding mask with
the prescribed protective glass
as per DIN. In addition to light
and heat radiation, which
can dazzle or cause burns,
the electric arc also emits UV
radiation. Without suitable
protection the invisible ultravi-
olet radiation can cause very
Safety instructions

11GB
painful conjunctivitis which
is not apparent until several
hours later. Furthermore, UV
radiation can cause burns with
sunburn-like effects on unpro-
tected parts of the body.
Any persons in the vicinity
of the electric arc or helpers
must also be informed of the
dangers and be equipped
with the necessary protective
equipment. If necessary, set up
protective walls.
Ensure an adequate supply
of fresh air whilst welding,
particularly in small spaces,
as it produces smoke and
harmful gases.
No welding work may be
carried out on containers that
have been used for storing
gases, fuels, mineral oils or
similar – even if they have
been empty for a long time –
as possible residues may
present a risk of explosion.
Special regulations apply in
rooms where there is a risk
of fire or explosion.
Welded joints that are subject
to heavy stress loads and are
required to comply with certain
safety requirements may only
be carried out by specially
trained and certified welders.
Examples of this are pressure
vessels, running rails, tow
bars, etc.
ATTENTION! Always connect
the earth terminal as close as
possible to the point of weld to
provide the shortest possible path
for the welding current from the
electrode to the earth terminal.
Never connect the earth terminal
to the housing of the welding
device! Never connect the earth
terminal to earthed parts far away
from the workpiece, e.g. a water
pipe in another corner of the
room. This could otherwise dam-
age the protective bonding system
of the room you are welding.
Do not use the welding device
in the rain.
Do not use the welding device
in a moist environment.
Only place the welding device
on a level surface.
The output is rated at an ambi-
ent temperature of 20°C. The
welding time can be reduced
at higher temperatures.
Risk of electric shock:
Electric shock from the
welding electrode can be
fatal. Do not weld in rain or
snow. Wear dry insulating gloves.
Do not touch the electrodes with
Safety instructions

12 GB
bare hands. Do not wear wet or
damaged gloves. Protect yourself
from electric shock with insulation
against the workpiece. Do not
open the device housing.
Danger from welding
fumes:
Inhalation of welding fumes
can endanger health.
Do not keep your head in the
fumes. Use the equipment in
open areas. Use extractors
to remove the fumes.
Danger from welding
sparks:
Welding sparks can cause
an explosion or fire. Keep
flammable substances away
from the welding location.
Do not weld next to flammable
substances. Welding sparks
can cause fires. Keep a fire
extinguisher close by and an
observer should be present to
be able to use it immediately.
Do not weld on drums or any
other closed containers.
Danger from arc beams:
Arc beams can damage your
eyes and injure your skin.
Wear a hat and safety goggles.
Wear hearing protection and
high, closed shirt collars.
Wear welding safety helmets
and make sure you use the
appropriate filter settings. Wear
complete body protection.
Danger from
electromagnetic fields:
Welding current generates elec-
tromagnetic fields. Do not use
if you have a medical implant.
Never wrap the welding cable
around your body. Guide
welding cables together.
z Welding mask-specific
safety instructions
With the help of a bright light
source (e.g. lighter) examine
the proper functioning of the
welding mask prior to starting
with any welding work.
Weld spatters can damage the
protective screen. Immediately
replace damaged or scratched
protective screens.
Immediately replace damaged
or highly contaminated or
splattered components.
The device must only be
operated by people over the
age of 16.
Safety instructions

13GB
Please familiarise yourself with
the welding safety instructions.
Also refer to the safety instruc-
tions of your welding device.
Always wear a welding mask
while welding. If it is not
used, you could sustain severe
lesions to the retina.
Always wear protective cloth-
ing during welding operations.
Never use the welding mask
without the protective screen.
Regularly replace the protec-
tive screen to ensure good
visibility and fatigue-proof
work.
z Environment with
increased electrical
hazard
When welding in environments
with increased electrical hazard,
the following safety instructions
must be observed. Environments
with increased electrical hazard
may be encountered, for example:
In workplaces where the space
for movement is restricted,
such that the welder is working
in a forced posture (e.g.:
kneeling, sitting, lying) and is
touching electrically conductive
parts;
In workplaces which are
restricted completely or in
part in terms of electrical
conductivity and where there is
a high risk through avoidable
or accidental touching by the
welder;
In wet, humid or hot work-
places where the air humidity
or weld significantly reduces
the resistance of human skin
and the insulating properties
or effect of protective equip-
ment.
Even a metal conductor or
scaffolding can create an
environment with increased
electrical hazard.
In this type of environment,
insulated mats and pads must
be used. Furthermore gauntlet
gloves and head protection made
of leather or other insulating
materials must be worn to insu-
late the body against Earth. The
welding power source must be
located outside the working area
or electrically conductive surfaces
and out of the welder’s reach.
Additional protection against a
shock from the mains power in
the event a fault can be provided
by using a fault-circuit interrupter,
Safety instructions

14 GB
which is operated with a leakage
current of no more than 30 mA
and covers all mains-powered
devices in close proximity. The
fault-circuit interrupter must be
suitable for all types of current.
There must be means of rapid
electrical isolation of the welding
power source or the welding cir-
cuit (e.g. emergency stop device)
which are easily accessible.
When using welding devices
under electrically dangerous
conditions, the output voltage
of the welding device must be
greater than 113 volt when idling
(peak value). Based on the output
voltage this welding device may
be used in these conditions.
z Welding in tight spaces
When welding in tight spaces this
may pose a hazard through toxic
gases (risk of suffocation).
In tight spaces you may only
weld if there are trained individu-
als in the immediate vicinity who
can intervene if necessary. In this
case, before starting the welding
procedure, an expert must carry
out an assessment in order to
determine what steps are neces-
sary, in order to guarantee safety
at work and which precautionary
measures should be taken during
the actual welding procedure.
z Total of open circuit
voltages
When more than one welding
power source is operated at the
same time, their open circuit
voltages may add up and lead to
an increased electrical hazard.
Welding power sources must be
connected in such a way that the
danger is minimised. The indi-
vidual welding power sources,
with their individual control units
and connections, must be clearly
marked, in order to be able to
identify which device belongs to
which welding power circuit.
z Using shoulder straps
Welding must not take place if the
welding power source is being
carried e.g. with a shoulder strap.
This is intended to prevent:
The risk of losing your balance
if the lines or hoses which are
connected are pulled
The increased risk of an
electric shock as the welder
Safety instructions

15GB
comes into contact with the
earth if he/she is using a Class
I welding power source, the
housing of which is earthed
through its conductor.
z Protective clothing
At work, the welder must
protect his/her whole body by
using appropriate clothing and
face protection against radia-
tions and burns. The following
steps must be observed:
Wear protective clothing
prior to welding work
Wear gloves.
Open windows or use fans
to guarantee air supply.
Wear safety goggles and
face mask.
Gauntlet gloves made of a
suitable material (leather) must
be worn on both hands. They
must be in perfect condition.
A suitable apron must be
worn to protect clothing from
flying sparks and burns.
When specific work, e.g.
overhead welding, is required,
a protective suit must be worn
and, if necessary, even head
protection.
Protection against rays
andburns
Warn of the danger to the
eyes by hanging up a sign
saying “Caution! Do not look
into flames!”. The workplaces
must be shielded so that the
persons in the vicinity are
protected. Unauthorised
persons must be kept away
from welding work.
The walls in the immediate
vicinity of fixed workplaces
should neither be bright
coloured or shiny. Windows
up to head height must be
protected to prevent rays
from penetrating or reflecting
through them, e.g. by using
suitable paint.
z EMC Device
Classification
According to the standard
IEC 60974-10, this is a weld-
ing device in electromagnetic
compatibility Class A. Class A
devices are devices that are
suitable for use in all other areas
except living areas and areas
that are directly connected to
a low-voltage supply mains
that (also) supplies residential
buildings. Class A devices
Safety instructions

16 GB
mustadhere to the Class A limit
values.
WARNING NOTICE: Class A
devices are intended for use in
an industrial environment. Due to
the power-related as well as the
radiated interference variables,
difficulties might arise in ensuring
electromagnetic compatibility in
other environments.
Even if the device complies
with the emission limit values in
accordance with the standard,
such devices can still cause
electromagnetic interference in
sensitive systems and devices.
The user is responsible for faults
caused by the arc while working,
and the user must take suitable
protective measures. In doing so,
the operator must consider the
following:
– network, control, signal and
telecommunication lines
– computers and other micropro-
cessor-controlled devices
– TVs, radios and other playback
devices
– electronic and electrical safety
equipment
– people with cardiac pacemak-
ers or hearing aids
– measurement and calibration
devices
– interference immunity of other
equipment nearby
– the time of day at which the
work is being done. The follow-
ing is recommended to reduce
possible interference radiation:
– equip the mains connection
with a mains filter
– service the device regularly and
keep it in good condition
– welding cables should be
completely uncoiled and run as
close to parallel with the floor
as possible
– if possible, devices and systems
at risk from interference radi-
ation should be removed from
the work area or shielded.
The product is intended solely for
professional use.
zBefore use
Take the device and accessories out
of the packaging and check them for
damage (e.g. transport damage).
Fix the carrying strap
1
onto the
device (see Fig. C1 – C4).
zFit welding mask
Fit the handle
8
onto the welding
mask
7
, as shown in Fig. A.
Fit the protective glass
11
on to the
welding mask
7
, as shown in Fig. A.
The protective glass
11
must be
pushed in from the top.
Safety instructions / Before use / Fit welding mask

17GB
Note: If you are not able to push the
protective glass
11
in fully, gently press
on the outside of the protective glass
11
.
zUsing the device
Note: The welding device is designed
for welding with electrodes.
Use the electrode holder clamps with-
out protruding bracket screws, which
meet the current safety standards.
Make sure that the ON/OFF switch
9
is set to position “O” (“OFF”)
or that the power cable
10
is not
plugged into the socket.
Connect the welding cable accord-
ing to its polarity and in accordance
with the specifications of the elec-
trode manufacturer.
To do this, connect the connector of
the earth terminal
4
(black) with the
relevant output on the inverter welder
(black, marked with “-”).
Connect the connector of the elec-
trode holder
5
(red) with the
relevant output on the inverter welder
(red, marked with “+”).
Put on appropriate protective
clothing in accordance with the
specifications and prepare your
workspace.
Connect the earth terminal
4
to the
workpiece.
Clamp the electrode into the elec-
trode holder
5
.
Switch the device on by setting the
ON/OFF switch to the
9
“I” (“ON”)
position.
Adjust the welding current using the
rotary knob
2
depending on the
electrode being used.
Note: See the following table for
information on the welding current to
be used, depending on the electrode
diameter.
Ø Electrode Welding current
1.6 mm 40 – 55 A
2.0 mm 55 – 65 A
2.5 mm 65 – 80 A
3.2 mm 80 – 120 A
Attention: Do not bring the earth
terminal
4
and the electrode holder
5
/
electrodes into direct contact with one
another.
Attention: When welding with
electrodes (MMA – manual metal arc
welding – electrode welding), the
electrodeholder
5
and the earth
terminal
4
must be connected in
accordance with the specifications of
the electrodes to plus (+) or minus (-).
Hold the welding mask
7
in front of
the face and start the welding
procedure.
To stop the procedure, set the ON/
OFF switch
9
to “O” (“OFF”)
position.
ATTENTION!
When the thermal sensor is triggered,
the yellow control lamp
3
lights up. In
this case, it will not be possible to
continue welding. The device will
remain in operation so that the fan can
cool the device. As soon as the device
is ready for operation again, the yellow
control lamp
3
will switch off automati-
cally. The welding function can now be
used again.
ATTENTION!
Make sure that you do not rub the
electrodes. Doing this can damage the
workpiece and make it more difficult to
ignite the arc. After the arc is ignited,
maintain the correct gap from the
workpiece. The distance should be
appropriate to the diameter of the
Fit welding mask / Using the device

18 GB
electrode used. When welding maintain
this gap as accurately and consistently
as possibly. The angle between the
electrode and the direction of operation
should be between 20° and 30°.
ATTENTION!
The welding clamp and welding elec-
trodes must be placed on the insulated
bracket after welding. Wait until the
electrode is cooled before removing the
welding slag. To weld an intermittent
weld seam again you must first remove
the welding slag at the welding posi-
tion.
ATTENTION!
A voltage which is 10% below the rated
input voltage of the welding device can
have the following consequences:
The power to the device will reduce.
The arc stops or becomes unstable.
ATTENTION!
The arc radiation can lead to inflam-
mation of the eyes and skin burns.
Casting and welding slag can cause
eye injuries and burns.
Wear tinted safety goggles or a
protective mask.
The safety mask must meet the
EN175 safety standards.
It is essential that you only use the
welding cable which is included with
the delivery (10mm2).
zWelding
Choose between push and drag welding. The following section shows the impact of
the direction of movement on the properties of the weld seam:
Push welding Drag welding
Burn smaller larger
Weld seam width larger smaller
Weld bead flatter higher
Weld seam fault larger smaller
Note: You decide for yourself which
type of welding is most suitable, once
you have welded a sample piece.
Note: Once it has worn down com-
pletely, the electrode must be replaced.
Using the device / Welding

19GB
zMaintenance and
cleaning
Note: The welding device must be
regularly serviced and overhauled for
proper function and for compliance with
the safety requirements. Improper and
wrong operation may cause failures and
damage to the device.
Before performing cleaning work on
the welding tool, disconnect the
power cable
10
from the power
outlet to ensure the tool is safely
isolated from the power supply.
Clean the exterior of the welding
device and its accessories regularly.
Use compressed air, cotton waste or
a brush to remove dirt and dust.
Note: The following kinds of mainte-
nance work must be performed only by
suitably-qualified personnel.
The current regulator, earthing
device, internal cables, the coupling
device of the welding torch and
adjusting screws must be serviced
regularly. Re-tighten loose screws
and replace rusty screws (replace-
ment M4 x 10 screws are available
in any commercial hardware store).
Check the insulation resistance levels
of the welding device regularly.
To do this use an appropriate
measuring device.
In case of a defect or a necessary
replacement of equipment parts,
please contact the appropriate
qualified personnel.
zInformation about
recycling and disposal
Don’t throw away –
recycle
Please return this device, accesso-
ries and packaging to your local
recycling depot.
According to European Directive
2012/19/EU, used electrical devices
must be collected separately for envi-
ronmentally compatible recycling or
recovery. Please return this device to an
approved waste management company
or use your municipal waste collection
service. Please ensure you comply with
local regulations. If you have any ques-
tions, please contact your local authority
or waste management company.
zEU Declaration of
Conformity
We,
C.M.C. GmbH
Responsible for documentation:
Dr Christian Weyler
Katharina-Loth-Str. 15
66386 St. Ingbert
Germany
hereby take sole responsibility for
declaring that the product
Inverter welder
Art. no.: 2338
Year of manufacture: 2021/18
IAN: 337360_2007
Model: PISG 120 B3
meets the basic safety requirements as
specified in the European Directives
EC low-voltage directive:
2014/35/EU
EC Guideline on Electromagnetic
Compatibility:
2014/30/EU
RoHS directive:
2011/65/EU+2015/863/EU
Maintenance and cleaning / Information about recycling ... / EU Declaration ...

20 GB
EU Declaration of Conformity / Warranty and service information
and the amendments to these Directives.
The object of the declaration described
above meets the requirements of
Directive 2011/65/EU of the European
Parliament and of the Council of 8June
2011 on the restriction of the use of
certain hazardous substances in
electrical and electronic equipment.
This conformity assessment is based on
the following harmonised standards:
EN 60974-1:2018/A1:2019
EN 60974-10:2014/A1:2015
St. Ingbert, 22/10/2020
pp Dr Christian Weyler
– Quality Assurance –
zWarranty and service
information
Warranty from Creative
Marketing & Consulting GmbH
Dear Customer,
The warranty for this equipment is
3years from the date of purchase. In the
event of product defects, you have legal
rights against the retailer of this product.
Your statutory rights are not affected in
any way by our warranty conditions,
which are described below.
zWarranty conditions
The warranty period begins on the date
of purchase. Please retain the original
sales receipt. This document is required
as your proof of purchase.
Should this product show any defect
in materials or manufacture within
3years from the date of purchase, we
will repair or replace it – at our dis-
cretion – free of charge. This warranty
service requires that you retain proof of
purchase (sales receipt) for the defective
device for the three year period and that
you briefly explain in writing what the
fault entails and when it occurred.
If the defect is covered by our warranty,
we will repair and return your product
or send you a replacement. The original
warranty period is not extended when a
device is repair or replaced.
zWarranty period and
statutory claims for
defects
The warranty period is not extended
by the guarantee. This also applies to
replaced and repaired parts. Any dam-
ages or defects detected at the time of
purchase must be reported immediately
after unpacking. Any incidental repairs
after the warranty period are subject to
a fee.
zExtent of warranty
This device has been manufactured
according to strict quality guidelines and
carefully inspected before delivery.
The warranty applies to material
and manufacturing defects only. This
warranty does not extend to product
parts, which are subject to normal wear
and tear and can thus be regarded as
consumable parts, or for damages to
fragile parts, e.g. switches, rechargea-
ble batteries or parts made
from glass.
This warranty is voided if the product
becomes damaged or is improperly
used or maintained. For proper use
