Parkside PTMI 180 A1 User manual

INVERTER WELDER PTMI 180 A1
IAN 389213_2107
INVERTER WELDER
INVERTER-SCHWEIßGERÄT
ΣΥΣΚΕΥΗ ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗΣ
INVERTER
Operation and Safety Notes
Translation of the original instructions
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung
Υποδείξεις χειρισμού και ασφαλείας
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
GB
DE
GR
AT
IE
CH
CY CY
CYIE
GB

GB IE CY
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
GR CY
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
DE AT CH
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie
sich anschließend mit allen Funktionen des Gerätes vertraut.
GB / IE / CY Operation and Safety Notes Page 5
GR / CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 21
DE /AT / CH Montage-, Bedienungs- und Sicherheitshinweise Seite 39

A B
1 2
1
2
3
9
8
+ –
C
45 6
D
7

GB/IE/CY 5

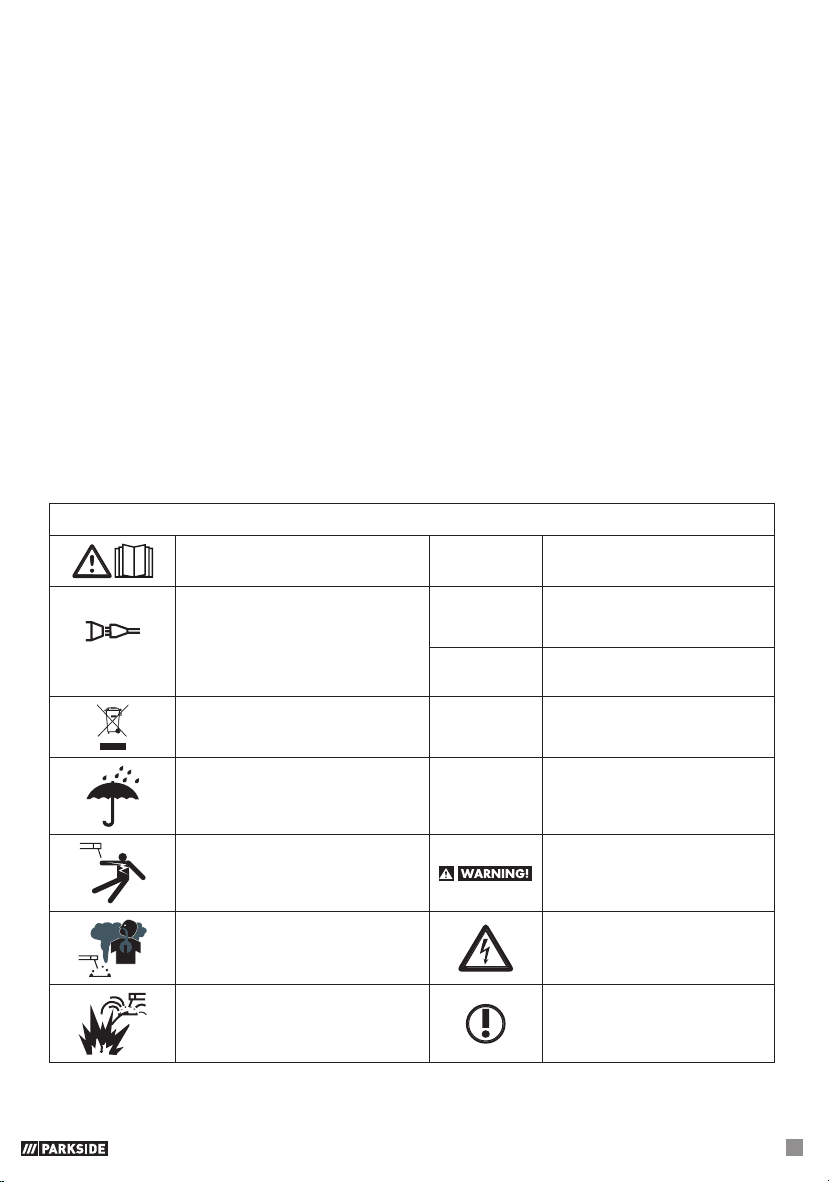

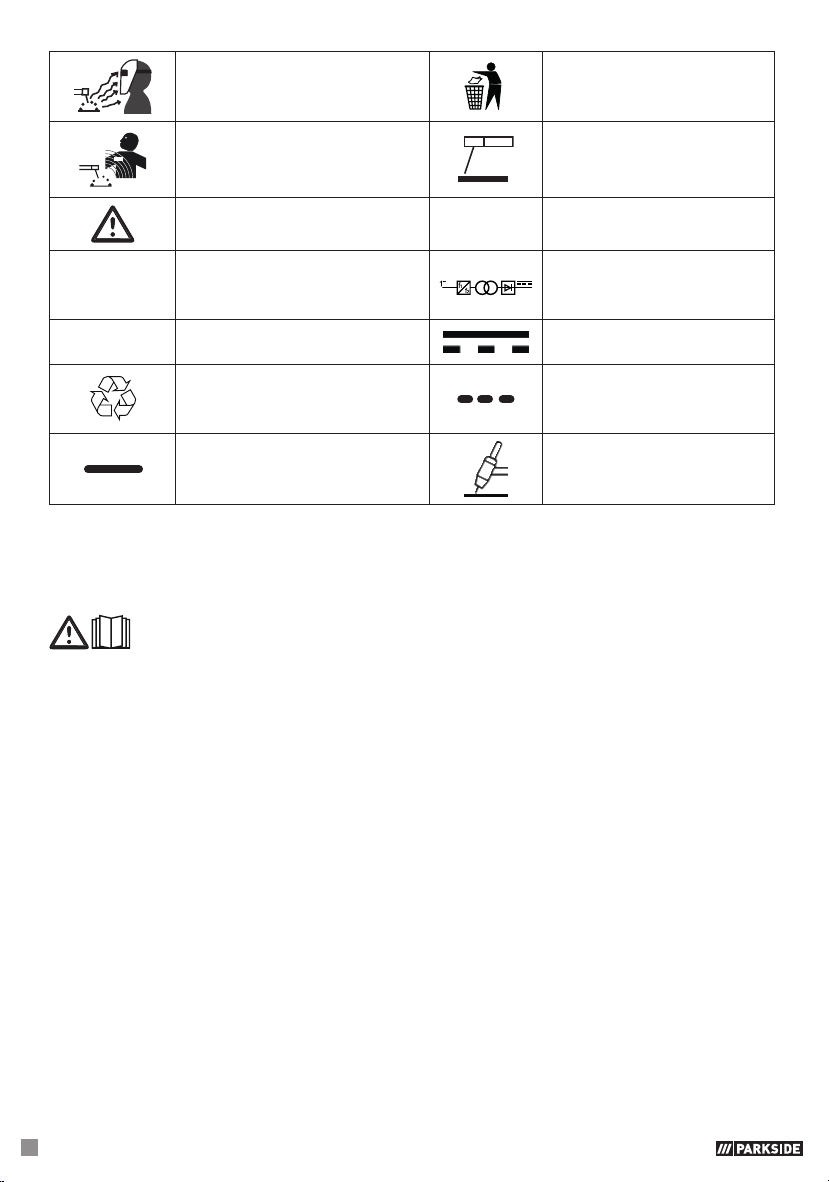

zTable of pictograms used
Caution! Read the operating
instructions! I2 max
Greatest rated value of the
welding current
1~ 50 Hz
Mains input; number of phases
and alternating current symbol
and rated value of the frequency
I1 eff
Effective value of the greatest
mains power
U0
Rated value of the no-load
voltage
Do not dispose of any electrical
devices in domestic waste! U1
Rated value of the mains
voltage
Never use the device in the open
air or when it’s raining! U2
Standardised operating
voltage
Electric shock from the welding
electrode can be fatal! Risk of serious injury or death.
Inhalation of welding fumes can
endanger your health. Caution! Risk of electric shock!
Welding sparks can cause an
explosion or fire. Important note!
Table of pictograms used ........................................................................................Page 5
Introduction ..............................................................................................................Page 6
Intended use .............................................................................................................Page 6
Scope of delivery.......................................................................................................Page 6
Parts description ........................................................................................................Page 7
Technical Specifications..............................................................................................Page 7
Safety instructions ..................................................................................................Page 7
Before using the device ...........................................................................................Page 15
Using the device.......................................................................................................Page 15
MMA welding...........................................................................................................Page 15
Welding.....................................................................................................................Page 16
TIG welding..............................................................................................................Page 17
Maintenance and cleaning......................................................................................Page 17
Information about recycling and disposal.............................................................Page 17
EC Declaration of Conformity..................................................................................Page 18
Warranty and service information.........................................................................Page 19
Warranty conditions...................................................................................................Page 19
Warranty period and statutory claims for defects...........................................................Page 19
Extent of warranty......................................................................................................Page 19
Processing of warranty claims .....................................................................................Page 19
Service.......................................................................................................................Page 20

6GB/IE/CY
Arc beams can damage your eyes
and injure your skin.
Dispose of the device and
packaging in an environmentally
friendly manner!
MV Electromagnetic fields can disrupt
the function of cardiac pacemakers.
Manual arc welding with
encased rod electrodes
Attention: Potential hazards! IP21S Protection class
I1 max
Greatest rated value of the mains
power
Single-phase static frequency
converter-transformer-
commutator
HInsulation class Direct current
Made from recycled material.
Greatest rated value of the
welding time in intermittent
mode Σt
ON
Greatest rated value of the
welding time in continuous
mode tON (max)
Tungsten inert gas welding
Inverter Welder PTMI 180 A1
zIntroduction
Congratulations! You have purchased one of our high-quality products. Please familiarise
yourself with the product before using it for the first time. Please also read the safety
instructions carefully. This product must be set up or used only by people who have been
trained to do so.
KEEP OUT OF THE REACH OF CHILDREN!
zIntended use
This welder is ideal for electrode welding (MMA) and tungsten inert gas welding (TIG) for welding metals
such as carbon steel, steel alloy, stainless steel and other premium steel. If it is not handled properly the
product can be dangerous for individuals, animals and property. Use the product only as described and
only for the specific applications as stated. Keep these instructions in a safe place.
Ensure you hand over all documentation when passing the product on to anyone else. Any use that
differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury
caused by misuse or disregarding the above warning is not covered by the warranty or any liability on
the part of the manufacturer. Commercial use will void the guarantee.
zScope of delivery
1 inverter welder 1 carry strap
1 electrode holder (MMA) 2 MMA welding electrodes (2 x 2.5 mm)
1 TIG torch 1 TIG electrode 1.6 mm
1 earthing clamp 1 set of operating instructions

GB/IE/CY 7
zParts description
1Carrying strap 6TIG torch
2Control button 72 MMA welding electrodes (2 x 2.5 mm)
1 TIG electrode 1.6 mm
3Control wheel 8Mains cable
4Earthing clamp 9ON/OFF switch
5Electrode holder
zTechnical Specifications
Mains connection: 230 V ~ 50 Hz (alternating current)
Max. welding current and the appropriate standardised
operating voltage:
20 A/18.8 V – 180 A/25.2 V
Rated value of the mains voltage: U1:230V
Greatest rated value of the mains power: I1max: 32.8 A
Maximum effective input current: I1eff: 13.4 A
Rated value of the no-load voltage: U0: 70 V
Protection class: IP21S
Weight: approx. 3 kg
Material thicknesses which can be welded: max. 3.0 mm
zSafety instructions
Please read the operating instructions with care and observe the
notes described. Familiarise yourself with the device, its proper use
and the safety instructions using these operating instructions.
The rating plate contains all technical data of this welder; please
learn about the technical features of this device.
 Keep the packaging material away from small
children. There is a risk of suffocation!
 Repairs or/and maintenance work must only be carried out by
qualified electricians.
 Only use the welding cables provided in the scope of delivery.
 During operation, the device should not be positioned directly
against the wall, should not be covered or jammed between other
devices so that sufficient air can always be absorbed through the
ventilation slats. Make sure that the device is correctly connected
to the mains voltage. Avoid any form of tensile stress of the power

8GB/IE/CY
cable. Disconnect the plug from the socket prior to setting up the
device in another location.
 If the device is not in operation, always switch it off by pressing
the ON/OFF switch. Place the electrode holder on an insulated
surface and only remove the electrodes from the holder after allowing
it to cool down for 15 minutes.
 Pay attention to the condition of the welding cable, electrode
holder and the earth terminal. Wear and tear of the insulation and
the live parts can lead to hazards and reduce the quality of the
welding work.
 Arc welding creates sparks, molten metal parts and smoke.
Therefore ensure that: All flammable substances and/or materials
are removed from the workplace and its immediate surrounding.
 Ensure the workplace is ventilated.
 Do not weld on containers, vessels or tubes that contain or contained
flammable liquids or gases.
 Avoid any form of direct contact with the
welding current circuit. The no-load voltage between the electrode
holder and earth terminal can be dangerous, there is a risk of
electric shock.
 Do not store or use the device in a damp or wet environment or in
the rain. Protection rating IP21S is applicable in this case.
 Protect your eyes using the appropriate protective glasses
(DIN level 9–10), which are fastened to the supplied welding mask.
Wear gloves and dry protective clothing that are free of oil and
grease to protect the skin from exposure to ultraviolet radiation of
the arc.
 Do not use the welding power source to defrost
pipes.
Please note:
 The light radiation emitted by the arc can damage eyes and cause
burns to the skin.
 Arc welding creates sparks and drops of melted metal. The welded
workpiece starts to glow and remains hot for a relatively long period
of time. Therefore, do not touch the workpiece with bare hands.
 Arc welding can cause vapours to be released that may be hazardous
to health. Be careful not to inhale these vapours.
 Protect yourself from the harmful effects of the arc and keep people
that are not involved in the work away from the arc, maintaining a
distance of at least 2 m.

GB/IE/CY 9
ATTENTION!
 During the operation of the welder, other consumers may experience
problems with the voltage supply depending on the network condi-
tions at the connection point. In case of doubt, please contact your
energy supply company.
 During the operation of the welder, other devices may malfunction,
e.g. hearing aids, cardiac pacemakers, etc.
zPotential hazards during electric arc welding
There are a series of potential hazards that can occur during electric
arc welding. It is therefore particularly important for the welder to
observe the following rules to avoid endangering him/herself and
others and to prevent damage to people and the device.
 Work on the mains voltage side, e.g. on cables, plugs, sockets
etc., may only be carried out by qualified electricians according to
national and local regulations.
 In the event of accidents, disconnect the welder from the mains
voltage immediately.
 If electrical contact voltages occur, switch off the device immediately
and have it checked by a qualified electrician.
 Always ensure good electrical contacts on the welding current side.
 Always wear insulating gloves on both hands during welding
work. These provide protection from electrical shocks (no-load
voltage of the welding current circuit), harmful radiations (heat and
UV radiation) and incandescent metal and splashes of slag.
 Wear sturdy, insulating shoes. The shoes should also insulate when
exposed to moisture. Loafers are not suitable as falling incandescent
metal droplets can cause burns.
 Wear suitable protective clothing, no synthetic garments.
 Do not look into the arc without eye protection; only use a welding
mask with the prescribed protective glass as per DIN. In addition
to light and heat radiation, which can dazzle or cause burns, the
arc also emits UV radiation. Without suitable protection the invisible
ultraviolet radiation can cause very painful conjunctivitis which is
not apparent until several hours later. Furthermore, UV radiation
can cause burns with sunburn-like effects on unprotected parts of
the body.
 Any persons in the vicinity of the electric arc or helpers must also
be informed of the dangers and be equipped with the necessary
protective equipment. If necessary, set up protective walls.
 Ensure an adequate supply of fresh air whilst welding, particularly
in small spaces, as welding produces smoke and harmful gases.

10 GB/IE/CY
 No welding work may be carried out on containers that have
been used for storing gases, fuels, mineral oils or similar – even if
they have been empty for a long time – as possible residues may
present a risk of explosion.
 Special regulations apply in rooms where there is a risk of fire or
explosion.
 Welded joints that are subject to heavy stress loads and are
required to comply with certain safety requirements may only be
carried out by specially trained and certified welders. Examples of
this are pressure vessels, running rails, tow bars, etc.
 ATTENTION! Always connect the earth terminal as close as
possible to the point of weld to provide the shortest possible path
for the welding current from the electrode to the earth terminal.
Never connect the earth terminal to the housing of the welder!
Never connect the earth terminal to earthed parts far away from
the workpiece, e.g. a water pipe in another corner of the room.
This could otherwise damage the protective bonding system of the
room you are welding.
 Do not use the welder in the rain.
 Do not use the welder in a moist environment.
 Only place the welder on a level surface.
 The output is rated at an ambient temperature of 20 °C.
The welding time can be reduced at higher temperatures.
RISK OF ELECTRIC SHOCK:
 Electric shock from a welding electrode can be fatal. Do not weld
in rain or snow. Wear dry insulating gloves. Do not touch the
electrodes with bare hands. Do not wear wet or damaged gloves.
Protect yourself from electric shock with insulation against the
workpiece. Do not open the device housing.
DANGER FROM WELDING FUMES:
 Inhalation of welding fumes can endanger health. Do not keep
your head in the fumes. Use the equipment in open areas.
Use extractors to remove the fumes.
DANGER FROM WELDING SPARKS:
 Welding sparks can cause an explosion or fire. Keep flammable
substances away from the welding location. Do not weld near
flammable substances. Welding sparks can cause fires.
Keep a fire extinguisher close by and an observer should be
present to be able to use it immediately. Do not weld on drums or
any other closed containers.

GB/IE/CY 11
DANGER FROM ARC BEAMS:
 Arc beams can damage your eyes and injure your skin. Wear a
hat and safety goggles. Wear hearing protection and high, closed
shirt collars. Wear welding safety helmets and make sure you use
the appropriate filter settings. Wear complete body protection.
DANGER FROM ELECTROMAGNETIC FIELDS:
 Welding current generates electromagnetic fields. Do not use if you
have a medical implant. Never wrap the welding cable around
your body. Guide welding cables together.
zWelding mask-specific safety instructions
 With the help of a bright light source (e.g. lighter) always check
the proper functioning of the welding mask prior to starting with
any welding work.
 Weld spatters can damage the protective screen.
Immediately replace damaged or scratched protective screens.
 Immediately replace damaged or highly contaminated or splattered
components.
 The device must only be operated by people aged 16 or over.
 Please familiarise yourself with the welding safety instructions.
Also refer to the safety instructions of your welder.
 Always wear a welding mask while welding. If you do not do this,
you could sustain severe lesions to the retina.
 Always wear protective clothing during welding operations.
 Never use the welding mask without the protective screen.
 Regularly replace the protective screen to ensure good visibility
and fatigue-proof work.
zEnvironment with increased electrical hazard
When welding in environments with increased electrical hazard, the
following safety instructions must be observed.
Environments with increased electrical hazard may be encountered,
for example:
 In workplaces where the space for movement is restricted, such
that the welder is working in a forced posture (e.g.: kneeling,
sitting, lying) and is touching electrically conductive parts;
 In workplaces which are restricted completely or in part in terms
of electrical conductivity and where there is a high risk through
avoidable or accidental touching by the welder;

12 GB/IE/CY
 In wet, humid or hot workplaces where the air humidity or sweat
significantly reduces the resistance of human skin and the insulating
properties or effect of protective equipment.
 Even a metal conductor or scaffolding can create an environment
with increased electrical hazard.
In this type of environment, insulated mats and pads must be used.
Furthermore gauntlet gloves and head protection made of leather or
other insulating materials must be worn to insulate the body against
Earth. The welding power source must be located outside the working
area or electrically conductive surfaces and out of the welder’s reach.
Additional protection against a shock from the mains power in the
event of a fault can be provided by using a fault-circuit interrupter,
which is operated with a leakage current of no more than 30 mA and
covers all mains-powered devices in close proximity. The fault-circuit
interrupter must be suitable for all types of current.
There must be means of rapid electrical isolation of the welding
power source or the welding circuit (e.g. emergency stop device)
which are easily accessible.
When using welders under electrically dangerous conditions, the
output voltage of the welder must not be greater than 113 volt when
idling (peak value). Based on the output voltage this welder may be
used in these conditions.
zWelding in tight spaces
 When welding in tight spaces this may pose a hazard through
toxic gases (risk of suffocation).
 In tight spaces you may only weld if there are trained individuals
in the immediate vicinity who can intervene if necessary.
In this case, before starting the welding procedure, an expert
must carry out an assessment in order to determine what steps
are necessary, in order to guarantee safety at work and which
precautionary measures should be taken during the actual welding
procedure.
zTotal of no-load voltages
 When more than one welding power source is operated at the
same time, their no-load voltages may add up and lead to an
increased electrical hazard. Welding power sources must be
connected in such a way that the danger is minimised.

GB/IE/CY 13
The individual welding power sources, with their individual control
units and connections, must be clearly marked, in order to be able
to identify which device belongs to which welding power circuit.
zUsing shoulder straps
Welding must not take place if the welding power source is being
carried e.g. with a shoulder strap.
This is intended to prevent:
 The risk of losing your balance if the lines or hoses which are
connected are pulled
 The increased risk of an electric shock as the welder comes into
contact with the earth if he/she is using a Class I welding power
source, the housing of which is earthed through its conductor.
zProtective clothing
 At work, the welder must protect his/her whole body by using
appropriate clothing and face protection against radiations and
burns. The following steps must be observed:
–Wear protective clothing prior to welding work
–Wear gloves.
–Open windows or use fans to guarantee air supply.
–Wear safety goggles and face mask.
 Gauntlet gloves made of a suitable material (leather) must be worn
on both hands. They must be in perfect condition.
 A suitable apron must be worn to protect clothing from flying
sparks and burns. When specific work, e.g. overhead welding,
is required, a protective suit must be worn and, if necessary, even
head protection.
PROTECTION AGAINST RAYS AND BURNS
 Warn of the danger to the eyes by hanging up a sign saying
“Caution! Do not look into flames!” in the work area.
The workplaces must be shielded so that the persons in the vicinity
are protected. Unauthorised persons must be kept away from
welding work.
 The walls in the immediate vicinity of fixed workplaces should
neither be bright coloured or shiny. Windows up to head height
must be protected to prevent rays from penetrating or reflecting
through them, e.g. by using suitable paint.

14 GB/IE/CY
zEMC Device Classification
According to the standard IEC 60974-10, this is a welder in elec-
tromagnetic compatibility Class A. Class A devices are devices that
are suitable for use in all other areas except living areas and areas
that are directly connected to a low-voltage supply mains that (also)
supplies residential buildings. Class A devices must adhere to the
Class A limit values.
WARNING NOTICE: Class A devices are intended for use in
an industrial environment. Due to the power-related as well as the
radiated interference variables, difficulties might arise in ensuring
electromagnetic compatibility in other environments.
Even if the device complies with the emission limit values in accord-
ance with the standard, such devices can still cause electromagnetic
interference in sensitive systems and devices. The user is responsible
for faults caused by the arc while working, and the user must take
suitable protective measures. In doing so, the user must consider the
following:
–power cables, control, signal and telecommunication lines
–computer and other microprocessor controlled devices
–television, radio and other playback devices
–electronic and electrical safety equipment
–persons with cardiac pacemakers or hearing aids
–measurement and calibration devices
–noise immunity of other devices in the vicinity
–the time of day at which the work is being done.
The following is recommended to reduce possible interference
radiation:
–fit a mains filter to the mains connection
–service the device regularly and keep it in good condition
–welding cables should be completely unwound and installed
parallel on the floor, if possible
–if possible, devices and systems at risk from interference radiation
should be removed from the work area or shielded.
Note!
This device complies with IEC 61000-3-12, provided that the Ssc
short circuit power is larger or equal to 6106.5 kW at the interface
point between the operator’s supply and the public supply. It is the
responsibility of the installer or user of the device, after consultation
with the distribution system operator if necessary, to make sure that

GB/IE/CY 15
the device is only connected to a supply with an Ssc short circuit
power which is larger or equal to 6106.5 W.
Note!
The device is only designed for use with a power supply where the
permissible mains Zmax impedance is equal to or below 0.225 Ω.
If you are in any doubt, then please contact an electrical professional.
zBefore using the device
Take the device and accessories out of the packaging and check them for damage (e.g. transport damage).
 Connect the electrode holder 5for MMA welding or the TIG torch for TIG welding to the welder.
 Then connect the earth terminal 4to the workpiece.
 For MMA welding, place an electrode in the clamps of the electrode holder.
zUsing the device
zMMA welding
 Use electrode holder clamps without protruding bracket screws, which meet the current safety
standards.
 Make sure that the ON/OFF switch 9is set to position “O” (“OFF”) or that the mains cable 8is
not connected to the socket.
 Connect the welding cable according to its polarity and in accordance with the specifications of the
electrode manufacturer.
 To do this, connect the connector of the earth terminal 4with the relevant output on the inverter
welder (marked with “-”).
 Connect the connector of the electrode holder 5with the relevant output on the inverter welder
(marked with “+”).
 Put on appropriate protective clothing in accordance with the specifications and prepare your
workplace.
 Connect the earth terminal 4to the workpiece.
 Clamp the electrode into the electrode holder 5.
 Switch the device on by setting the ON/OFF switch 9to the “I” (“ON”) position.
 You can now set the welding current by rotating the control wheel 3. By pressing the control button
2several times, after selecting the “0.0” setting (in the “Electrode 1/6” menu item), you can choose
between the convenient functions: Hot Start, Arc Force and Anti Stick. You can set the parameters
using the control wheel 3and confirm them by pressing the control button 2.
 By pressing the control button 2until the “Electrode 1/6” menu item is displayed, you can select the
electrode thickness (1.6–4 mm) by rotating the control wheel 3. The current and convenient
functions are then preset.
ATTENTION: Do not bring the earth terminal 4and the electrode holder 5/electrodes into direct
contact with one another.
ATTENTION: When welding with electrodes (MMA – manual metal arc welding – electrode
welding), the electrode holder 5and the earth terminal 4must be connected in accordance with the
specifications of the electrodes to plus (+) or minus (-).
 Wear appropriate personal protective equipment and start the welding procedure.
 To stop the procedure, set the ON/OFF switch 9to the “O” (“OFF”) position.

16 GB/IE/CY
ATTENTION: Make sure that you do not rub the electrodes onto the workpiece. Doing this can
damage the workpiece and make it more difficult to ignite the arc. After the arc is ignited, maintain the
correct gap from the workpiece. The distance should be appropriate to the diameter of the electrode
used. When welding maintain this gap as accurately and consistently as possibly. The angle between
the electrode and the direction of operation should be between 20° and 30°.
ATTENTION: The welding clamp and welding electrodes must be placed on the insulated bracket
after welding. Wait until the electrode is cooled before removing the welding slag. To weld an intermittent
weld seam again you must first remove the welding slag at the welding position.
ATTENTION: A voltage which is 10% below the rated input voltage of the welder can have the
following consequences:
 The power to the device will reduce.
 The arc stops or becomes unstable.
ATTENTION:
 The arc radiation can lead to inflammation of the eyes and skin burns.
 Casting and welding slag can cause eye injuries and burns.
 Wear tinted safety goggles or a protective mask.
 The safety mask must meet the EN175 safety standards.
 It is essential that you only use the welding cable which is included with the delivery.
zWelding

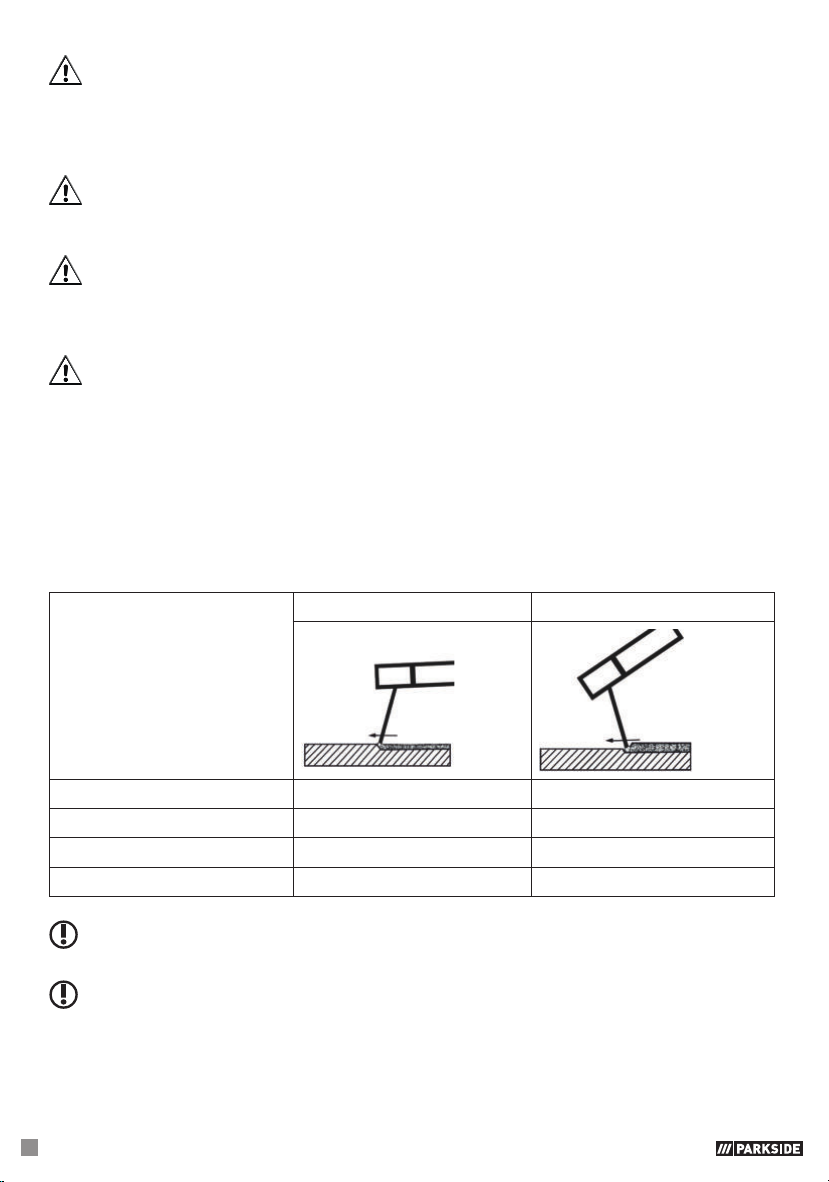

Choose between push and drag welding. The following section shows the impact of the direction of
movement on the properties of the weld seam:
Push welding Drag welding
Burn smaller larger
Weld seam width larger smaller
Weld bead flatter higher
Weld seam fault larger smaller
NOTE: You decide for yourself which type of welding is most suitable, once you have welded a
sample piece.
NOTE: Once it has worn down completely, the electrode must be replaced.

GB/IE/CY 17
zTIG welding
Make sure that the ON/OFF switch 9is set to position “O” (“OFF”) or that the mains cable 8is not
plugged into the socket.
 To do this, connect the connector of the earth terminal 4with the relevant output on the inverter
welder (marked with “+”).
 Connect the connector of the TIG torch with the relevant output on the inverter welder (marked
with “-”).
 Put on appropriate protective clothing in accordance with the specifications and prepare your
workplace.
 Connect the earth terminal 4to the workpiece.
 Connect the gas inlet of the torch with the appropriate outlet of your pressure reducer (not part of the
scope of delivery). Use Argon as the inert gas. A gas flow of at 4–8 l / min is recommended.
 Switch the device on by setting the ON/OFF switch 9to the “I” (“ON”) position.
 Adjust the welding current using the control wheel 3depending on the electrode being used.
 Select the “0.0” position by pressing the control button 2several times and rotating the control
wheel 3if necessary. Continue to press the control button 2until the “LiftTIG 6/6” menu item is
displayed. Select the “ON” setting by rotating the control wheel 3. Confirm by pressing the control
button 2. You can now set the welding current by rotating the control wheel 3.
zMaintenance and cleaning
NOTE: The welder must be regularly serviced and overhauled for proper function and for compliance
with the safety requirements. Improper and wrong operation may cause failures and damage to the
device.
 Before performing cleaning work on the welding tool, disconnect the mains cable 8from the power
outlet to ensure the device is safely isolated from the power supply.
 Clean the exterior of the welder and its accessories regularly. Use compressed air, cotton waste or a
brush to remove dirt and dust.
NOTE: The following kinds of maintenance work must be performed only by suitably-qualified
personnel.
 The current regulator, earthing device and internal cables must be serviced regularly.
 Check the insulation resistance levels of the welder regularly. To do this use an appropriate
measuring device.
 In case of a defect or a necessary replacement of equipment parts, please contact the appropriate
qualified personnel.
zInformation about recycling and disposal
DON’T THROW AWAY – RECYCLE!
According to European Directive 2012/19/EU, used electrical devices must be collected
separately for environmentally compatible recycling or recovery. Please return this device to an
approved waste management company or use your municipal waste collection service. Please ensure
you comply with local regulations. If you have any questions, please contact your local authority or
waste management company.
Please return this device, accessories and packaging to your local recycling depot.
Do not dispose of electrical appliances in household waste! This satisfies your legal obligations
while also making an important contribution to protecting the environment.

18 GB/IE/CY
Please note the marking on the different packaging materials and separate them as necessary.
The packaging materials are marked with abbreviations (a) and digits (b) with the following
definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.
zEC Declaration of Conformity
We,
C. M. C. GmbH
Responsible for documentation:
Dr. Christian Weyler
Katharina-Loth-Str. 15
66386 St. Ingbert
GERMANY
hereby take sole responsibility for declaring that the product
Inverter Welder PTMI 180 A1
IAN: 389213_2107
Art. no.: 2424
Year of manufacture: 2022/18
Model: PTMI 180 A1
meets the basic safety requirements as specified in the European Directives
EC Guideline on Electromagnetic Compatibility:
2014/30/EU
Low Voltage Directive:
2014/35/EU
RoHS Directive:
2011/65/EU + 2015/863/EU
and the amendments to these Directives.
The object of the declaration described above meets the requirements of Directive 2011/65/EU of
the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment. This conformity assessment is based on the
following harmonised standards:
EN 60974-6:2016
EN 60974-10:2014/A1:2015
St. Ingbert, 23 December 2021
Dr. Christian Weyler
- Quality Assurance -

GB/IE/CY 19
zWarranty and service information
Warranty from Creative Marketing & Consulting GmbH
Dear Customer,
The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you
have legal rights against the retailer of this product. Your statutory rights are not affected in any way by
our warranty conditions, which are described below.
zWarranty conditions
The warranty period begins on the date of purchase. Please retain the original sales receipt.
This document is required as your proof of purchase.
Should this product show any defect in materials or manufacture within 3 years from the date of
purchase, we will repair or replace it – at our discretion – free of charge.
This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for
the three year period and that you briefly explain in writing what the fault entails and when it occurred.
If the defect is covered by our warranty, we will repair and return your product or send you a replacement.
The original warranty period is not extended when a device is repair or replaced.
zWarranty period and statutory claims for defects
The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts.
Any damages or defects detected at the time of purchase must be reported immediately after unpacking.
Any incidental repairs after the warranty period are subject to a fee.
zExtent of warranty
This device has been manufactured according to strict quality guidelines and carefully inspected before
delivery.
The warranty applies to material and manufacturing defects only. This warranty does not extend to
product parts, which are subject to normal wear and tear and can thus be regarded as consumable
parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.
This warranty is voided if the product becomes damaged or is improperly used or maintained.
For proper use of the product, all of the instructions given in the operating instructions must be followed
precisely. If the operating instructions advise you or warn you against certain uses or actions, these must
be avoided in all circumstances.
The product is for consumer use only and is not intended for commercial or trade use. The warranty
becomes void in the event of misuse and improper use, use of force, and any work on the device that has
not been carried out by our authorised service branch.
zProcessing of warranty claims
To ensure prompt processing of your claim, please follow the instructions given below.
Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.
The product number can be found on the type plate, an engraving, the cover page of your instructions
(bottom left), or the sticker on the back or underside of the device.

20 GB/IE/CY
In the event of malfunctions or other defects, please first contact our service department below by phone
or email. If your product is found to be defective, you can then send your product with proof of purchase
(till receipt) and a statement describing what the fault involves and when it occurred free of charge to the
service address given.
NOTE: You can download this handbook and many more, as well as product videos and software
at www.lidl-service.com.
With this QR code you
can gain immediate access
to the Lidl Service page
(www.lidl-service.com) and
you can open your operating
instructions by entering the article
number (IAN) 389213.
zService
How to contact us:
GB, IE, CY
Name: C. M. C. GmbH
Website: www.cmc-creative.de
E-mail: ser[email protected]
Phone: [phone]
Registered office: Germany
IAN 389213_2107
Please note that the following address is not a service address. Please first contact the service point
given above.
C. M. C. GmbH
Katharina-Loth-Str. 15
66386 St. Ingbert
GERMANY
Ordering spare parts:
www.ersatzteile.cmc-creative.de
