Parkside PPS 40 A1 User manual

PLASMA CUTTER PPS 40 A1
APARAT DE TĂIERE CU PLASMĂ ПЛАЗМЕНА РЕЗАЧКА
Indicații de operare și siguranță
Traducerea instrucţiunilor de utilizare originale
Указания за монтаж, работа и безопасност
Превод на оригиналното ръководство за
експлоатация
RO BG
PLASMA CUTTER PLAZMA REZAČ
Operation and Safety Notes
Translation of the original instructions
Upute za posluživanje i za Vašu sigurnost
Prijevod originalnih uputa za uporabu
GB HRCY
ΜΗΧΑΝΗ ΚΟΠΗΣ PLASMA PLASMASCHNEIDER
Υποδείξεις χειρισμού και ασφαλείας
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung
GR DECY AT CH
HR RO BG
IAN 307722

GB CY
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
HR
Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na osnovu toga sa
svim funkcijama uređaja.
RO
Desfaceți înainte să citiți pagina cu ilustrații și apoi familiarizați-vă cu toate funcțiile
aparatului.
BG
Преди да прочетете, отворете страницата с фигурите и след това се запознайте
с всички функции на уреда.
GR CY
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
DE AT CH
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie
sich anschließend mit allen Funktionen des Gerätes vertraut.
GB / CY Operation and Safety Notes Page 5
HR Napomene za montažu, rukovanje i sigurnost Stranica 25
RO Indicații de montare, operare și siguranță Pagina 43
BG Указания за монтаж, работа и безопасност Страница 63
GR / CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 85
DE / AT / CH Montage-, Bedienungs- und Sicherheitshinweise Seite 107

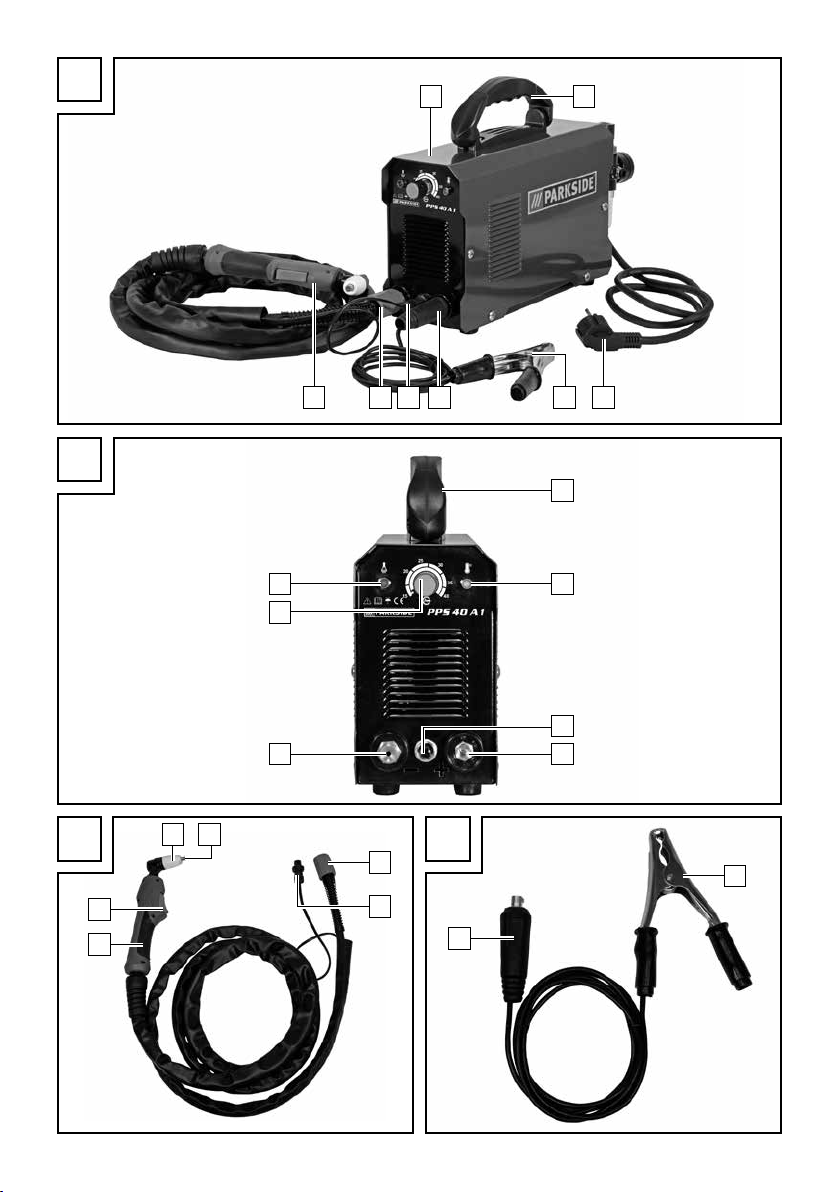

1 2
2
14 9
11
4
7
12
5
8
8a
35678 4
6
10
13
8b 8c
A
B
CD

8c
8c
22
8e8d
8d
8b
8
8a
8b 8c
E F G
16
15
21 21 21
21
17
16
18
2
20
19
H
J K L
I

5GB/CY
Table of contents
Table of pictograms used ............................................................................... Page 6
Introduction........................................................................................................... Page 7
Intended use ............................................................................................................... Page 7
Equipment .................................................................................................................. Page 7
Technical specifications ................................................................................................ Page 8
Package contents......................................................................................................... Page 8
Safety instructions.............................................................................................. Page 8
General plasma explanations...................................................................... Page 13
Before use.............................................................................................................. Page 14
Installation environment................................................................................................ Page 14
Connecting compressed air........................................................................................... Page 14
Connecting the cutting torch.......................................................................................... Page 15
Connecting the ground cable ........................................................................................ Page 15
Using the device.................................................................................................. Page 15
Operation................................................................................................................... Page 15
Plasma cutting types..................................................................................................... Page 16
Troubleshooting................................................................................................... Page 17
Maintenance and care ..................................................................................... Page 19
Maintaining the burner................................................................................................. Page 19
Maintenance............................................................................................................... Page 20
Storage ...................................................................................................................... Page 20
Warranty and service information ............................................................ Page 20
Warranty conditions .................................................................................................... Page 20
Extent of warranty ....................................................................................................... Page 20
Processing of warranty claims ....................................................................................... Page 21
Information about recycling and disposal............................................. Page 21
Original EC Declaration of Conformity..................................................... Page 22

6GB/CY
Table of pictograms used
• Table of pictograms used
Caution!
Read the operating
instructions!
Caution!
Risk of electric shock!
Warning: Potential hazards! Important note!
Do not dispose of any
electrical devices in
domestic waste!
Dispose of packaging
properly. Do not dispose of
the appliance in household
waste!
Made from recycling
material. Never use the device in the open or when it’s raining!
Electric shock from the
welding electrode can
be fatal!
Inhalation of welding fumes
can endanger your health!
Welding sparks can cause
an explosion or fire!
Arc beams can damage
your eyes and injure your
skin!
Electromagnetic fields
can disrupt the function of
cardiac pacemakers! AC–mains connection.
H Insulation class. Terminal for the external
(grounding) equipment
conductor.
Cutting with the plasma
cutter. Gouging tool.
Cutting metal plates. Cutting expanded metal.
Indicator lamp – thermal
sensor. Connection – ground terminal -plug.
Indicator lamp – mains
connection.
Connection –
plasma burner -plug
Plasma burner -power plug.

7GB/CY
Plasma cutter PPS 40 A1
• Introduction
Congratulations! You have
purchased one of our high-quality
products. Please familiarise yourself
with the product before setup or first use.
Please also read the safety instructions
carefully. This product must be set up or used
only by people who have been trained to
do so.
Keep out of the reach of children!
PLEASE NOTE!
fThe use of the term ‘product’
or ‘device’ in the following text refers
to the plasma cutter named in these
operating instructions.
• Intended use
The device is intended for compressed-air
plasma cutting of all electrically conductive
metals. Observing the safety instructions
and assembly instructions and operating
information in the instructions for use is also
a component of intended use.
It is imperative to adhere to the applicable
accident prevention regulations. The device
must not be used:
in insufficiently ventilated rooms,
in moist or wet environments,
in explosive environments,
to defrost pipes,
in close proximity to people
with cardiac pacemakers and
in close proximity to easily
flammable materials.
Use the product only as described and
only for the specific applications as stated.
Keep these instructions in a safe place.
Ensure you hand over all documentation
when passing the product on to anyone else.
Any use that differs to the intended use as
stated above is prohibited and potentially
dangerous. Damage or injury caused by
misuse or disregarding the above warning
is not covered by the warranty or any
liability on the part of the manufacturer.
RESIDUAL RISK
Even if you operate the device as intended,
there will be residual risks.
Following hazards may occur in conjunction
with the construction and design of this plasma
cutter:
Eye injuries due to glare,
Touching hot parts of the device
or workpiece (burn injury),
In case of improper protection risk
of accident and fire through sparks
and slag particles,
Harmful emissions from smoke and gases
if there is a lack of air or if closed rooms
are insufficiently extracted.
Reduce the residual risk by carefully using
the device as intended and observing all
instruction.
• Equipment
PLEASE NOTE!
fAfter unpacking the product, please
check that all of the package contents
are present and that the device is in
perfect condition. Do not use the device
if it is defective.
Introduction

8GB/CY
1Plasma cutter
2Handle
3Mains plug
4Ground terminal
5Ground terminal plug
6Plasma burner -power plug
7Plasma burner -plug
8Plasma burner
8a Plasma burner button
8b Nozzle clamping sleeve
8c Nozzles
8d Electrode
8e Diffuser
9Overheat protection indicator lamp
10 Plasma burner-power socket
11 Ground terminal -connection socket
12 Plasma burner -connection socket
13 Current controller
14 Mains indicator lamp
15 Quick connector compressed air hose
16 Compressed air hose
17 On/off -switch
I switched on
O switched off
18 Condensation water tank
19 Manometer
20 Compressed air connection
21 Rotary knob to regulate the pressure
22 Hose clamp
• Technical specifications
Output: 15-40 A
Input: 230 V~ 50 Hz
Weight: approx. 5.2 kg
Dimensions 341 × 113 x 237 mm
Insulation class: H
Duty Cycle: 35 % at 40 A (25 °C)
20 % at 40 A (40 °C)
‘Real’ cutting
capacity: 0.1 mm – 12 mm
(depending on the material)
Copper:1-4 mm
Stainless steel: 1-8 mm
Aluminium:1-8 mm
Iron: 1-10 mm
Steel: 1-12 mm
Working
pressure: 4-4.5 bar
(4 bar preset)
• Package contents
1 plasma cutter
1 ground cable with terminal
1 cutting cable incl. cutting torch
1 compressed air hose with Quick-Connect
2 hose clamps
2 nozzles
3 electrodes (1 pre-assembled)
1 set of operating instructions
3 burner sleeves (1 pre-assembled)
• Safety instructions
WARNING!
fPlease read through the
operating instructions
carefully before use.
Familiarise yourself with the
device, its proper use and
the safety notes based on
these operating instructions.
These form part of the
product and must be
available at all times.
Introduction / Safety instructions

9GB/CY
WARNING!
fRISK OF SERIOUS
INJURY OR DEATH
FOR INFANTS AND
CHILDREN!
Never leave children
unsupervised near packaging
material. There is a risk of
suffocation .
This device may be used by
children aged 16 years and
older, and by persons with
reduced physical, sensory
or mental capacities, or a lack
of experience and knowledge,
if they are supervised or have
been instructed on how to
use the device safely and
understand the dangers that
may arise when using it.
Do not allow children to play
with the device. Cleaning and
day-to-day maintenance must
not be performed by children
without supervision.
Repairs and/or maintenance
work must only be carried
out by qualified electricians.
Only use the weld cable
provided in the scope of
delivery.
During operation, the device
should not be positioned
directly on the wall, covered
or jammed between other
devices so that sufficient air
can be absorbed through
the ventilation slats. Make
sure the device is correctly
connected to the supply
voltage. Avoid any form of
tensile stress of the power
cable. Disconnect the plug
from the socket prior to set-
ting up the device in another
location.
If the device is not in
operation, always switch it
off by pressing the ON/OFF
switch. Place the electrode
holder on an insulated surface
and only remove it from the
holder after allowing it to cool
down for 15 minutes.
Hot metal and sparks are blown
off from the cutting arch.
Flying sparks, hot metal as well
as hot objects and hot device
equipment can cause fires or
burns. Check the working
environment and make sure
the workplace is suitable prior
to using the device.
Remove all flammable materials
within 10 m of the plasma
cutter. If this is not possible,
cover the objects meticulously
using suitable covers.
Safety instructions

10 GB/CY
Do not make cuts where flying
sparks could come into contact
with flammable material.
Protect yourself and others from
flying sparks and hot metal.
Please be careful because
sparks and hot materials can
easily fall through small gaps
and openings while cutting
and land on adjacent areas.
Please be aware that
cutting on a ceiling, floor
or a partition can cause
a fire on the opposite side
that is not visible.
Connect the cable as practical
as possible with a socket
situated close to the workplace
to prevent the power cable
from being spread across the
whole room and located on
unknown ground which could
cause an electric shock, sparks
or fire outbreak.
Do not use the plasma cutter
to defrost frozen tubes.
Risk of electric shock:
WARNING!
fElectric shock from the
welding electrode can
be fatal.
Do not use the plasma cutter
when it is raining or snowing.
Wear dry insulating gloves.
Do not touch the electrodes
with bare hands.
Do not wear wet or damaged
gloves.
Protect yourself from electric
shock with insulation against
the workpiece.
Do not open the device
housing.
Danger from welding
fumes:
Inhalation of welding fumes
can endanger health.
Do not keep your head in the
fumes.
Use the equipment in open
areas.
Use extractors to remove the
fumes.
Danger from welding
sparks:
Welding sparks can cause
an explosion or fire.
Keep flammable substances
away from the welding
location.
Do not use the plasma cutter
near flammable substances.
Welding sparks can cause fires.
Keep a fire extinguisher close
by and an observer should
be present to be able to use
it immediately.
Safety instructions

11GB/CY
Do not weld on drums or any
other closed containers.
Danger from arc beams:
Arc beams can damage your
eyes and injure your skin.
Wear a hat and safety
goggles.
Wear hearing protection and
high, closed shirt collars.
Wear welding safety helmets
and filter sizes in perfect
condition.
Wear complete body
protection.
Danger from
electromagnetic fields:
Welding current generates
electromagnetic fields.
Do not use if you have
a medical implant.
Never wrap the welding
cable around your body.
Guide welding cables
together.
zWelding shield-specific
safety instructions
With the help of a bright light
source (e.g. lighter) examine
the proper functioning of the
welding shield prior to starting
with any welding work.
Weld spatters can damage the
protective screen. Immediately
replace damaged or scratched
protective screens.
Immediately replace damaged
or highly contaminated
or splattered components.
The device must only be
operated by people over the
age of 16.
Please familiarise yourself with
the welding safety instructions.
To that end, you must also
observe the safety instructions
of your plasma cutter.
Always wear a welding
helmet while welding. If it is
not used, you could sustain
severe lesions to the retina.
Always wear protective clothing
during welding operations.
Never use the welding shield
without the protective screen
because this could damage
the optical unit. There is a risk
of damage to the eyes!
Regularly replace the protective
screen to ensure good visibility
and fatigue-proof work .
zSmall and moist rooms
Insulating mats and pads
must be used when working
in small, moist or hot rooms.
Furthermore, leather gauntlet
gloves or other insulating
Safety instructions

12 GB/CY
materials must be worn to
insulate the body against
ground.
When using plasma cutters
under electrically dangerous
conditions, e.g. tight spaces
made of electrically conductive
walls (boiler, pipes, etc.),
in wet rooms (soaking of work
clothes), the output voltage
of the plasma cutter must
be greater than 48 volt
when idling (effective value).
The plasma cutter may be
used in these cases due to the
output voltage.
zProtective clothing
At work, the welder must
protect his/her whole body
by using appropriate
clothing and face protection
against radiations and burns.
The following steps must be
observed:
– Wear protective clothing
prior to welding work.
– Wear gloves.
– Open windows to guarantee
air supply.
– Wear safety goggles.
Gauntlet gloves made of a
suitable material (leather) must
be worn on both hands. They
must be in perfect condition.
A suitable apron must be
worn to protect clothing
from flying sparks and burns.
When specific work, e.g.
overhead welding, is required,
a protective suit must be worn
and, if necessary, even head
protection.
zProtection against rays
and burns
A ‘Caution! Do not stand in
the flames!’ warning sign to
indicate an eye hazard must
be visible at the workplace.
The workplaces must be
shielded so that the persons
in the vicinity are protected.
Unauthorised persons must be
kept away from welding work.
The walls in the immediate
vicinity of fixed workplaces
should neither be bright
coloured or shiny. Windows
up to head height must be
protected to prevent rays
from penetrating or reflecting
through them, e.g. by using
suitable paint.
zEMC Device Classification
According to standard
IEC 60974-10, it has to do
Safety instructions

13GB/CY
with a plasma cutter with class A
electromagnetic compatibility.
Thus, it meets the appropriate
requirements in the industrial and
residential area. In residential
areas, it can be connected to
the public low-voltage supply
network.
Even if the plasma cutter complies
with the emission level as per the
standard, the plasma cutter can
still result in electromagnetic
disturbances in sensitive systems
and devices.
The operator is responsible for
malfunctions that occur through
the arc while welding and must
take suitable protective measures.
In doing so, the operator must
consider the following:
Power cables, control, signal
and telecommunication lines
Computer and other
microprocessor controlled
devices.
Television, radio and other
playback devices
Electronic and electrical safety
equipment
Persons with cardiac
pacemakers or hearing aids
Measurement and calibration
devices
Noise immunity of other
devices in the vicinity
The time of day at which the
welding work is performed.
The following is recommended
to reduce possible interference
radiation:
The plasma cutter must be
regularly maintained and kept
in a good condition
Welding cables should be
completely unwound and
installed parallel on the floor,
if possible
Devices and systems at risk
of interference radiation must
be removed from the welding
area if possible, or shielded.
• General plasma explanations
Plasma cutters are operated by
pushing pressurised gas,
e.g. air, through a small pipe.
In the centre of the pipe, there
is a negatively charged electrode
that is directly above the nozzle.
The vortex ring controls the speed
at which the plasma can rotate.
If you supply the negative
electrode with current and make
the tip of the nozzle touch the
metal, this connection creates
a closed, electrical circuit.
Safety instructions / General plasma explanations

14 GB/CY
A powerful spark occurs between
the electrode and the metal.
While the gas flows into the pipe,
the spark heats up the gas until
it has reached the plasma
condition. This reaction causes
a current from the controlled
plasma with a temperature of
16,649 ºC or more that moves at
speed of 6.096 m/sec and the
metal transforms into steam and
molten discharge. The plasma
itself conducts electrical current.
The working circuit that allows
the arc to occur remains as
long as current is supplied to
the electrode and the plasma
remains in contact with the metal
to be processed.
The cutting nozzle has two types
of channels. These channels
generate a constant flow of
protective gas around the cutting
area. The pressure of the gas
flow controls the radius of the
plasma jet.
PLEASE NOTE!
fThis machine is only designed to use
compressed air as ‘gas’.
• Before use
• Installation environment
Make sure that working area is sufficiently
ventilated. If the device is used without
sufficient cooling, the power-on time reduces
and it can result in overheating.
Additional protection can be required for
this purpose:
The device must be free-standing with
a distance of at least 0.5 m all around.
Ventilation slots must not be blocked
or covered.
The device must not be used as a storage
place and tools or other items must not
be placed on the device.
It must be operated in a dry and well
ventilated working environment.
• Connecting compressed air
PLEASE NOTE!
fThis device is designed for operating
pressure of up to 6.3 bar. Please bear
in mind that the pressure can lower
while setting the air pressure.
Thus, in a hose length measuring
10 m and an internal diameter of 9 mm
it drops by approx. 0.6 bar.
The compressed air must be filtered,
lubricated and regulated.
Connect the compressed air hose 16 on
the back of the plasma cutter 1to the
compressed air connection 20. To do so,
insert the side of the compressed air hose
16 into the compressed air connection 20
of the plasma cutter 1without a quick
connector.
The pressure can be set via the knob
21
on the condensate separator. (see Fig. J-L
)
In order to release the compressed air
General plasma explanations / Before use

15GB/CY
hose 16, you must press the locking
mechanism of the compressed air
connection 20 and pull out the
compressed air hose 16.
• Connecting the cutting torch
Insert the plasma burner -plug 7into
the plasma burner – connection socket
12 and tighten the union nut hand-tight.
Insert the plasma burner – powerplug
6into the plasma burner – power
socket 10 and tighten the union nut
hand-tight.
• Connecting the ground cable
Connect the ground terminal plug 5with
the ground terminal connection socket 11.
Make sure that the connecting shaft is first
connected and then turned. This does not
require force!
• Using the device
• Operation
1. Set the plasma cutter 1up in a dry and
well ventilated area.
2. Position the machine in the vicinity of the
workpiece.
3. Press the on / off switch 17.
4. Clamp the ground terminal 4to the
workpiece to be cut and make sure that
there is a good electrical contact.
5. Set the cutting current on the current
controller 13.
6. Position the plasma cutter 8on the
workpiece so that the nozzle 8c is free
and that a blowback of the molten metal
is not possible. Press the plasma burner
button 8a. The transmitted cutting arch
is ignited on the edge of the sheet in this
manner.
7. Start cutting slowly and then increase the
speed in order to achieve the desired
cutting quality.
8. The speed must be regulated so that
a good cutting capacity can be
achieved. The plasma air creates
a straight arch (stainless steel, aluminium)
or a 5° arch of approach (soft steel).
9. While cutting make sure the nozzle is
always in contact with the workpiece.
To cut in the manual cutting mode,
pull the overlying burner across
the workpiece while maintaining
a constant speed. To achieve the perfect cut,
it is important for the material thickness to
comply with the correct cutting speed. If the
cutting speed is too low, the cutting edge
will be blunt due to the severe heat input.
The optimal cutting speed is achieved once
the cutting jet is slightly inclined towards
the rear while cutting. If the plasma burner
button 8a is released, the plasma jet goes
out and the power source switches off.
The gas continues to flow for approx.
5 seconds in order to cool the burner.
The same process is followed when the
workpiece is pulled out with the plasma
burner button pressed 8a. During the gas
post-flow time, the plasma cutter 1must
not be switched off to avoid damaging the
plasma burner 8as a result of overheating.
ATTENTION!
fThe device must be left on for approx.
2-3 minutes once the cutting work has
been completed. The cooler cools the
electronics.
Before use / Using the device

16 GB/CY
• Plasma cutting types
Drag cutting
Hold the tip of the pistol low over the
workpiece and press the pistol switch.
Now move the pistol tip until there is contact
with the workpiece and the cutting arch
is fixed in position. Once the cutting arch
has been generated, move the pistol in the
desired direction. Makes sure that the pistol
tip is slightly angled and that contact with
the workpiece is maintained. This working
method is called drag cutting. Avoid quick
movements. Sparks falling off the top of the
workpiece is an indication of moving too
quickly. Move the pistol at a speed in which
the spark accumulation is concentrated on
the bottom side of the workpiece. Ensure
the material is completely separated prior to
continuing with this process. Set the neces-
sary drag speed.
Distance cutting
In some cases, it is beneficial to cut while
holding the tip of the pistol at a height
of 1.5 mm to 3 mm above the workpiece.
This reduces the quantity of material that
is blown back into the tip. This makes it
possible to penetrate thicker material
strengths. Distance cutting should be used
if penetration or furrow work is carried out.
Furthermore, the ‘distance’ working tech-
nique can be used when you need to cut
sheet metal to minimise the risk of material
splashing back which could damage the tip.
Perforation
To drill through, place the tip approx.
3.2 mm above the workpiece. Hold the
pistol at a slight angle to guide the sparks
away from the pistol tip and your body.
Press the plasma burner button 8a and lower
the tip of the pistol until there is a main
cutting arch and sparks begin to form. Test
the perforation on a test object that is no
longer needed and once there are no
problems start drilling through at the
previously defined cutting line on your
workpiece. Check the pistol for wear and
tear, cracks or exposed cable pieces.
Replace or repair them prior to using the
device. A badly worn pistol tip/nozzle
contributes to the reduction of speed, voltage
and unclean separation. An indication of a
badly worn pistol tip/nozzle is an extended
or oversized nozzle opening. The external
electrode must not be recessed by more
than 3.2 mm. Replace it if the wear is
greater than the specified dimensions.
If the protective cap is difficult to tighten,
check the thread.
Using the device

17GB/CY
Troubleshooting
Faults Cause of fault Troubleshooting
Indicator lamp
does not lit up? No electrical connection. ON/OFF switch set to off. Check power cable. Set switch to ON.
Ventilator does
not work? Power line interrupted. Power line ventilator faulty.
Ventilator faulty.
Check power line.
Warning lamp
switches on? Overheating protection switched on.
Input voltage too high.
Allow device to cool down.
Input voltage according
to type plate.
No output
current? Machine faulty. Overvoltage protection
activated.
Machine must be repaired.
Allow device to cool down.
Output current
does not
decrease?
Input voltage too low.
Connection cable cross-section
too low.
Observe input voltage
according to type plate.
Air current cannot
be regulated? Compressed air hose damaged or faulty.
Valve/manometer fails.
New connection of the hose.
HF-arc is not
created? The burner switch is faulty. Soldering point on the burner
switch or plug loosened.
Valve/manometer fails.
Renew electrode.
Bad ignition? Burner wear parts damaged
or worn.
Check HF spark gap.
Change wear parts.
Set spark gap.
Pistol is not ready
for operation? Current switch is switched off. Air transmission is restricted.
Workpiece is not connected to
the ground terminal.
Switch the current switch to
‘on’.
Another indication of this is
a green flame. Check the air
supply.
Check the connection.
• Troubleshooting

18 GB/CY
Troubleshooting
Sparks fly
upwards,
instead of down
through the
material?
Plasma pistol does not
penetrate the material.
Pistol too far away from
the material.
Apparently material was
not grounded properly.
Lifting speed is too quick.
Increase the current.
Reduce the distance between
the pistol and material.
Check the connection
for correct grounding.
Reduce the speed.
Initial cut but not
completely drilled
through?
Potential connection problem. Check all connections.
Slag formation
on interfaces? Tool/material creates heat. Cutting speed too low
or current too high.
Individual parts of the pistol
are worn.
Allow the material to cool
down and then continue
cutting.
Increase the speed and/or
reduce the current until the
slag has been reduced to
a minimum.
Check and replace worn
parts.
Arc stops during
cutting? Cutting speed too low. Pistol is held too high and too
far away from the material.
Individual parts of the pistol
are worn.
Workpiece no longer
connected to the grounding
cable.
Increase the cutting speed until
the problem no longer exists.
Lower the pistol to the
recommended height.
Check and replace worn
parts.
Check the connections.
Insufficient
penetration? Cutting speed too fast. Pistol is not straight.
Metal is too thick.
Individual parts of the pistol
are worn.
Slow down the working
speed.
Adjust the inclination.
Several cycles necessary.
Check and replace worn
parts.

19GB/CY
Troubleshooting / Maintenance and care
• Maintenance and care
• Maintaining the burner
The parts displayed in Figure F are the
electrode 8d, diffuser 8e and the nozzle
8c . They can be replaced once the
nozzle clamping sleeve 8b has been
unscrewed.
The electrode 8d must be replaced
if there is a crater of approximately
1.5 mm depth in the centre.
ATTENTION!
fTo unscrew the electrode, do not apply
irregular pressure, gradually increase
pressure until the thread is released.
The new electrode must be screwed into
its bracket and blocked but not tightened
up to the stop.
The nozzle 8c must be placed if the
central bore is damaged or if it has
expanded in comparison to a drilling of
a new nozzle. If the electrode 8d or the
nozzle 8c are replaced too late, this can
result in an overheating of the parts. This
can reduce the lift cycle of the diffuser
8e
.
Once replaced, make sure the nozzle
clamping sleeve 8b is tightened
sufficiently.
ATTENTION!
fThe nozzle clamp sleeve 8b must only
be screwed on to the burner 8once
it has been equipped with the electrode
8d, diffuser 8e and nozzle 8c .
fIf these parts are missing,
the device may malfunction
and it may create a hazard
for the operating personnel.
Consumables
wear quickly? Performance was overstretched.
Arc control time exceeded.
Incorrect pistol assembly.
Insufficient air supply,
pressure too low.
Faulty air compressor.
Material too thick, increase
the angle to avoid material
from being blown back into
the tip.
Do not control the arc for
more than 5 seconds.
You can also start with contact
between the pistol and metal
or with a 3.2 mm distance
to the metal.
See paragraph titled
‘Pistol set up’.
Check the air filter,
increase the air pressure.
Check the performance of the
air compressor and make sure
the inlet pressure is at least
100 PSI.

20 GB/CY
• Maintenance
PLEASE NOTE!
fThe plasma cutter must be regularly
maintained for perfect function and
comply with the safety requirements.
Improper and wrong operation may
cause failures and damage to the
device.
Switch off the main power supply and
the main switch of the device prior to
carrying out maintenance or repair work
on the plasma cutter.
Regularly clean the outside of the plasma
cutter. Use compressed air, cotton waste
or a brush to remove dirt and dust.
• Storage
If you will not be using the device for
a while, protect it from dust by storing
it in a clean and dry place.
• Warranty and service
information
Warranty from Creative
Marketing & Consulting GmbH
We give you a warranty on this device of
3 years from the date of purchase. In the
event of product defects, you have legal
rights against the retailer of this product.
Your statutory rights are not affected in any
way by our warranty conditions, which are
described below.
• Warranty conditions
The warranty period begins on the date of
purchase. Please retain the original sales
receipt. This document is required as your
proof of purchase.
Should this product show any defect in
materials or manufacture within 3 years
from the date of purchase, we will repair
or replace it – at our discretion – free of
charge. This warranty service requires that
you retain proof of purchase (sales receipt)
for the defective device for the three year
period and that you briefly explain in writing
what the fault entails and when it occurred.
If the defect is covered by our warranty,
we will repair and return your product
or send you a replacement. The original
warranty period is not extended when
a device is repair or replaced.
• Extent of warranty
This device has been manufactured
according to strict quality guidelines and
carefully inspected before delivery.
The warranty applies to material and
manufacturing defects only. This warranty
does not cover product parts that are subject
to normal wear and tear and can therefore
be regarded as consumables, nor does
it cover damage to fragile parts such as
switches, rechargeable batteries or parts
made from glass.
This warranty is voided if the product
becomes damaged or is improperly used or
maintained. For proper use of the product,
all of the instructions given in the operating
Maintenance and care / Warranty and service information
