Paryvara TH-1412 User manual

1
Dual Mode
Digital Forehead & Ear Thermometer
Instruction manual

2
Copyright © Paryvara
2016. All rights reserved.
Paryvara owns and reserves all of the rights comprised in the copyright of this
document. No part of this document may be changed, excerpted, copied,
reproduced, or imitated in any form or by any means without prior written
consent of Paryvara
All statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any
kind, either express or implied. The information in this document is subject to
change without notice. Paryvara reserves the right of final interpretation of this
document.
Version 2.2
Issuing Date: July 2016
To download the latest manual for the thermometer please visit:
http://paryvara.com/manuals/
If you have any issues with the thermometer, please feel free to contact us via
email at i[email protected]
Introduction
Thank you for purchasing the Paryvara TH-1412 Dual Mode Digital forehead
and ear Thermometer. TH-1412 has undergone rigorous clinical tests and has
proven to be safe, reliable and accurate when used in accordance with the
operation manual.
We wanted to make a thermometer that will accompany your child from
infancy to adulthood. That is why the TH-1412 Dual mode infrared
thermometer was designed to measure the body temperature via the subject’s
ear and/or forehead. We recommend that you use the forehead measurement
mode for your children who are < 1 yr. old and move to the eardrum
measurement mode when they are older and more comfortable with a foreign
object in their ear.
Please read the instructions carefully before using the product, and put it in a
safe and secure place for future reference.

3
Contents
1. Features of the dual mode thermometer ..............................................1
2. Precautions –Care and maintainance..................................................2
3.Taking measurements using the thermometer.......................................4
4. Changing from Fahrenheit to Celsius ...................................................5
5. Recalling last temperature ....................................................................5
6. Product design ......................................................................................5
7. Instructions for display and operation...................................................6
8. Troubleshooting....................................................................................8
9. Technical specifications......................................................................10
10. Symbols.............................................................................................11

1
1.Features of the Dual mode infrared thermometer TH-1412
The TH-1412 is able to take both forehead and ear temperature
measurements by detecting the infrared heat given off by the respective
areas. Forehead temperature measurements range from 89.6°F - 107.9°F (32
°C –42.2 °C), and eardrum temperature measurements from 32.0°F - 212.0°F
(0 °C- 100 °C).
Convenient and easy to use
Easy mode of operation –No confusing menus and buttons
Can be used anytime –even when your child is asleep
Measures faster than oral thermometer and more comfortable than
rectal thermometer
Ergonomic design
Color coded display for fever
Accurate and quick
Uses latest infra-red scanning technology –precise and immediate
measurements
Safe and hygienic
Unlike traditional thermometers, there is no glass or mercury that could
pose as a potential health hazard. The thermometer is made up of ABS
and TPR plastics, a temperature sensor, an Infrared temperature
measuring element, a microcomputer controlled circuit and a LCD
screen.
BPA and latex free
Memory Recall
Has a Memory Mode that can recall 20 readings to track changes in
temperature.
Convenient Fever warning
When the temperature exceeds 99.5°F/37.5°C, the thermometer will warn the
user that he/she may have a fever by 7 rapid short beeps and the LCD will
flicker. (For normal body temperature, the signal is a long beep)

2
Warning!
This product is not intended to substitute advice from a physician,
pharmacist, or other licensed health-care professional. You should not
use this product for self-diagnosis or for treating a health problem.
Contact your health-care provider immediately if you suspect that you
have a medical problem.
Operating principle
The infrared temperature sensor collects infrared energy emitted from the
eardrum. After being focused by a lens, the energy is converted into a
temperature reading by the thermopiles and measurement circuits.
2. Precautions - Care and Maintenance
Do not use the thermometer for purposes not specified in this User
Manual. Follow the instructions stated herein and operate the
thermometer carefully when measuring children's temperature.
The device is not designed to be used for new-born babies.
The device is not a continuous monitoring device.
Do not use the thermometer under an ambient temperature higher than
40°C (104°F) or lower than 10°C (50°F), which is beyond the operating
temperature range of the thermometer. To ensure accurate readings,
keep the thermometer under room temperature for more than 30
minutes before use.
Wait at least 10 seconds between every two consecutive readings. Start
a measurement after the measurement symbol is displayed.
Do not touch the tip of the temperature probe, on which a precise
temperature sensor resides.
CAUTION! The sensor is extremely sensitive to dirt and oil. Check
the sensor regularly. The surface should be reflective and
gleaming. If it looks dull and lacklustre, then you need to clean the
sensor before use.

3
To clean the device, use a q-tip cotton swab moistened with alcohol
(70% Isopropyl) to clean the casing and the measuring probe. Please
wait 5-10 minutes for the alcohol to completely evaporate before using
the thermometer.
TH-1412 is not waterproof. Please do not immerse it into the water or
other liquids.
Certain parts of the thermometer are fragile and must be lined precisely
to perform their functions. Do not drop the thermometer or twist the
thermometer sensor. The thermometer is not designed to withstand
intense impact or vibration.
Please do not use the product if the any part of the thermometer,
especially the sensor, shows any sign of damage. Do not attempt to
repair the product. Please contact your distributor immediately.
Operating Conditions:
Temperature: 50 °F -104 °F (10°C - 40°C)
Humidity: ≤80% RH, non-condensing
Atmospheric pressure: 860hPa to 1060hPa
Storage and Shipping Conditions:
Temperature: 14 °F-140 °F (-10°C - 60°C)
Humidity: ≤93% RH, non-condensing
Atmospheric pressure: 860hPa to 1060hPa
Battery Installation:
1. Put two AAA batteries into the battery compartment according to the stated
polarities.
2. Push the battery cover horizontally along the arrow to close.
Notes:
☆If this is the first time you are using the thermometer, please remove the
protective plastic sheet
☆Batteries should be installed according to the stated polarities. Otherwise,
damage may be caused to the device.
☆Please remove the batteries if you are not planning on using the
thermometer for a long time.
Warnings
This is not a toy. Please keep this Dual mode thermometer out of
children’s reach
The infrared thermometer is not a replacement for seeking medical
advice

4
3. Taking measurements
Forehead mode (Head):
1. Place the thermometer against one side of the forehead
2. Press the “Head” button and move the thermometer slowly across the
forehead whilst holding down the button, you will hear several soft clicks
3. Release the “Head” button and take the thermometer off the forehead
4. Read the temperature from the screen
If you do not move the thermometer across the forehead but take a fixed
point measurement instead, it may result in an incorrect temperature
reading
Ear mode (Ear):
1. Remove the sensor cover off the thermometer
2. Insert the probe inside the ear canal; you can pull the ear a little backwards
for easier access
3. Press the “Ear” button only once, do not hold it down
4. After the beep, take the thermometer out of the ear and read the
temperature from the screen
In order to avoid inaccuracy:
1. Please make sure that there is no dirt on the temperature sensor
2. Please use the thermometer indoors or in an environment where there is no
strong air draft
3. Try to keep the subject stationary.
4. Make sure there isn’t any sweat, water or condensation on the forehead.
5. If TH-1412 is transferred from an environment where the ambient
temperature might be different, please wait 10 minutes before using the
device
6. Before measuring temperature from an ear canal, remove earwax, if any.
Keep the ear canal clean
7. The TH-1412 is not waterproof

5
4. Changing from Fahrenheit to Celsius
1. To change the temperature from Fahrenheit to Celsius hold onto the
“Ear” button for 8-12 seconds whilst the thermometer is turned off (if
the thermometer is on leave it untouched for 10 seconds for it to
shutdown)
2. The display will change to _ _ _ºF (notice _ _ _ M appears first continue
until you see _ _ _ ºF)
3. Release the “Ear” button as soon as you see _ _ _ ºF
4. Within 5 seconds press the “Ear” button again, the LCD display will
change to _ _ _ ºC
5. Wait for the thermometer to shut down automatically
5. Recalling last temperature readings (Up to 20 readings)
1. Press the “Ear” button until _ _ _M appears
2. Release the button and press “Ear” again straight away to view the last
reading (1st reading)
3. Cycle through the readings by pressing the “Ear” button up to 20 times
6. Product designs
(1) Sensor (Take cover off to measure eardrum temperature)
(2) Head: Button for measuring forehead temperature
(3) LCD display
(4) Ear: Button for measuring ear temperature
(5) Battery cover
1
2
3
4
5

6
7. Instructions for display and operation
LCD
display
Operational method and instruction
for displays
Sound and backlit
1.Measurement of forehead
temperature
Hold down the “Head”button and
scan the sensor across the forehead
from left to right. Once the button is
released, the maximum temperature
will be shown on the LCD display.
2.Measurement of ear temperature
Press the “Ear” button. Once the
button is released, the temperature
will be shown on the LCD display.
3. To measure again, simply
press either the “Head” or “Ear”
button
When the temperature is
between 89.6°F/ 32.0°C
and 99.6°F/ 37.6°C,
there will be a long beep
and a green backlit will
be displayed for 3
seconds.
When the temperature is
between 99.6°F/37.6°C
and 107.9°F/42.2°C,
there will be 7 short. This
indicates that the subject
may have a fever.
Please consult your
doctor if you are not
sure.
or
or
Forehead measurement mode
Ear measurement mode
The measured value exceeds
107.9 °F/42.2°C.
7 short beeps and the
display
The measured value falls below
89.6°F/32°C.
7 short beeps and the
display

7
Inquiry for memory data, storing 20 groups of data
LCD
display
Operational method and instruction
for displays
Sound and backlit
Press and hold the “Ear” button
between 3-6seconds and the LCD will
display “- - -”with the M signal
blinking.
silence
Press the “Ear” button again and the
LCD will display the first data group
with the M signal blinking. Press the
“Ear” button and it shall display the
second data number group for 1
second before displaying the
measured data and mode icon. The
thermometer can record 20 groups of
data.
silence
The LCD will display “- - -” with the M
signal blinking if there is no test data.
silence
Celsius/Fahrenheit conversion
LCD
display
Operational steps
Sound and backlit
Press and hold the “Ear” button for
8-12 seconds whilst the thermometer
is turned off. The temperature unit
starts blinking. Press the “Ear” button
within 5 seconds to change the
temperature unit to your choice.
silence
Error message
LCD will display “Er1” when ambient
temperature exceeds 104°F/40.0°C or
drop below 50.0°F/10.0°C.
3 short tick and green
backlit for 3 seconds.

8
LCD will display “ErC” if there is
EPROM data reading error or the
correcting process is not finished.
Please contact your supplier.
3 short tick and green
backlit for 3 seconds.
Low-voltage signal when the battery
voltage is below 2.61V±2%. Please
replace battery.
silence
Power Off Mode
The thermometer will power off automatically if no activity is detected for 5
seconds.
Attention:
Electromagnetic interference: TH-1412 contains sensitive electronic
components, and you should not use product in an area with
electromagnetic interference (e.g. near mobile phones and microwaves)
Please dispose the used products and batteries in accordance with
local regulation requirements.
Please remove the battery if you do not plan to use the device for a long
time.
8. Troubleshooting
Symptom
Possible Cause
Solution
The thermometer
fails to power on.
The battery level is
extremely low.
Use new batteries of the
same model or
specifications.
Polarities of the batteries
are reversed.
Ensure that the batteries
are correctly installed
according to the polarity
symbols in the battery
compartment.
The thermometer is
faulty.
If the warranty period
does not expire, contact
Paryvara
Only the battery
symbol is displayed
The battery level is low.
Use new batteries of the
same model or

9
Symptom
Possible Cause
Solution
after the
thermometer
powers on.
specifications.
"Er1" is displayed.
The ambient temperature
is lower than 10°C
(50.0°F) or higher than
40°C (104°F).
Take a measurement
under an ambient
temperature between
10°C (50.0°F) and 40°C
(104°F).
The temperature
reading is lower
than the typical
body temperature
range.
The lens of the
temperature probe is
dirty.
Clean the lens using a
cotton swab.
The thermometer probe
is not aligned with the
eardrum
Reposition the
thermometer probe so
that it is aligned to the
eardrum.
The thermometer is not
used within 30 minutes
after being taken from a
cold environment.
Wait for more than 30
minutes after the
thermometer is moved
into the measurement
environment.
The temperature
reading is higher
than the typical
body temperature
range.
The temperature probe is
faulty.
Contact Paryvara.

10
9. Technical specifications
Items
Standards
Models
Dual mode infrared thermometer TH-1412
1.Applicable
regulations and laws
ASTM 1965/EN12470-5/GB/T 19146-2010
2.Temperature units
°F/°C, adjustable
3.Measurement
range
Forehead temperature mode: 89.6°F –107.9
°F/32.0°C-42.2°C
ear temperature mode:/32.0°F –212.0 °F/
0°C-100.0°C
4.Precision
±0.4°F/±0.2°C
5.Display resolution
0.1°F/0.1°C
6.Latency Time
1 second
7.Abnormal state
display
LCD displays “L °C” if the measured temperature is
below the minimum of measurement range.
LCD displays “H °C” if the measured temperature is
below the minimum of measurement range.
LCD displays “Er1”if the temperature measurement
circuit is abnormal (fault of SENSOR or the
temperature measurement circuit), or the ambient
temperature exceed 50°F-104°F (10°C~40°C).
There shall be “ErC” if the calibration process is not
completed or EEPROM is abnormal.
8.Sound
Volume≧50 dB (the perpendicular distance from dB
Volume sensor to thermometer is 10cm )
9.Automatic
shutdown function
10s±1s
10.Low-voltage
display function
The product shall display low-voltage signal if the
voltage is below 2.51V±0.15V.
11.Memory function
Memorize 20 groups of measured temperature.
12.Current
consumption
Istand-by<2μA; Iworking<0.5mA; IBuzzer on<2mA；Ibanklight<15mA
13.LED backlit
specifications
≧1.2cd/m2
15.Operational
conditions
ASTM (50°F-104°F)10°C-40°C /15-95%RH
16.Type of
measuring
Applicable for forehead temperature and ear
temperature

11
17.battery
Changeable for two 1.5V triple AAA batteries
18.Battery life
More than 3000 times
19.Accuracy for
clinical test
The maximum allowable error for clinical test is
specified in the formula below:
≦0.3℃/0.6℉(for 95%)
Among which:
T1 and T2 represent temperature value for
thermometer under test respectively, Tref represents
the constant reference temperature

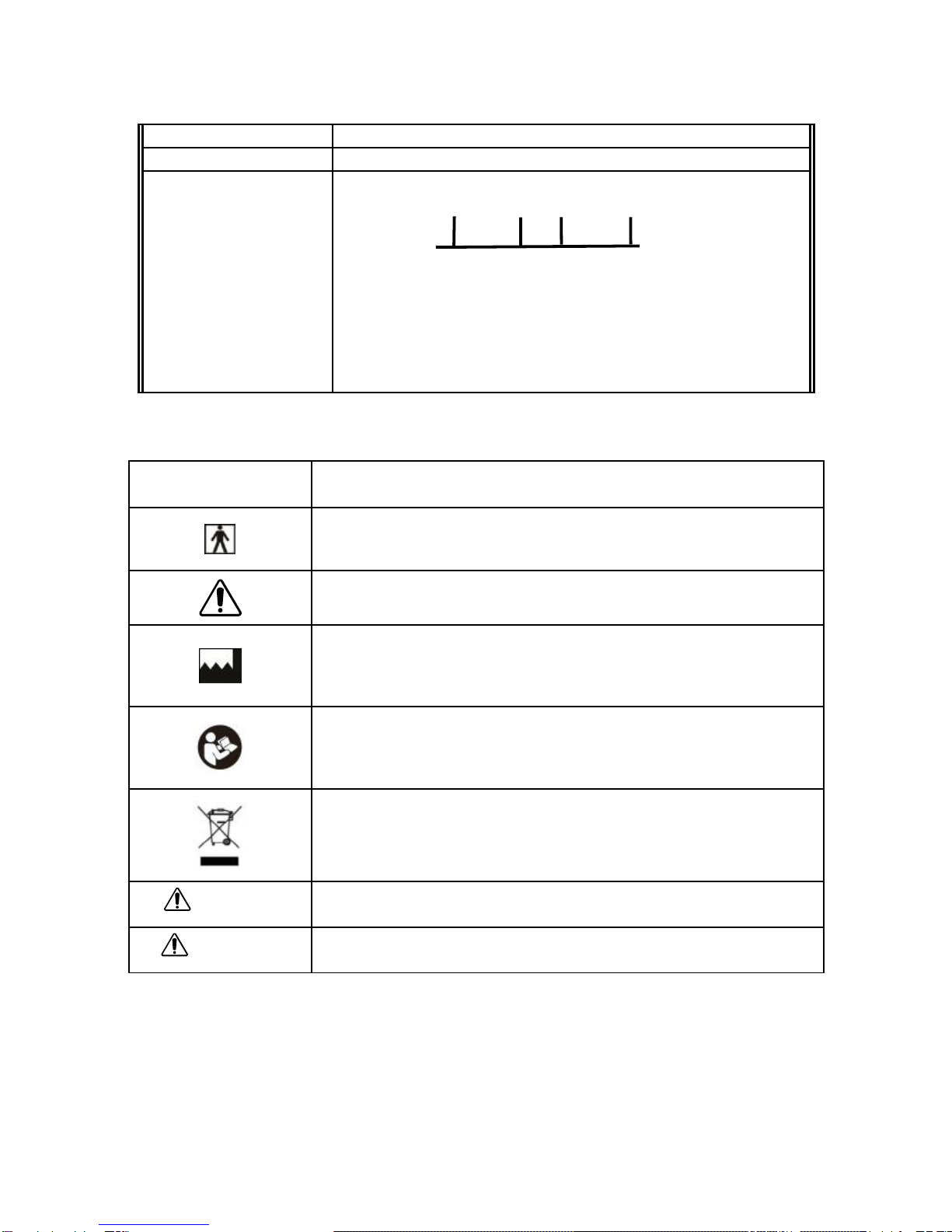

10. Symbols
Symbol
Description
Type BF applied part.
Attention must be paid.
Information about a manufacturer, such as name and
address.
Please read the instructions carefully.
Waste electrical materials should be sent to a dedicated
collection point for recycling.
Warning
A personal injury or thermometer damage may occur if
the thermometer is not correctly used.
Attention
Inaccurate reading or thermometer damage may occur if
the thermometer is not correctly used.
Terror =
T1-Tref
T2-Tref
+
2

12
