PASCO SPARK LXi2 User manual

Instruction Sheet
012-17395A
800-772-8700 www.pasco.com
SPARK LXi2Charging Station
PS-3602A
Introduction
The PS-3602ASPARK LXi2Charging Station provides
an organized way to charge a class set of SPARK
LXi2dataloggers. Up to six SPARK LXi2dataloggers
can be charged simultaneously.The dataloggers are
held in place by a wire rack inside of a Gratnells®
case.The built-inpower supply includes six USB
cables which connect to the charging port of the
SPARK LXi2dataloggers. The charging station is
powered by a single cord that connects to an electric
receptacle.
Operation
1. Connect the power cord toan electric receptacle.
2. Connect a USB cable to the USB-C port of a
SPARK LXi2datalogger.
3. Insert the SPARK LXi2datalogger into the
wire rack with the headphone jack facing down.
4. Repeat steps 2 and 3 for up to five additional
SPARK LXi2dataloggers. Note that
the dataloggers are inserted in alternating
directions into the wire rack (Figure 1).
Figure 1.Insert SPARK LXi2dataloggers in the wire rack
in alternating directions.

SPARK LXi Charging Station
012-17395A
PS-3602
Battery charging status
When connected to power, the LED on each SPARK
LXi2indicates the charging status of the datalogger:
LED Color
Charging Status
Yellow
Battery is charging
Green
Battery is fully charged
Storage
The charging station should remain uncovered while the
dataloggers are charging to prevent heat buildup
(Figure 2). The dataloggers can be stored in the charging
station for long periods of time without harming the
battery. When the battery is fully charged, the datalogger
will stop charging.

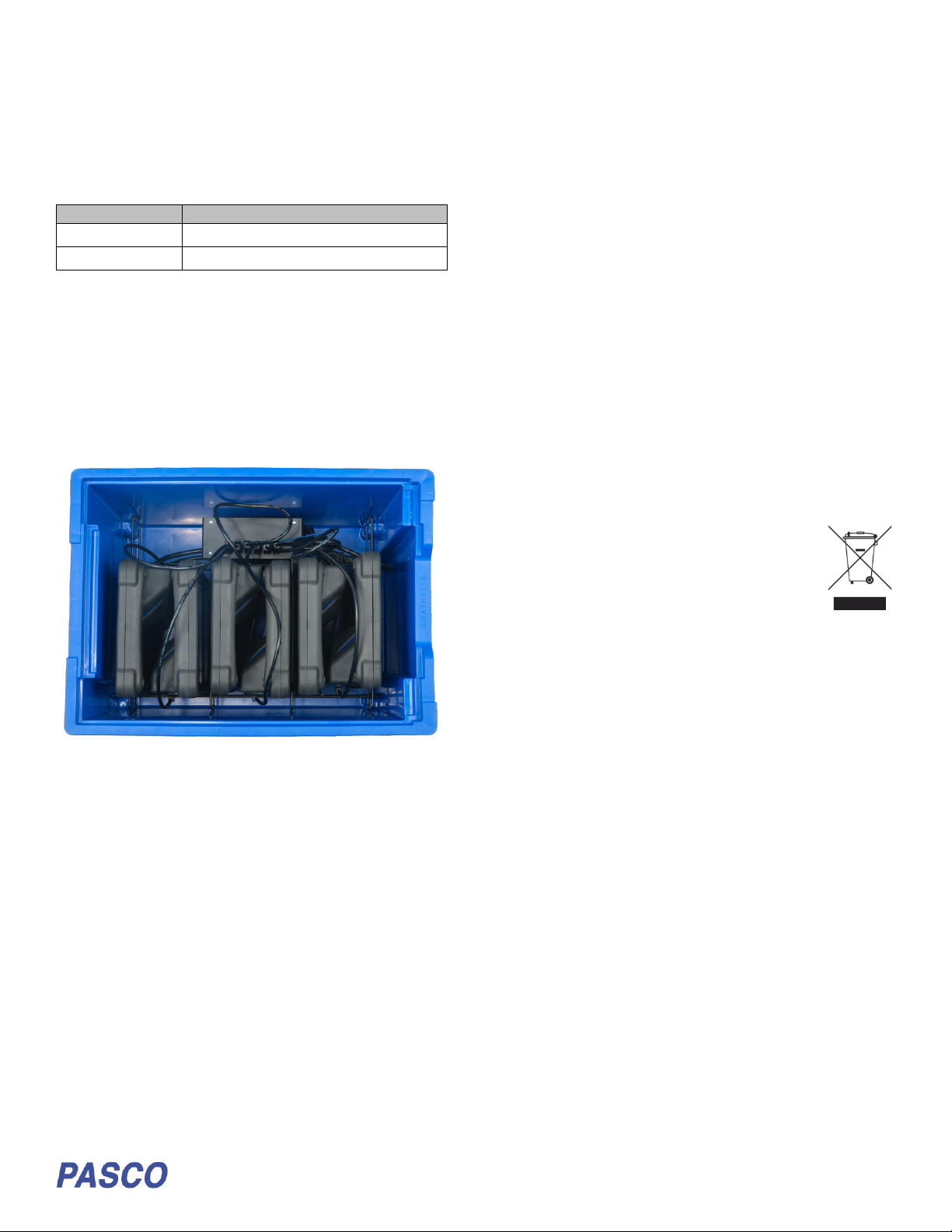

Figure 2.Charge the SPARK LXi2dataloggers with the
cover removed from the charging station.
The cover may be placed on the charging station when
the dataloggers are not charging. Do not stack any item
on top of the charging station to prevent damage. Multiple
SPARK LXi2Charging Stations can be stored
together using the EP-3574 2-Column Gratnells Rolling
Cart or the EP-3575 3-Column Gratnells Rolling Cart.
Four charging stations can be stored in the 2-Column
Cart and six charging stations can be stored in the 3-
Column cart.
Technical Support
For assistance with PASCO products, contact PASCO at:
Address: PASCO scientific
10101 Foothills Blvd.
Roseville, CA 95747-7100
Phone:
916-462-838
Web:
www.pasco.com
Email:
[e-mail]
Product End of Life Disposal Instructions
This electronic product is subject to disposal and recycling
regulations that vary by country and region. It is your
responsibility to recycle your electronic equipment per
your local environmental laws and regulations to ensure
that it will be recycled in a manner that protects human
health and the environment. To find out where you can
drop off your waste equipment for recycling, please
contact your local waste recycle/disposal service, or the
place where you purchased the product.
The European Union WEEE (Waste
Electronic and Electrical Equipment) symbol
(to the right) and on the product or its
packaging indicates that this product must not
be disposed of in a standard waste container.
Warranty, Copyright, and Trademarks
Limited Warranty For a description of the product
warranty, see the PASCO catalog.
Copyright The PASCO scientific 012-16446A SPARK
LXi Charging Station Instruction Sheet is copyrighted with
all rights reserved. Permission is granted to non-profit
educational institutions for reproduction of any part of this
manual, providing the reproductions are used only in their
laboratories and classrooms, and are not sold for profit.
Reproduction under any other circumstances, without the
written consent of PASCO scientific, is prohibited.
Trademarks PASCO and PASCO scientific are
trademarks or registered trademarks of PASCO scientific,
in the United States and/or in other countries. All other
brands, products, or service names are or may be
trademarks or service marks of, and are used to identify,
products or services of, their respective owners. For more
information visit www.pasco.com/legal.
