Ampere’s Law Accessory
EM-6720
Introduction
The Ampere’s Law Accessory is used in combination
with wireless rotary motion and magnetic field sensors
and a current-carrying coil to verify Ampere’s Law:

󰇍
󰇍
󰇍


󰇍
󰇍
󰇍

=
Equipment
Ampere’s Law Accessory EM-6720 includes:
1
Platform - Left
1
Platform - Right
1
Sensor Bracket
2
¼-20 x ¾” Thumbscrews
1
¼-20 x ½” Brass Thumbscrew
6
6-32 x ¼” Brass Thumbscrews
Additional equipment required to perform the complete
experiment (EX-5552):
1
Wireless 3-Axis Magnetic
Field Sensor
PS-3221
1
Wireless Rotary Motion
Sensor
PS-3220
1
Field Coil (500-Turn)
EM-6723
1
Zero Gauss Chamber
EM-8652
1
850 Universal Interface (or
other DC power supply that
outputs at least 1 A at 15 V
UI-5000
PASCO Capstone Software
Platform Assembly
1. Slide the coil into the slot in the right side of the
platform.
2. Secure the coil with the ¼ x 20 brass screw that is
stored in the platform.

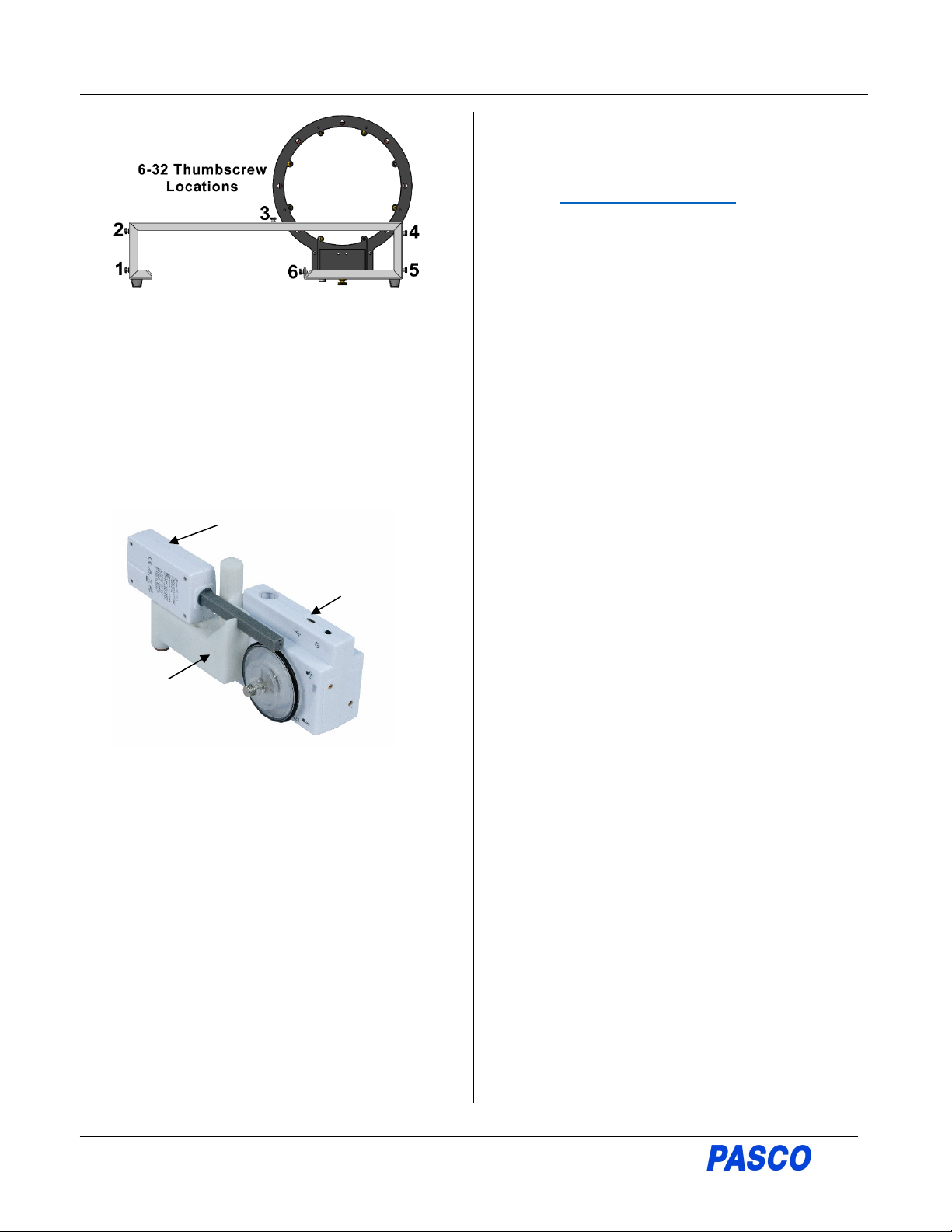

3. Remove the six 6-32 brass screws from the right
side of the platform. Slide the left side of the
platform into the right side, with the right side
overlapping the left side.
4. Secure the right side to the left side using the six
6-32 brass screws.
¼ x 20 Brass Thumbscrew
Detailed experiment instructions are
available to download at www.pasco.com.
Type EX-5552 into the search to go to the
Ampere’s Law Experiment.
Sensor
Bracket

Ampere’s Law Accessory EM-6720
2 012-16282A
Sensor Assembly
1. Remove the two black thumbscrews from the
Sensor Bracket.
2. Put the O-ring (included with PS-3220) on the
largest step of the 3-step pulley and put the pulley
on the Wireless Rotary Motion Sensor (PS-3220).
3. Use one thumbscrew to attach the Wireless
Rotary Motion Sensor to the Sensor Bracket.
4. Position the probe of the Wireless 3-Axis Magnetic
Field Sensor (PS-3221) over the pulley of the
Rotary Motion Sensor. Then secure it in place with
the other black thumbscrew.
Technical Support
For assistance with any PASCO product, contact
PASCO at:
Address: PASCO scientific
10101 Foothills Blvd.
Roseville, CA 95747-7100
Phone: [phone] (worldwide)
8700-772-8700 (U.S.)
Web: www.pasco.com
Email:
[email protected]
The Reference Guide will be updated periodically.
For the latest revision of this Reference Guide, visit
the PASCO Web site at
www.pasco.com/manuals
and enter the product number, EM-6720, in the text
window.
Replacement Parts
For information about possible replacement parts,
contact Technical Support:
Limited Warranty
For a description of the product warranty, see the PASCO catalog.
For more information visit www.pasco.com/legal.
Copyright
This PASCO scientific Reference Guide is copyrighted with all rights
reserved. Permission is granted to non-profit educational
institutions for reproduction of any part of this manual, providing
the reproductions are used only in their laboratories and
classrooms, and are not sold for profit. Reproduction under any
other circumstances, without the written consent of PASCO
scientific, is prohibited. (Revised 02/11/19)
Trademarks
PASCO, PASCO scientific, PASCO Capstone, and SPARKvue are
trademarks or registered trademarks of PASCO scientific, in the
United States and/or in other countries. All other brands, products,
or service names are or may be trademarks or service marks of, and
are used to identify, products or services of their respective owners.
For more information visit www.pasco.com/legal.
Product End of Life Disposal Instructions:
This electronic product is subject to disposal and recycling regulations
that vary by country and region. It is your responsibility to recycle your
electronic equipment per your local environmental laws and regulations
to ensure that it will be recycled in a manner that protects human health
and the environment. To find out where you can drop off your waste
equipment for recycling, please contact your local waste
recycle/disposal service, or the place where you purchased the product.
Wireless 3-Axis
Magnetic Field Sensor
(PS-3221)
Wireless Rotary
Motion Sensor
(PS-3220)
Sensor
Bracket
