PASCO EM-8662 User manual

Instruction Sheet
012-07563C
Ring Launcher Accessory
EM-8662
800-772-8700 [phone] [email protected]
Equipment
Recommended
Ring Launcher: EM-8661, includes the following:
• Ring Launcher
• Aluminum Rings (2): 2.5 cm inside diameter, 2.4 cm length,
12.9 g
Introduction
The EM-8662 Ring Launcher Accessory includes three non-mag-
netic metal rings, and an induction coil attached to a light bulb.
These accessories are designed to be used with the EM-8661
Ring Launcher for demonstrating electromagnetic induction and
magnetic force. The rings slide over the iron rod of the Ring
Launcher, and, when the launch switch on the Ring Launcher is
pushed down, the rings “jump” to different heights. The split alu-
minum ring is used to demonstrate what happens if there is not a
complete conductive path. When the coil of the induction coil
and bulb is placed around the iron rod, the bulb lights while the
launch switch on the Ring Launcher is held down momentarily.
Setup
• Follow the instructions and safety reminders described in the
EM-8661 Ring Launcher Instruction Sheet.
WARNING: Do not immerse the rings or the induction coil and
bulb into water before using the Ring Launcher. Also, do not use
the rings or the induction coil and bulb around water or with wet
hands.
CAUTION: To prevent the rings from hitting other objects or
people, allow a one meter radius of space around the Ring
Launcher and a two meter distance above the Ring Launcher.
Ring Launcher Accessory Includes:
Copper Ring, 2.5 cm inside diameter, 2.5 cm long, 48.6 g
Split Aluminum RIng, 2.5 cm I.D., 2.4 cm long, 12.9 g
Small Aluminum Ring, 2.5 cm I.D., 1.2 cm long, 6.8 g
Induction Coil and Bulb: Tungsten filament light bulb in a
plastic holding base (6.5 by 4 cm) with a copper
induction coil
Iron
Rod
EM-8662 Ring Launcher Accessory
Copper
Rings
Split
Aluminum
Ring
Small
Aluminum
Rings
Induction
Coil and
Bulb
Bulb
Copper Coil
Copper Coil
Plastic
Base
Bulb
Socket
Bottom viewSide view
Induction Coil and Bulb

Ring Launcher Accessory EM-8662
2www.pasco.com
WARNING: Do not place your face or any part of you body
directly over the top of the iron rod or anywhere in the launch
path.
Using the Induction Coil and Bulb
When used with the EM-8661 Ring Launcher, the Induction Coil
and Bulb allows you to show how voltage induced from the cop-
per coil on the launcher can light the bulb.
Hold the plastic base of the induction bulb over the iron rod so
that the copper coil on the plastic base is near the copper coil on
the Ring Launcher. While holding the induction bulb near the
copper coil, use the other hand to briefly hold down the Launch
Switch.
• The small light bulb will light up..
Technical Support
For assistance with any PASCO product, contact PASCO at:
For the latest information about the EM-8662 Ring Launcher
Accessory, go to the PASCO web site and enter EM-8662 in the
Search window.
Limited Warranty For a description of the product warranty, see the
PASCO catalog.
Copyright The PASCO scientific 012-07563C Ring Launcher Accessory
Instruction Sheet is copyrighted with all rights reserved. Permission is
granted to non-profit educational institutions for reproduction of any part of
this manual, providing the reproductions are used only in their laboratories
and classrooms, and are not sold for profit. Reproduction under any other
circumstances, without the written consent of PASCO scientific, is prohib-
ited.
Trademarks PASCO and PASCO scientific are trademarks or registered
trademarks of PASCO scientific, in the United States and/or in other coun-
tries. All other brands, products, or service names are or may be trade-
marks or service marks of, and are used to identify, products or services
of, their respective owners. For more information visit
www.pasco.com/legal.
Product End of Life Disposal Information
This electronic product is subject to disposal and recycling regu-
lations that vary by country and region. It is your responsibility to
recycle your electronic equipment per your local environmental
laws and regulations to ensure that it will be recycled in a manner
that protects human health and the environment. To find out
where you can drop off your waste equipment for recycling,
please contact your local waste recycle/disposal service, or the
product representative.
The European Union WEEE (Waste Electrical and
Electronic Equipment) symbol and on the product
or on its packaging indicates that this product must
not be disposed of in a standard waste container.
Address: PASCO scientific
10101 Foothills Blvd.
Roseville, CA 95747-7100
Phone: [phone] (worldwide)
800-772-8700 (U.S.)
Web: www.pasco.com
Email: [email protected]

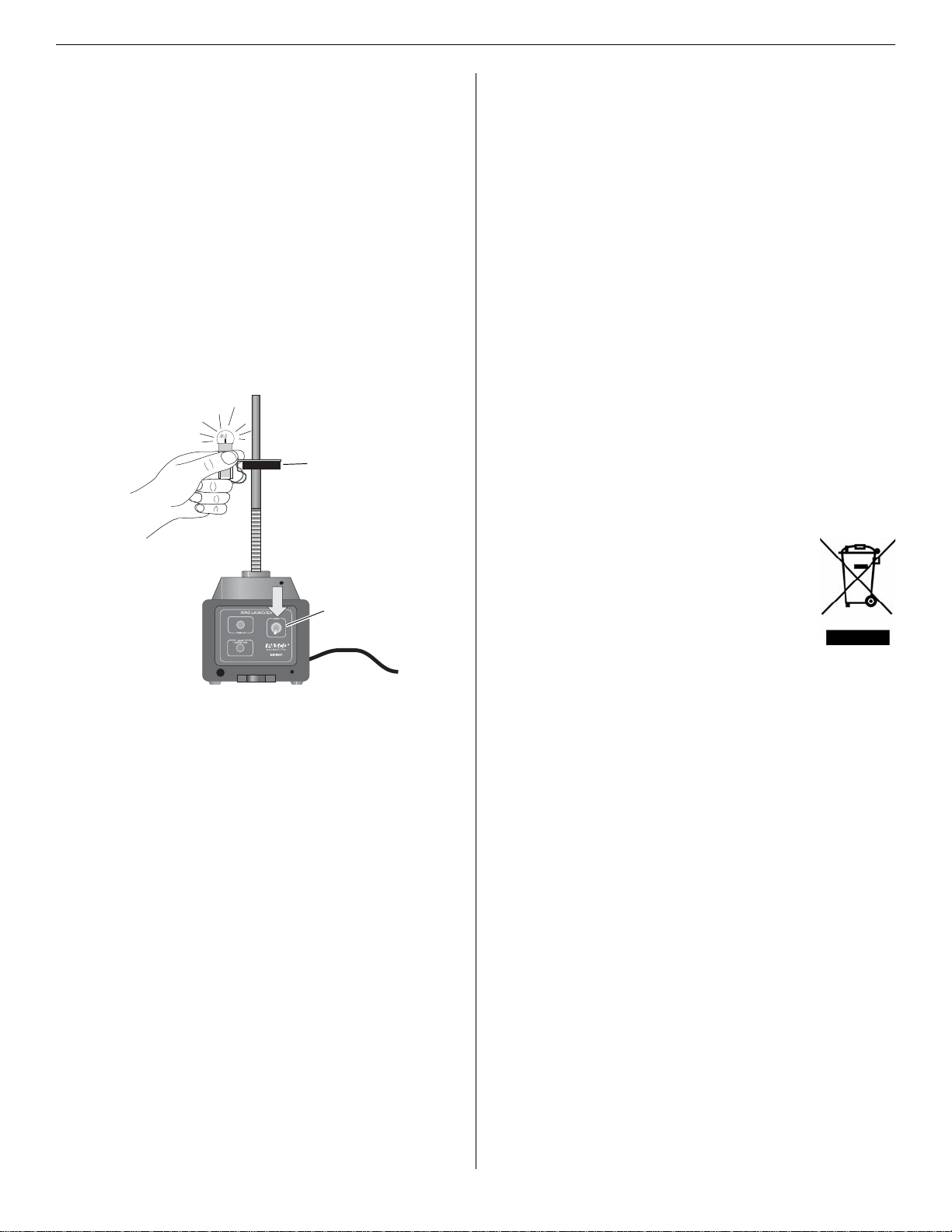

Induction Bulb with the Ring Launcher
Copper
Coil
Induction
Bulb
Launch
Switch
