Doppler Rocket
Model No. WA-9826

®
Model No. WA-9826 Doppler Rocket
3
Doppler Rocket
Model No. WA-9826
Equipment List
*Use Replacement Model Numbers to expedite replacement orders.
Included Equipment Replacement
Model Number*
1. Doppler Rocket (1) WA-9826
2. Rope, 30 meters (1) 699-146
3. Handles (4) 648-08210
4. Handle cushions (4) 648-08172
1
24
3

Doppler Rocket Model No. WA-9826
4®
Introduction
The Doppler Rocket combines the excitement of a toy and an audio
Doppler shift to create an educational experience your students will
remember. The Doppler shift in sound waves is an interesting
phenomenon that we all experience in everyday life. Teaching about
the Doppler shift is not always easy to accommodate in the classroom.
As the Doppler Rocket passes the students, they will hear a noticeable
shift in the frequency. Not only is the Doppler Rocket designed to
effectively teach the frequency shift concept, but its rugged design will
provide years of use in the classroom.
The Doppler Rocket is designed to emit a true, sinusoidal sound
waveform at a constant frequency of approximately 620 Hz. The
circuit board and speaker are housed in skinned foam that will protect
the unit during normal impacts. The circuit is powered by a small 9V
battery that can be easily replaced.
Included with the Doppler Rocket are accessories for a variety of
activities, like swinging the rocket overhead, flying the rocket
horizontally, and playing catch.
Demonstrations and Activities with the
Doppler Rocket
a) Swinging the Doppler Rocket Overhead
Swinging the Doppler Rocket overhead
will allow students to hear the Doppler
shift as the sound source moves in a cir-
cular pattern. As the rocket moves
toward the students, the pitch will sound
higher. As the rocket recedes (moves
away from the students), the pitch will
sound lower.
1. Pass one length of rope through the
center of the unit and tie the rope
to itself. (Note: Be sure to use a reliable knot as the Doppler Rocket
will reach high velocities during this activity.)

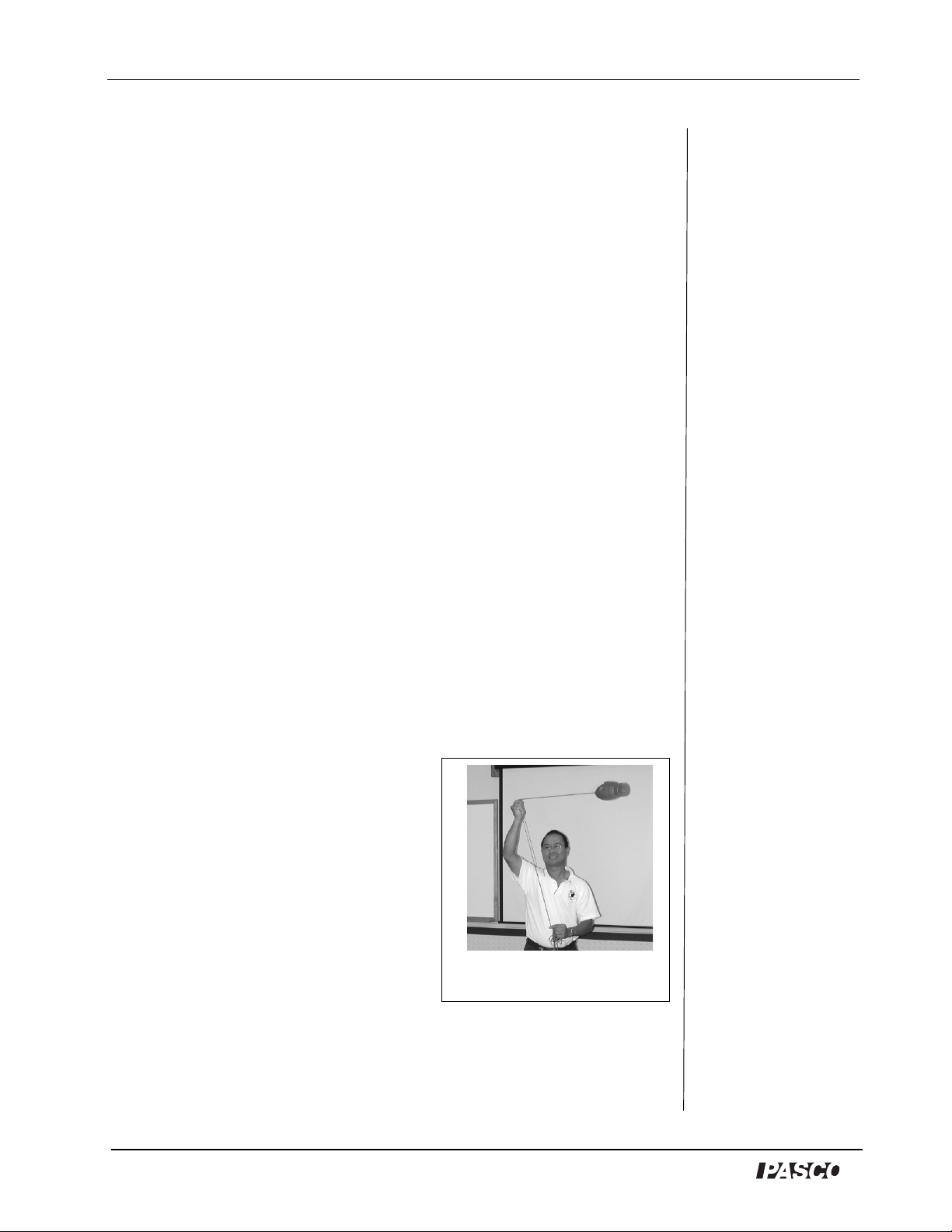

Figure 1: Swinging
the Rocket Overhead

®
Model No. WA-9826 Doppler Rocket
5
2. Turn on the sound from the Doppler Rocket. (Use the switch on the
side of the rocket to turn on the sound.)
3. Lower the Doppler Rocket until it is about 1 meter below your
hand.
4. Swing the Doppler Rocket around in a circle over your head
(See Figure 1). A period of about one second will allow students to
hear the Doppler shift.
b) Flying the Doppler Rocket Horizontally
Another interesting demonstration of the
Doppler shift involves “flying” the Doppler
Rocket horizontally. Again, the students
will hear an increased pitch as the rocket
approaches and a decreased pitch as the
rocket moves away from them. One main
advantage of this demonstration is that the
the amount of time the Doppler Rocket
approaches and recedes is much greater.
This allows students a better opportunity to
hear the Doppler shift.
1. Pass two equal lengths of rope
through the center of the rocket.
2. Thread each free end of rope through
a handle cushion and tie each end through a rope handle. Again, be
certain to use a reliable knot, as the Doppler Rocket will be moving
at high velocities.
3. Position a student at each end of the rope, with each student holding
two handles.
4. Move the students apart until the rope is taut.
5. Slide the Doppler Rocket to one end of the rope.
6. Ask the student at the other end to rotate the ropes around one
another until they are not tangled.
7. Turn on the sound from the Doppler Rocket using the switch on the
side.

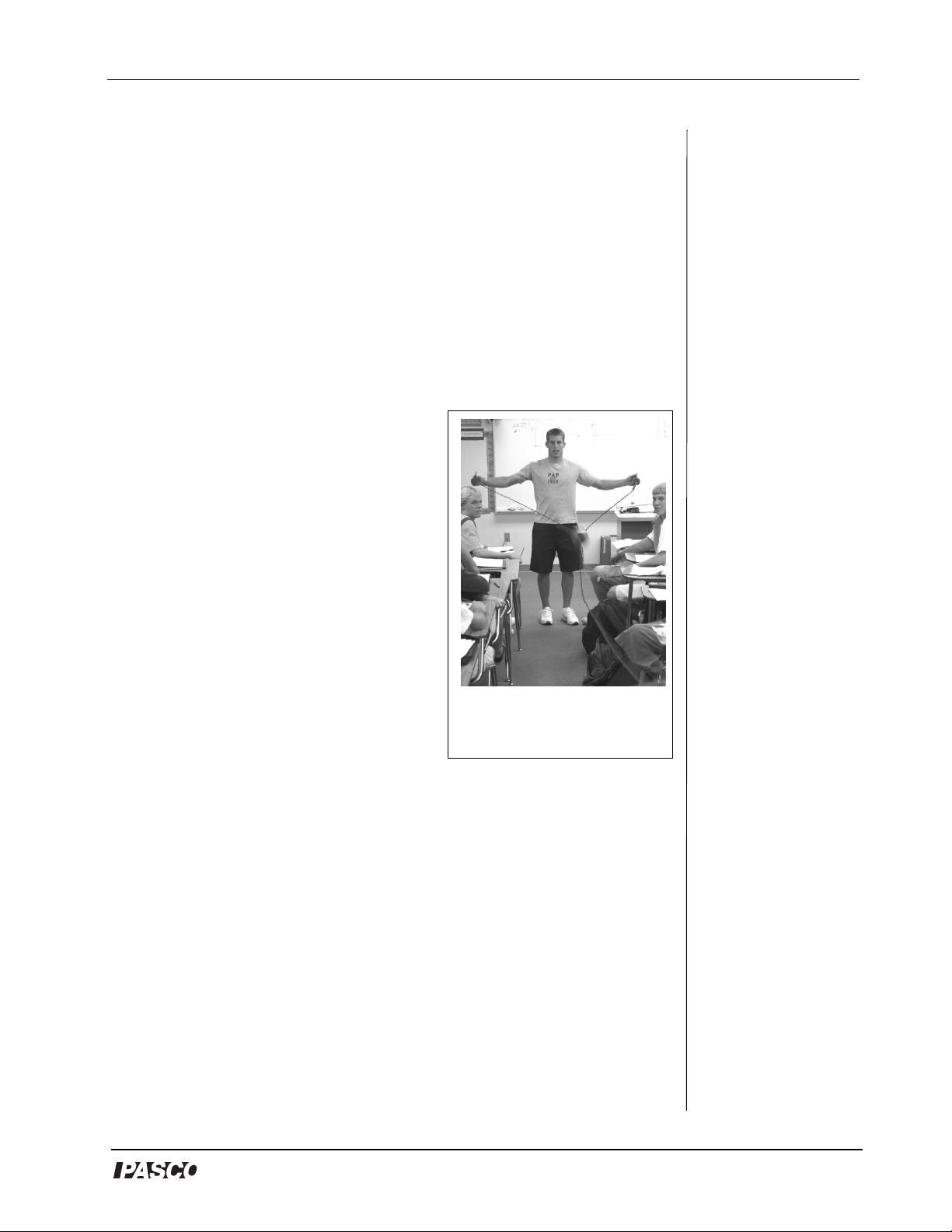

Figure 2: Flying the
Doppler Rocket Along a
Taut Rope

Doppler Rocket Model No. WA-9826
6®
8. Have the student nearest the rocket quickly pull apart their handles
in a snapping motion. The Doppler Rocket should “fly” down the
ropes to the other student (See Figure 2).
9. As the rocket approaches, the student at the other end needs to
slightly separate the ropes to slow the rocket.
c) Playing Catch with the Doppler Rocket
An alternative to using the ropes is to have students play a gentle game of
catch with the Doppler Rocket. Simply turn the sound on and have students
toss the rocket around like a ball. As the rocket approaches them, they should
listen for the perceived increase in pitch. As the rocket moves away from
them, they should listen for a decrease in pitch.
Replacing the Batteries
The Doppler Rocket uses an alkaline, 9-volt battery that will require periodic
replacement.
To replace the battery, remove the O-rings on each end and separate the two
adjoining foam halves of the rocket. Insert the replacement battery, align
and combine the adjoining foam halves, and replace the O-rings.

®
Model No. WA-9826 Doppler Rocket
7
Appendix A: Technical Support
For assistance with the WA-9826 Doppler Rocket or any other PASCO
products, contact PASCO as follows:
Address: PASCO scientific
10101 Foothills Blvd.
Roseville, CA 95747-7100
Phone: [phone]
FAX: [phone]
Web: www.pasco.com
Email: [email protected]
