pathway pathport quattro User manual

Pathport QUATTRO
User Guide
November 2018
© 2018 Pathway Connectivity
A Division of Acuity Brands Canada
1439 17 Ave SE Calgary AB T2G 1J9
403-243-8110
www.pathwayconnect.com

Table of Contents
About Pathport QUATTRO ...................................................................................3
Installation Instructions .........................................................................................3
Protocols Supported .............................................................................................5
Front Panel...........................................................................................................7
Rear Panel............................................................................................................7
Front Panel Display...............................................................................................8
Setting Gateway Properties..................................................................................9
Note Regarding ArtNet, Shownet and Subnet Mask .......................................11
Setting Port Properties........................................................................................12
Contact Closure Input (CC1)...............................................................................13
Advanced Configuration......................................................................................13
Appendix.............................................................................................................14
Electrical information.......................................................................................14
Compliance .....................................................................................................14

Pathway Connectivity 3
QUATTRO Manual
November 2018
About Pathport QUATTRO
Pathway Connectivity’s Pathport® QUATTRO is a four-port DMX-over-Ethernet
gateway intended for use primarily in entertainment lighting systems. The
QUATTRO provides transparent transmission and receipt of the DMX512 lighting
control standard, using a number of widely accepted protocols, across a standard
Ethernet data network.
The QUATTRO may be used alone, networked with other QUATTROs and
Pathport gateways, as well as with a number of other Ethernet-aware lighting
control products, such as consoles and controllers.
The QUATTRO, like all Pathports, is a routing device and does not provide control
over the protocols or the data being passed. It only provides control over the path
the data takes, how multiple DMX sources are treated (merged or prioritized), and
certain other routing characteristics including DMX transmission speed and signal
loss behavior.
Installation Instructions
The Pathport QUATTRO is intended for desktop use, or for mounting in a standard
19” equipment rack, using the included rack ears.

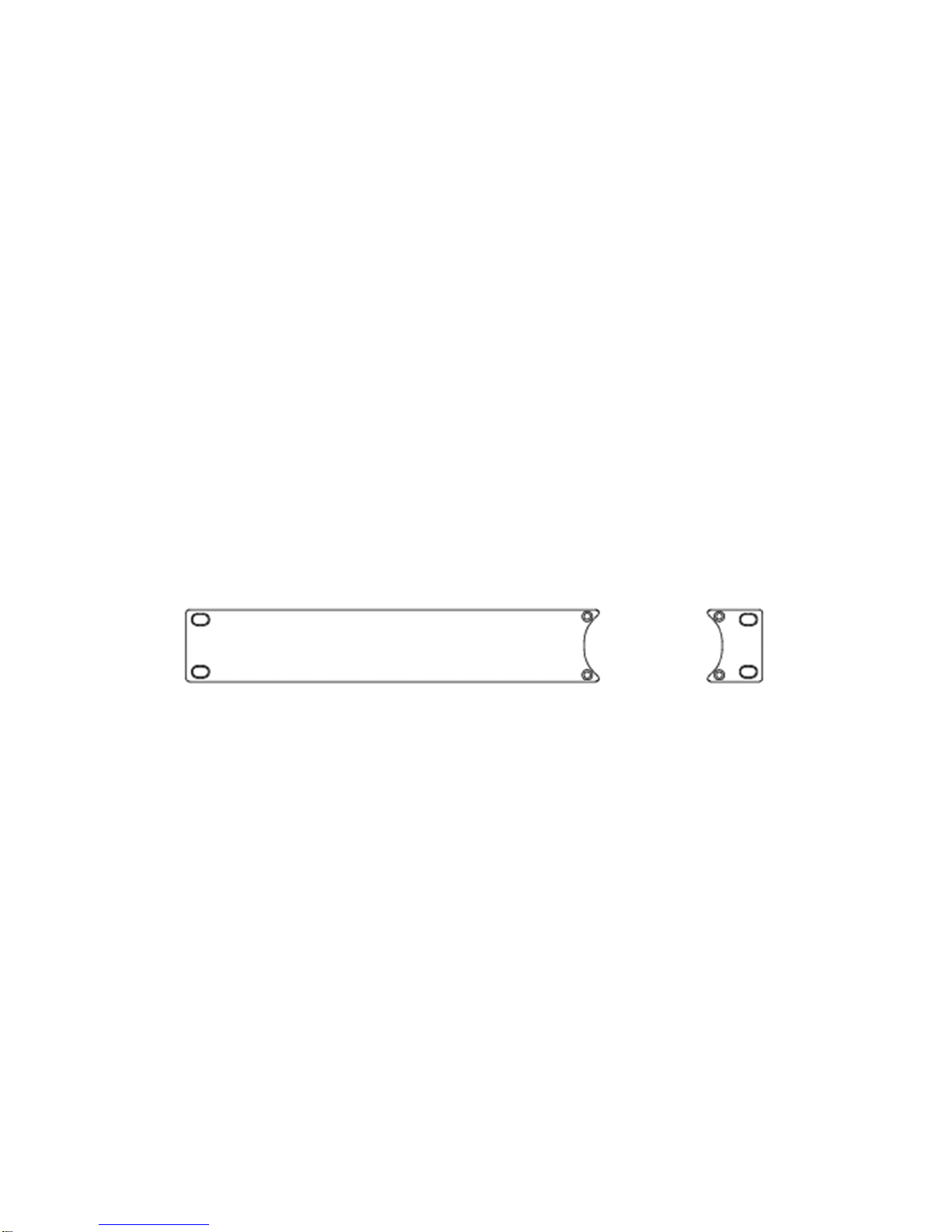

QUATTRO rack ears

Pathway Connectivity 4
QUATTRO Manual
November 2018

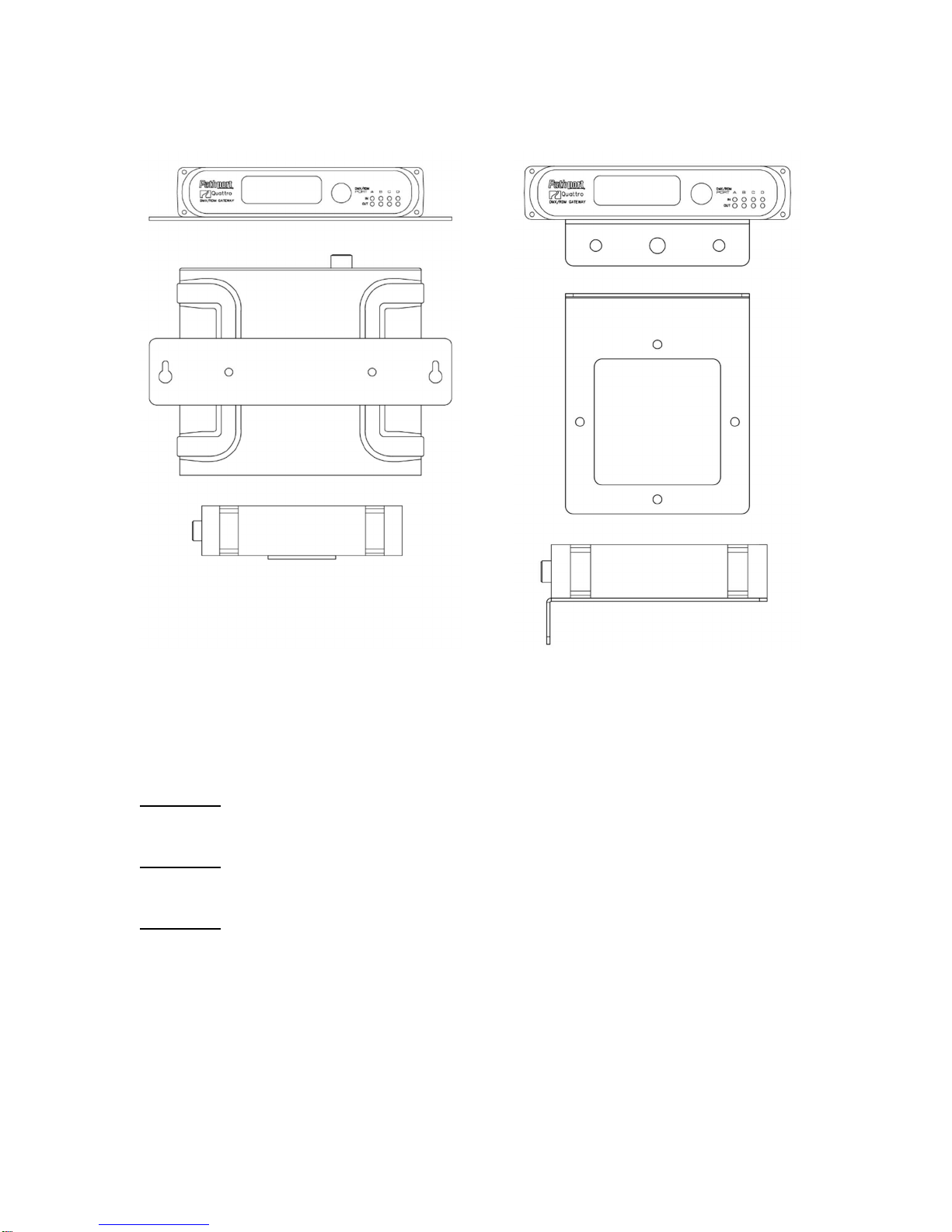

Wall-mount kits (#9005) and truss-mount adaptors (#9004) are also available.
#9005 Wall-mount kit
#9004 Truss-mount kit
The Pathport QUATTRO is intended for installation in a dry, indoor location.
Operating conditions: -10°C to 50°C; 10-90% relative humidity, non-condensing.
Warning: The AC socket outlet shall be installed near the equipment and shall be
easily accessible.
Warning: This equipment relies on building installation primary overcurrent
protection.
Warning: Except for the chassis plug marked for AC input, all ports on the Pathport
QUATTRO are intended for low voltage data lines only. Attaching anything other
than low voltage sources to the data ports may result in severe equipment damage,
and personal injury or death.

Pathway Connectivity 5
QUATTRO Manual
November 2018
Protocols Supported
DMX512
The most widely used digital multiplex protocol for controlling entertainment
lighting and effects equipment. The DMX signal consists of 512 8-bit control
packets sent asynchronously over a two-pair shielded cable at 250K Baud. The
standard connector type is 5 pin XLR. The standard has been revised several
times over the years, with the latest being ANSI E1.11 DMX512-A (2005). The
Pathport QUATTRO is designed to work seamlessly with all variants of the
protocol.
DMX is a last mile protocol, daisy-chained between end fixtures.
Ethernet Protocols
Ethernet protocols are used to multiplex DMX data over Ethernet networks, largely
to circumvent control channel limitations inherent in the DMX standard. The
Pathport QUATTRO supports the most widely accepted.
Pathport Protocol: A broadcast protocol developed by Pathway Connectivity and
implemented by a variety of console manufacturers.
ArtNet: A broadcast protocol developed by Artistic Licence. Its free distribution has
made in popular with media server manufacturers. Because this is not a standard,
some implementations may not work with others.
Strand Shownet: A proprietary broadcast protocol developed by Strand Lighting
and used exclusively in Strand lighting consoles.
ANSI E1.31 streaming ACN (sACN): A multicast industry standard developed and
maintained by the Technical Standards Program of the Entertainment Services
and Technology Association (ESTA). The standard is available for a nominal cost
from ESTA. This standard provides the DMX512 data transport for the separate
ANSI E1.17 ACN (Architecture for Control Networks) industry standard.
sACN is the DMX transport used by ETC Net3. The QUATTRO is fully compliant
with Net3, and will seamlessly receive either Final Draft 20, or the ANSI approved
versions of sACN.

Pathway Connectivity 6
QUATTRO Manual
November 2018
Remote Device Management (RDM)
ANSI E1.20 Remote Device Management (RDM) is an industry standard, also
published by ESTA, which allows remote configuration of last-mile DMX devices,
using the same wire pair that carries the DMX signal. Like DMX, RDM requires a
separate dedicated controller to generate the signal packets the QUATTRO will
route. The freely available Pathscape software is required to use the QUATTRO
as an RDM gateway to configure DMX-based equipment.

Pathway Connectivity 7
QUATTRO Manual
November 2018
Front Panel
Model 63XX shown
Depending on the model number ordered, the DMX ports are: 5-pin XLR, 3-pin
XLR or RJ45 Ethercon connectors, mounted front or rear, or terminals strip
connectors, rear only.
Rear Panel
The RJ45 Ethercon network connection is located on the rear panel, and cannot
be front mounted. The 2-pole Contact Closure/Expansion port, along with the AC
input, are located here also.
Model 63XX shown

Pathway Connectivity 8
QUATTRO Manual
November 2018
Front Panel Display
The front panel controls of the QUATTRO allow the user to configure properties of
the gateway. Current settings are displayed on the LCD screen.
The rotary knob will scroll the screen between base gateway information and
properties of each port. When pushed, the knob acts as a selector.
By default, the LCD display shows the gateway name, or soft label, its IP address
and subnet class. At the bottom of the display, a flashing “N” will appear when the
QUATTRO detects it is connected to a network via the rear-panel Ethercon® port.
If no soft-label name has been assigned to the gateway, the IP address will be
shown on the top line as well as the middle. The subnet class, shown after the IP
on the middle line, will be “/8”, “/16” or ”24” which are, respectively, a Class A
subnet mask of 255.0.0.0, a Class B subnet mask of 255.255.0.0, and a Class C
subnet mask of 255.255.255.0.
From the default display, turn the knob to scroll through the Port status screens. A
typical port status screen shows the port name or soft label, the port letter and
universe patch name, and its DMX status and port direction.
If no soft-label name has been assigned, “Port <letter>” will be displayed instead.
<Gateway Name>
IP: x.x.x.x/<class>
<Port Name>
Port x: <patch name>
Status:<state><direction>

Pathway Connectivity 9
QUATTRO Manual
November 2018
Setting Gateway Properties
With the default display showing, press the encoder knob. The Node Configuration
menu will be shown.
The current menu choice will be highlighted in black. Rotate the knob to scroll
through the list. Push the knob to select the highlighted menu option. Scroll to the
bottom of the list and select “<Back>” to return to the previous menu level. The
following are the Node Configuration menu options.
Node Configuration
Network Setup
Device Info / Status
Protocol Support
Utilities
<Back>
Network Setup
Property
Explanation
Available Settings
IP Address Set IP address for gateway Select, then turn knob to set
each octet. Push to accept.
Subnet Mask Set subnet mask for gateway Select, then turn knob to set
each octet. Push to accept.
Default Gateway Set default gateway
(Not typically required)
Select, then turn knob to set
each octet. Push to accept.
Node Configuration
Networ Setup
Device Info / Status

Pathway Connectivity 10
QUATTRO Manual
November 2018
Link Max Set the maximum connection
speed for the Ethernet port
Auto Negotiate (default)
10Mb Half Duplex
10Mb Full Duplex
100Mb Half Duplex
100Mb Full Duplex
<Back> Returns to previous menu
Device Info / Status
Property
Explanation
Available Settings
Serial Number Reports gateway’s serial
number
MAC Address Reports gateway’s MAC
address
Firmware Version Reports current firmware
version
<Back>
Protocol Support
Property
Explanation
Available Settings
Art-Net Rx (receive) Set gateway to listen for
Artnet Enable (default)
Disable
sACN Rx (receive) Set gateway to listen for
sACN Enable (default)
Disable
Shownet Rx (receive) Set gateway to listen for
Shownet Enable (default)
Disable
Pathport Rx (receive) Set gateway to listen for
Pathport Enable (default)
Disable
Tx Data Protocol (send) Choose transmit protocol Artnet
sACN
Shownet
Pathport (default)
<Back>

Pathway Connectivity 11
QUATTRO Manual
November 2018
Utilities
Property
Explanation
Available Settings
Reboot Power cycle the gateway
Factory Default Resets patches and all
properties except the IP
settings to factory values.
Includes properties, such as
signal loss, that are set from
Pathscape.
Factory Default Including
Network Setup Resets patches and all properties including the IP
settings to factory values.
Includes properties, such as
signal loss, that are set from
Pathscape.
<Back>
Note Regarding ArtNet, Shownet and Subnet Mask
The ArtNet protocol is explicitly sent to a broadcast address, typically
2.255.255.255 or 10.255.255.255. The QUATTRO must have its subnet mask set
wide enough to include this broadcast address. When using ArtNet, a Class A
subnet mask of 255.0.0.0 is recommended to ensure DMX output.
Shownet is explicitly sent to 192.168.1.255. On most Shownet systems, an
QUATTRO should use an IP of 192.168.1.x and a subnet mask of 255.255.255.0.

Pathway Connectivity 12
QUATTRO Manual
November 2018
Setting Port Properties
From the Port Status screen of the desired port, push the button. The Port
Configuration screen will be shown.
The property available for editing will be highlighted in black. Rotate the knob to
scroll through the list of properties. Push the knob to select for editing. The list of
choices will be displayed, with asterisks on either side of the current setting.
Highlight the desired new setting by rotating the knob and push to select. The
asterisks will now appear beside the new setting. Scroll to the bottom of the list
and select “<Back>” to return to the previous menu level.
The following properties are available from Port Configuration. Further options may
be added from time to time:
Property
Explanation
Available Settings
DMX Port Turns blue power light on/off Enable (default)
Disable
Port Direction Sets DMX direction for port Input
Output (default)
Patch Allows selection from a list of
standard universe patches Unpatched
Univ 1 through Univ 63999
DMX Speed Sets DMX output speed (no
effect on ports set as inputs)
Slow (32 packets per second)
Medium (37 pps)
Fast (40 pps)
Maximum (44 pps) (default)
<Back> Returns to previous menu
Port x Configuration
DMX Port: Enabled
Port Direction: DMX Out

Pathway Connectivity 13
QUATTRO Manual
November 2018
Contact Closure Input (CC1)
On the rear panel, there is a 2-pole terminal plug for dry contact closure input.
Currently, as of the publish date of this document, there is no supported feature
making use of this input; however this will be expanded in future firmware updates.
Advanced Confi uration
Several gateway and port properties may only be altered using Pathscape
software, available on the Pathway website: www.pathwayconnect.com.
Please refer to the Pathscape manual for information on these values and how to
set them.
Firmware upgrades may only be done using Pathscape.

Pathway Connectivity 14
QUATTRO Manual
November 2018
Appendix
Electrical information
•Power input: 24-48VDC
•Max power consumption: 7 watts
•1000V isolation between all ports
•250V protection on all ports
Compliance
•USITT DMX512 – 1990 / ANSI E1.11 DMX512-A R2013
•E1.20 RDM – Remote Device Management
•E1.31 sACN – Streaming ACN
•ETL
•RoHS 2002/95/EC
