30” GIBSON STREET
CEILING FAN
Owner’s Manual
Model #20676
20677
SKU #355-0642
355-0643
If a problem cannot be remedied or you are experiencing diculty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Motor Assembly
11. Motor Screw (x6)
12. Thumbscrew (x3)
13. Light Kit
14. Glass Bowl
15. E26-Base Bulb (x2)
16. Blade (x3)
17. Blade Arm (x3)
18. Hardware Kit
19. Owner’s Manual
20. Blade Balancing Kit
AA. Wire Connector (x3)
BB. Blade Screw (x9)
CC. Blade Washer (x9)
DD. Pull Chain Extension (x2)
LL. Screw Cap (x9)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
BB
AA CC DD LL
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
18
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
12
11
9
8
10
7
6
5
16
17
18
19
20
13
3
4
14
15
2
1

MOUNTING OPTIONS
3
A. 13.16 in. B. 9.96 in. C. 5.13 in.
DIMENSION REFERENCE
C
A
B
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.
Two Mounting Options
Downrod MountAngled Ceiling Mount (Up to 16 degrees)

4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 11.24 lb (5,10 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:

Set Screw
Yoke
Downrod Downrod
Clip
Downrod
Pin
Mounting Bracket Screw
5
ASSEMBLY INSTRUCTIONS
2
1

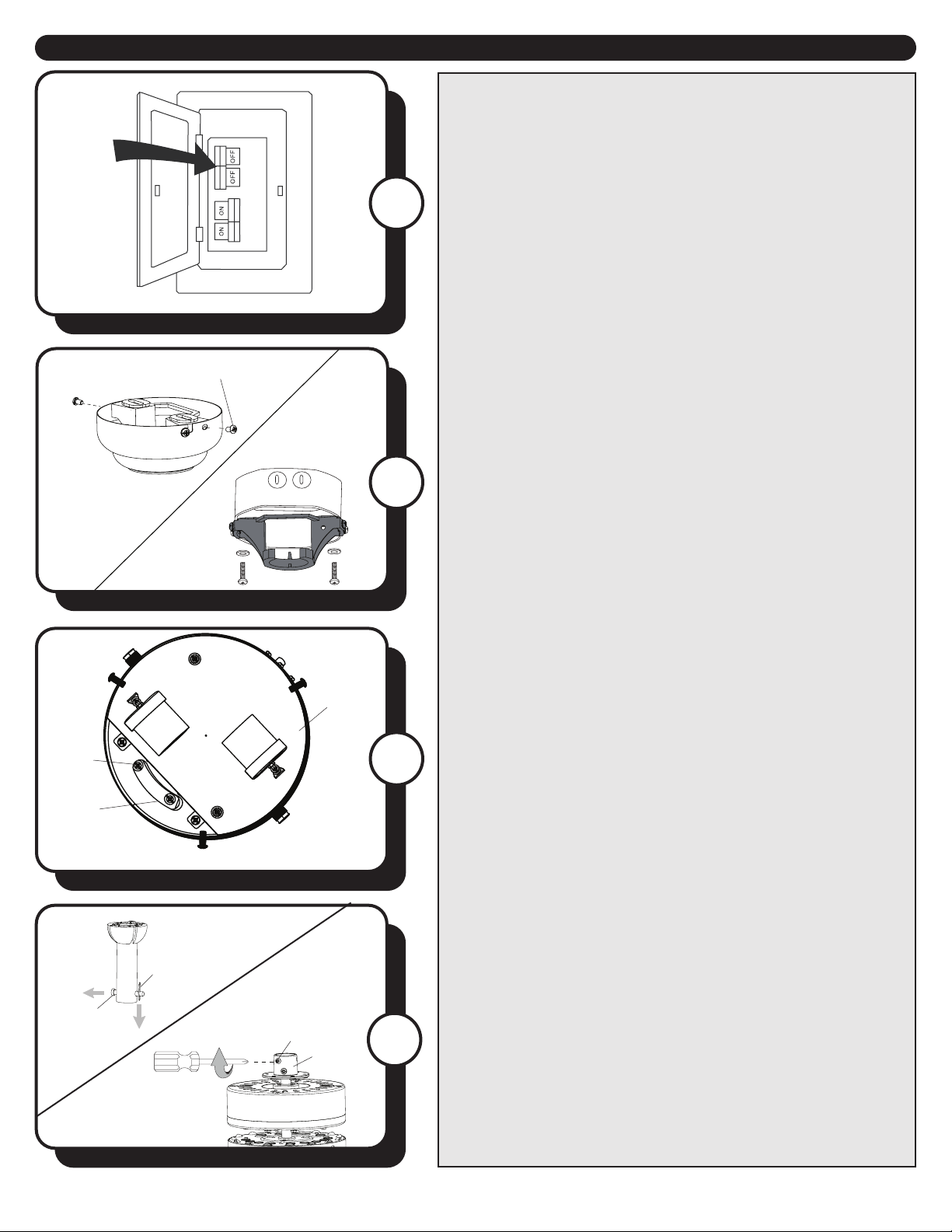

2. Loosen all four mounting bracket screws located on the
mounting bracket and completely remove the two screws
from the round holes in the canopy. Save the screws for
later. Remove the canopy from the mounting bracket.
Then, install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
3. Remove the six motor screws from the underside of the
motor assembly and save for blade arm installation.
Note: The slot in the light kit allows access to the
preassembled motor screws.
4. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but don’t remove the two set
screws at the top of the yoke.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
4
Slot
Light Kit
Note: View from underside of light kit.
Motor
Screw 3

6

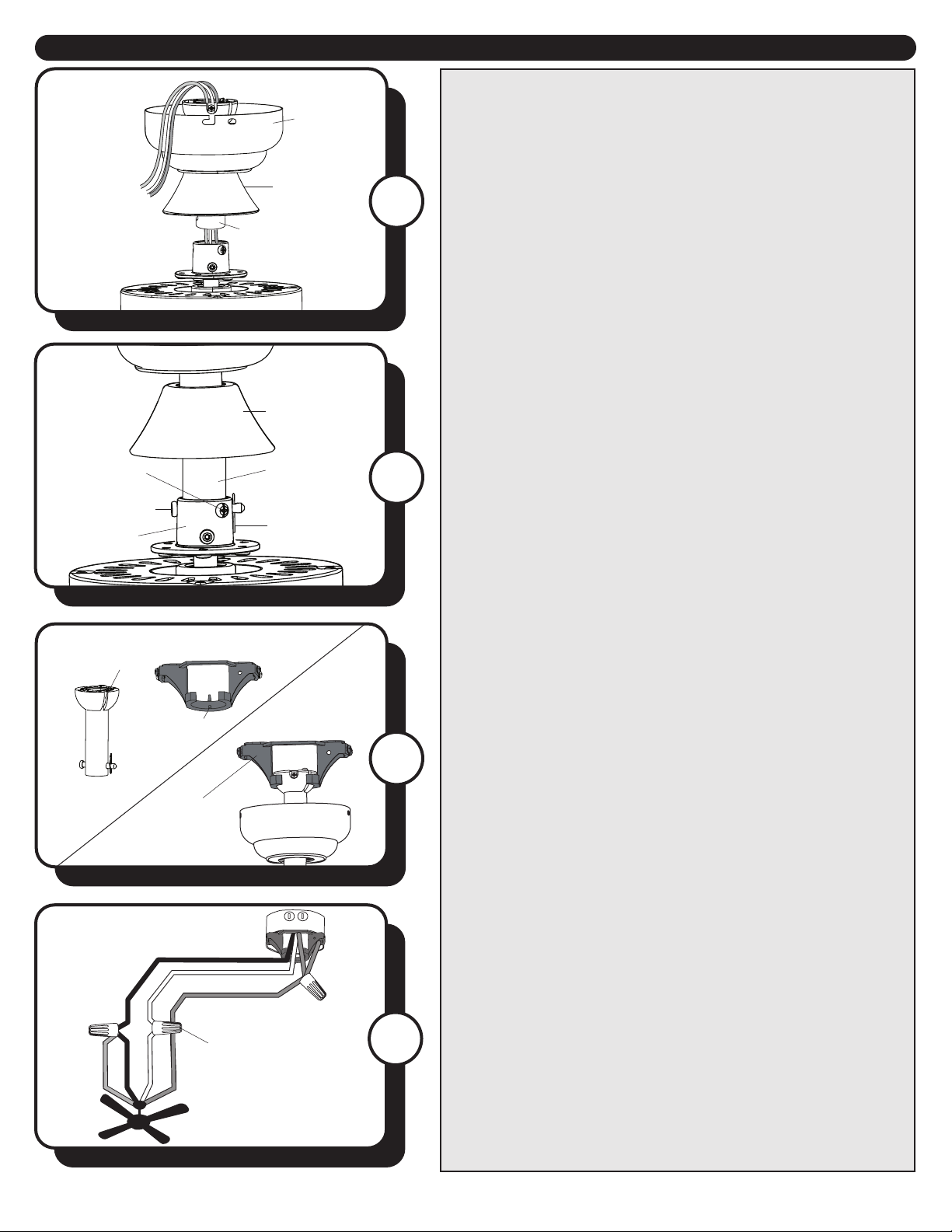

6. Slide the downrod into the yoke of the motor assembly,
align the holes, then re-install the downrod pin and
downrod clip. Secure with the two set screws and slide
the yoke cover down until it rests on top of the motor
assembly.
Note: With wiring extending out of the downrod, measure
8 inches of lead wire and cut the excess wire with wire
cutters (not included). Then strip 1/2”of insulation from
the end of each wire.
Downrod Clip
ASSEMBLY INSTRUCTIONS
8. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from the downrod and mounting
bracket to the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black and Blue wires from the fan to the
Black (hot) supply wire.
• Secure all wiring connections together with wire
connectors.
Note: If there is a second hot/power wire coming from the
outlet box, connect it to the Blue (light power) fan wire for
separate light and fan control.
Important: The Blue fan wire is power for the light. The
Black fan wire is power for the fan. The White wire is
common/neutral. The Green wire is the ground wire. If
supply wires are dierent colors than referred to above, a
professional electrician should determine proper wiring.
7. Install the ball end of the downrod into the opening of
the mounting bracket. Rotate the downrod until the tab in
the mounting bracket is seated in the slot in the downrod
ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket, if installed correctly. Failure to align
the slot in the downrod ball with the tab on the mounting
bracket may result in fan falling causing serious injury or
death.
Downrod Pin
Set Screw Downrod
Yoke Cover
Yoke
5. Insert the downrod through the canopy and yoke cover.
Feed the wires from the fan through the downrod.
Black (hot)
White (neutral)
Bare/Green
(ground)
Black Blue White
Green
Slot
Downrod
Mounting
Bracket
Tab
WARNING: Do NOT use a
full-range dimmer switch
to control the fan speed.
7
6
8
Canopy
Yoke Cover
Downrod
5
Wire Connector

7
9. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy in a clockwise direction until the
mounting bracket screws are completely engaged in
the J-shaped slots. Install the two previously removed
mounting bracket screws in the round holes. Securely
tighten all mounting bracket screws.
10. Attach the blade to the blade arm using blade screw,
blade washer and screw cap from the hardware kit.
Repeat for each blade.
11. Install the blade arm to the underside of the motor
assembly with previously removed motor screws. Tighten
each blade arm completely before moving to the next.
12. Install the E26-base LED bulb into the socket of the
light kit.
Important: Make sure you allow the bulb and light kit to
cool before you replace the bulb.
ASSEMBLY INSTRUCTIONS
Blade Screw
Blade Washer
Blade Arm Blade
Screw Cap
Motor
Assembly
Motor Screw
Bulb
Light Kit
Light Kit
11
10
12
9
Canopy J-Shaped Slot
Round
Hole
Mounting Bracket Screw

8
ASSEMBLY INSTRUCTIONS
15. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Assembly is complete.
13. Loosen the three thumbscrews near the bottom of
the light kit. Lift the glass bowl into the light kit and re-
tighten the previously loosened thumbscrews to secure.
14. Attach pull chain extensions to the pull chains.
Note: When facing the reverse switch on the light kit, the
fan pull chain is on the right and the light pull chain is on
the left.
Thumbscrew
Glass Bowl
Light Kit
Pull Chain Extension
Reverse
Switch
Light
Kit
15
14
13

9

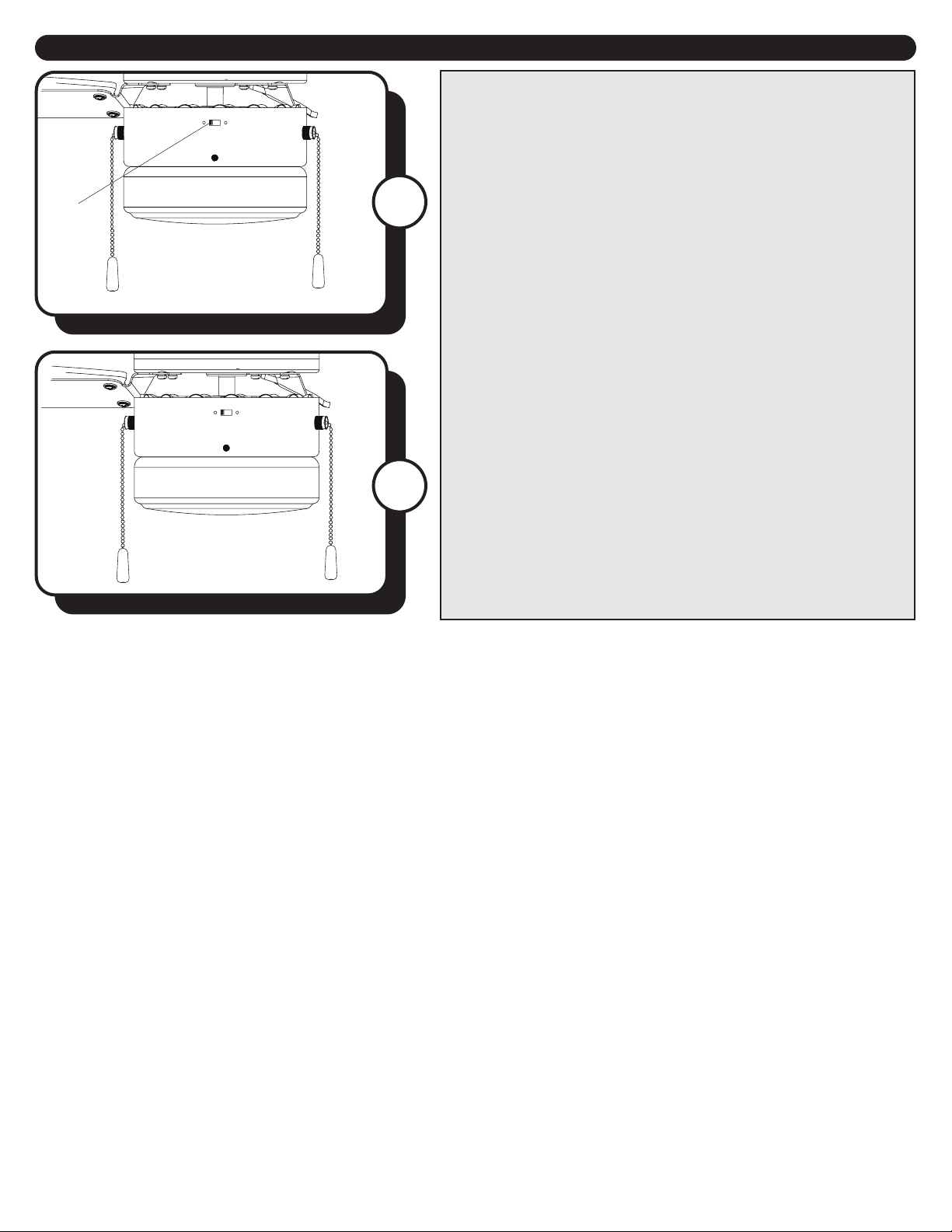

OPERATING INSTRUCTIONS
1
2
Light Pull
Chain
Reverse
Switch
Fan Pull
Chain
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
1. Use the reverse switch, located on the light kit to
optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a dierence in your comfort.
In warmer weather, push the reverse switch to the left
which will result in downward airow creating a wind
chill eect.
In cooler weather, push the reverse switch to the right
which will result in upward airow that can help move
stagnant, hot air o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.

10
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not
operate when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the
interior wall of the canopy.
4. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using
the blade balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 6-pin and/or single-pin connectors in switch
housing or light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs
only).
2. Fan is noisy
3. Fan wobbles
4. Light does not work
TROUBLESHOOTING
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.

LIMITED LIFETIME WARRANTY
Model Name: 30” Gibson Street Ceiling Fan
Model No: 20676 - Brushed Nickel (SKU: 355-0642)
20677 - Bronze (SKU: 355-0643)
11
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
