62” HUBBARD
CEILING FAN
Owner’s Manual
Model #20691
SKU #355-0705
1
If a problem cannot be remedied or you are experiencing diculty in installation, please contact the
Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.

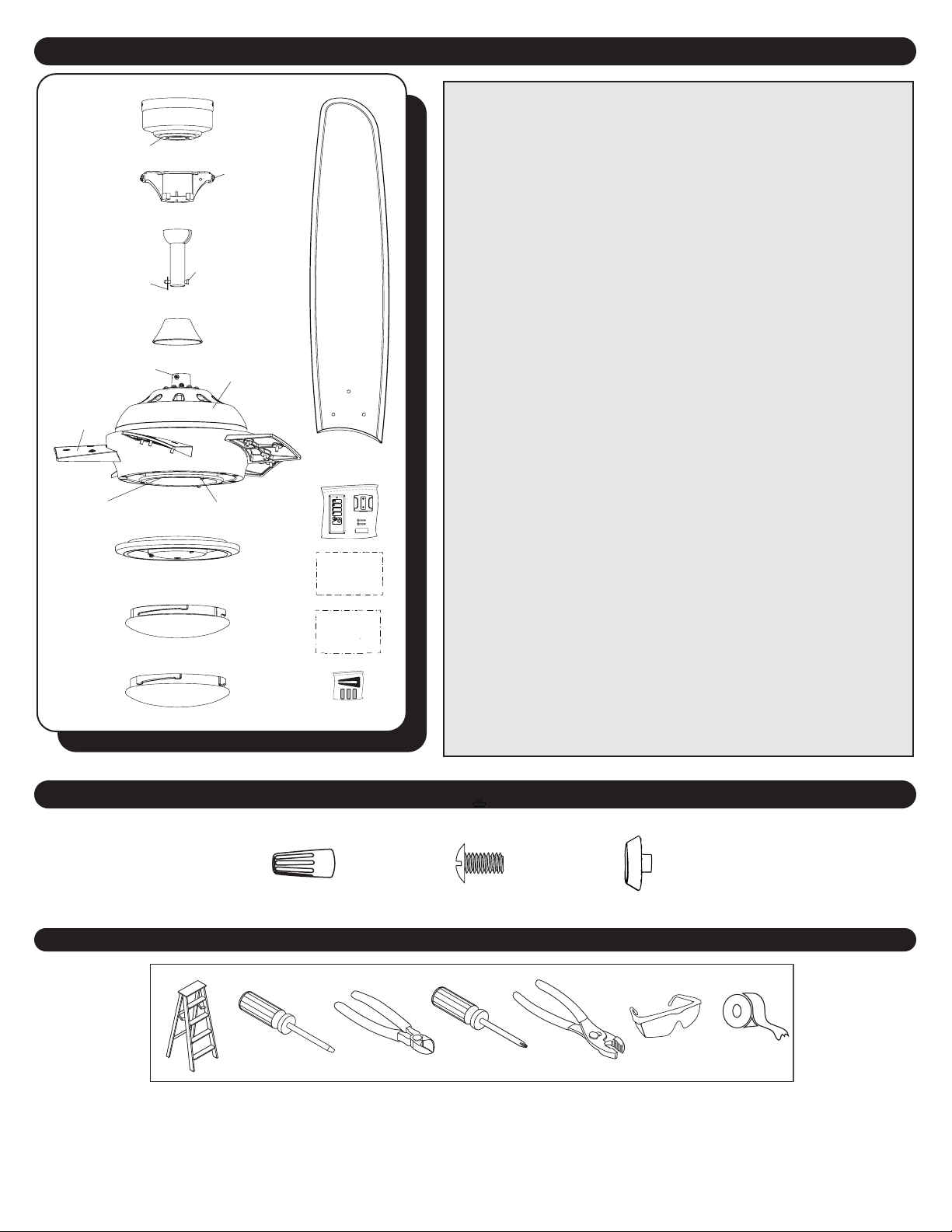

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Clip
7. Downrod Pin
8. Yoke Cover
9. Set Screw (x2)
10. Motor Assembly
11. Blade Arm (x5)
12. Fitter Plate
13. Fitter Plate Screw (x3)
14. Light Kit
15. Glass Bowl
16. No Light Cap
17. Blade (x5)
18. Remote Pack
19. Hardware Kit
20. Owner’s Manual
21. Blade Balancing Kit
AA. Wire Connector (x3)
BB. Blade Screw (x15)
LL. Screw Cap (x15)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
BB
AA LL
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
12
11
9
19
8
10
7
6
5
16
17
18
20
21
13
3
4
14
15
2
1

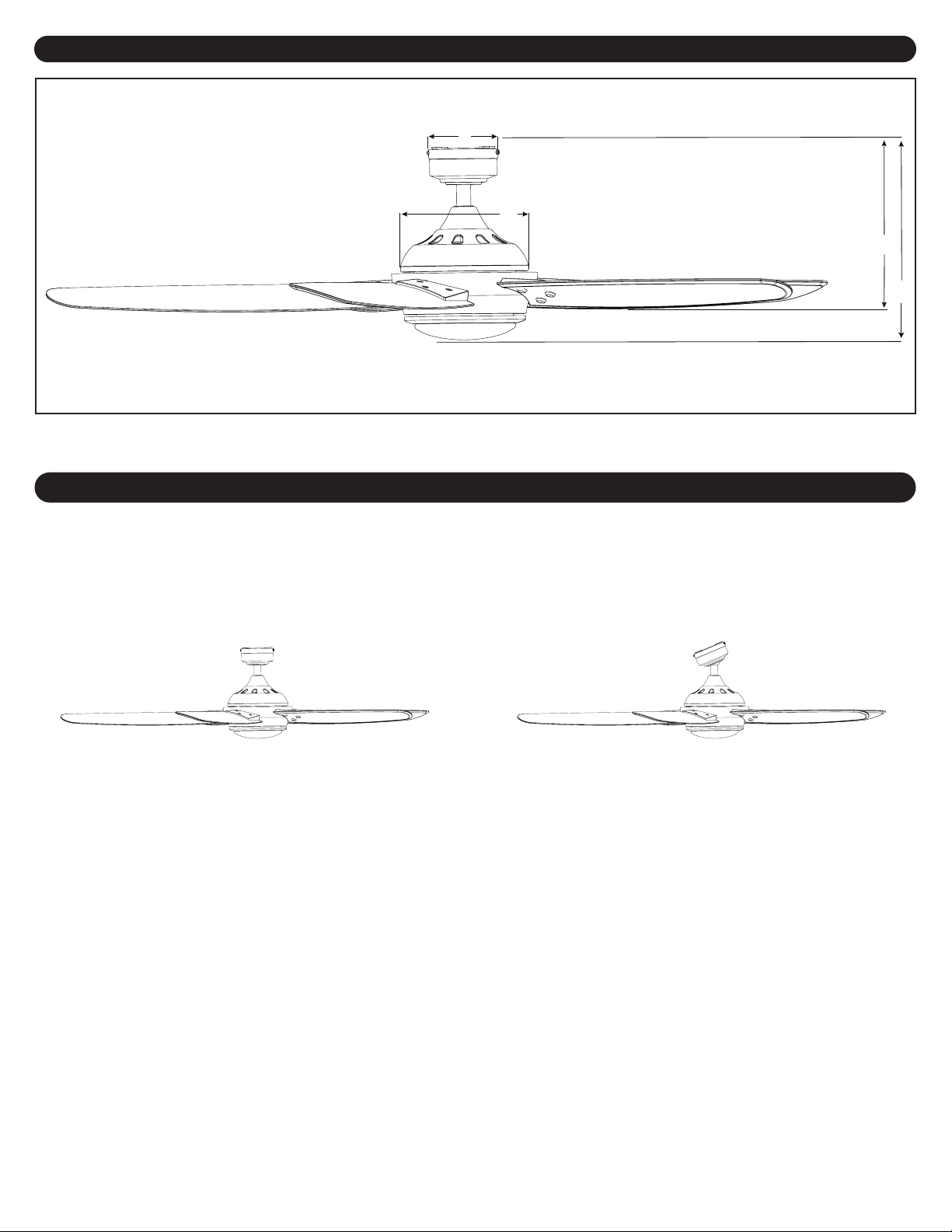

MOUNTING OPTIONS
3
A. 14.09 in. B. 11.88 in. C. 9.45 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
B
A
Dual Mounting Options
Downrod MountAngled Ceiling Mount (Up to 16 degrees)
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.

4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 24.36 lb (11,05 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:

Downrod
Clip
Set Screw
Packing
Material
Yoke
Downrod
Pin
Downrod
5

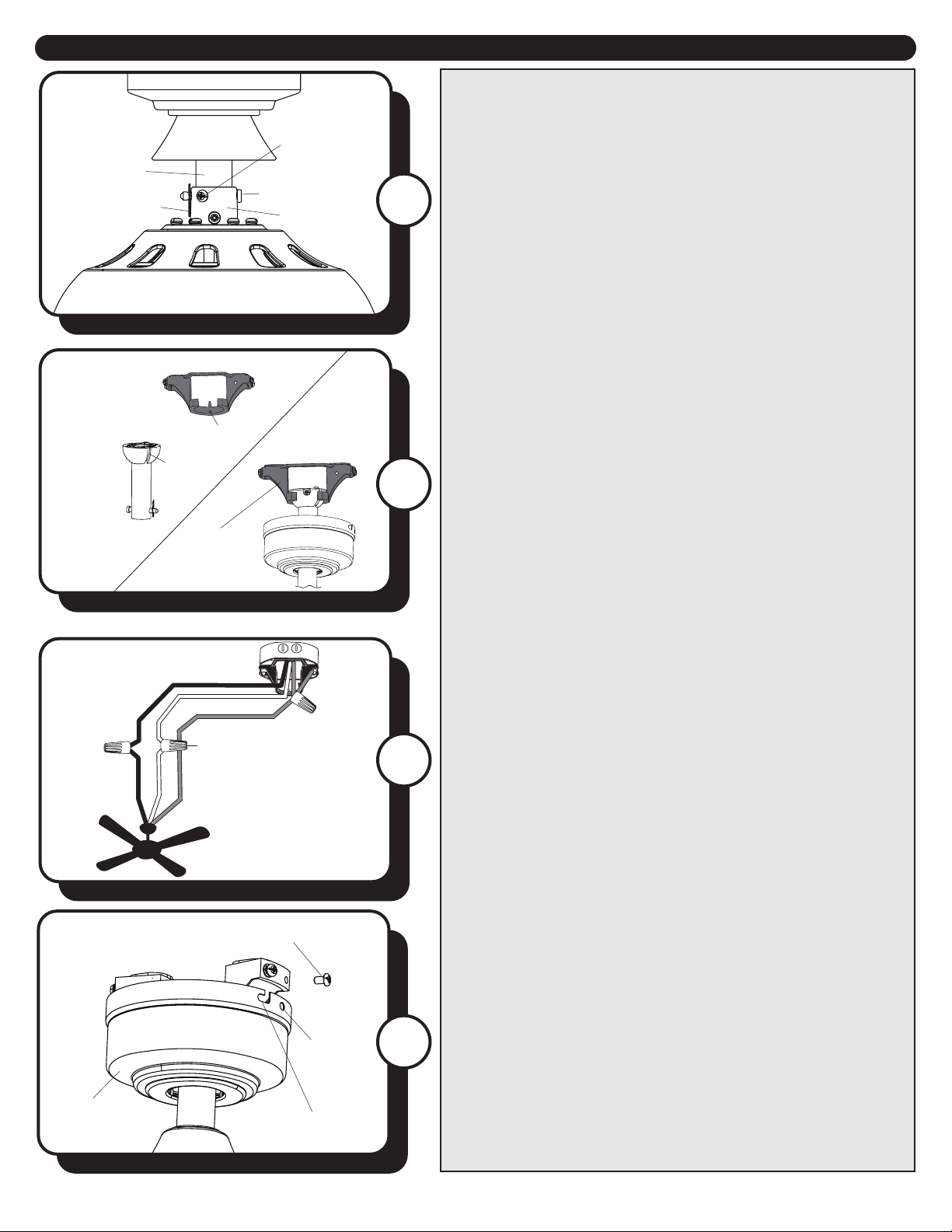

ASSEMBLY INSTRUCTIONS
1
3
2. Loosen all four mounting bracket screws located on the
mounting bracket and completely remove the two screws
from the round holes in the canopy. Save the screws for
later. Remove the canopy from the mounting bracket.
Then, install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
3. Discard the orange packing material from the yoke at
the top the motor assembly.
Remove the downrod clip and downrod pin from the
downrod. Then, loosen but don’t remove the two set
screws at the top of the yoke.
Mounting Bracket Screw
2
4. Insert the downrod through the canopy and yoke cover.
Feed the wires from the fan through the downrod.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
Downrod
Canopy
Yoke Cover
Yoke
4

6
Black (Hot)
Wire Connector
White (Neutral)
Bare/Green (Ground)
Black White Green
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
Tab
Slot
Downrod
Mounting
Bracket
7. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the Green wires from the downrod and
mounting bracket to the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White
(neutral/common) supply wire.
• Connect the Black wire from the fan to the
Black (live/hot) supply wire.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the Black and White
wire connections on opposite sides of the outlet box.
Downrod Pin
Downrod Clip Yoke
Downrod
Set Screw
6. Install the ball end of the downrod into the opening of
the mounting bracket. Rotate the downrod until the tab in
the mounting bracket is seated in the slot in the downrod
ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket, if installed correctly. Failure to align
the slot in the downrod ball with the tab on the mounting
bracket may result in fan falling causing serious injury or
death.
7
5. Slide the downrod into the yoke of the motor assembly,
align the holes, then re-install the downrod pin and
downrod clip. Secure with the two set screws and slide
the yoke cover down until it rests on top of the motor
assembly.
Note: With wiring extending out of the downrod, measure
8 inches of lead wire and cut the excess wire with wire
cutters (not included). Then strip 1/2” of insulation from
the end of each wire.
6
5
ASSEMBLY INSTRUCTIONS
8. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy in a clockwise direction until the
mounting bracket screws are completely engaged in
the J-shaped slots. Install the two previously removed
mounting bracket screws in the round holes. Securely
tighten all mounting bracket screws.
Canopy
Round
Hole
Mounting Bracket Screw
J-Shaped Slot
8

7
Fitter Plate
Light Kit
Single-pin
Connector
Fitter Plate Screw
Keyhole Slot
Glass Bowl
Light Kit
Blade Screw
Screw Cap
Blade Arm
Blade

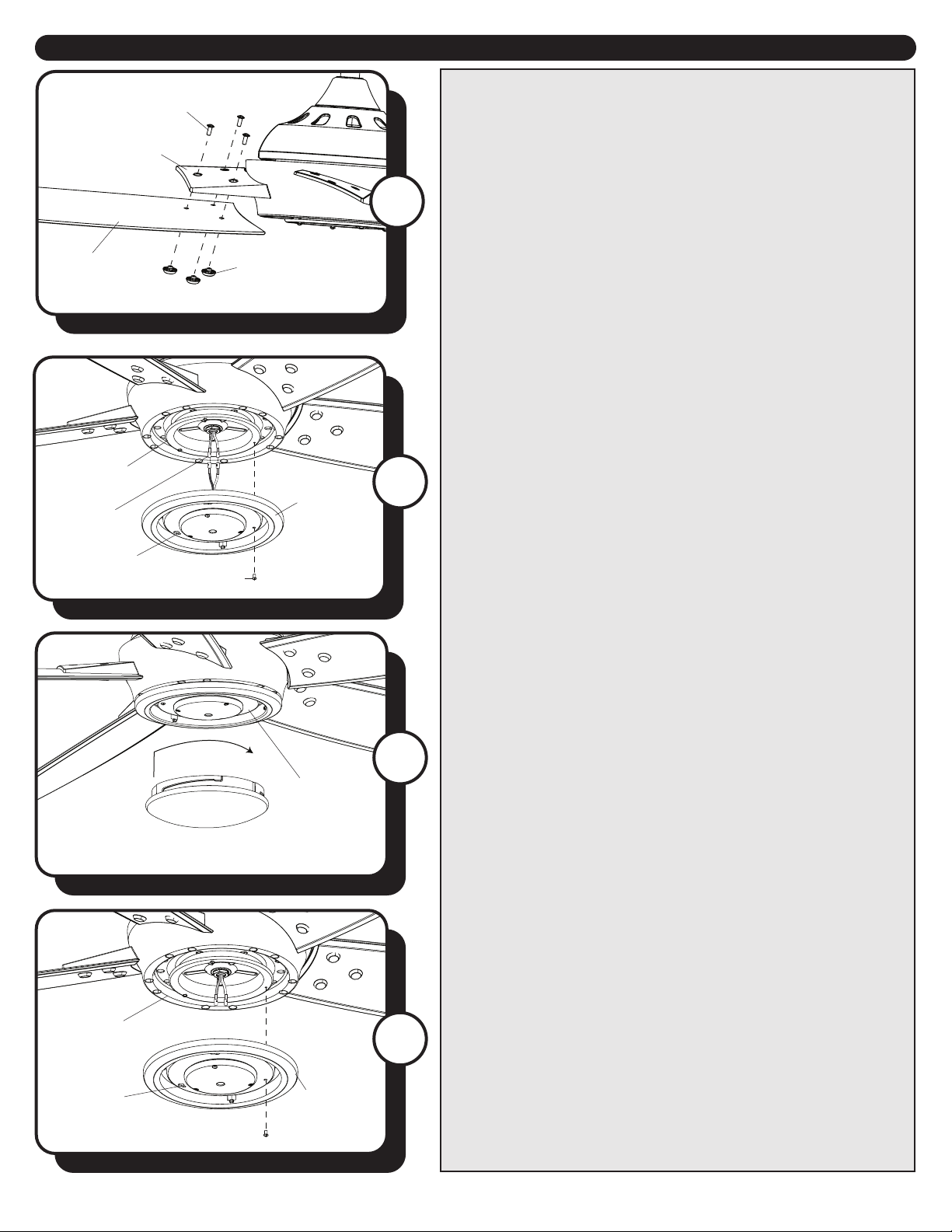

ASSEMBLY INSTRUCTIONS
11
10. Note: To install without light kit, skip to Step 12.
Remove one of the three tter plate screws preassembled
to the tter plate and loosen the other two but do not
remove. Connect the single-pin connector from the tter
plate to the single-pin connector from the light kit--Blue
to Black and White to White. Align the keyhole slots in the
light kit with the loosened screws in the tter plate. Turn
light kit clockwise and replace the previously removed
tter plate screw. Tighten all screws.
9. Attach the blade to the blade arm using blade screw
and screw cap. Repeat for each blade.
10
9
11. Attach the glass bowl to the light kit by twisting the
glass bowl rmly in a clockwise direction until it is secure.
CAUTION: Avoid cross-threading the glass during
installation. Improper installation could cause the glass
bowl to be dicult to remove or fall, which could cause
serious injury.
12. INSTALLATION WITHOUT THE LIGHT KIT (optional)-
Remove one of the three tter plate screws preassembled
to the tter plate and loosen the other two but do not
remove. Align the keyhole slots in the light kit with the
loosened screws in the tter plate. Turn light kit clockwise
and replace the previously removed tter plate screw.
Tighten all screws.
WARNING: To avoid re hazard, DO NOT cut, remove, or
connect the single-pin connectors if installing with “no
light” option.
Fitter Plate
Keyhole
Slot
Fitter Plate Screw
Light Kit
12

8
ASSEMBLY INSTRUCTIONS

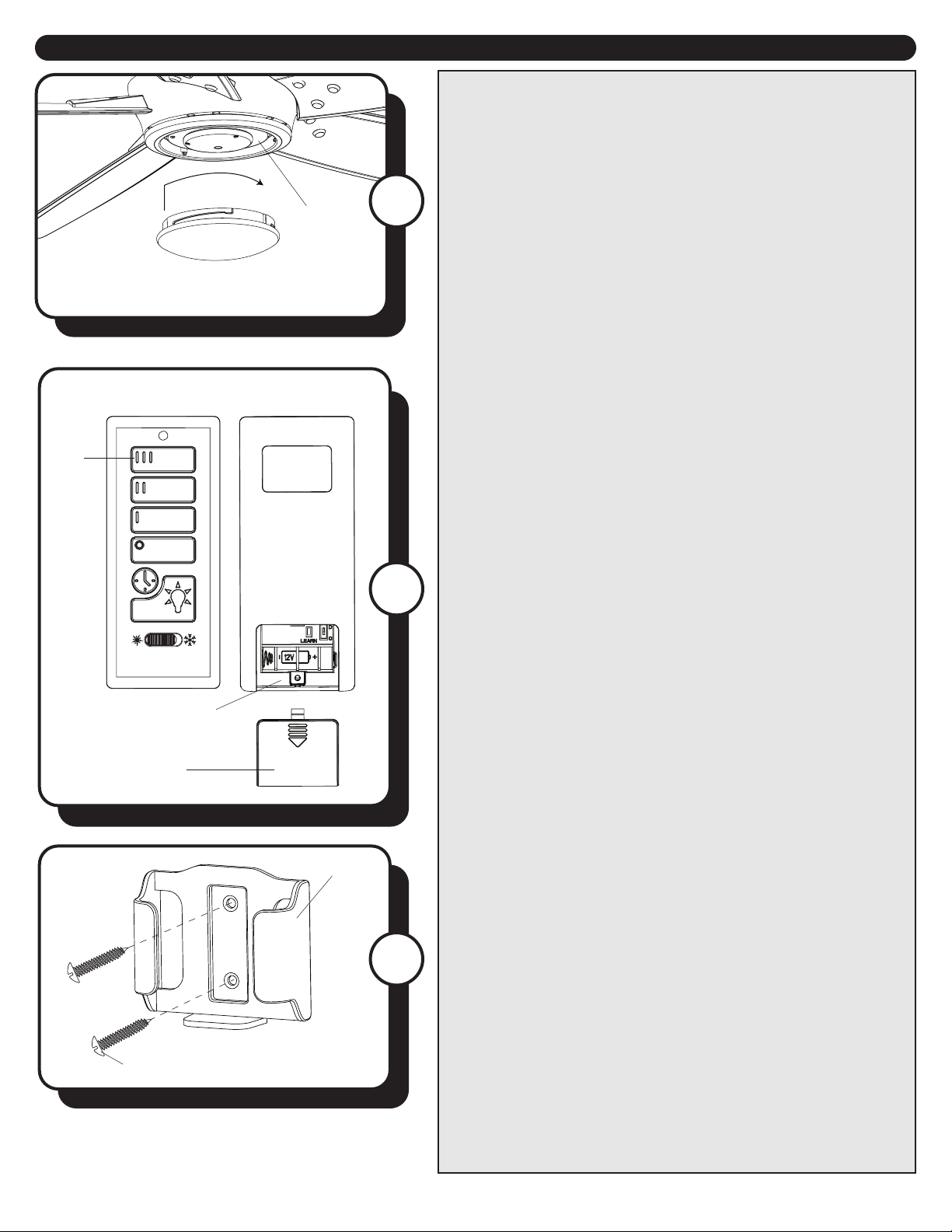

13. INSTALLATION WITHOUT THE LIGHT KIT (continued)-
Lift the light cap into the light kit and turn in a clockwise
direction until it is secure.
Light Kit
No Light Cap
13
14. Remove the battery cover from the back of the
remote found in the remote pack. Insert the battery
from the remote pack into the remote; ensure polarity
of battery matches the polarity indicated in the battery
compartment--positive (+) to positive (+) and negative
(-) to negative (-). Replace the battery cover and press the
HIGH SPEED button on the remote to ensure the remote
turns on the fan.
Note: If the remote does not turn on fan, see
TROUBLESHOOTING (page 10).
Battery Cover
Battery Compartment
Front Back
High
Speed
14
15. If desired, the wall bracket in the remote pack can be
installed to a wall using the provided mounting screws.
Store the remote in the wall bracket when not in use.
Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Assembly is complete.
Mounting Screw
Wall Bracket
15

9
OPERATING INSTRUCTIONS
1
2
LED Indicator
High Speed
Medium Speed
Low Speed
Fan O
Light Delay
Light Control
Reverse Switch
D/O Switch
Battery Compartment
(battery door removed)
2. Remove battery door from back of the remote, from
remote pack, to access the following:
D/O Switch - set to “D” at the factory. The switch should
remain in the “D” position to ensure the LED board is
dimmable.
LEARN - Syncs remote to receiver (see
TROUBLESHOOTING for instructions).
1. To operate the fan using the remote, press and release
the following buttons:
III - High speed
II - Medium speed
I - Low speed
Fan O - Turns power to fan o.
Light Delay - Tap the Light Delay button, which will turn
o the light after one minute. Tap the Light Control button
to exit Light Delay mode.
Light Control - Tap the Light Control button to turn the
light o and on. Press and hold Light Control button to
dim or brighten the lights.
Reverse Switch -In warmer weather, push the Reverse
Switch left toward sun icon, which will result in downward
airow creating a wind chill eect.
In cooler weather, push the Reverse Switch right toward
the snowake icon, which will result in upward airow
that can help move hot air o the ceiling.
Important: Wait for the fan to stop before moving the
Reverse Switch. The Reverse Switch must be set either
completely left or right in order for the fan to function
correctly. If the switch is set in the middle position, the fan
will not operate.
Low Battery Indicator - LED Indicator will ash for one
minute as a reminder to replace the 12-volt battery.

5. Remote control does
not work:
10
PROBLEM SUGGESTED REMEDY
TROUBLESHOOTING
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start: 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the light kit.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
1. After installation is complete, switch the power o and back on again. Within 30 seconds,
press and hold the“LEARN”button for 5 seconds, located in the battery compartment.
Fan will turn on at low speed and light o (if installed). This conrms that the SMART
SYNC is active .
2. Insert new 12V battery in battery compartment of the remote control.
3. If there are several fans in close proximity, turn power o to other fans and re-sync the
remote (see Corrective Action 1 above).
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.

LIMITED LIFETIME WARRANTY
Model Name: 62” Hubbard Ceiling Fan
Model No: 20691- Espresso (SKU: 355-0705)
11
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
