Patriot Lighting GRAND HAVEN II User manual

9188 • 112421 1
62” GRAND HAVEN II
CEILING FAN
Owner’s Manual
Model #20697
SKU #355-0713
If a problem cannot be remedied or you are experiencing diculty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.

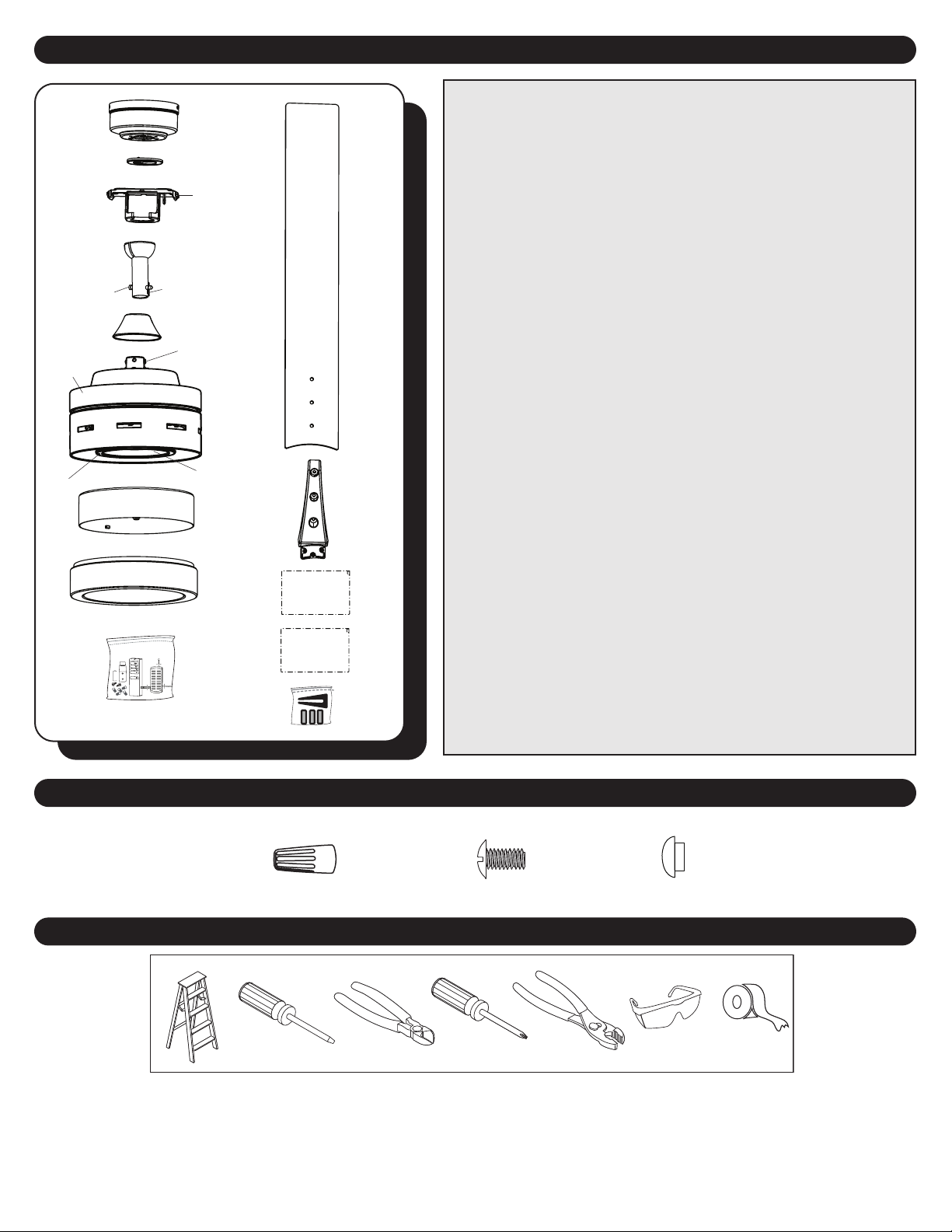

PACKAGE CONTENTS
2
HARDWARE CONTENTS
BB
AA CC
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket
Screw (x4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Motor Assembly
11. Fitter Plate
12. Fitter Plate Screw (x3)
13. Light Kit
14. Lens Cover
15. Remote Pack
16. Blade (x8)
17. Blade Arm (x8)
18. Hardware Kit
19. Owner’s Manual
20. Blade Balancing Kit
AA. Wire Connector (x6)
BB. Blade Screw (x24)
CC. Blade Screw Cap (x24)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
1
2
3
4
5
67
89
10
17
11
18
12
19
20
13
14
15
16

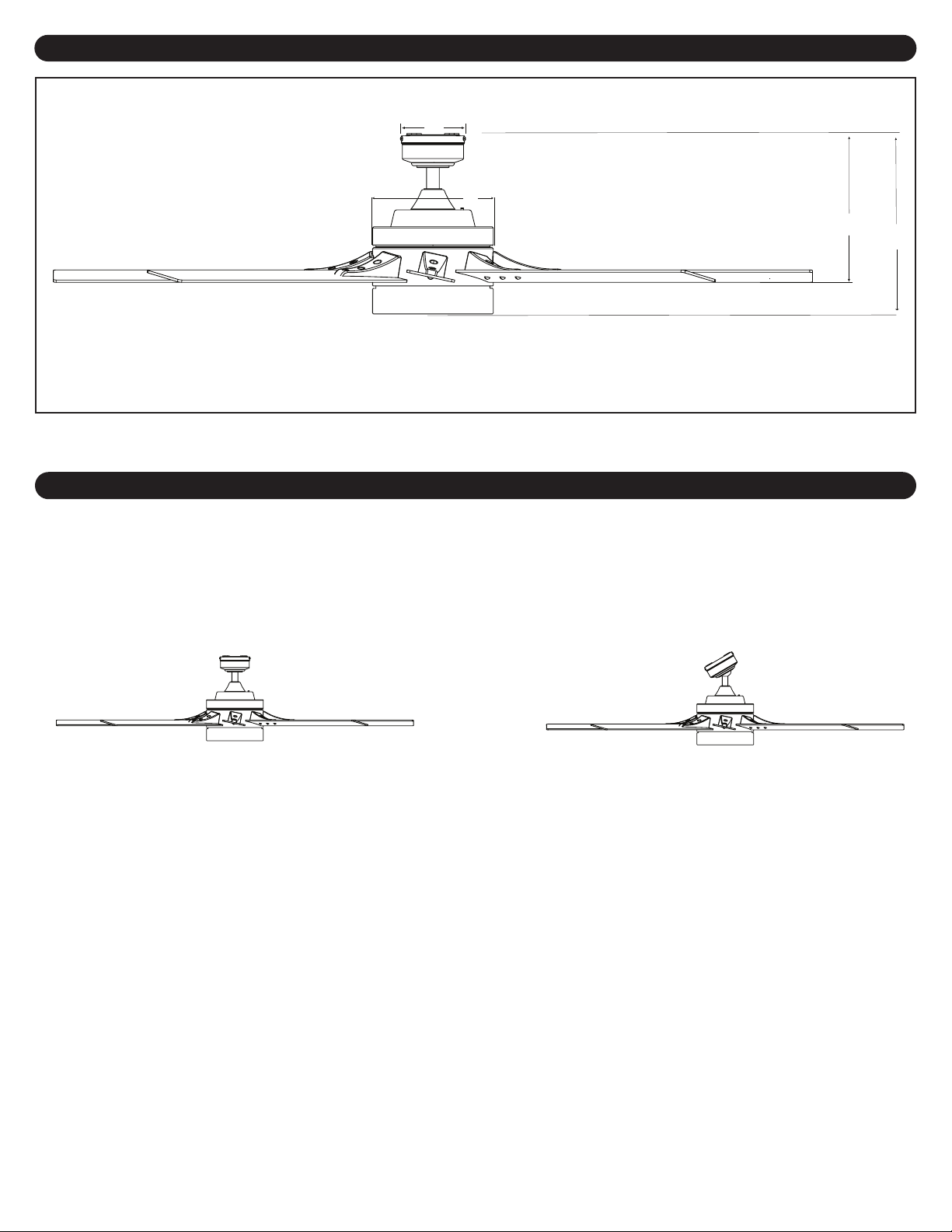

MOUNTING OPTIONS
3
Downrod Mount Angled Ceiling Mount (Up to 10 degrees)
Dual Mounting Options
A. 14.68 in. B. 12.15 in. C. 9.82 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
A
B
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 10°.

4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 11.85 lbs (26,12 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:

5
ASSEMBLY INSTRUCTIONS
2
1
2. Loosen all four mounting bracket screws located on the
mounting bracket and completely remove the two screws
from the round holes in the canopy. Save the screws for
later. Remove the canopy from the mounting bracket.
Then, install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.

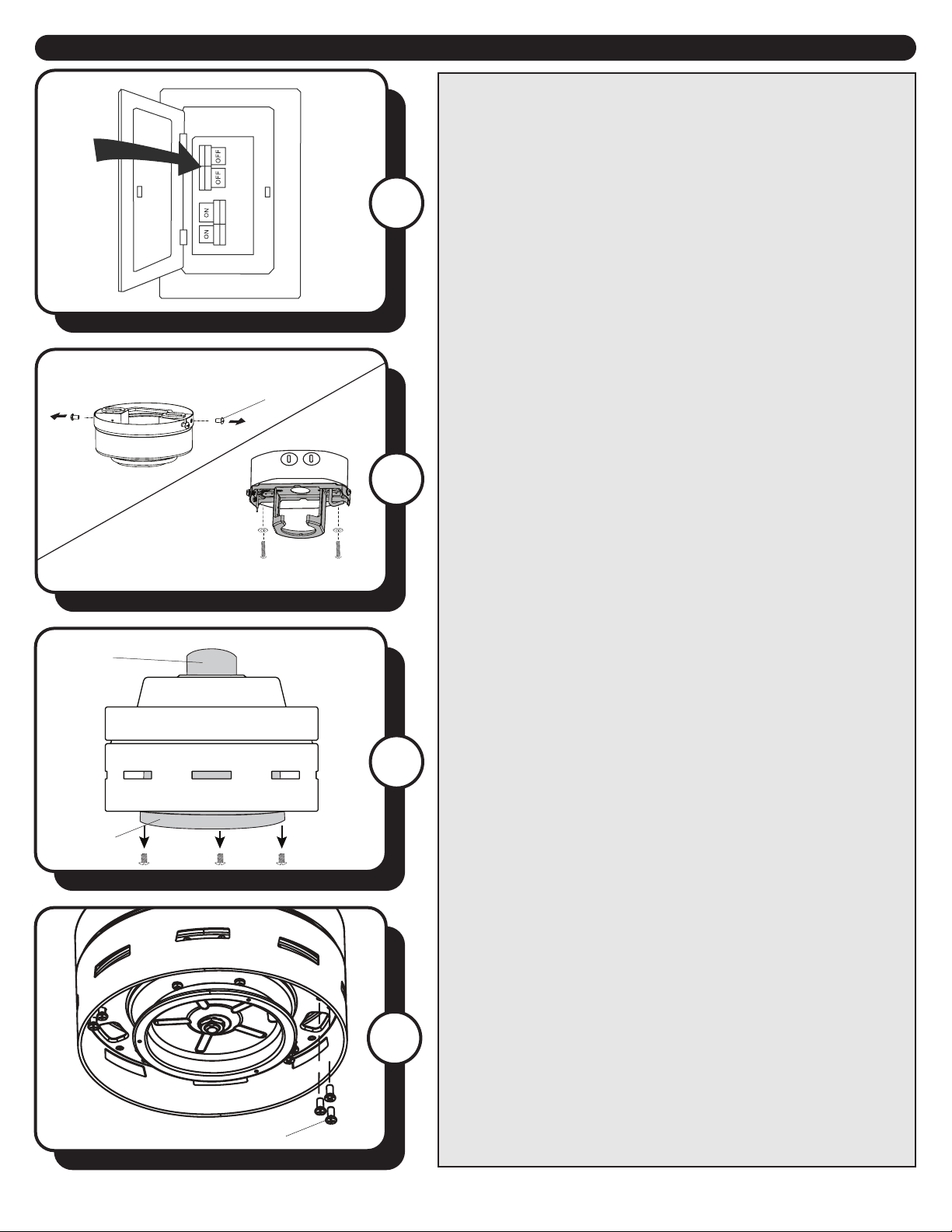

3. Remove the three tter plate screws and the packing
material. Discard the packing material from the top and
bottom of the fan assembly but save the three tter plate
screws for later.
4. Remove the 24 motor screws preassembled to the
motor and save for blade attachment.
4
Mounting
Bracket Screw
Packing
Material
Packing
Material
Motor Screw
3
1.Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.

6
Tab
Slot
Downrod
Mounting
Bracket
ASSEMBLY INSTRUCTIONS
7
6

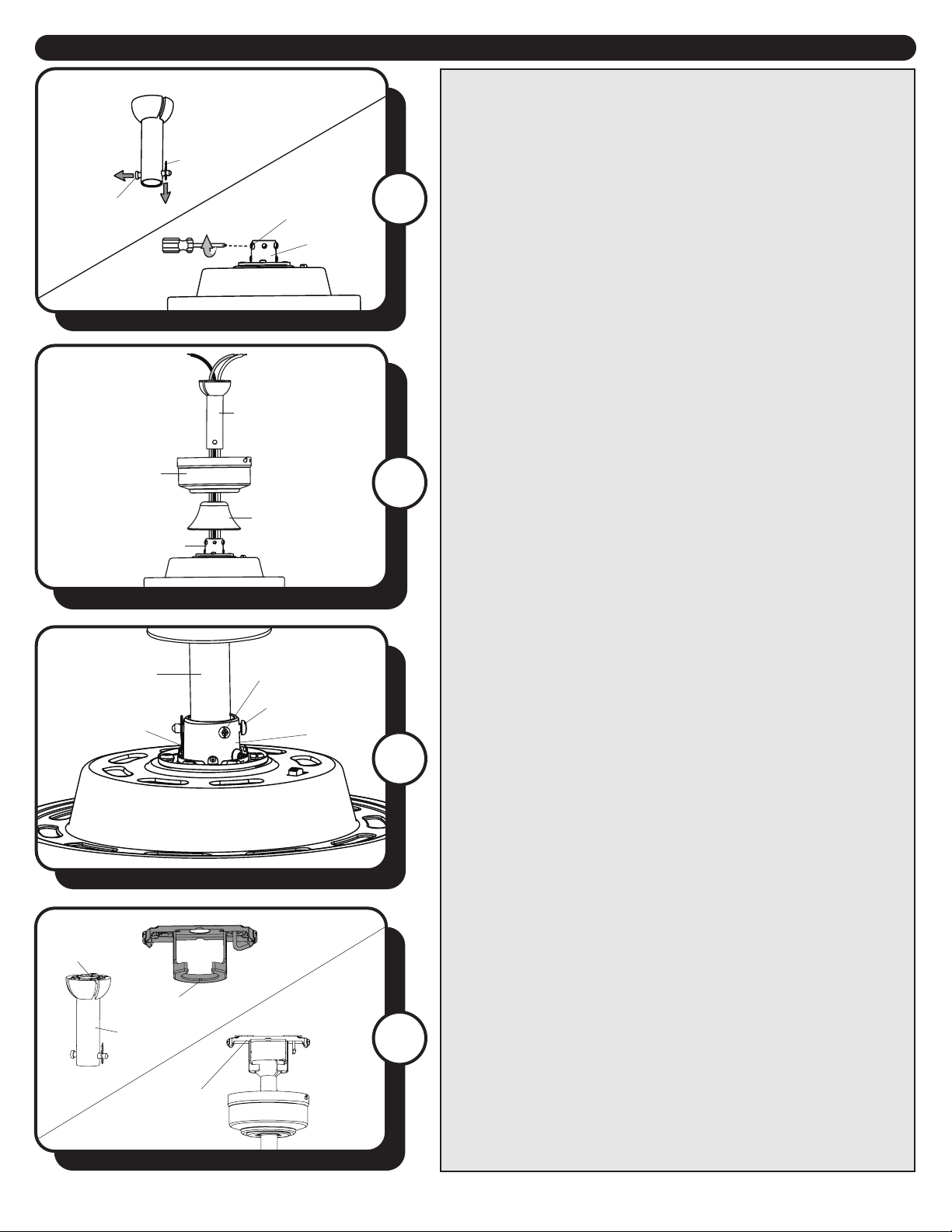

6. Feed the wires coming from the yoke through the yoke
cover, canopy and downrod.
7. Slide the downrod into the yoke of the motor assembly,
align the holes, then re-install the downrod pin and
downrod clip. Secure with the two set screws and slide
the yoke cover down until it rests on top of the motor
assembly.
Note: With wiring extending out of the downrod, measure
8 inches of lead wire and cut the excess wire with wire
cutters (not included). Then strip 1/2” of insulation from
the end of each wire.
Downrod
Canopy
Downrod Pin
Yoke
Downrod
Downrod Clip
Set Screw
Yoke
Yoke Cover
8
Downrod
Clip
Set Screw
Yoke
Downrod
Pin 5
5. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but don’t remove the two set
screws in the yoke.
8. Install the ball end of the downrod into the opening of
the mounting bracket. Rotate the downrod until the tab in
the mounting bracket is seated in the slot in the downrod
ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket, if installed correctly. Failure to align
the slot in the downrod ball with the tab on the mounting
bracket may result in fan falling causing serious injury or
death.

7
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Red
White
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
Canopy
Round
Hole
Mounting Bracket Screw
J-Shaped Slot
ASSEMBLY INSTRUCTIONS
11. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy clockwise until the mounting
bracket screws are completely engaged in the J-shaped
slots. Install the two previously removed mounting
bracket screws in the round holes. Securely tighten all four
mounting bracket screws.
Wire Connector
10
Mounting
Bracket
9
11
10. Use wire connectors to connect power supply wires to
the receiver and the fan according to the wiring diagram and
the following instructions:
• Connect the green wires from the downrod and mounting
bracket to the bare/green (ground) supply wire.
• Connect the Blue wire (FOR LIGHT) from the receiver to the
Blue fan wire.
• Connect the Black wire (TO MOTOR L) from the receiver to
the Black fan wire.
• Connect the White wire (TO MOTOR N) from the receiver to
the White fan wire.
• Connect the Red wire (AC IN L) from the receiver to the Black
(hot/power) supply wire.
• Connect the White (AC IN N) from the receiver to the White
(neutral) supply wire.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.
Receiver
9. Insert the receiver in the mounting bracket with
antenna end rst and at side facing up.
Note: The receiver rests directly on the downrod.
Blade Screw
Screw Cap
Blade Arm
Blade
12 12. Partially insert three blade screws through the blade
arm and the blade. Secure each blade screw with a blade
screw cap, starting with the one in the middle. Repeat this
step for the remaining blades and blade arms.

8

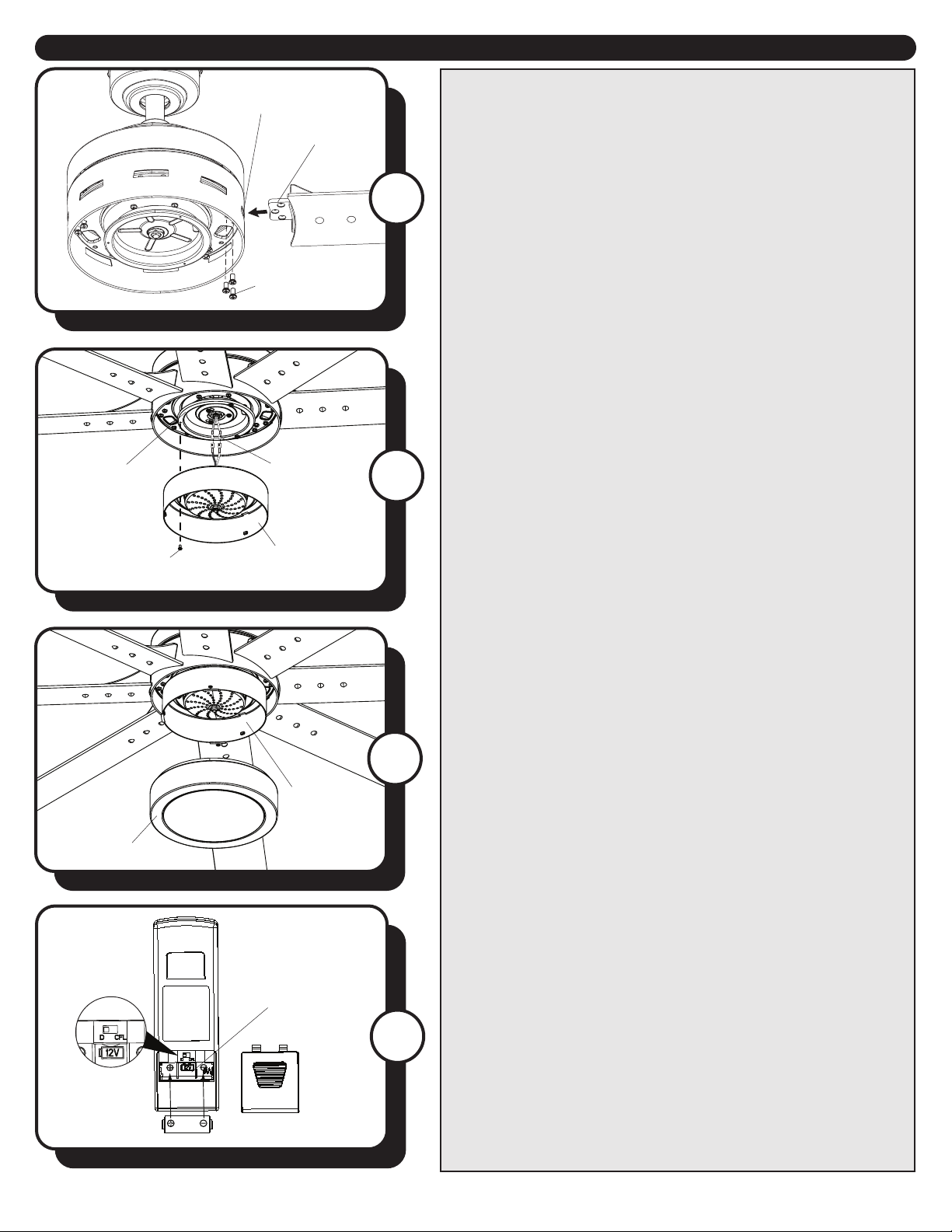

Lens Cover
Light Kit
Blade Arm
Slot
Motor Screw
Fitter Plate Screw Light Kit
Fitter Plate Single-pin
Connector
ASSEMBLY INSTRUCTIONS
14. To install the light kit, connect the single-pin
connectors from the motor assembly to the single-pin
connectors from the light kit -- Blue to Black and White to
White. Reinsert two of the previously removed tter plate
screws into the tter plate, but do not tighten. Place the
keyholes of the light kit over the tter plate screws and
turn clockwise. Secure the light kit with the third tter
plate screw. Tighten all three tter plate screws.
15. Lift the lens cover over the light kit and turn clockwise
until its secure.
CAUTION: Avoid cross-threading the lens cover during
installation. Improper installation could cause the lens
cover to be dicult to remove or fall, which could cause
serious injury.
14
15
13. Slide the end of the blade arm through one of the slots
in the side of the motor assembly. Then, use the motor
screws to secure the blade arms to the underside of the
motor assembly. Securely tighten each blade arm before
moving to the next.
13
Battery
Door
Battery
Battery
Compartment
16
16. Remove the battery cover from the back of the remote
transmitter and insert the 12-volt battery, noting polarity
-- positive (+) to positive (+) and negative (-) to negative
(-). Replace the battery cover. If battery is installed
correctly, the LED indicator on the front of the remote
transmitter should illuminate when any button is pushed.

9
ASSEMBLY INSTRUCTIONS
Wall Bracket
Wall Bracket
Screws
Slot
18. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Assembly is complete.
17. Install wall bracket for remote control (optional) - Use
the two mounting screws to attach the wall bracket to the
wall.
Note: A slot on the back of the remote control allows it to
be stored on the wall bracket when not in use.
18
17

10

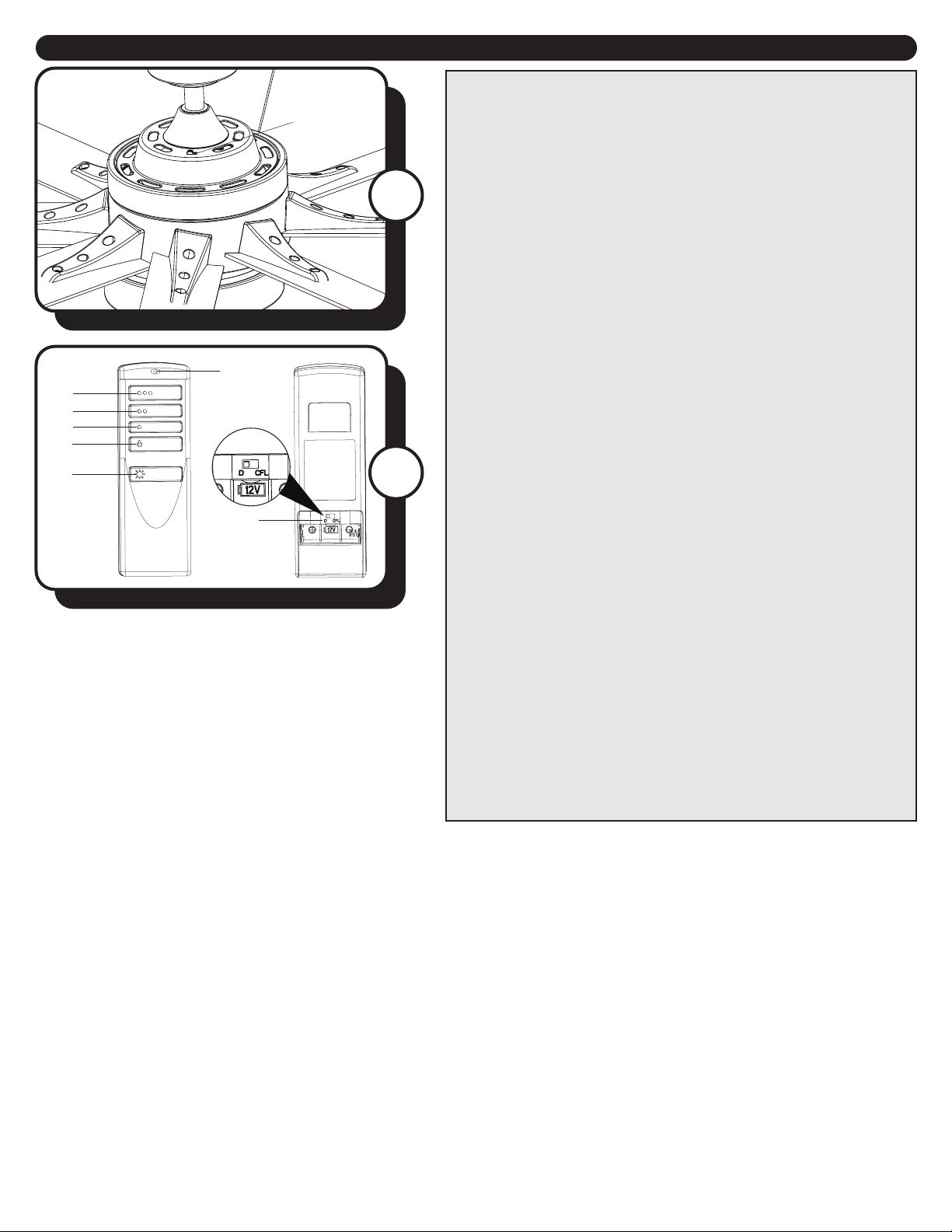

OPERATING INSTRUCTIONS
1
Reverse
Switch
A
B
C
D
E
F
LED
Indicator
2
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right, which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
IMPORTANT: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
2. To operate the fan using remote control, press and
release the following buttons:
A - High fan speed
B - Medium fan speed
C - Low fan speed
D - Turns the fan o. Press and hold this button for 5
seconds to enter Light Delay O mode, which will turn
o light after one minute. The LED on the remote control
will ash four times to conrm mode setting.
E - Turns the light on and o. Press and hold this button
to dim or brighten the LED.
F - D/CFL Switch: Located inside the battery
compartment in remote transmitter should be set to“D” to
enable the dimming feature.

11
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
TROUBLESHOOTING
PROBLEM SUGGESTED REMEDY
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start: 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the light kit.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
1. Press and hold the high and low speed buttons on the remote control at the same time
for 5 seconds. The LED indicator will ash 3 times. When syncing is complete, the fan will
start on the low speed with the light (if applicable) o.
2. Replace the transmitter battery with a new 12-volt battery.
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
5. Remote control does
not work:

Model Name: 62” Grand Haven II Ceiling Fan
Model No: 20697 - Oil Rubbed Bronze (SKU: 355-0713)
12
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
