Patron ATHENA FILLING STATION User manual

Parts list
Mettering Screw
*Pictures are aplicable to ATHENA Filling Station
Bottom Cap Filling Station Body
USER MANUAL
ATHENA
FILLING STATION
1 2 3 4
Unscrew a metering screw on the
filling station to the end.
Turn the filling station around to
have the turning handle below and
remove the cap at the top.
Pour up to 300 mL of substance into
the station and tighten the cap.
To push out the remaining air turn
the handle clockwise until the
substance reaches the outlet valve.

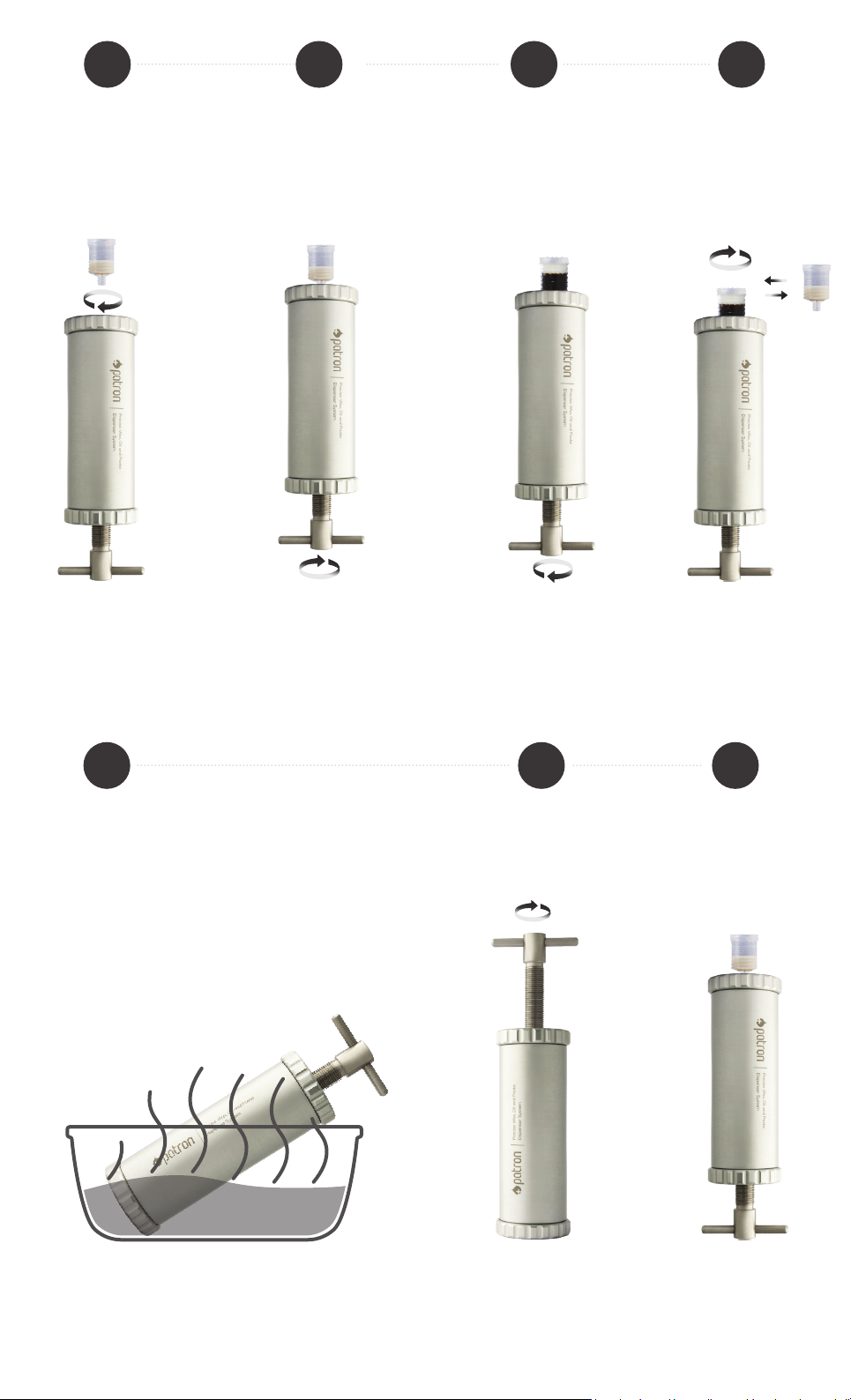

Assembly guidelines
Pictures and instructions are applicable to ATHENA Filling Station.

5678
Screw in an empty cartridge into the
opening on the cap (cartridge must
have rubber gasket already inserted
to the full).
By turning the handle clockwise fill
the cartridge to the desired volume.
After the cartridge is filled, turn the
handle counter-clockwise. With this
action you will release the tension in
the container and prevent leakage of
the extract, when you remove the
cartridge. Warning: each substance
has its own specific gravity and
viscosity, therefore caution is
recommended.
After releasing the pressure,
unscrew the cartridge and insert the
next one.
Pictures and instructions are applicable to ATHENA Filling Station.
910 11
If the content is very viscous, we
recommend that Athena is heated up
to approx. °50C.
When refilling ATHENA, return the
screw to its initial position, unscrew
the cap and pour in your substance.
When you are finished working,
insert an empty cartridge into the
filling station to prevent leakage of
contents.
Pictures and instructions are applicable to ATHENA Filling Station.
