Pawleys Island Bench Swing DWSW1 User manual

BENCH SWING
INSTRUCTIONS
• BACK BENCH ASSEMBLY
• SEAT BENCH ASSEMBLY
• RIGHT & LEFT ARM ASSEMBLY
CHAIR PARTS
• RUBBER MALLET
• PHILLIPS HEAD SCREWDRIVER
• DRILL
• 1/2” Wrench
SUGGESTED TOOLS
STEP 1. Use (6) 2” bolts and (6) barrel nuts to connect the back
bench assembly to the seat bench assembly.
NOTE: Rear seat support beam is hidden to show assembly.
REAR VIEW OF SWING
ASSEMBLY
2”
BOLTS
2”
BOLTS
BARREL
NUTS
1.
2.
HARDWARE PACK
#6091 / 0217
1. BARREL BOLTS: (12) 2” Bolts
2. BARREL NUTS: (12)
3. Hex Key (Not Shown)
• CHAIN ASSEMBLY & HARDWARE PACK
• CHAIN SETS: (2)
Eye Bolts, nuts, and washers attached
• TREE HOOKS (2)
LONG
CHAIN
FRONT
SHORT
CHAIN
BACK
4” EYE
BOLT
4” EYE
BOLT
NOTE.
(NOT DISPLAYED) Chains come attached to arms
NOTE: CHAIN HIDDEN TO SHOW DETAIL OF SWING

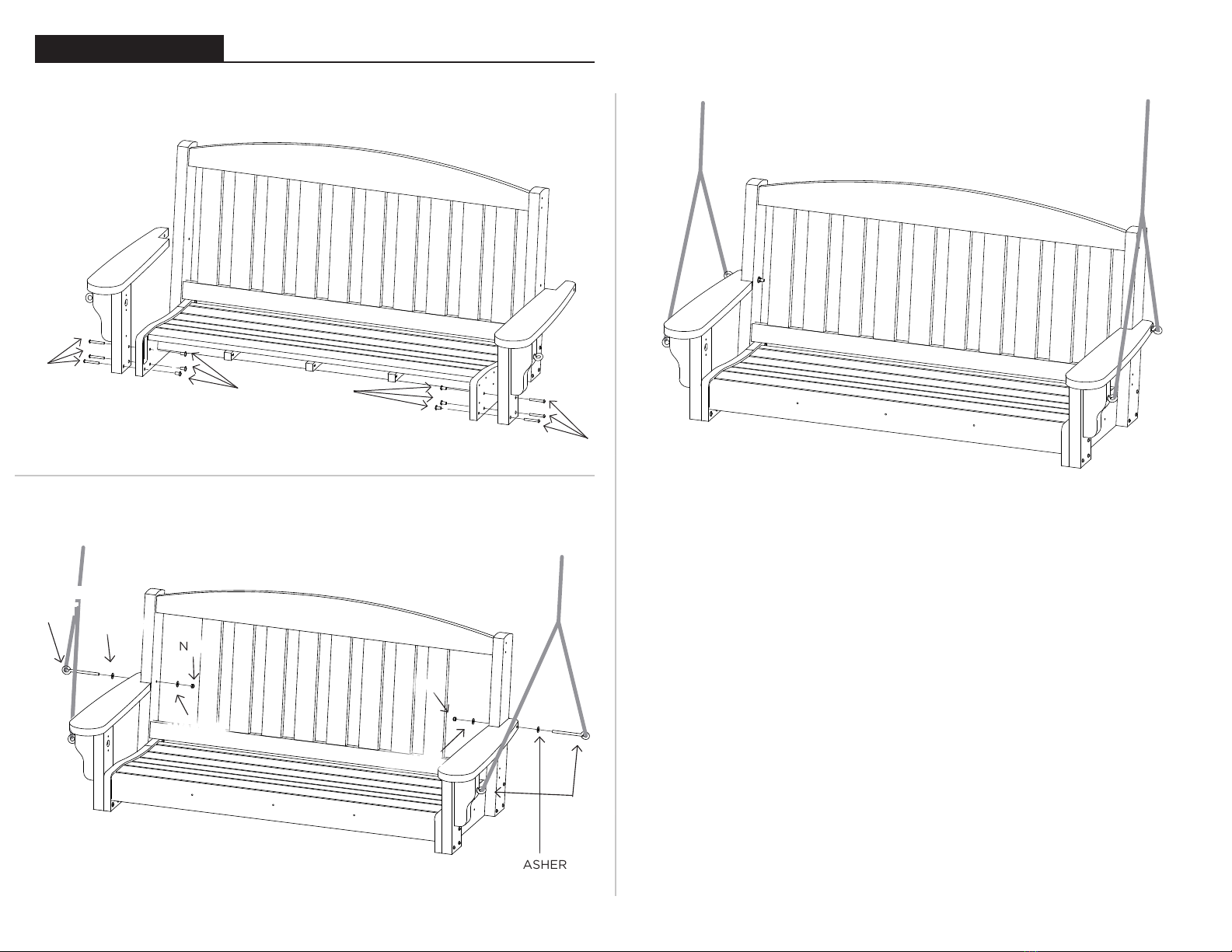

STEP 2. Use (6) 2” Bolts, and (6) Barrel Nuts to attach
bottom of arms to bench.
NOTE. Chain assembly already attached to front of arms.
NOTE. Hidden seat spreader front, and chain assembly
to show arm attachments.
NOTE. Hidden back two slats to show assembly. Chain
displayed upright for visibility, do not hang chain from
ceiling mount until instillation is complete.
STEP 3. Use (2) 4” Eye Bolts, (2) Nuts, and (4) Washers to
attach chain set to back of arms and back of bench.
STEP 4. Finished product. Hang chain from ceiling mounts.
BARREL NUTS
NUT
NUT
WASHER
WASHER
WASHER
WASHER
4” EYE
BOLT
4” EYE
BOLTS
Congratulations on purchasing this Bench Swing.
QUESTIONS REGARDING THIS PRODUCT? Call our customer service team, 1-800-344-6433.
INSTALLATION - Install the ceiling hooks in the overhead support. The hooks should be approximately 5 feet
apart. The supports can be ceiling joists, a sturdy limb, or a beam installed for the swing. A ready made stand
or instructions to build one are available, please inquire. If the ceiling joists are not exposed, locate one using a
stud finder. They are usually 16 to 25 inches apart. Once you find a suitable support, drill a 3/16” starter hole to
screw the ceiling hooks into and tighten until the shank is no longer visible. Do not adjust the chains as they are
properly connected and able to withstand approximately 500 lbs. of weight. We have replacement chain sets
available for sale if needed.
MAINTENANCE - Sunwax Penetrating Wood FeederTM is recommended as an added protection for wood from
insects and weather. It is ideal for cumaru, revitalizes the look of older wood and helps maintain wood’s original
hue. To clean rope use soap, detergent or a mild bleach solution. Use a soft bristled scrub brush to work on any
stains. Be sure to rinse the ropes thoroughly after cleaning.
WARRANTY & RETURNS - Pawleys Island products are guaranteed to be free of defects in both workmanship
and material. Prolonged exposure to weather conditions including snow, rain, and humidity are not covered
under the warranty, nor is damaged caused by normal wear, mildew, or improper care, including storage,
maintenance, and assembly. If you are not satisfied with an item, return it unused in its original packaging for a
complete refund or exchange. You can return it to any of our stores or to our warehouse, Nags Head hammocks,
305 Industrial Blvd., Greenville, NC 27834. Please include a copy of your receipt and your contact information.
