ASSEMBLY INSTRUCTIONS FOR THE
ANGEL'S TRELLIS SWING
866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the
Design Department; 7am –7pm Pacific Time, Monday-Saturday

P| 1
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
NOTE: Assembly is best done by two people. To assemble your product, you need a Hammer, a Ratch, a Drill, and an impact
drill.
PROCESS TO INSTALL THE HARDWARE PROVIDED.
Required Tools (Are not included in your hardware packing).
To install the bolts.
Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and
the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a
ratch with the necessary socket or a wrench.

P| 2
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
To install the lag bolts.
Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratch
with the necessary socket.
Use the washers only for the Wood Pieces.
To install the deck screws.
Insert the deck screws into the holes and carefully tighten it using a drill.

P| 3
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
CONTENT OF BOXES
Qty.
Description
Drawings
No.
4
Posts
1
2
Single Supports -A
2
2
Supports with In-
Between Blocking
3
4
Secondary Supports -B
4
4
Main Knee Braces
5
4
Secondary Knee Braces
6
4
Rafters
7
3
Lattice Panels
8
1
Trims
9
2
Polycarbonate
10
6
Rafter Top
11
11
Slats
12

P| 4
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
CONTENT OF BOXES
Qty.
Description
Drawings
No.
1
Backrest
13
2
Arms
14
1
Seat
15
4
Anchor Bases
16
4
Boots
17
Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers marked on the
parts sent.

P| 5
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
HARDWARE LIST
Qty.
Desciption
Drawing
No.
16
½” x 3 ½” anchor bolts
AB1
24
5/16” x 3” lag bolts
LB1
18
3/8” x 6 ¾” bolts
BL1
8
3/8” x 9” bolts
BL2
8
5/16” x 5 ½” bolts
BL3
6
5/16” x 3 ½” bolts
BL4
100
3” deck screws
DS1
10
4” deck screw
DS2
50
2´´ deck screws
DS3
2
3/8´´ x 4´´ eyebolts
EB1
Quick Links
QL
Springs
SP
Chains
CH
Note: Dimensions of your hardware will vary depending on size.

P| 6
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com

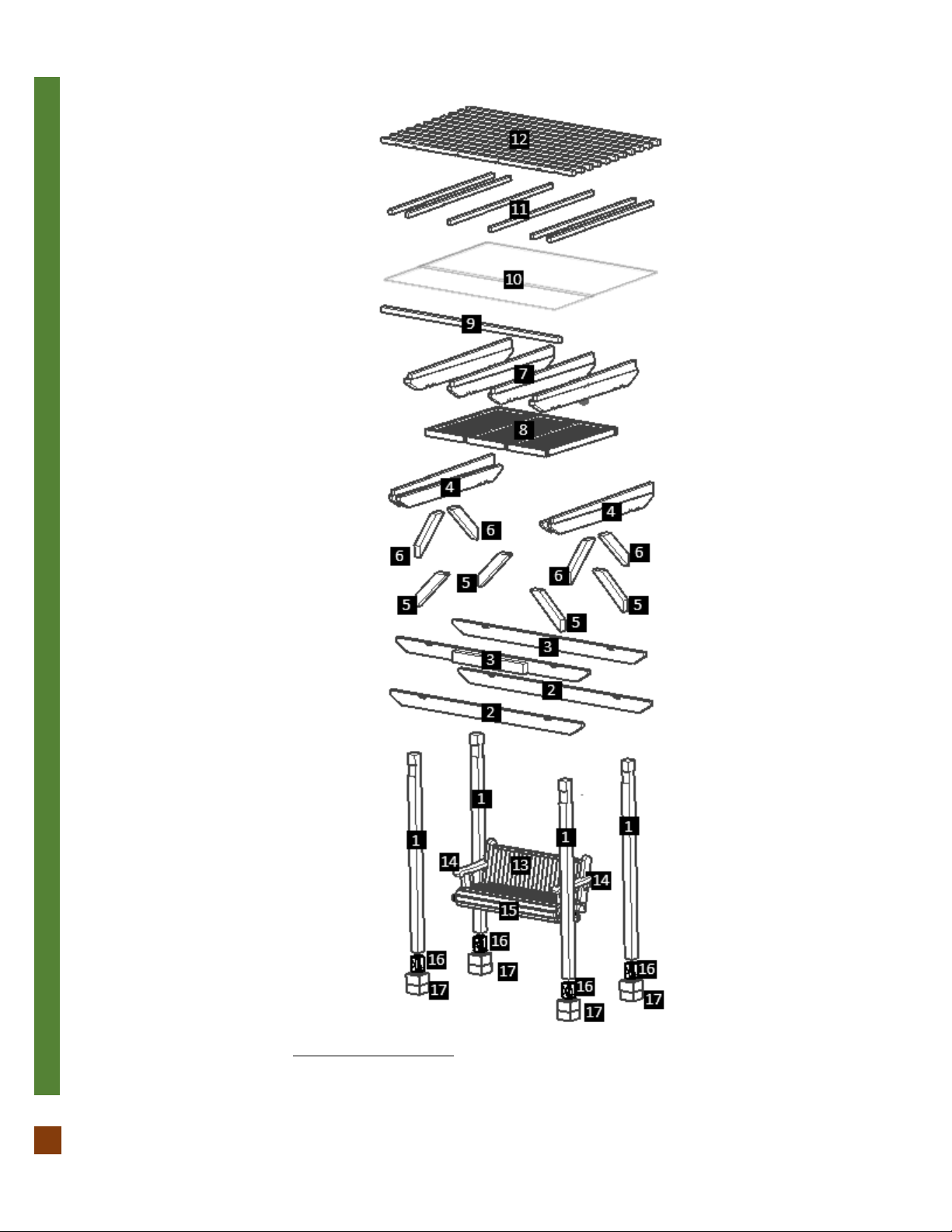

DESCRIPTION
No.
Posts
1
Simple Supports-A
2
Support with In-Between
Blocking
3
Simple Supports-B
4
Main Knee Braces
5
Secondary Knee Braces
6
Rafters
7
Lattice Panels
8
Trims
9
Polycarbonate
10
Rafter Top
11
Slats
12
Backrest
13
Arms
14
Seat
15
Anchor Bases
16
Boots
17

P| 7
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Note: Part numbers in the Content of Boxes Table are for reference only. These do not match to the numbers
marked on the parts sent.

P| 8
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place
the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet,
only place them on the ground to begin with”).
Note: Before install the anchor bases make sure that the ground is level using a carpenter's level or hydro-level (water level).
Step 1: Install the anchor bases (16)with ½” x 3 ½” anchor bolts (AB1). Please see the “How to anchor your pergola document”
for all details. Set your post (1) in the saddle of the anchor bases. Drill a ø ¼” hole in the post prior to anchoring to facilitate the
ratcheting of the hardware. After that, use 5/16” x 3” lag bolts (LB1) to attach each post to its respective anchor base.
Step 2: Use 3/8” x 6 ¾” bolts (BL1) to attach the simple support -A (2) to the posts (1). Check the marked numbers on each
single support and place as drawings shown.
Note: Don’t completely tighten yet the bolts –you will need the install the supports with in between blocking first.
BL1
1
1
2
BL1
1
1
16
2

P| 9
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com

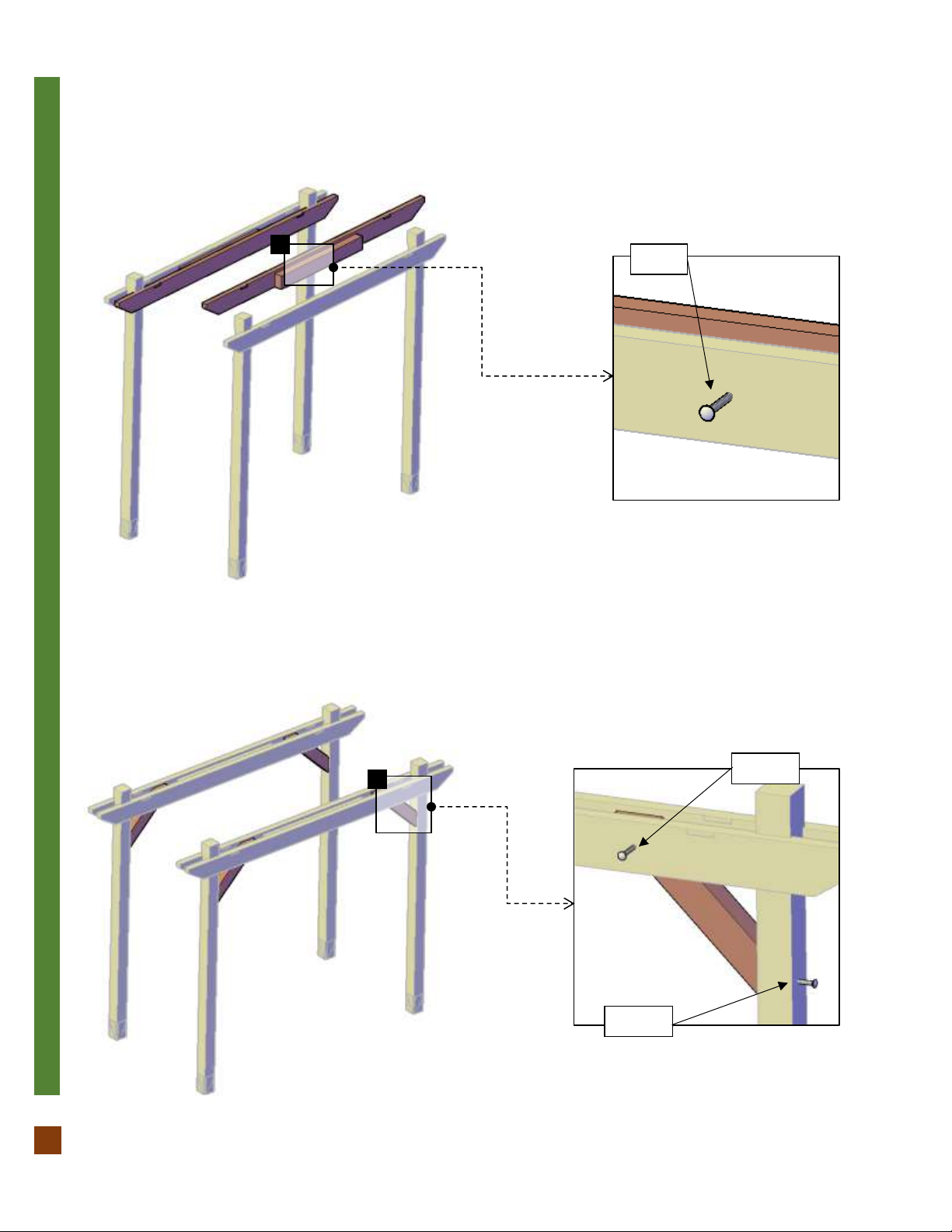

Step 3: Use 3/8” x 6 ¾” bolts (BL1) to attach the simple supports with in-between blocking-A (3) to the single support-A (2).
Check the marked on each support with in-between blocking and place as drawings shown.
Note: return to the bolts described in the step 2 and tighten fully to attach in-between blocking to the post.
Note: put silicone in the support with in-between blocking joins.
Step 4: Use 3/8” x 6 ¾” bolts (BL1) to attach the main knee brace (5) to the supports. After that use 3/8” x 9” bolts (BL2) to
attach the main knee brace (5) to the posts (1). Check the marked numbers on each main knee brace and place as drawings
shown.
BL1
BL1
5
3
BL2

P| 10
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Step 5: Use 5/16” x 5 ½” bolts (BL3) to attach the simple support-B (4) to the posts (1). Check the marked numbers on each
simple support-B support and place as drawings shown.
Step 6: Use 5/16” x 5 ½” bolts (BL3) with washers & nuts to attach the secondary knee brace (6) to the secondary supports (4)
and use 3/8” x 9”bolts (BL2) to the posts (1). Check the marked numbers on each secondary knee brace and place as drawings
shown.
4
BL3
BL3
BL2

P| 11
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Step 7: Attach the rafter (7) to the supports with 3” deck screws (DS1). Check the marked numbers on each secondary knee brace
and place as drawings shown.
Step 8: Put the Quick Links (QL)and the Springs (SP)in the hanger’s support. After that, put the chains (CH). Take a few
minutes to adjust the chain height to your preference.
DS1
7
Quick Link

P| 12
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Step 9: Attach the trims (9) to the rafter (4) and to the supports with 4” deck screw (DS2). Check the marked numbers on each
rafter top and place as drawings shown.
Step 10:Use 3” deck screws (DS1) to attach the lattice panel (8) to the supports. Check the marked numbers on each lattice panel
and place as drawings shown.
DS2
9
DS1
8

P| 13
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Step 11: Use 5/16” x 3 ½” bolts (BL4) to attach arms (14)to the seat (15). Check the marked numbers on each arms and place
as drawings shown.
Step 12: Attach the backrest (13) to the arms with 5/16” x 3 ½” bolts (BL4) with washer and nuts, and 3/8´´ x 4´´ eyebolts (EB1).
Each part has a series of numbers that indicate where to attach the part with the corresponding number.
EB1
13
BL4
14
14
15
BL4

P| 14
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Step 13: Use quick links (QL) to join the chair swing to the chains (CH).

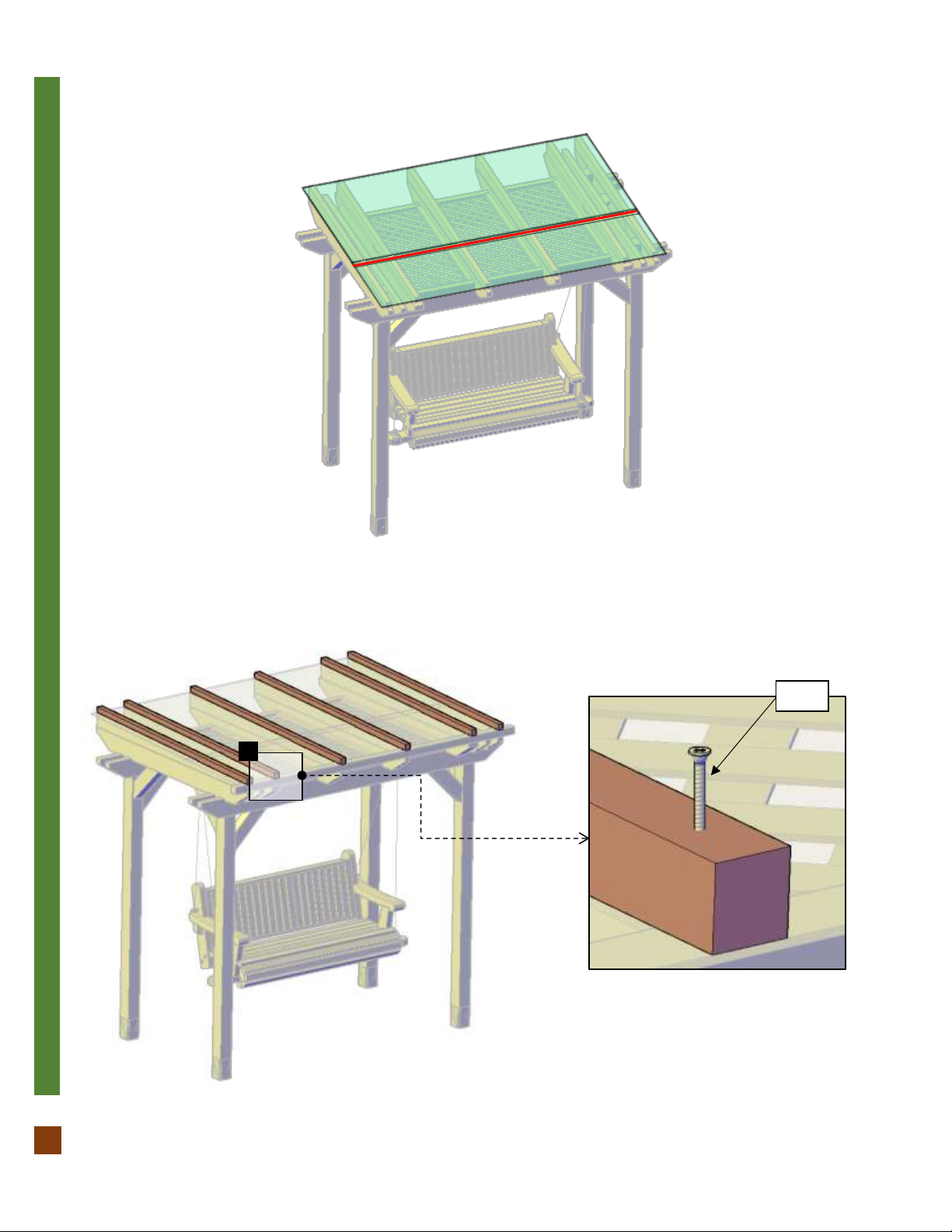

Step 14: Put the polycarbonate (10) from the bottom to the top, the overlapping between these it will be of 2´´. After that,
attach to the polycarbonate (10), use 2´´ deck screws (DS3) with neoprene washers. Check the marked numbers on each
polycarbonate and place as drawings shown.
DS3
10

P| 15
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Step 15: Put exterior clear silicone on the polycarbonate joins.
Step 16: Attach the rafter top (11) to the polycarbonate (10) & rafters (7), use 3´´ deck screws (DS1). Check the marked
numbers on each rafter top and place as drawings shown.
DS1
11

P| 16
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
Step 17: Attach the slat (12) to the rafter top (11), use 3´´ deck screws (DS1). Check the marked numbers on each slat and
place as drawings shown.
Step 18: Finally, use 3” deck screws (DS1) to attach the boot (17) to the posts (1).
DS1
DS1
12
17

P| 17
ANGEL'S TRELLIS SWING
www.ForeverRedwood.com
This completes the Face-to-Face assembly. Hope you enjoy your set for many decades. If you ever have a problem or a
question, don't hesitate to call us (866 332 2403) or email us. We are here to support you.
