Fisher-Price BFX34 User manual

1
BFX34
fisher-price.com
Side-to-side
Head-to-toe
IMPORTANT! Please keep these instructions for future reference.
Please read these instructions before assembly and use of this product.
Adult assembly is required. Assembly instructions on back side of this sheet.
Tool needed for assembly: Phillips screwdriver (not included).
Requires four D (LR20) alkaline batteries for operation (not included)
for battery operated use. Battery installation instructions are on page 8.
Requires an AC adapter (input 120 - 240 VAC, 50 - 60Hz,
with an output of 6 VDC) for operation (included) for battery-free operated use.
Product features and decorations may vary from photographs.

2
©2013 Mattel. All Rights Reserved.
PRINTED IN CHINA BFX34pr-0920
Storage & Care Consumer Information
• Press the buttons on each hub and push
the bases together for storage.
• Lean the swing frame against a wall
for storage.
• To remove the pad, unbuckle the restraint
system and the straps under the seat. Pull to
remove the pad.
• Machine wash the pad in cold water with
a mild detergent. Do not use bleach. Tumble
dry on low heat and remove promptly.
• To clean the frame, restraint system and
mobile, use a mild cleaning agent and
damp cloth. Rinse with clean water to
remove residue.
• To replace the pad, follow the
assembly instructions.
• Periodically check the swing for loose
fasteners or broken parts and tighten
as needed.
PRESS
PRESS
PRESS
PRESS
UNITED STATES
1-800-432-5437. Fisher-Price, Inc.,
636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers:
1-800-382-7470.
IMPORTANT! Remove the batteries for
long-term storage.

3
Consumer Information
WARNING
Prevent serious injury or death from falls or strangling in the
restraint system:
• Never leave child unattended.
• This product is not intended to replace a crib or bassinet for prolonged
periods of sleep.
• Always use the restraint system.
• Discontinue use when an active child attempts to climb out.
• Never use on any elevated surface. Use only on a floor.
IMPORTANT! The weight limit for this product is 25 lb (11,3 kg). If your child weighs less
than 25 lb (11,3 kg), but is really active and appears to be able to climb out of the swing,
immediately discontinue its use.
• Always use the swing where there is adequate ventilation. To prevent overheating, keep
the swing away from heat sources such as radiators, heat registers, direct sunlight,
stoves, amplifiers, or other appliances which produce heat.
• Never use extension cords with the AC adapter.
• Never use the swing near water (ie.: bathtub, sink, laundry tub or wet basement, etc.).
• Do not connect to more than the recommended number of power supplies.
• The product must only be used with the recommended AC adapter.
• The AC adapter is not a toy.
• Disconnect the AC adapter from the swing before cleaning.
• This product comes with replacement warning labels which you can apply over the
factory applied warning label if English is not your primary language. Select the warning
label with the appropriate language for you.
• Este producto viene con etiquetas de advertencia en español que puede pegar sobre las
etiquetas de fábrica, en caso de que el inglés no sea su idioma primario. Seleccione las
etiquetas de advertencia en el idioma de su elección.
IMPORTANT! Before each use or assembly, inspect this product for damaged hardware,
loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or
broken. Contact Fisher-Price®for replacement parts and instructions if needed. Never
substitute parts.

4
1

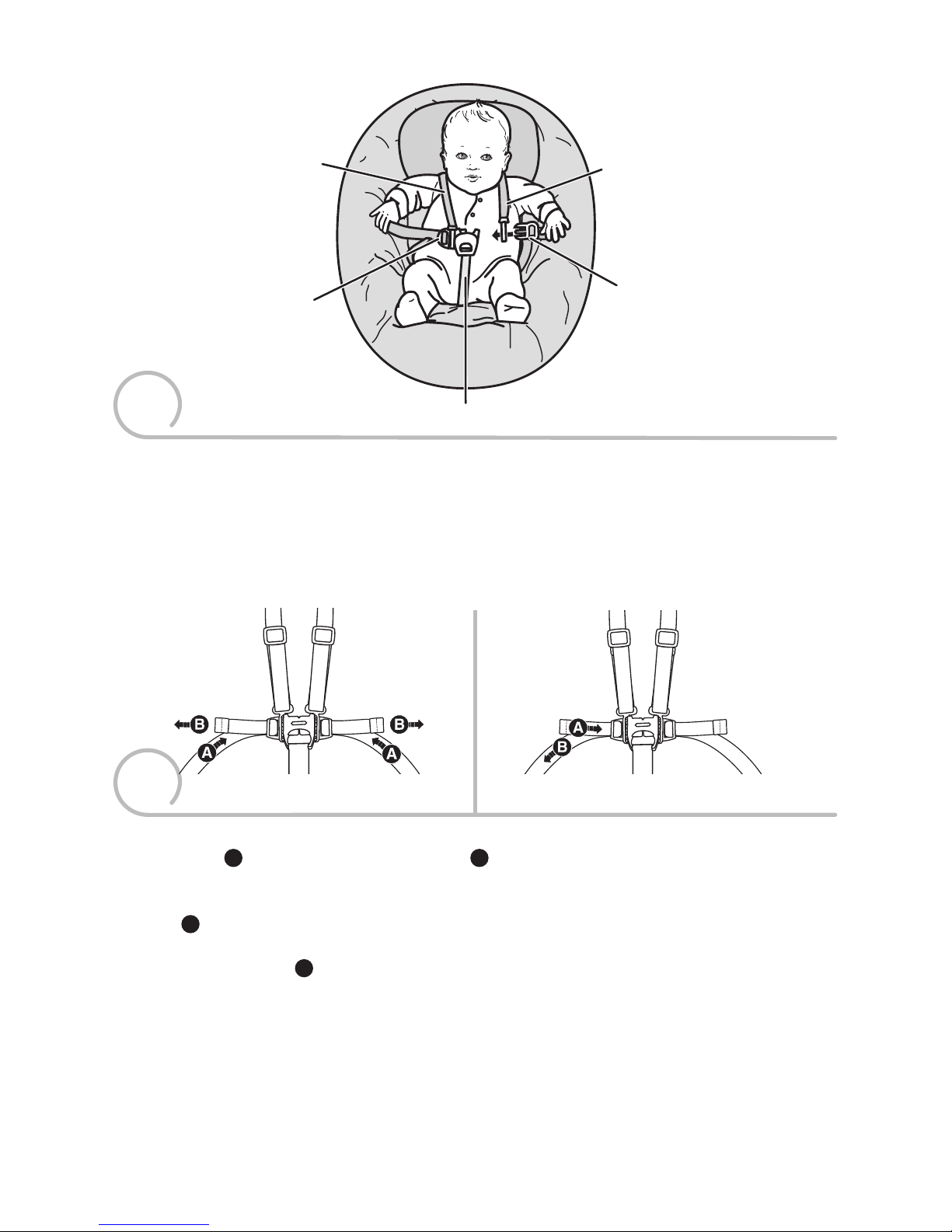

• Place your child in the seat. Position the crotch belt between your child’s legs.
• Insert the ends of the waist belts through the slots in the shoulder belts.
• Fasten the waist/shoulder belts to the crotch belt. Make sure you hear a "click" on both
sides.
• Tighten each waist belt so that the restraint system is snug against your child. Please
refer to the next section for instructions to tighten the waist belts.
Crotch Belt
Waist Belt
Waist Belt
Shoulder Belt Shoulder Belt
Using the Restraint System
2

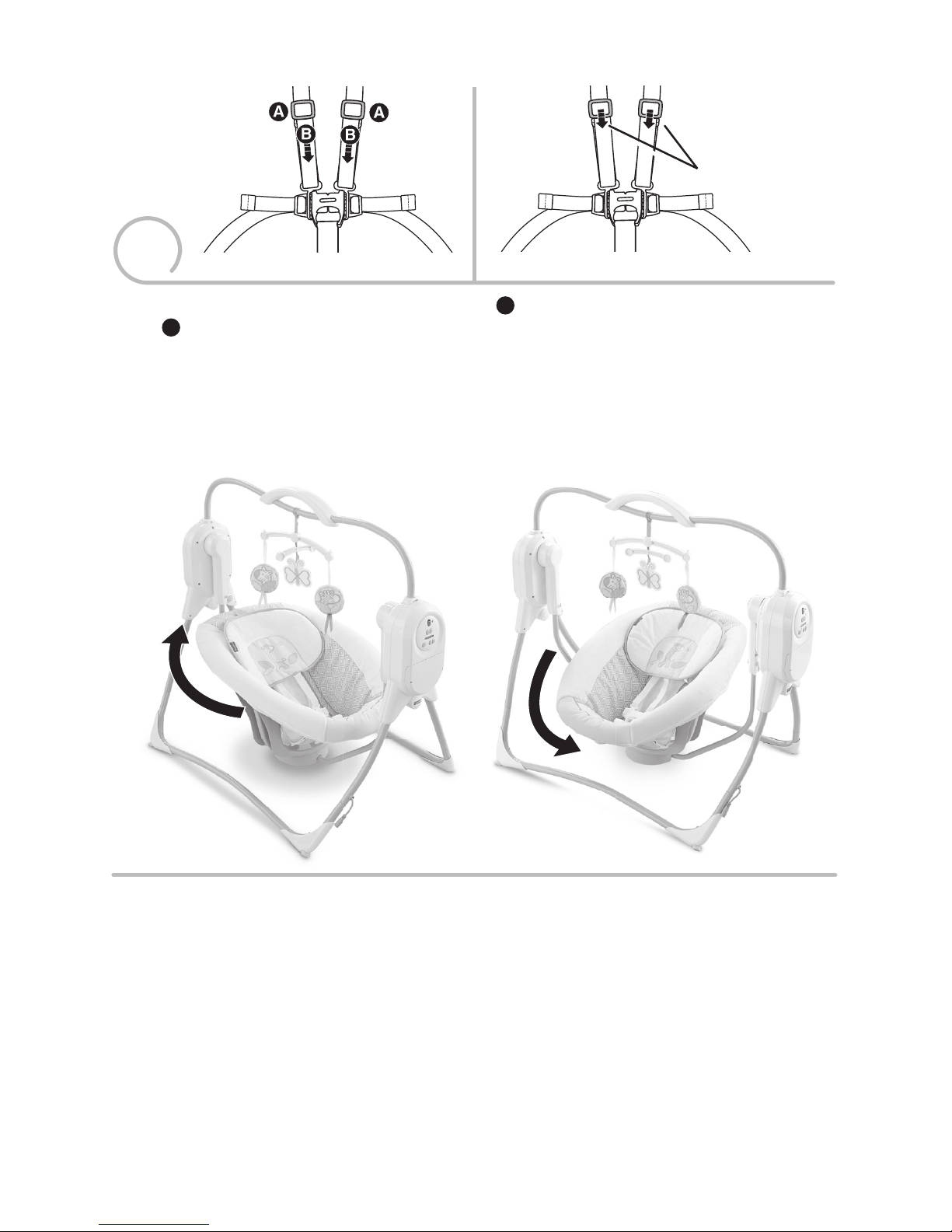

• To tighten the waist belts: Feed the anchored end of the belt up through the buckle to
form a loop A. Pull the free end of the belt B. Repeat this procedure to tighten the
other belt.
• To loosen the waist belts: Feed the free end of the belt up through the buckle to form
a loop A. Enlarge the loop by pulling on the end of the loop toward the buckle. Pull the
anchored end of the belt to shorten the free end of the belt. Repeat this procedure to
loosen the other belt B.
LOOSEN
TIGHTEN

5
2 Swinging Motions

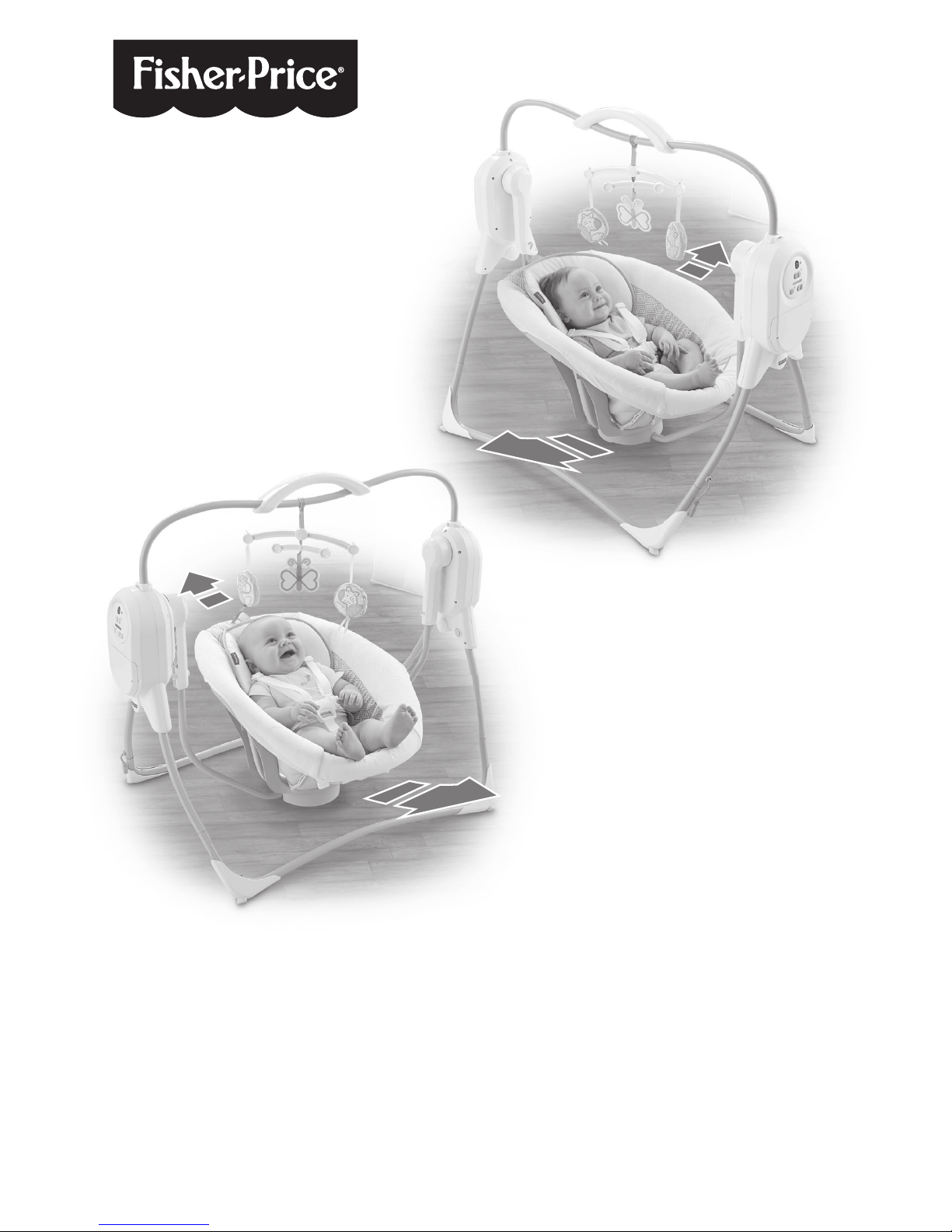

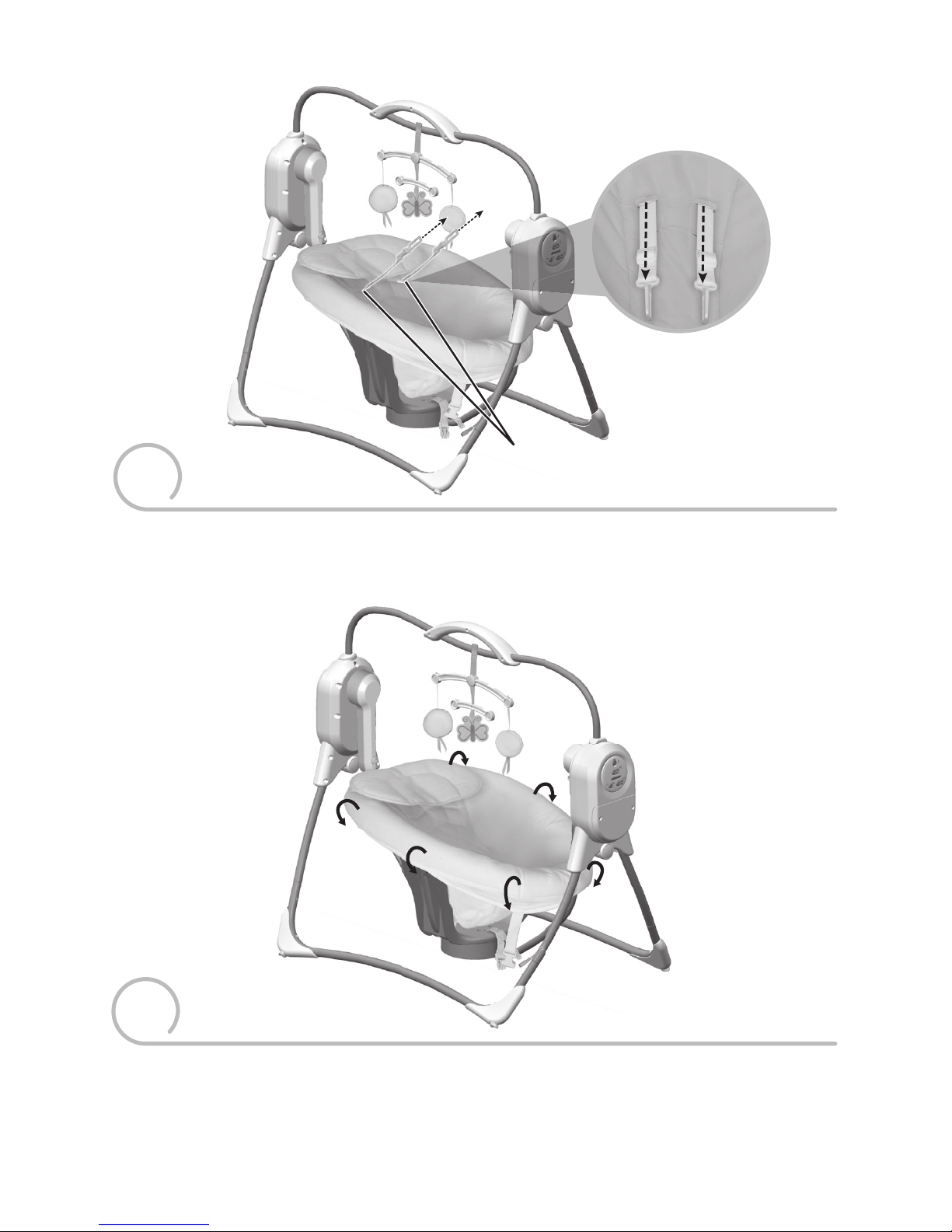

• Adjust the seat for side-to-side or head-to-toe swinging. Rotate the seat to the
desired position.
To tighten the shoulder belts: Hold the adjuster Aand pull the front shoulder strap
down B.
To loosen the shoulder belts: Slide the adjuster down.
Note: After adjusting the belts to fit your child, make sure you pull on them to be sure they
are securely fastened.
3TIGHTEN
Adjusters
LOOSEN
Using the Restraint System
Turn the seat for
side-to-side swinging.
Turn the seat for
head-to-toe swinging.

6

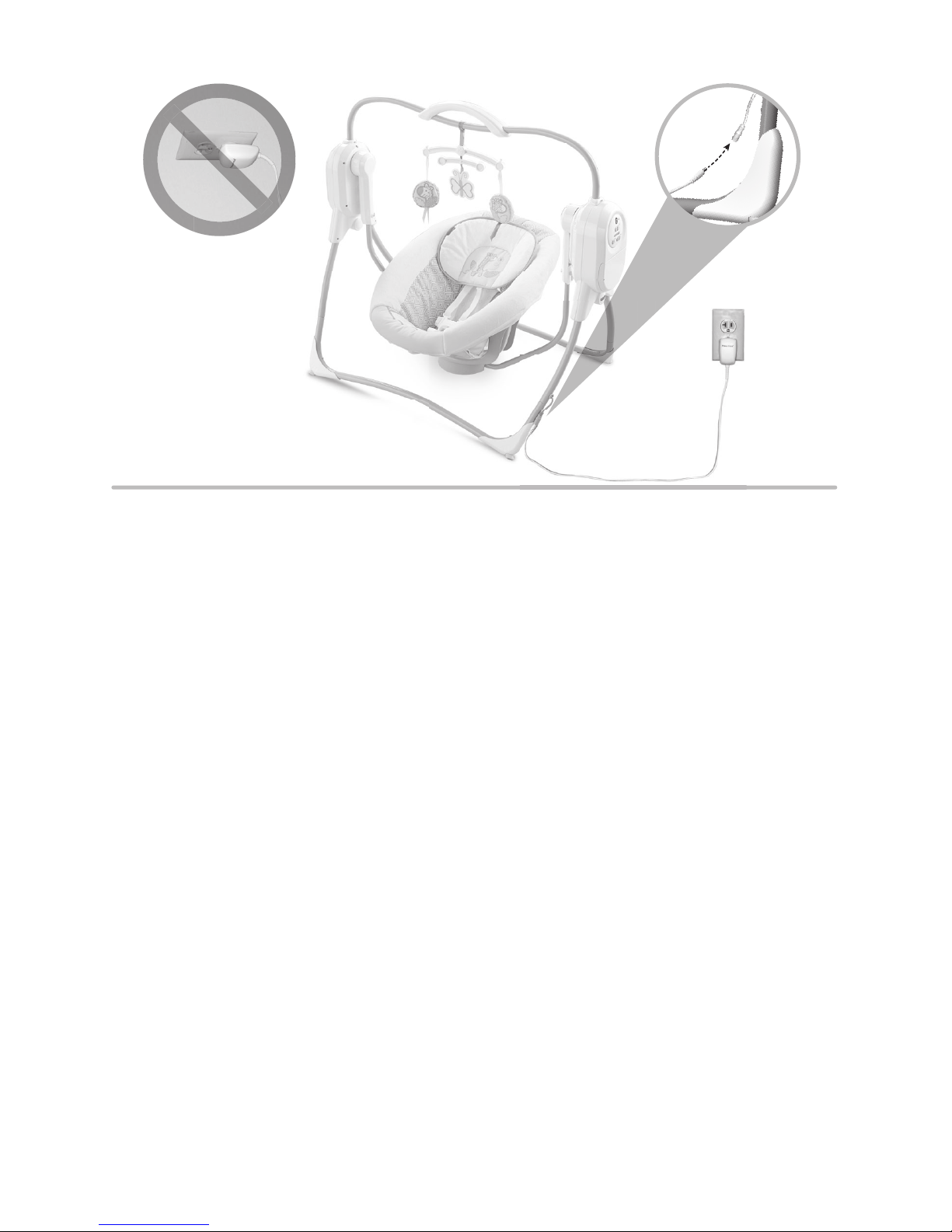

• Place the swing near a standard wall outlet.
• Plug the AC adapter into the power cord extending from the base. Plug the AC adapter
into the wall outlet.
• Use the AC adapter only in a wall outlet. Do not plug the adapter into a ceiling outlet.
Hint: The power AC adapter cord is designed to easily disconnect if stepped on
accidentally. Simply plug the AC adapter cord back into the power cord extending from
the base.
• The swing also operates on battery power. To install batteries, please refer to the Battery
Installation section on page 8.
AC Adapter for Battery-Free Operation

7
Swing

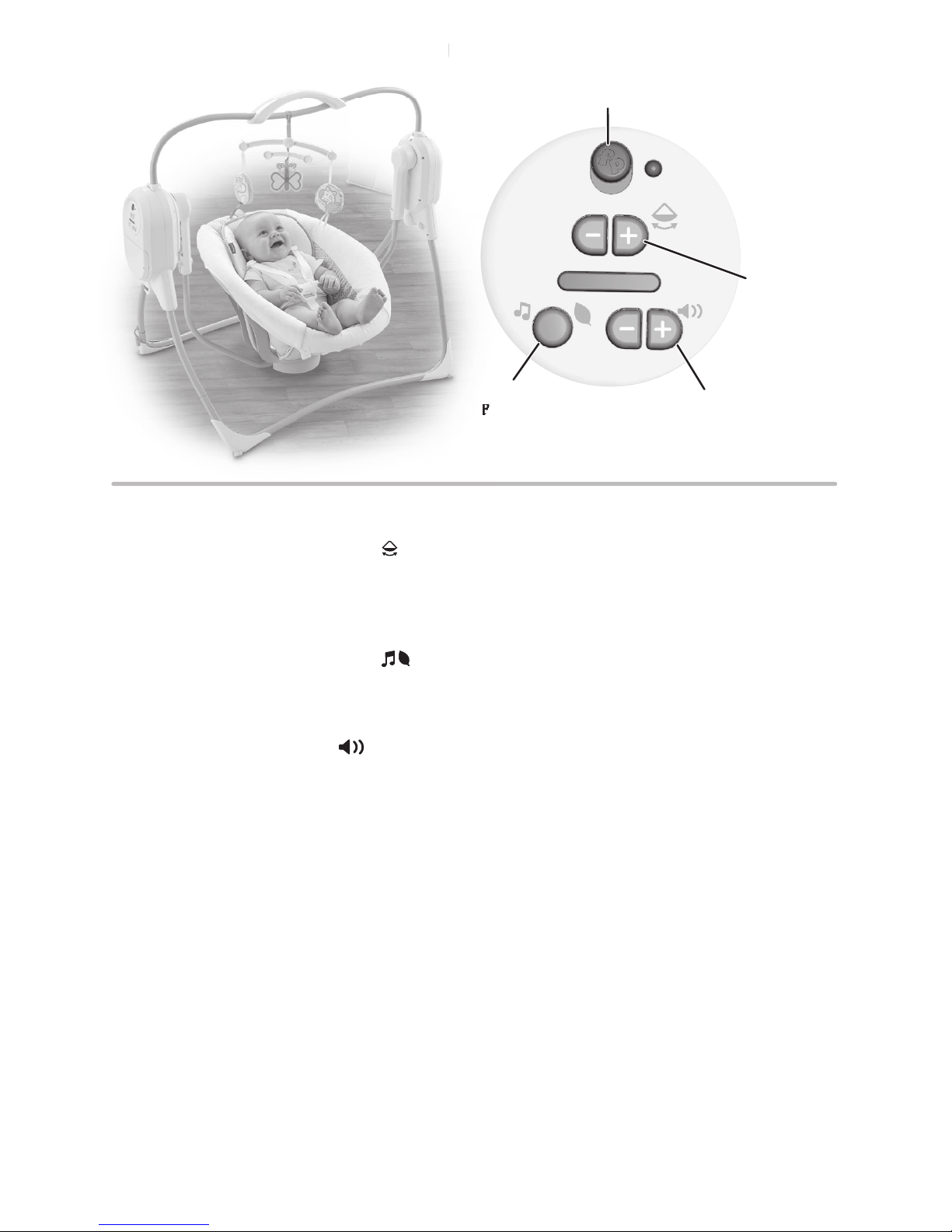

• Slide the power switch ON.
• Press the swing speed buttons to select any of six speed settings.
• Swinging will turn off after approximately four hours. Press a swing speed button
to restart.
• Be sure to slide the power switch OFF when not in use.
Music and Sounds
• Press the music/sounds button to turn music/sounds ON. Press the button again to
turn music/sounds OFF.
Hint: Music/sounds will turn off after approximately 20 minutes. Press the music/sounds
button to restart.
• Press the volume buttons to adjust the volume level.
Use
Power Switch
Swing Speed
Buttons
Music/Sounds
Button Volume Buttons
U
s
e
Mu
Mu
B
Bu

8
Battery Installation
1,5V x 4
D (LR20)
• Protect the environment by not disposing of this product with household waste
(2002/96/EC). Check your local authority for recycling advice and facilities.

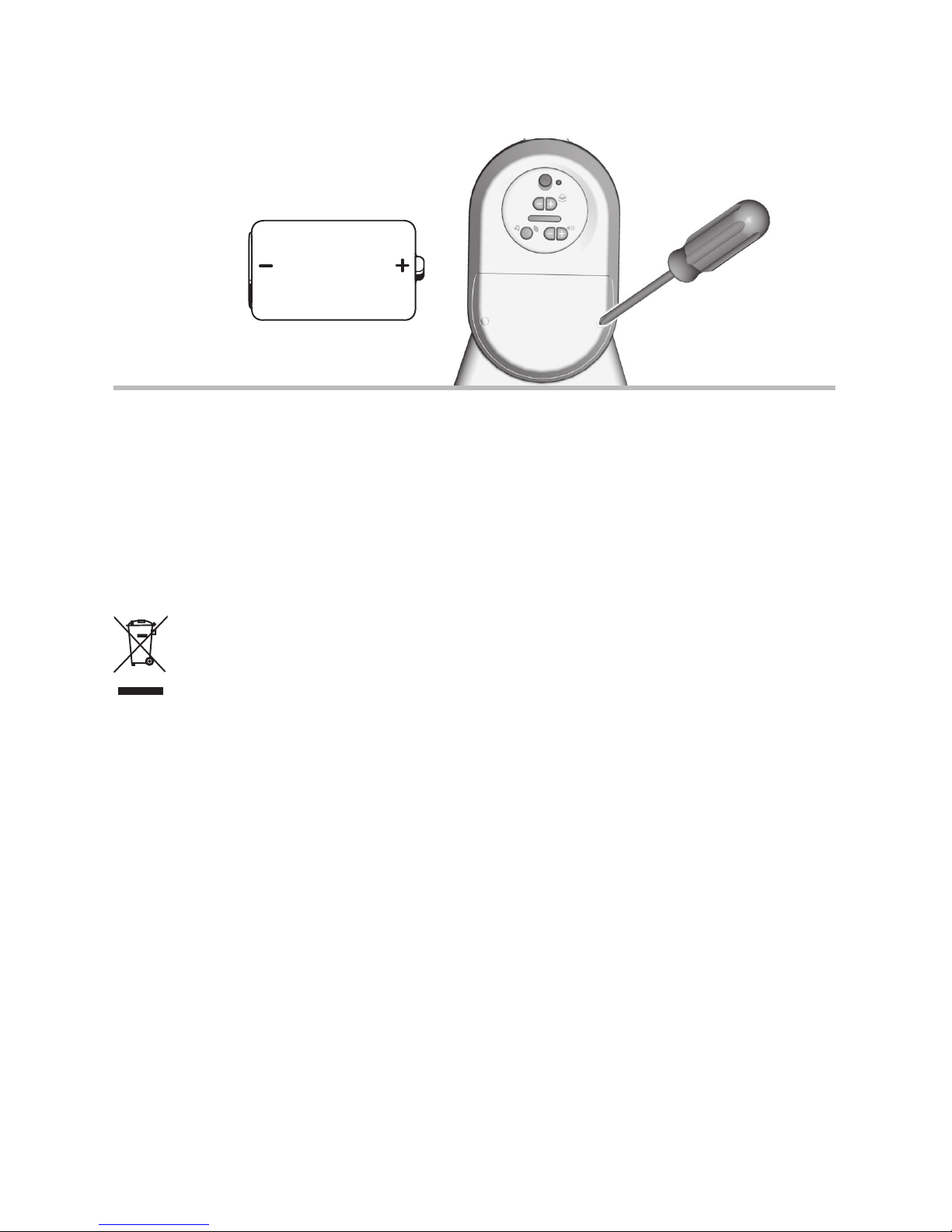

• Loosen the screws in the battery compartment door with a Phillips screwdriver and
remove the battery compartment door.
• Insert four D (LR20) alkaline batteries into the battery compartment.
• Replace the battery compartment door and tighten the screws.
• If the swing begins to operate erratically, you may need to reset the electronics. Slide the
power switch off and back on.
Note: Low battery power may cause product movement to slow, sound to become faint or
product to turn off all together. If this should happen, use the AC adapter as a power source
or replace the batteries. Replace the batteries with four alkaline D (LR20) batteries.
Hint: Install batteries if you need to use this swing away from an outlet. We recommend
using alkaline batteries for longer battery life.
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that can cause a chemical burn
injury or ruin your product. To avoid battery leakage:
• Do not mix old and new batteries or batteries of different types: alkaline, standard
(carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove exhausted batteries
from the product. Dispose of batteries safely. Do not dispose of this product in a fire. The
batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be charged under
adult supervision.

9
Parts

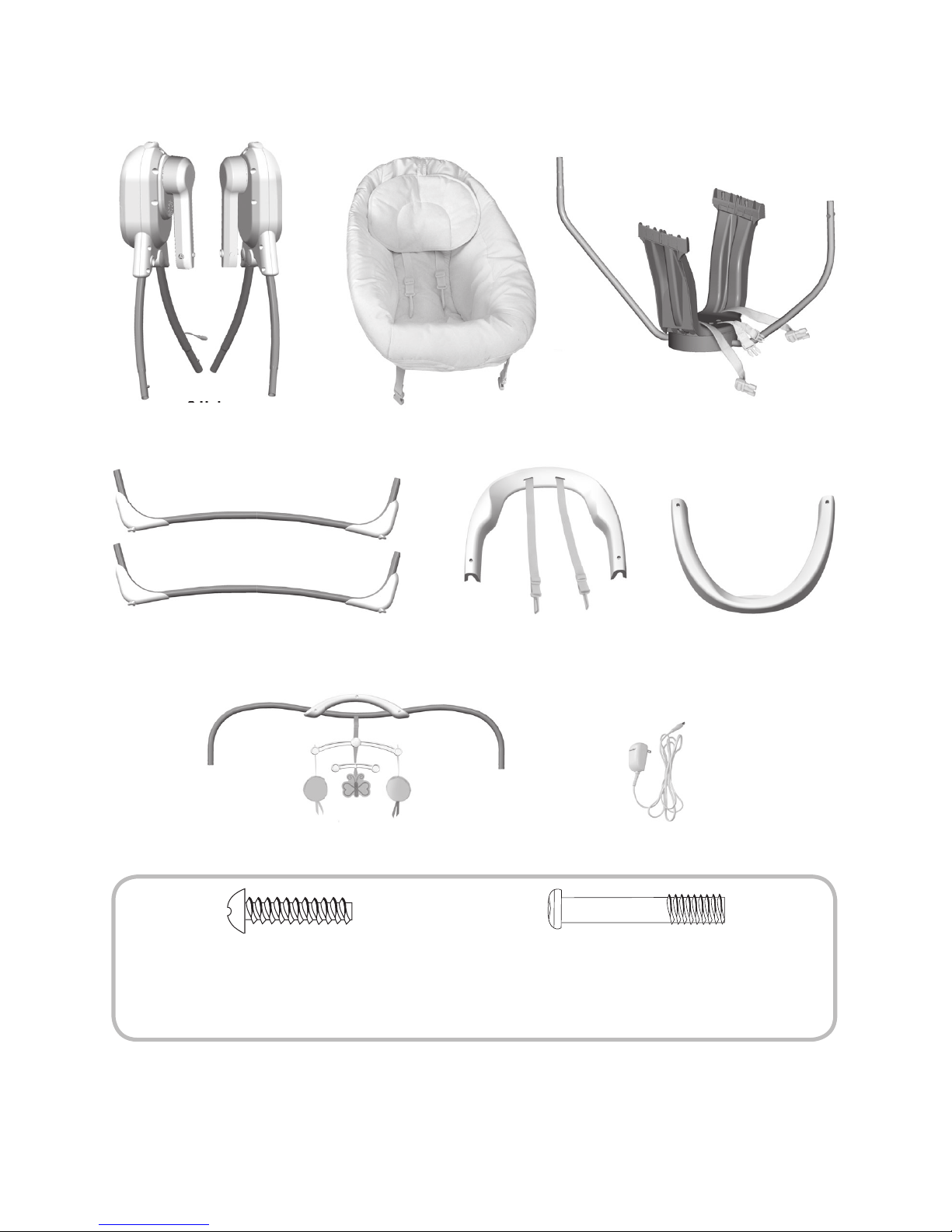

Please remove all parts from the package and identify them before assembly.
Some parts may be packed in the pad.
2 Hubs
Seat Bottom2 Bases
Handle
Seat Pad
Seat Back
Seat Base
#8 x ¾" (1,9 cm) Screw - 4 M5 x 31 mm Screw – 4
Note: Tighten or loosen all screws with a Phillips screwdriver.
Do not over-tighten the screws.
Seat Pad
S
tB
AC Adapter
2H
b

10
Assembly
1

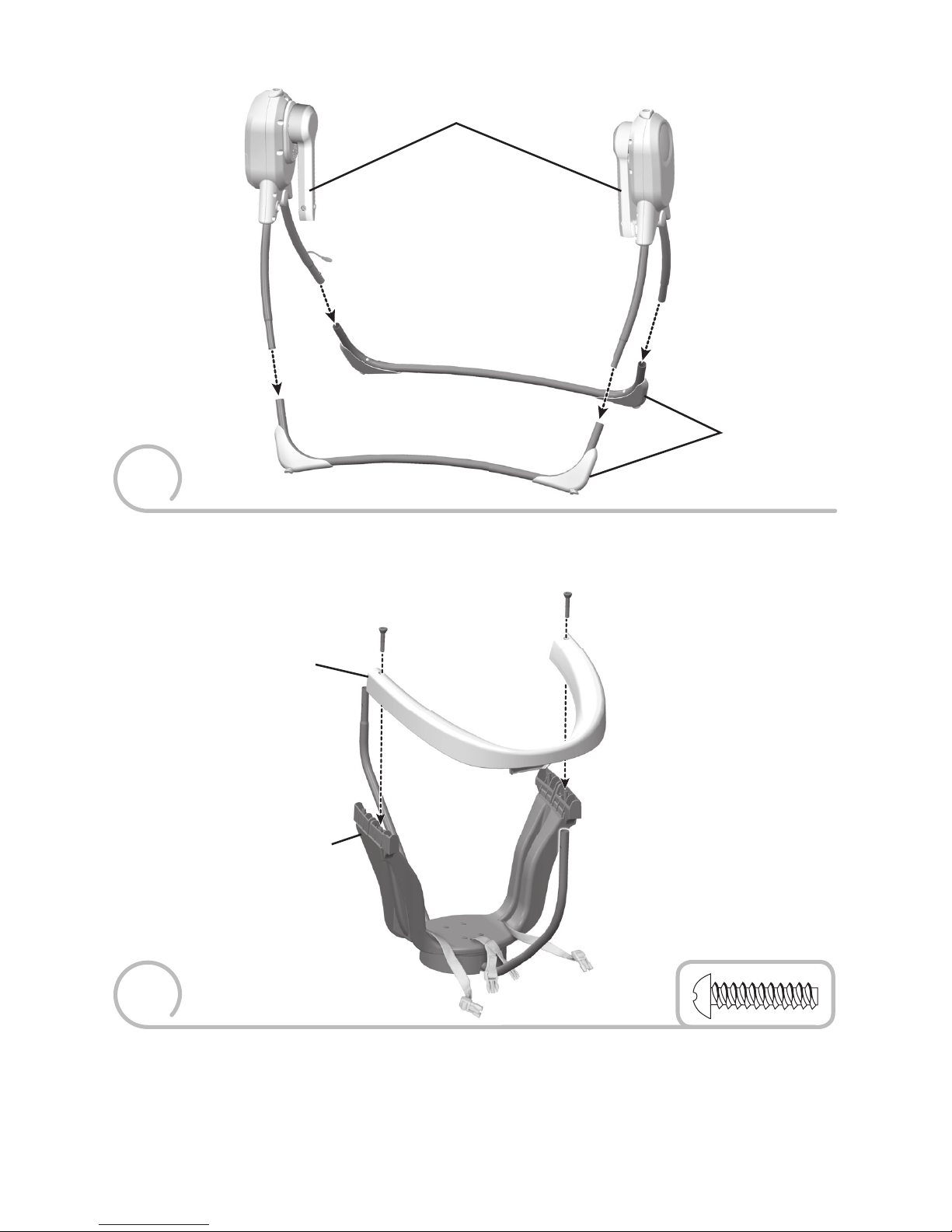

• Fit the tubes on the hubs into the tubes on the bases.
Hint: When assembled properly, the hub arms should face each other.
Hub Arms
Bases

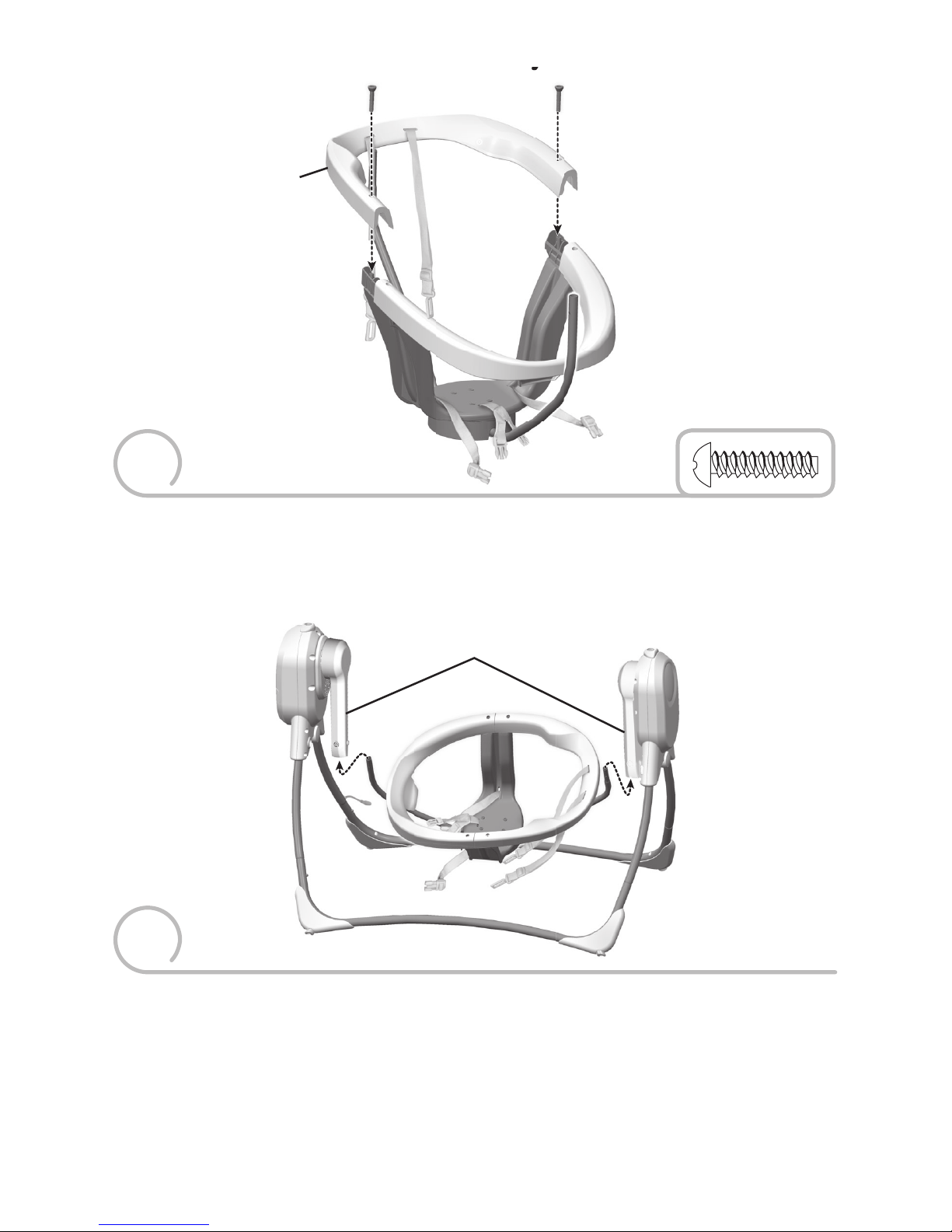

• Fit the seat bottom onto the seat base.
Hint: The seat bottom is designed to fit onto the seat base one way. If it does not seem to
fit, turn it around and try again.
• Insert two #8 x ¾" (1,9 cm) screws into the seat bottom and tighten.
2
Seat Bottom
Seat Base

11
Assembly
3
• Fit the seat back onto the seat base.
Hint: The seat back is designed to fit onto the seat base one way. If it does not seem to fit,
turn it around and try again.
• Insert two #8 x ¾" (1,9 cm) screws into the seat back and tighten.
y
Seat Back
• Turn the seat assembly sideways.
• Fit the seat assembly tubes up into the sockets in the hub arms.
Hint: The seat assembly is designed to fit one way. If it does not seem to fit, turn it around
and try again.
4
Hub Arms

12
Assembly

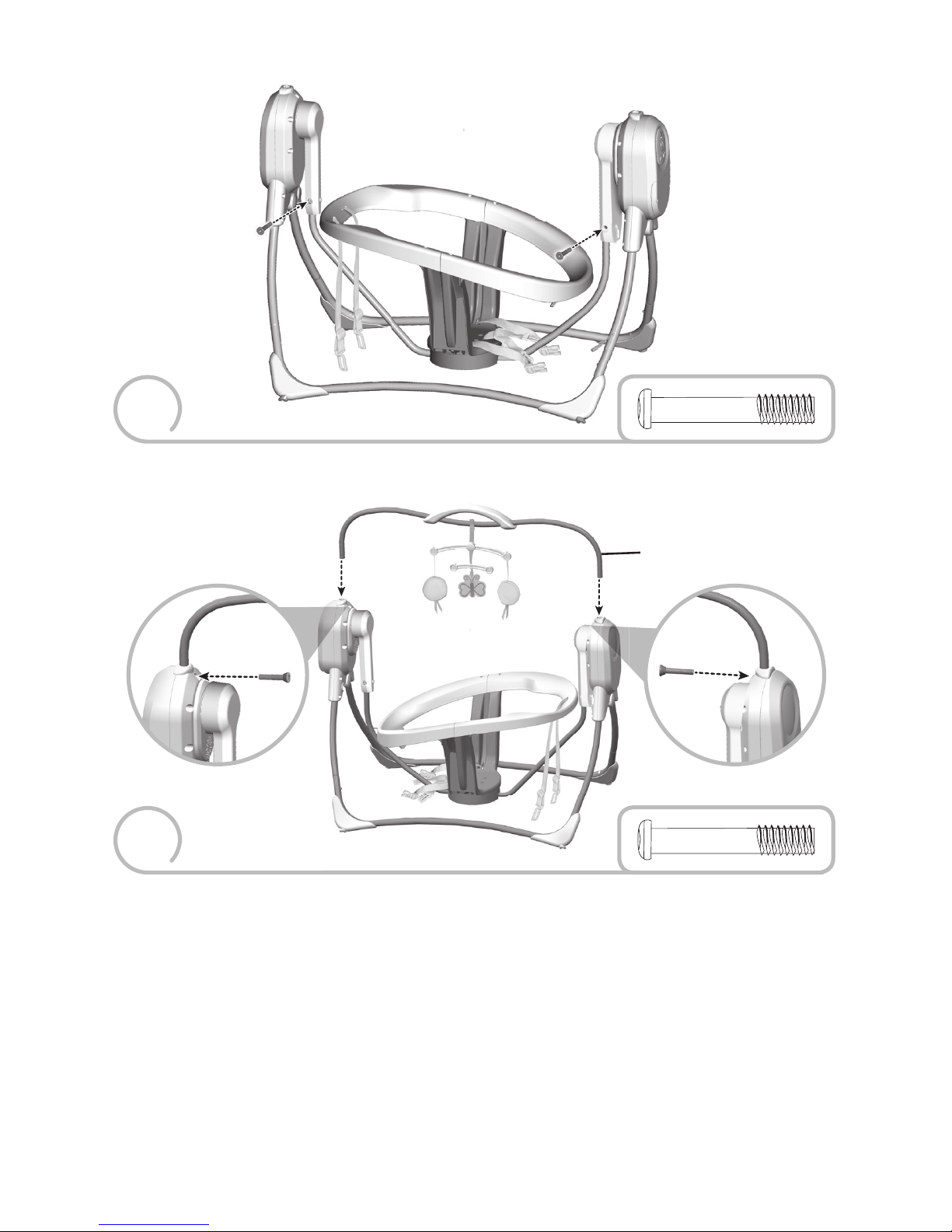

• Insert an M5 x 31 mm screw into each hub arm and tighten.
5
• Fit the ends of the handle into the socket in each hub.
• Insert an M5 x 31 mm screw into each hub and tighten.
6
Handle

13
Assembly
7

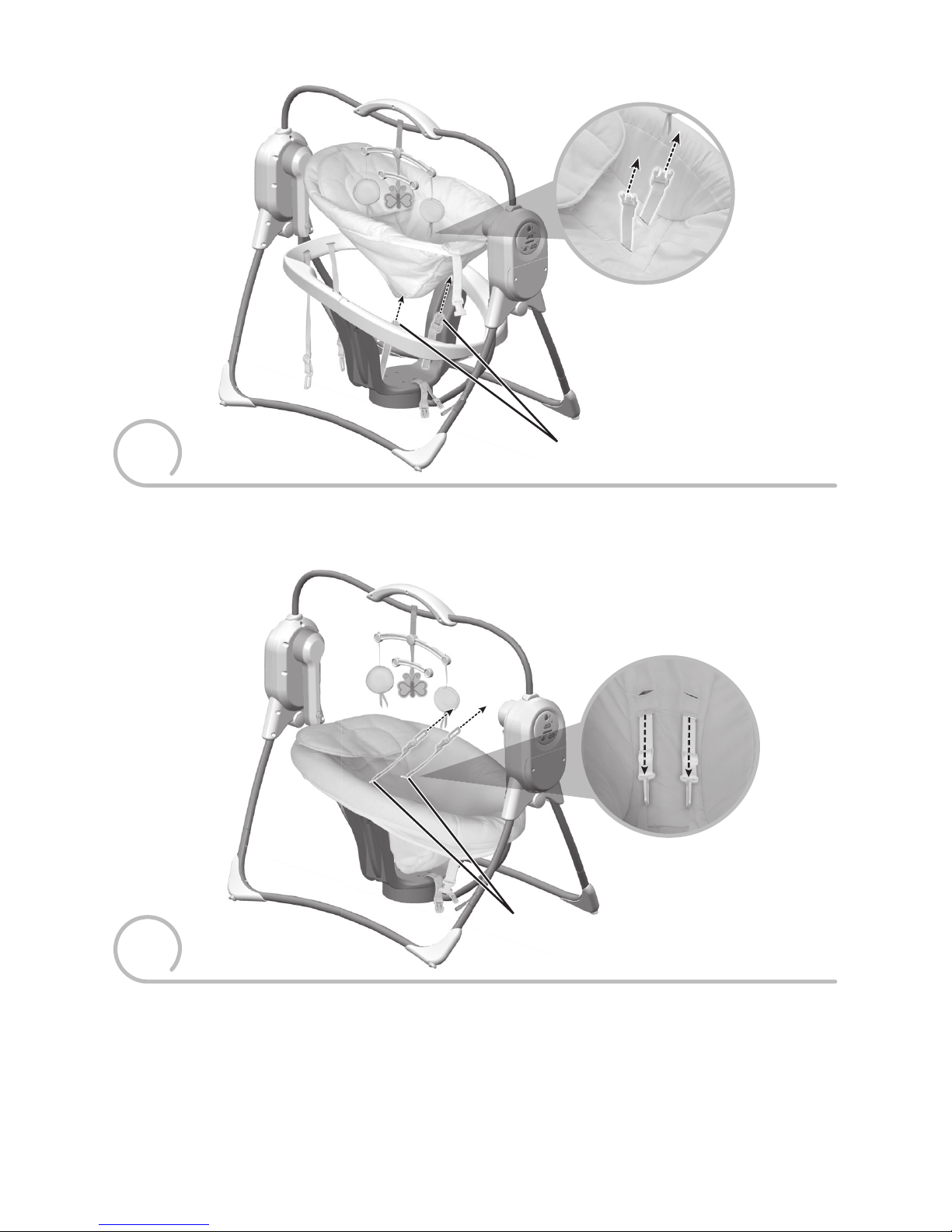

• Insert the waist belts through the lowest slots in the seat pad. Make sure the waist belts
are not twisted.
Smaller Baby
• Insert the ends of the shoulder belts through the lower slots in the seat pad back. Make
sure the shoulder belts are not twisted.
8Shoulder Belts
Lower Slots
Waist Belts
LOWEST SLOTS
LOWER SLOTS

14
Assembly
Larger Baby
• Insert the ends of the shoulder belts through the upper slots in the seat pad back. Make
sure the shoulder belts are not twisted.
9Shoulder Belts
Upper Slots
10
• Fit the pad edges around the rim of the seat.
UPPER SLOTS

15
Assembly
11

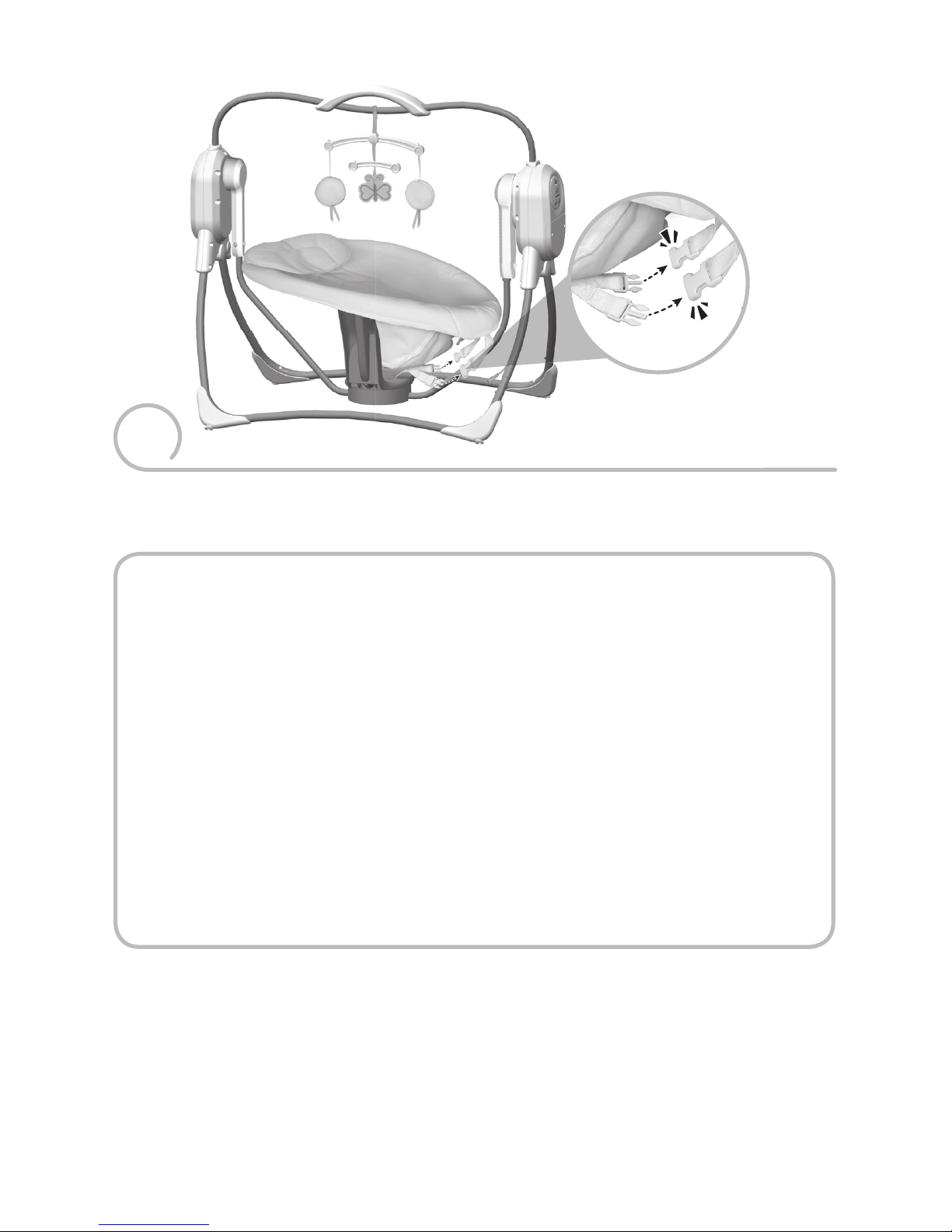

• Fasten the buckles on the front of the seat pad to the buckles on the seat bottom. Make
sure you hear a “click”.
Adults Note: If you use this product with
the AC adapter, periodically examine
the AC adapter for damage to the cord,
housing or other parts that may result in
the risk of fire, electric shock or injury.
If the AC adapter is damaged, do not use
the product with the AC adapter. Use
batteries as the power source.

16
FCC Statement (United States Only)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modifications not expressly approved by the manufacturer responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
ICES-003
This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NMB-003
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à
accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
Consumer Information
