Pawleys Island COASTAL DURAWOOD DELUXE DOUBLE PORCH SWING User manual

COASTAL COLLECTION DURAWOOD
DELUXE DOUBLE PORCH SWING
INSTRUCTIONS
1. (2) FRONT ARM SUPPORTS
2. ARMS
a. Left
b. Right
3. (2) BACK ARM SUPPORTS
4. TABLE ASSEMBLY
5. (2) FRONT TABLE LEGS
6. (2) BACK TABLE LEGS
7. 2 OUTSIDE UPRIGHTS
8. CENTER UPRIGHTS
• RUBBER MALLET
• PHILLIPS HEAD
SCREWDRIVER
• 1/2” Wrench
• Allen Wrench
1. BARREL BOLTS:
(4) 1.5”, (8) 2.5”, (2) 3”, (7) 4”, (4) 4.5”
2. BARREL NUTS: (25)
3. Hex Key (Not Shown)
• CHAIN SETS: (2)
Eye Bolts, nuts, and washers attached
HARDWARE PACK
CHAIR PARTS
CHAIN SET SUGGESTED TOOLS
LONG
CHAIN
FRONT
SHORT
CHAIN
FRONT
5.5” EYE
BOLT
4” EYE
BOLT
1.
1.
3.
2a.
4. 7.
2b.
5.
6.
8.
2.
NOTE. Add chains after
completeing assembly.
NOTE. Instructions not to scale.

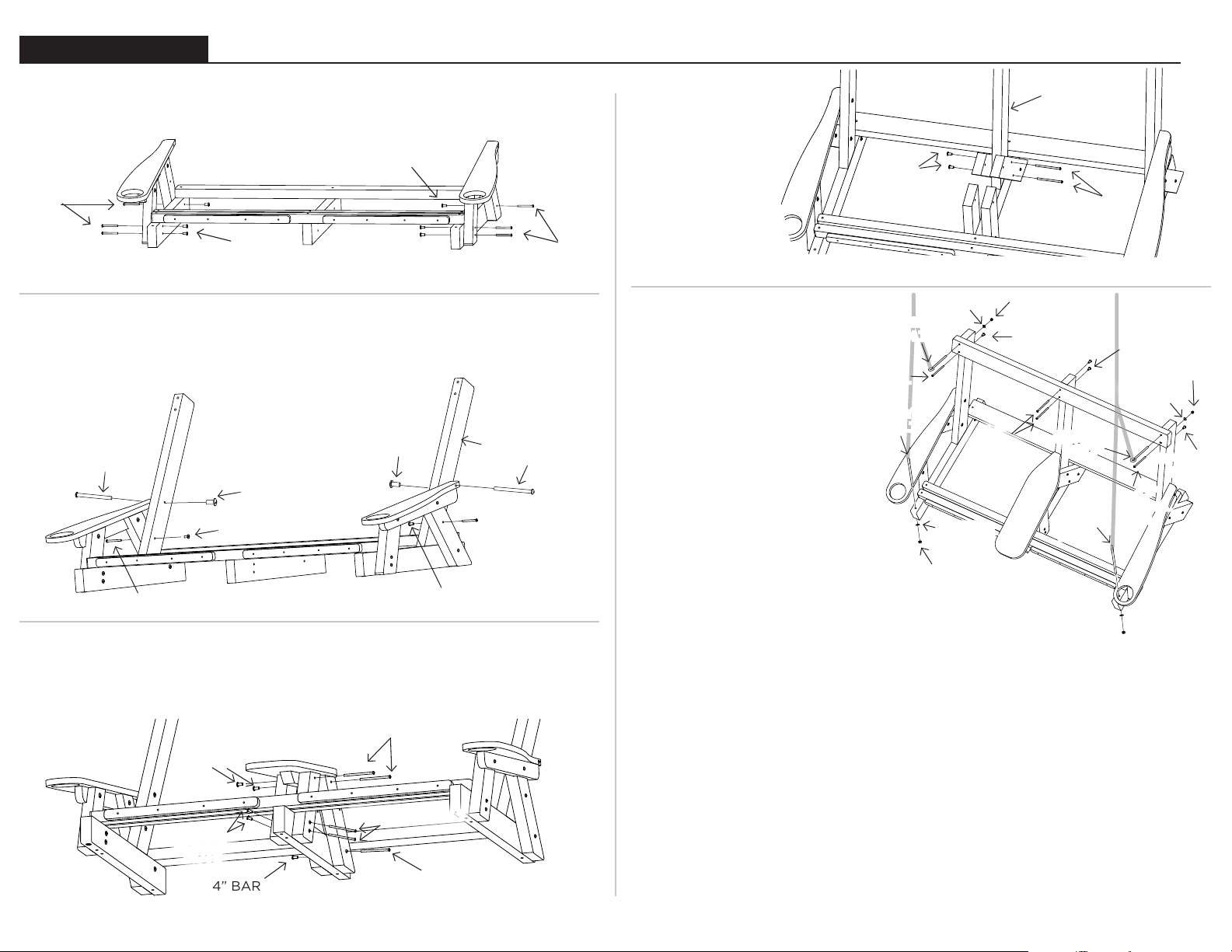

ASSEMBLY
STEP 1. Use (4) 1.5” barrel bolts and (4) barrel nuts to attach
left arm and right arm to rear and front arm support.
NOTE. do not tighten bolts until Step 5.
1.5” BARREL BOLT
BARREL NUT
1.5” BARREL BOLT

WASHER
WASHER
WASHER
STEP 5. Add the
center upright and
use (2) 4” barrel
bolts and (2)
barrel nuts to the
back table legs.
(Tabletop hidden
to see assembly of
hardware)
ASSEMBLY
5.5” EYE
BOLT
5.5” EYE
BOLT
4” EYE
BOLT
4” EYE
BOLT
STEP 6. Attach (4) 4.5” barrel
bolts, (4) barrel nuts in center
beam. (Eye bolts go on
outsides) Attach chain set to
top of uprights using (2) 5.5”
eyebolts (short chain) and to
front of frame using (2) 4”
eyebolts (long chain). Tighten
all barrel bolt assemblies and
nuts on chain set.
STEP 2. Use (6) 2.5” barrel bolts and (6) barrel nuts
to attach arm assemblies to outside of frame.
BARREL NUT
BARREL NUT
2.5” BARREL
BOLT
2.5” BARREL
BOLT
STEP 3. Use (2) 2.5” barrel bolts and (2) barrel nuts to attach
frame to left and right supports. Use (2) 3” barrel bolts and (2)
barrel nuts to attach left and right uprights to arms.
BARREL NUT
BARREL NUT
BARREL
NUT
BARREL NUT 2.5” BARREL BOLT
3” BARREL BOLT
3” BARREL BOLT
2.5” BARREL BOLT
4” BARREL BOLT
BARREL
NUT
4” BARREL
NUT
BARREL
NUTS
4” BARREL BOLT
4” BARREL BOLT
STEP 4. Use (2) 4” barrel bolts and (2) barrel nuts to attach front table
legs to center beam. Use (1) 4” barrel bolt and (1) barrel nut to attach
back table legs to center beam. Then add table top and use (2) 4” barrel
bolts and (2) barrel nuts to attach table legs to bottom of table.
4.5”
BARREL
BOLT
4.5”
BARREL
BOLT
BARREL
NUT
BARREL
NUT
4.5”
BARREL
BOLT
BARREL
NUT
NUT
NUT
NUT
Congratulations on purchasing this Original Cumaru Rope Porch Swing. QUESTIONS REGARDING THIS PRODUCT?
Call our customer service team,
1-800-344-6433.
INSTALLATION - Install the ceiling hooks in the overhead support. The hooks should be approximately 5 feet apart.
The supports can be ceiling joists, a sturdy limb, or a beam installed for the swing. A ready made stand or instructions
to build one are available, please inquire. If the ceiling joists are not exposed, locate one using a stud finder. They are
usually 16 to 25 inches apart. Once you find a suitable support, drill a 3/16” starter hole to screw the ceiling hooks into
and tighten until the shank is no longer visible. Do not adjust the chains as they are properly connected and able to
withstand approximately 500 lbs. of weight. We have replacement chain sets available for sale if needed.
MAINTENANCE - Sunwax Penetrating Wood FeederTM is recommended as an added protection for wood from insects
and weather. It is ideal for cumaru, revitalizes the look of older wood and helps maintain wood’s original hue. To clean
rope use soap, detergent or a mild bleach solution. Use a soft bristled scrub brush to work on any stains. Be sure to
rinse the ropes thoroughly after cleaning.
WARRANTY & RETURNS - Nags Head Hammocks products are guaranteed to be free of defects in both workmanship
and material. Prolonged exposure to weather conditions including snow, rain, and humidity are not covered under
the warranty, nor is damaged caused by normal wear, mildew, or improper care, including storage, maintenance,
and assembly. If you are not satisfied with an item, return it unused in its original packaging for a complete refund
or exchange. You can return it to any of our stores or to our warehouse, Nags Head hammocks, 305 Industrial Blvd.,
Greenville, NC 27834. Please include a copy of your receipt and your contact information.
