PCB Piezotronics ICP 102B18 User manual

Model 102B18
High frequency ICP® pressure sensor, 50 psi, 100 mV/psi, 3/8-24 mtg thd, accel. comp., ground
isolated
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

Drawing Number: 21075
Revision: C
ECN Number: 47023
OPERATION MANUAL FOR
QUARTZ PRESSURE SENSORS
SERIES 102
SERIES 113
1
1.0 INTRODUCTION
This series of miniature dynamic pressure sensors is
specifically designed for shock tube and blast wave
measurements and for other applications requiring
very high frequency, near non-resonant response.
The term used to describe the transient response of
this model series is “Frequency Tailoring” and it
encompasses several mechanical and electrical design
features coupled with stringent in-process
fabrication/test procedures with heavy emphasis on
the shock tube as a tool.
2.0 DESCRIPTION
Although this series consists of sensors with three
basic mechanical configurations and six different
sensitivities, each model is basically similar in
internal design.

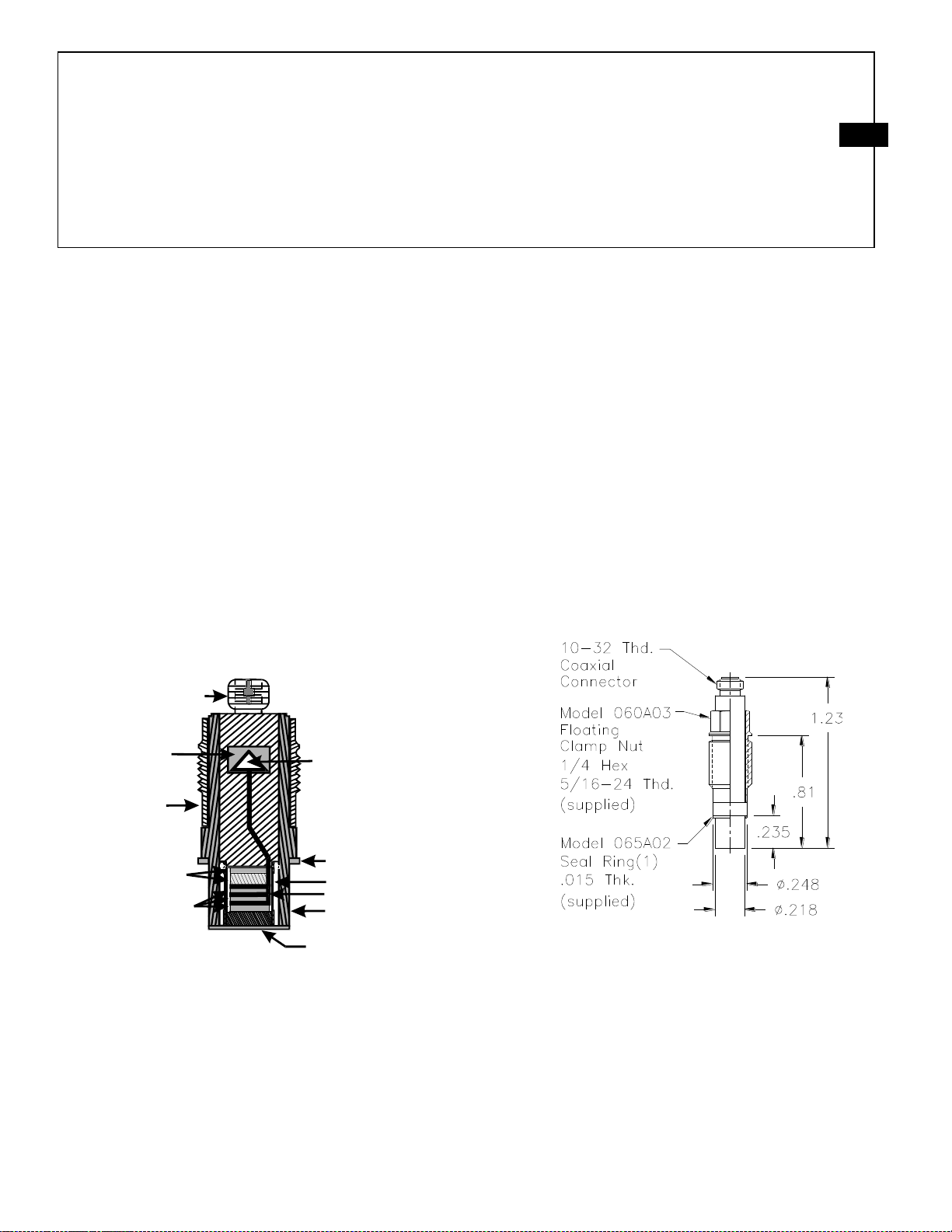

Typical ICP®Probe Style Sensor
Each utilizes the acceleration-compensated Series
113 quartz piezoelectric element coupled to a source
follower type miniature electronics. (See “General
Guide to ICP®Instrumentation,” G-0001B, for a
detailed description of the ICP®concept.)
The figure above shows the components of the basic
ICP®probe, i.e. the piezoelectric element and the
ICP®source follower amplifier. These components
are joined together as an inseparable sealed assembly
at the factory. Disassembly should not be attempted
in the field.
Series 113B2x are in a probe configuration and are
installed with a hollow clamp nut with 5/16-24
external threads. The housing of these models is at
electrical ground potential.
Series 113B3x are similar to the B2x Series with an
additional feature; all Invar construction. The all
Invar sensors are designed to have minimal
susceptibility to thermal transient events and are
specifically suited for high-temperature shock and
blast measurements.
Series 113: Probe Style Sensor
Series 102 consist of the basic 113 Series probe, as in
the above mentioned series, mounted in a 3/8-24
threaded mounting adaptor. The probe is installed at
the factory in an "off ground" configuration, i.e. the
probe body is insulated from the external mounting
adaptor body.
The Model 102A12 utilizes the same inner probe
design as the above two designs but in a 3/8-24
+_
Intergrated
Circuit
Amplifier
Seal Ring
Potting
Connector
Preload Sleeve
Electrodes
Diaphragm
Housing 0.218 Dia
Quartz Plates
Acceleration
Compensation
Mass and Plate
Mounting
Clamp Nut
M

Drawing Number: 21075
Revision: C
ECN Number: 47023
OPERATION MANUAL FOR
QUARTZ PRESSURE SENSORS
SERIES 102
SERIES 113
2
threaded adaptor with floating clamp nut to allow
adjustment of diaphragm mounting depth where it is
necessary to adapt to various wall thicknesses. These
models are supplied only as low-pressure (250 psi
and 100 psi) sensors and are also "off ground".
Models 102A21 and 102A22 are high-temperature
ICP® versions to 400 F (204 C), with a 3/8-24
straight threads adaptor and 1/8-27 NPT adaptor,
respectively.

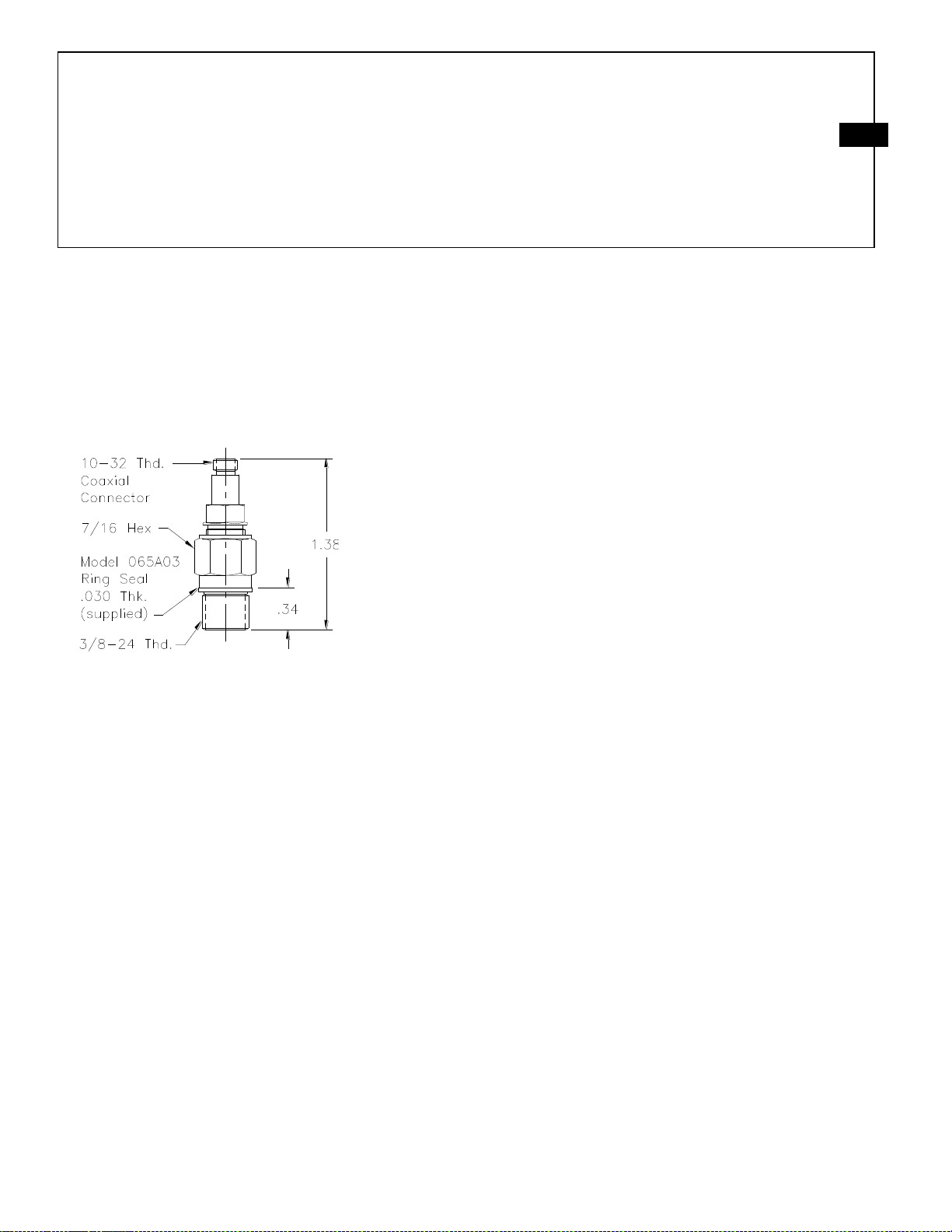

Series 102: Thread Mount Design, Ground-
Isolated Sensor
3.0 INSTALLATION
This manual contains outline and installation
information for your specific model.
Prepare mounting ports in accordance with
instructions given in specific installation drawings,
paying particular attention to sealing surfaces. These
surfaces must be smooth and free from chatter marks,
nicks and other irregularities which could preclude a
pressure tight seal.
To fully realize the high-frequency response
capabilities of this sensor series, flush mounting of
the diaphragm must be used.
In some cases, where flash temperatures such as those
generated by blasts and shock fronts are present, it
may be necessary to thermally insulate the diaphragm
to minimize signals generated by these effects.
Common black vinyl electrical tape has been found to
be an effective insulating material in many cases.
One or more layers may be used across the end of
diaphragm and adaptor.
A silicone rubber coating approximately .010” thick
has also been proven effective in many applications.
General Electric RTV type 106 is recommended.
Apply the rubber coating to the surface of the
diaphragm and allow it to cure in accordance with the
manufacturer’s instructions. (If you have ordered the
CA option, ablative coated models, further protection
will not be necessary.)
Although ICP®sensors have low-output impedance
and in general are not affected by moisture, in
extreme environments it is good practice to protect
cable connections with shrink tubing.
It is not necessary to use low-noise cable with this
sensor series. In fact, an optional Model 070B09
Solder Connector Adaptor allows the use of ordinary
two-wire cable if desired.
4.0 OPERATION
It is only necessary to supply the sensor with a 2 to 20
mA constant current at +20 to +30 VDC through a
current-regulating diode or equivalent circuit. (See
guide G-0001B for powering and signal utilization
information pertaining to all ICP®instrumentation).
Most of the signal conditioners manufactured by PCB
have an adjustable current feature allowing a choice
of input currents from 2 to 20 mA. In general, for
lowest noise (best resolution), choose the lower
current ranges. For driving long cables (to several
thousand feet), use higher current, up to 20 mA
maximum.
To operate system using a PCB signal conditioner:
1. Switch power on.
2. Wait several minutes for the IC ampli-
fier to turn on and stabilize.
3. Proceed with measurements.

Drawing Number: 21075
Revision: C
ECN Number: 47023
OPERATION MANUAL FOR
QUARTZ PRESSURE SENSORS
SERIES 102
SERIES 113
3
5.0 POLARITY
The sensors in this series produce a positive-going
output voltage for increasing pressure input.
6.0 LOW-FREQUENCY RESPONSE
The low-frequency response of an ICP®system is
determined by:
1. The discharge T.C. of the sensor
2. If AC-coupled at power unit, the coupling time
constant.
Consult Section 7.0 in guide G-0001B detailed
explanation of low-frequency characteristics of ICP®
instruments.
7.0 HIGH-FREQUENCY RESPONSE
Frequency tailoring and the very high-natural
frequency of the sensor give an extremely wide
usable frequency range (beyond 100 kHz).
Exceptionally fast response time (1 µsec) and clean,
virtually non-resonant response to rapid step
functions are also features of these sensors. As
mentioned previously, the diaphragm must be flush-
mounted to fully realize the high-frequency response
capabilities of this series.
8.0 CALIBRATION
Piezoelectric sensors are dynamic devices, but static
calibration means can be employed if discharge time
constants are sufficiently long. Generally, static
methods are not employed below several hundred
seconds time constant.
To employ static means, direct couple the sensor to
the DVM readout using a T-Connector from the
sensor jack or use the Model 484B in the calibrate
mode. Apply pressure with dead weight tester and
take readings quickly. Release pressure after each
calibration point.
For the shorter time constant, rapid step functions of
pressure are generated by a pneumatic pressure pulse
calibrator or dead weight tester and readout is by
recorder or storage oscilloscope.
PCB offers a complete calibration service. Consult
factory for details.
ICP is a registered trademark of PCB Piezotronics

Model Number
102B18 ICP® PRESSURE SENSOR Revision: C
ECN #: 44078
Performance ENGLISH SI
Measurement Range(for ±5 output) 50 psi 344.7 kPa
Useful Overrange(for ± 10 output) 100 psi 689.4 kPa [2]
Sensitivity(± 15 %) 100 m /psi 14.5 m /kPa
Maximum Pressure(static) 1000 psi 6895 kPa
Resolution 1.0 mpsi 0.007 kPa [1]
Resonant Frequency ≥ 500 kHz ≥ 500 kHz
Rise Time(Reflected) ≤ 1.0 µ sec ≤ 1.0 µ sec
Low Frequency Response(-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤ 1.0 % FS ≤ 1.0 % FS [3]
Environmental
Acceleration Sensitivity ≤ 0.002 psi/g ≤ 0.0014 kPa/(m/s²)
Temperature Range(Operating) -100 to +275 °F -73 to +135 °C
Temperature Coefficient of Sensitivity ≤ 0.03 %/°F ≤ 0.054 %/°C [1]
Maximum Flash Temperature 3000 °F 1650 °C
Maximum ibration 2000 g pk 19,600 m/s² pk
Maximum Shock 20,000 g pk 196,000 m/s² pk
Electrical
Discharge Time Constant(at room temp) ≥ 1.0 sec ≥ 1.0 sec
Excitation oltage 22 to 30 DC 22 to 30 DC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias oltage 8 to 15 DC 8 to 15 DC
Electrical Isolation 108 Ohm 108 Ohm
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material Stainless Steel Stainless Steel
Diaphragm Invar Invar
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.50 oz 14.3 gm
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
ICP® is a registered trademark of PCB Group, Inc.
CA - Ablative Coating
H- Hermetic Seal
Sealing Welded Hermetic Welded Hermetic
M- Metric Mount
Supplied Accessory : Model 065A40 Seal ring 0.435" OD x 0.397" ID x 0.030" thk brass (3)
replaces Model 065A03
N- Negative Output Polarity
S- Stainless Steel Diaphragm
Diaphragm 316L Stainless Steel 316L Stainless Steel
W- Water Resistant Cable
NOTES:
[1]Typical.
[2]For +10 volt output, minimum 26 DC supply voltage required. Negative 10 volt output may be
limited by output bias.
[3]Zero-based, least-squares, straight line method.
[4]See PCB Declaration of Conformance PS023 for details.
SUPPLIE ACCESSORIES:
Model 065A03 Seal ring 0.435" OD x 0.377" ID x 0.030" thk brass (3)
3425 Walden Avenue, Depew, NY 14043
Phone: [phone]
Fax: [phone]
E-Mail: info pcb.com
[4]
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
Entered: AP Engineer: RPF Sales: RWM Approved: RPF Spec Number:
Date: 4/9/2015 Date: 4/9/2015 Date: 4/9/2015 Date: 4/9/2015 40749

ABLATIVE INSTALLATION
1
1
2
2
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
XX ±0.13
ANGLES 2 DEGREES
DIMENSIONS IN INCHES
DECIMALS XX ±.01
ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
DECIMALS X ± 0.3
FILLETS AND RADII
0.07 - 0.13
INSTALLATION DRAWING
6450
1 OF 12.5X
MODELS 101A & 102A
PRESSURE SENSOR
XXX ±.005
NJF 10/06/22 JDM 10/06/22 AJA 10/06/22
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
1"≤LENGTH < 1' = +1"/ - 0
1'≤LENGTH < 5' = +2"/ - 0
5'≤LENGTH < 100' = +6"/ - 0
100'≤LENGTH = +1'/ - 0
CABLE TOLERANCES IN ENGLISH CABLE TOLERANCES IN METRIC
2.54cm ≤LENGTH < 30.5cm = +2.54cm/ - 0
30.5cm ≤LENGTH < 1.5m = +5.1cm/ - 0
1.5m ≤LENGTH < 30.5m = +15.2cm/ - 0
30.5m ≤LENGTH = +30.5cm/ - 0
MOUNTING HOLE PREPARATION:
3/8-24 UNF - 2B THRU
.437± .001 [11.13± .03] .030 [.76]
6450
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
REVISIONS
REV DESCRIPTION DIN
EUPDATED OVERALL LENGTH TOLERANCE, UPDATED NOTE 5 53183
1.47 .05 37.4 1.3
[]
.31 [7.9]
.34 [8.6]
.437 [11.10] HEX
2
MODEL 065A03
BRASS SEAL
MODEL 065A44
COPPER SEAL
5
CLAMP NUT
10-32 UNF - 2A
ELECTRICAL CONNECTOR
3/8-24 UNF - 2A
REFER TO SPEC SHEET. MODEL 065M29 ST STL SEAL AVAILABLE
BLACK VINYL ELECTRICIANS TAPE HAS BEEN FOUND TO BE AN EFFECTIVE ABLATIVE
MATERIAL, AS IS DC-4 SILICON GREASE
"CA" OPTION ONLY
MOUNTING TORQUE ON .437 [11.10] HEX: 5-8 FT-LBS [6.78-10.85 Nm]
ABOVE INSTALLATION SHOWN FOR WALL THICKNESS OF .34 [8.6]. THICKER
WALLS .75 [19.0] TO CLEAR .437 [11.10] HEX AND ALLOW FOR SOCKET WRENCH
1
2
3
4
5
.34 [8.6] 1
.020
.015
.51
.38
[]
ABLATIVE COATING 34
MODEL 061A SERIES
ADAPTOR BODY
MATERIAL: 17-4 PH
