Kolibri Rook User manual

USER MANUAL

Count on Kolibri
H
This manual contains important information on safety
measures and operational features. Please read it
carefully before operating your currency counter and
keep it for future reference.
If you have questions about your Kolibri Rook and its
operation, please contact technical support at
www.kolibriusa.com.

Rook Currency Counter
Table of contents:
1. INTRODUCTION
1.1 ABOUT THE KOLIBRI ROOK _____________________________________________ 1
1.2 BOX CONTENTS_______________________________________________________ 1
1.3 VIEWS OF THE KOLIBRI ROOK __________________________________________ 2
1.4 CONTROL PANEL _____________________________________________________ 4
1.5 SPECIFICATIONS ______________________________________________________ 5
1.6 IMPORTANT SAFETY NOTES ____________________________________________ 5
2. GETTING STARTED
2.1 POWERING UP _______________________________________________________ 6
2.2 LOADING THE HOPPER ________________________________________________ 6
2.3 CARRYING THE UNIT __________________________________________________ 6
3. OPERATING MODES
3.1 COUNT MODE________________________________________________________ 7
3.2 BATCH MODE ________________________________________________________ 7
3.3 ADD MODE __________________________________________________________ 8
3.4 ADD + BATCH MODE _________________________________________________ 8
4. DETECTION FEATURES
4.1 UV COUNTERFEIT DETECTION __________________________________________ 8
4.2 MG COUNTERFEIT DETECTION _________________________________________ 9
4.3 DOUBLE NOTE DETECTION_____________________________________________ 9
4.4 HALF NOTE DETECTION________________________________________________ 9
4.5 CHAIN NOTE DETECTION _____________________________________________10
5. MAINTENANCE, TROUBLESHOOTING, WARRANTY, CONTACT INFORMATION
5.1 MAINTENANCE ______________________________________________________10
5.2 TROUBLESHOOTING__________________________________________________11
5.3 WARRANTY__________________________________________________________12
5.4 CONTACT INFORMATION ____________________________________________12

Count on Kolibri
1
1.1 ABOUT THE KOLIBRI ROOK
The Kolibri Rook currency counter is a cash processing machine that is sophisticated
yet simple to operate. It will save you time and reduce counting errors by swiftly and
precisely counting stacks of bills at speeds up to 1,400 bills per minute. The Kolibri Rook
will allow you to batch your desired amount of bills into separate stacks. All of these
features come with a built-in counterfeit detection system that uses ultraviolet and
magnetic ink detection which will alert the user of any suspicious bills.
1.2 BOX CONTENTS
• Kolibri Rook Currency Counter
• Power cord
• User manual
INTRODUCTION
1.

Rook Currency Counter

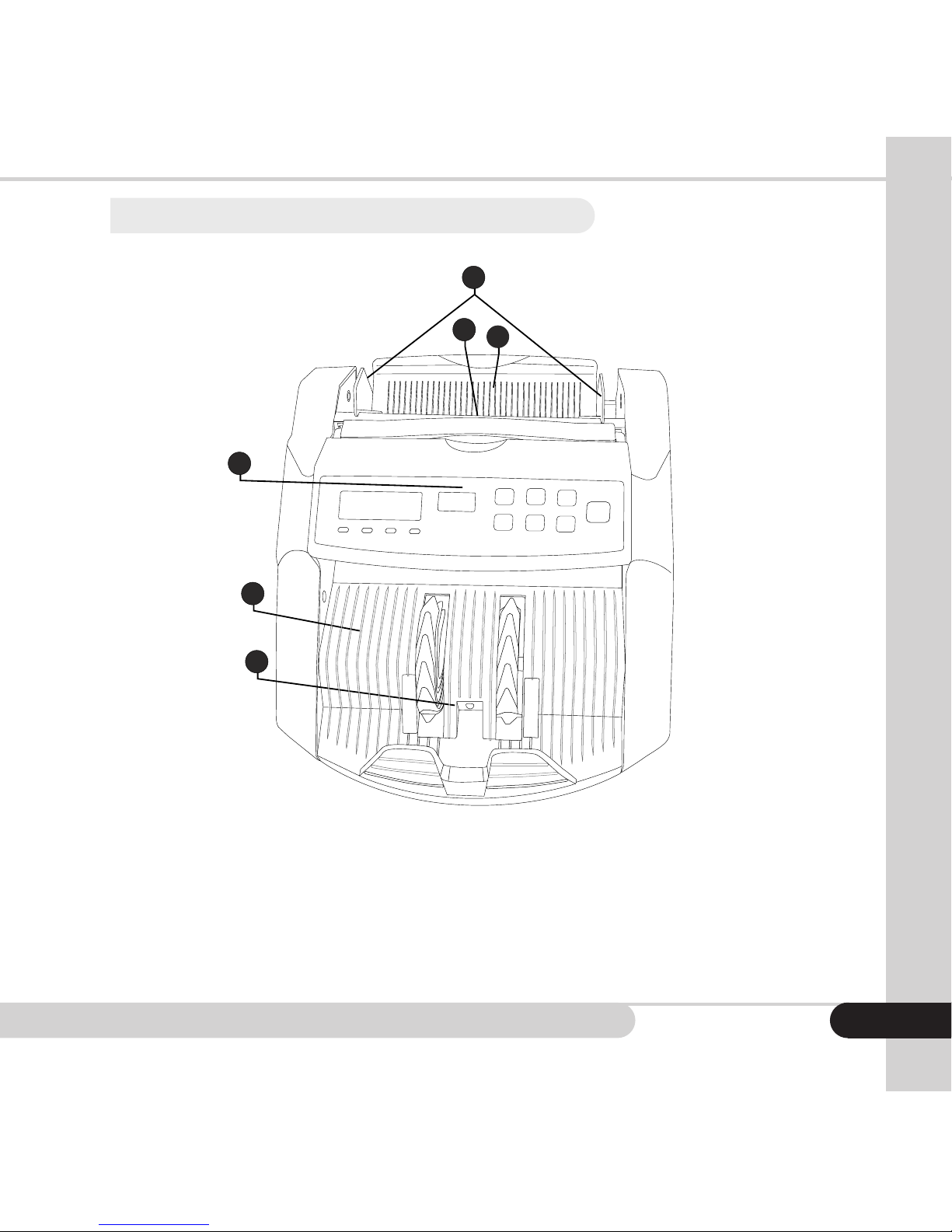

1.3 VIEWS OF THE KOLIBRI ROOK
3
2
1
1
3
4
6
5
2
5
6
4
. Bill Guides
. Hopper Sensor
. Hopper
. Control Panel
. Stacker
. Stacker Sensor
2

Count on Kolibri
3
2
1
1
3
4
6
5
2
5
6
4
. Carrying Handle
. Feed Gap Adjuster
. Power Switch
. RJ11 Port
. AC Power
. Fuse
3

Rook Currency Counter
TM
1 2 3
5
4

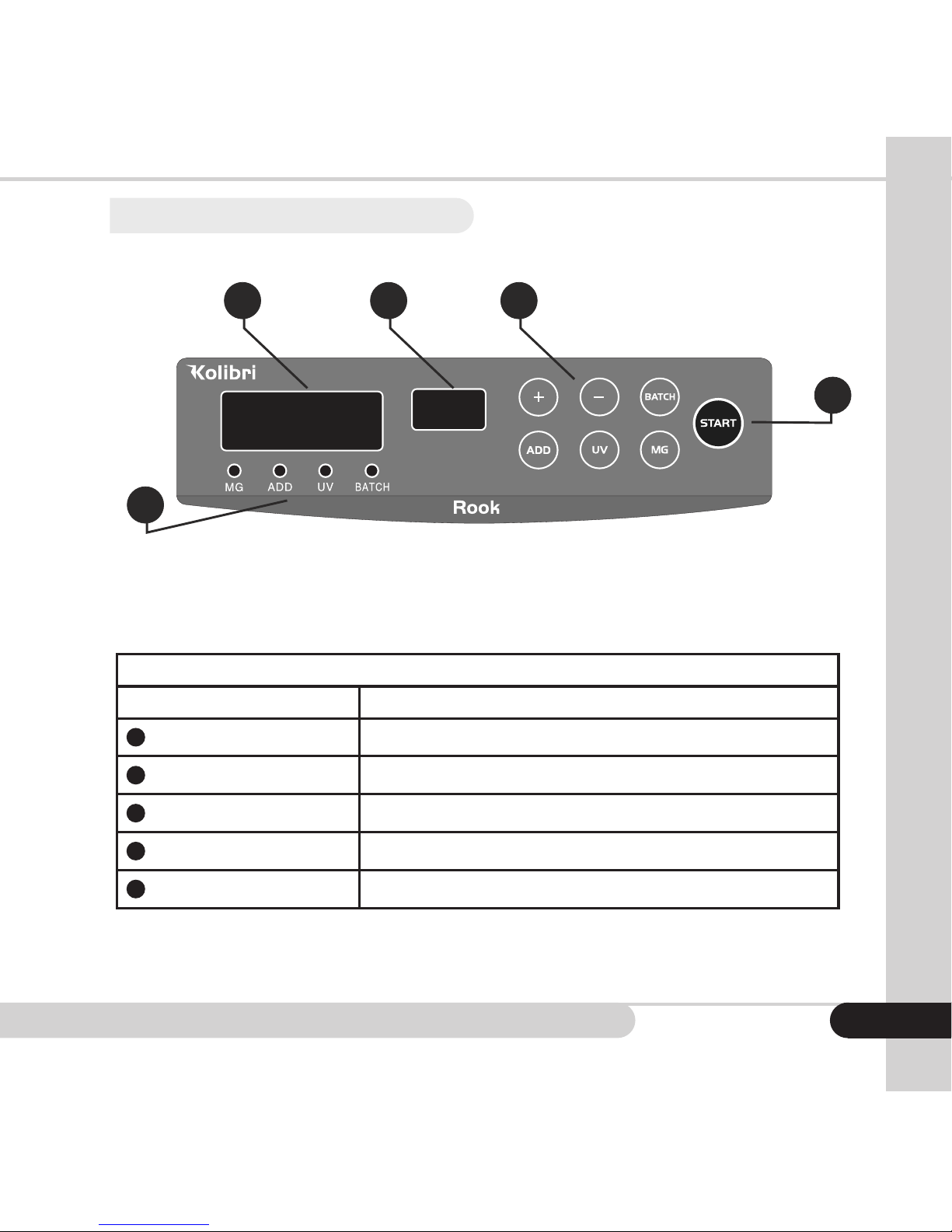

1.4 CONTROL PANEL
Control panel
Key Function
1
. Primary Display Shows total count
2
. Secondary Display Shows stacker count
3
. Control Buttons Controls settings including batch and detection modes
4
. Start Button Starts the count (when not in auto-start mode)
5
. Indicators Indicates modes and counterfeit detection settings
4

Count on Kolibri
1.5 SPECIFICATIONS
Counting speed: 1400 bills/min
Hopper capacity: 300 new or 200 circulated
Stacker capacity: 300 new or 200 circulated
Weight: 12 lb (5.4 kg)
Dimensions: 9.7”w x 11.5”d x 7”h
(246 x 292 x 177mm)
Power source: 110V 60Hz <70W
1.6 IMPORTANT SAFETY NOTES
When using this product, basic safety precautions should always be followed,
including the following:
• Do not use this product in areas where it may be exposed to water or
any other liquids.
• Unplug this product from the wall outlet before cleaning. Use a damp
cloth or air duster to clean the unit.
• To avoid the risk of electrical shock, do not disassemble this unit.
Disassembling will expose you to dangerous voltages and other safety
risks. Incorrect reassembly may cause electrical shock when the unit is
subsequently used.
• Only use the power cord supplied with the unit. Plug the power cord
into a properly grounded wall outlet. Do not remove the ground pin
from the power cord. Failure to properly ground the unit can result in
severe injury or re.
• Make sure the device is installed on a at surface. Do not operate
the unit in areas with high temperature, humidity or smoke as these
conditions may impede performance.
• This product is designed for indoor use in a ventilated environment.
Keep the unit away from direct sunlight and strong magnetic elds
which may interfere with the counterfeit detection sensors.
• When not using the unit for an extended period of time, disconnect the
power cord from the wall outlet.
5

Rook Currency Counter
GETTING STARTED
2.
2.1 POWERING UP
Please make sure the hopper and stacker are empty and turn the power switch on.
The unit will conduct a self-check by spinning the counting wheels several times. The
screen will display “0” when the unit is ready to operate.
2.2 LOADING THE HOPPER
Loading the hopper correctly is important in order to avoid jams and speed up the
operation of the unit. Follow the steps as shown below to properly load bills into the
hopper.
1
2
3
1 2
3
1
2
3
2.3 CARRYING THE UNIT
1. Grasp handle 2. Pull handle up
6

Count on Kolibri
OPERATING MODES
3.
3.1 COUNT MODE
After turning the machine on it will default to Count mode.
To return to Count mode from another mode, press the ADD and BATCH buttons
until both ADD and BATCH indicators are turned off.
To count bills, place them in the hopper and follow the procedure described in
2.2 Loading the Hopper. The machine will start counting automatically and will
move the bills from the hopper to the stacker as it counts them. The machine will
stop counting when the hopper is completely emptied. The counted number of
bills will be displayed. Remove the bills that have been counted from the stacker
and any additional bills to be counted into the hopper. The Screen will clear itself
of the previous count before counting the new stack.
3.2 BATCH MODE
To switch to Batch mode, press the BATCH button. You may press the BATCH
button repeatedly to cycle through different preset batch quantities, or you
may use the ”–“ and “+” buttons to manually select your desired batch size.
The machine will start counting automatically after bills are placed in the
hopper. When it reaches the set batch amount it will automatically stop and
the number of bills counted will be displayed on the screen. When the stacker
is emptied, the machine will automatically continue to count up to the preset
batch amount again.
If hopper runs out of bills before a batch is completed, the machine will emit
three beeps and ash the current count on screen. At this point the user may
add bills to the hopper to complete the batch, or remove the incomplete batch
from the machine.
7
